Feasycom FSC BT691 Ultra low power DA14531 BLE Data Transmission Bluetooth 5.1 Wireless Module Supports UART/I2C/SPI
- Category: >>>
- Supplier: Shenzhen Feasycom Co. Ltd.
Share on (1600946241925):
Product Overview
Description
Product Description

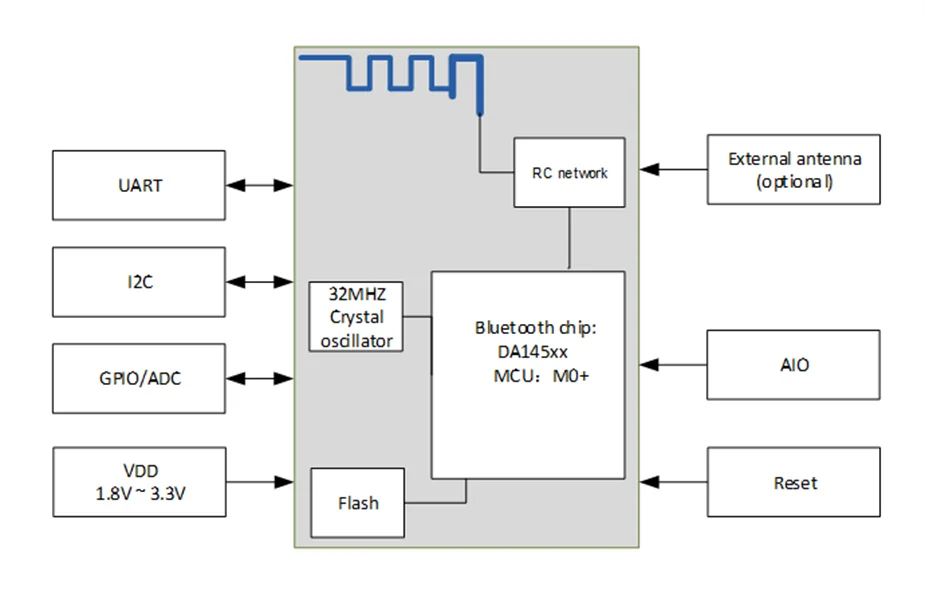

FSC-BT691 is an ultra-low-power Bluetooth module that uses the Dialog BLE 5.1 chip DA14531, supports UART/I2C/SPI interfaces.
FSC-BT691 is an ultra-low size Bluetooth 5.1 module with onboard antenna.

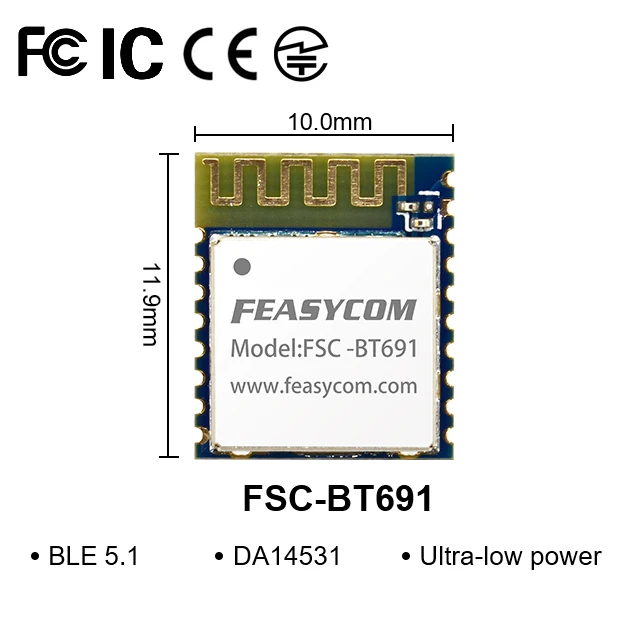

Its ultra-small size is only 10mm * 11.9mm * 2mm, which provides users with ultra-high flexibility and multiple possibilities.
Main Features
* Qualified Bluetooth v5.1 specifications
* Postage stamp sized: 10mm x 11.9mm x 2mm
* Low power

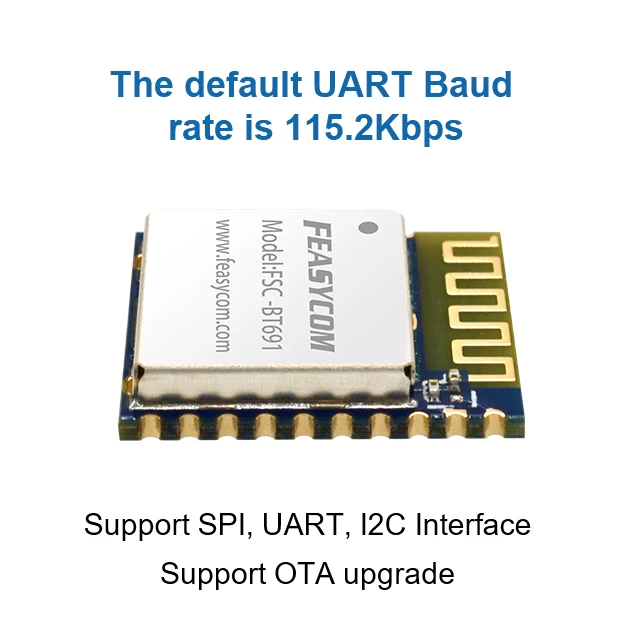

* The default UART Baud rate is 115.2Kbps
* GAP, ATT, GATT, SMP, L2CAP profiles
* Bluetooth stack profiles: all BLE protocols
* Support SPI, UART, I2C interface
* Support the OTA upgrade
* Integrated temperature sensor
* Operating Temperature: -40°C to +85°C
* Available certifications: FCC、CE、IC、KC、TELEC、SRRC
* Postage stamp sized: 10mm x 11.9mm x 2mm
* Low power
* The default UART Baud rate is 115.2Kbps
* GAP, ATT, GATT, SMP, L2CAP profiles
* Bluetooth stack profiles: all BLE protocols
* Support SPI, UART, I2C interface
* Support the OTA upgrade
* Integrated temperature sensor
* Operating Temperature: -40°C to +85°C
* Available certifications: FCC、CE、IC、KC、TELEC、SRRC
The device is suitable for disposables, wireless sensor nodes, beacons, proximity tags and trackers, smart HID devices (stylus,keyboards, mice, and trackpads), toys, and medical and industrial applications.
Specification
Bluetooth Module Model | FSC-BT691 |
Bluetooth version | BLE 5.1 |
Chipset | DA14531 |
Dimension | 10mm x 11.9mm x 2mm |
Certifications | FCC、CE、IC、KC、TELEC、SRRC（BT691+Shield Case） |

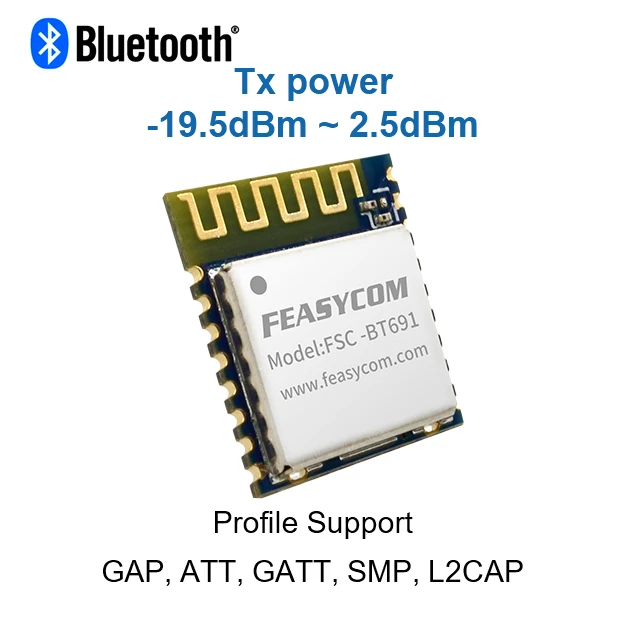

Transmit power | -19.5dBm ~ 2.5dBm |
Interfaces | UART, I2C, SPI |
Profiles | GATT Server/ GATT Client optional |
Frequency | 2.402-2.480 GHz |
Power supply | 1.65V-3.6V |
Antenna | PCB onboard antenna, supports external antenna |
Power Consumption | 1.6uA (Sleep Mode) |
Storage Temperature | -40℃ to +85℃ |
Operating Temperature | -40℃ to +85℃ |
Company Profile
Feasycom focuses on the researching and developing of IoT (internet of things) products, including Bluetooth Modules
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
,Bluetooth&Wi-Fi modules and beacons. With more than 10-year experiences in the wireless connectivity, which ensure us have the ability of R&D, manufacturing, QC and shortening product customization cycle to thousands of diverse customer worldwide.
Feasycom's engineering and design services include:
* SDK
* APP Support
* PCB Design

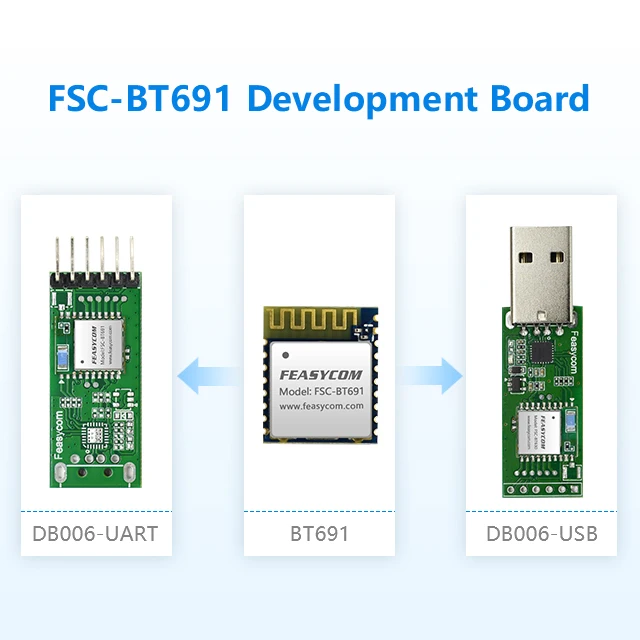

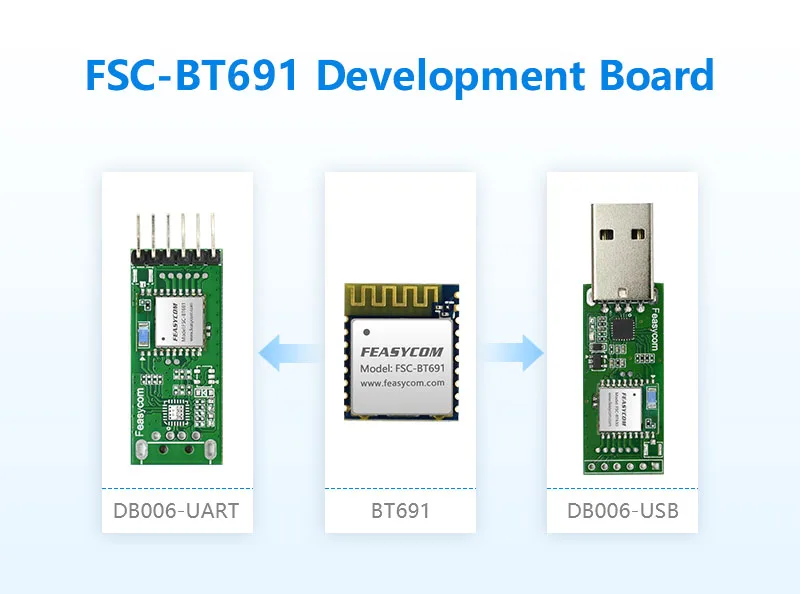

* Development Board
* Firmware Development
*Depth Customization
* Certification Request
* Turn-Key Production Testing & Manufacturing
Our products and services mainly apply to Automotive, Point of Sale, Home Automation, Healthcare and Engineering, Banking, Computing, Vending Business, Location,
Lighting and more. Aiming at "Make Communication Easy and Freely", Feasycom is dedicated to design and develop high-quality products, efficient services to customers, for today, and all days to come.
Exhibition
Certifications
Customer Evaluation
Packing & Delivery
FAQ
Q1.Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.
Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.
Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
