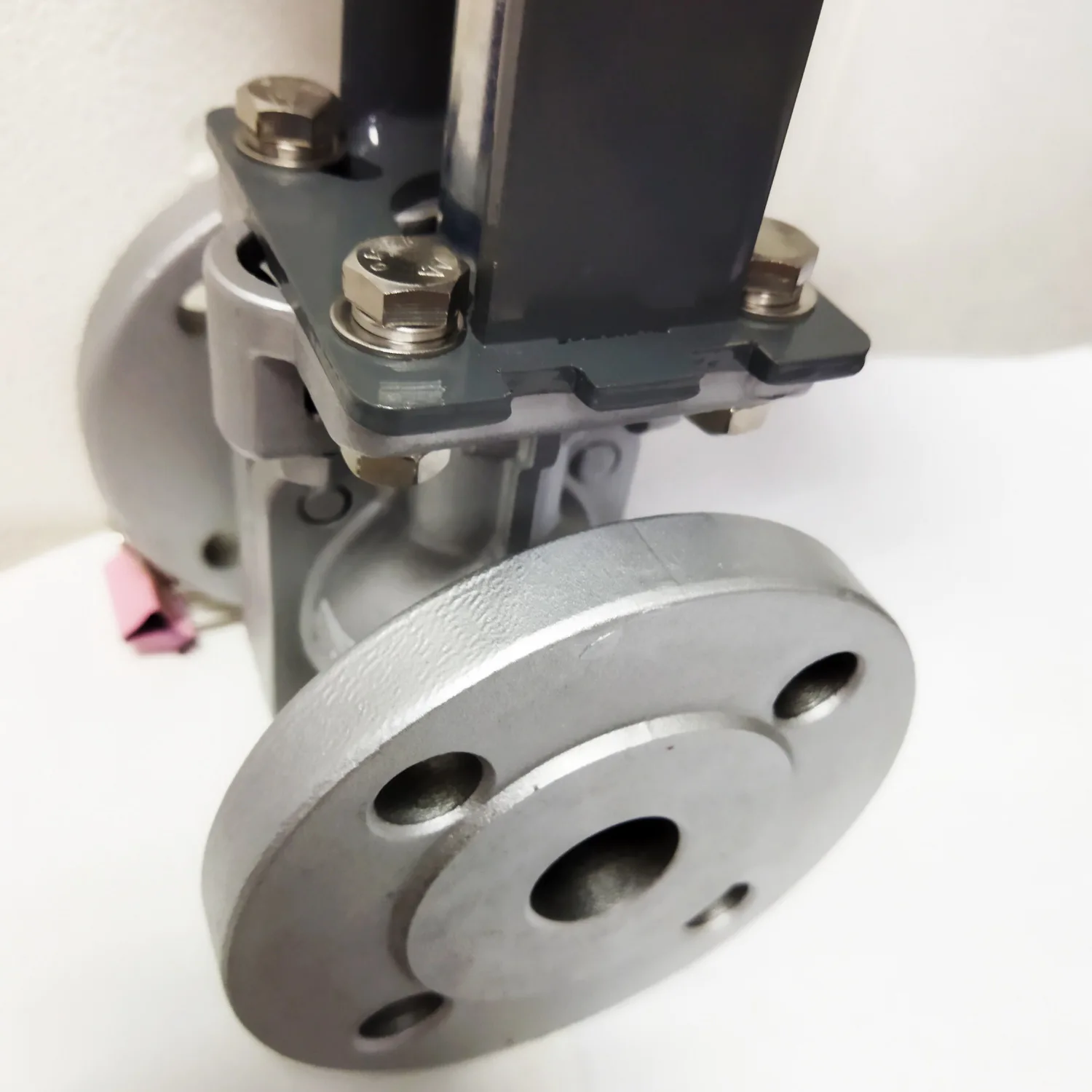

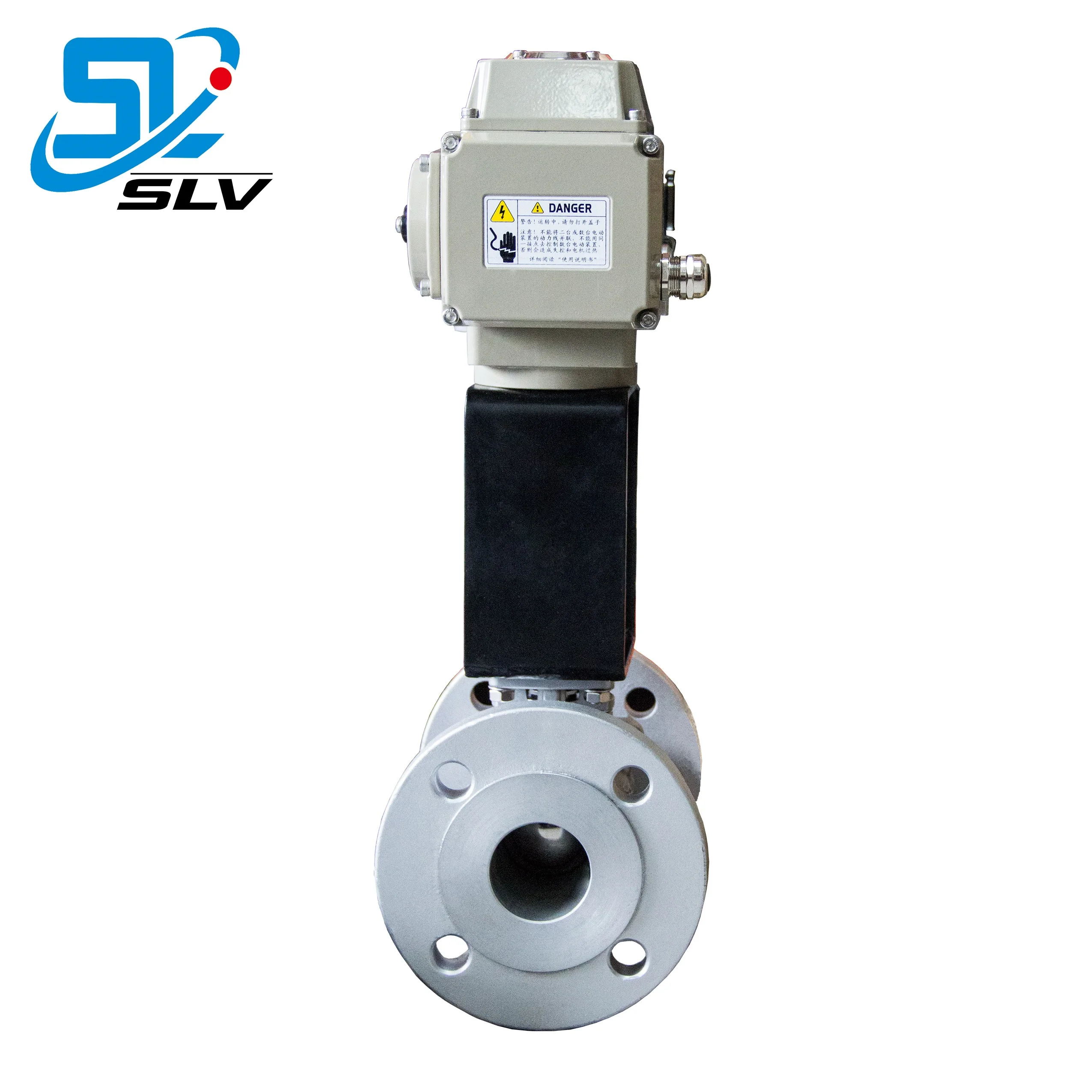

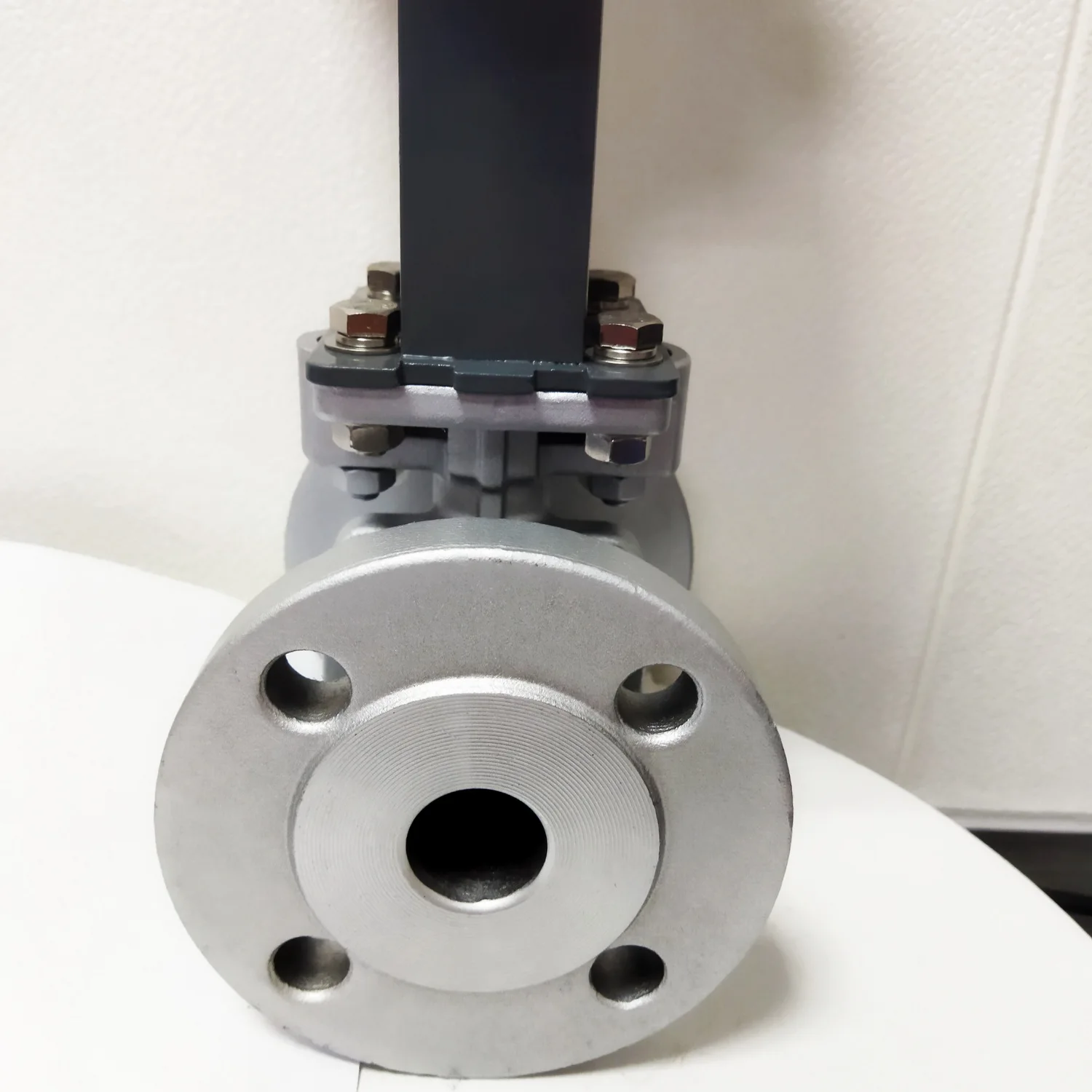

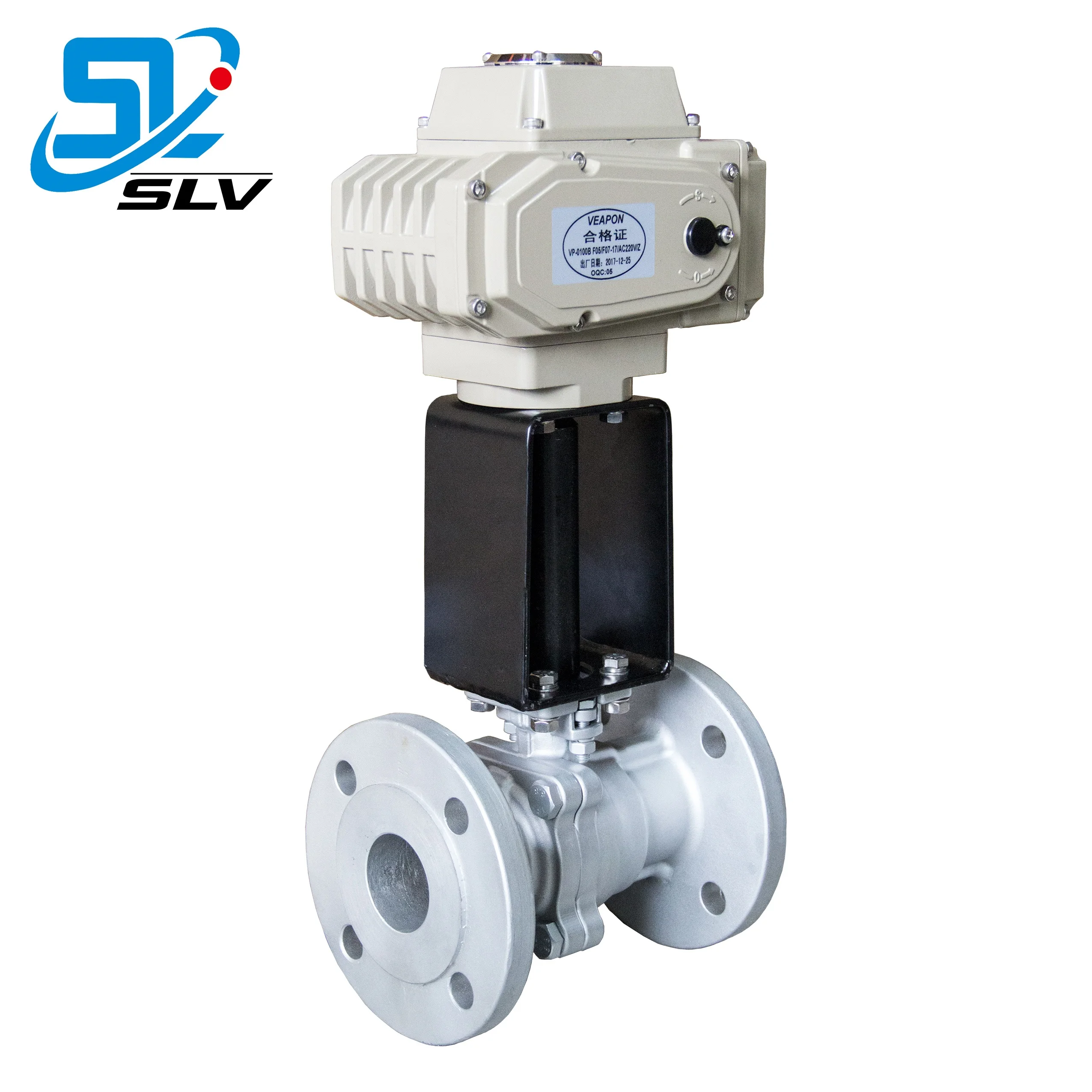

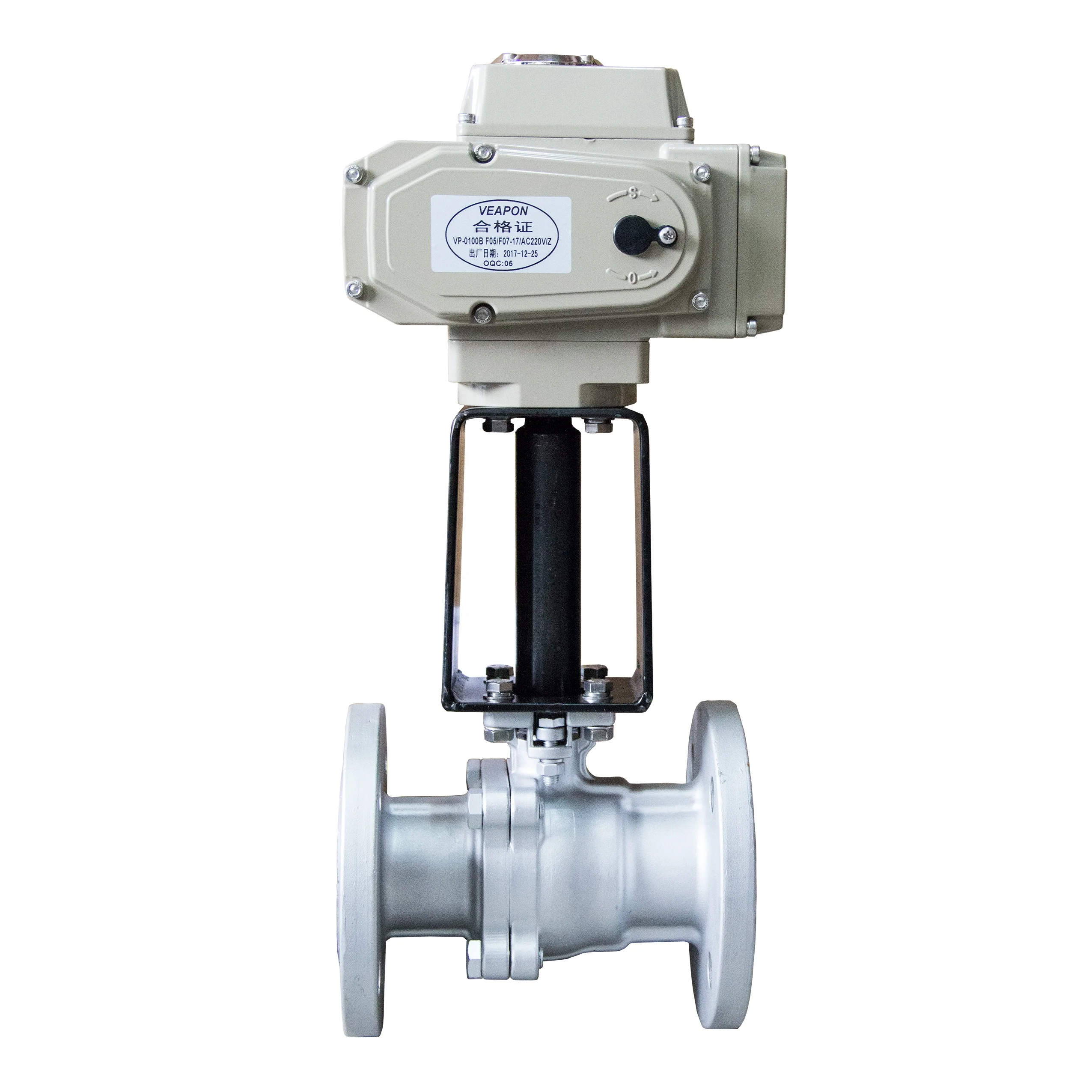

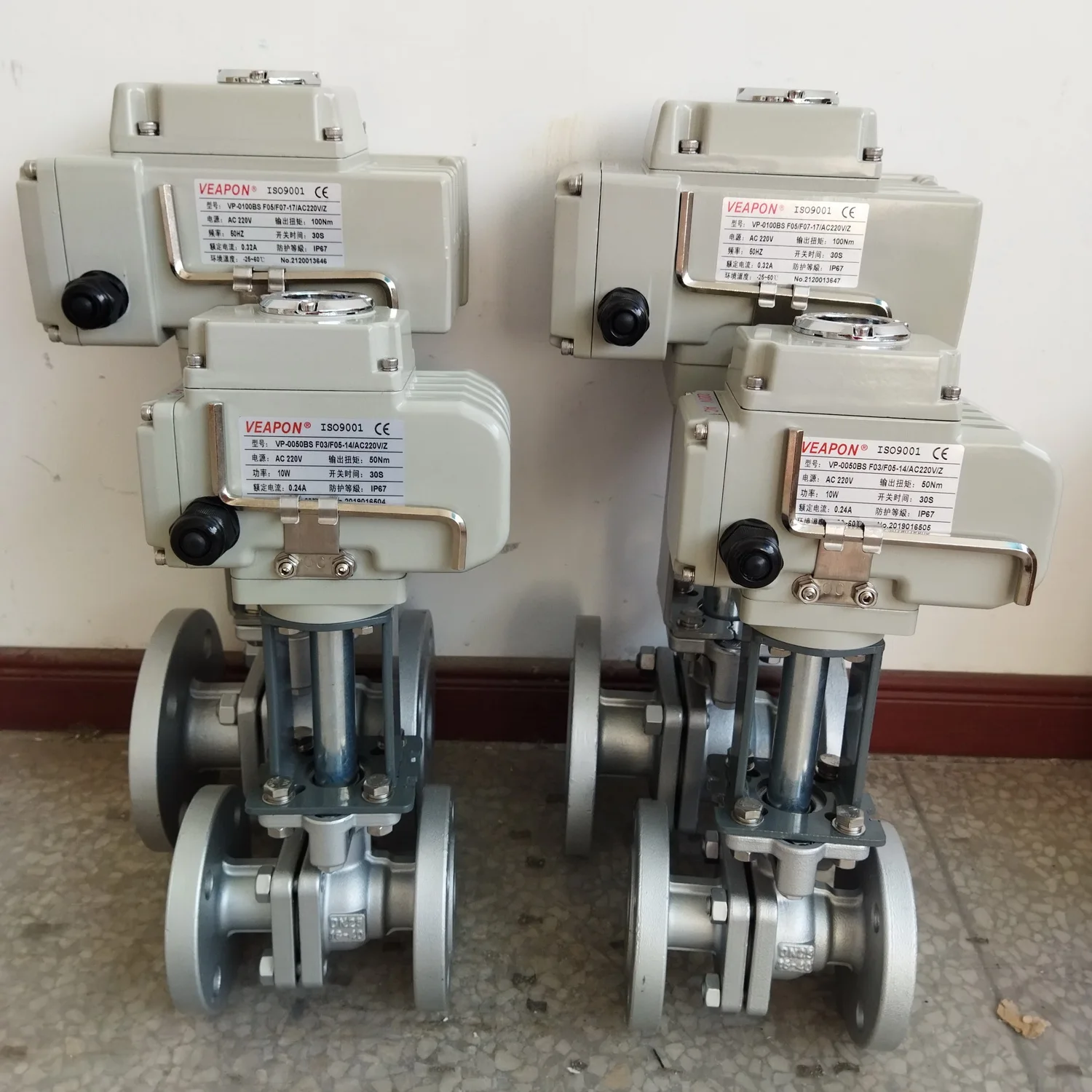

High quality Stainless Steel ball valve electric automatic control high temperature ball valve
- Category: >>>
- Supplier: Jiangsu Shoulong Valve Co. Ltd.
Share on (1600946279704):
Product Overview
Description
Product Description

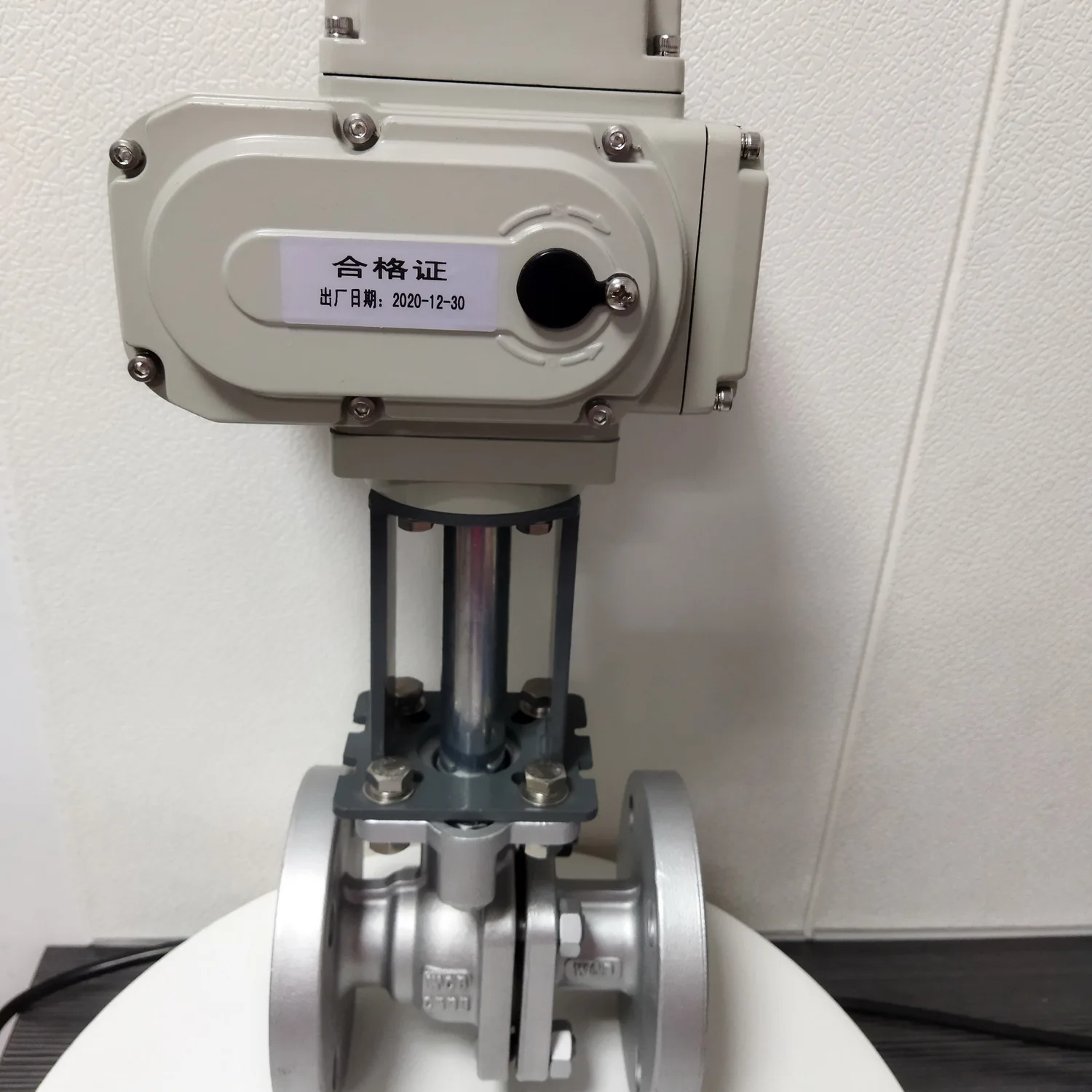

High temperature ball valve
| size: | DN15-DN300 |
| pressure: | PN16 |
| valve body material: | WCB,SS304,SS316,SS316L |
| seal material: | PTFE,PPL,PEEK,hard seal |
| medium temperature: | 20℃-300℃ |
| Control type: | on-off or regulation |
| Drive connection: | flange ISO5211 |
This kind of valve is mainly used for high temperature steam.
The valve seal will be different according to the medium temperature.
We are very good at this kind of valve.When you need it, welcome to contact us!

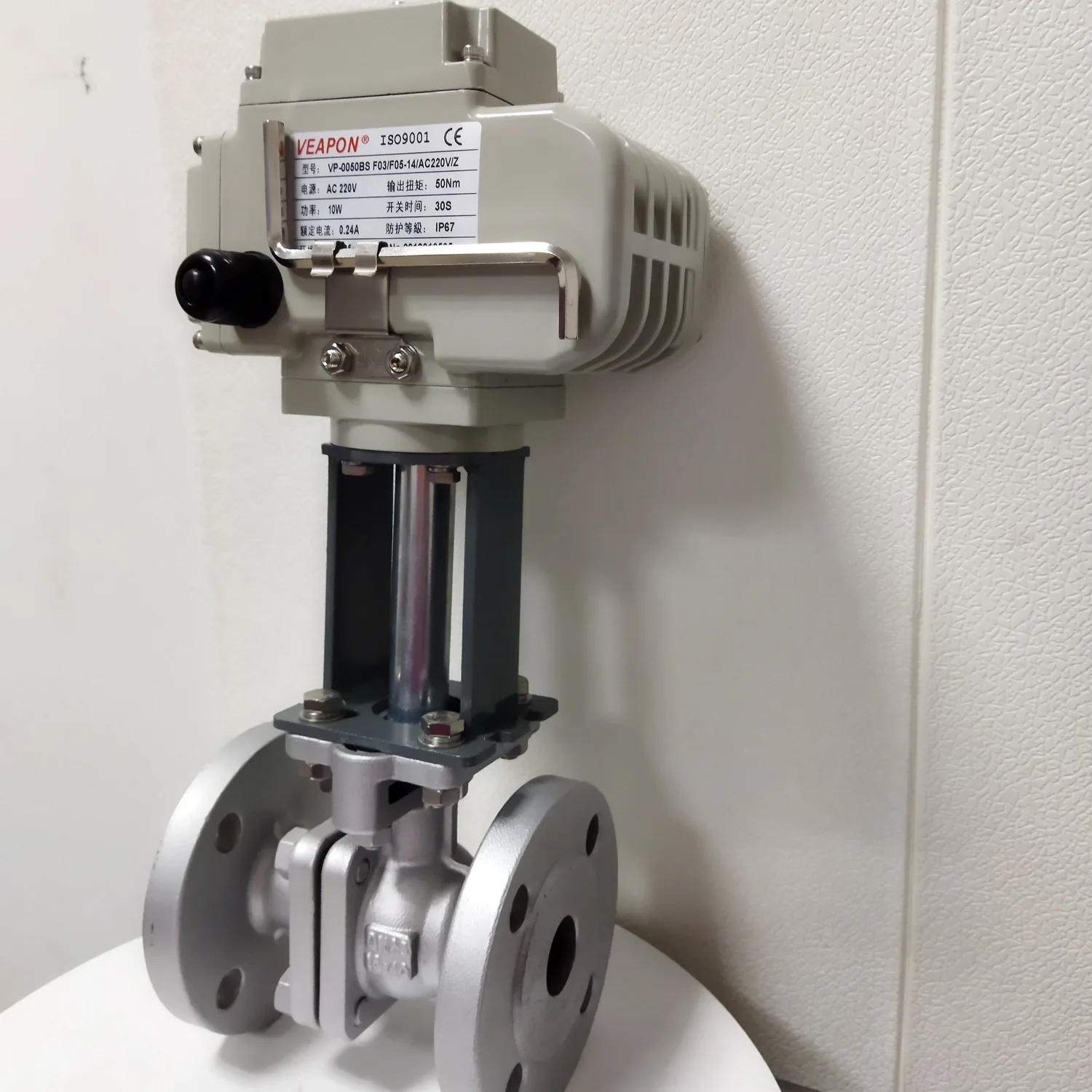

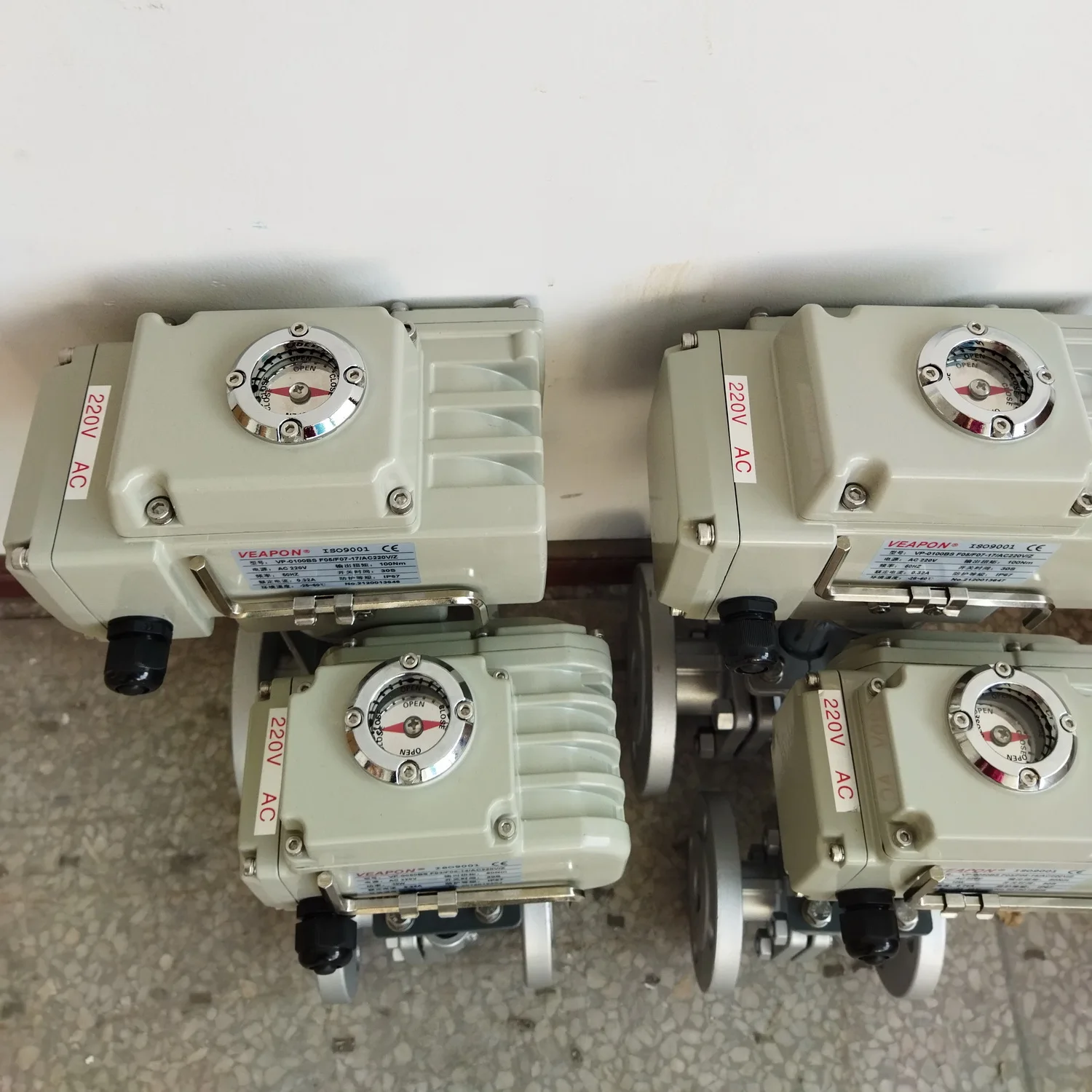

Electric actuator
On-off type: feedback signal: Passive contact signal/4-20mA/ resistance signals.
Regulation type: Input signal 4-20mA/0-10V/1-5V;
Feedback signal: 4-20mA/0-10V/1-5V
Voltage: AC220V\\380V\\110V\\24V,DC12V\\24V etc; Special voltage can be customized.
Explosion-proof class: Can be choose explosion-proof type EX d IIBT4
| TYPE | CONTROL TYPE | FUNCTION |
| Electric actuator | on-off type | full opening and full closing limit positions. |
| intelligent regulation typefeedback type | During the process of actuation,the actuator feedbacks the valve position signals to the central control system at the same time. | |
| intelligent regulation type | The intelligent module drives the valve to the appropriate opening positions on receiving commands from the central control system based on changes in the controlled variables in the pipeline. |
Electric Valve Slection And Configuration Table
actuator model | standard | optional | power supply | soft seal butterfly valve | hard seal butterfly valve | ventiation butterfly valve | ball valve |
| time/torque | time/torque | ≤1.0Mpa | ≤1.6Mpa | ≤1.0Mpa | ≤1.6Mpa | ||
| VP-0050 | 30S/50N.m | 10S/15N.m | AC24V AC110V AC220V AC380V DC12V DC24V DC220V | DN25~DN65 | DN40 | DN50-DN80 | DN15-DN32 |
| 20S/30N.m | |||||||
| VP-0100 | 30S/100N.m | 15S/50N.m | DN80~DN125 | DN40-DN65 | DN100-DN200 | DN40-DN50 | |
| 20S/60N.m | |||||||
| VP-0200 | 30S/200N.m | 9S/80N.m | AC24V AC110V AC220V AC380V DC24V DC220V | DN150-DN200 | DN80-DN125 | DN250-DN300 | DN65-DN80 |
| 15S/100N.m | |||||||
| 60S/200N.m | |||||||
| VP-0400 | 30S/400N.m | / | DN200~DN250 | DN125-DN150 | DN350-DN400 | DN80-DN100 | |
| VP-0500 | 30S/500N.m | 9S/150N.m | DN250~DN300 | DN150-DN200 | DN400-DN500 | DN100-DN125 | |
| 15S/250N.m | |||||||
| 20S/300N.m | |||||||
| 20S/300N.m | |||||||
| VP-0600 | 30S/600N.m | / | DN300 | DN200 | DN500-DN800 | DN125 | |
| VP-1000 | 50S/100N.m | 15S/300N.m | AC24V AC110V AC220V AC380V
| DN300-DN350 | DN250 | DN600-DN800 | DN125-DN150 |
| 30S/800N.m | |||||||
| VP-2000 | 100S/2000N.m | / | DN400-DN500 | DN300-DN400 | DN800-DN1000 | DN200-DN250 |
Company Information
SLV-Jiangsu Shoulong Valve Co., Ltd. is a comprehensive enterprise engaged in research & development, produciton, sales and import & export of automatic control valves.
Our company has a complete set of prodction and testing equipment, perfect organization and quality system and a number of high-quality professional technicians and also has passed ISO9001-2000, TRD100, CE, API6D, API607, DNV, CNS and other certification successively.
PROFESSIONAL VALVE PRODUCITON
We are the BABYSEAT of the FLUID.
Cutomer Service
FAQ
Q & A:
Q: Can we visit your factory before placing orders?
A: Yes, sure. Welcome to visit our factory at any time.
Q: How long is your delivery time?
A: 5-10 days in stock. 15-20 days if the goods are not in stock.
Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample with favorable price. The amount will be return after bulk order.
Q: What are your terms of payment?
A: Order<=1000USD, 100% in advance. Order>=1000USD, 30% T/T in advance,70%balance before shipment.
Q: Do you provide related accessories?
A: Yes, we can provide solenoid valve, locator, air filter regulator, limit switch and so on.
Q: How long is the warranty period for your product?
A: 18months after shipment. After the warranty period, we could also provide after-sales service.
