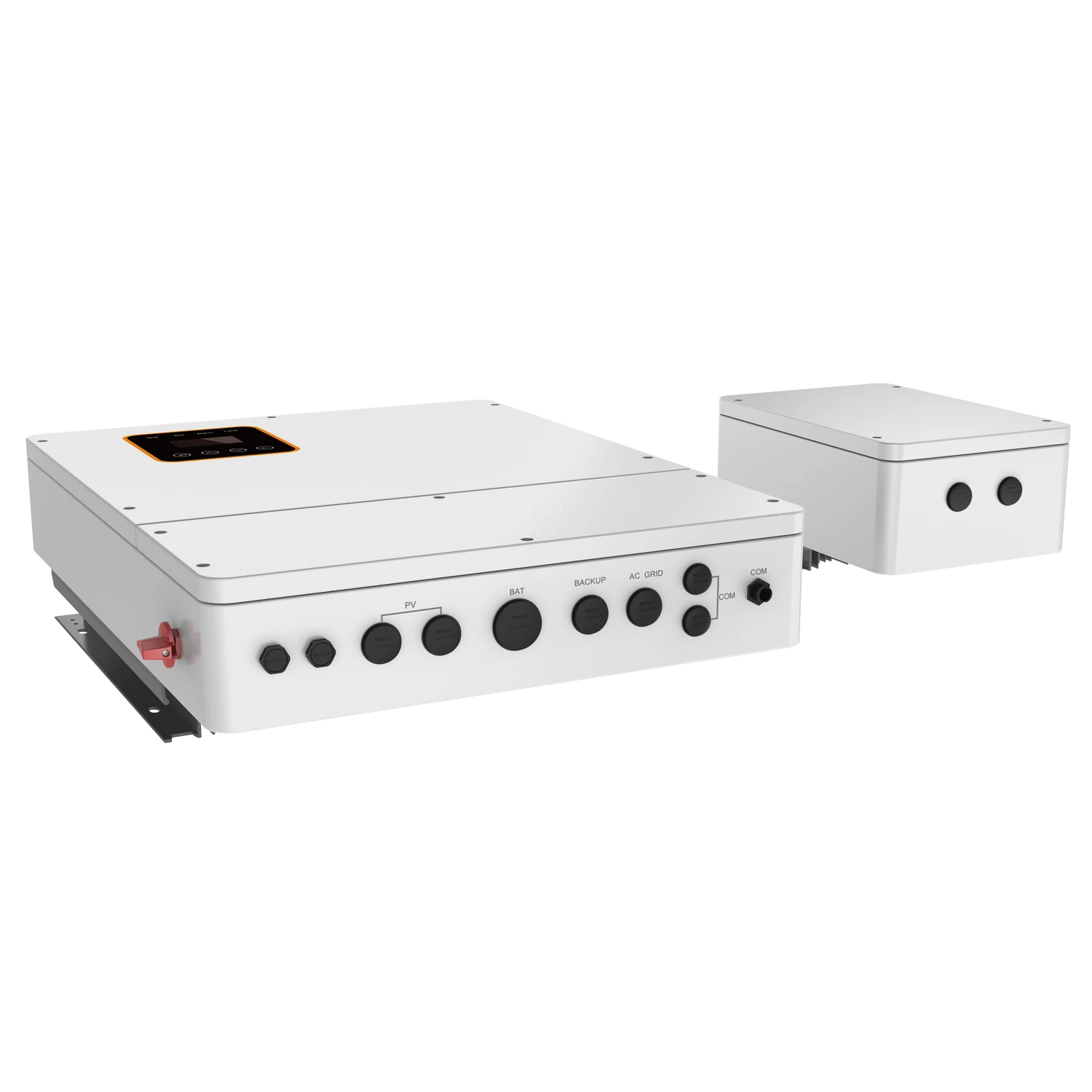

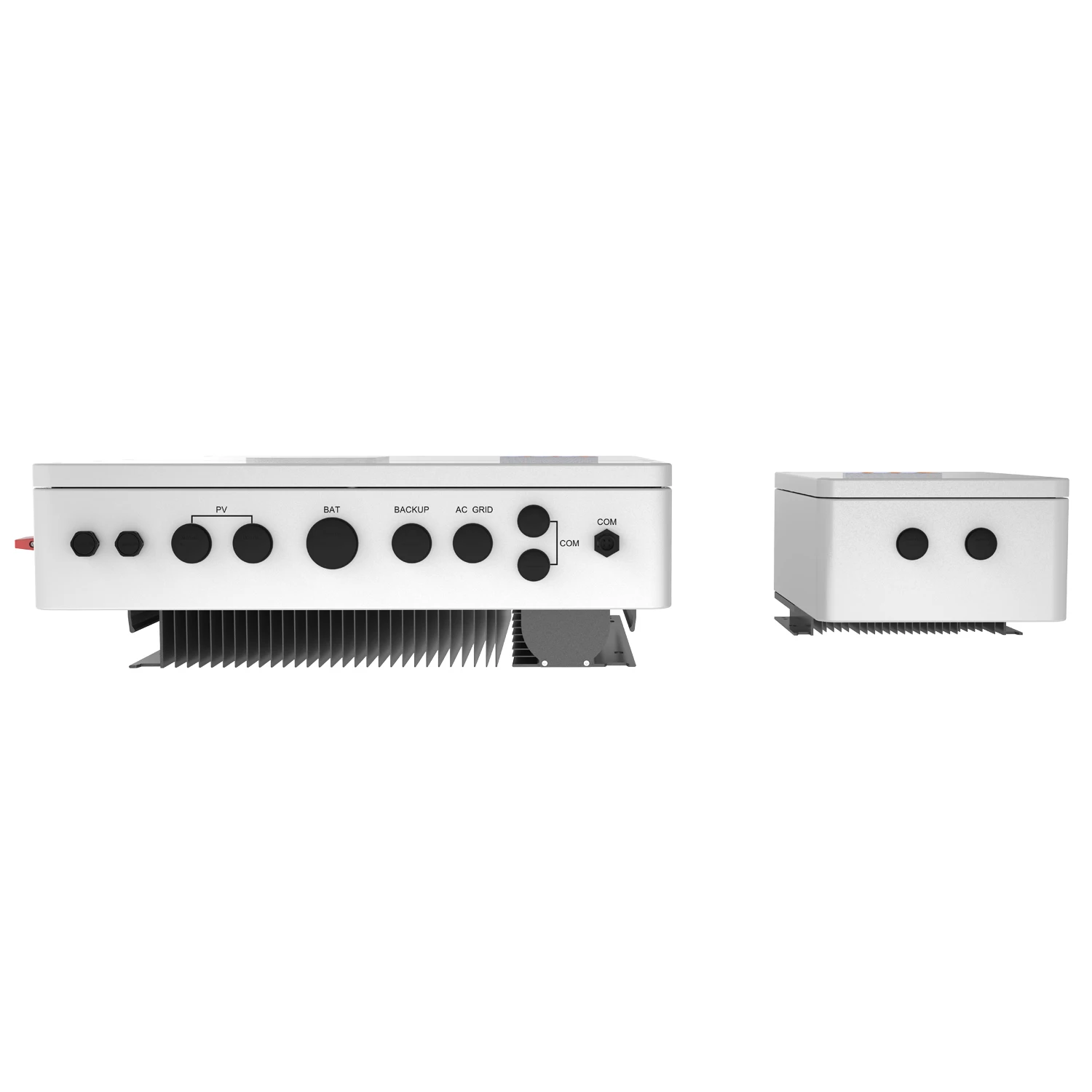

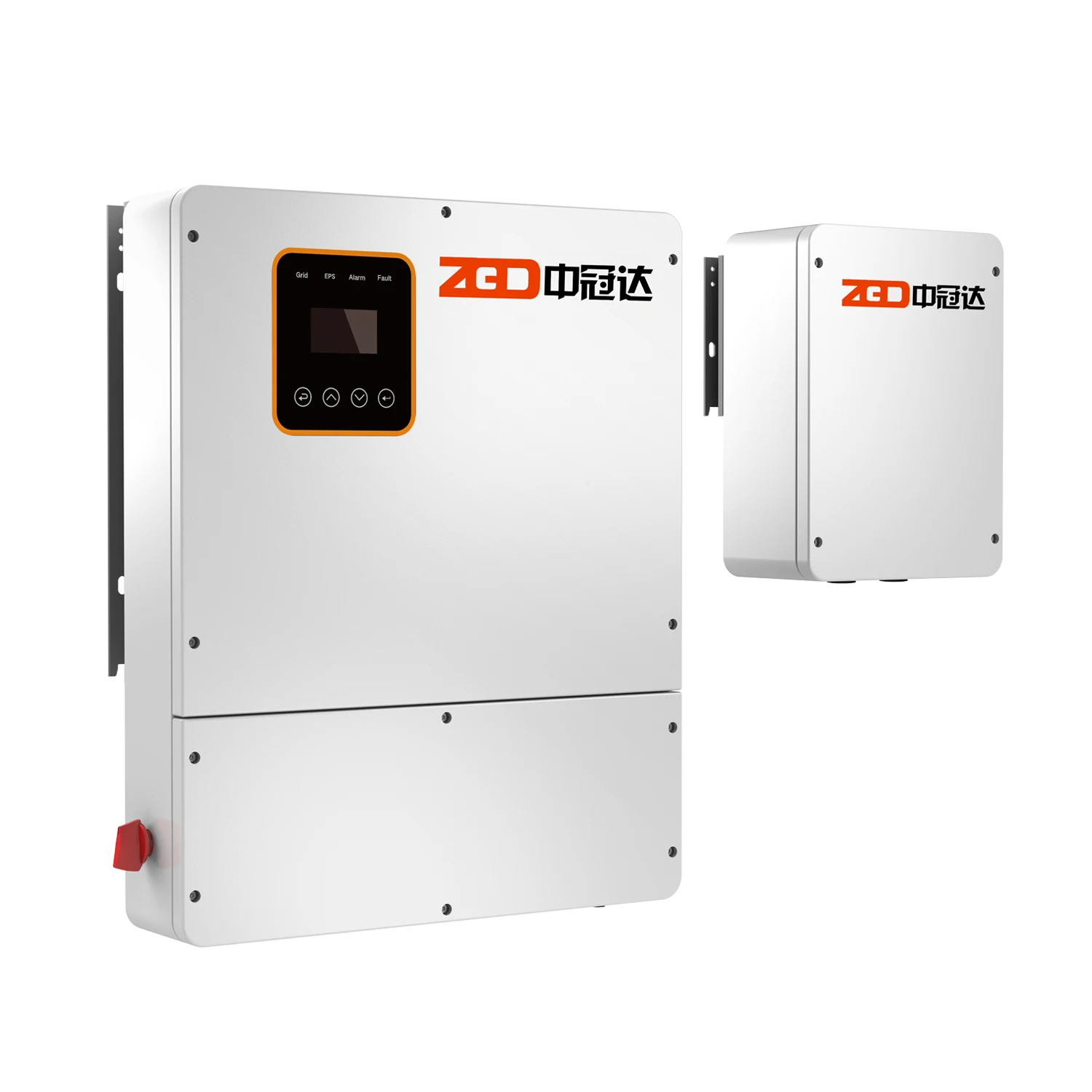

Hybrid inverte 8KVA split phase 80V inverter solar on grid solar energy system
- Category: >>>
- Supplier: Shenzhen Zhongguanda Technology Co. Ltd.
Share on (1600946284025):
Product Overview
Description
Product Description
Technical Specification
Model | AL-R6KH1NA | AL-R8KH1NA | AL-R10KH1NA | AL-R12KH1NA | ||||
Input (PV) | ||||||||
Max. Power(kW) | 7.8 | 10.4 | 13 | 15.6 | ||||
Max. DC Voltage(V) | 500 | |||||||
MPPT Voltage Range(V) | 125 - 500 | |||||||
Max.Input Current Of Single MPPT(A) | 12 | |||||||
MPPT Tracker/Strings | 4/1 | |||||||
AC Output | ||||||||
Rated Output Power(kVA) | 6 | 8 | 10 | 12 | ||||
Max. Output Current(A) | 27.3 | 36.4 | 45.4 | 50 | ||||
Grid Voltage/Range(V) | 240/211~264 | |||||||
Frequency (Hz) | 50/60 | |||||||
PF | 0.8lagging-0.8leading | |||||||
THDi | < 3% | |||||||
AC Output Topology | L+N+PE | |||||||
Battery | ||||||||
Battery Voltage Range(V) | 85~400 | |||||||
Max. Charging Voltage(V) | 400 | |||||||
Full Battery Voltage(V) | 85 | 110 | 140 | 160 | ||||
Max. Charge/Discharge Current(A) | 80/80 | |||||||
Battery Type | lithium /Lead-acid | |||||||
Communication Interface | CAN,RS485 | |||||||
EPS Output | ||||||||
Rated Power(kVA) | 6 | 8 | 10 | 12 | ||||
Rated Output Voltage(V) | 220-240 /110-120 | |||||||
Rated Frequency(Hz) | 50/60 | |||||||
Automatic Switching Time(ms) | <20 | |||||||
THDu | < 2% | |||||||
Overload Capacity | 110%,30S/120%,10S/150%,0.02S | |||||||
Shenzhen zhongguanda Technology Co., Ltd is a national high-tech enterprise focusing on the R&D, manufacturing and sales of energy storage inverter related products. The company was founded in 2013 and is headquartered in Guangming District, Shenzhen. The core team of the company is composed of leading technical talents and senior experts in power electronics.
With the vision of "making energy more efficient and cleaner", ZGD provides customers with standardized energy storage inverter products, customized solutions and OEM services. ZGD's inverter products cover four major application scenarios: residential energy storage, C&I energy storage, microgrid and grid-side energy storage, including small-scale residential ESS on/off-grid inverters, microgrid PV+ESS integrated machines, medium and high-power PCS and unique products specially designed for North American and European markets. The related products have been certified by CGC, CE, TUV, CSA, UL, G99, NRS, SAA and European certifications such as UK, Italy and Poland.
To date, ZGD has provided products and services to 200+ outstanding companies worldwide, with 1GW of energy storage inverters delivered and inverters shipped to 22 countries worldwide.
