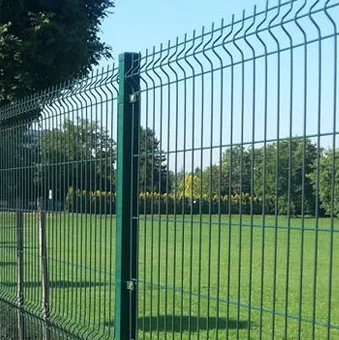

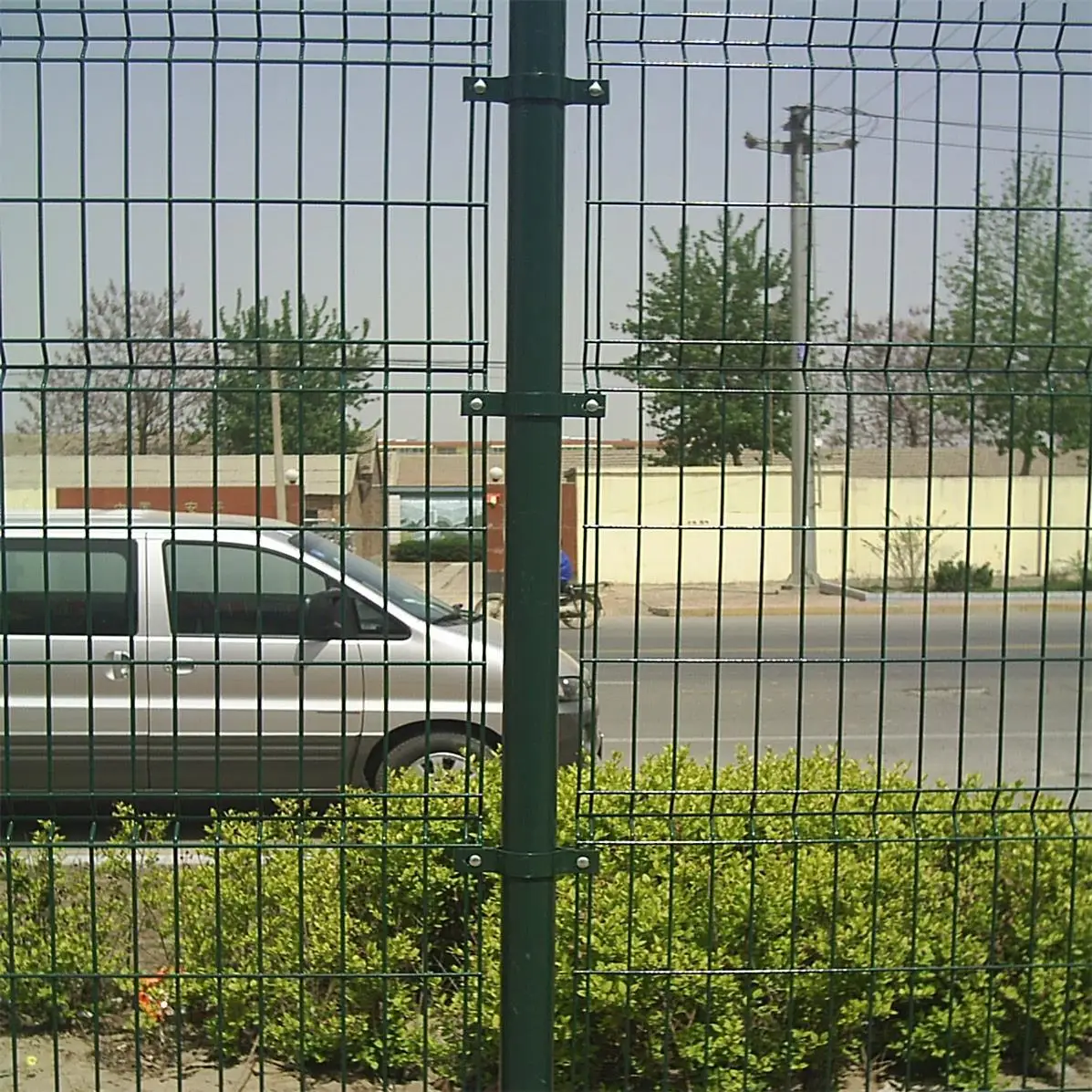

welded curved 3d wire mesh fence 3d v fence curves wire mesh fence
- Category: >>>
- Supplier: Anping Tailong Hardware&Wire Mesh Products Co. Ltd.
Share on (1600946284639):
Product Overview
Description
item | value |
Place of Origin | China |
Hebei | |
Brand Name | TLWY |
Model Number | TL-63 |
Material | Low-Carbon Iron Wire |
Type | Welded Mesh |
Application | Fence Mesh |
Hole Shape | Square |
Wire Gauge | 4.5 - 5mm |
Processing Service | Welding, Cutting |
Material | Galvanized Iron Wire |
process | weaving,weldings |
Antiseptic treatment | PVC |
PVC wire dia | 4.5 - 5mm |
Material | Q 235 low-carbon cold drawn steel wire |
fence length | 2m-3m |
Maximum Size | 2.4m X 3m |
Mesh | 50mm X 200mm (rectangular holes) |
uses | garden,highway |
Welcome to contact us,thanks!
Products Description
Introductions
The welded mesh fence is a mesh fence made of electric welding technology, which is durable and has good protection performance.
The welded wire mesh fence is made of high-strength galvanized steel wire, welded by electric welding process, the welding point
is stronger, the mesh surface is smooth and strong, and it is not easy to deform and break.
The welded mesh fence is a mesh fence made of electric welding technology, which is durable and has good protection performance.
The welded wire mesh fence is made of high-strength galvanized steel wire, welded by electric welding process, the welding point
is stronger, the mesh surface is smooth and strong, and it is not easy to deform and break.

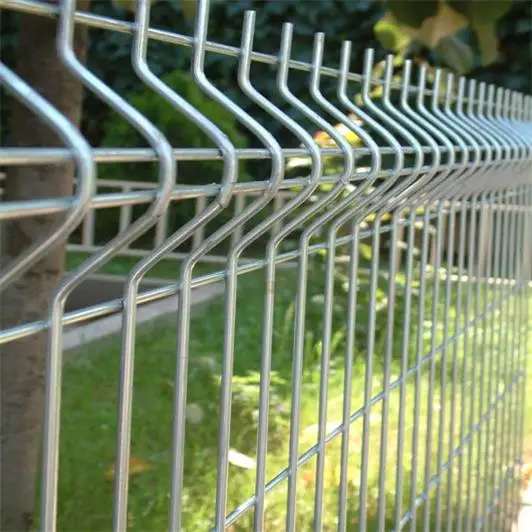

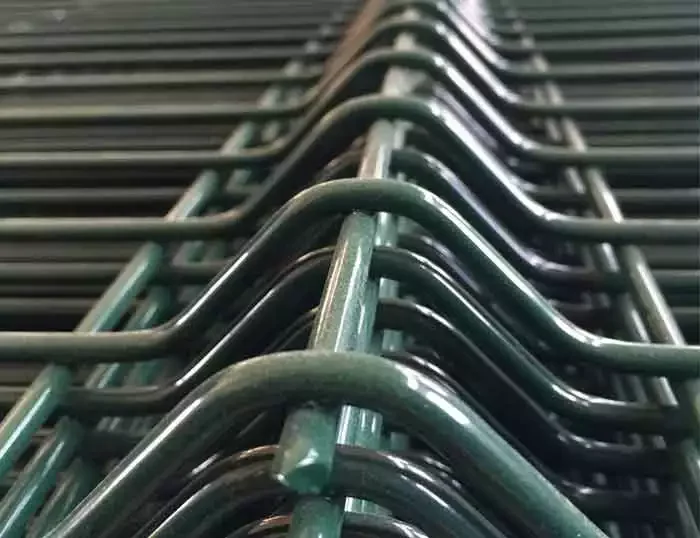

Appropriate bending, creates the unique aesthetic effect of this product, and the surface uses a variety of colors of plastic treatment, such as yellow, green, red, column and mesh of different colors is pleasing to the eye, at the same time, this product is mostly used with chassis column, installation only need to play the expansion bolt, very fast.
Detail
Name | 3D curvy fence |
Usage | Farm/House/Land/Project/Jail/Warehouse/car parking/ school etc |
Treatment | galvanized + pvc coatedgalvanized + powder coated hot dipped galvanized after welding |
Height | 1.2m; 1.5m; 1.8m; 2m; 2.2m; 2.5m etc |
Wide | 2.2 m 2.5 m etc |
Wire mesh | 50mm X 180mm |
Post | 50x50mm 60x60mm etc |
Color | black, green, blue etc |

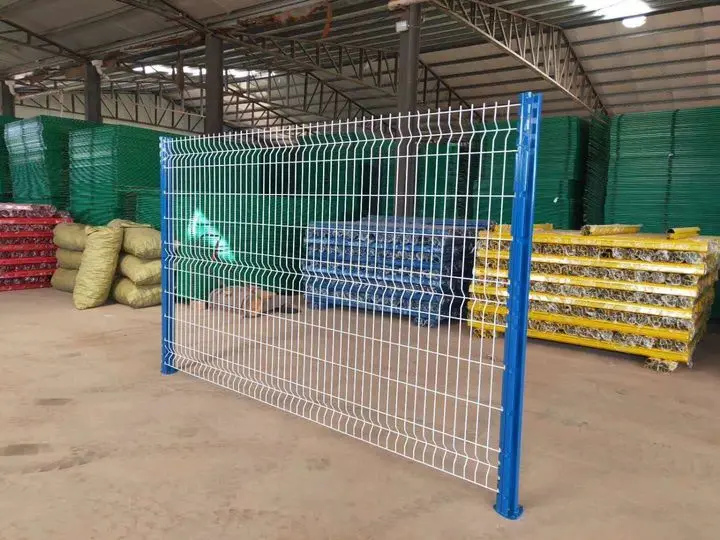

Panels
Welded Wire Mesh Fence Panels have a width of 2500mm and heights ranging from 600mm to 2440mm. The Welded Mesh Fence Panels have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). Mesh sizes are 200 x 50mm , and 100mm x 50mmfor the beam sections. The heavy wires guarantee strength and rigidity.Different sizes can be made according to customer detailedrequirements.
Posts

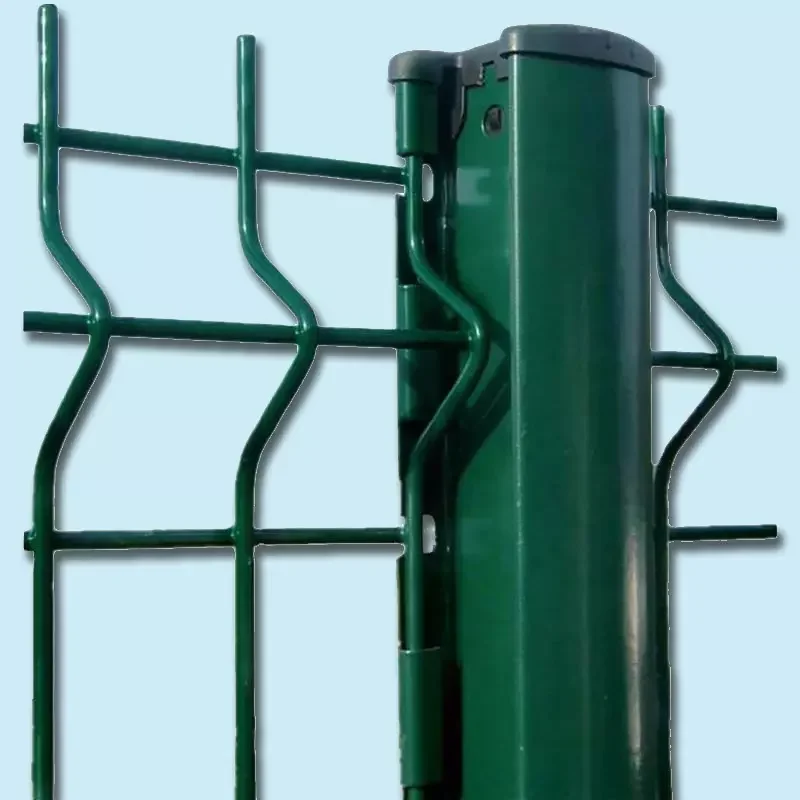

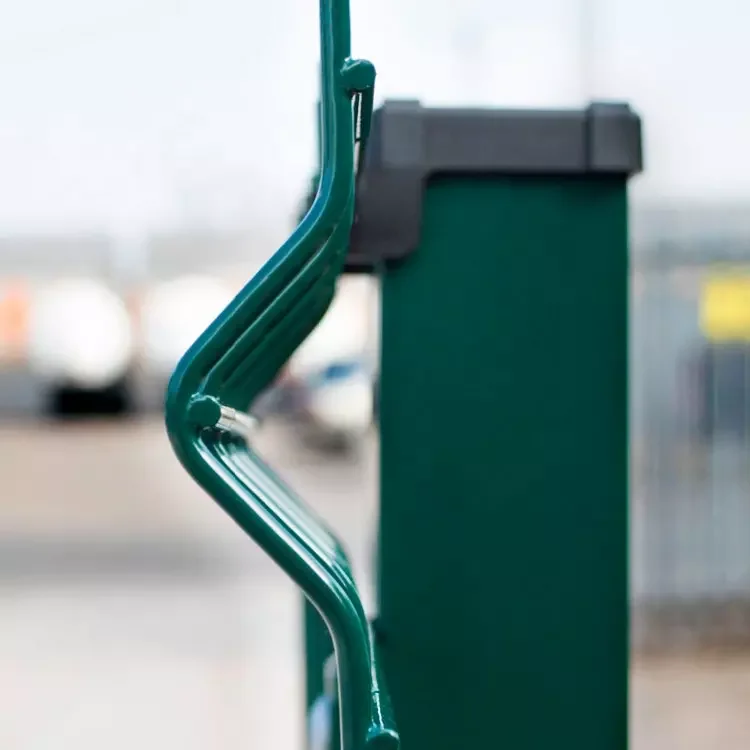

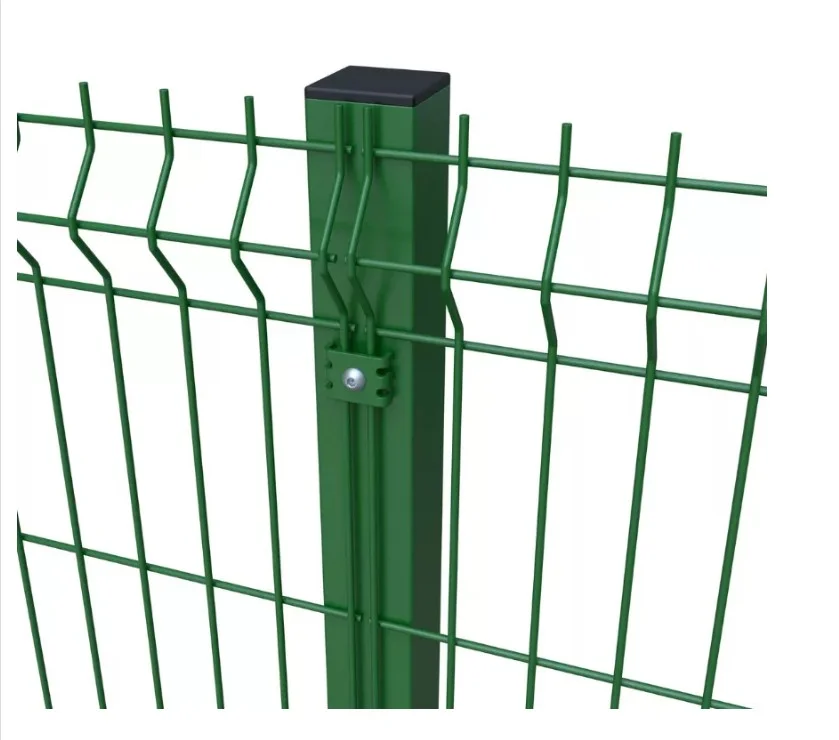

The Welded Mesh Fence Panels are attached with high strength steel posts. The common posts of the Welded Fence are SHS tube, RHS
tube, Peach post, Round pipe or Special-shaped post. Welded Mesh Fence Panels will be fixed to the post by suitable clips
according to different post type.
Gates
The Fence System includes the availability of swing, slide and cantilever gates.

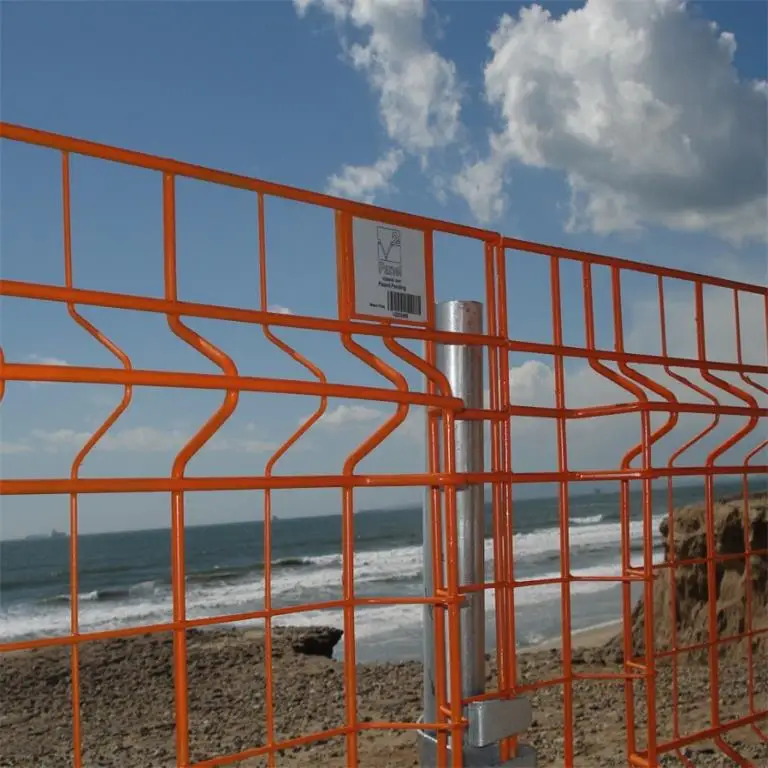

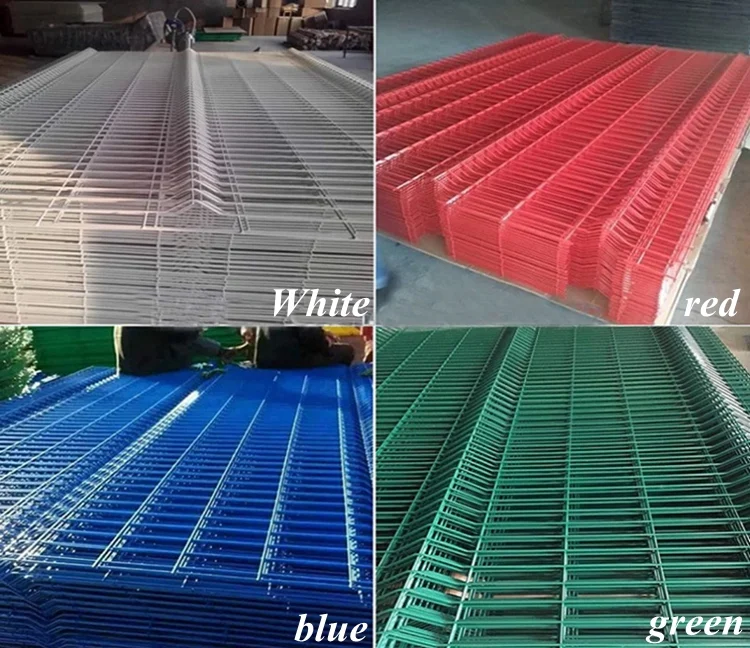

Colors
Linkland welded mesh fence can supply all colors according to international standard RAL Colors, the popular colors as below:
The Welded Mesh Fence Panels are attached with high strength steel posts. The common posts of the Welded Fence are SHS tube, RHS
tube, Peach post, Round pipe or Special-shaped post. Welded Mesh Fence Panels will be fixed to the post by suitable clips
according to different post type.
Gates
The Fence System includes the availability of swing, slide and cantilever gates.
Colors
Linkland welded mesh fence can supply all colors according to international standard RAL Colors, the popular colors as below:
Product Paramenters
Mesh opening : | 50x100mm,50x150mm ,50x200mm ,55x200mm ,75x150mm ,etc. |
Wire thickness : | 3.0mm ,3.5mm ,4.0mm ,4.50mm ,5.00mm |
Panel width : | 2.0m ,2.50m ,2.9m |
Panel height : | 630mm,830mm,1030mm,1230mm,1430mm,1530mm,1630mm,1730mm,1830mm,1930mm,2030mm,2230mm,2430mm |
Round post : | 48x1.5/2.0mm60x1.5/2.0mm |
Square post : | 50x50x1.5/2.0mm60x60x1.5/2.0mm 80x80x1.5/2.0mm |
Rectangular Post : | 40x60x1.5/2.0mm40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm |
Application

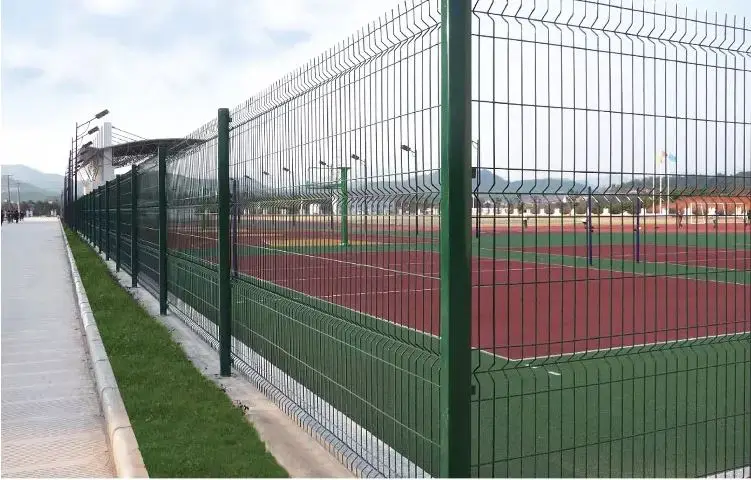

Railway closed net, living area fence, field Seine, development zone isolation net and so on.

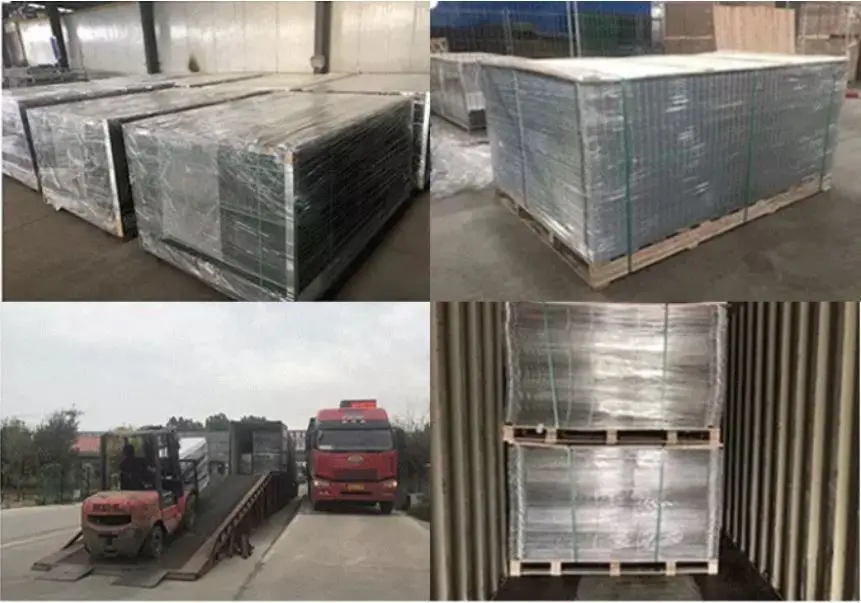

Packing & Delivery
Company Profile

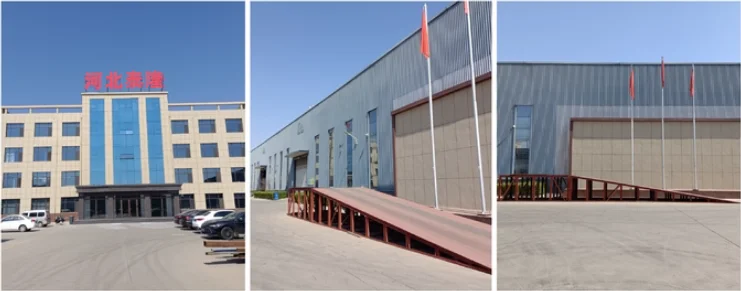

Anping Tailong Hardware & Wire Mesh Products Co., Ltd.
Anping Tailong Hardware & Wire Mesh Products Co., Ltd. is a professional manufacturer of wire mesh fences, Our products include chain link fences, farm fences, SNS protective mesh fences, framework fences, temporary fences, 358 High Security Fences, curvy welded mesh fences, prison fences, airport fences, ornamental fences, iron fences, palisade fences, double loop fences and Euro fences. Tailong also supplies Hesco Bastions, reinforcing mesh, gabions, store cages and decorative wire mesh. Our factory located in Anping County, which is called "the Native land of Wire Mesh" in China. Tailong supplies high quality fences and related products for a variety of applications. We are committed to providing customers with good quality products, competitive prices and excellent services. Our products are widely used in road, railway, airport, residence district, seaport, garden and other fields.
Selling well in all cities and provinces around China, our products are also exported to the USA, Australia, Germany, the UK,
Japan, Singapore, Korea and so on. To learn more about what we can do for you, contact us at any time. We look forward to
establishing a good and long-term business relationship with you.
Selling well in all cities and provinces around China, our products are also exported to the USA, Australia, Germany, the UK,
Japan, Singapore, Korea and so on. To learn more about what we can do for you, contact us at any time. We look forward to
establishing a good and long-term business relationship with you.
