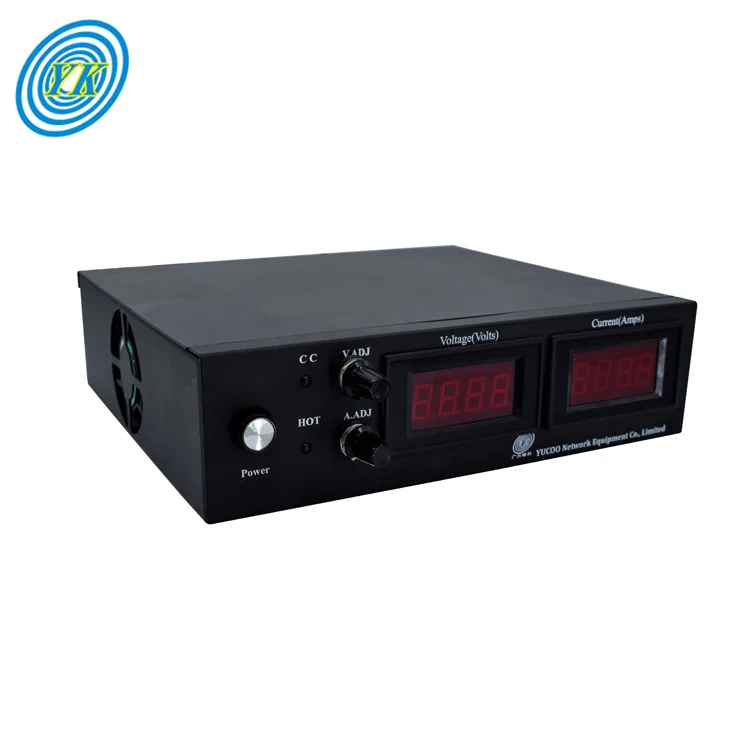

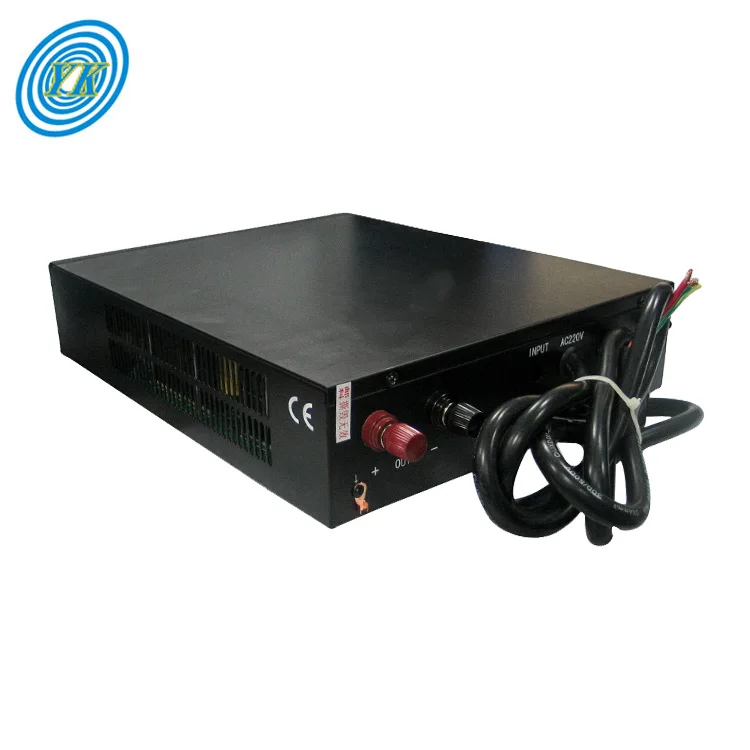

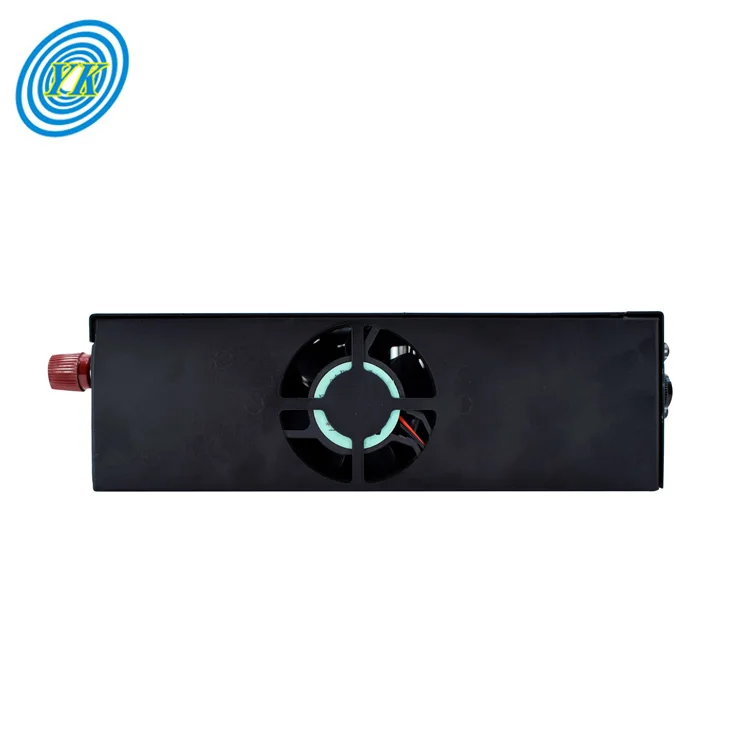

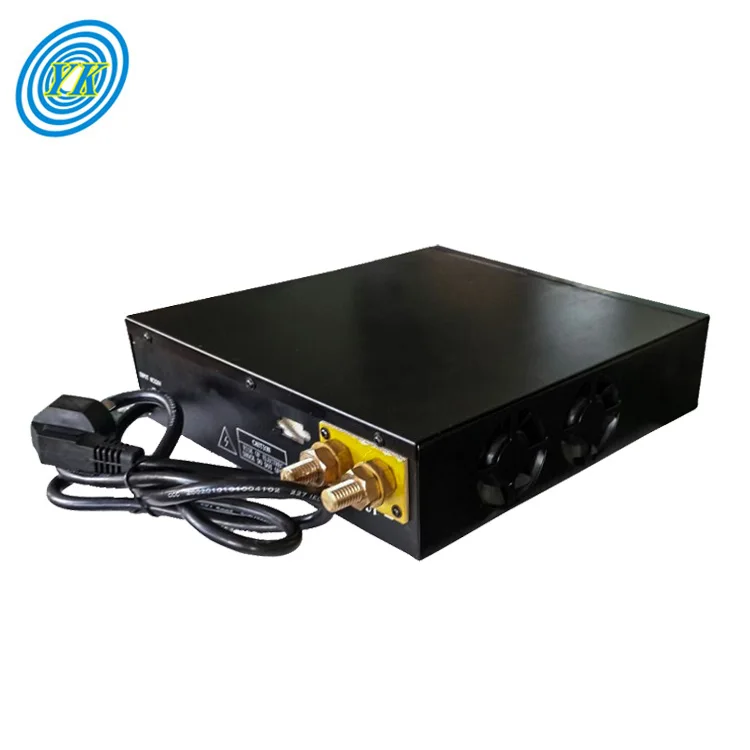

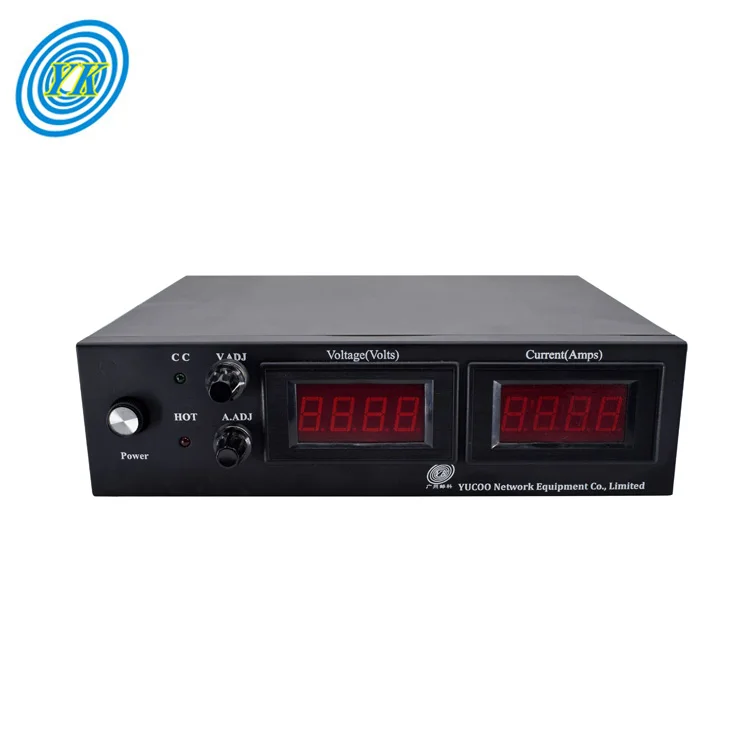

YUCOO switching power supply 12v 30v 60v 48v 5a 10a 120w 1500w 2000w 3000w digital variable voltage dc power supply
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600946298360):
Product Overview
Description
Customize variable voltage variable current ac dc adjustable power supply
Hot Sale Inverter
Product Description
1. Advanced switching mode power supply technology and components, excellent design, small volume, light weight, high efficiency, which ensures the stability and reliability of long-term full-load operation.
2. Constant voltage value and constant current value can be continuously adjustable within the range 0~100%
3. Digital display output voltage and output current.
4. Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; start up delay soft starting can avoid the overshoot voltage when start up.
5. Simple operation, convenient use
6. Store temperature: (-40~70)℃, Working temperature: (-20~50)℃
7. Relative humidity: 90% (40±2℃), atmospheric pressure (70-106)kPa
Specifications
Model | YK-AD30005 |
Output range | 0-300V 0-5A |
Output mode | Constant voltage (or appointed) variable/adjustable Constant current (or appointed) variable/adjustable |
AC wide input | 1phase AC110V±15% 50/60Hz/ 1phase AC220V±15% 50/60Hz/ 3 phase AC380V±15% 50/60Hz |
Power | Max 1500W |
Source Voltage Regulation | constant voltage ≤0.2% |
Load Regulation | constant voltage ≤1%; constant current≤2% |
Line regulation: | constant voltage ≤0.3% |
Ripple Voltage | total ripple Vpp≤2% (max voltage)(60V*2%=1.2V) 100Hz Ripple: Vpp≤0.5%(max voltage)(60V*0.5%=0.3V) |
Operation Environment temperature | (-10~45)℃ |
Efficiency | ≥89% |
Digital meter | voltage meter and current meter |
Digital display | Precision of output voltage±1.5% |
Insulating resistance | Input-Output:≥20MΩ |
Input— Shell:≥20MΩ | |
Output-Shell:≥80MΩ | |
Insulating Strength | Input-Output:AC1500V,10mA,1minute |
Input— Shell:AC1500V,10mA,1minute | |
Output-Shell:AC1500V,10mA,1minute | |
Imbalance of equalized current | ≤5%+2.5A |
Protection | Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; switch-on delay soft starting can avoid the over swung output voltage when switching on. |
over-temperature protection | (70~80)℃ |
MTTF | ≥50000h |
External dimension | 253(W)*68(H)*268(D)mm |
Weight | NW 5.0kg |
Radiating wind hole | Internal radiating wind hole |
Support customized specifications, send us an inquiry for more information. | |
