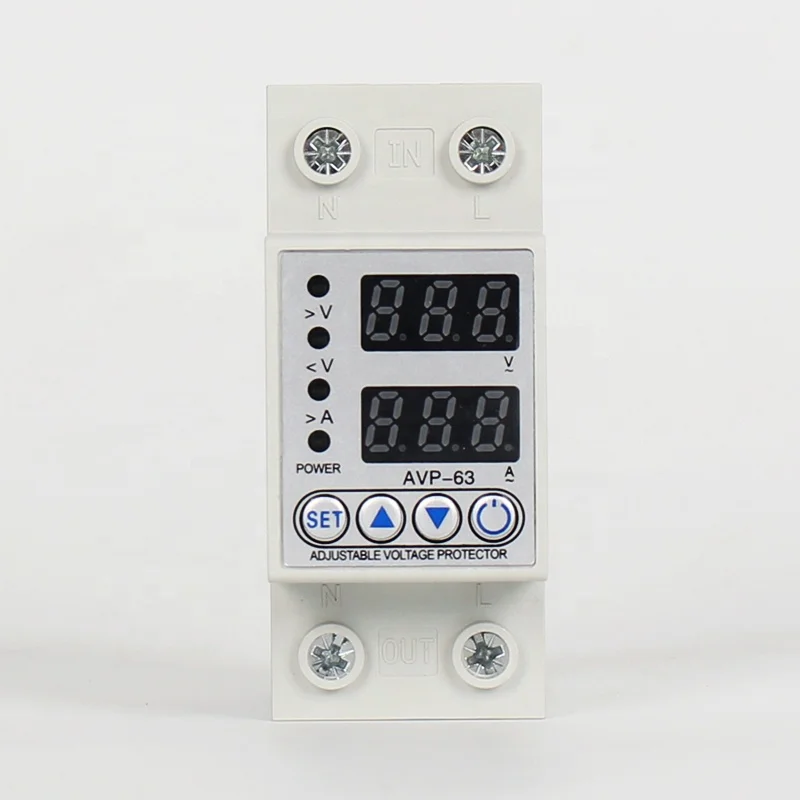

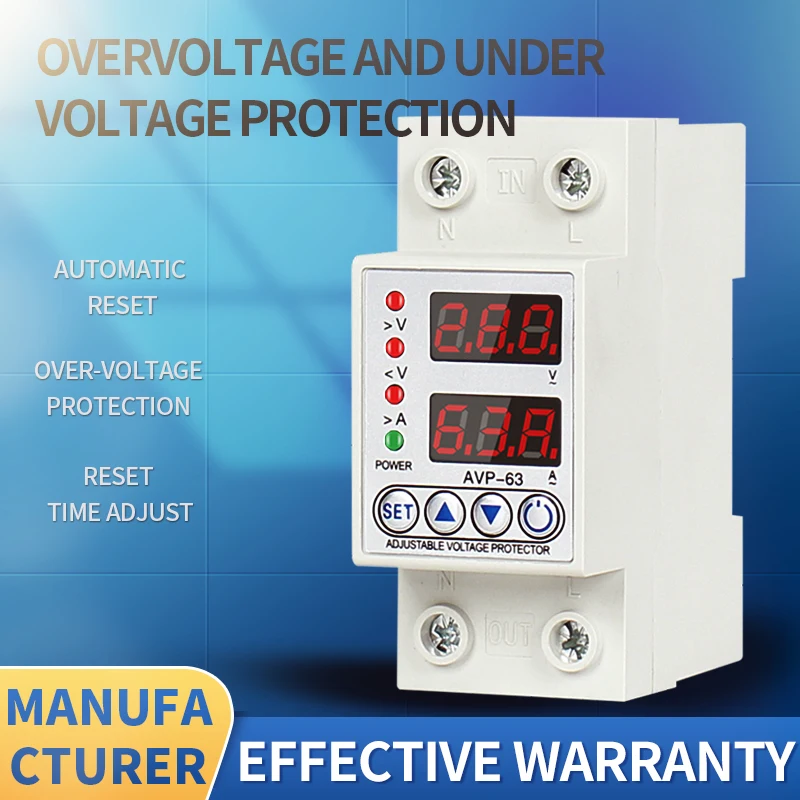

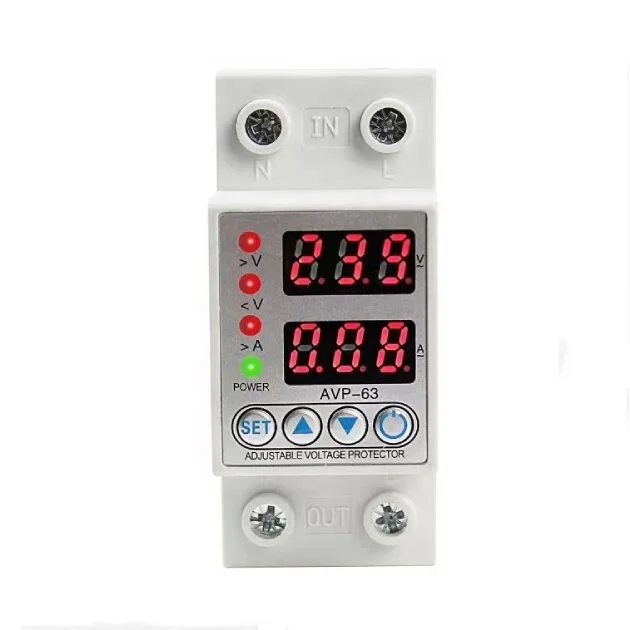

ZOII 40Amp 63Amp 80Amp Dual LED Display Over Under Voltage Relay Current Limiter Adjustable Protection Monitoring

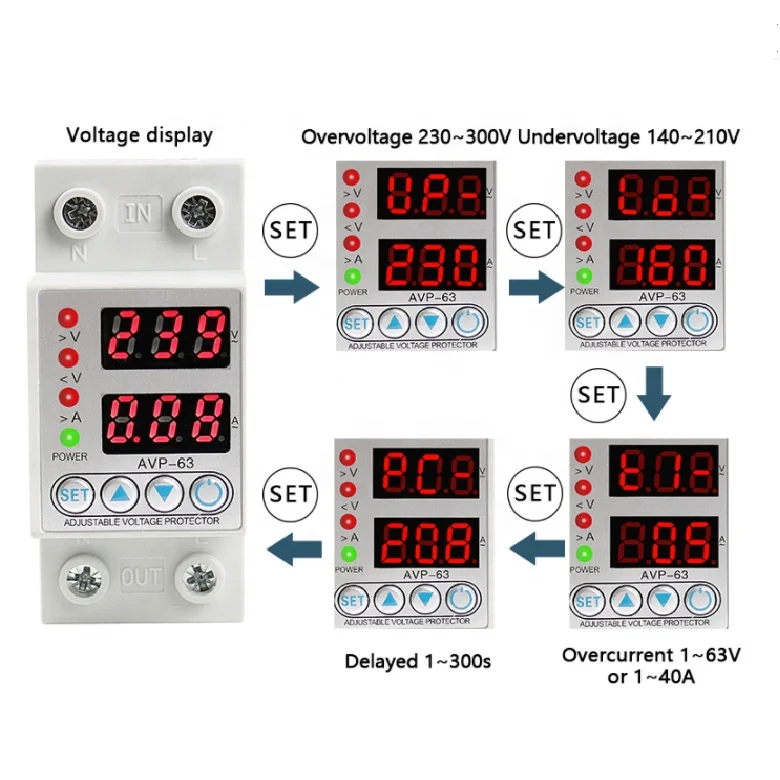

FUNCTIONS
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

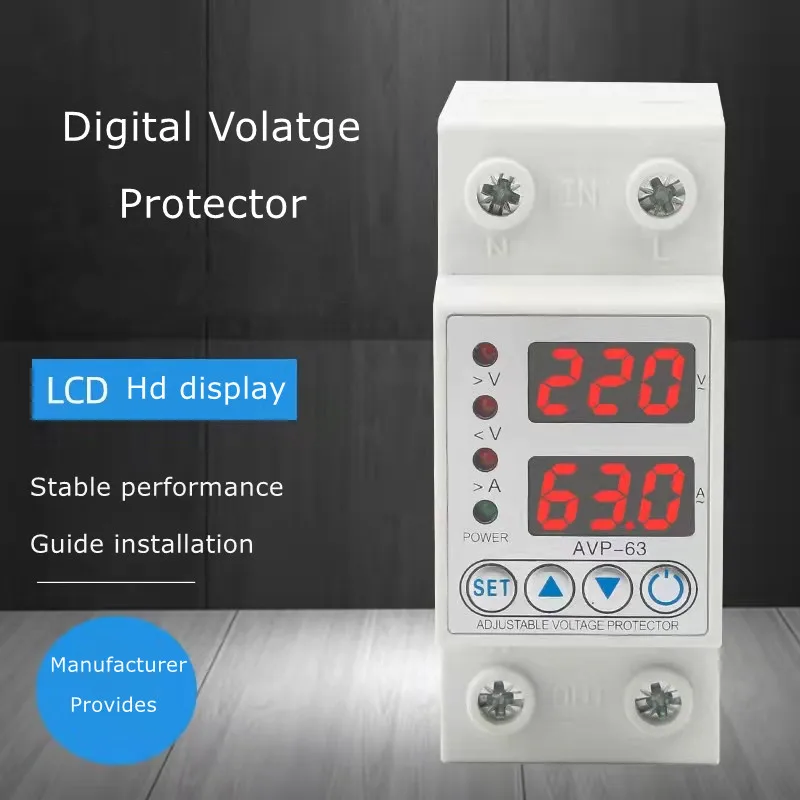

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S
Product Name | Over Under Voltage Protactor |
Model Number | ZYB1-63 |
Ploes | 2 |
Usage | JIW |
Phase | Single Phase |
Current Type | AC |
Rated voltage | 220VAC 50Hz |
Rated current | 1A-63A adjustable (default 40A) |
Boot delay time | 1-300S adjustable (default 5S) |
Own power consumption | less than or equal to 2W |
Over-voltage range | 230V-300V (Default 270V) |
Under -voltage range | 110V-210V (Default 170V ) |
Working temperature | -10ºC~50ºC |
Terminals Material | Pure copper |

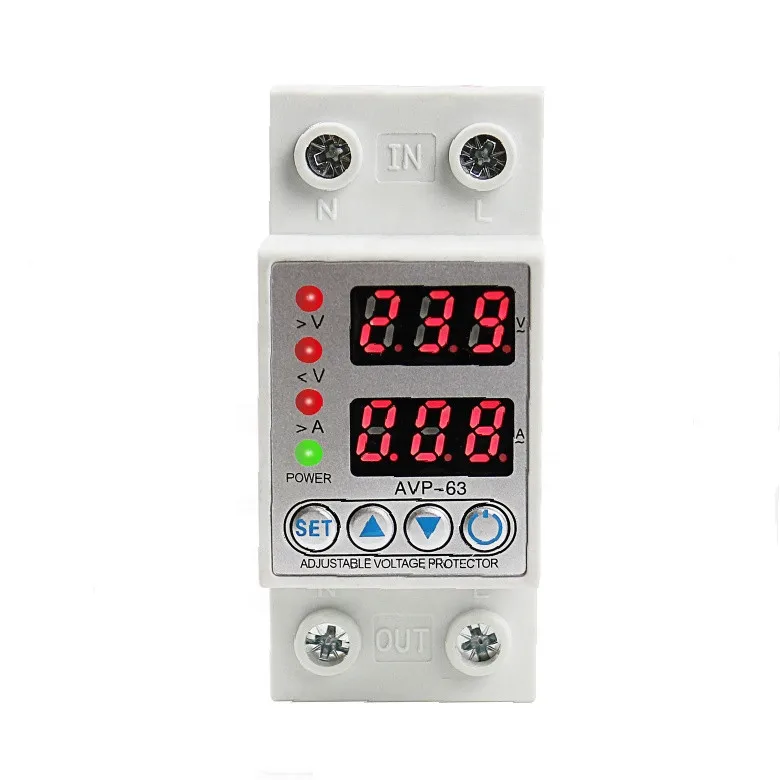

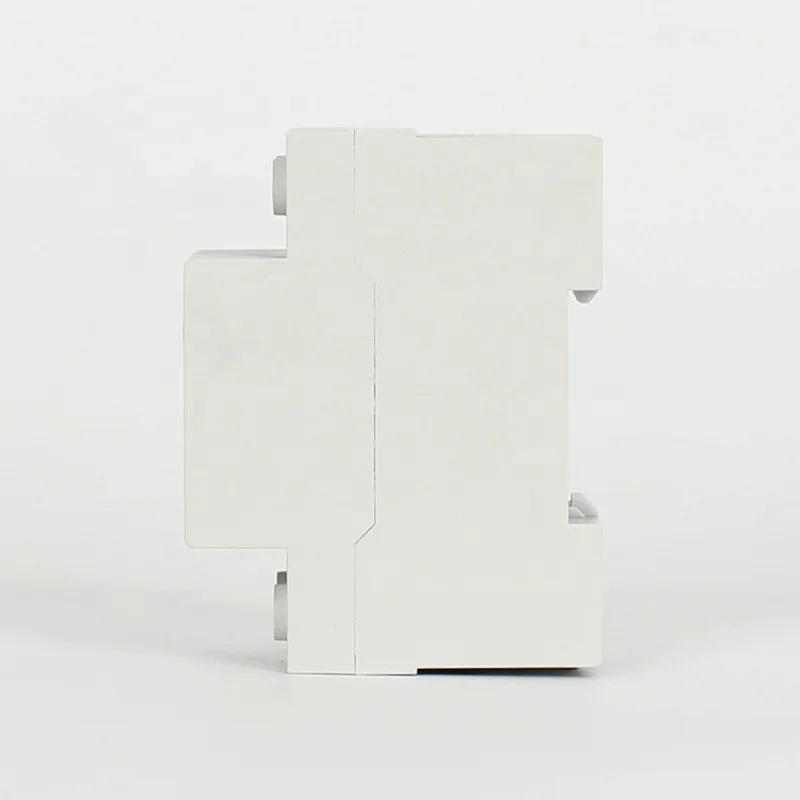

Product Images
Product Certificate

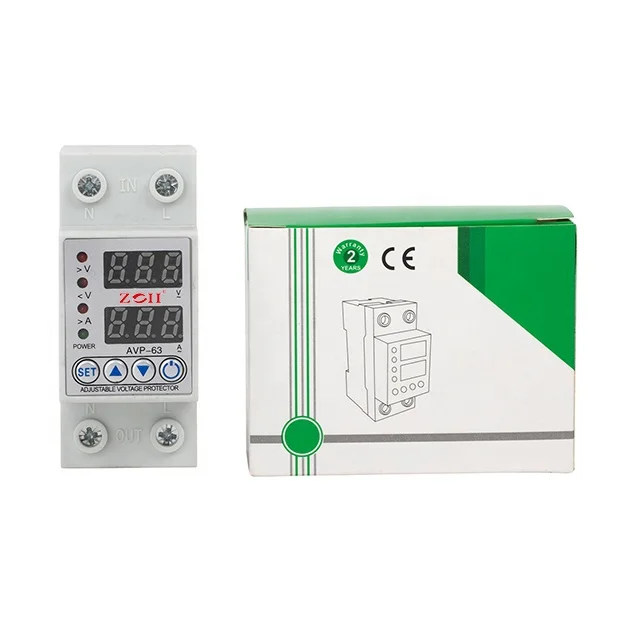

Packing & Delivery
Product Information
Zhejiang Zhiyi Electric Co., Ltd.
Zhejiang Zhiyi Electric Co., Ltd. is a set design, development, sales in one of the high-tech enterprises. The company mainly produces: high voltage vacuum circuit breaker, plastic case circuit breaker, small circuit breaker, small reclosing, surge protector, DC fuse, photovoltaic junction box and other products manufacturing, processing, sales. The company passed ISO9001:2000 international quality system certificate, credit rating AAA certificate.
