Zetron OPC L2 Oil Particle Counter With Semiconductor Laser For Insulating Oil And Turbine Oil
- Category: >>>
- Supplier: Beijing Zetron Technology Co. Ltd.
Share on (1600946326880):
Product Overview
Description
Overview

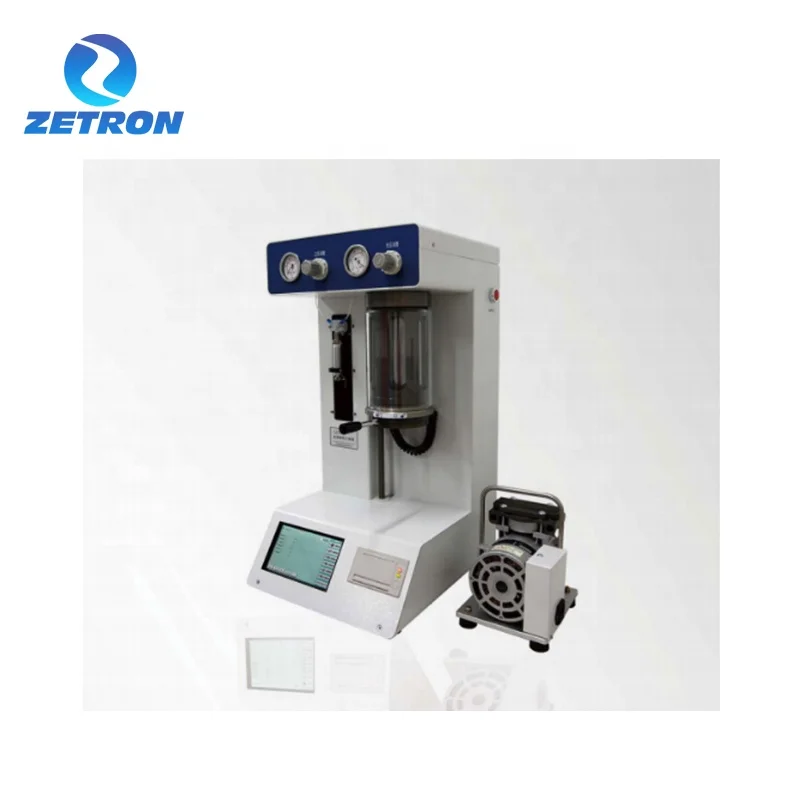

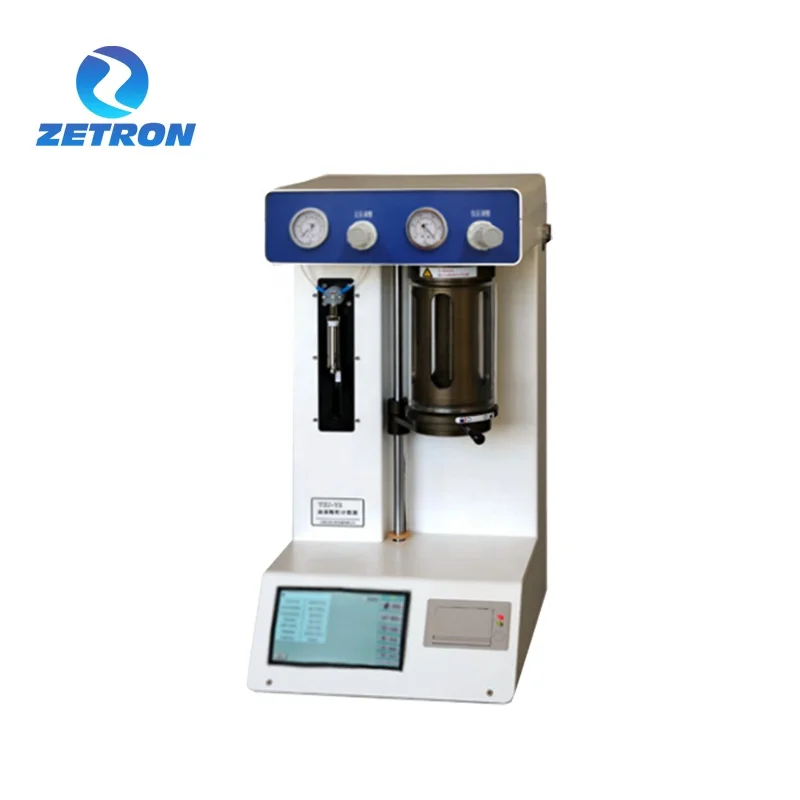

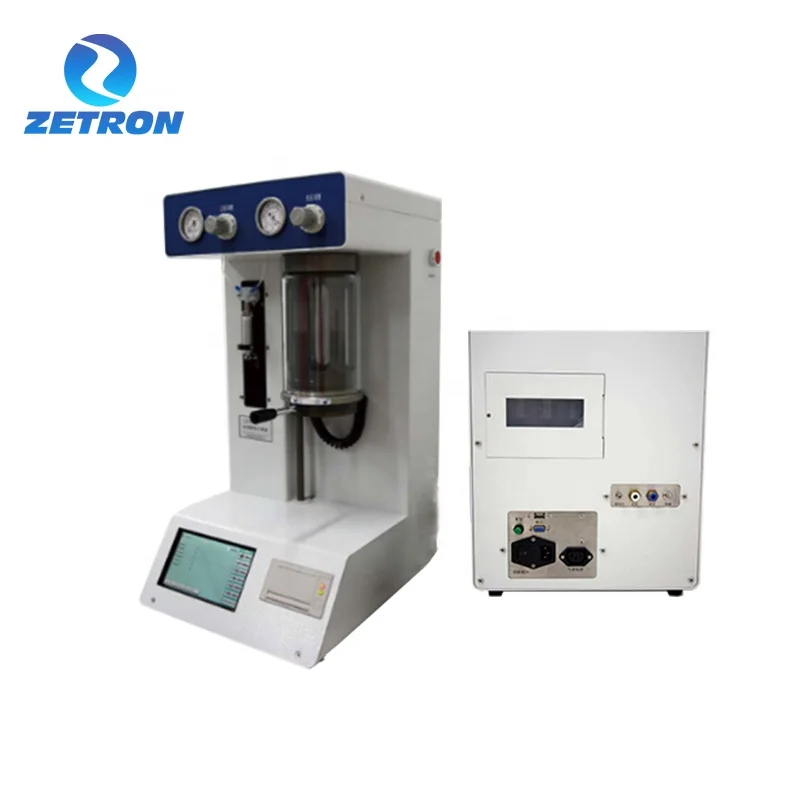

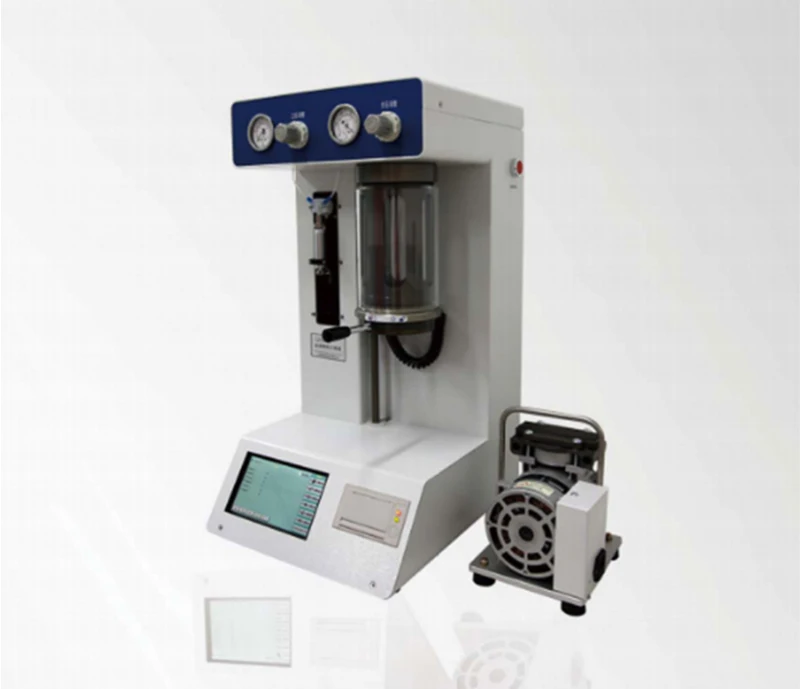

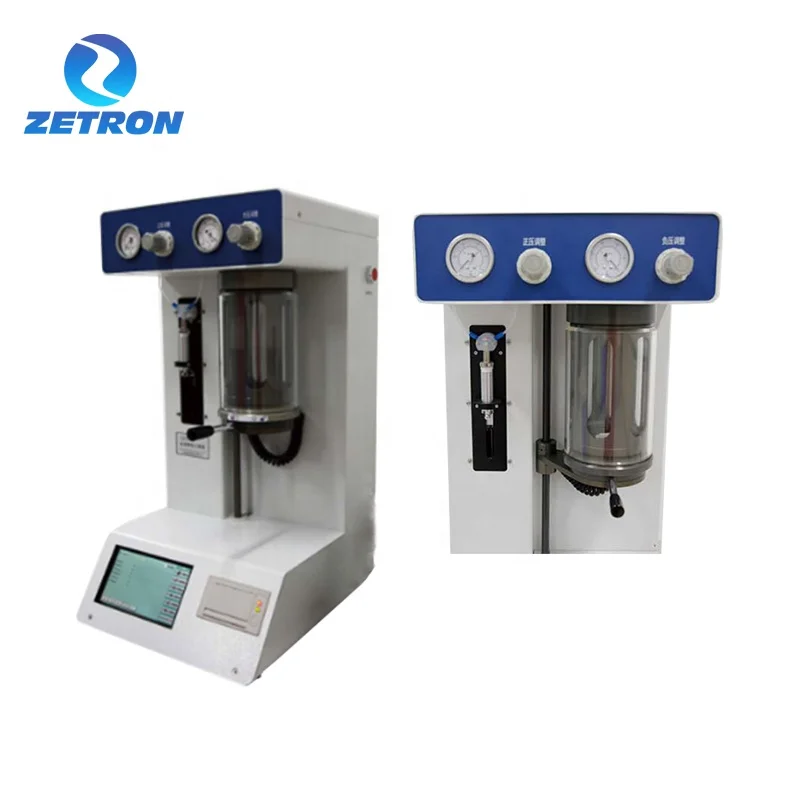

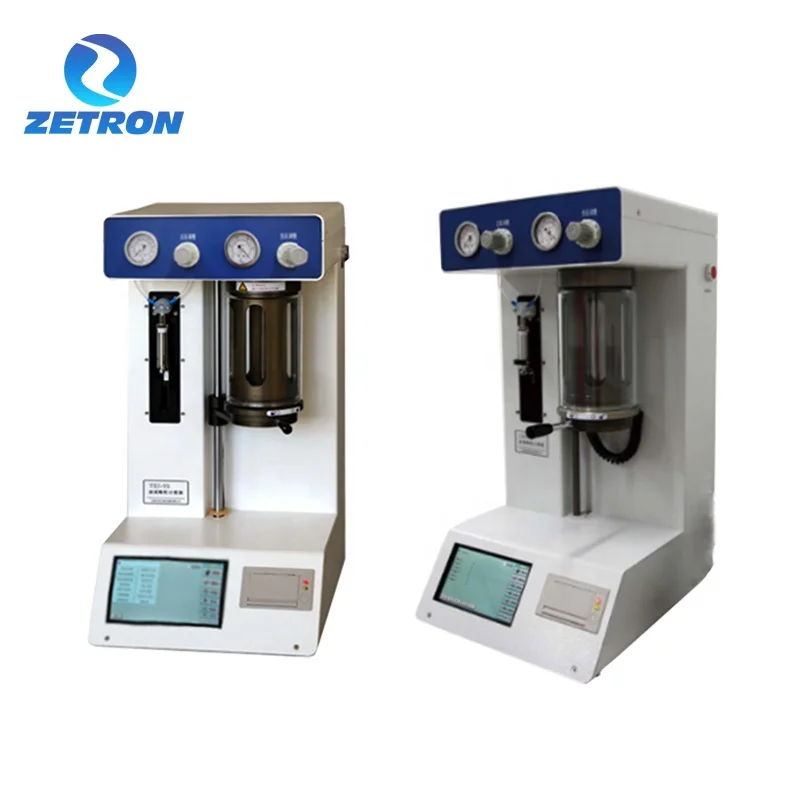

OPC-L2 Oil Particle Counter
Features
* Adopting the counting principle of photoresist (shading) method formulated by the International Hydraulic Standard Committee
* High-precision laser sensor with wide testing range, stable performance, low noise and high resolution.
* Adopt high pressure syringe pump sampling mode, can set the sampling volume, stable sampling speed, high sampling accuracy.
* Positive and negative pressure combination of sampling system, can realize the sample degassing, suitable for different viscosity of the inspection products testing.
* Built-in pressure sensor, you can set the pressure value, and automatically determine the air pressure in the chamber to ensure safety.
* Built-in air purification system to ensure that the test is not contaminated
* Built-in multiple calibration curves, compatible with all common domestic and international standards for calibration.
* Built-in GJB-420A, GJB-420B, NAS1638, GB/T14039, ISO4406, SAE4059cpc, SAE4059F, SAE749D, ГOCT17216, QC/T29104, JB/T9737, DLT432, HH005-2018 and other more than ten commonly used standards. One test can give the data results under all built-in standards.
* Supports customized standard testing and grade determination
* Up to 64 testing channels can be set up at the same time according to customers' needs.
* Built-in data analysis system, a test can give all the standards of the test data and contamination levels
* Built-in viscosity, moisture and temperature sensor module, in the accurate testing of particle distribution at the same time to provide viscosity, moisture content saturation and ppm values and temperature reference values (optional)
* Any particle size can be set, with 9999 built-in particle sizes for easy particle size analysis.
* A variety of sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries
* Full-featured automatic color touch screen operation, support for Chinese and English dual interface, easy to operate
* Single-channel and multi-channel calibration can be carried out to realize the automatic calibration function.
* With RS232 interface, can be connected to a computer or laboratory platform for data processing.
* With massive data storage, printing function, can store 1000 groups of data and support U disk storage data.
* High-precision laser sensor with wide testing range, stable performance, low noise and high resolution.
* Adopt high pressure syringe pump sampling mode, can set the sampling volume, stable sampling speed, high sampling accuracy.
* Positive and negative pressure combination of sampling system, can realize the sample degassing, suitable for different viscosity of the inspection products testing.
* Built-in pressure sensor, you can set the pressure value, and automatically determine the air pressure in the chamber to ensure safety.
* Built-in air purification system to ensure that the test is not contaminated
* Built-in multiple calibration curves, compatible with all common domestic and international standards for calibration.
* Built-in GJB-420A, GJB-420B, NAS1638, GB/T14039, ISO4406, SAE4059cpc, SAE4059F, SAE749D, ГOCT17216, QC/T29104, JB/T9737, DLT432, HH005-2018 and other more than ten commonly used standards. One test can give the data results under all built-in standards.
* Supports customized standard testing and grade determination
* Up to 64 testing channels can be set up at the same time according to customers' needs.
* Built-in data analysis system, a test can give all the standards of the test data and contamination levels
* Built-in viscosity, moisture and temperature sensor module, in the accurate testing of particle distribution at the same time to provide viscosity, moisture content saturation and ppm values and temperature reference values (optional)
* Any particle size can be set, with 9999 built-in particle sizes for easy particle size analysis.
* A variety of sampling containers such as standard sampling bottles or sampling cups can be used to meet the testing requirements of different industries
* Full-featured automatic color touch screen operation, support for Chinese and English dual interface, easy to operate
* Single-channel and multi-channel calibration can be carried out to realize the automatic calibration function.
* With RS232 interface, can be connected to a computer or laboratory platform for data processing.
* With massive data storage, printing function, can store 1000 groups of data and support U disk storage data.
Product Parameters
Light source | Semiconductor laser |
Particle size range | 0.8μm~600μm (calibrated according to 1~100um or 4~70um(c)) |
Detection channels | 8~64 channels optional, arbitrary setting of particle size size |
Sensitivity | 0.8μm (ISO4402) or 3μm(c) (GB/T18854, ISO11171) |
Resolution | <10% (GB/T18854, ISO11171) |
Repeatability | RSD<2% |
Sample detection viscosity | ≤650cSt (viscosity is too large can be combined with heating or dilution method detection) |
Sampling volume | 0.2~1000mL, interval 0.1mL |
Sampling accuracy | better than ± 0.5% |
Sampling speed | 5 ~80mL/min |
Pneumatic chamber | Positive and negative air pressure chamber device, to realize sample degassing and high viscosity sample detection |
Maximum vacuum of air pressure chamber | -0.08Mpa |
Maximum positive pressure of air pressure chamber | 0.8 Mpa |
Maximum particle concentration | 12000~40000 particles/mL |
Power supply | 110~245V AC, 50Hz, 70W |
Overall Dimension | 340mm*410mm*650mm |
Net weight | 25kg |
Application Scenes
OPC-L2 oil particle counter can be widely used in aviation, aerospace, electric power, petroleum, chemical industry, transportation, port, metallurgy, machinery, automobile manufacturing and other fields.
