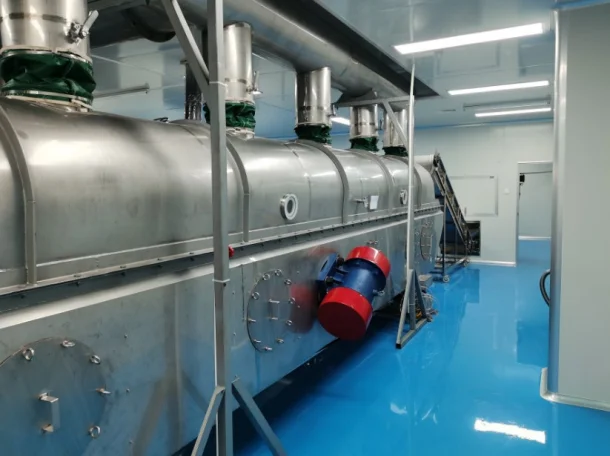

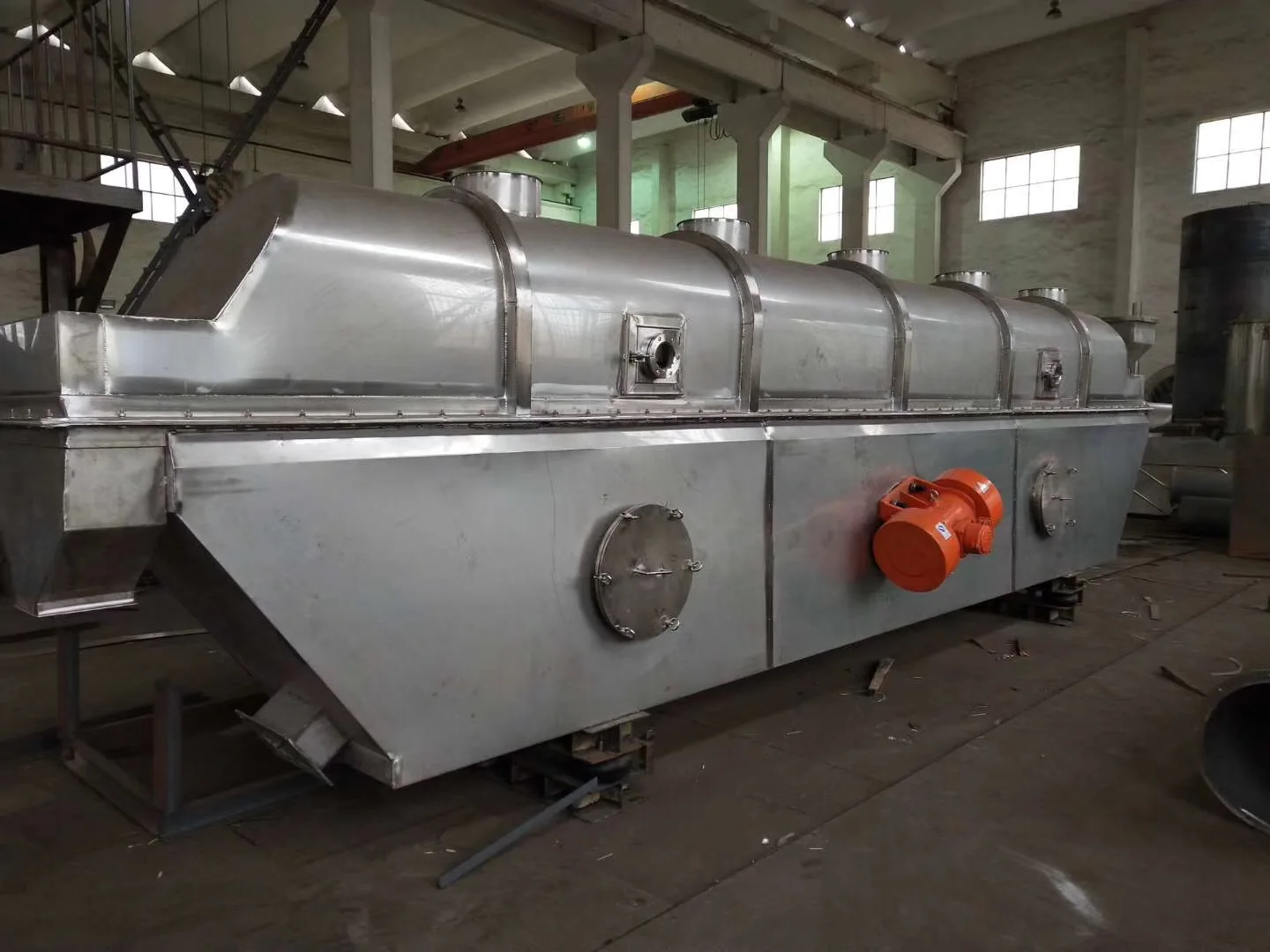

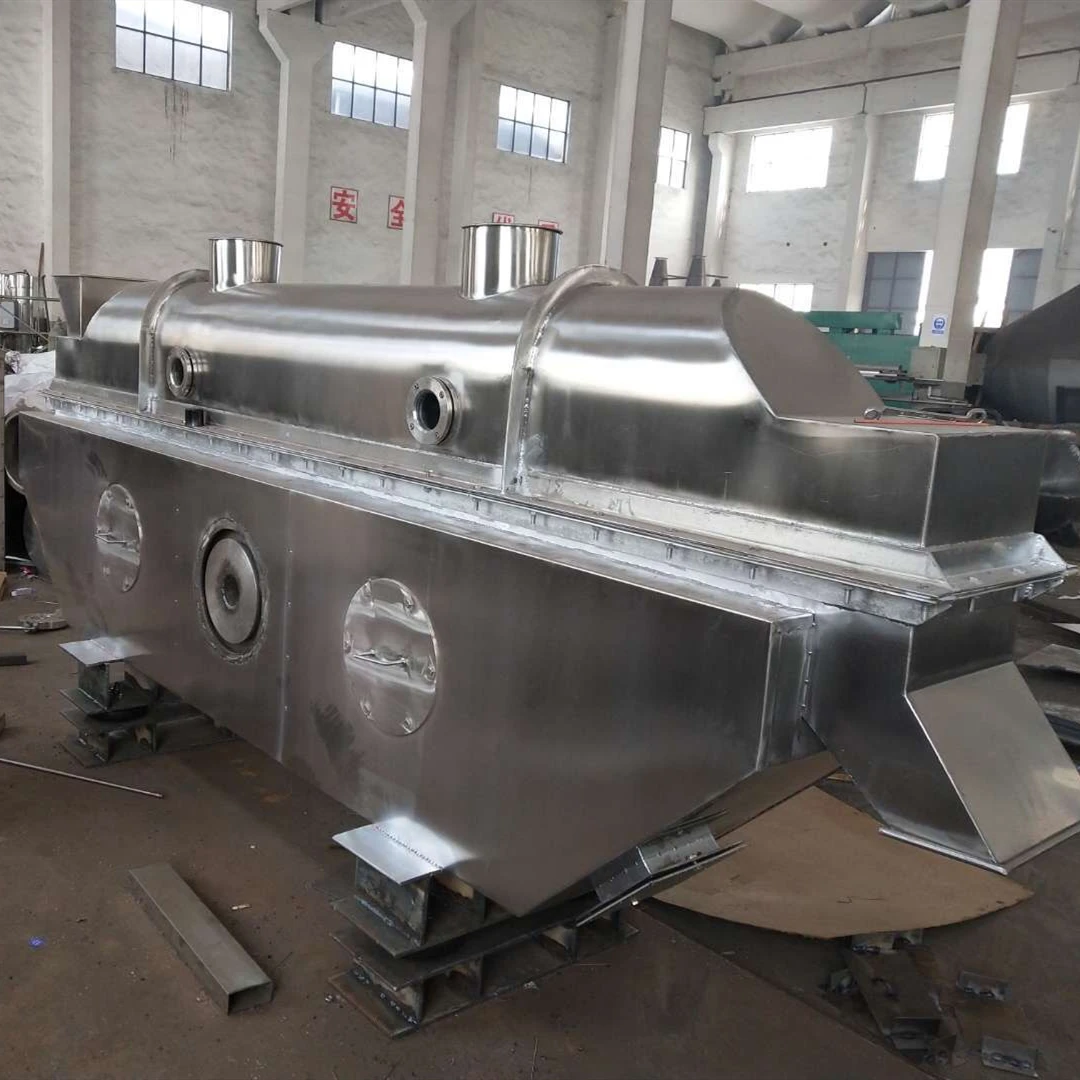

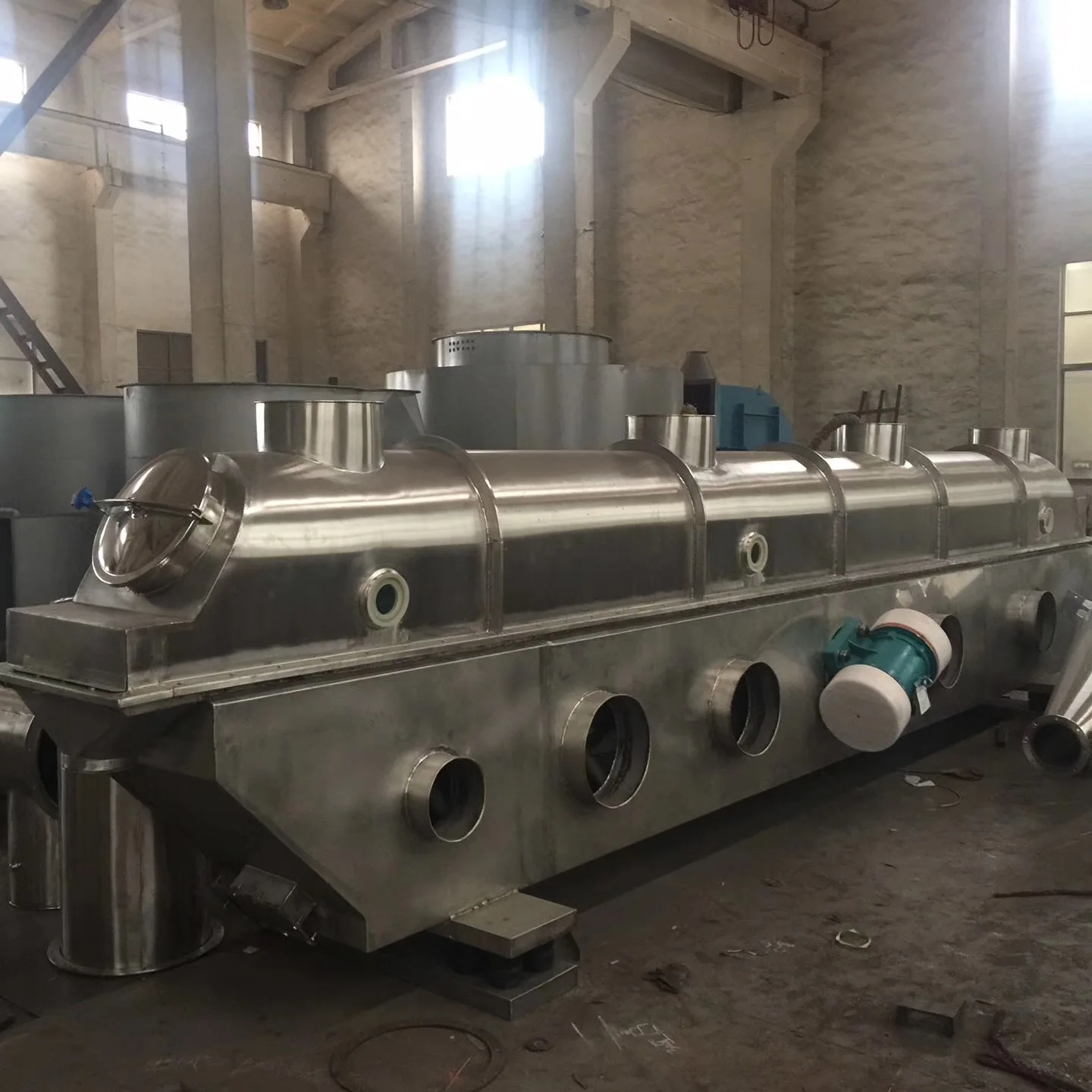

ZLG Model Vibrating Refined Salt Fluid Bed Dryer Fluidized Bed Dryer
- Category: >>>
- Supplier: Changzhou Bravo Machinery Llc
Share on (1600946339798):
Product Overview
Description
Introduction

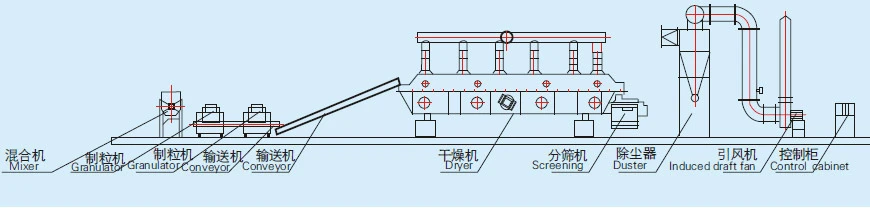

WKS series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is

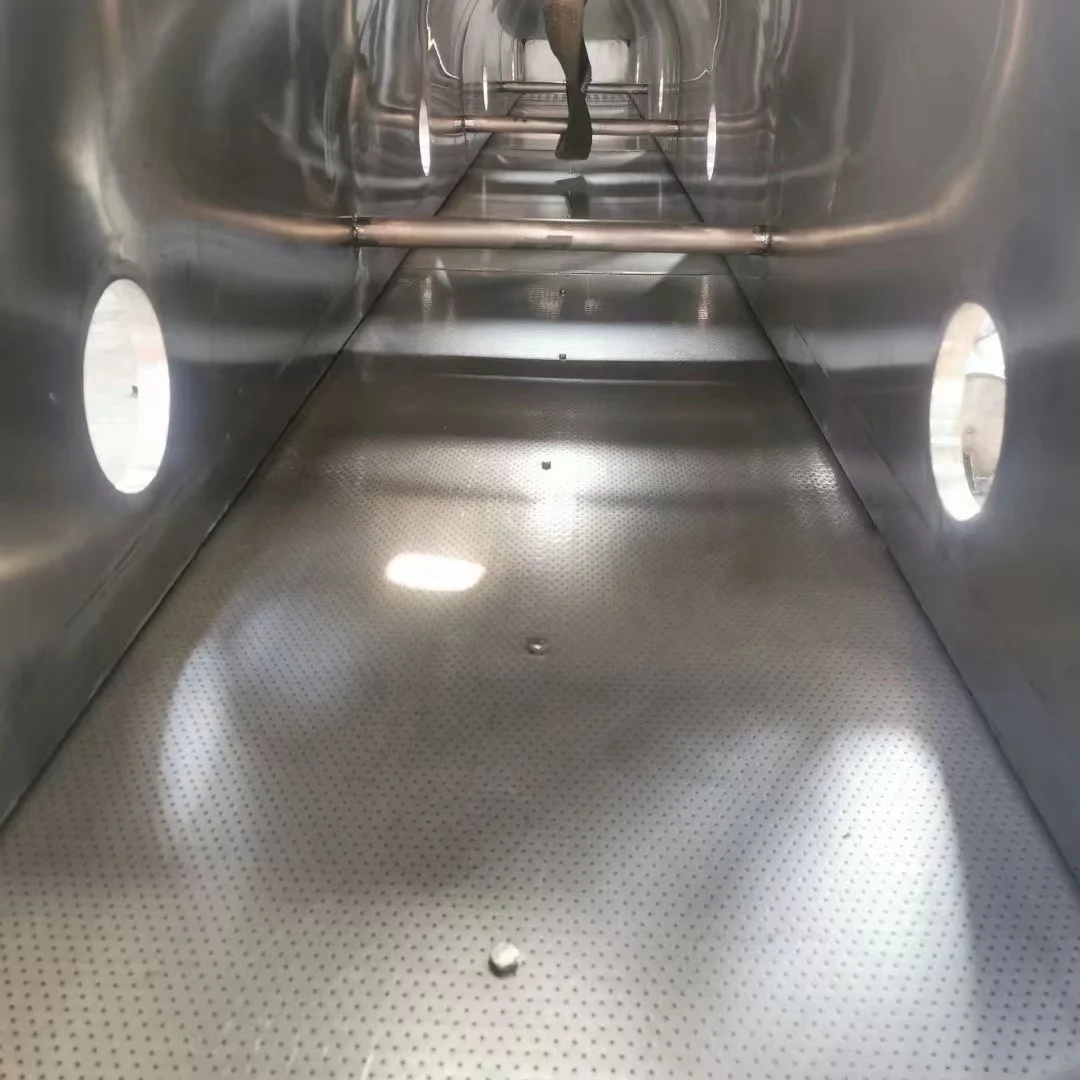

distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through screw feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.
WKS series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is
distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through screw feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.
Model | Fluid bed area (㎡) | Inlet temperature (℃) | Outlet temperature (℃) | Evaporation capacity (kg/h) | Motor (kW) | Weight (kg) |
WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |

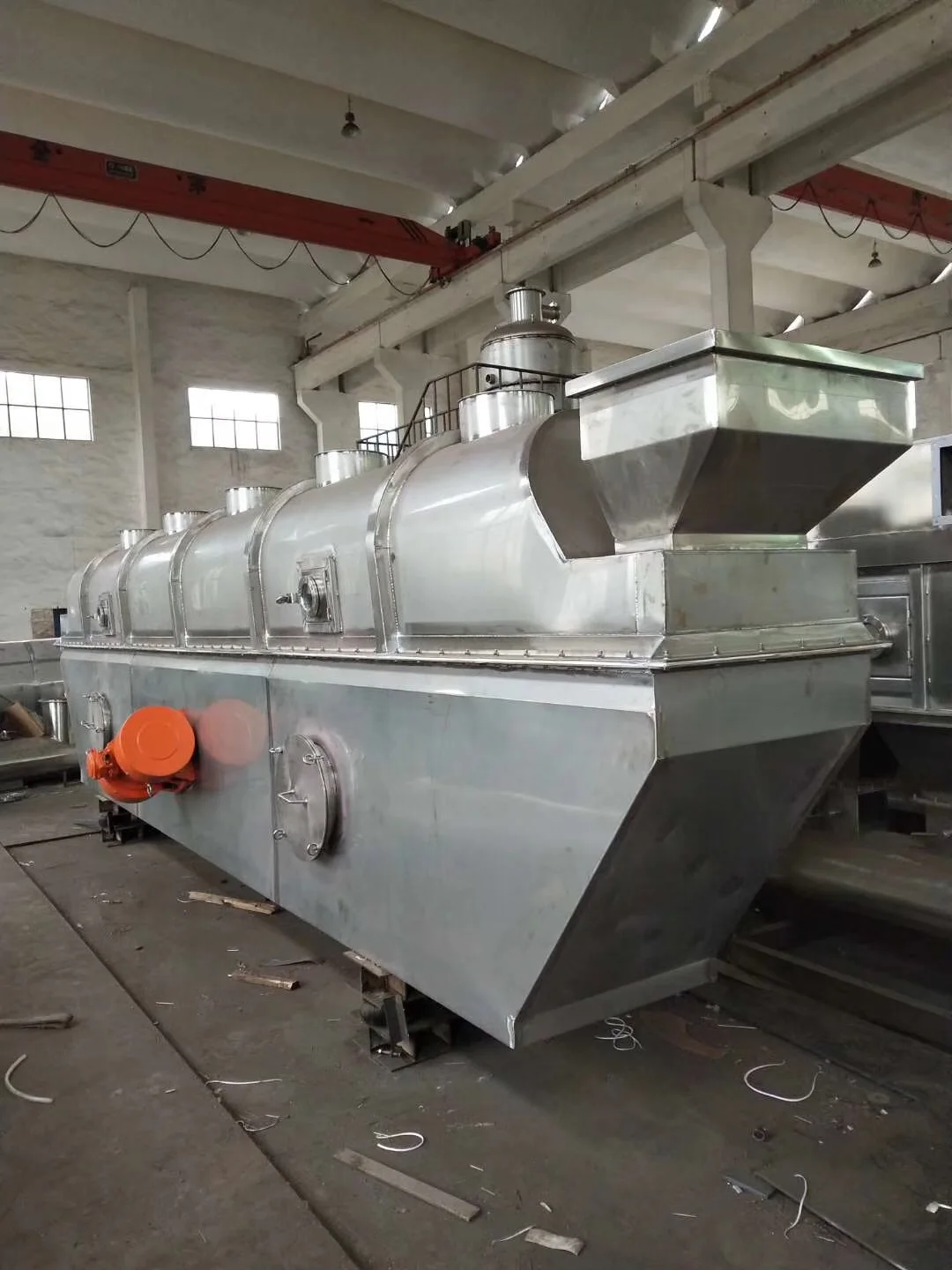

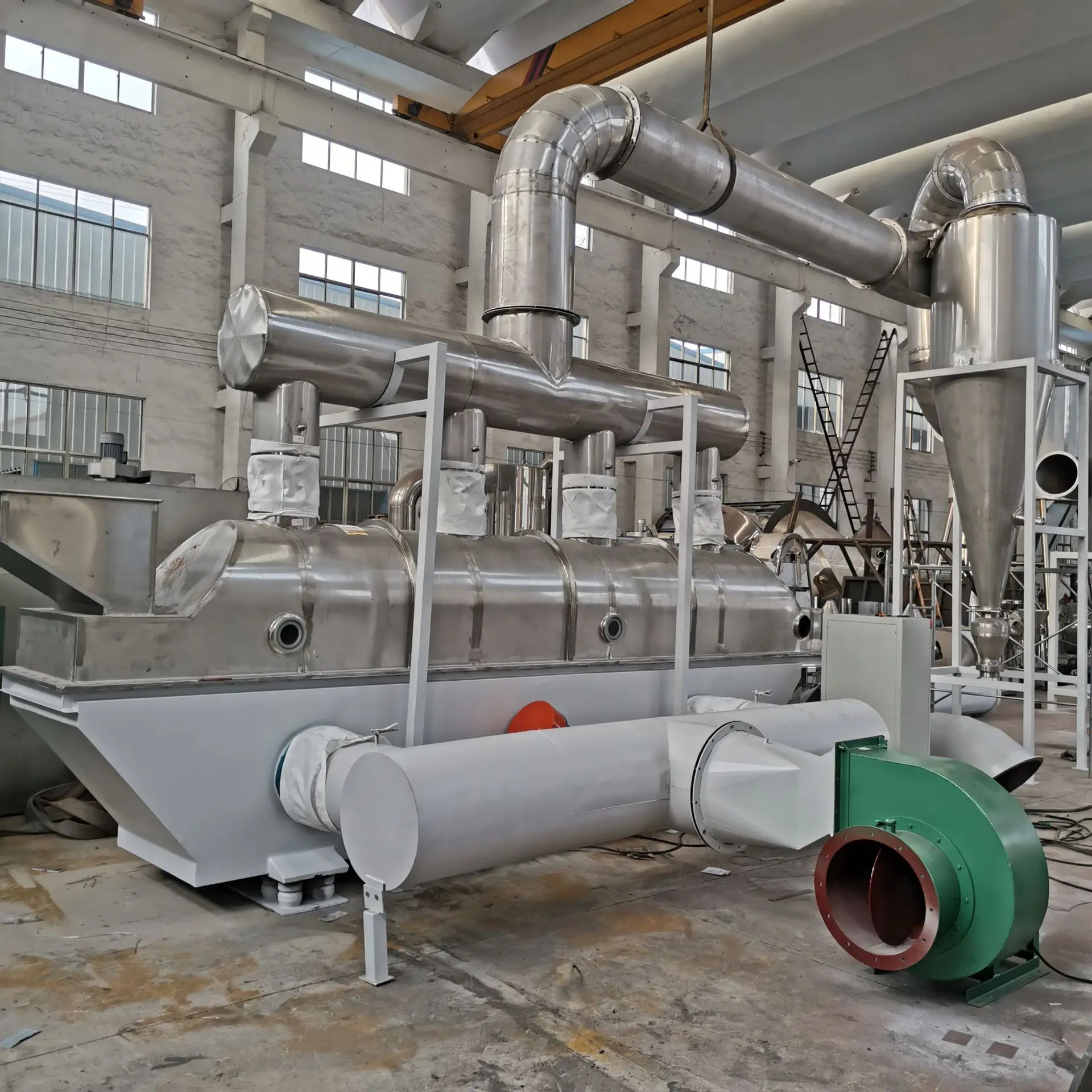

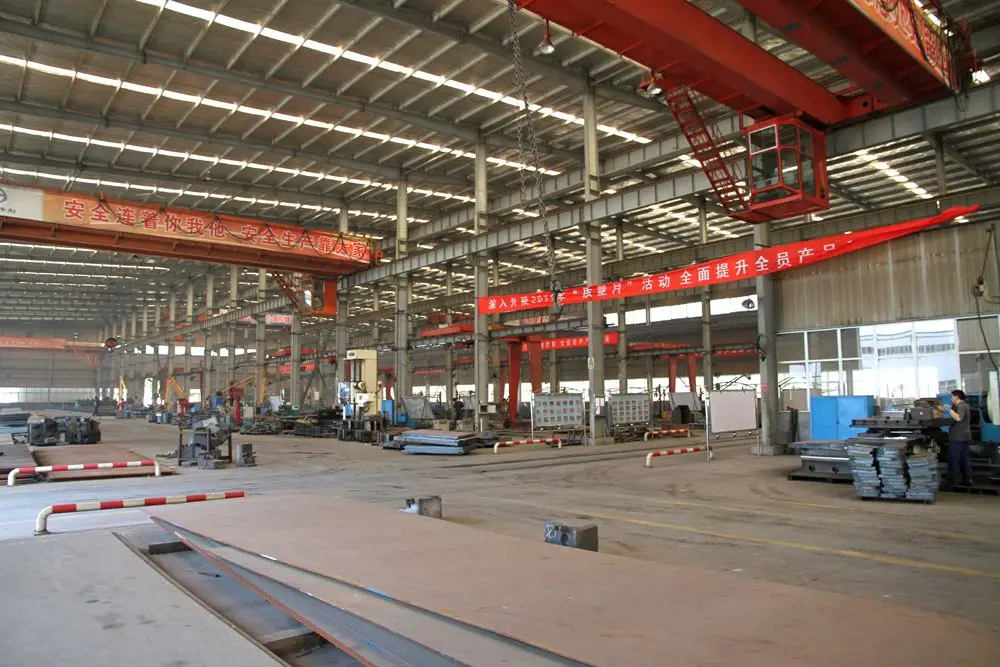

Our Factory

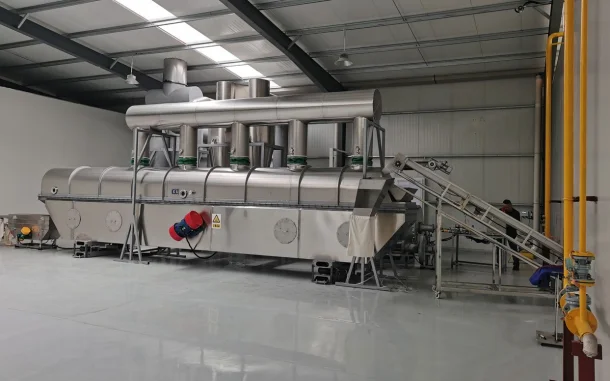

Customer photos
