Hot sale 300W RS485 3 phase dc motor driver for brushless dc motor, VDC 15~48V 3 phase bldc driver with hall sensor
- Category: >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (1600946407434):
Product Overview
Description

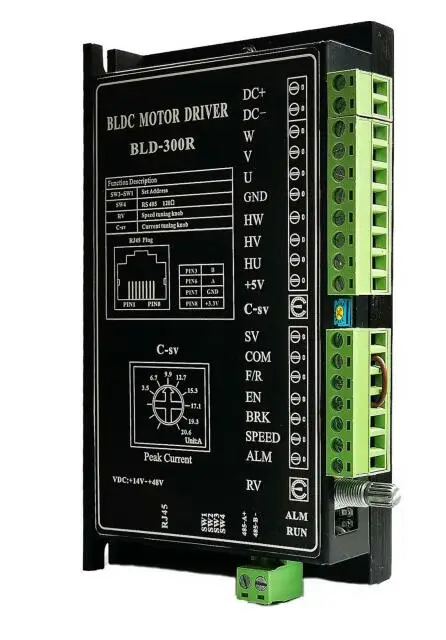

Hot sale 300W RS485 3 phase dc motor driver for brushless dc motor, VDC 15~48V 3 phase bldc driver with hall sensor
BLDC DRIVER
| Model | Peak Current (A) | Rated Current (A) | Voltage | Adaptive |
| BLD-70 | 6 | 3 | 12-30VDC | ≤70W |
| BLD-120 | 15 | 8 | 12-30VDC | ≤120W |
| BLD-300B | 35 | 15 | 12-56VDC | ≤300W |
| BLD-300R | 20.6 | 2 | 15-62VDC | ≤300W |
| BLD-750 | 45 | 25 | 18-52VDC | ≤750W |
| BLDH-350 | 4 | 2 | 180-265VAC | ≤350W |
| BLDH-400R | 5.5 | - | 110-250VAC | ≤400W |
| BLDH-750 | 8 | 4 | 180-265VAC | ≤750W |
Feature
1.Support Modbus communication protocol(RS485 communication), suitable for touch screen or PC
2.Built-in potentiometer RV speed control and external analog speed control
3.Closed loop control to ensure uniform speed when loading
4.10 seconds of stall waiting time
Related Products
Main Products Series
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
