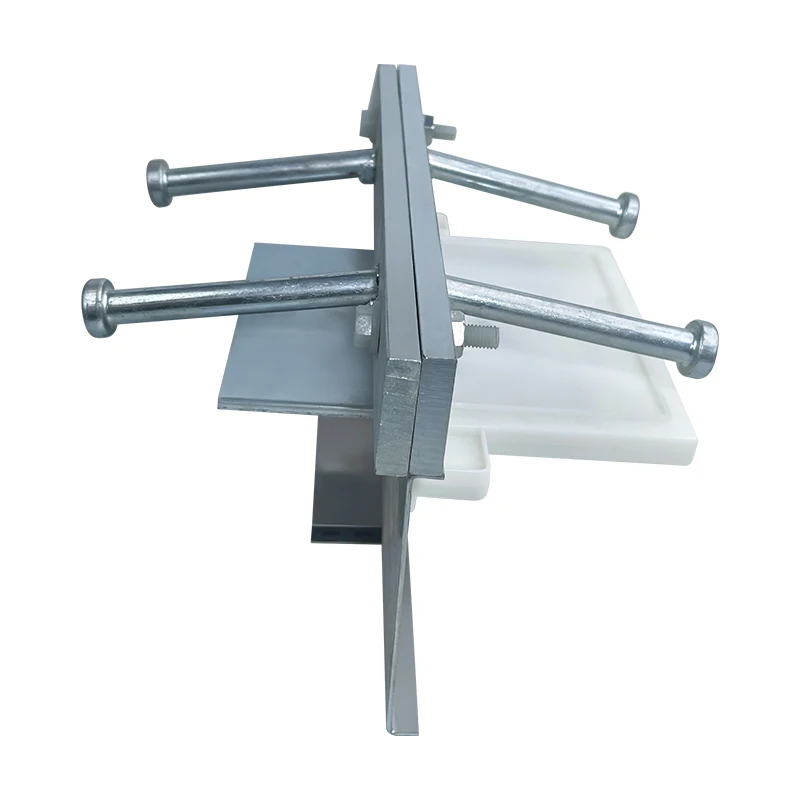

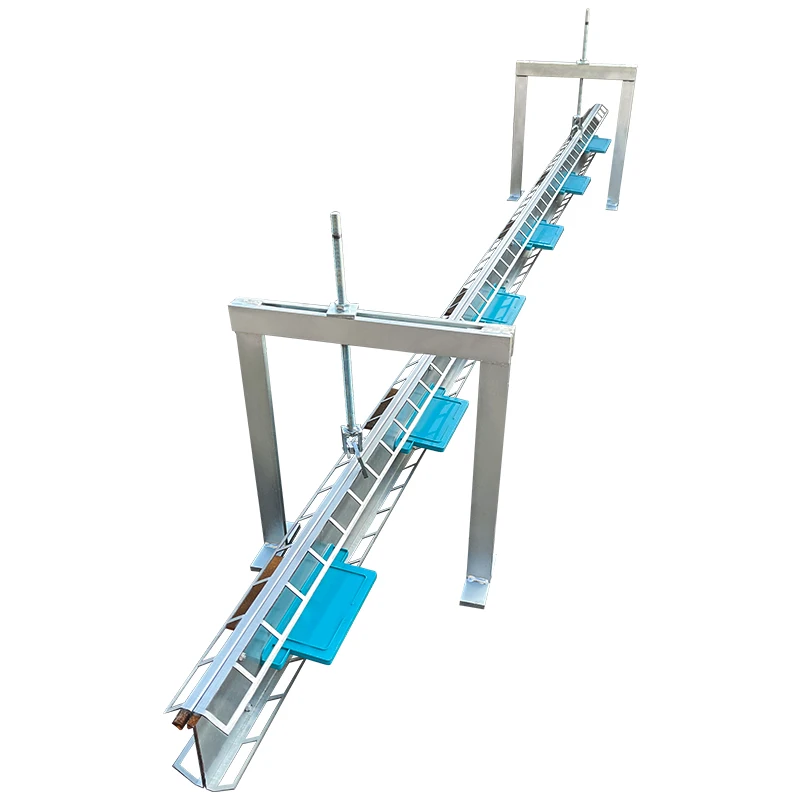

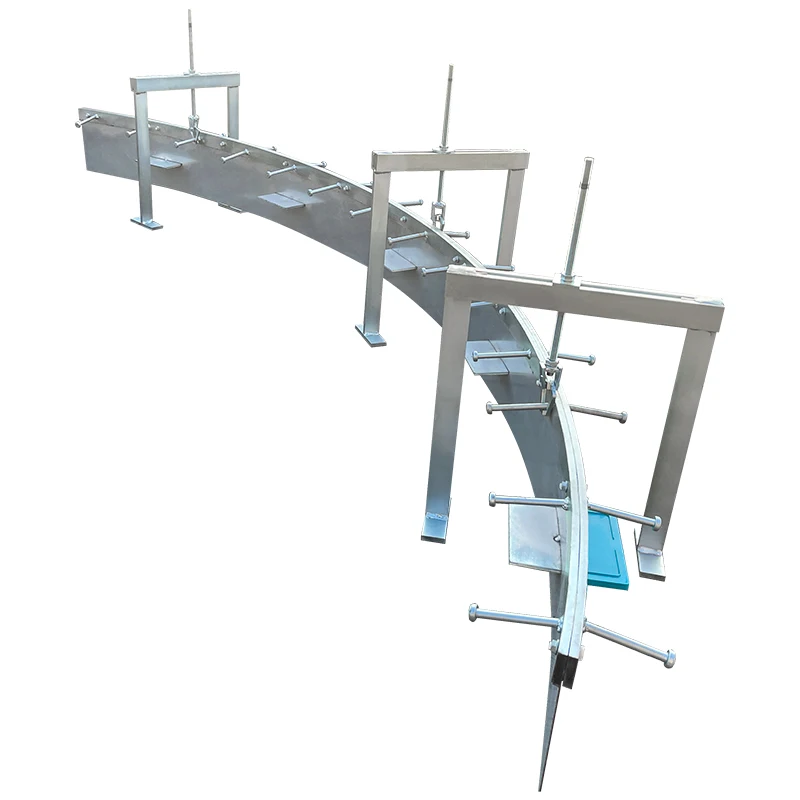

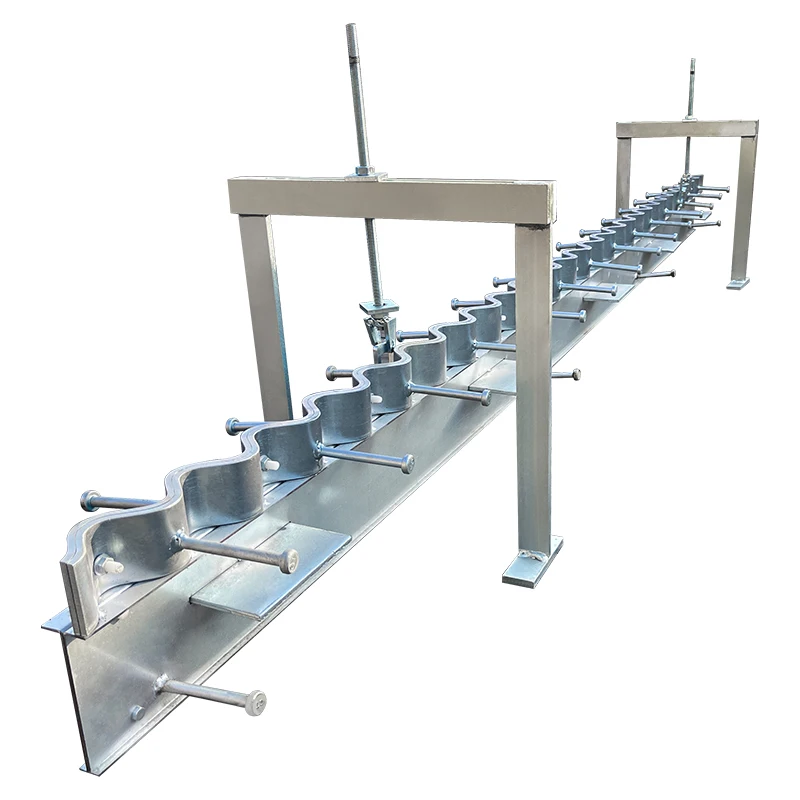

Steel Heavy Traffic Loading Concrete Armored Joints Armor Joints for Concrete
Avida ASDDS armour joint for heavy duty concrete floors is a prefabricated leave-in-place joint system designed to build formed free-movement joints, consisting of heavy-duty arris armoring, permanent formwork and a load transfer system. It is suitable for all large-area construction methods for ground-bearing and pile-supported concrete floors.
ARMOURJOINT provides heavy duty protection and armouring to slab panel edges by way of two solid, high specification, cold drawn steel sections each 40mm deep x 10mm thick. The steel armouring is anchored to the concrete with shear studs. Each and every shear stud is factory inspected and tested to ensure the integrity of it’s weld to the steel armouring.

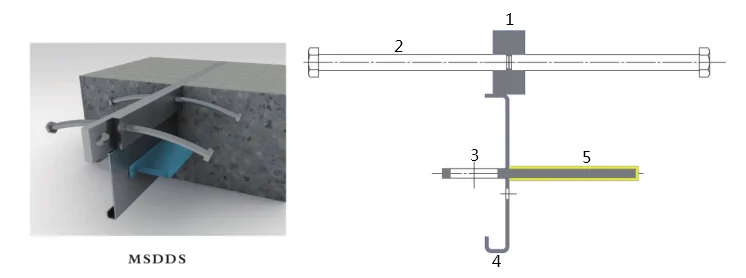

DETAILS
1.Two high specification solid, cold drawn 40mm deep x 10mm thick steel armour edge strips with sharp corners for clean finish to concrete.
2.Diameter 10mm x 100mm long, shear studs for anchorage into concrete.
3.Unique asymmetric dowel, high grade 355N/mm2 steel for superior load transfer and maximum 30mm joint openings.
4.Cold rolled steel plate.
5.High density plastic sleeve for release of dowel in concrete, with ± 20mm parallel movement along joint and 30mm perpendicular to joint.
2.Diameter 10mm x 100mm long, shear studs for anchorage into concrete.
3.Unique asymmetric dowel, high grade 355N/mm2 steel for superior load transfer and maximum 30mm joint openings.
4.Cold rolled steel plate.
5.High density plastic sleeve for release of dowel in concrete, with ± 20mm parallel movement along joint and 30mm perpendicular to joint.

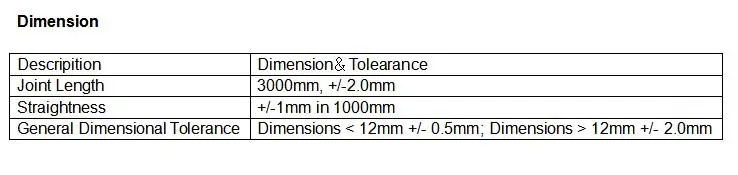

PRODUCT SPECIFICATIONS
Model | Height(mm) | Dowel Size(mm) | Dowel Centers(c/c) | Length(m/pcs) |
MSDSS | 130mm,180mm,230mm or Custom | 150*135*6; 145*175*8; 150*150*12 | 500 | 3 |

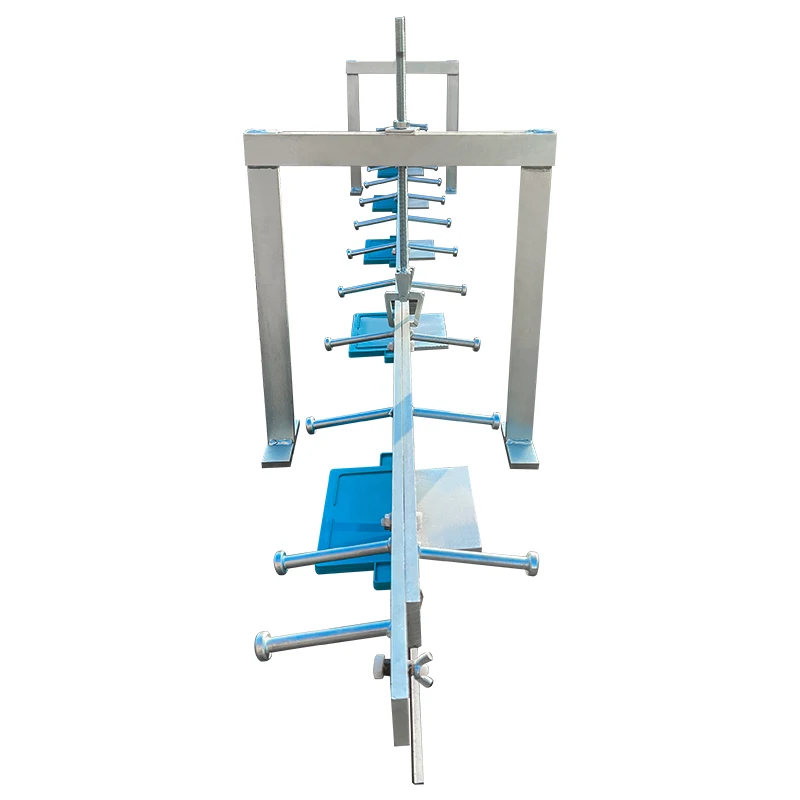

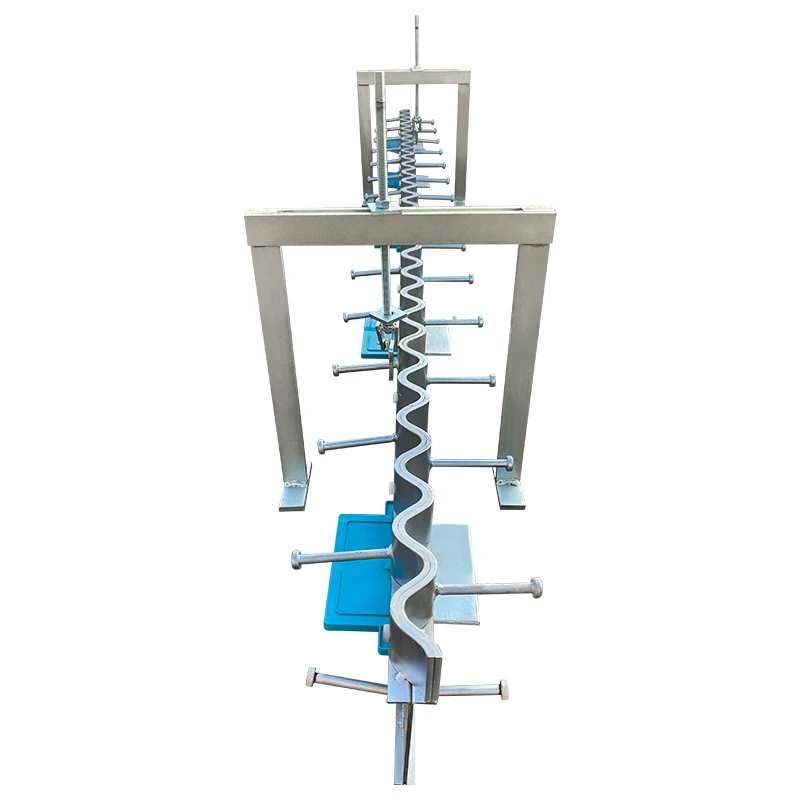

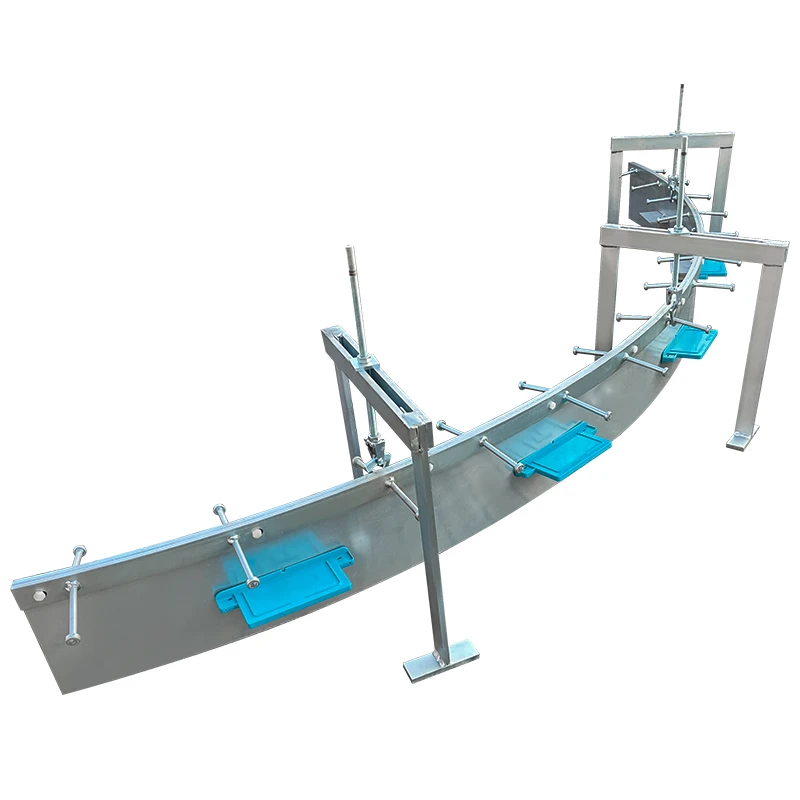

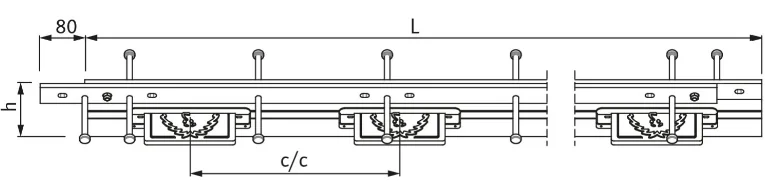

PRODUCT PHOTO&DRAWING

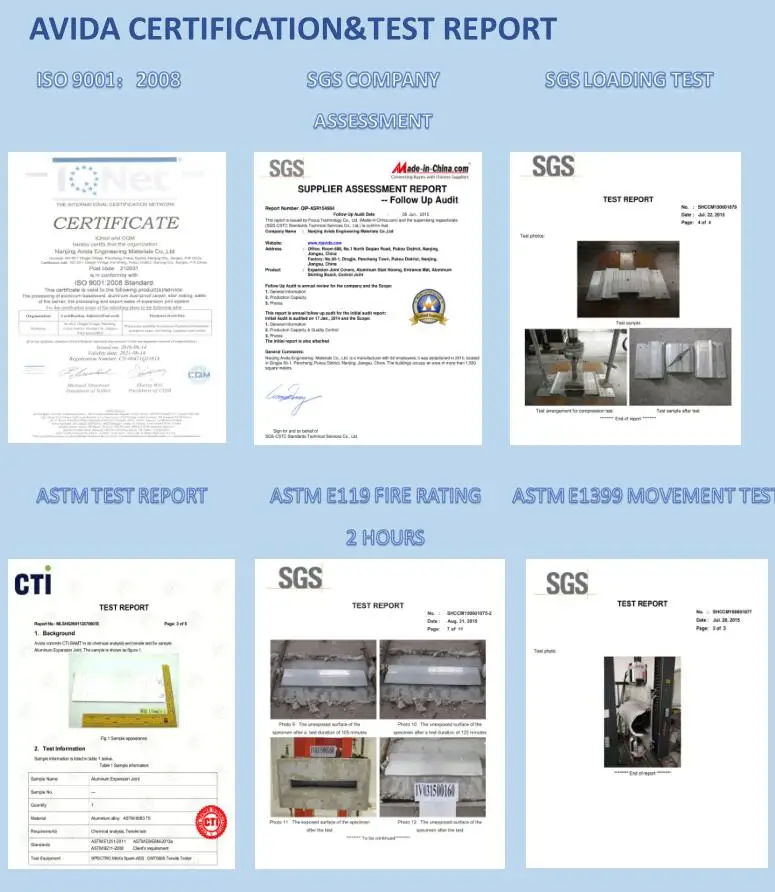

TEST REPORTS
We have made various tests for our products. Contact us to get details.
If you have projects that need special test, you can also make as your request.

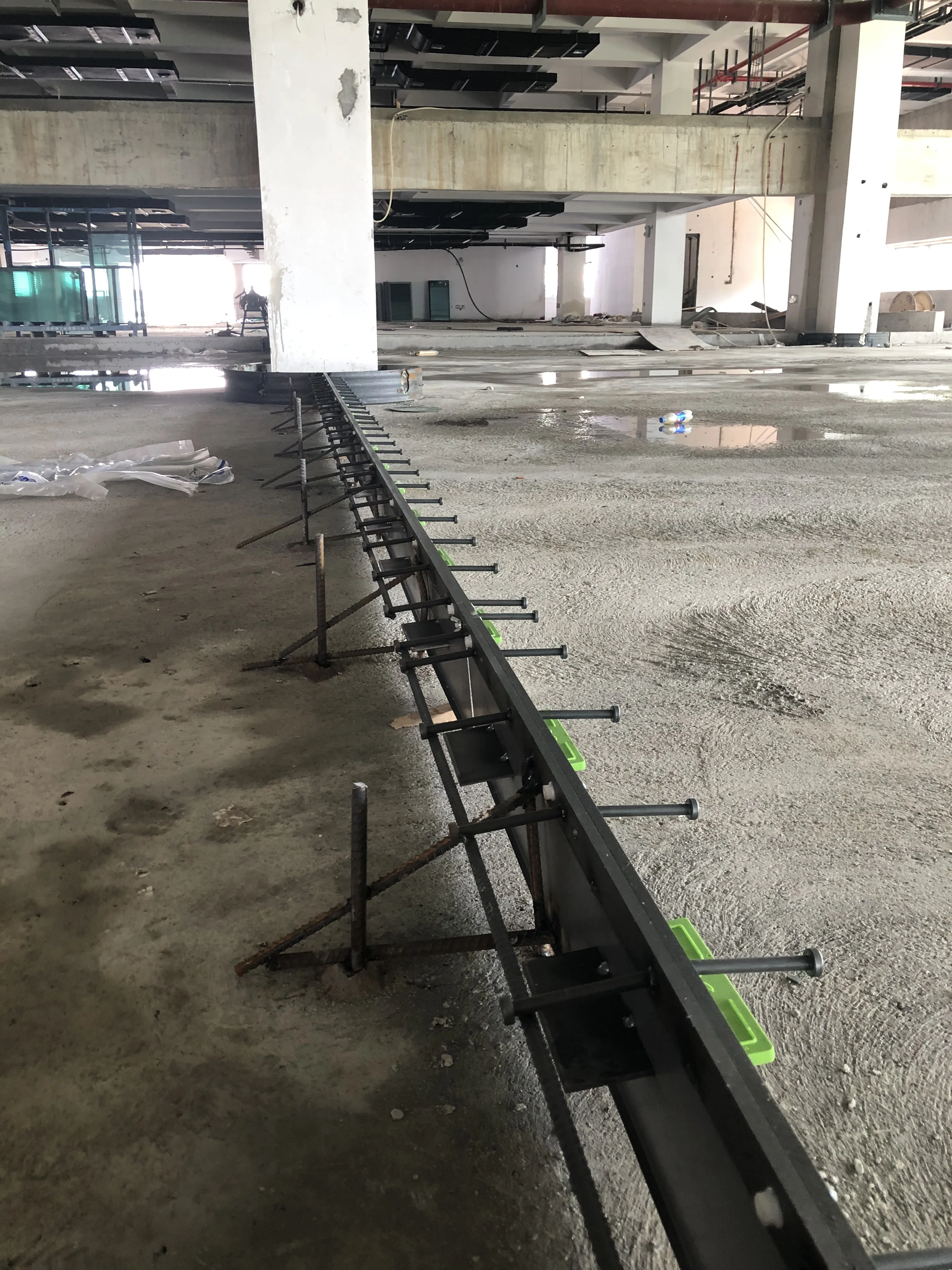

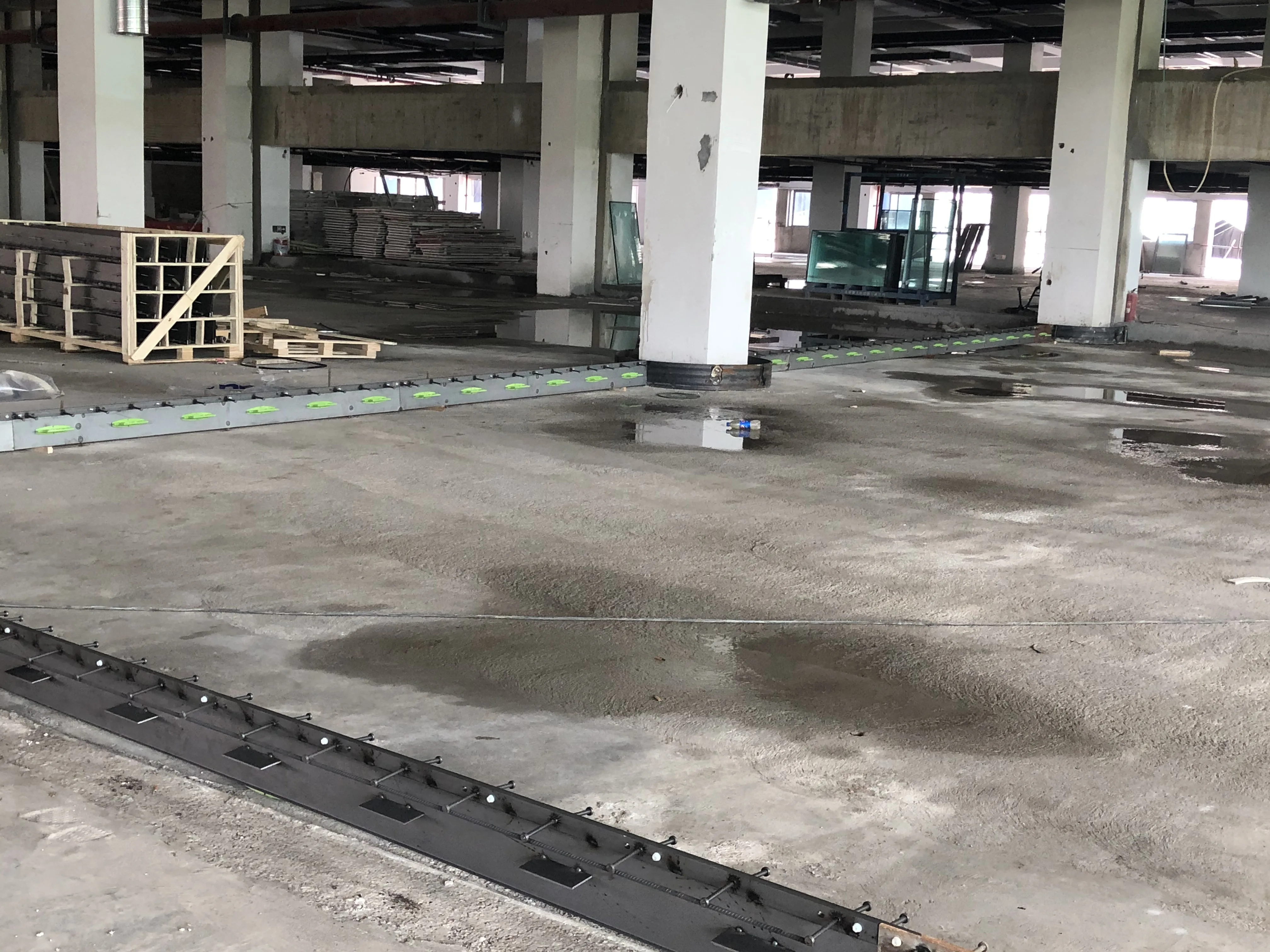

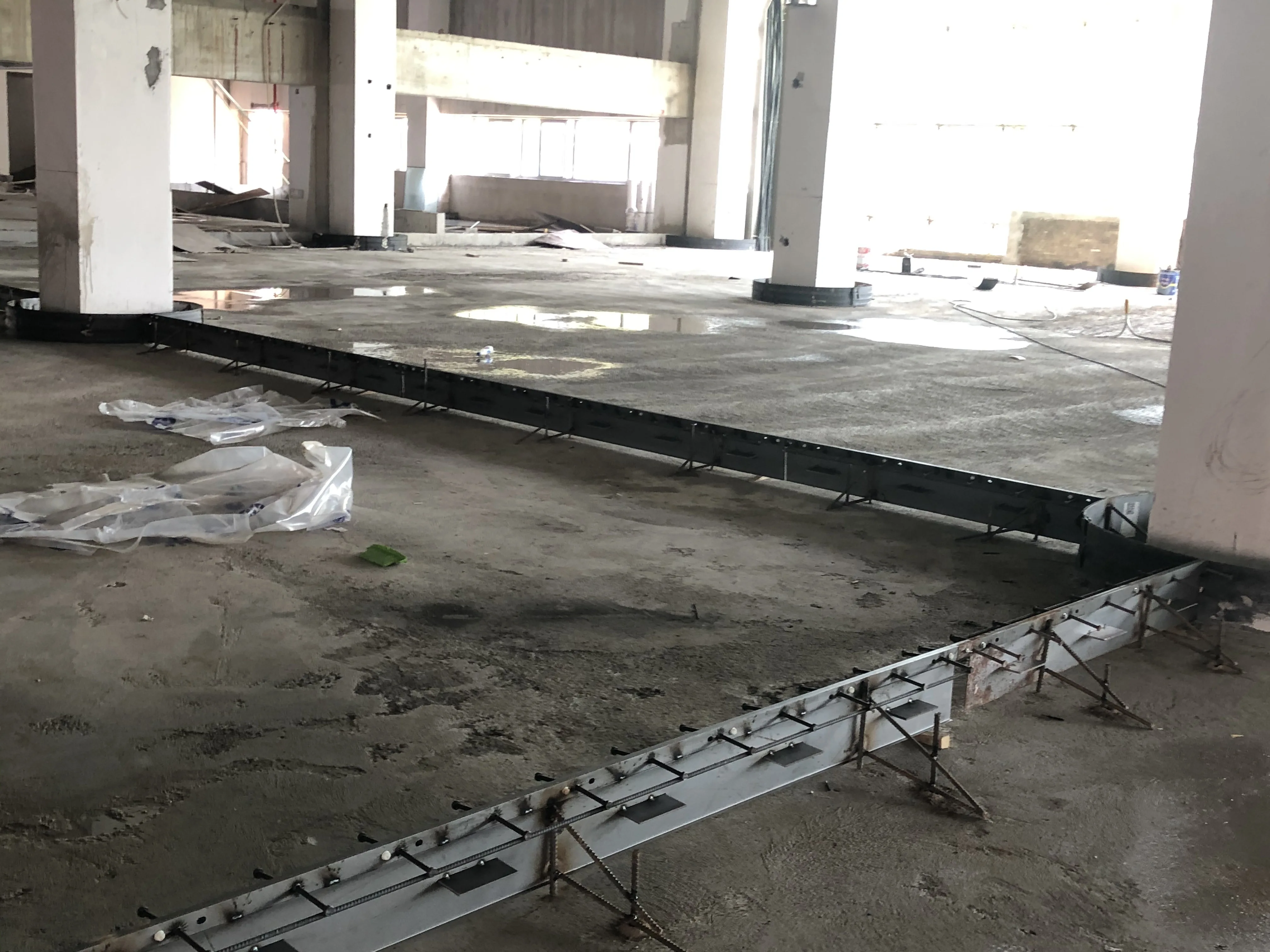

Successful Project
Contact us if you have projects that need armoured joints. We will recommend suitable model to you. Height can be made as your request.

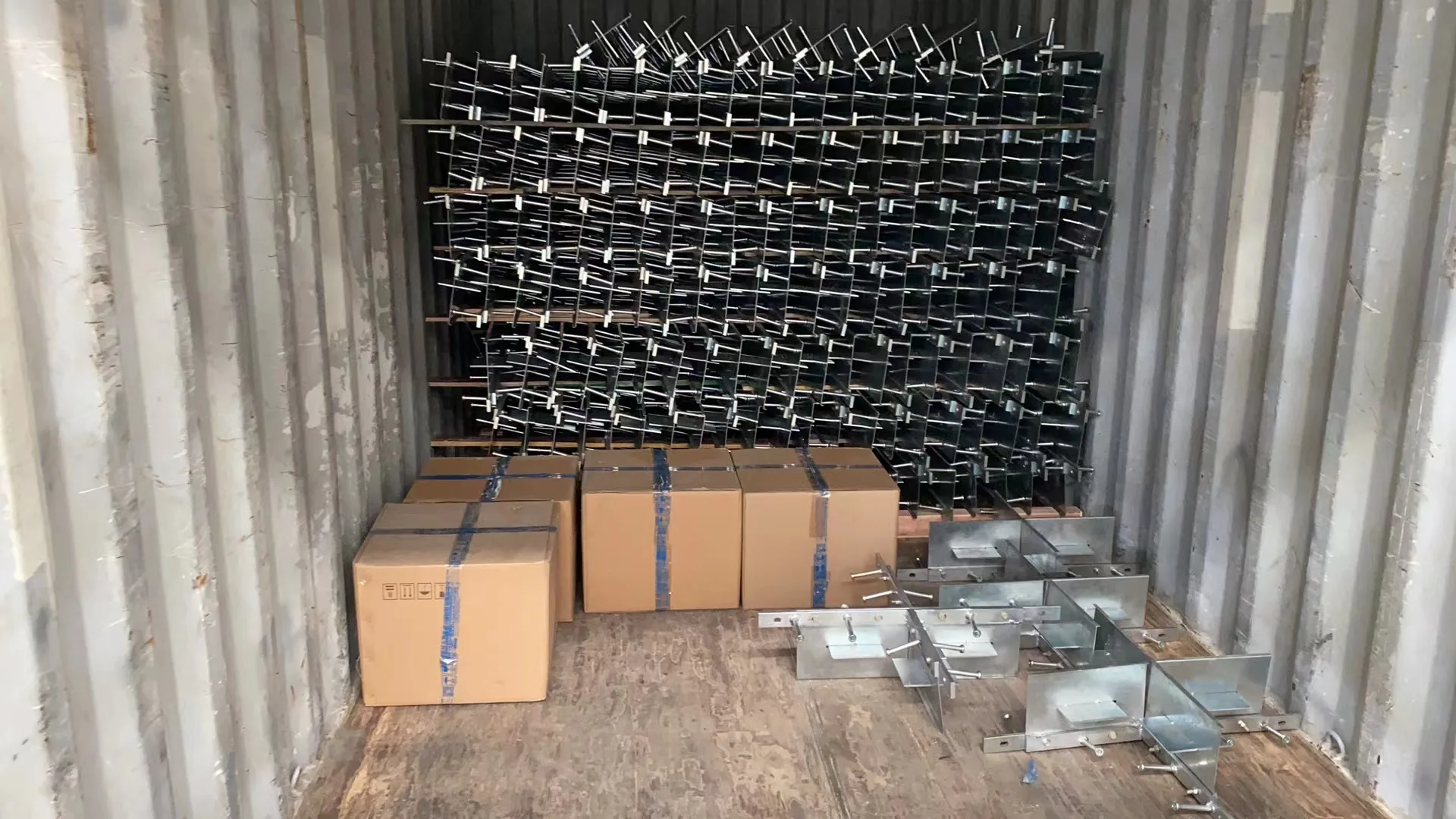

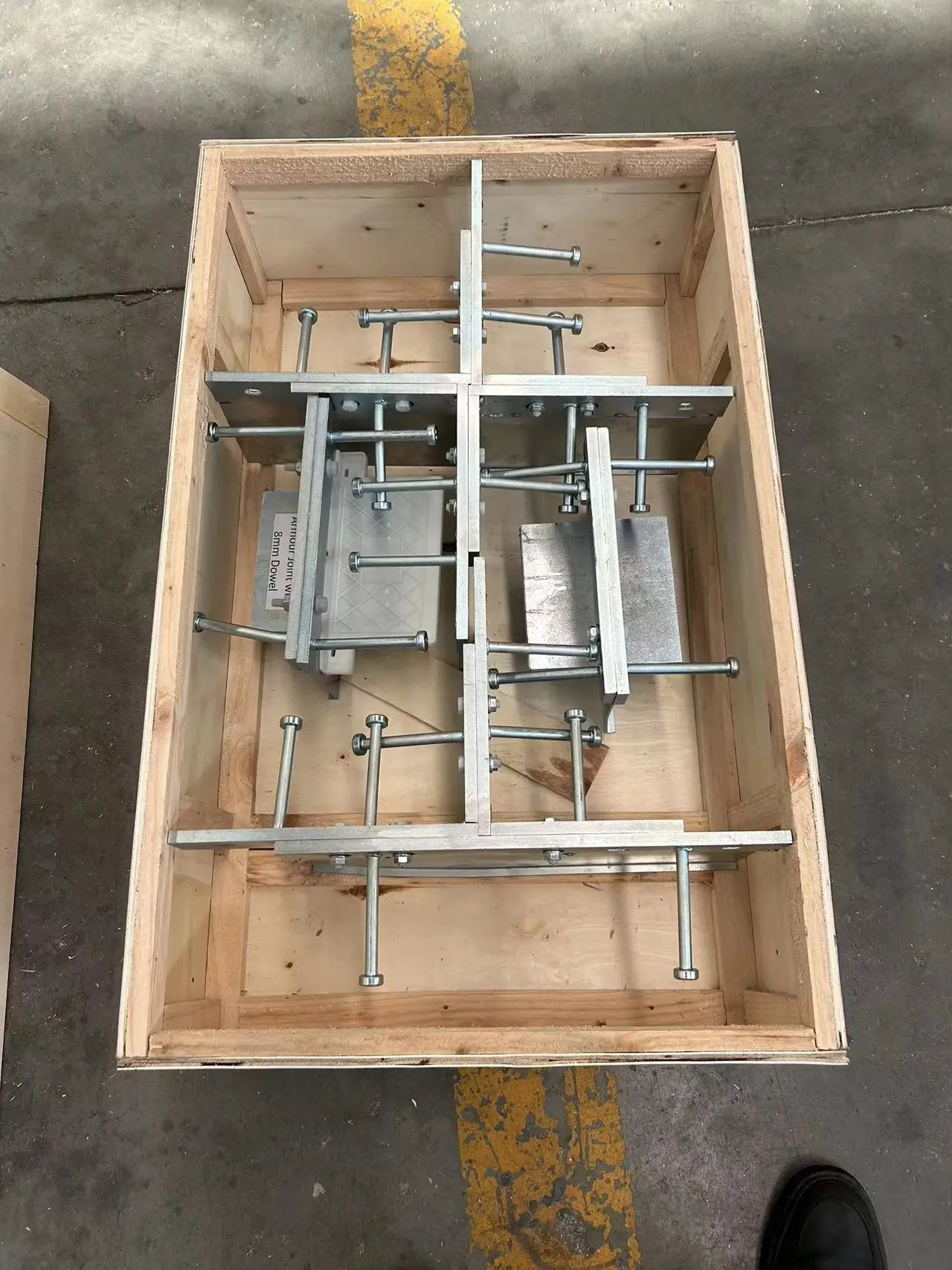

PACKAGE&DELIVERY
1, For small quantity, we will make plywood box to package goods.
2, For big quantity, we will use pallet to package goods and load goods to container then.
FAQ
Q1： Are u a trading company or manufacturer?
A1：We are a professional manufacturer of expansion joints for over 20 years. Over 60 different models are available now.
Q2: What is your delivery time?
A2: If we have material in stock, we can send goods in a week. If stock material is not enough, we need 25 working days for production. The exact production time depends on the quantity.
Q3: What is your MOQ?
A3: We do not have MOQ. Small quantity is also acceptable.
Q4: Do you provide custom service?
A4: Yes, we can custom as your drawing. We can also design suitable model for your project as your request.
Q5: Do you provide sample before order?
A5, Yes, we can send you free sample to confirm before you place order.
Q2: What is your delivery time?
A2: If we have material in stock, we can send goods in a week. If stock material is not enough, we need 25 working days for production. The exact production time depends on the quantity.
Q3: What is your MOQ?
A3: We do not have MOQ. Small quantity is also acceptable.
Q4: Do you provide custom service?
A4: Yes, we can custom as your drawing. We can also design suitable model for your project as your request.
Q5: Do you provide sample before order?
A5, Yes, we can send you free sample to confirm before you place order.
