Dienmern High Quality Portable 8 in 1 Multi Gas Detector Handheld Device PM2.5 Temp TVOC HCHO Air Quality Monitor OEM Supported

Product Overview

Description

Dienmern High Quality Portable 8-in-1 Multi Gas Detector Handheld Device PM2.5 Temp TVOC HCHO Air Quality Monitor OEM Supported

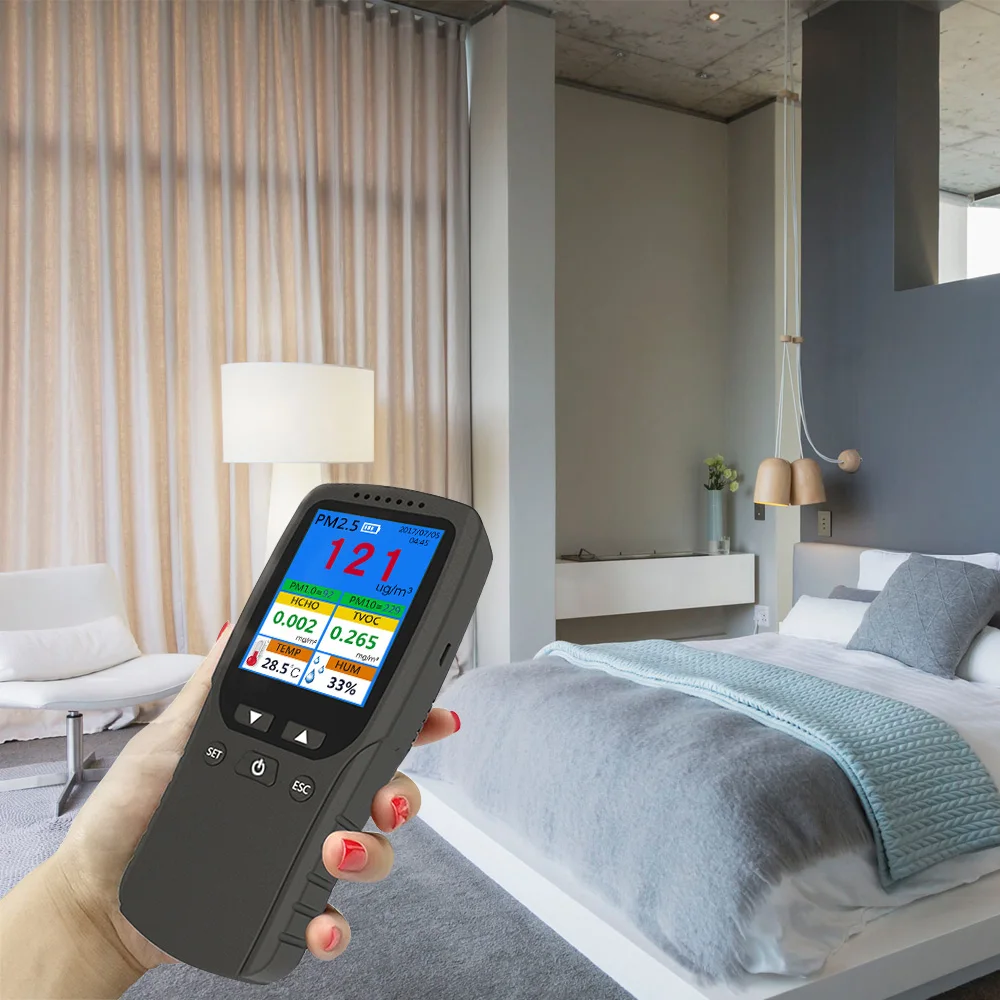

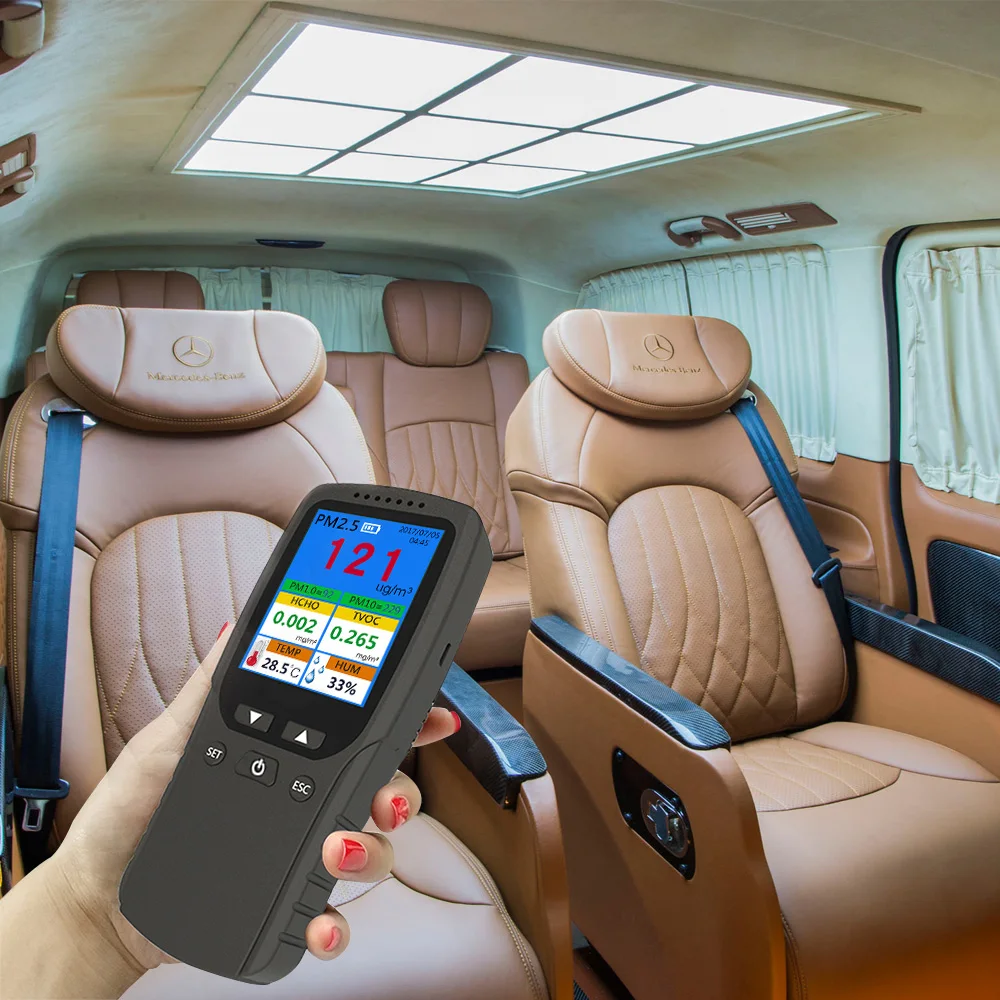

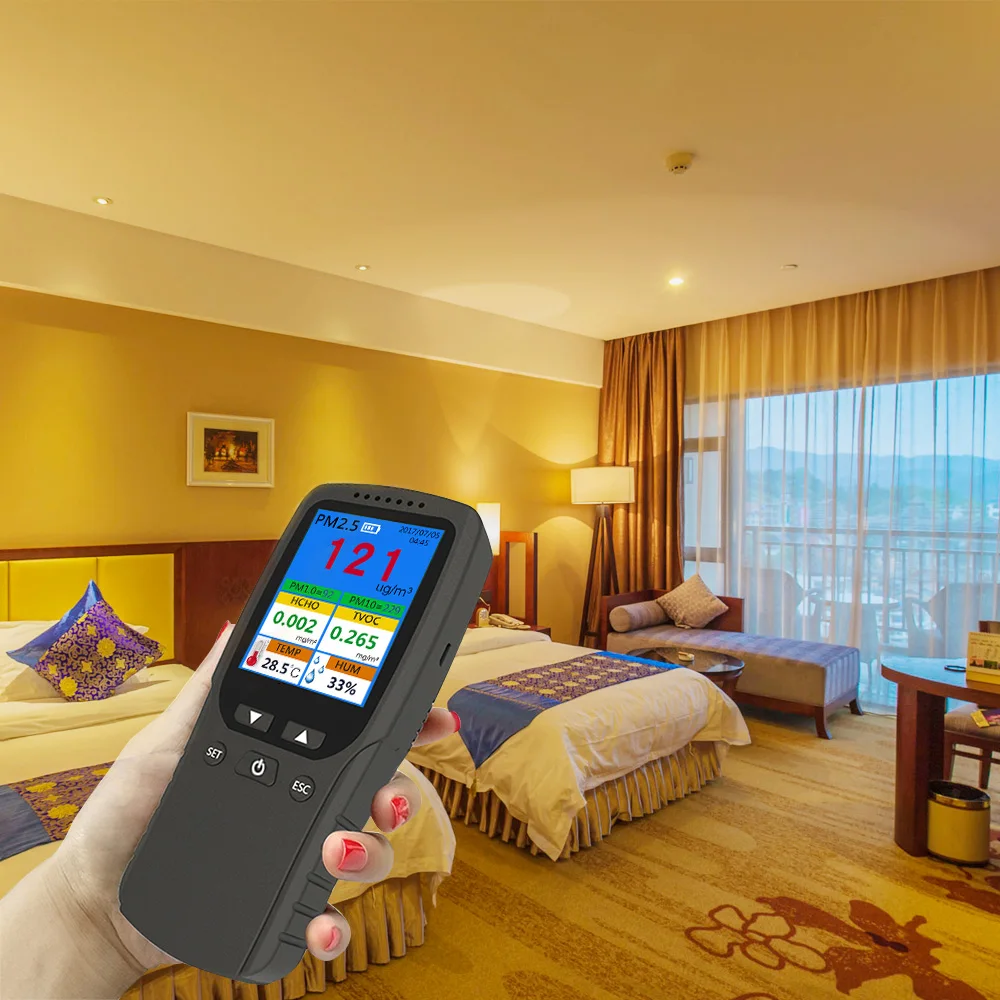

Multifunction Air Quality Monitor is easy to operate,keep the most important and essential parts for a good air quality monitor — high accurate for testing. It can be widely used in household, office, car and many other environments.Know What's in the Air You Breathe - Formaldehyde Monitor come with TVOC Test Monitor Detector with stand, real time air quality record and analysis, smart time display. Also can measure the ambient temperature and the relative humidity;available for easy understanding about formaldehyde change in up to 10 days.Large LED Color Screen easy to read the testing result, more convenient to use for indoor air detect.







Product Description

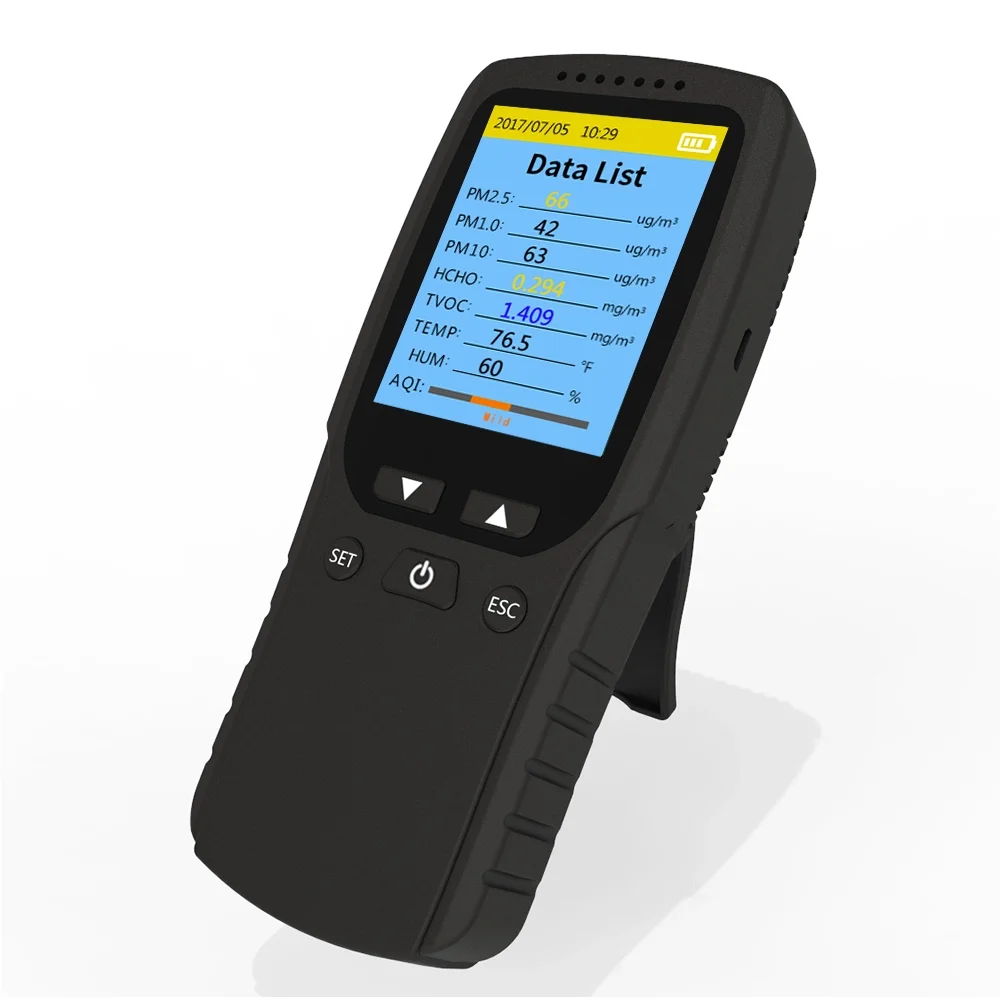

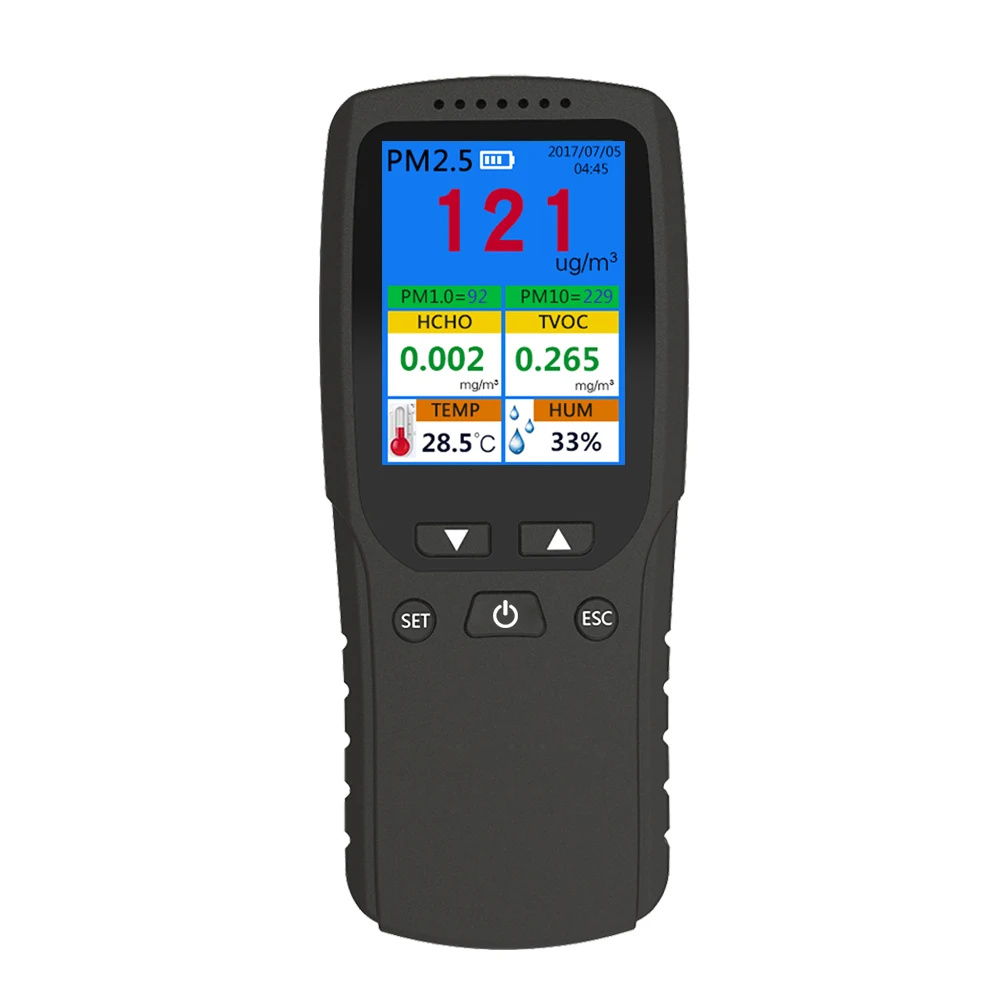

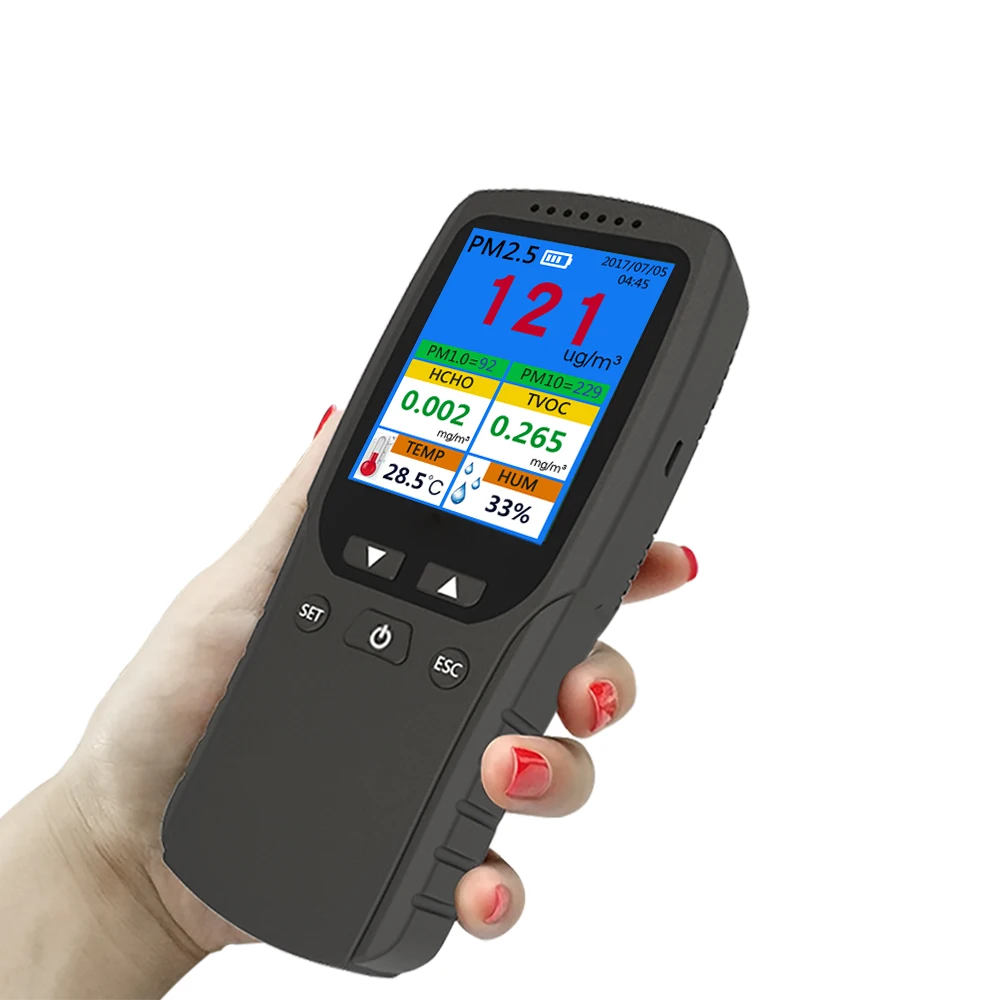

This product is a multifunctional air quality detector that detects Formaldehyde (HCHO), Total Volatile Organic Compounds (TVOC), Particulate Matter <2.5 micron-sized particles (PM2.5/1.0/10), Temperature, and Humidity with clock and record function. As a scientific air quality detection device, it combines multiple air sensors with a built-in fan to allow real-time monitoring of formaldehyde (HCHO), total volatile organic compounds (TVOC), PM2.5/1.0/10, temperature, and humidity on its digital LCD display.

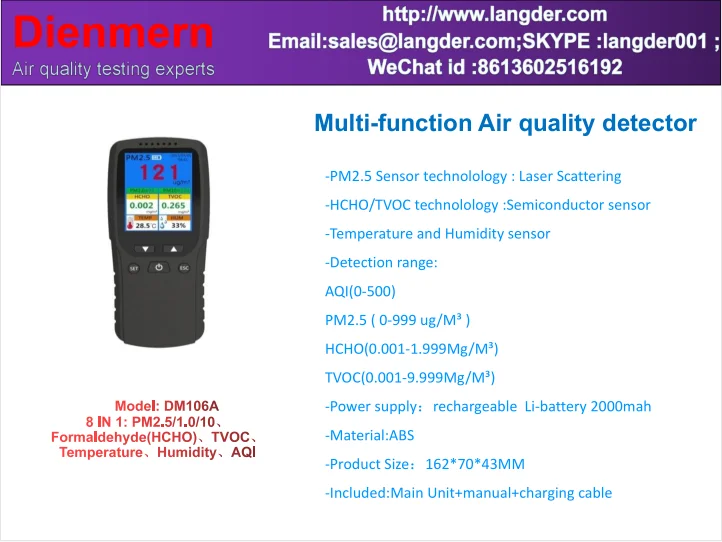

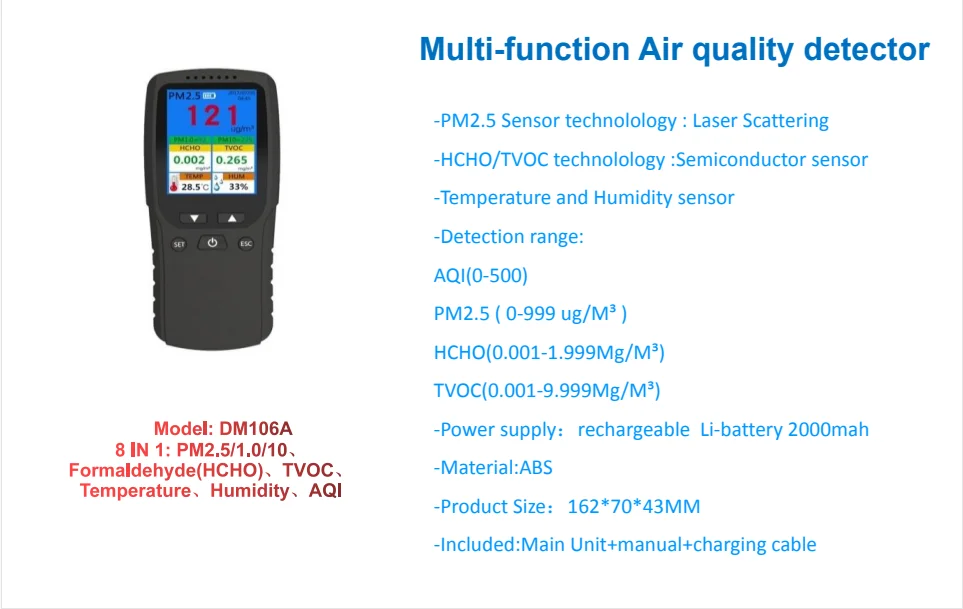

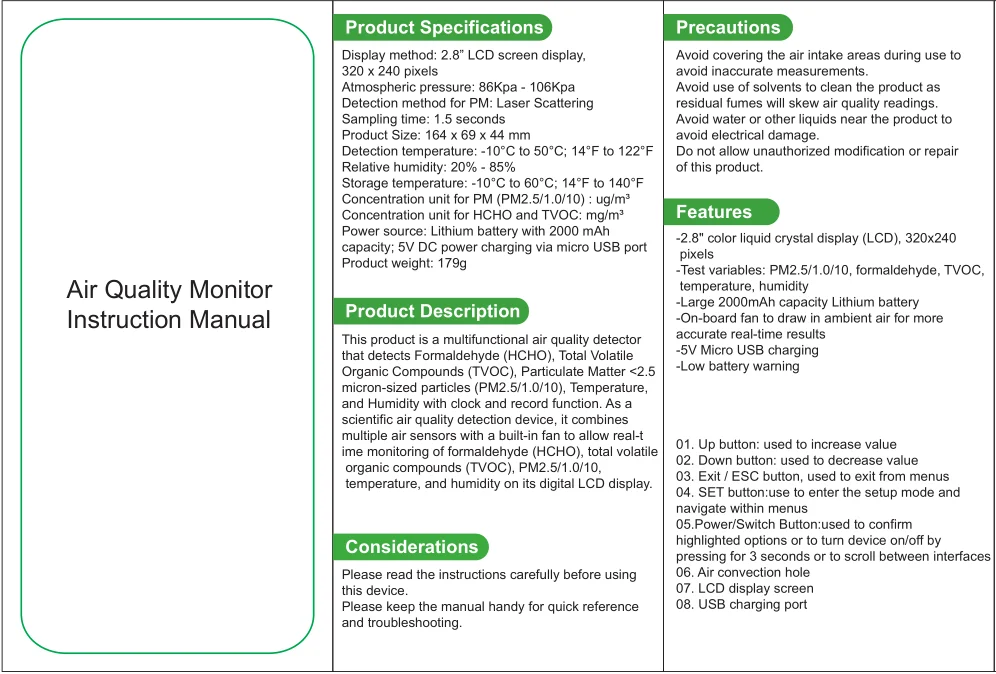

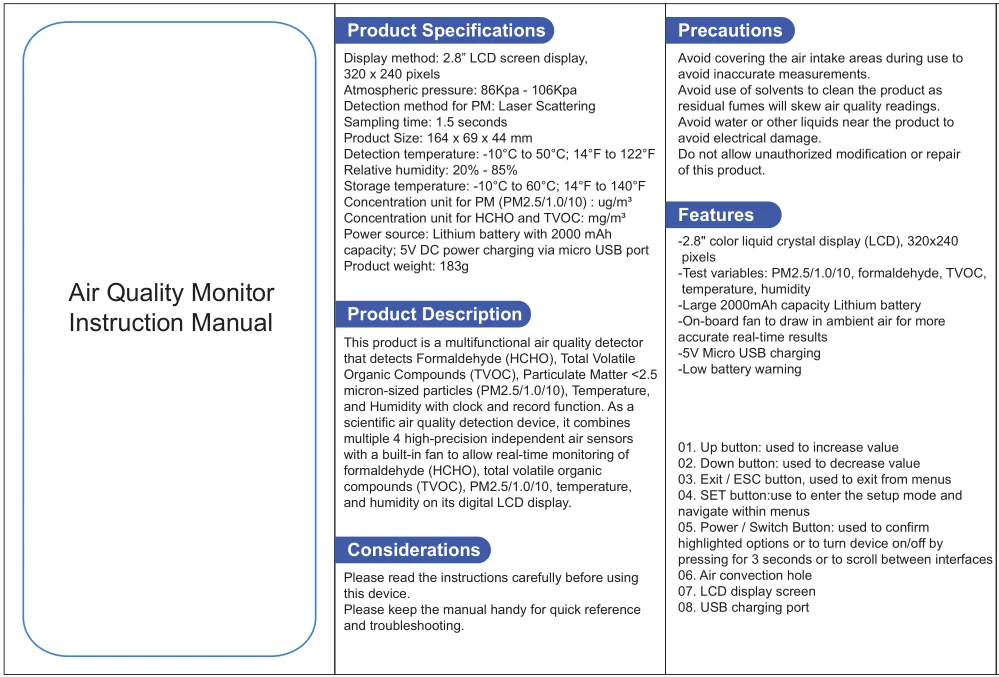

Product Specifications

Display method: 2.8” LCD screen display, 320 x 240 pixels

Atmospheric pressure: 86Kpa - 106Kpa

Detection method for PM: Laser Scattering

Sampling time: 1.5 seconds

Product Size: 164*69*44MM

Detection temperature: -10°C to 50°C;

Relative humidity: 20% - 85%

Storage temperature: -10°C to 60°C;

Concentration unit forPM: ug/m³

Concentration unit for HCHO and TVOC: mg/m³

Power source: Lithium battery with 2000mAh capacity; 5V DC power charging via micro USB port

Product weight: 350g

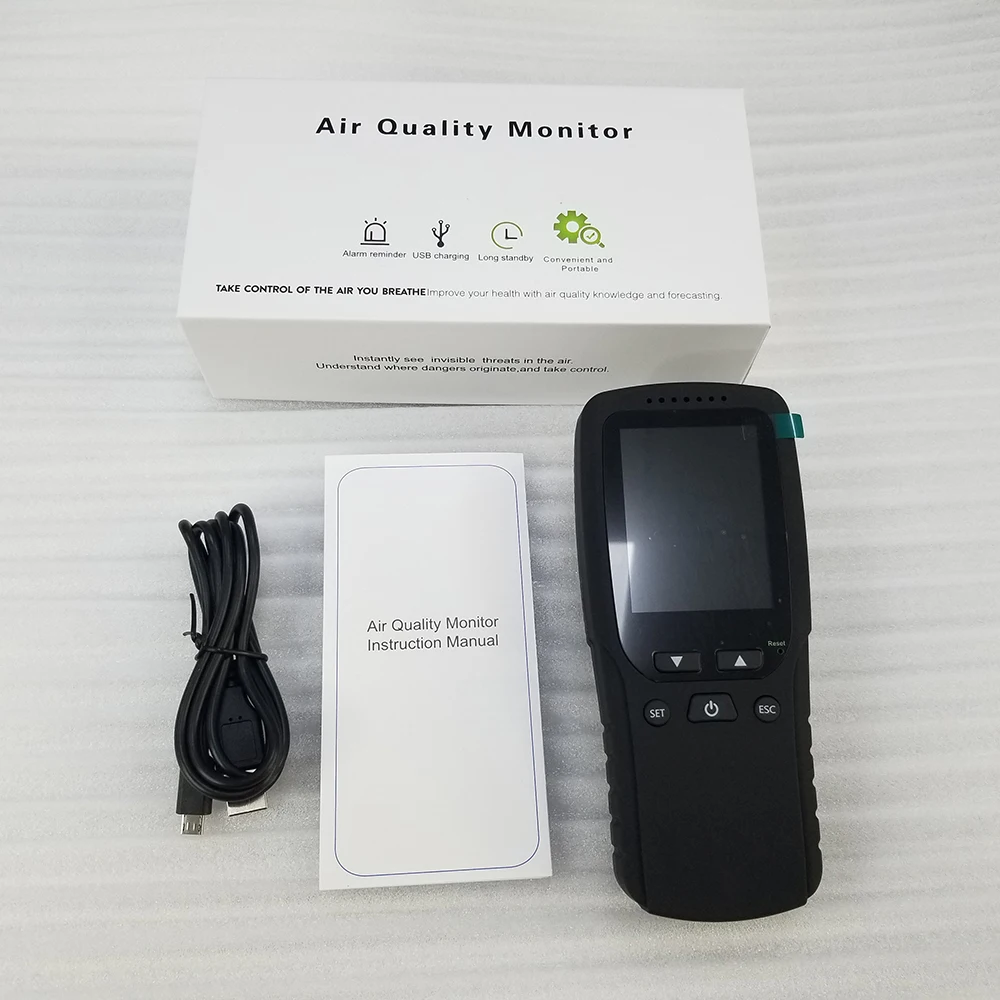

What are included :

Main Unit+ manual+charging cable



Please be noted:

- The air quality detector must be placed on the indoor static and cool ventilated place more than an hour for first time use, or after long time haven't used. If randomly moved, the data will be inaccurate.

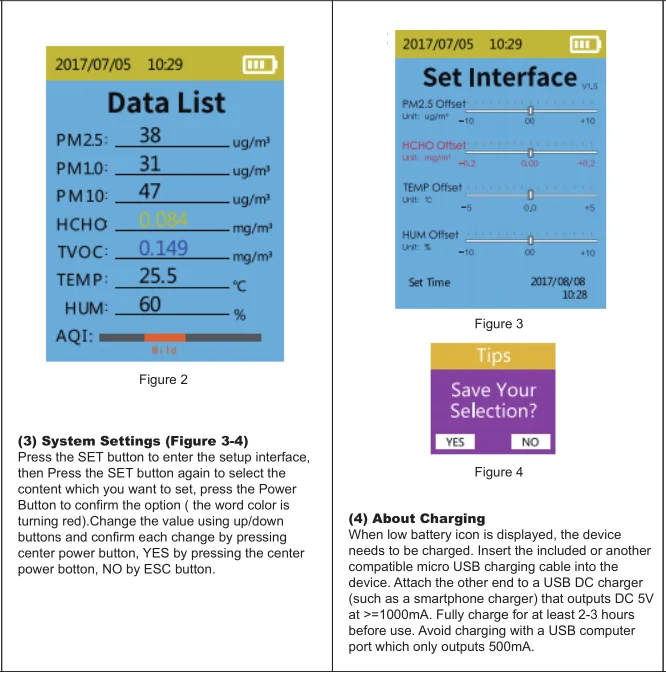

- It should do calibration before detection(after finish the initiation),please refer to user manual or send us message for Calibration.

- It would be better to read the testing results after 5 minutes detection.

- If the item is in low battery, the data may be inaccurate.



Material	ABS
Product size	164*69*44MM
weight:	350g
Color	Black
Function 1	Measure PM2.5 PM1.0 PM10
Function 2	Measure Formaldehyde(HCHO)
Function 3	Measure  TVOC
Function 4	Temperature   Humidity
Function 5	Air quality index



QA

1 Q: What the test index are include for air quality monitor?
   A : PM2.5: is main for smog;
         HCHO: is for formaldehyde;
        TVOC: is main for benzene,etc Volatile organic compounds;
        AQI: is for Integrated air quality index.



2. Q: What is the safe range for formaldehyde (HCHO) and TVOC?
    A : HCHO≤ 0.10mg / m3
          TVOC≤ 0.60mg / m3
          According to ("indoor air quality standards" GB / T 18883-2002 and
          GB 50325-2001 Class II civil construction).



3 Q: What is the standard range for PM2.5?
    A:   Good 0~12
           Medium 12~35
           safe value 35~70
           Unhealthy more than 70



4 Q: Why do I need to calibrate(Just HCHO and TVOC need to calibration, PM2.5 and AQI no need)?
   A :Our products work in the form of outdoor formaldehyde-free air sampling as a benchmark, and then get indoor air formaldehyde content as a comparison, so the new machine products for a long time not used, the detection of environmental temperature changes, need to calibrated first and then tested, the value of this calibration for the subsequent detection of the accuracy of a great relevance.Calibration environment must avoid spices,perfumes, paint, cigarettes, air fresheners,alcohol and other chemical pollutants, so as not to damage the sensor.



5.Q: Why PM2.5 readings with the published value on the site is not the same?
   A : Because the location and conditions of the test is difficult to reconcile with the weather station in the city there are several sampling points, each sampling point measured data are also very different, the sampling point of the location is strictly required; height 3 to 30 meters, air circulation, can not be close to the chimney, furnace and other obvious sources of pollution. And there are no high-rise buildings, trees or other obstructions that can impede the flow of ambient air around the instrument.



6 Q: Why is the PM2.5 test value always changing?
   A : PM2.5 data are changing all the times, with the air, wind, humidity and other environmental factors change, in the room smoking, cooking fumes, car exhaust emissions, coal, chimney,furnace Such as pollution sources will change the PM2.5 value of this area, resulting in differences in the detection data.



7  Q: Why does the products make a sound when working?
    A : As PM2.5 detection need to collect a lot of mobile air,
          the inner fan needs strong operation to ensure accurate detection.



8 Q: How much range of detection of formaldehyde concentration detector,how many square meters?
   A : Test area≤ 50m3, room should be set 1~3 testing points;
          50m3 ≤ Test area≤ 100m3, room should be set 3~5 testing points;
          ≥100m3, the points should more than 5 ponits.
   Testing points is on a diagonal or plum blossom evenly distributed, would more better.
   The height of the sampling point: in principle,consistent with the human breathing.
   Relative height of 0.5m ~ 1.5m between.



9 Q: which kinds of air index exceeded, would lead to Alarm sound?
   A: Just HCHO data more than 0.10mg / m3, would lead to Beep sound.
