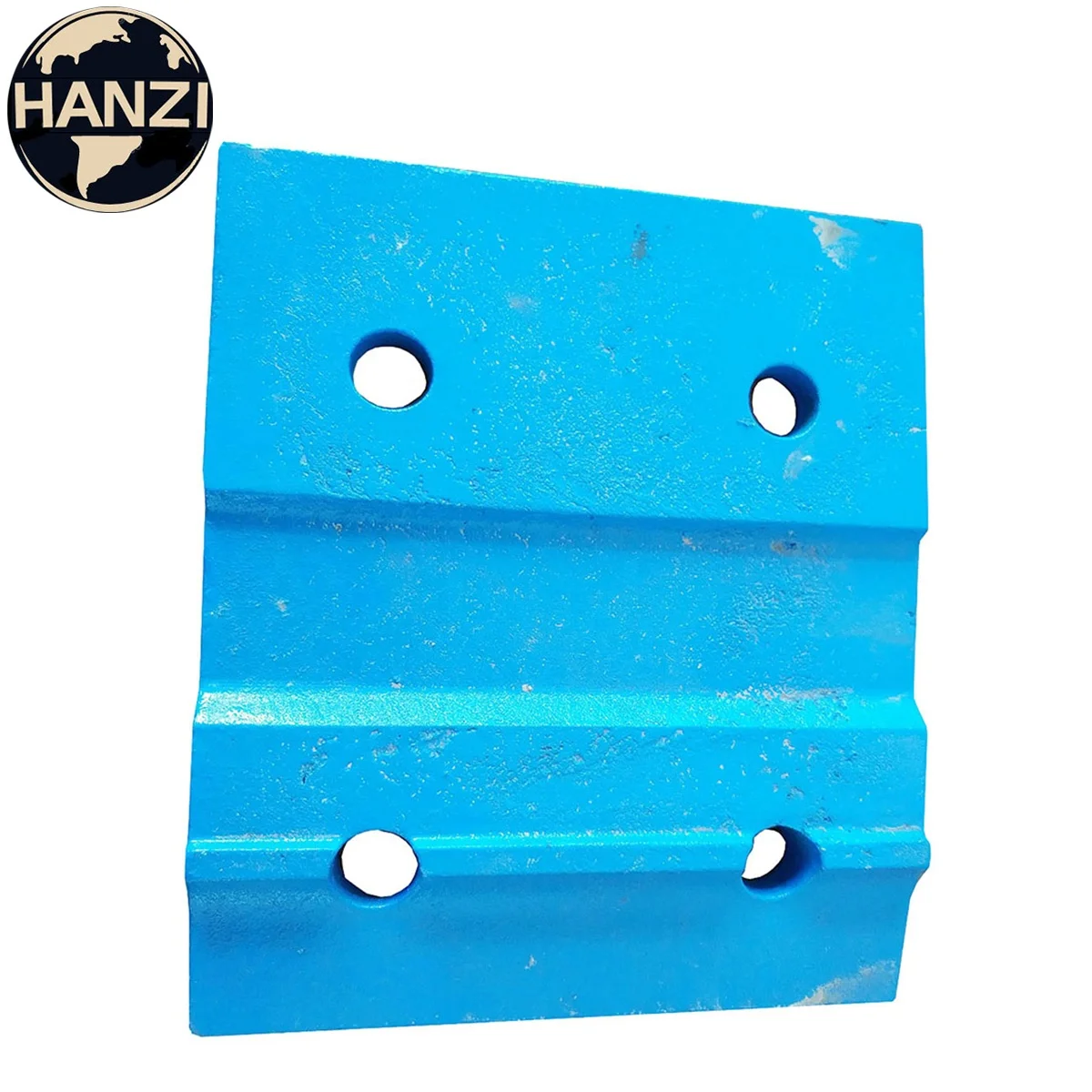

Rail Tie Plate Baseplate
Product Description

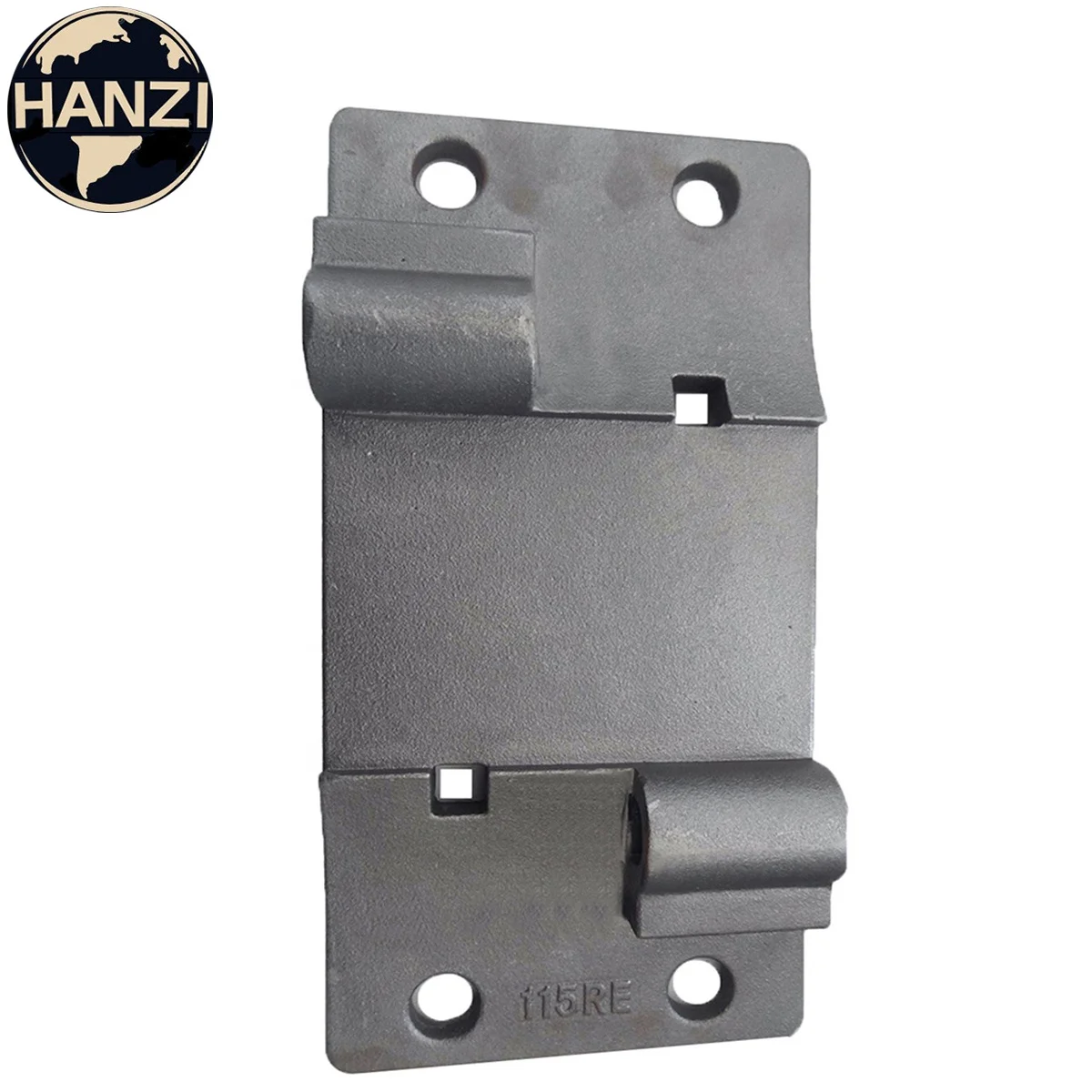

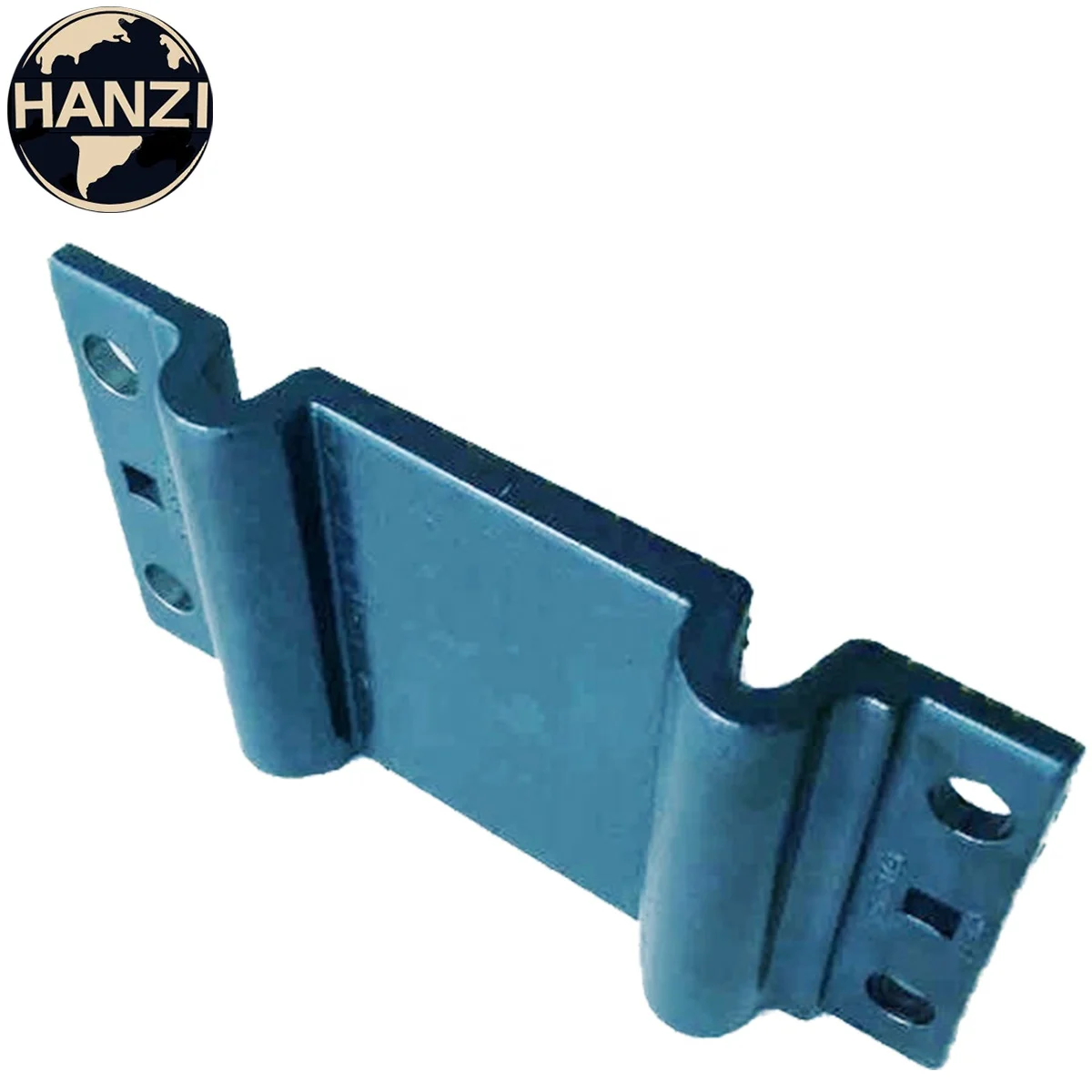

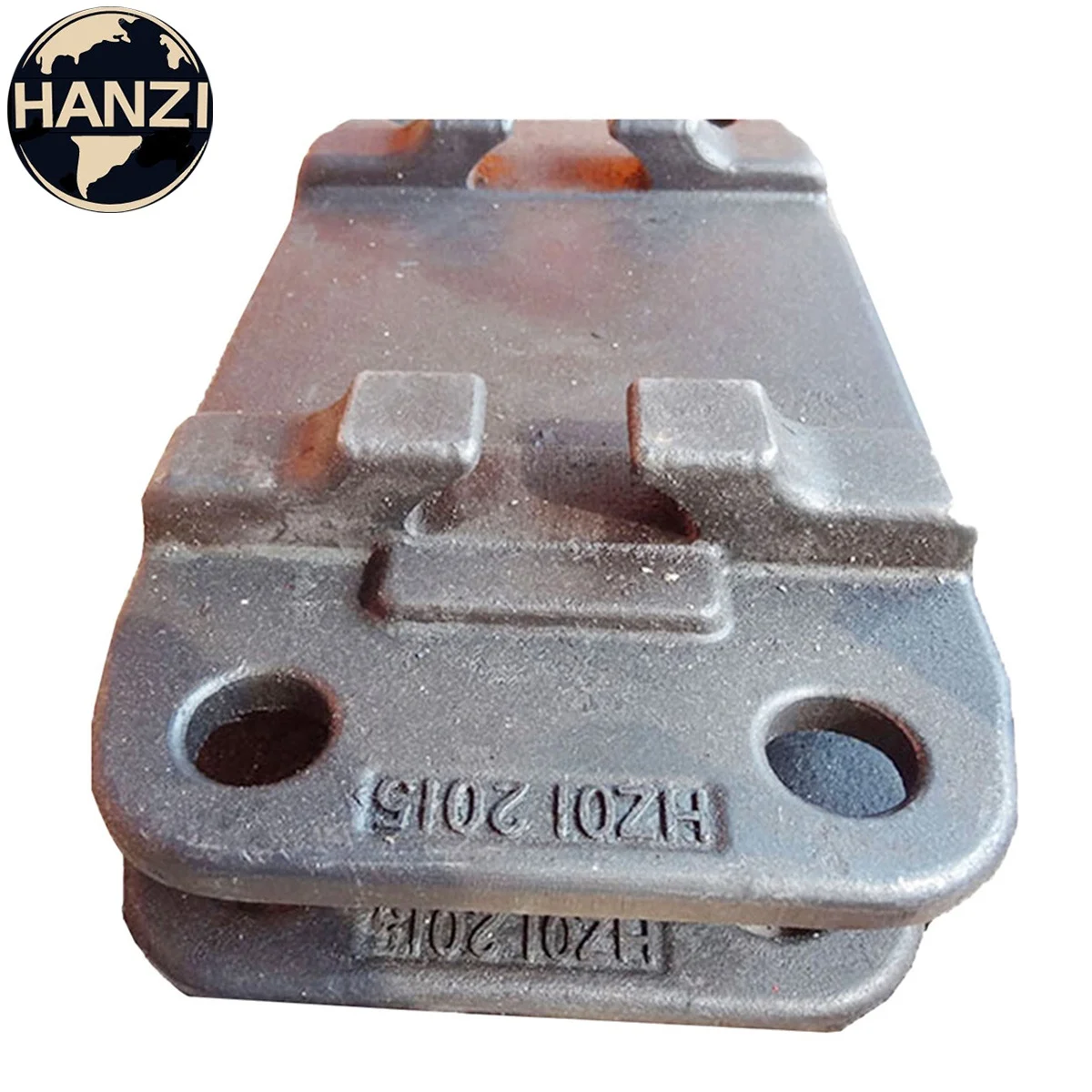

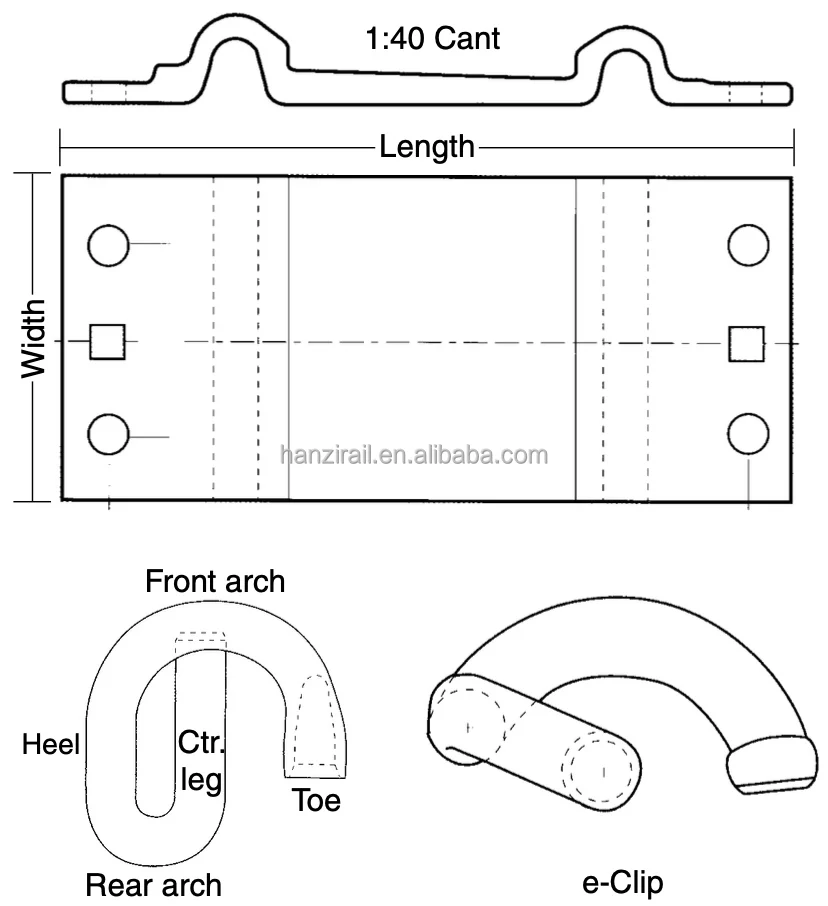

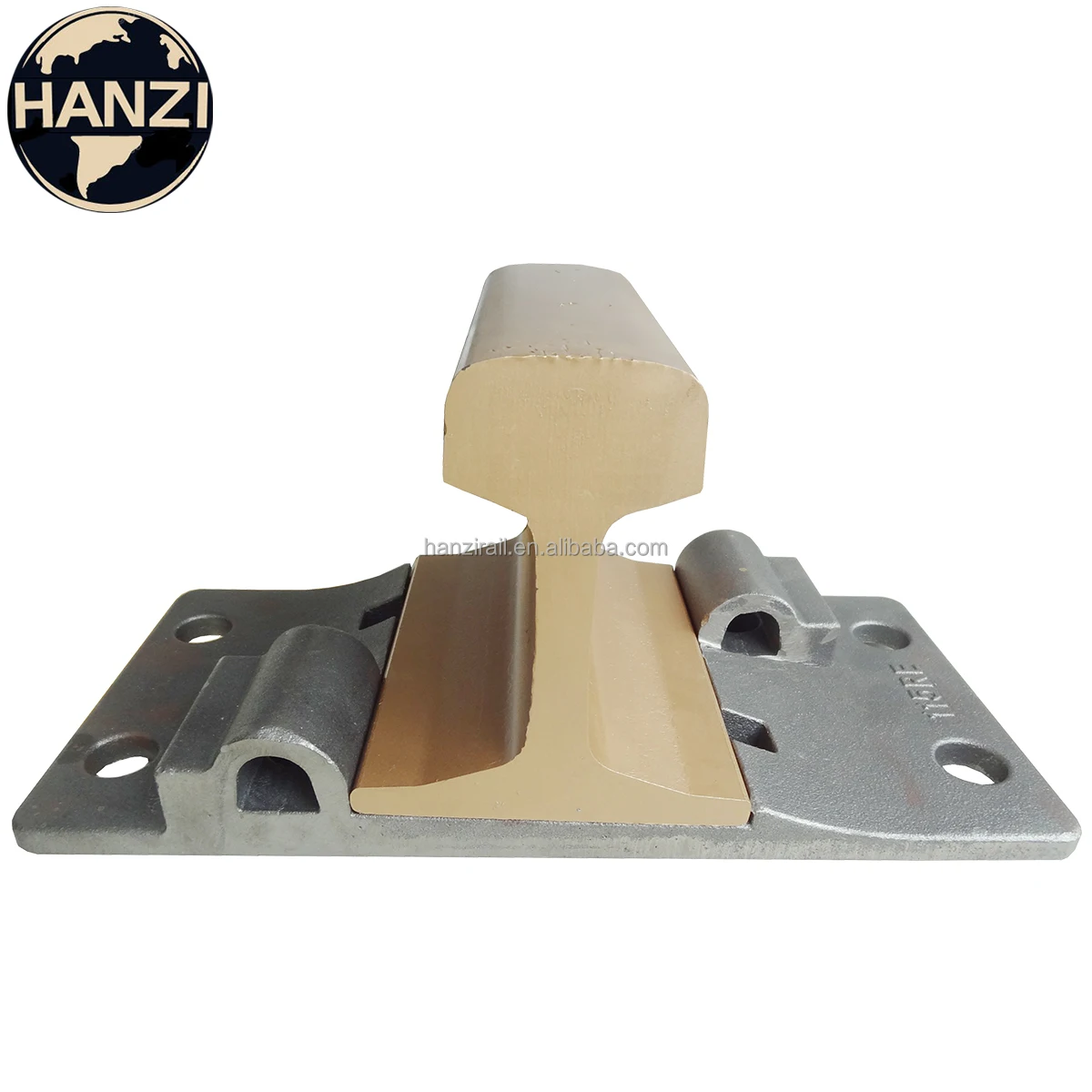

Direct Fixation Tie Plates, Steel Ties
Direct fixation tie plates utilize an elastic clip design to secure the rail to the base plate. The spring and torsion work in unison to produce a high clamping force, aiding in preventing rail rollover and providing longitudinal restraint.
Plates are available for 5-1/2'' and 6'' rail base widths with a 1:40 cant. Standard punching includes four round holes and 2 square holes. Other designs may be available upon request.
Plates can be securely fastened to wooden ties by means of screw spikes. Alternate design clips are available for use at track joints, where joint bars would obstruct the use of standard clips.

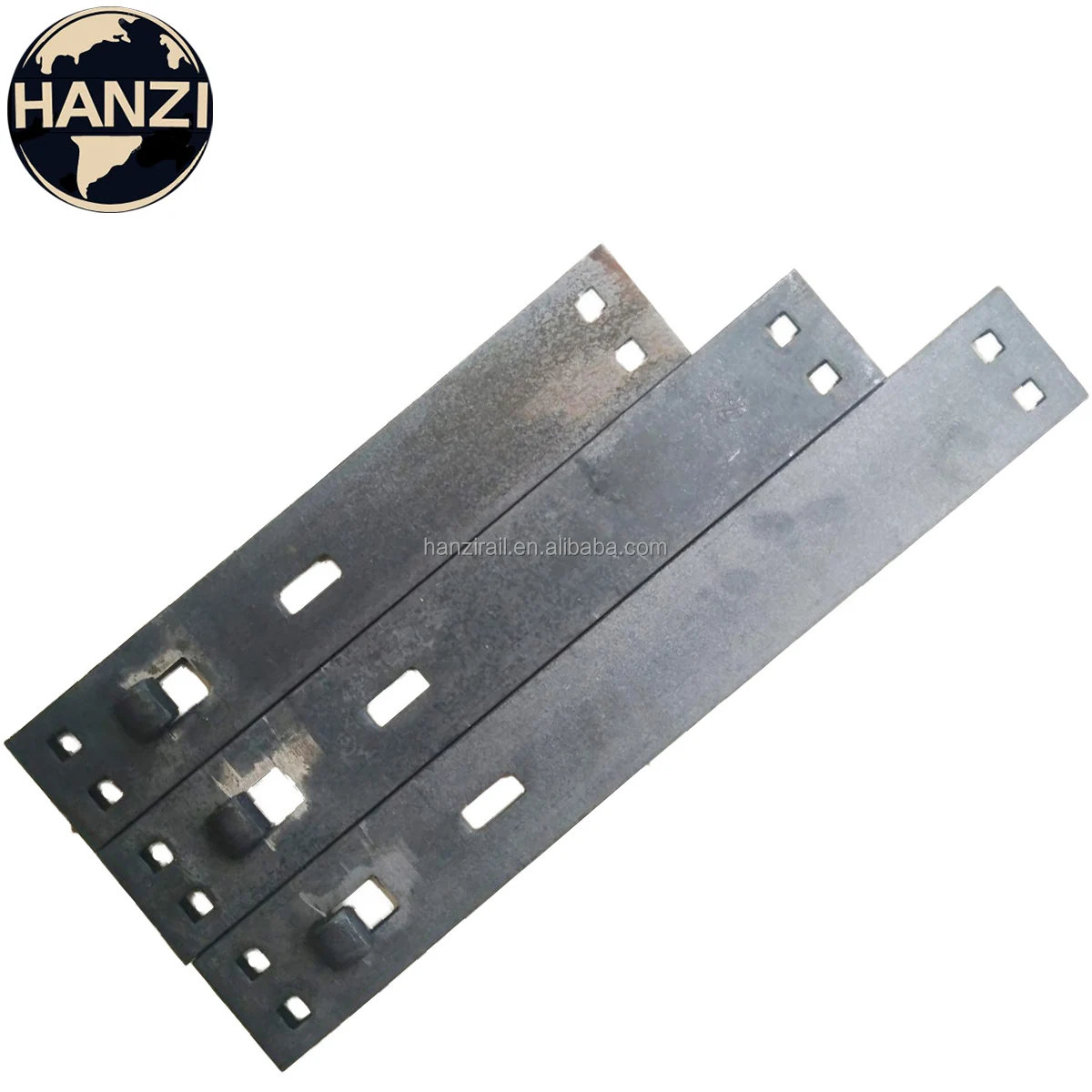

Twin Tie Plates

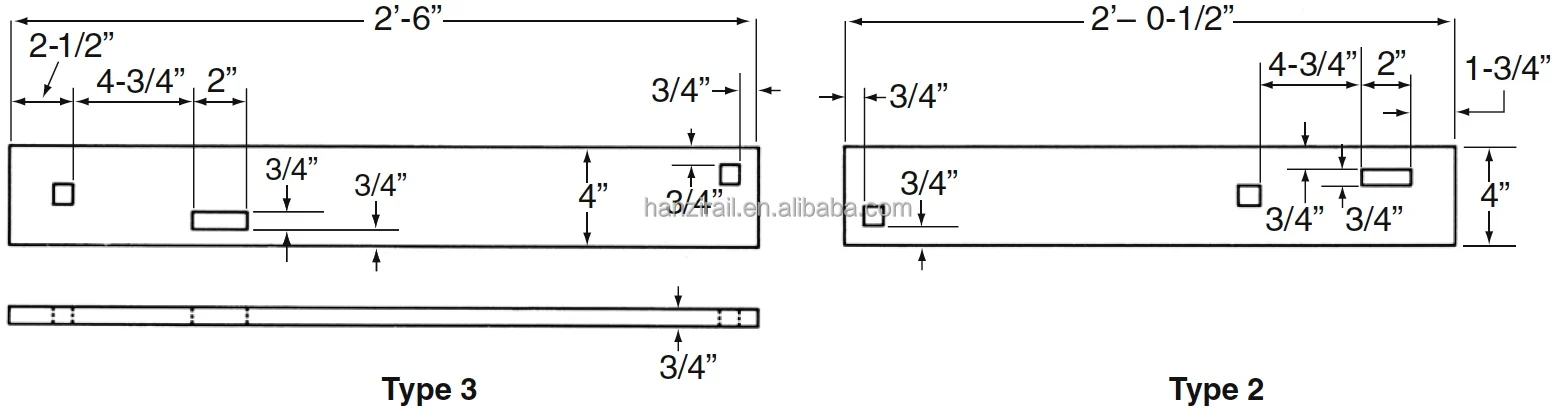

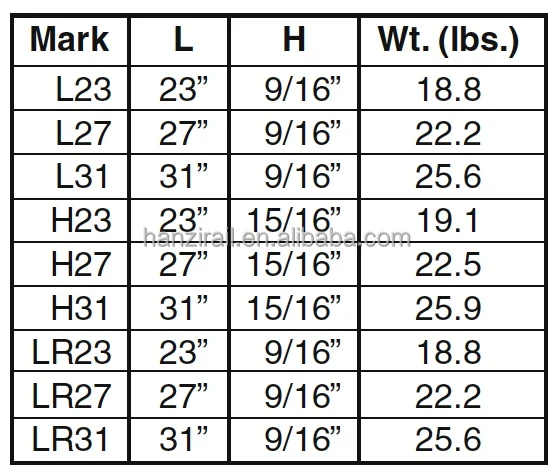

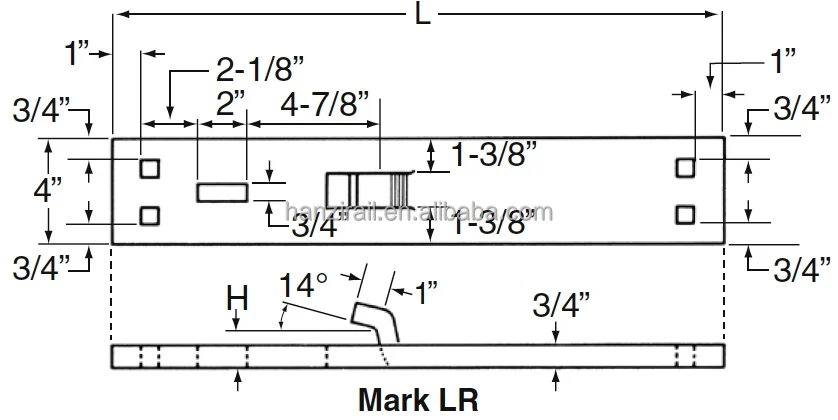

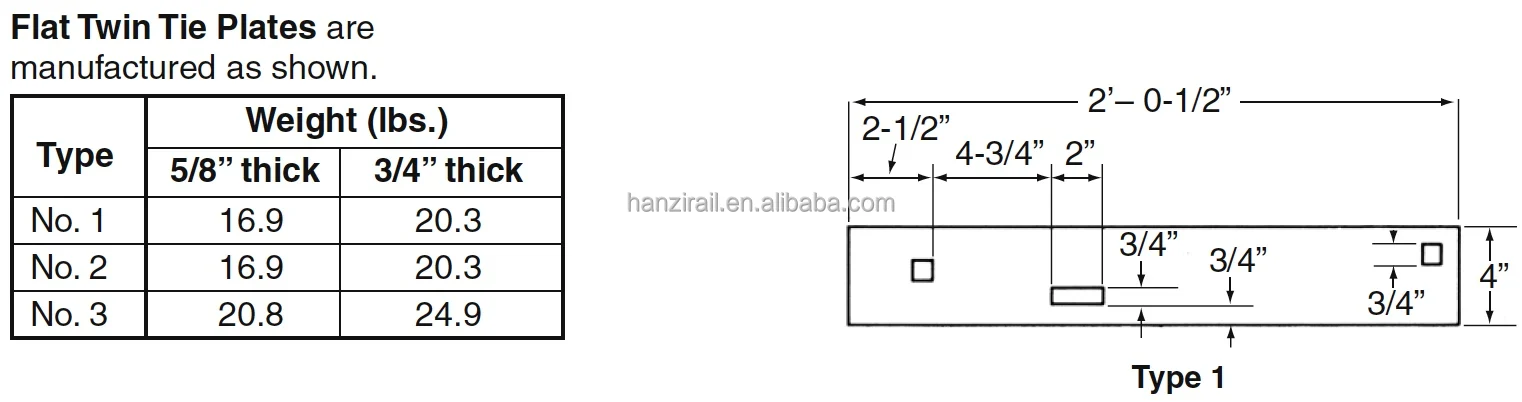

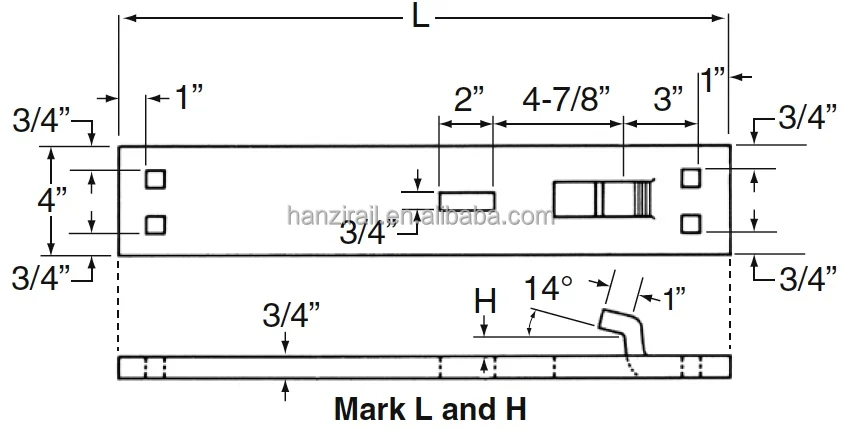

Twin Tie Plates include Hook Twin Tie Plates and Flat Twin Tie Plates. Hook Twin Tie Plates are manufactured per AREMA plan 241. Hook twin tie plates generally come with three types of hooks: Low-Type L, Low Reverse-Type LR, and High-Type H. Type H plates do not have the slotted hole and have a higher hook designed to fit over the base of a manganese frog. If the hook of a hook twin tie plate interferes with a joint bar, the hook can be cut off or bent to a vertical position.
