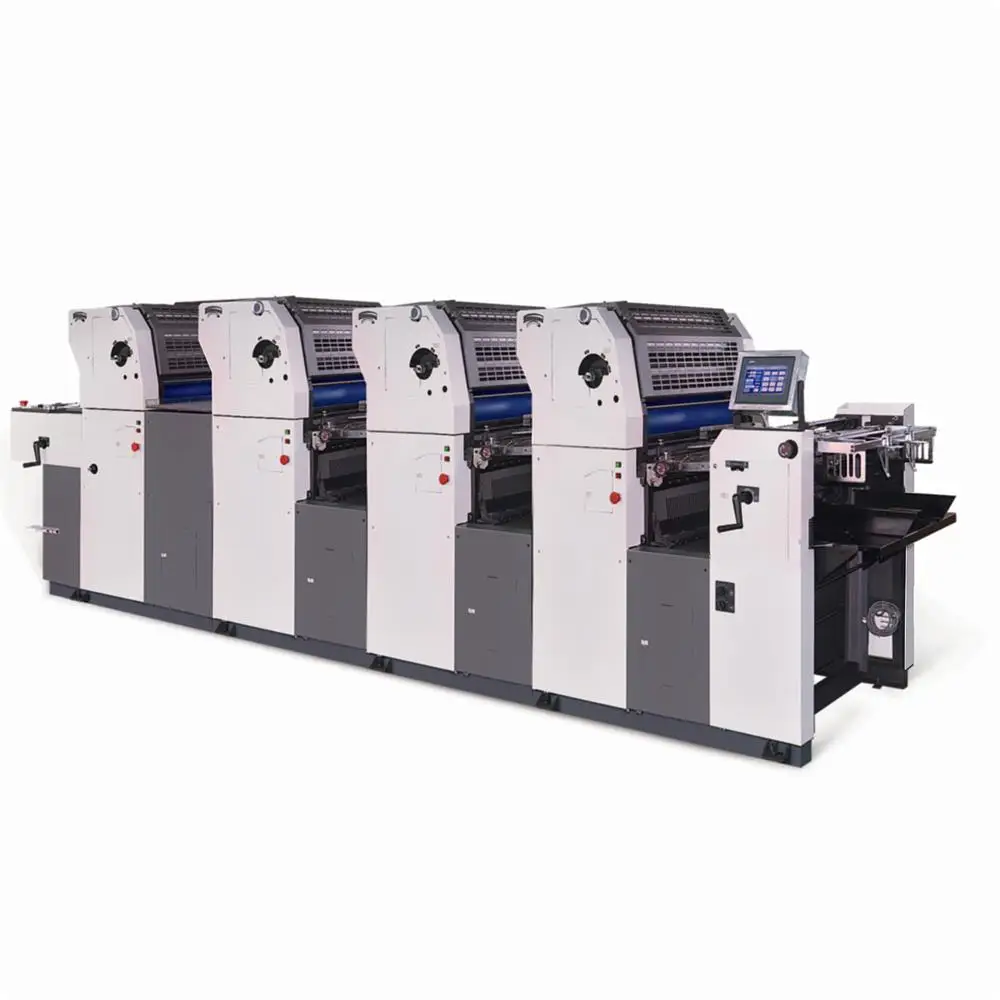

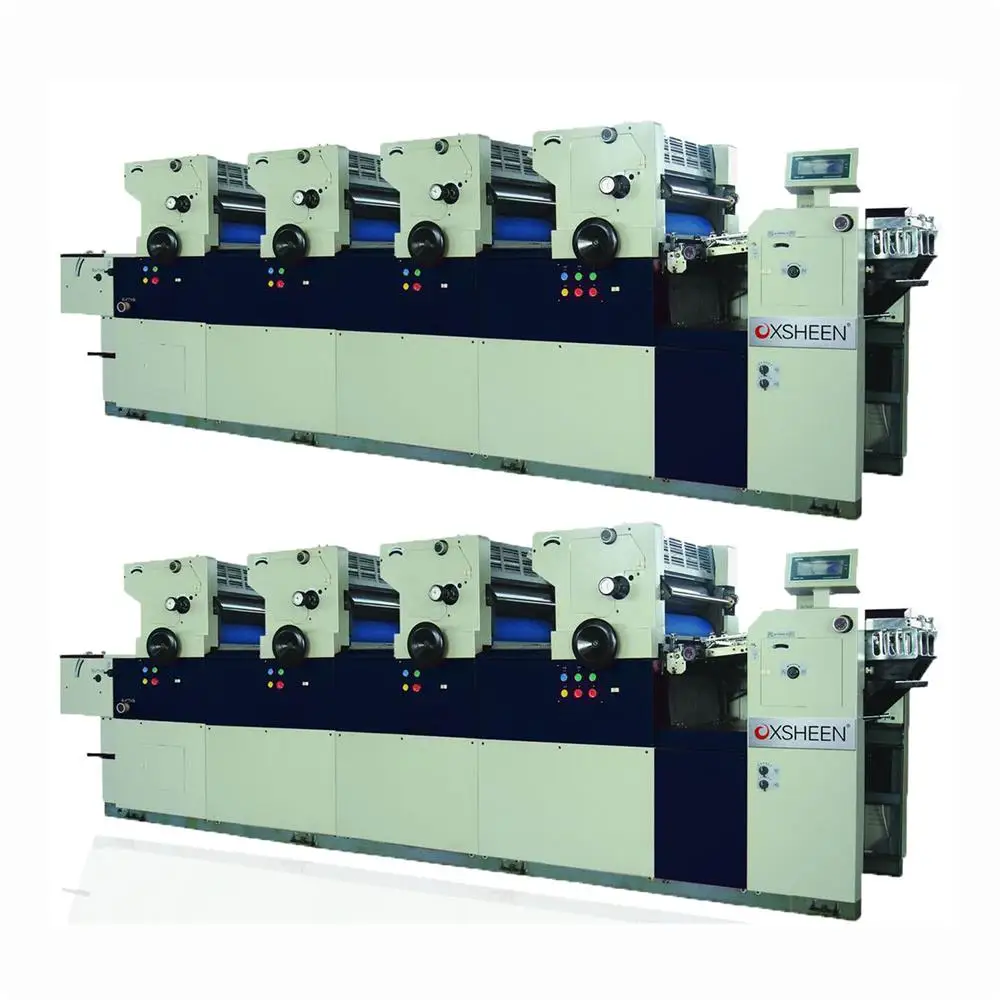

Brand New Automatic Used India Color 4 Roll Run Web Offset Printing Machine
- Category: >>>
- Supplier: Shanghai Xsheen Machine Electron Technology Co. Ltd.
Share on (1600947065119):
Product Overview
Description
offset printer type multicolor page printing machines
Product Description

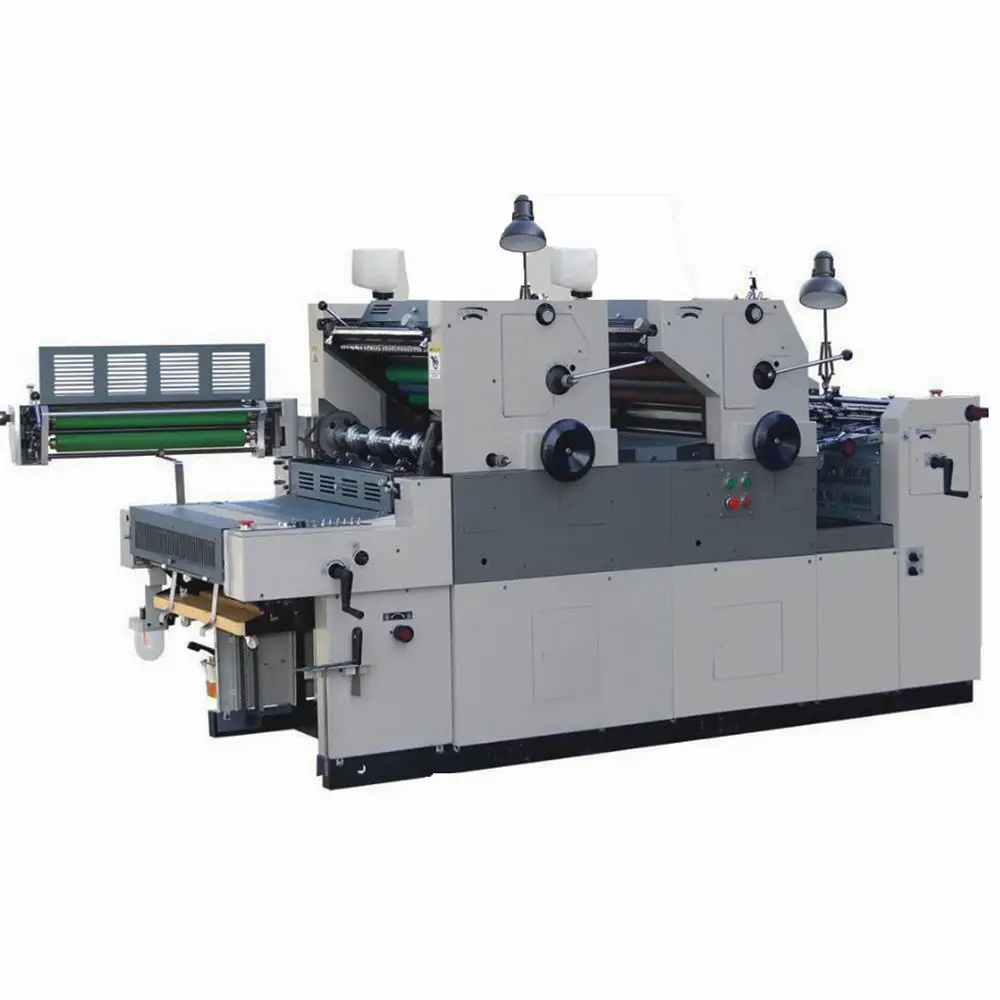

XH-47D/56D/62D satellite double color offset press machine
XH-47DNP/56DNP/62DNP satellite double color offset press machine with numbering & perforating
Features
1. Easy operation by one hand lever to control dampening, inking and pressing.
2. Accurate Location by front stop and both side-pulled stop ensures perfect printing.
3. Dampening and inking system is separate to adjust water and ink supplying easily.
4. PLC system is adopted to control the circuit.
5. Presetting Counter can make the machine stop automatically when finish preset quantity.
6. Doulbe sheets detection can eliminate the troubles of multiple sheets automatically
7. Powdering Function can avoid paper dirty.
8. Centralized lubricating system is more convenient for maintenance.
9. Numbering and perforating unit is optional.
Technical data
| Model | XH47D/XH47DNP | XH-56D/XH56DNP | XH62D/XH62DNP |
| Max. paper width: | 470×365mm | 560x400mm | 620x440mm |
| Max. printing area: | 454x345mm | 550x370mm | 605x440mm |
| Min. paper size: | 210x297mm | ||
| PS Plate size: | 470x395x0.15mm | 560x420x0.15mm | 620x485x0.15mm |
| Rubber blanket size: | 466x415x1.95mm | 560x454x1.95mm | 620x510x1.95mm |
| Paper weight: | 28 ~250gsm | 28~250gsm | 28~250gsm |
| Printing speed: | 2000~8000pcs/h | 2000~8000pcs/h | 2000~8000pcs/h |
| Register device: | Wheel-type Side pull guide | ||
| Feeding Mode: | Suction, cross feed | ||
| Dampening Mode: | Molton Mode | ||
| Ink Roller: | 10pcs(2 forme roller)/14pcs(3 forme roller) | 16pcs(3 forme roller) | |
| Dampening Roller: | 4pcs(1 forme roller)/5pcs(2 forme roller) | 5pcs(2 forme roller) | |
| Power: | 220V/50Hz(Single Phase) | ||
| Main Motor Power: | 1.1kw | 1.1kw | 1.65kw |
| Air-pump Motor Power: | 0.55kw | 0.55kw | 0.55kw |
| Weight: | 650kg/850kg | 850kg/1050kg | 1050kg/1250kg |
| Overall dimension: | 1.8x1.0x1.55m 2.1x1.0x1.55m(NP) | 1.8x1.1x1.55m 2.1x1.1x1.55m(NP) | 2.0x1.2x1.6m |
| Number capacity: | Lateral:7rowx7column=49/7rowx8column=56/ Vertical: 5rowx8column=40/5rowx10column=50 | ||
