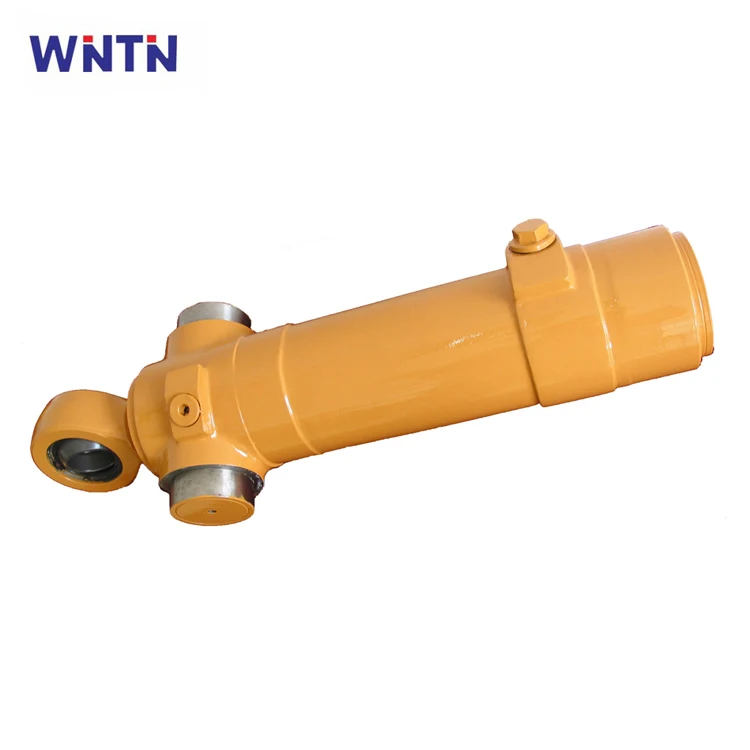

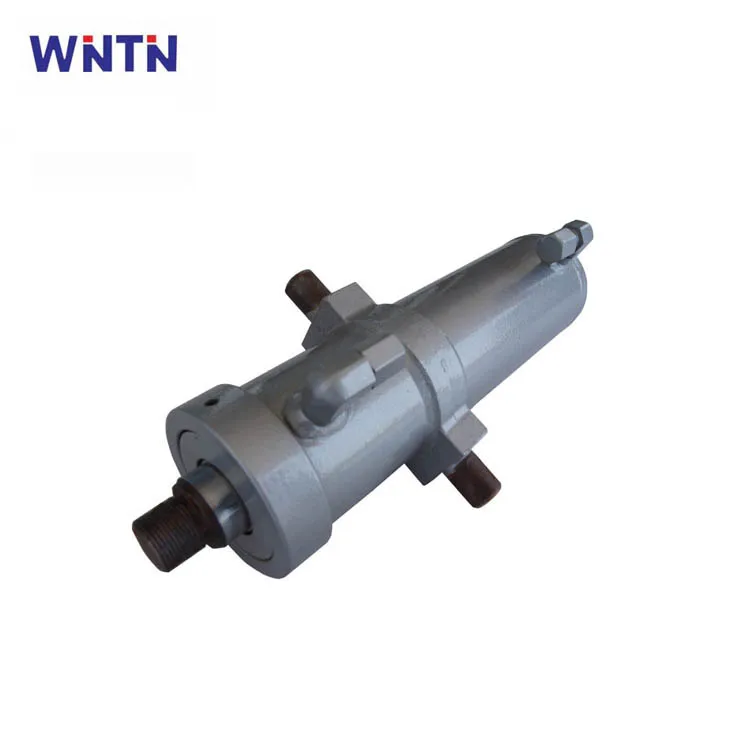

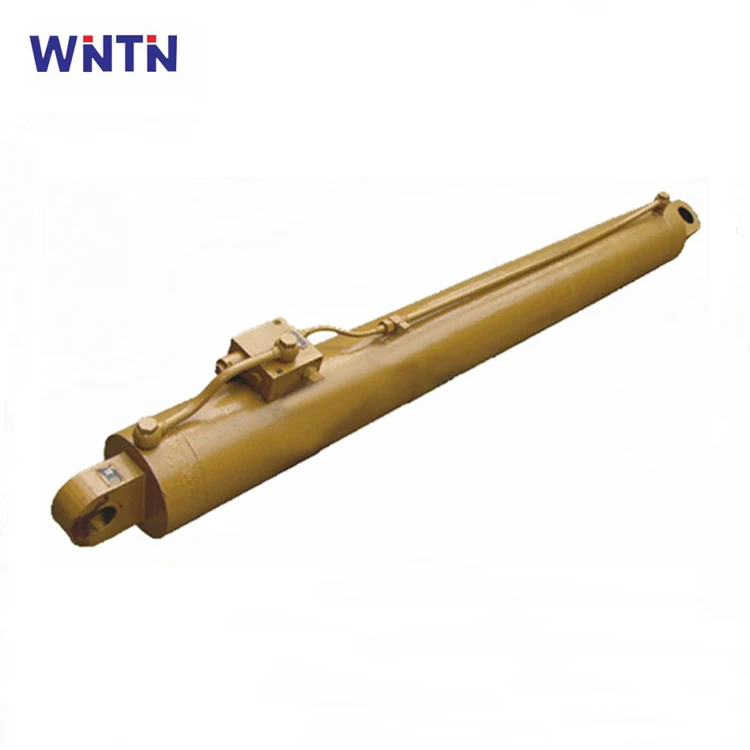

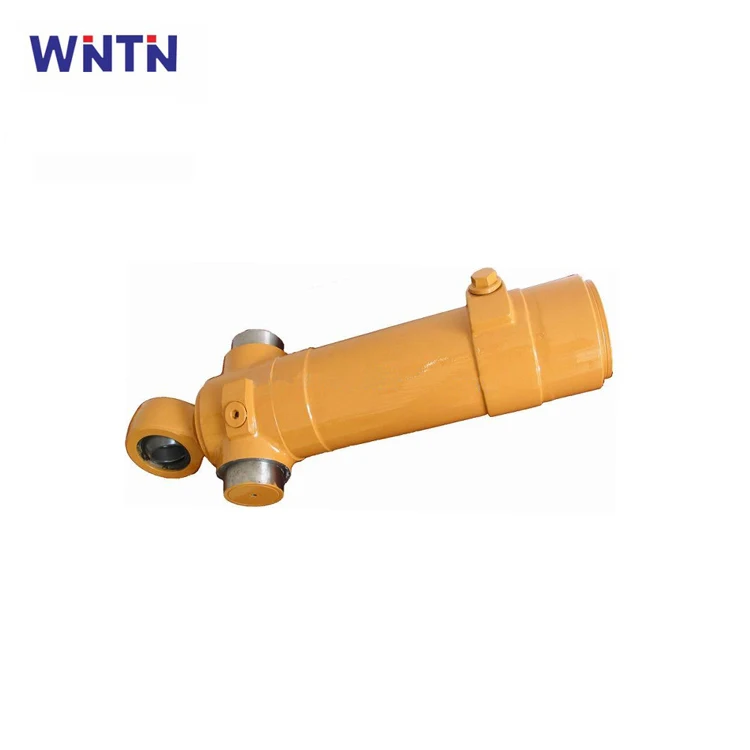

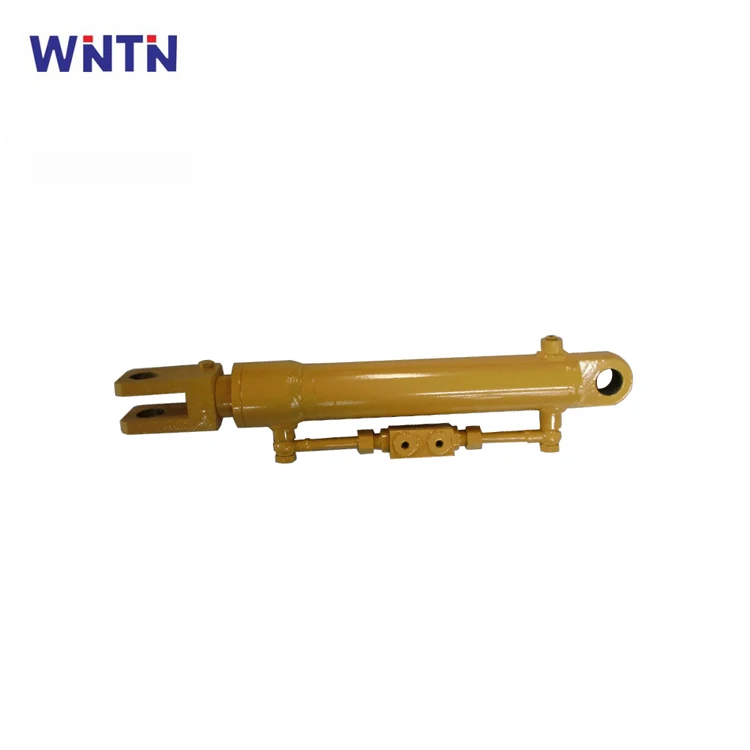

Custom chrome plated snow plow cylinder small double acting forklift hydraulic cylinders
- Category: >>>
- Supplier: Qingdao Wantong Hydraulic Power Machinery Co. Ltd.
Share on (1600947134609):
Product Overview
Description
Product Description:
Structure: mini hydraulic cylinders
Power : Hydraulic
Body material : Steel
Place of Origin : Shandong , China
Brand Name : Wintin
Non-standard and OEM available
We provide different types cheap mini hydraulic cylinders with high quality
Application:
Our different types cheap mini hydraulic cylinders is widely used in snowplow,dump truck,car lift,oil press,etc.
Relevant industries: metallurgy, engineering, vehicles, plastic machinery,coal and other fields.
Quality grantee and service:
We garantee to provide high grade products, and the price is also competitive !
With professional and experienced engineers,rigid managements and good after-sale services, our company has established a long term business cooperation with customers around the world. More than 90 percent of our products are exporter to other countries each years.
| Different types cheap mini hydraulic cylinders | ||||||||||
500series | Bore : 2"-5" | |||||||||
Stroke : 4"-36" | ||||||||||
Pressure : 3000PSI, double acting | ||||||||||
Characteristic : Pin eye mounting on both ends | ||||||||||
Size Sheet | ||||||||||
Dimensional Data(Unit:inch) | ||||||||||
Part No. | Bore | Rod | Wall | Port | A | D | LP | LW | LM | LN |
520XX | 2 | 1.125 | 0.2 | 3/8NPT | 10.25 | 1 | 2 | 1.125 | 2.125 | 1.125 |
525XX | 2.5 | 1.25 | 0.2 | 1/2NPT | 10.25 | 1 | 2 | 1.125 | 2.125 | 1.125 |
530XX | 3 | 1.5 | 0.25 | 1/2NPT | 10.25 | 1 | 2 | 1.125 | 2.125 | 1.125 |
535XX | 3.5 | 1.75 | 0.25 | 1/2NPT | 10.25 | 1 | 2 | 1.125 | 2.125 | 1.125 |
540XX | 4 | 2 | 0.25 | 1/2NPT | 10.25 | 1.25 | 2 | 1.25 | 2 | 1.125 |
550XX | 5 | 2.5 | 0.25 | 1/2NPT | 12.25 | 1.25 | 2 | 1.25 | 2 | 1.25 |
| Model No. | Bore | Rod | Retracted | Stroke | Wall | Port |
| 62004 | 2.0" | 1-1/4" | 14.25" | 4" | 0.2" | 3/8 NPT |
| 52008 | 2.0" | 1-1/4" | 18.25" | 8" | 0.2" | 3/8 NPT |
| 62012 | 2.0" | 1-1/4" | 22.25" | 12" | 0.2" | 3/8 NPT |
| 62018 | 2.0" | 1-1/4" | 28.25" | 14" | 0.2" | 3/8 NPT |
| 62024 | 2.0" | 1-1/4" | 34.25" | 18" | 0.2" | 3/8 NPT |
| 63034 | 2.0" | 1-1/4" | 44.25" | 30" | 0.2" | 3/8 NPT |
| 62506 | 2.5" | 1-1/2" | 16.25" | 36" | 0.2" | 3/8 NPT |
| 62510 | 2.5" | 1-1/2" | 20.25" | 4" | 0.2" | 1/2 NPT |
| 62512 | 2.5" | 1-1/2" | 22.25" | 8" | 0.2" | 1/2 NPT |

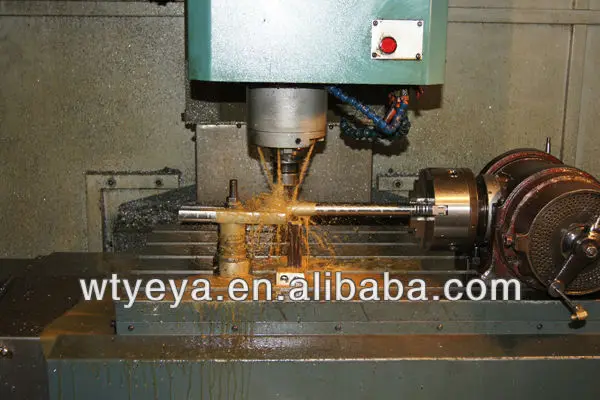

Workshop:

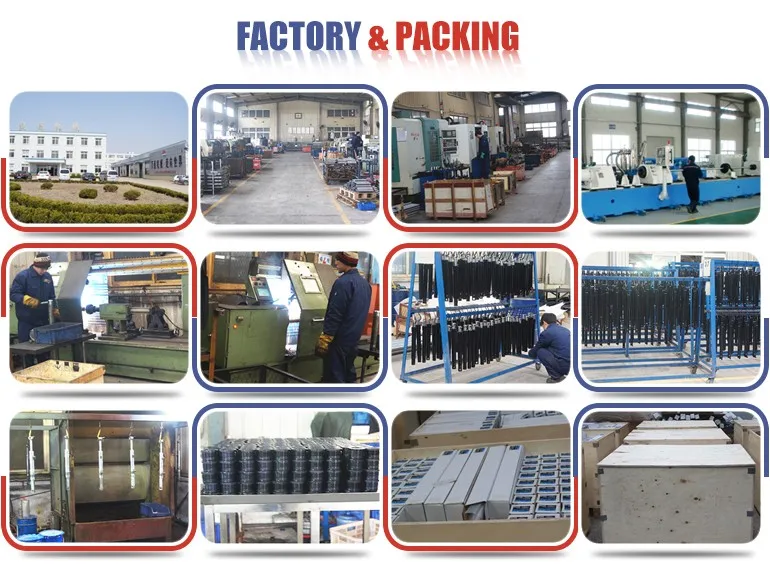

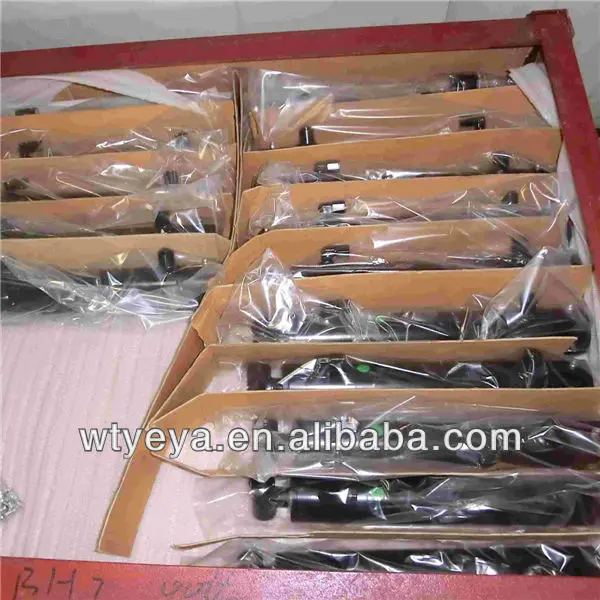

Package:
Factory
