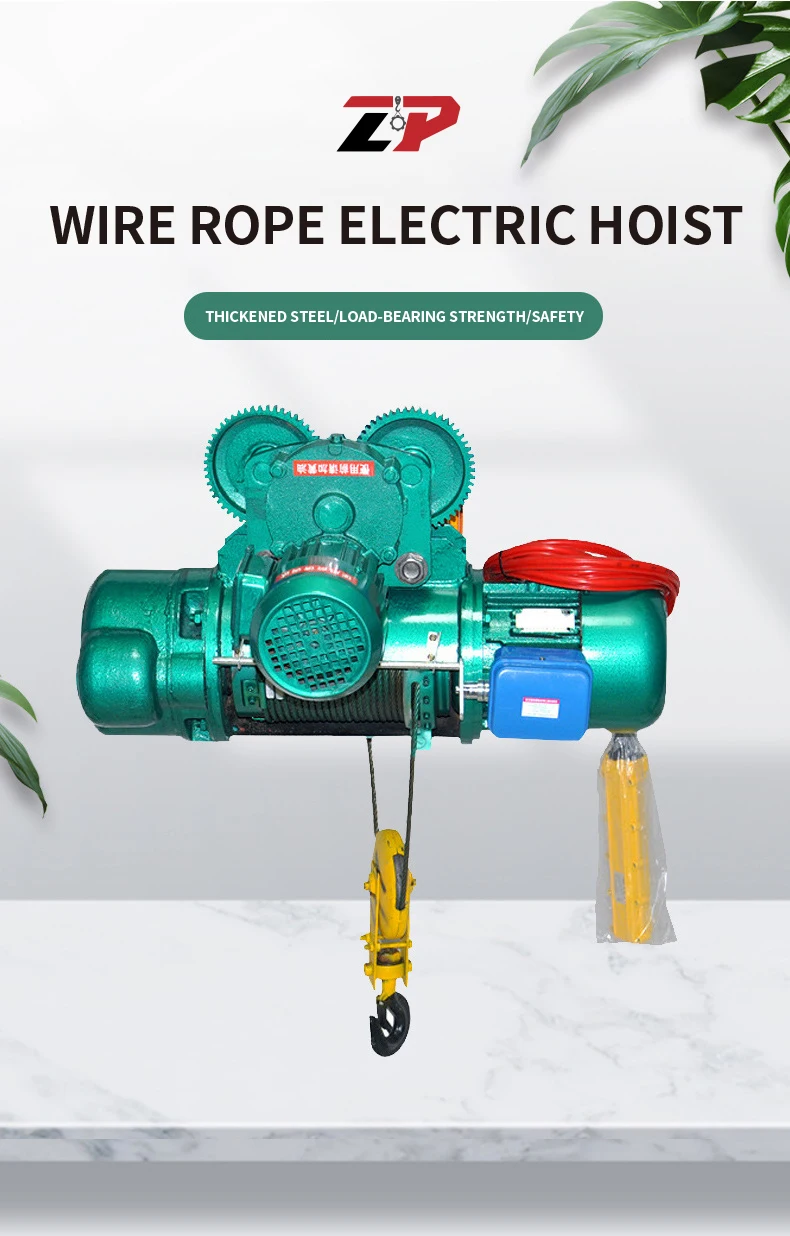

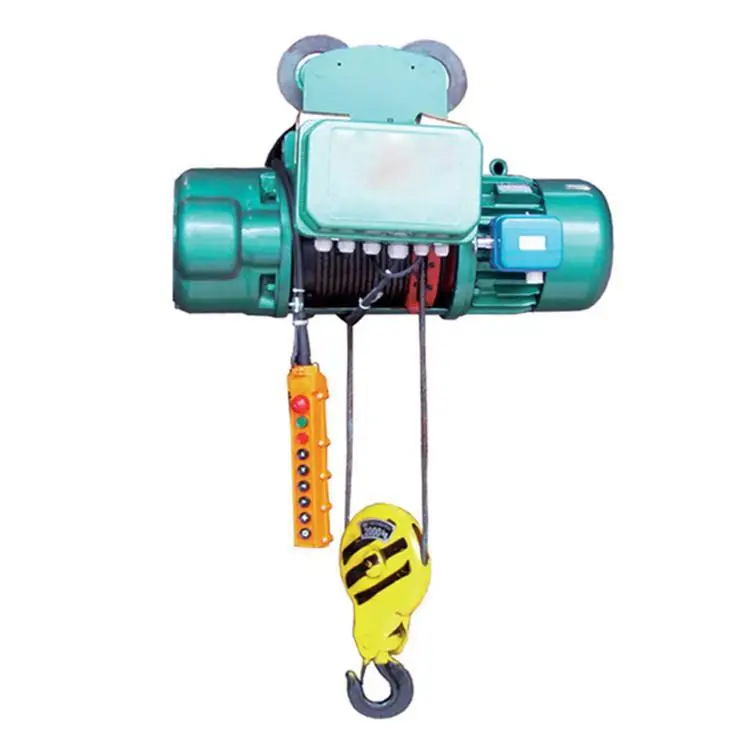

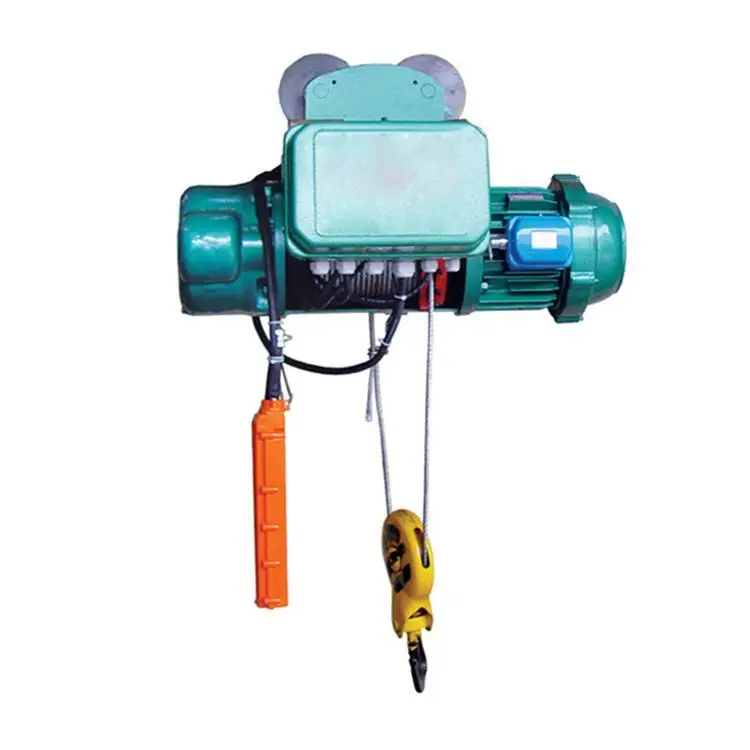

High Performance Electric Wire Rope Hoist Single Speed or Double Speed 1T 2T 3T 5T
- Category: >>>
- Supplier: Zhongpu Crane Co. Ltd.
Share on (1600947159513):
Product Overview
Description
Products Description

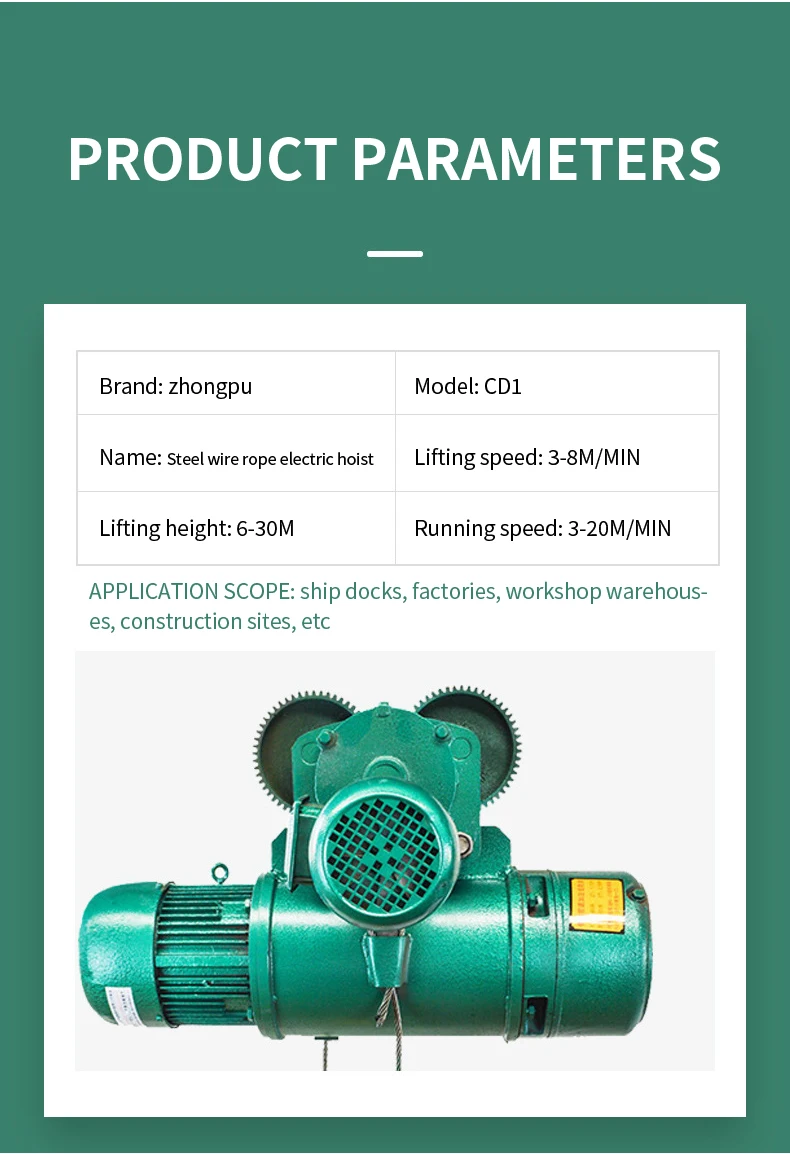

Product Paramenters
CD/MD Electric Hoist | ||||||||||||||
Lifting weight(t) | 1T | 2T | 3T | 5T | 10T | |||||||||
Lifting height(m) | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | |||||||||
Lifting speed (m/min) | 88/0.8 | 88/0.8 | 88/0.8 | 88/0.8 | 77/0.7 | |||||||||
Running speed(m/min) | 20 | 20 | 20 | 20 | 20 | |||||||||
Bonding number(n/hr) | 120 | 120 | 120 | 120 | 120 | |||||||||
Wire rope | Diameter | 7.4m/m | 11mm | 13mm | 15mm | 15mm | ||||||||
Structure | D-6*37+1 | D-6*37+1 | D-6*37+1 | D-6*37+1 | D-6*37+1 | |||||||||
I-beam models | 16-28b | 20a-32c | 20a-32c | 25a-45c | 32a-63c | |||||||||
Motor | Hoist | Power | 1.51.5/0.2 | 3 3/0.4 | 4.54.5/0.4 | 7.5 7.5/0.8 | 13 13/2.0 | |||||||
Speed | 1380 | 1380 | 1380 | 1400 | 1400 | |||||||||
Oper ation | Power | 0.2 | 0.4 | 0.4 | 0.8 | 0.8 | ||||||||
Speed | 1380 | 1380 | 1380 | 1380 | 1380 | |||||||||
Type of work | M3 | M3 | M3 | M3 | M3 | |||||||||
Institution level | 25% | 25% | 25% | 25% | 25% | |||||||||
HC/HM Electric Hoist | ||||||||||||||
Lifting weight(t) | 16T | 20T | 25T | 32T | 50T | |||||||||
Lifting height(m) | 9/12/16/18/20/24/30/35/40/45 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | |||||||||
Lifting speed(m/min) | 6(6/0.6) 4.2(0.42/4.2) | 3.3(0.33/3.3) 4.2(0.42/4.2) | 3(0.3/3) | 3(0.3/3) | 2.4(0.24/2.4) | |||||||||
Running speed(m/min) | 18 | 14 | 18 | 16 | 20 | |||||||||
Bonding number(n/hr) | 120 | 120 | 120 | 120 | 120 | |||||||||
Wire rope | Diameter | 26/17.5mm | 21.5mm | 21.5mm | 26mm | 15mm | ||||||||
Structure | 6*37 | 6*37 | 6*37 | 6*37 | 6*37 | |||||||||
-beam models | 50a-63c | 56a-63c | 56a-63c | >63c | 32a-63c | |||||||||
Motor | Hoist | Power | 18.5(2.2/18.5) | 18.5(2.2/18.5) | 18.5(2.2/18.5) | 18.5(2.2/18. 5) | 1313/2.0 | |||||||
Speed | 960 | 1400 | 1400 | 960 | 1400 | |||||||||
Operati on | Power | 0.8*4 | 0.8*4 | 0.8*4 | 0.8*4 | 0.8*4 | ||||||||
Speed | 1380 | 1380 | 1380 | 1380 | 1380 | |||||||||
Type of work | M3 | M6 | M6 | M6 | M6 | |||||||||
Institution leve | 25% | 25% | 25% | 25% | 25% | |||||||||
Our Advantages

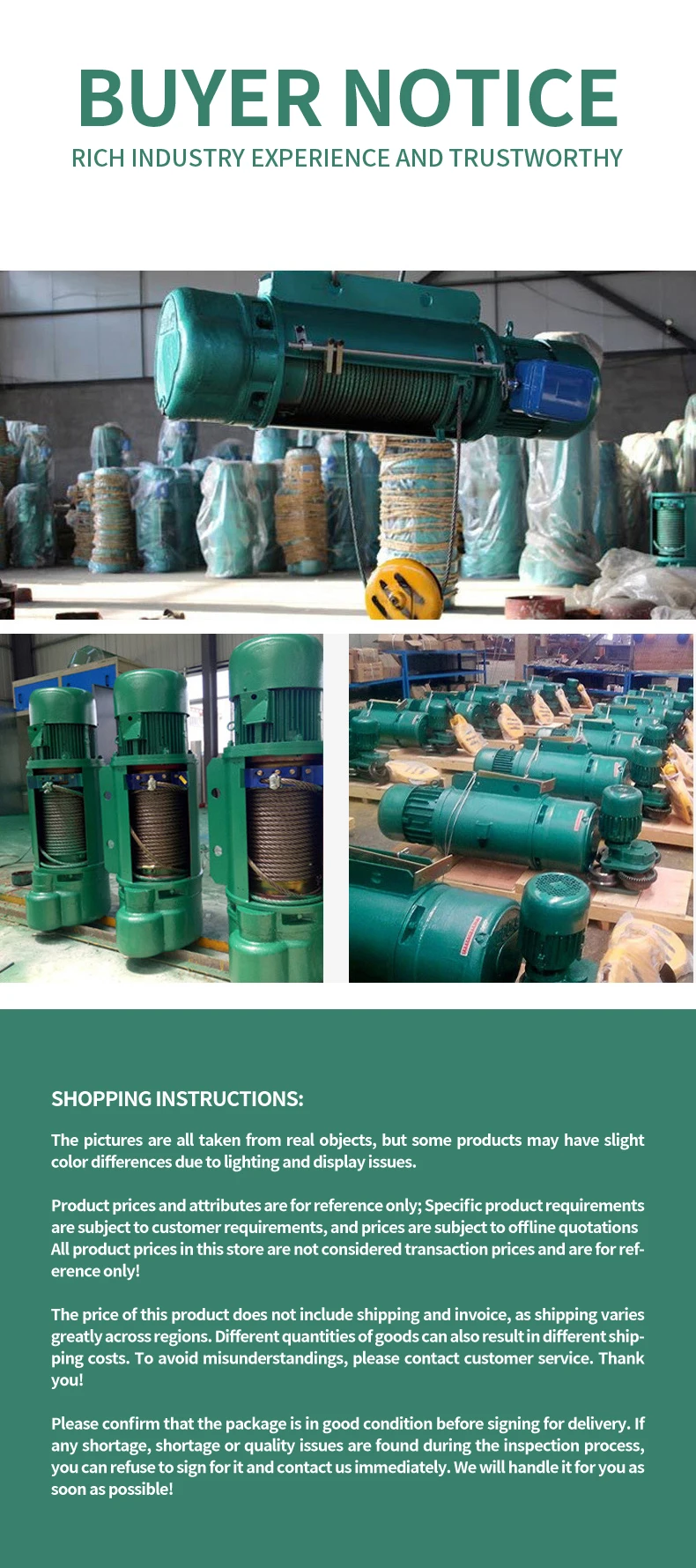

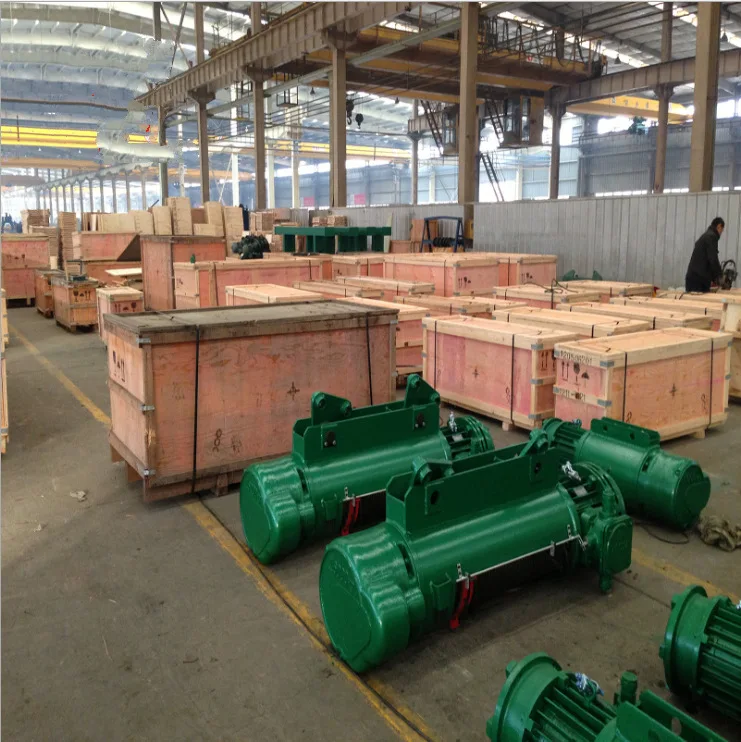

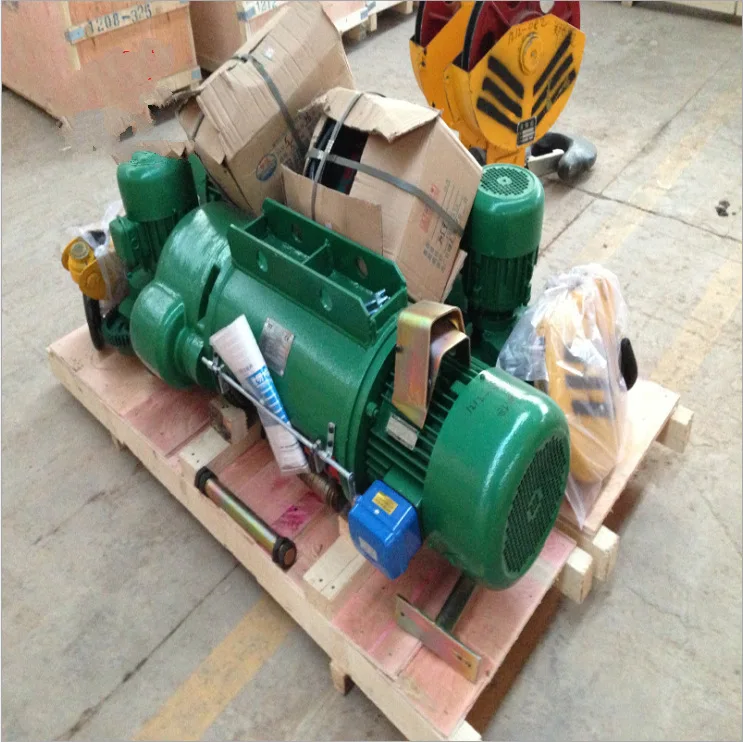

Packing & Delivery
FAQ
Q: What is an electric hoist?
A: Electric hoist is a device that uses an electric drive to lift and hang heavy objects. It usually consists of an electric
motor, lifting envelope and control system.
Q: What are the advantages of electric hoist?
A: Electric hoist has the following advantages over manual hoist:
1. High lifting efficiency, able to quickly lift and hang heavy objects;
2. Reduce the intensity of manual labor and reduce the amount of labor;
3. Provide better safety and avoid accidents caused by human error;
4. With remote operation ability, easy to control and monitor.
Q: What are the application fields of electric hoist?
A: Electric hoists are widely used in various industries, including:
1. Factory and warehouse: for material handling, loading and unloading goods, etc.;
2. Construction site: used to lift large components, concrete, steel, etc.;
3. Ports and terminals: for the loading and unloading of ship cargo;
4. Hospital: used for bed lifting, etc.;
5. Machinery manufacturing: used to assemble parts on the production line.
Q: How to choose the electric hoist that suits you?
A: When choosing an electric hoist, you can consider the following factors:
1. Load capacity: choose the appropriate load capacity according to the weight to be raised;
2. Lifting height: select the appropriate lifting height according to the height to be lifted;
3. Use environment: consider the special conditions of the use environment, such as moisture, corrosion, etc., and select the
corresponding protection level;
4. Safety requirements: select electric hoists that meet the corresponding standards according to the safety requirements of the
use scenario;
5. Price and brand: Choose the right product according to your budget and the need for your brand.
Q: What should I pay attention to in the maintenance of electric hoist?
A: When using the electric hoist, you need to pay attention to the following maintenance:
1. Regular inspection and cleaning: regularly check the power cord, controller, drum, wire rope and other components of the
electric hoist to ensure its normal operation;
2. Lubrication maintenance: regularly fill the key parts of the electric hoist with lubricating oil to ensure its smooth
operation;
3. Check the safety devices regularly: check the safety devices of the electric hoist, such as limit switches, power off
protection, etc., to ensure their reliability;
4. Pay attention to the use environment: avoid using electric hoists in humid, corrosive and other harsh environments, so as not
to affect their life and safety.
5. If you have other questions or need to know more about our lifting products sales service, please feel free to call our sales
hotline+8618003732780 or email 18003732780@163.com. Our sales team will reply to your inquiry as soon as possible.
A: Electric hoist is a device that uses an electric drive to lift and hang heavy objects. It usually consists of an electric
motor, lifting envelope and control system.
Q: What are the advantages of electric hoist?
A: Electric hoist has the following advantages over manual hoist:
1. High lifting efficiency, able to quickly lift and hang heavy objects;
2. Reduce the intensity of manual labor and reduce the amount of labor;
3. Provide better safety and avoid accidents caused by human error;
4. With remote operation ability, easy to control and monitor.
Q: What are the application fields of electric hoist?
A: Electric hoists are widely used in various industries, including:
1. Factory and warehouse: for material handling, loading and unloading goods, etc.;
2. Construction site: used to lift large components, concrete, steel, etc.;
3. Ports and terminals: for the loading and unloading of ship cargo;
4. Hospital: used for bed lifting, etc.;
5. Machinery manufacturing: used to assemble parts on the production line.
Q: How to choose the electric hoist that suits you?
A: When choosing an electric hoist, you can consider the following factors:
1. Load capacity: choose the appropriate load capacity according to the weight to be raised;
2. Lifting height: select the appropriate lifting height according to the height to be lifted;
3. Use environment: consider the special conditions of the use environment, such as moisture, corrosion, etc., and select the
corresponding protection level;
4. Safety requirements: select electric hoists that meet the corresponding standards according to the safety requirements of the
use scenario;
5. Price and brand: Choose the right product according to your budget and the need for your brand.
Q: What should I pay attention to in the maintenance of electric hoist?
A: When using the electric hoist, you need to pay attention to the following maintenance:
1. Regular inspection and cleaning: regularly check the power cord, controller, drum, wire rope and other components of the
electric hoist to ensure its normal operation;
2. Lubrication maintenance: regularly fill the key parts of the electric hoist with lubricating oil to ensure its smooth
operation;
3. Check the safety devices regularly: check the safety devices of the electric hoist, such as limit switches, power off
protection, etc., to ensure their reliability;
4. Pay attention to the use environment: avoid using electric hoists in humid, corrosive and other harsh environments, so as not
to affect their life and safety.
5. If you have other questions or need to know more about our lifting products sales service, please feel free to call our sales
hotline+8618003732780 or email 18003732780@163.com. Our sales team will reply to your inquiry as soon as possible.
