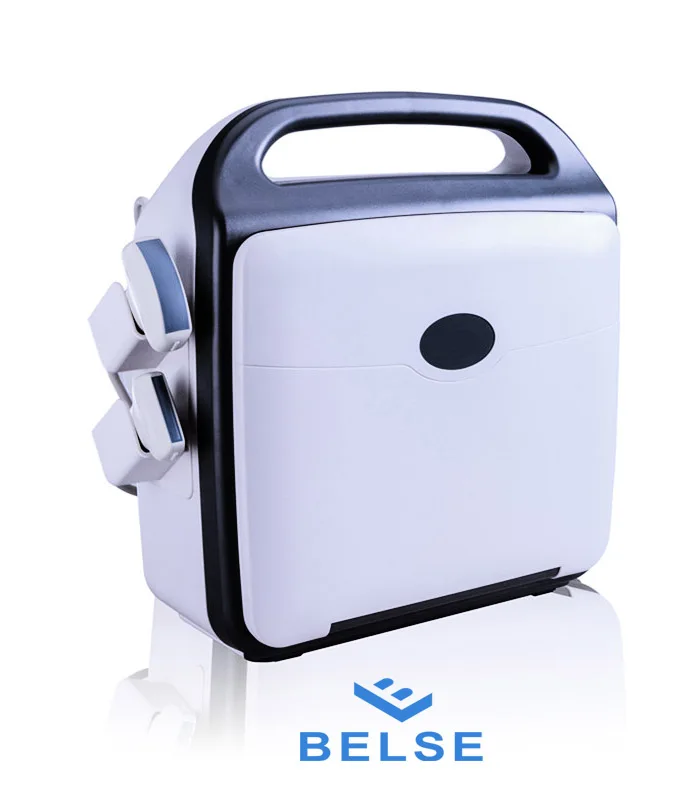

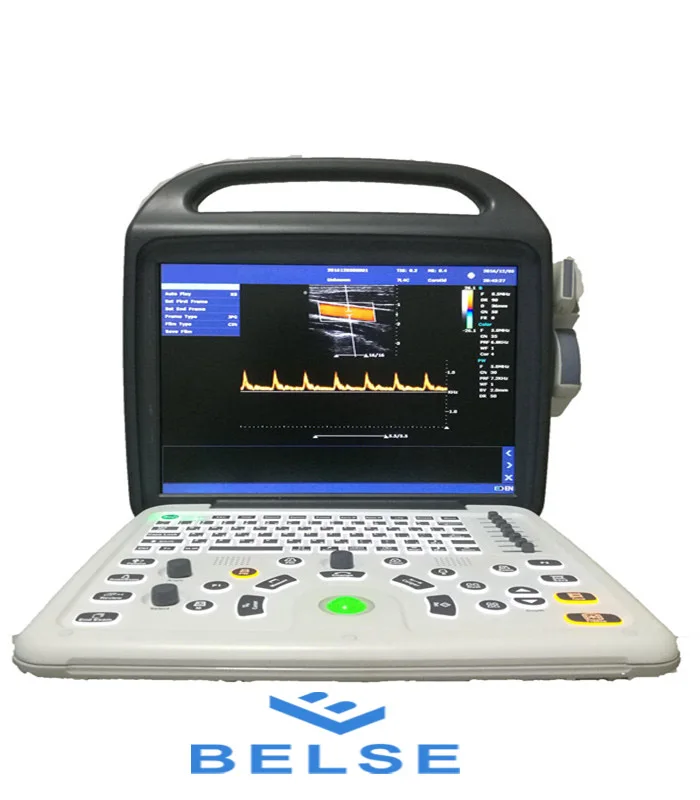

Medical ultrasonic instruments for hospital ultrasound Doppler and gynecological 3D color pregnancy ultrasonic machine
- Category: >>>
- Supplier: Shenzhen Sjnx Technology Co. Ltd.
Share on (1600947166293):
Product Overview
Description
Product Description
Title goes here.
1. Equipment Usage Description
Used for examinations in areas such as abdomen, heart, gynecology, obstetrics, urology, small organs, pediatrics, and blood vessels.
2. Physical specifications:
2.1 Technical Platform: ★ Linux+ARM+FPGA
2.2 Number of channels and array elements
Number of physical channels: ≥ 40
Number of probe elements: ≥ 80
Supported Probes
1.3C6A: 3.5MHz/R60/80 element convex array probe;
2.7L4A: 7.5MHz/L38mm/80 element linear array probe;
3.6C15A: 6.5MHz/R15/80 array element micro convex probe;
4.6E1A: 6.5MHz/R10/80 array element intracavity probe;
Probe frequency: 2.5-10MHz
Probe sockets: ≥ 2
2.4 Display
High resolution 15 inch LCD display
2.5 Batteries
Built in 6000 milliampere hour lithium battery, working state, continuous working time ≥ 1 hour, and screen providing power display information;
2.6 Internal hard drive
★ Support hard disk (≥ 128GB);

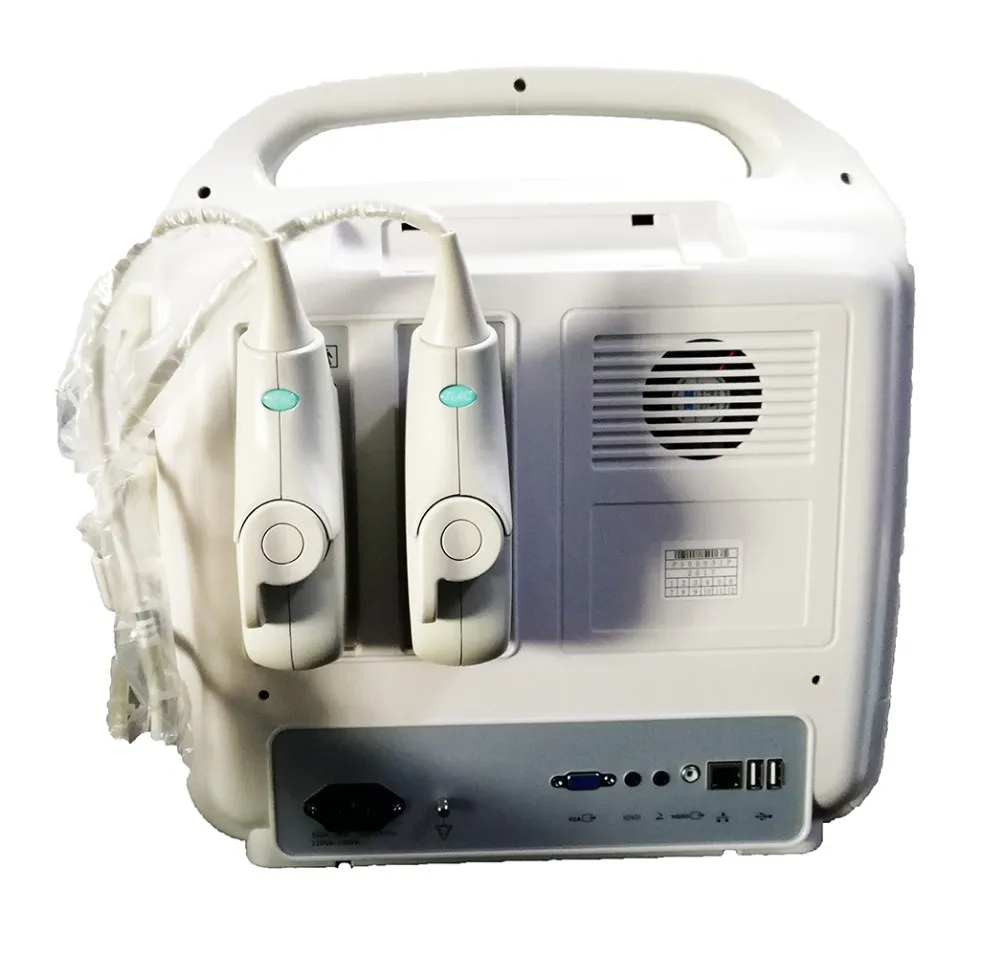

2.7 Peripheral support
interfaces include: network port, USB port (2), VGA/VIDEO/S-VIDEO, and foot switch interface, supporting:
1. External display;
2. Video capture card;
3. Video printers: including black and white video printers and color video printers;
4. USB report printer: including black and white laser printer, color laser printer, and color inkjet printer;
5. USB drive, ★ USB interface CD burner, ★ USB mouse;
6. Foot switch;
2.8 Machine size and weight
Host size: 370mm (length) × 350mm (width) × 60mm thick
Packaging size: 440mm (length) × 440mm (width) × 220mm high
Host weight: ≤ 6 kg, excluding probes and adapters;
weight: ≤ 10kg (including host, adapter, two probes, packaging);
3. Main technical parameters and functions:
3.1 Fully digital imaging technology
1. Multi beam synthesis
2. Real time point by point dynamic focusing imaging
3. ★ Pulse inverse harmonic composite imaging
.★4Space composite
5. ★ Image enhancement and noise reduction
3.2 Imaging mode
1. Mode B
2. M mode
3. Color mode
4. PDI (Power Doppler) mode
5. PW (Pulse Doppler) mode
Used for examinations in areas such as abdomen, heart, gynecology, obstetrics, urology, small organs, pediatrics, and blood vessels.
2. Physical specifications:
2.1 Technical Platform: ★ Linux+ARM+FPGA
2.2 Number of channels and array elements
Number of physical channels: ≥ 40
Number of probe elements: ≥ 80
Supported Probes
1.3C6A: 3.5MHz/R60/80 element convex array probe;
2.7L4A: 7.5MHz/L38mm/80 element linear array probe;
3.6C15A: 6.5MHz/R15/80 array element micro convex probe;
4.6E1A: 6.5MHz/R10/80 array element intracavity probe;
Probe frequency: 2.5-10MHz
Probe sockets: ≥ 2
2.4 Display
High resolution 15 inch LCD display
2.5 Batteries
Built in 6000 milliampere hour lithium battery, working state, continuous working time ≥ 1 hour, and screen providing power display information;
2.6 Internal hard drive
★ Support hard disk (≥ 128GB);
2.7 Peripheral support
interfaces include: network port, USB port (2), VGA/VIDEO/S-VIDEO, and foot switch interface, supporting:
1. External display;
2. Video capture card;
3. Video printers: including black and white video printers and color video printers;
4. USB report printer: including black and white laser printer, color laser printer, and color inkjet printer;
5. USB drive, ★ USB interface CD burner, ★ USB mouse;
6. Foot switch;
2.8 Machine size and weight
Host size: 370mm (length) × 350mm (width) × 60mm thick
Packaging size: 440mm (length) × 440mm (width) × 220mm high
Host weight: ≤ 6 kg, excluding probes and adapters;
weight: ≤ 10kg (including host, adapter, two probes, packaging);
3. Main technical parameters and functions:
3.1 Fully digital imaging technology
1. Multi beam synthesis
2. Real time point by point dynamic focusing imaging
3. ★ Pulse inverse harmonic composite imaging
.★4Space composite
5. ★ Image enhancement and noise reduction
3.2 Imaging mode
1. Mode B
2. M mode
3. Color mode
4. PDI (Power Doppler) mode
5. PW (Pulse Doppler) mode
3.3 Image display mode
1. Dual, 4-frame, B+M, M, B+Color, B+PDI, B+PW, PW, B+Color+PW, B+PDI+PW, ★ B/BC dual real-time
3.4 Supported frequencies
B/M: fundamental frequency ≥ 3 gears; Harmonic frequency ≥ 2 levels;
Color/PDI: ≥ 2nd gear
PW: ≥ 2nd gear
3.5 Movie Playback
1.2D mode, B maximum: ≥ 5000 frames, Color, PDI maximum: ≥ 2500 frames;
2. Timeline mode (M, PW), maximum: ≥ 190s
3.6 Image amplification
Real time scanning (B, B+C, 2B, 4B), status: infinite amplification
3.7 Image Storage
1. Support JPG, BMP, FRM image formats and CIN, AVI movie formats
2. Support local storage;
3. Supports DICOM and complies with DICOM3.0 standards
4. ★ Built in workstation: supports patient data retrieval and browsing
3.8 System Language
1. Chinese/English/Spanish/French/German/Czech/Russian, expandable to support other languages according to user needs;
2. Full screen Chinese and English annotation input, with at least 2 Chinese input methods, including five stroke input methods;
3.9 Measurement and calculation software package
Abdomen, gynecology, obstetrics, urology, heart, pediatrics, small organs, blood vessels, etc;
3.10 Measurement report
Support report editing and printing, ★ support report templates;
3.11 Other functions
Annotation, body logo, puncture line, ★ PICC, ★ crushed stone line
4. Image parameters
4.1B mode
1. Grey scale mapping: ≥ 15 levels
2. Noise suppression: ≥ 8 gears
3. Frame correlation: ≥ 8 levels
4. Edge enhancement: ≥ 8 gears
5. Image enhancement: ≥ 5 levels
6. Space composite: adjustable switch
7. Scanning density: high, medium, and low
8. Image flipping: up, down, left, right
9. Maximum scanning depth: ≥ 320mm
4.2M mode
1. Sweep Sleep: ≥ 5 adjustable gears
2. Line Average: ≥ 8 levels
4.3PW mode
1. SV size/position: SV size 1.0-8.0mm adjustable
2. PRF: ≥ 16 gears, adjustable from 0.7kHz to 9.3kHz
3. Sweep Sleep: ≥ 5 adjustable gears
4. Correction Angle: -85 °~85 °, in steps of 5 °
5. Spectrum flipping: switch adjustable
6. Wall filtering: ≥ 4 adjustable gears
7. Doppler sound: ≥ 20 levels
4.4Color/PDI mode
1. PRF: ≥ 15 gears, 0.6KHz – 11.7KHz
2. Color map: ≥ 4 types
3. Color related: ≥ 8 levels
5. Post processing: ≥ 4 levels
3.5 Parameter Saving and Recovery
Support one click saving of image parameters;
Support one click reset of image parameters;
4. Measurement and calculation
1. Conventional measurement in B/C mode: distance, area, perimeter, volume, angle, area ratio, distance ratio
2. M-mode conventional measurement: time, slope, heart rate, distance
3. Doppler mode routine measurement: heart rate, flow rate, flow rate ratio, resistance index, pulsatility index, manual/★
automatic envelope, acceleration, time, heart rate
4. Measurement of obstetric B and PW mode application: including comprehensive obstetric diameter measurement, body weight,
single gestational age and growth curve, amniotic fluid index, fetal physiological score measurement, etc
5. Gynecological B-mode application measurement
6. Measurement of cardiac B, M, and PW mode application
7. Application measurement of vascular B and PW modes, supporting: ★ IMT automatic endometrial measurement
8. Measurement of Small Organ B Mode Application
9. Urinary B-mode application measurement
10. Pediatric B-mode application measurement
11. Measurement of abdominal B-mode application;
6. Standard configuration and options for the entire machine
1. Dual, 4-frame, B+M, M, B+Color, B+PDI, B+PW, PW, B+Color+PW, B+PDI+PW, ★ B/BC dual real-time
3.4 Supported frequencies
B/M: fundamental frequency ≥ 3 gears; Harmonic frequency ≥ 2 levels;
Color/PDI: ≥ 2nd gear
PW: ≥ 2nd gear
3.5 Movie Playback
1.2D mode, B maximum: ≥ 5000 frames, Color, PDI maximum: ≥ 2500 frames;
2. Timeline mode (M, PW), maximum: ≥ 190s
3.6 Image amplification
Real time scanning (B, B+C, 2B, 4B), status: infinite amplification
3.7 Image Storage
1. Support JPG, BMP, FRM image formats and CIN, AVI movie formats
2. Support local storage;
3. Supports DICOM and complies with DICOM3.0 standards
4. ★ Built in workstation: supports patient data retrieval and browsing
3.8 System Language
1. Chinese/English/Spanish/French/German/Czech/Russian, expandable to support other languages according to user needs;
2. Full screen Chinese and English annotation input, with at least 2 Chinese input methods, including five stroke input methods;
3.9 Measurement and calculation software package
Abdomen, gynecology, obstetrics, urology, heart, pediatrics, small organs, blood vessels, etc;
3.10 Measurement report
Support report editing and printing, ★ support report templates;
3.11 Other functions
Annotation, body logo, puncture line, ★ PICC, ★ crushed stone line
4. Image parameters
4.1B mode
1. Grey scale mapping: ≥ 15 levels
2. Noise suppression: ≥ 8 gears
3. Frame correlation: ≥ 8 levels
4. Edge enhancement: ≥ 8 gears
5. Image enhancement: ≥ 5 levels
6. Space composite: adjustable switch
7. Scanning density: high, medium, and low
8. Image flipping: up, down, left, right
9. Maximum scanning depth: ≥ 320mm
4.2M mode
1. Sweep Sleep: ≥ 5 adjustable gears
2. Line Average: ≥ 8 levels
4.3PW mode
1. SV size/position: SV size 1.0-8.0mm adjustable
2. PRF: ≥ 16 gears, adjustable from 0.7kHz to 9.3kHz
3. Sweep Sleep: ≥ 5 adjustable gears
4. Correction Angle: -85 °~85 °, in steps of 5 °
5. Spectrum flipping: switch adjustable
6. Wall filtering: ≥ 4 adjustable gears
7. Doppler sound: ≥ 20 levels
4.4Color/PDI mode
1. PRF: ≥ 15 gears, 0.6KHz – 11.7KHz
2. Color map: ≥ 4 types
3. Color related: ≥ 8 levels
5. Post processing: ≥ 4 levels
3.5 Parameter Saving and Recovery
Support one click saving of image parameters;
Support one click reset of image parameters;
4. Measurement and calculation
1. Conventional measurement in B/C mode: distance, area, perimeter, volume, angle, area ratio, distance ratio
2. M-mode conventional measurement: time, slope, heart rate, distance
3. Doppler mode routine measurement: heart rate, flow rate, flow rate ratio, resistance index, pulsatility index, manual/★
automatic envelope, acceleration, time, heart rate
4. Measurement of obstetric B and PW mode application: including comprehensive obstetric diameter measurement, body weight,
single gestational age and growth curve, amniotic fluid index, fetal physiological score measurement, etc
5. Gynecological B-mode application measurement
6. Measurement of cardiac B, M, and PW mode application
7. Application measurement of vascular B and PW modes, supporting: ★ IMT automatic endometrial measurement
8. Measurement of Small Organ B Mode Application
9. Urinary B-mode application measurement
10. Pediatric B-mode application measurement
11. Measurement of abdominal B-mode application;
6. Standard configuration and options for the entire machine
Specification
Monitor size: | 15 Inch LCD Monitor |
Resolution | 1024x768 |
Display mode | B, B+B, B+M, B+M/M, M, 4B,etc. |
Image gray scale | 256 Scale |
Cine loop | MAX656 Frames(B model,410frames) |
Image storage | 64 Frames |
Pseudo color | 9types( background color and font color ) |
Scan angle | Adjustable |
Scan depth | 40mm-250mm |
Image flip | Up/down, left/right, black/ white |
Image Process | GAMA, Image Smoothen, THI, Histogram, Zoom |
Focus | Focus Number, Focus position, Focal space |
Measure | Distance, circumference, area, volume, heart, GA, FW, EDD |
Character display | Date, clock, name, PID, age, Sex, hospital name, doctor, |
Notation | full-screen character editor, posture mark, Position indication |
Interface | 4 types(Output USB1 2.0,Input USB2 2.0,RS-232,VIDEO) |
Optional Function | Extral add battery 4400mAh USB Printer system Sony printer/Paper |
Packing & Delivery
51x28x50CM, 10kg
Standard configuration:
1. ★ One fully digital host (with a built-in 128G hard drive);
2.1 adapters;
3.1 3C6A convex array probes;
4.1 7L4A linear array probes;
5. One manual;
6. One power cord;
Options:
1.6E1A intracavity probe;
2.6C15A micro convex probe;
3. USB report printer;
4. Black and white video printer;
5. Color video printer;
6. Puncture frame;
7. Trolley;
8. Foot switch;
9. USB flash drive and USB extension cable;
Standard configuration:
1. ★ One fully digital host (with a built-in 128G hard drive);
2.1 adapters;
3.1 3C6A convex array probes;
4.1 7L4A linear array probes;
5. One manual;
6. One power cord;
Options:
1.6E1A intracavity probe;
2.6C15A micro convex probe;
3. USB report printer;
4. Black and white video printer;
5. Color video printer;
6. Puncture frame;
7. Trolley;
8. Foot switch;
9. USB flash drive and USB extension cable;
Company Profile
We is a high-tech enterprise integrating design, R&D, production and sales of Class II medical devices. The factory covers an area
of more than 10,000 square meters and has 283 employees, including 19 design teams and 39 R&D teams. The company focuses on the
development of medical, therapeutic, physiotherapy and health products, and is committed to exploring new areas of health and
medical electronic products, and providing users with medical data reference.
The company strictly implements the national medical device laws and regulations and related industry standards, and at the same
time, in accordance with the international medical industry YY/T 0287-2017 & EN ISO 13485:2016 standards, it has established a
complete set of medical device production quality management specifications to ensure that the company uses the most High-quality
products and the most reliable quality to serve and give back to the society.
Top-Ranking Products
of more than 10,000 square meters and has 283 employees, including 19 design teams and 39 R&D teams. The company focuses on the
development of medical, therapeutic, physiotherapy and health products, and is committed to exploring new areas of health and
medical electronic products, and providing users with medical data reference.
The company strictly implements the national medical device laws and regulations and related industry standards, and at the same
time, in accordance with the international medical industry YY/T 0287-2017 & EN ISO 13485:2016 standards, it has established a
complete set of medical device production quality management specifications to ensure that the company uses the most High-quality
products and the most reliable quality to serve and give back to the society.
Top-Ranking Products
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to North America(30.00%),Southern Europe(20.00%),Western
Europe(20.00%),Central America(10.00%),Northern Europe(10.00%),Eastern Europe(5.00%),South America(5.00%). There are total about
51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
medical devices,Massager
4. why should you buy from us not from other suppliers?
Shenzhen SJNX Technology Co., Ltd We is a high-tech enterprise integrating design, R&D, production and sales of Class II medical
devices. We mainly produce health care and outdoor related products. We have two factories in Shenzhen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2020,sell to North America(30.00%),Southern Europe(20.00%),Western
Europe(20.00%),Central America(10.00%),Northern Europe(10.00%),Eastern Europe(5.00%),South America(5.00%). There are total about
51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
medical devices,Massager
4. why should you buy from us not from other suppliers?
Shenzhen SJNX Technology Co., Ltd We is a high-tech enterprise integrating design, R&D, production and sales of Class II medical
devices. We mainly produce health care and outdoor related products. We have two factories in Shenzhen.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
