10.5 inch NV105WAM N31 Laptop LCD Screen 1920*1280 Microsoft Surface Go 2 3 Digitizer Assembly TFT LCD Panel
- Category: >>>
- Supplier: Shenzhen P& O Technology Co. Limited
Share on (1600947210590):
Product Overview
Description
10.5 inch NV105WAM-N31 Laptop LCD Screen 1920*1280 Microsoft Surface Go 2 3 Digitizer Assembly TFT LCD Panel
Product Description
We are the manufacturer, can be continuous supply for at least 15 years !!
>>>> NO MOQ
>>>> Free Sample
>>>> Fast Delivery
>>>> Any information can consult us.
Introduction:
NV105WAM-N31 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.51 inch diagonally measured active area with Full-HD+ resolutions (1920 horizontal by 1280 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(8bit) colors and color gamut sRGB100%. The TFT-LCD panel used for this module is a low
reflection and higher color type. Therefore, this module is suitable for Notebook PC. All input signals are eDP1.4a interface compatible.
Application:
Notebook PC (Wide type)
Parameter:
Model | NV105WAM-N31 |
Number of Pixel | 1920 (H) × 1280 (V) Pixels (1 pixel = R + G + B dots) |
Active area | 222.048(H) × 148.032 (V) mm |
Pixel pitch | 115.65(H) × 115.65 (V) um |
Pixel arrangement | RGB Vertical stripe |
Color gamut | TYP:sRGB 100%, Min:sRGB:96%. |
Display Color | 16.7M(8bit) |
Display mode | Normally black |

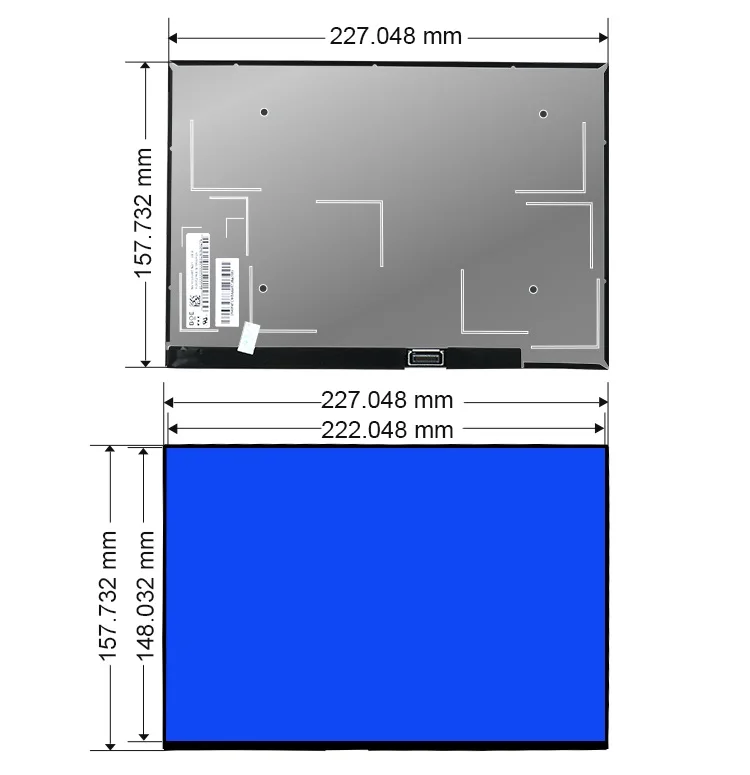

Dimensional outline
| 227.048± 0.4 (H)*157.732± 0.4(V)(W/ FPC bendin g)*1.95 (Max)(W/O PCB) 227.048± 0.4 (H)*157.732± 0.4(V)(W/ FPC bendin g)*4.5 (Max)(W/ PCB) |
Surface treatment | HC |
Surface hardness | 2H |
Back-light | Bottom edge side, 1-LED lighting bar type |
Power consumption | PD : 0.42(Max) W PBL : 1.69(Max) W PTotal : 2.08(Max) W |
Weight | 115(max)g |
Features:
1. 2 lane eDP interface with 2.7Gbps link rates
2. Thin and light weight
3. 16.7M (8bit) color depth, color gamut SRGB 100%
4. Single LED lighting bar (Bottom side/Horizontal Direction)
5. Data enable signal mode
6. Green product (RoHS & Halogen free product)
7. Low driving voltage and low power consumption
8. On board EDID chip
9. DPCD Version 1.2
10. Function:PSR2+LRR/BIST/Instant on
Strict Quality Inspection
Polcd's LCD screens can be used in the aerospace industry because we have veryhigh quality requirements. The raw materials are purchased from high-end brands. Professional testing equipment will be used for testing every step in the period of production. The most important thing is that before the products shipped, we can do more and more precise aging tests than those in the same industry.
Production Process
The production process of TFT LCD involves multiple steps, including substrate cleaning and cutting, coating, film deposition, photolithography, and etching. First, glass substrates are cleaned and cut into specific sizes. Then, a layer of transparent conductive material is coated onto the substrate surface. This is followed by deposition of several thin films, including the active layer, metal layer, and passivation layer, using specialized equipment. Photolithography and etching processes are then used to create the desired patterns on the different layers.
Finally, the substrates are assembled into a complete TFT LCD panel, including the addition of polarizer, backlight unit, and driver IC. The entire production process is highly precise and requires advanced equipment and technology to ensure high-quality and high-yield production.
Company Information
We are a high-end technology manufacturer of TFT displays, headquartered in Shenzhen, Guangdong, China. Shenzhen P&O Technology Co., Ltd was established in 2008. It has strong automated production equipment, R&D and production teams, and strict quality management ISO 9001, ISO 14001, RoHS, REACH and other certificates. Our main products are TFT Display, LCD Modules, Touch Panel. The factory has a modern production dust-free workshop of more than 5,300 square meters and more than 330 employees. Our production capacity can reach 700,000 pcs/Month.
Our products are widely used in medical equipment, industrial instruments, telecommunication terminals, smart home and smart wearable device, aviation, automotive, military, retail, gaming and other fields.
Based on solid professional knowledge, advanced equipment and production technology, our engineering expert team constantly explores the latest technology and market trends, provides the highest quality personalized service and customized design solutions, we have become important strategy partners of our worldwide customers. Good faith, excellent service and win-win concept is our company core value. Our mission is to be reliable and trustable TFT LCD display module customization specialist.
FAQ
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT Icd module has different tooling cost, which includes FPC, Touch Screen, Backlight Bezel and so on.
Q: Is there a Touch Panel (Touch screen) on the display ?
A: We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need. Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.
Q: Where can I get the datasheet, initialization code and other technical files ?
A: You can't upload/download the files online
Q: Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
Q: What is your delivery method?
A:Exw shenzhen by DHL/ UPS 1 FEDEX/TNT , or ship the goods to your HK forwarder.
Q:Products are in stock? How long can you deliver?
A: Our inventory is mainly raw materials, semi-finished and a small amount of finished products. After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks

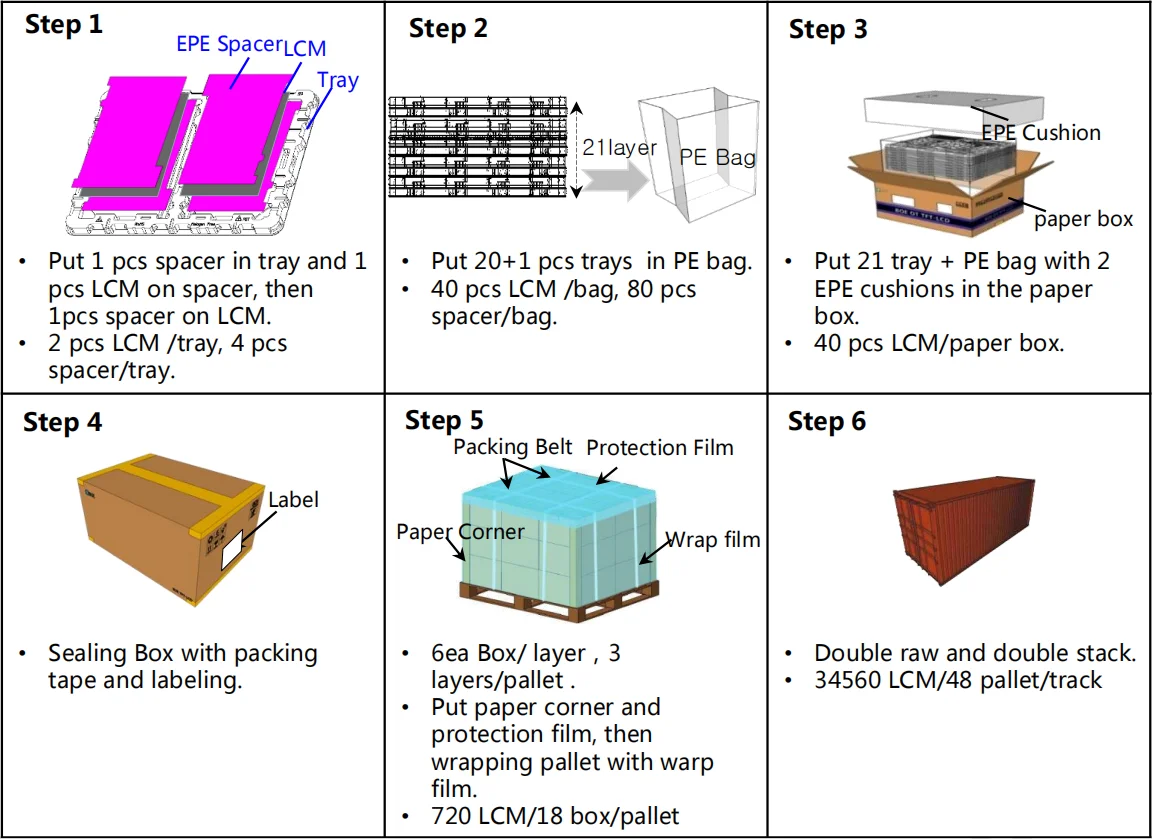

Q: What kind of packaging? The transport process will not be damaged?
A: Packed in anti-static bags with foam box to ensure safty in transportation
Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected prior to ship.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products. We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
