top Hot selling Isolated cargo box truck box truck van body refrigerated truck body price for sale
- Category: >>>
- Supplier: Shandong Carryman Auto Tech Co. Ltd.
Share on (1600947236722):
Product Overview
Description
Products Description

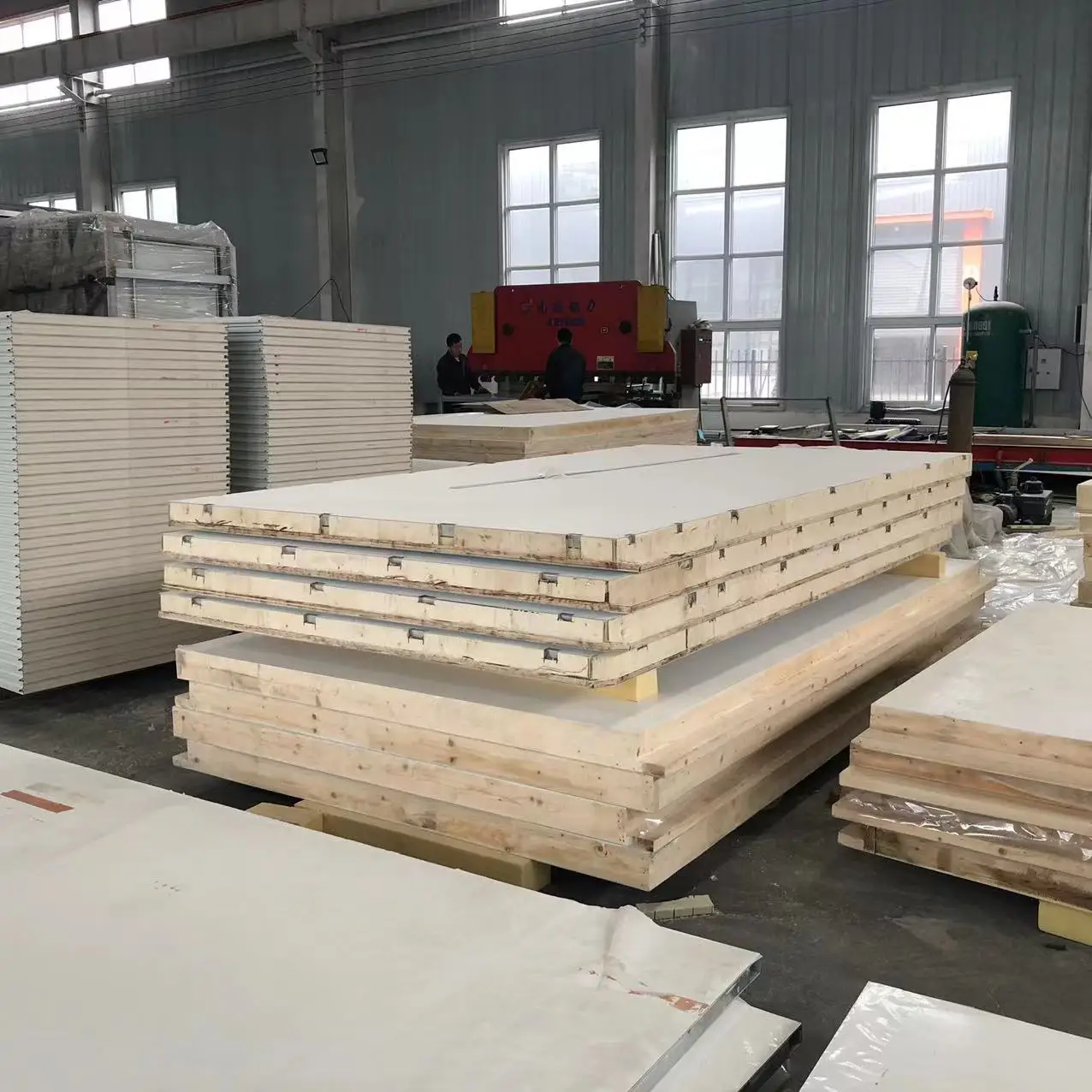

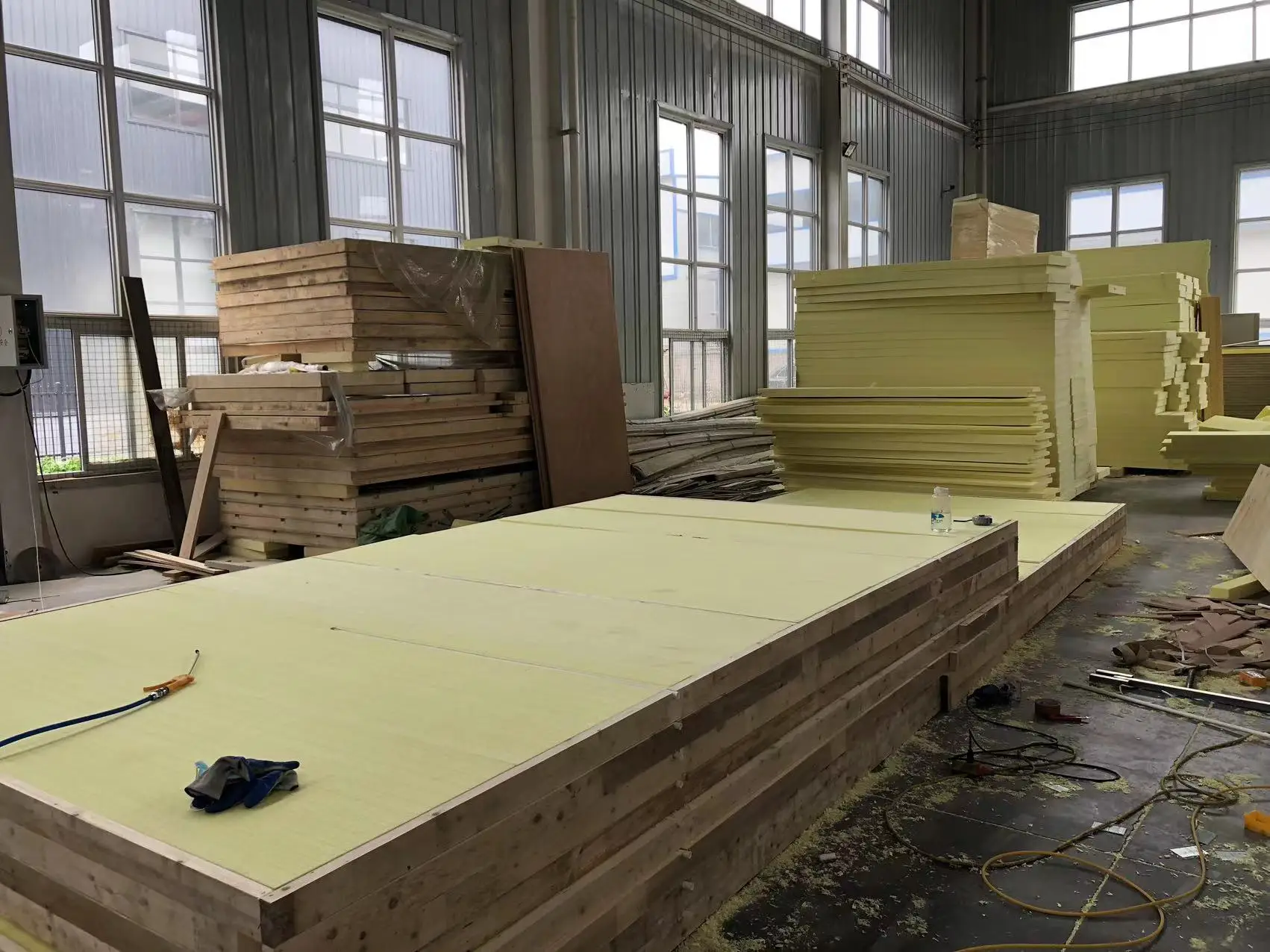

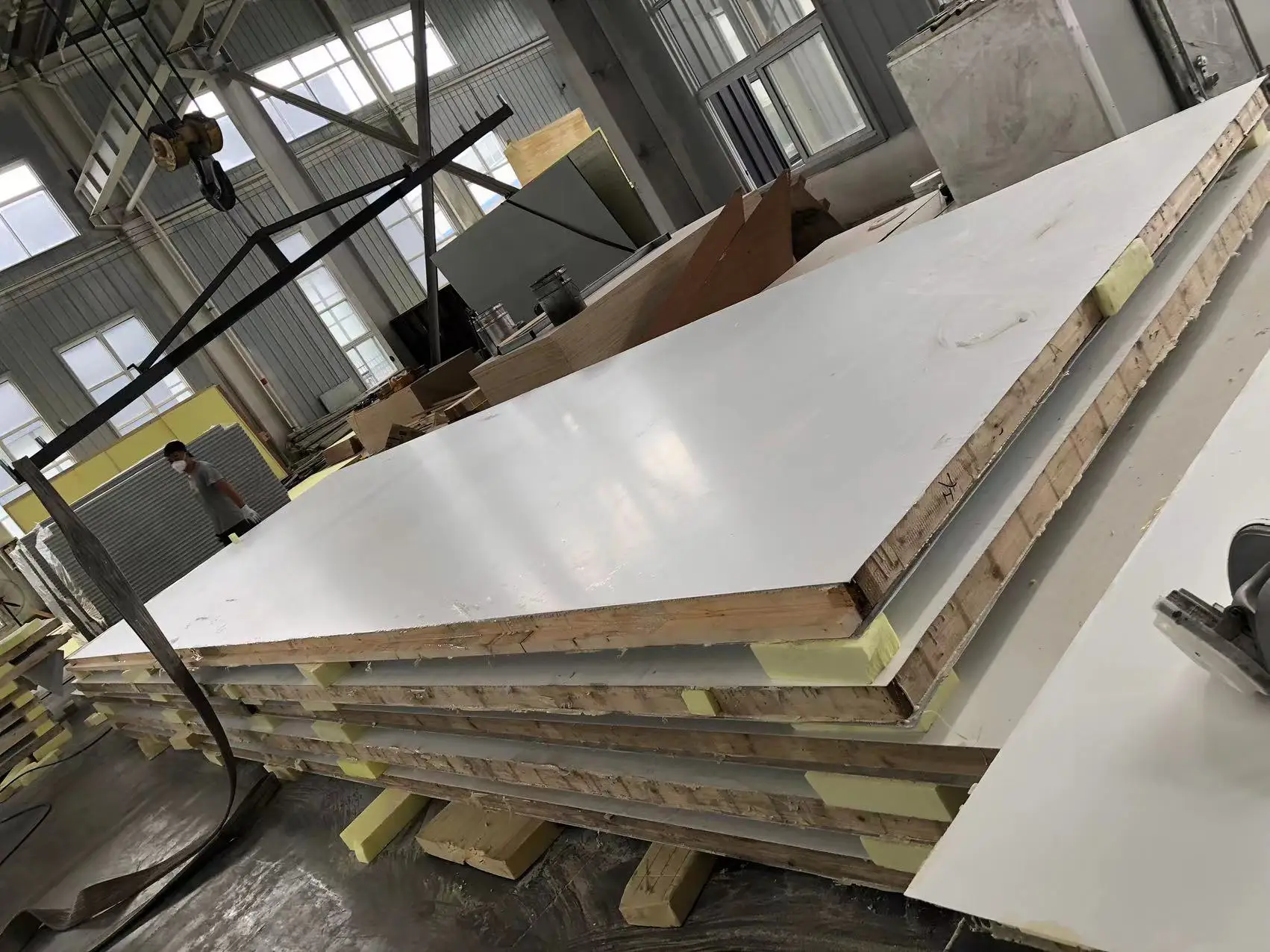

Construction of Box
A Assembly: stability and consistency
Panel assembly introduces international patented technology. Each position is a complete piece of panel. With high strength
alumimun extrusions,panels are prefabricated into kits such as front panel, roof panel, floor, 2 side panels, and door.The whole
body is assembled together by the different panels kits.
B Advantages of Construction:
easier and faster installation, better sealing and higher structural strength.
Our products have been exported to many countries for years and enjoyed great reputation .
A Assembly: stability and consistency
Panel assembly introduces international patented technology. Each position is a complete piece of panel. With high strength
alumimun extrusions,panels are prefabricated into kits such as front panel, roof panel, floor, 2 side panels, and door.The whole
body is assembled together by the different panels kits.
B Advantages of Construction:
easier and faster installation, better sealing and higher structural strength.
Our products have been exported to many countries for years and enjoyed great reputation .
Details Images
TECHNICAL DATA： | ||||||
NO. | Items | Data | ||||
1 | Product Name | Truck Refrigeration Unit--BH-200F (Frozen) | ||||
2 | Type | Vehicle Engine Driven | ||||
3 | Structure | Truck Body, Front Mounted | ||||
4 | Compressor | Jap SD5S14 | ||||
5 | Controller | Digital, In Cab | ||||
6 | Condenser | Coil | Copper Tube & Aluminum Fin | |||
Fan | One Motor & One Fan (DC12V/24V) | |||||
Dimension | 765*350*235 mm | |||||
Weight | 35KG | |||||
7 | Evaporator | Coil | Copper Tube & Aluminum Fin | |||
Fan | One Motor & One Fan (DC12V/24V) | |||||
Air Flow | 1300 m³/H | |||||
Dimension | 600*510*138 mm | |||||
Weight | 17KG | |||||
8 | Defrost | Automatic Hot Gas Defrost | ||||
9 | Refrigerant | HFC-404A, 1.1-1.2KG | ||||
10 | Installation Kits | Rubber Hoses, Drain Water Hoses, Wiring Harness etc | ||||
11 | Cooling Capacity (Ambient 38Deg /100.4F) | -20Deg---1100 W(3770 BTU/ 946 Kcal), Apply Up to 7 m3, Frozen | ||||
0 Deg---2800 W(9550BTU / 2400Kcal), Apply Up to 19 m3, Fresh | ||||||
12 | Total Weight | 66KG | ||||
BH-200F is specialized for small refrigerated truck body to keep frozen, powered by the
engine of the vehicle, and it has great advantages in Fuel Saving, Environmental and Highly Efficient.
* Exclusive Design for Refrigerated Truck Body Up to 7CBM(-20 ℃) & 19CBM(0℃) to Keep Frozen;
* Stream Line Design to Apply All Kinds of Truck Body;
* Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
* Easy Installation & Operation;
* Environment Friendly;
* 36 Months Warranty Time After Delivery;
engine of the vehicle, and it has great advantages in Fuel Saving, Environmental and Highly Efficient.
* Exclusive Design for Refrigerated Truck Body Up to 7CBM(-20 ℃) & 19CBM(0℃) to Keep Frozen;
* Stream Line Design to Apply All Kinds of Truck Body;
* Big Cooling Capacity & Reliable Performance to Stand Against Hot & Dusty Climatic Condition;
* Easy Installation & Operation;
* Environment Friendly;
* 36 Months Warranty Time After Delivery;

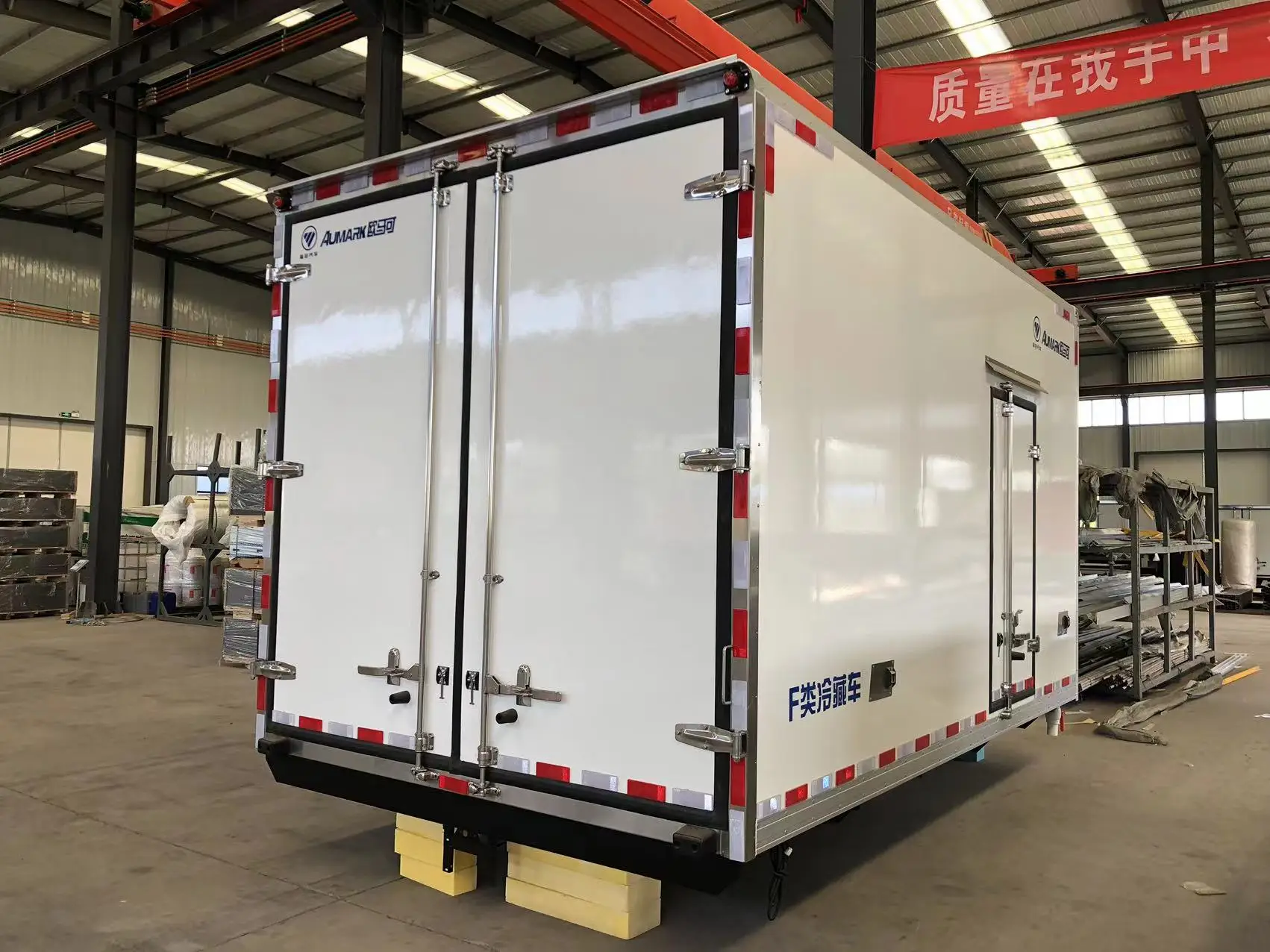

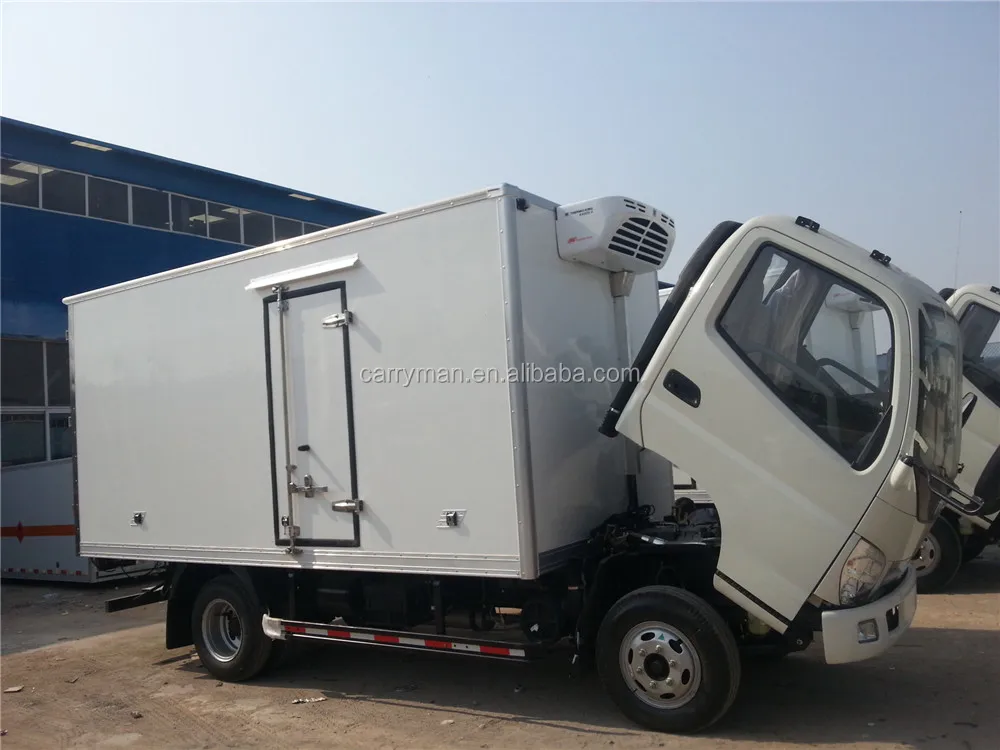

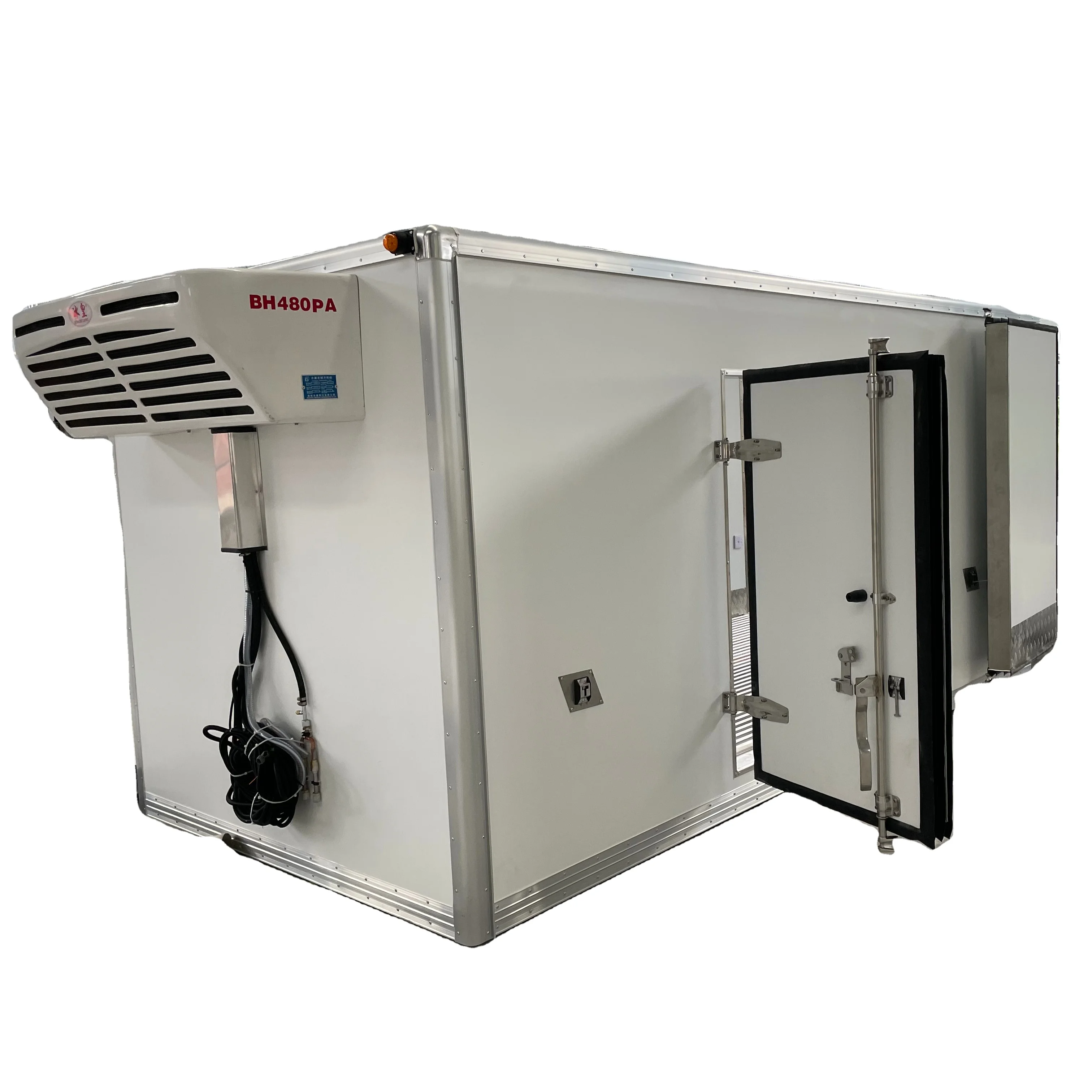

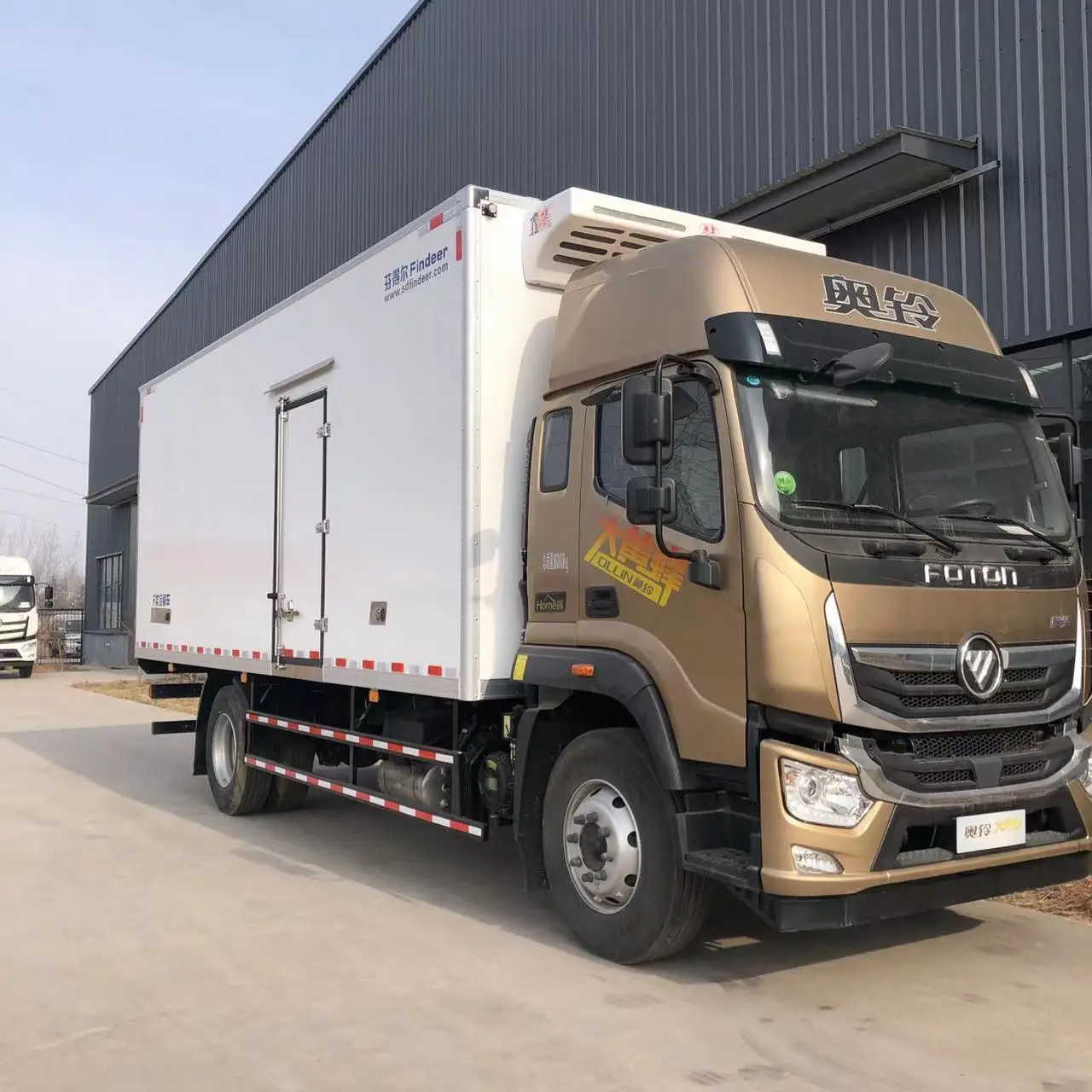

refrigerated truck body
LED light
corner light
Kick plate
Single leaf side door
Aluminum T-Channel floor
Aluminum checker plate floor
Aluminum corrugated floor
Meat hanging system
Meat hanging system
(sliding rail and meat hook)
Low temperature PVC curtains
Clapboard within body

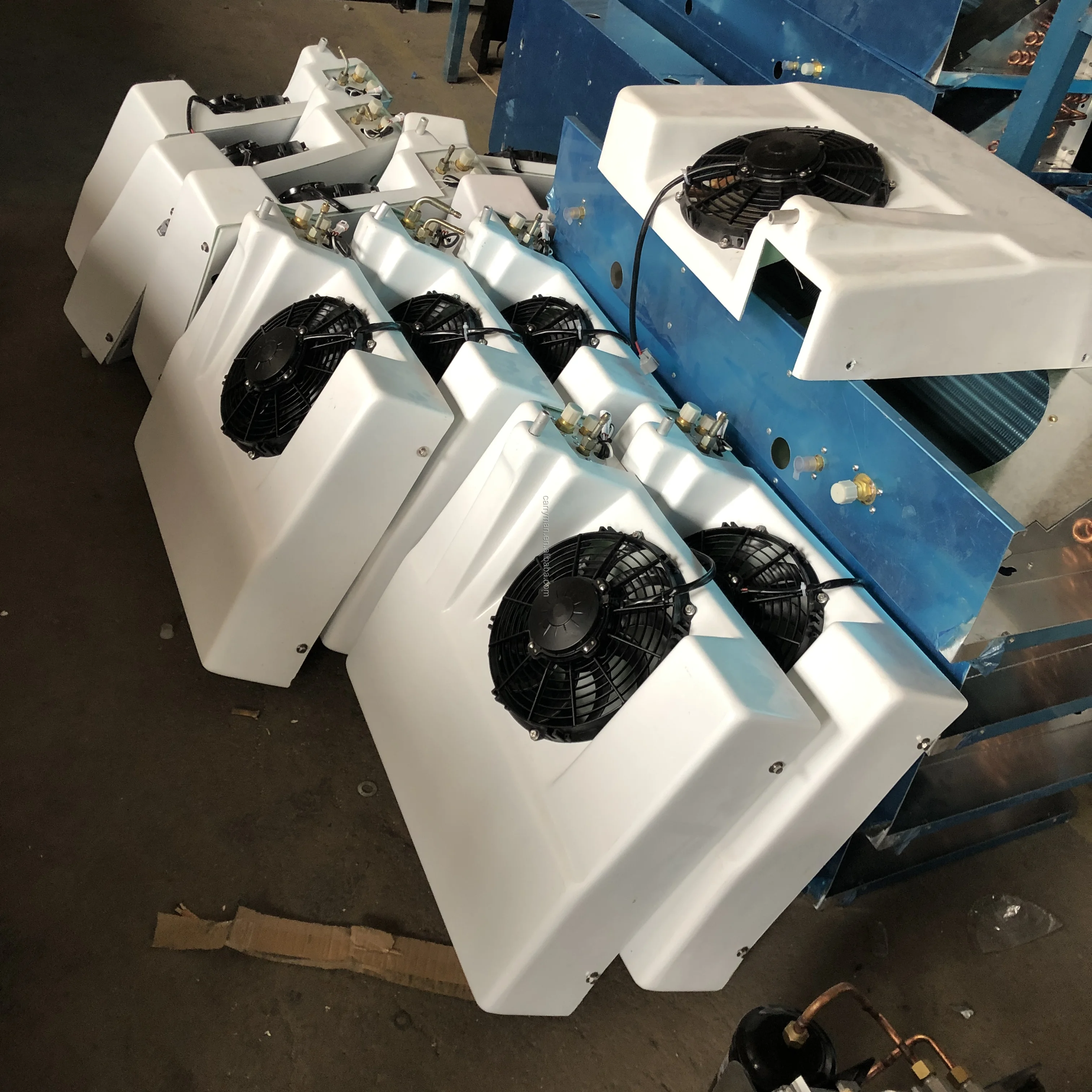

Truck refrigeration units
Rear foot
steps,mud apron crash barrier
steps,mud apron crash barrier
Advantages of split transportation (CKD)
1.NO weld install box,
2.easiest install drawing,
3.fit difference model truck
hyundai,kia,toyota,ISUZU
NO | PART NAME | MATERIAL AND SPEC | QTY | LOCATION |
1 | Front panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
2 | Rear door | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
3 | Side panel(left and right) | 2.2mmFRP+PU+2.2mmFRP,103mm | 2 | |
4 | Floor panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
5 | Roof panel | 2.2mmFRP+PU+2.2mmFRP,103mm | 1 | |
6 | Front angle | Stainless steel | 2 | |
7 | lamp | 12/23V LED | 1 | roof |
8 | switch | stainless | 1 | Side panel |
9 | cable | some | ||
10 | Side aluminum edge | aluminum | 7 | Side wall and floor |
11 | rivet | 5*18,5*25 galvanized | many | |
12 | Resin glue | some | ||
13 | sealant | PU | some | |
14 | U bar | steel | 6 | Floor frame and chassis |
15 | Floor frame | steel | 1 | |
16 | Angle iron | steel | many | Floor frame and Longitudinal beam |
17 | Sealing strip | rubber | 3 | |
18 | Back door hing | Stainless steel | 6 | Rear door and side door |
19 | Side light | Yellow/12/24v | 6 | |
20 | lock | Stainless steel | 3 | Rear door and side door |
21 | Water barrier | Stainless steel | 1 | Rear door and side door up |
22 | Door catch | Stainless steel | 3 | Rear door and side door |
23 | Clamping screw | M8*110,M12*50, STEEL | some | |
24 | Side/rear protective barrier | Steel | 2 | |
25 | mudguard | plastic | 2 | |
26 | Door frame | Stainless steel | 1 | |
27 | marker lamp(front/rear) | plastic | 4 | |
28 | flap | rubber | 2 | |
29 | Side door | Single 900*1500mm | 1 | Left panel |
CBU transport
If the customer can't assemble, CBU transport is good ways
CKD transport
1.easy assemble, no weld,and easiest install drawing.
2.fit all brand truck, KI A, ISUZ U, HYUNDA I AND CHINA brand foton, jac,JMC, FAW,TKING ETC
Technical Specification -CARRYMAN refrigerated truck body | ||||
Truck Body size (LWH) | 4000*2300*2350 | |||
Inside &Outside skin | FRP | |||
Insulation foam | insulation foam | |||
Truck body Panel total Thickness(Panel thickness can be changed according to your requirments and applications) | ||||
Roof | 80mm | |||
Front Wall | 80mm | |||
Side Wall | 80mm | |||
Floor | 80mm | |||
Rear Doors | 80mm | |||
Color | white | |||
Parts | ||||
Double swing door at rear | √ | standard specification | ||
Door gasket | √ | |||
Floor: FRP surface | √ | |||
Stainless Steel door locks &hinges&handle&hanger | √ | |||
Stainless Steel rear door frame | √ | |||
aluminium profile and stainless steel angle | √ | |||
Internal lights and switch | √ | |||
Sub-frame | √ | |||
Accessories for truck body assembling:(for CKDtype | ||||
Other options parts (pay extra money) | ||||
LED right | ||||
corner light | ||||
Kick plate | ||||
Single leaf side door | ||||
Aluminum T-Channel floor | ||||
Aluminum checker plate floor | ||||
Aluminum corrugated floor | ||||
Meat hanging system(sliding rail and meat hook) | ||||
Low temperature PVC curtains | ||||
Clapboard within body | ||||
Truck refrigeration units | ||||
Rear foot steps | ||||
mudapron | ||||
crash barrier | ||||
Product packaging
dry truck body CKD
1. Professional export packaging to protect the products from damage during transportation
2.More freight saving
3.More perfect match for various truck models
refrigerated truck body CKD
1.Easier to install truck body
2.The world's most popular truck body, matching a variety of truck models. ISUZ U, KI A, HYUNDA I H100, HD65
3. The service life is guaranteed for more than 10 years
dry truck body CKD Container capacity (20ft/40HC container) | refrigerated truck body Container capacity (20ft/40HC container) | ||||
3000*1800*1800mm | 16/38sets | 8/17sets | |||
3300*1850*1900mm | 15/36sets | 5/16sets | |||
3750*1900*1900mm | 13/30sets | 5/15sets | |||
4250*2000*2000mm | 11/26sets | 4/9sets | |||
4750*2200*2200mm | 8/22sets | 3/8sets | |||
5150*2200*2200mm | 8/20sets | 3/8sets | |||
6150*2300*2300mm | 0/14sets | 0/4sets | |||
6750*2300*2300mm | 0/12sets | 0/4sets | |||
7500*2400*2400mm | 0/12sets | 0/4sets | |||
8500*2400*2500mm | 0/10sets | 0/3sets | |||
9600*2500*2600mm | 0/8sets | 0/3sets | |||

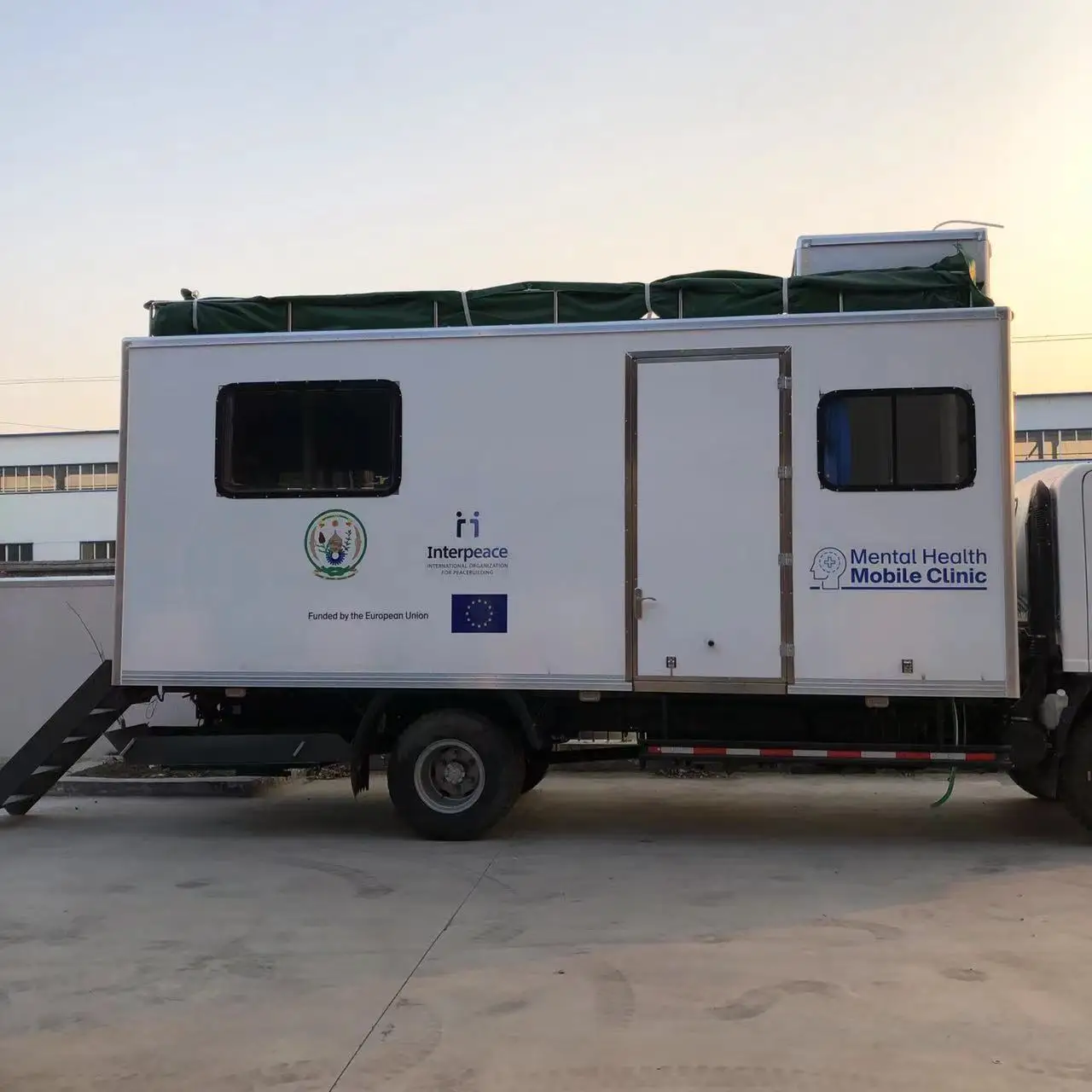

Customer Photos
Title goes here.
new truck body manufacturers, long term buy
Title goes here.
Founded a factory for more than 20 years and was the first businessman to bring Carryman to Chile
Title goes here.
Congo isuzu Truck dealer, the perfect combination of CARRYMAN and Isuzu
FAQ
1. What is your terms of shipping method?
Generally,we ship our truck body CKD(completely knocked down) or SKD(semi knock down) by container, assembled truck by container too, but the it is small quantity
2. Our truck is korea or japan brand,your truck body fit it?
Of course,Generally, global light trucks can be divided into 10ft,11ft,12ft,14ft,15ft,16ft and 18 feet in terms of cargo box length, middle truck have 20-32ft length,
The truck body can be combined with different brand trucks simply by adjusting the distance of the beam.
3. Is it difficult to install Truck body CKD or SKD ?
My company has ten years' experience in exporting truck body. We can provide the truck body ckd of easiest assemble
4. Why should your buy from us not from other supplier?
In the past 10years, Our company only makes truck body. We are more professional for truck body.
5. what is your terms of payment?
T/T 30% as deposit,and 70% against BL copy
6. what is your terms of delivery?
EXW,FOB, CFR,CIF
7. How about your delivery time?
Generally, within 10days
8. can you produce according to customer’s requirement?
Yes, we can produce according to the customer’s technical drawings and specifications
Generally,we ship our truck body CKD(completely knocked down) or SKD(semi knock down) by container, assembled truck by container too, but the it is small quantity
2. Our truck is korea or japan brand,your truck body fit it?
Of course,Generally, global light trucks can be divided into 10ft,11ft,12ft,14ft,15ft,16ft and 18 feet in terms of cargo box length, middle truck have 20-32ft length,
The truck body can be combined with different brand trucks simply by adjusting the distance of the beam.
3. Is it difficult to install Truck body CKD or SKD ?
My company has ten years' experience in exporting truck body. We can provide the truck body ckd of easiest assemble
4. Why should your buy from us not from other supplier?
In the past 10years, Our company only makes truck body. We are more professional for truck body.
5. what is your terms of payment?
T/T 30% as deposit,and 70% against BL copy
6. what is your terms of delivery?
EXW,FOB, CFR,CIF
7. How about your delivery time?
Generally, within 10days
8. can you produce according to customer’s requirement?
Yes, we can produce according to the customer’s technical drawings and specifications
