Wholesale Zumax 1kw 2kw 3kw Solar Inverter Hybrid 12v Off Grid solar inverter 5kw With MPPT Charge Controller
- Category: >>>
- Supplier: Dongguan Worldwide Electronic Technologies Co. Ltd.
Share on (1600947338236):
Product Overview
Description
One-stop new energy solution provider！we are the one of the most professional solar module manufacturers and whole solar energy system supplier.
Product Details
Main Features
●Pure sine wave solar inverter
●Built-in 40A MPPT solar charger
●PVinput voltage range 20-150VDC (for 1000w),30~150VDC(for 1500W)
●Built-in anti-dust kit for harsh environment
●Smart battery charge design to optimize battery life
●PVinput voltage range 20-150VDC (for 1000w),30~150VDC(for 1500W)
●Built-in anti-dust kit for harsh environment
●Smart battery charge design to optimize battery life
●meet rich customized demands

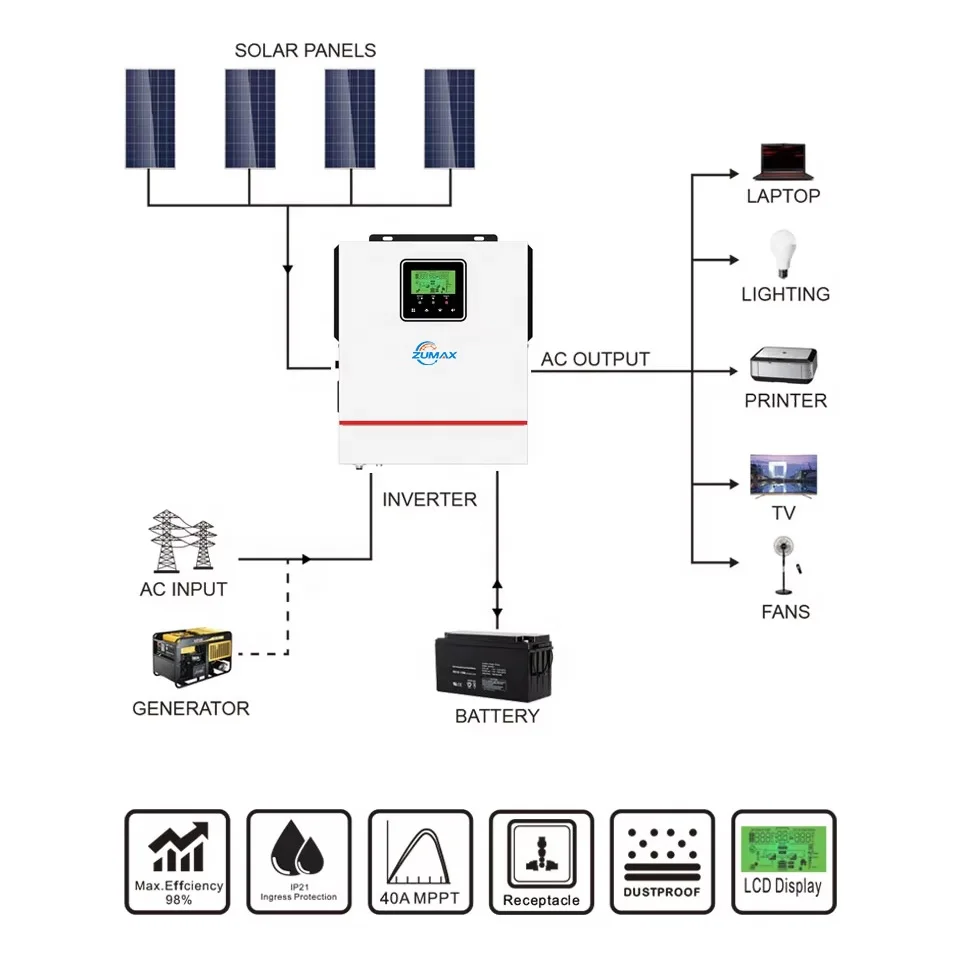

●Solar energy is provided directly to the load first
●Solar energy is provided directly to the load first
About the details and price ,feel free to contact with Customer service staff.Click Here.

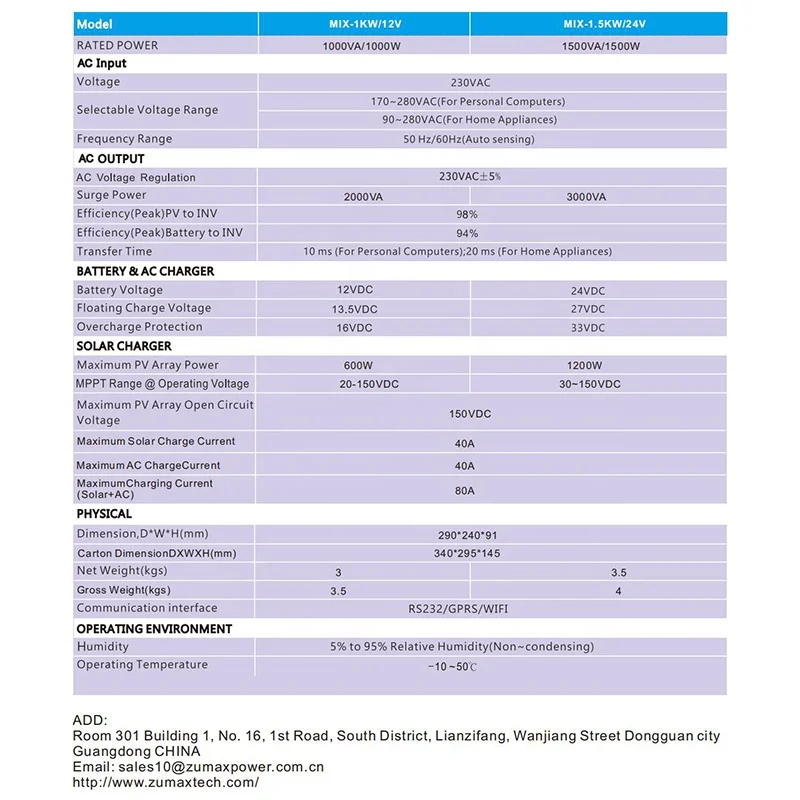

Product Paramenters
Model | MIX-1KW | MIX-1.5KW | |||||
RATED POWER | 1000W/1000VA | 1500W/1500VA | |||||
Voltage | 230VAC | ||||||
Selectable Voltage Range | 170~280VAC(For Persona Computers) | ||||||
90~280VAC(For Home Appliances) | |||||||
Frequency Range | 50 Hz/60Hz(Auto sensing) | ||||||
AC Voltage Regulation | 230VAC±5% | ||||||
Surge Power | 2000VA | 3000VA | |||||
Efficiency (Peak) PV tcINV | 98% | ||||||
Efficiency (Peak) Battery to INV | 94% | ||||||
Transfer Time | 10 ms | ||||||
Battery Voltage | 12VDC | 24VDC | |||||
Floating Charge Vcltage | 13.5VDC | 27VDC | |||||
Overcharge Protection | 16VDC | 32VDC | |||||
Solar Charger Type | MPPT | ||||||
Maximum PV Array Power | 600W | 1200W | |||||
MPPT Range @ Operating Voltage | 20-150VDC | 30-150VDC | |||||
Maximum PV Array Open Circuit Voltage solar | 150VDC | ||||||
Maximu Solar Charging Current | 40A | ||||||
Maximum AC Charging Current | 40A | ||||||
Maximum Solar+A.C Charging Current | 80A | ||||||
Dimension,D*W*H(mm) | 290*240*91 | ||||||
Cartoor: Dimensior,D'W*Himm) | 340*295*145 | ||||||
Net Weight(kgs) | 3 | 3.5 | |||||
GrosE Weight(kgs) | 3.5 | 4 | |||||
Humidity | 5% to 95% Relative Humidity(Non~condensing) | ||||||
Operating Temperature | -10℃-50℃ | ||||||
Company Profile
Dongguan Worldwide Electronic Technologies Co.,Ltd.
Established in 2010, Zumax International Limited is a high-tech enterprise concentrating in power supply, solar inverter, lithium battery,server/computer power supply and power professional research,production, sales and service. The manufacturer located in Dongguan City, Therefore, it possesses good geographical positions and convenient transportation conditions. We have our own factory building of more than 5000 square meters, and there are more than 10 senior engineers and 120 staff engaged in the professional production, Now our production has stepped into certain standardization and scope. To ensure product quality and increase production efficiency, we have introduced advanced technology and equipment from abroad and strictly carries out the international quality standards, we have already passed the ISO9001, UL, FCC, CE, CB. C /managemen and quality certificate. Our company take "Perfect Customer Service, Excellent Quality Continuous Creation" as our main principle, and our products have received warm reception from our customers. As fierce competition and decline market in power industry, our business increase as with reliable technology, good material and creative mind, which helping us win a sound reputation from our customers. Welcome to visit us.
SHIPPING |
①FedEx/DHLUPS/TNT for samples，Door-to-Door. |
②By Air or by Sea for batch goods,for FCL；Airport Port receiving. |
③Customers specifying feright forwarders or negotiable shipping methods. |
④Delivery Time：3-7 days for samples；5-25 days for batch goods. |
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pcs for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pcs for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
