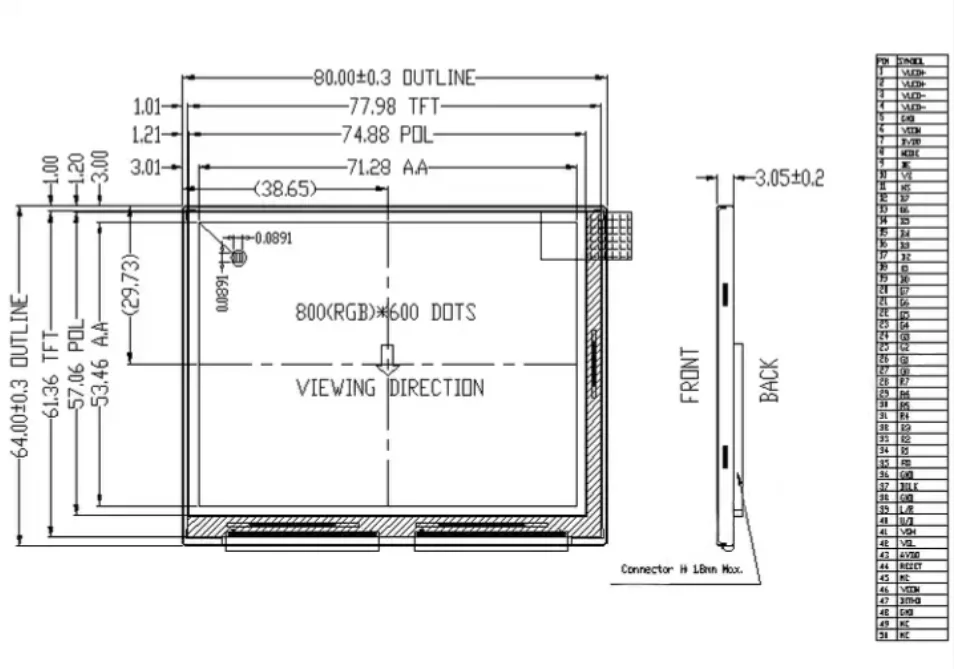

ET-T035TGH-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 3.5 display areacontains 800 x 600 pixels and can display up to 262K colors. This product accords with RoHS environmental criterion.
Feature | Specification | Unit | ||
Display Specification | Brand | Etouch | - | |
Size | 3.5 | inch | ||
Resolution | 800*600 | dots | ||
Pixel pitch | 0.0297(H) * 0.0297(V) | mm | ||
Display Mode | TN/NW | - | ||
Viewing Direction | 12 | o'clock | ||
Gray Scale Inversion Direction | 6 | o'clock | ||
Luminance | 250 | cd/m2 | ||
Mechanical Characteristics | Mechanical Characteristics | LCM (W * H * D) | 80.00*64.00*3.05 | |
Active Area (W * H ) | 71.28*53.46 | |||
With /Without TP | without | |||
LED Numbers | 6-LED | |||
Operation temperature | -20~+70 | |||
Storage temperature | -30~+80 | |||
Electrical Characteristics | Electrical Characteristics | Interface | RGB-24bit/50PIN | |
LCM Power Supply | 3.3 | |||
LED Power Supply | 18 | |||
Color Depth | 262K | |||
LCM Driver IC | HX8282+HX8677 | |||
CTP Driver IC | ||||
