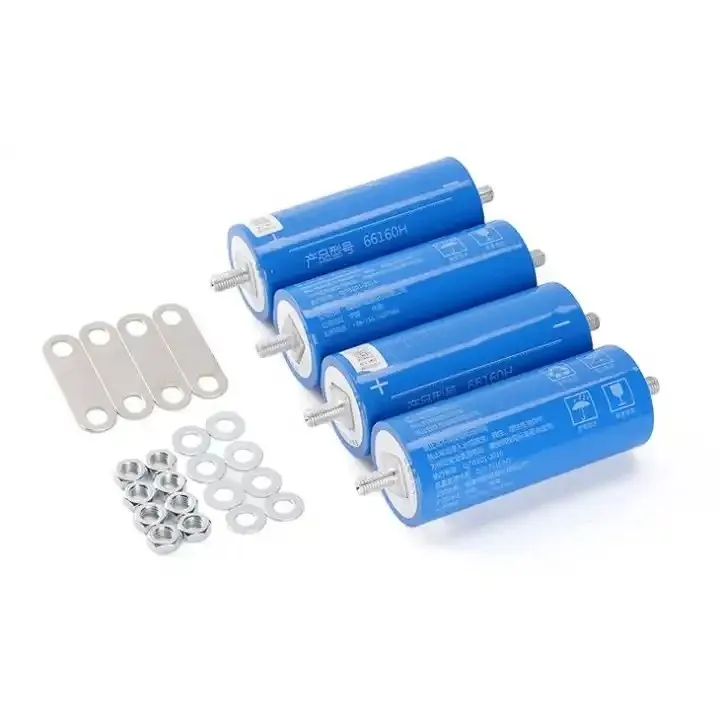

2.3V 66260 Cylindrical LTO Batteries 30Ah 33Ah 35Ah 40Ah 50Ah 60Ah Lithium Titanate Battery Cell
- Category: >>>
- Supplier: HongKong Energy Solution Technology Co. Limited
Share on (1600947356744):
Product Overview
Description
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS

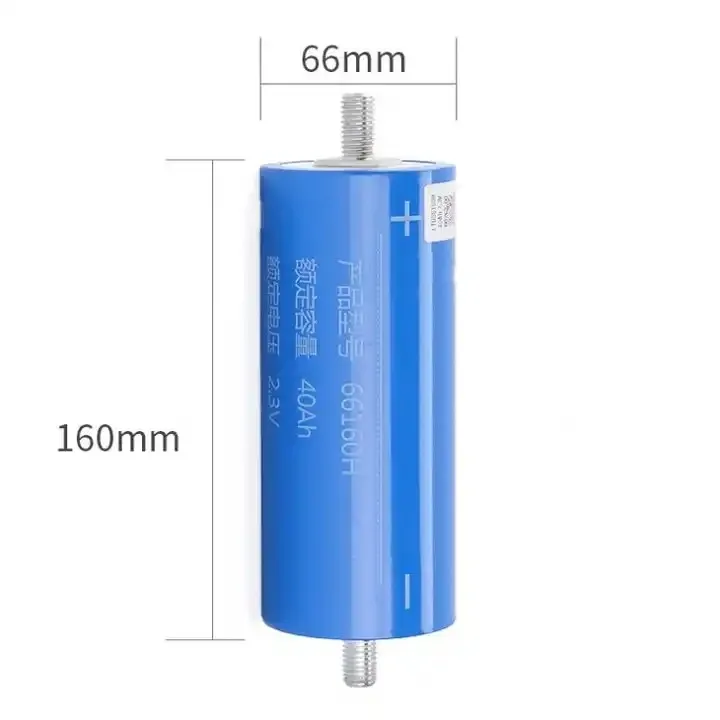

Model | LTO 2.3V 40A LTO66160H Lithium Battery | ||||||
Battery Type | LTO battery | ||||||
Rechargeable | YES | ||||||
Voltage | 2.3V | ||||||
Capacity | 25Ah/30Ah/35Ah/40Ah/Customize | ||||||
Internal resistance | 0.5mΩ | ||||||
Charging limit voltage | 2.8V | ||||||
Discharge cut off voltage | 1.6V | ||||||
Cycle life | 25000 | ||||||
Customize service | Available | ||||||
Application
Application

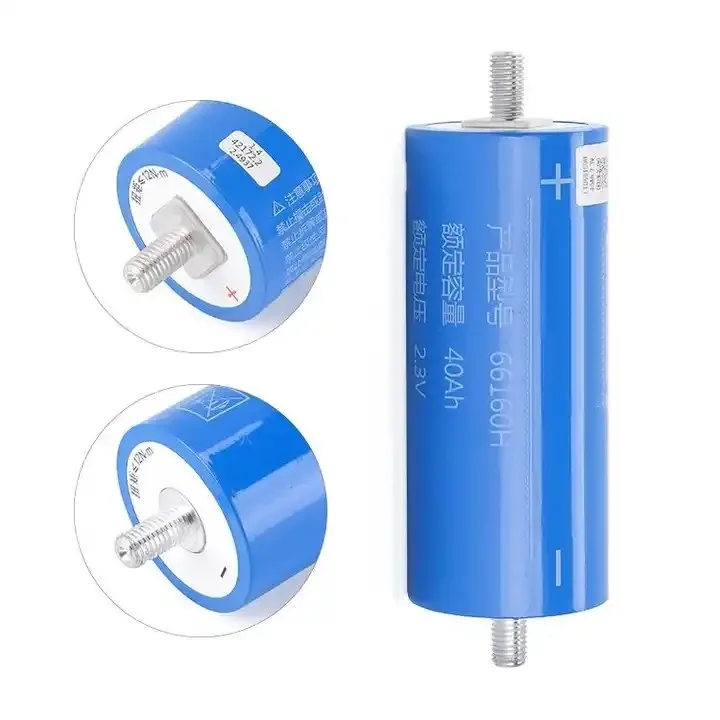

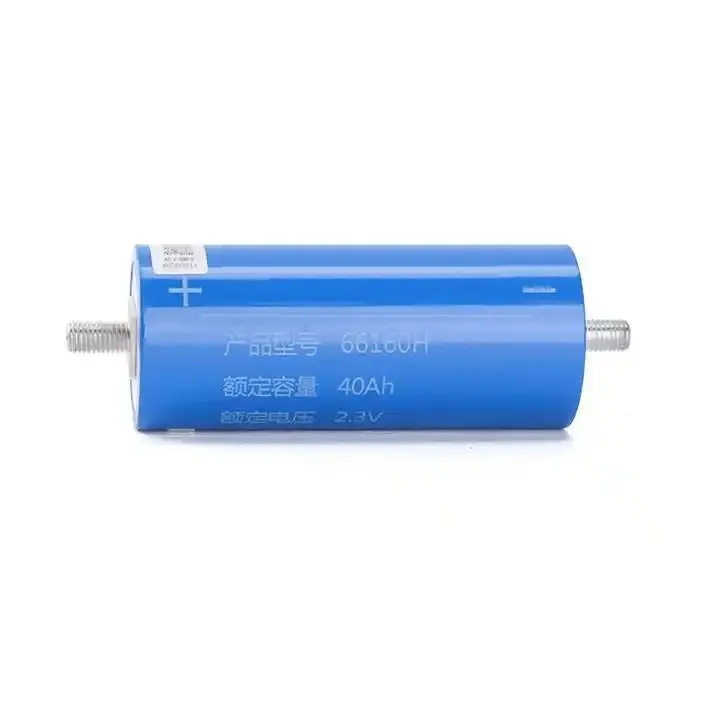

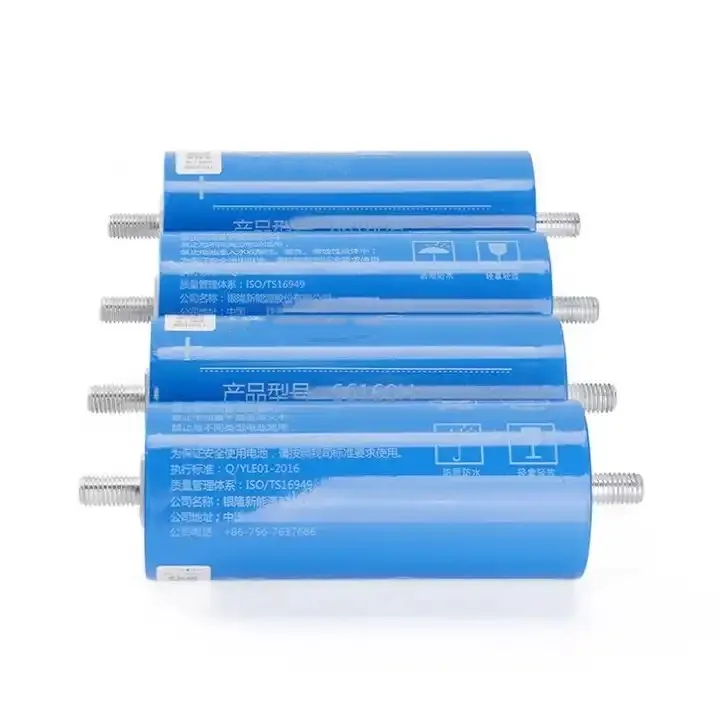

Details Images
Details Images

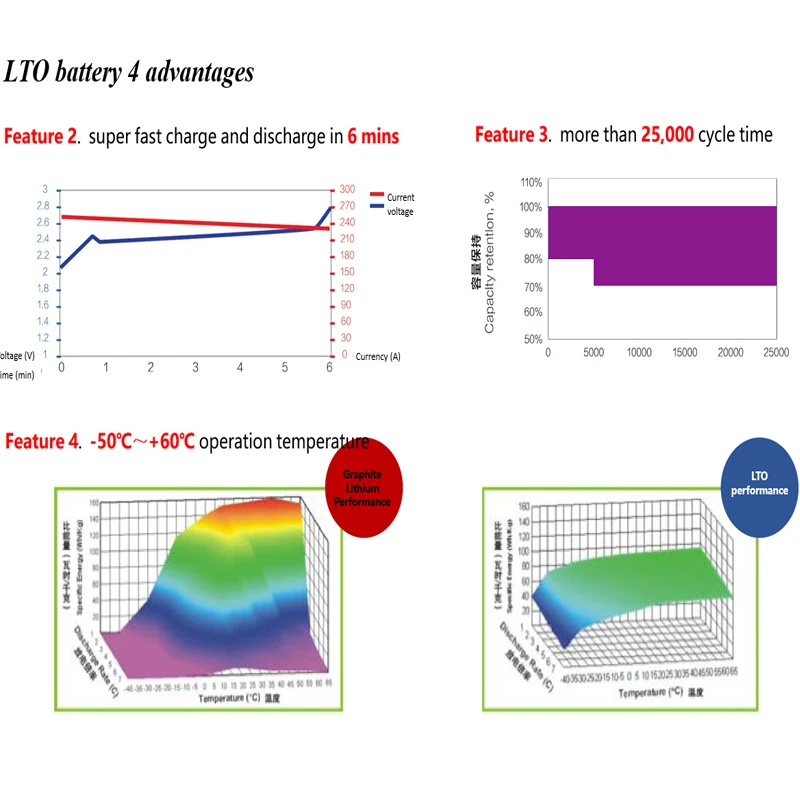

Our Advantages
Our Advantages
1. Fast Charing and Discharging;
The ratio property of the battery material is determined by the ionic conductivity and the electronic conductivity.
The lithium ion diffusion coefficient of Lithium titanate material is several hundred times higher than that of graphite, which
can make the battery have 10C high rate charge-discharge performance.
The ratio property of the battery material is determined by the ionic conductivity and the electronic conductivity.
The lithium ion diffusion coefficient of Lithium titanate material is several hundred times higher than that of graphite, which
can make the battery have 10C high rate charge-discharge performance.
2.High Safety:
Graphite carbon negative electrode series, carbon negative electrode, potential and lithium standard potential is very close, battery overcharge, Metal Lithium May in carbon negative electrode surface precipitation and formed Lithium Dendrite, Short circuit and other safety problems.
The graphite carbon anode series formed SEI (solid electrolyte, plasma membrane) at the interface of electrolyte when it was working, and the Sei film had poor high temperature stability. However, lithium titanate materials do not form Sei film in the traditional sense, so the stability is better.
The graphite carbon anode series formed SEI (solid electrolyte, plasma membrane) at the interface of electrolyte when it was working, and the Sei film had poor high temperature stability. However, lithium titanate materials do not form Sei film in the traditional sense, so the stability is better.
3. Wide Voltage(-50℃ ~ +60℃):
High Lithium Ion diffusivity makes lithium titanate charge and discharge normally at low temperature, and high temperature stability, which makes lithium titanate safe and safe at high temperature.
The lithium titanate battery can be fully charged and discharged in a wide temperature range of-50 °C ~ + 60 °C. Batteries in other lithium-ion chemical systems can hardly be charged at temperatures below zero.
The lithium titanate battery can be fully charged and discharged in a wide temperature range of-50 °C ~ + 60 °C. Batteries in other lithium-ion chemical systems can hardly be charged at temperatures below zero.
4.Longer Lifespan(Lifecycles≥25000 times):
The structure of Lithium titanate is spinel. The lattice parameter of Lithium titanate increases from 0.836 to 0.837 ΜM (1 nm 10ΜM) , the volume change is only 0.3% , and the structure of lithium titanate has little change Good cycle stability.
In the process of charging and discharging of graphite materials, the volume change rate is 10% , long-term circulation, graphite pulverization, leading to the deterioration of cycle life.
The structure of Lithium titanate is spinel. The lattice parameter of Lithium titanate increases from 0.836 to 0.837 ΜM (1 nm 10ΜM) , the volume change is only 0.3% , and the structure of lithium titanate has little change Good cycle stability.
In the process of charging and discharging of graphite materials, the volume change rate is 10% , long-term circulation, graphite pulverization, leading to the deterioration of cycle life.
Shipping and Payment
Shipping and Payment

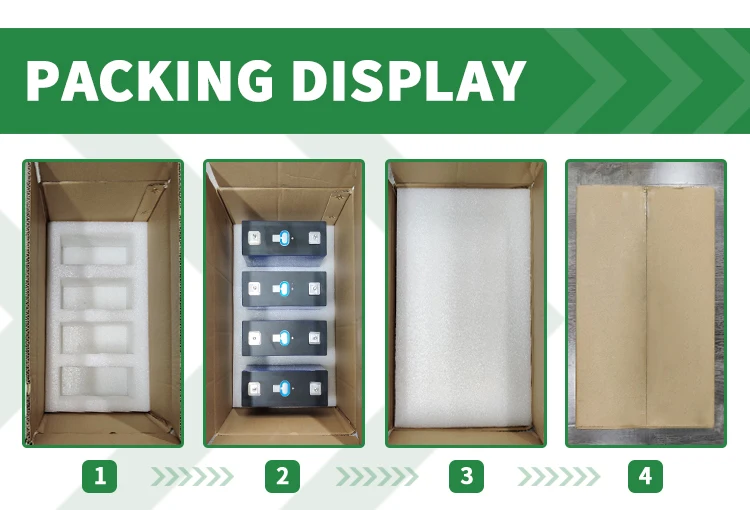

* Use high hardness custom sponge to strengthen the battery* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.
