Product Overview
Description
Company Profile

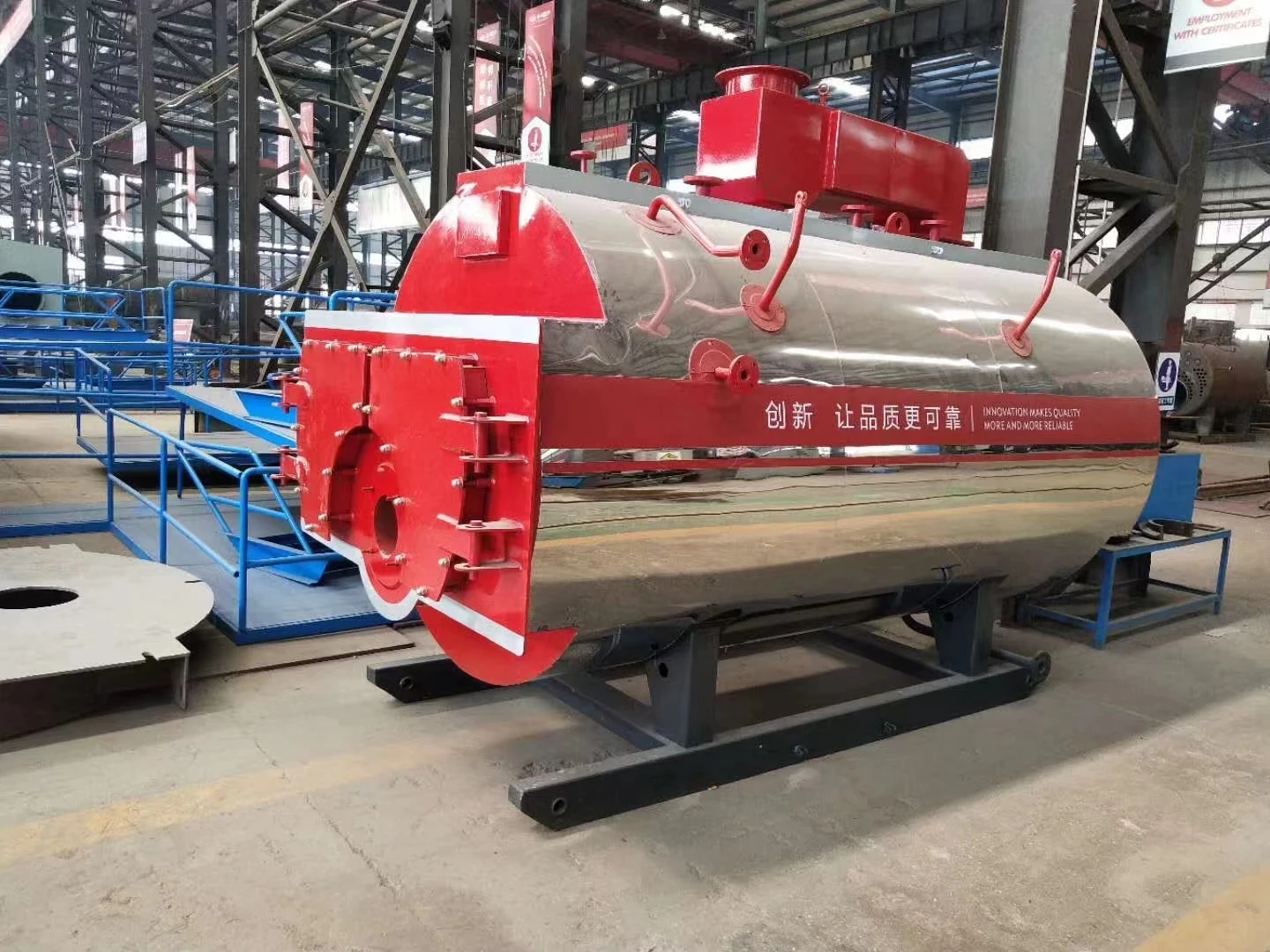

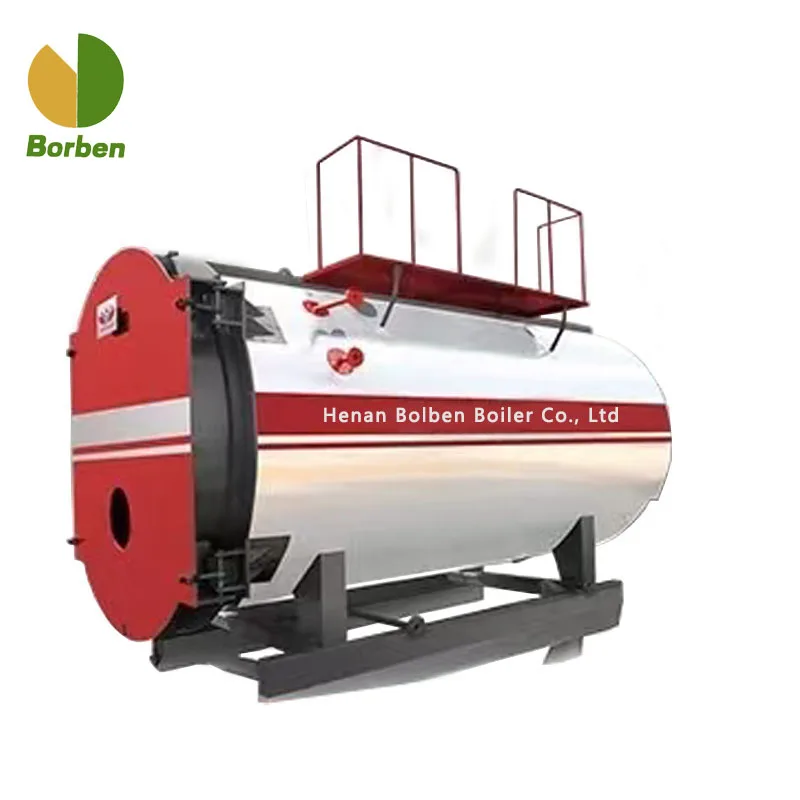

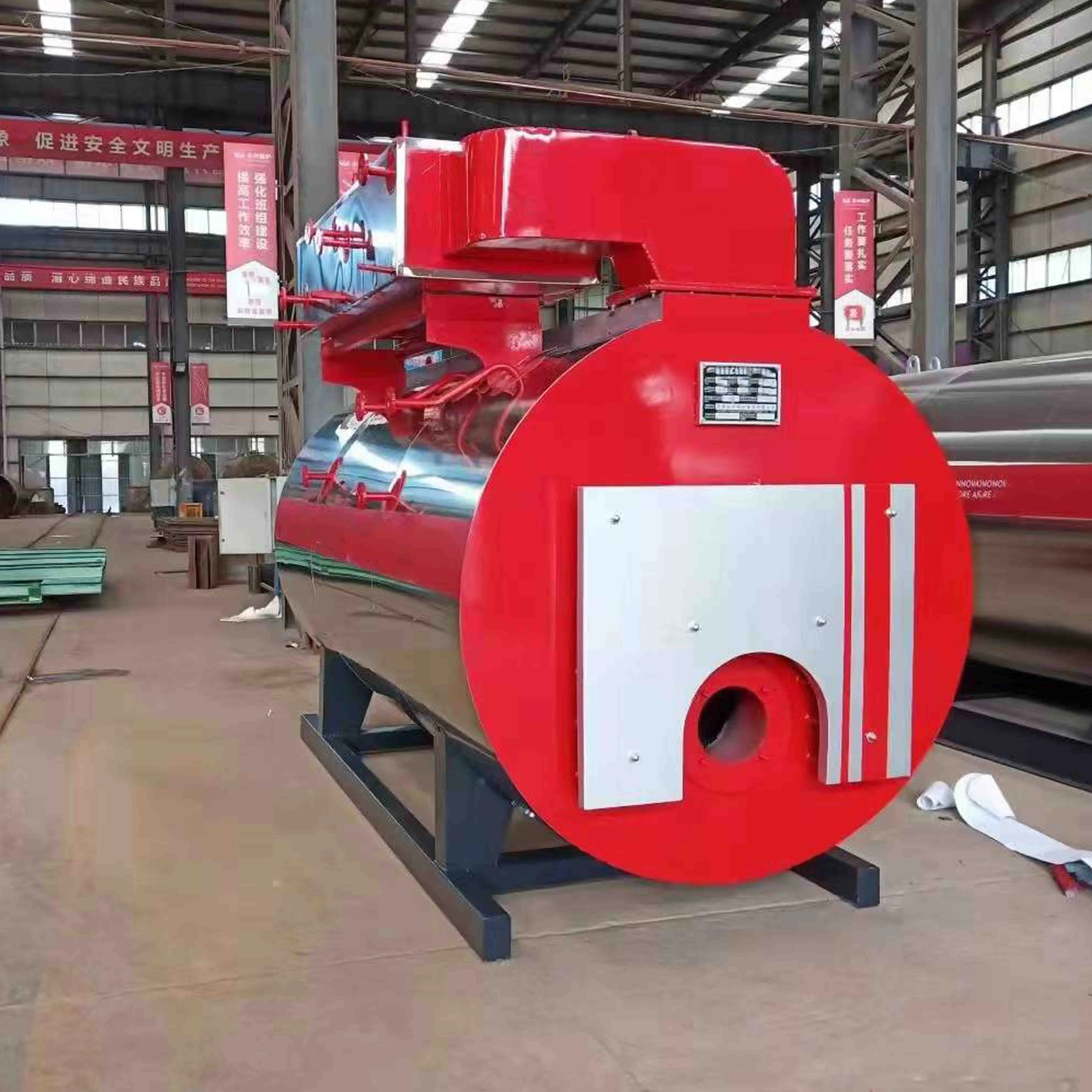

The WNS type ultra-low nitrogen oil-fired gas boiler of Boerben is a boiler shell type three return wet back oil-fired gas boiler produced by advanced technology. It is composed of boiler body, connecting flue, deaerator, deaerator, burner, steam water system, instrument, energy saver, condenser and so on. Compared with the old boiler, its most prominent feature is low nitrogen (during the operation of the boiler, nitrogen oxide emissions are greatly reduced, up to a minimum of 18mg/m, in line with national policy requirements). In addition, the boiler has the characteristics of compact structure, beautiful appearance, simple operation, safe and reliable operation, and has been widely used in all walks of life.
WNS type ultra-low nitrogen oil-fired gas boiler adopts all-wet back structure, and the high temperature flue gas is surrounded by water, which solves the cooling and sealing problems of the smoke return chamber, and improves the operating environment of the boiler. The addition of the condenser (made of fin tube) increases the efficiency of the boiler to more than 98% and saves the operating cost. At the same time, the boiler is equipped with leakage protection function, once the control system detects leakage of the electric heating element, the boiler will automatically cut off the power supply, in order to ensure the safety of workers and boilers, and improve the service life of the boiler.
WNS type ultra-low nitrogen oil-fired gas boiler adopts all-wet back structure, and the high temperature flue gas is surrounded by water, which solves the cooling and sealing problems of the smoke return chamber, and improves the operating environment of the boiler. The addition of the condenser (made of fin tube) increases the efficiency of the boiler to more than 98% and saves the operating cost. At the same time, the boiler is equipped with leakage protection function, once the control system detects leakage of the electric heating element, the boiler will automatically cut off the power supply, in order to ensure the safety of workers and boilers, and improve the service life of the boiler.
Performance characteristics
Perfect protection function, with water shortage protection and pressure relief protection, to ensure the safe and efficient operation of the boiler
The outer packaging is made of stainless steel, which greatly increases the corrosion resistance
The front and rear smoke box covers of the boiler are movable, which greatly reduces the difficulty of maintenance and improves the maintenance efficiency
The rear view device is designed to facilitate workers to observe the combustion situation
The condenser is made of special steel "resistant to sulfuric acid and low dew point corrosion", which improves the service life of the boiler
The internal smoke pipe adopts the threaded structure, which improves the heat transfer efficiency and strengthens the heat transfer effect
. The heating surface is well arranged, so that the water circulation and heat circulation are guaranteed, the heat transfer effect is greatly improved, and the best state is reached
The control system controls the start and stop of the circulating pump according to the temperature of the furnace water. When the temperature of the furnace water reaches the set upper limit, the hot water circulating pump starts. When the water temperature is lower than the set lower limit, the hot water circulating pump stops
There is a condenser in the tail of the boiler, and the waste heat discharged from the tail is used to improve the inlet temperature of the boiler and reduce the exhaust temperature, so that the thermal efficiency of the boiler can reach more than 100% and save the operating cost
Combustion, water level, temperature and steam pressure can be automatically adjusted and automatically controlled, which not only facilitates the operation of workers, but also improves safety
The outer packaging is made of stainless steel, which greatly increases the corrosion resistance
The front and rear smoke box covers of the boiler are movable, which greatly reduces the difficulty of maintenance and improves the maintenance efficiency
The rear view device is designed to facilitate workers to observe the combustion situation
The condenser is made of special steel "resistant to sulfuric acid and low dew point corrosion", which improves the service life of the boiler
The internal smoke pipe adopts the threaded structure, which improves the heat transfer efficiency and strengthens the heat transfer effect
. The heating surface is well arranged, so that the water circulation and heat circulation are guaranteed, the heat transfer effect is greatly improved, and the best state is reached
The control system controls the start and stop of the circulating pump according to the temperature of the furnace water. When the temperature of the furnace water reaches the set upper limit, the hot water circulating pump starts. When the water temperature is lower than the set lower limit, the hot water circulating pump stops
There is a condenser in the tail of the boiler, and the waste heat discharged from the tail is used to improve the inlet temperature of the boiler and reduce the exhaust temperature, so that the thermal efficiency of the boiler can reach more than 100% and save the operating cost
Combustion, water level, temperature and steam pressure can be automatically adjusted and automatically controlled, which not only facilitates the operation of workers, but also improves safety
Scope of application
Application field
Easy to install for a wide range of industries
Chemistry, textiles, building materials, brewing
Chemistry, textiles, building materials, brewing
Type parameter
Model | Ratd SteamCapacity | Rated Working Pressure | Saturated SleamTemperature | Nitrogen oxides | Design Fuel | Max Transport Weight | |
unit | (t/h) | (MPa) | (C) | (mg/m3) | (kg) | (mm) | |
WNS1-1.25-YQ | 1 | 18-30 | Natural Gas, Light oil, Heavy oil, Etc. | 5500 | 3300*1800*2000 | ||
WNS2-1.25-YQ | 2 | 7500 | 4000*2000*2950 | ||||
WNS3-1.25-YQ | 3 | 8000 | 4350*2200*2600 | ||||
WNS4-1.25-YQ | 4 | 1.0 | 184 | 10000 | 4800*2300*2800 | ||
WNS6-1.25-YQ | 6 | 1.25 | 194 | 14000 | 5400*2500*2950 | ||
WNS8-1.25-YQ | 8 | 1.6 | 204 | 20226 | 6955*2480*2986 | ||
WNS10-1.25-YQ | 10 | 2.5 | 225 | 21500 | 6300*2700*3200 | ||
WNS12-1.25-YQ | 12 | 23000 | 6700*2700*3200 | ||||
WNS15-1.25-YQ | 15 | 27700 | 7365*3200*3508 | ||||
WNS20-1.25-YQ | 20 | 30000 | 8050*3750*3960 |
Rapid steam extraction
High thermal efficiency, energy saving, continuous improvement of thermal efficiency value
Multiple safety protection devices
It is equipped with multiple safety protection devices to ensure safe operation of the machine
High thermal efficiency, energy saving, continuous improvement of thermal efficiency value
Multiple safety protection devices
It is equipped with multiple safety protection devices to ensure safe operation of the machine
