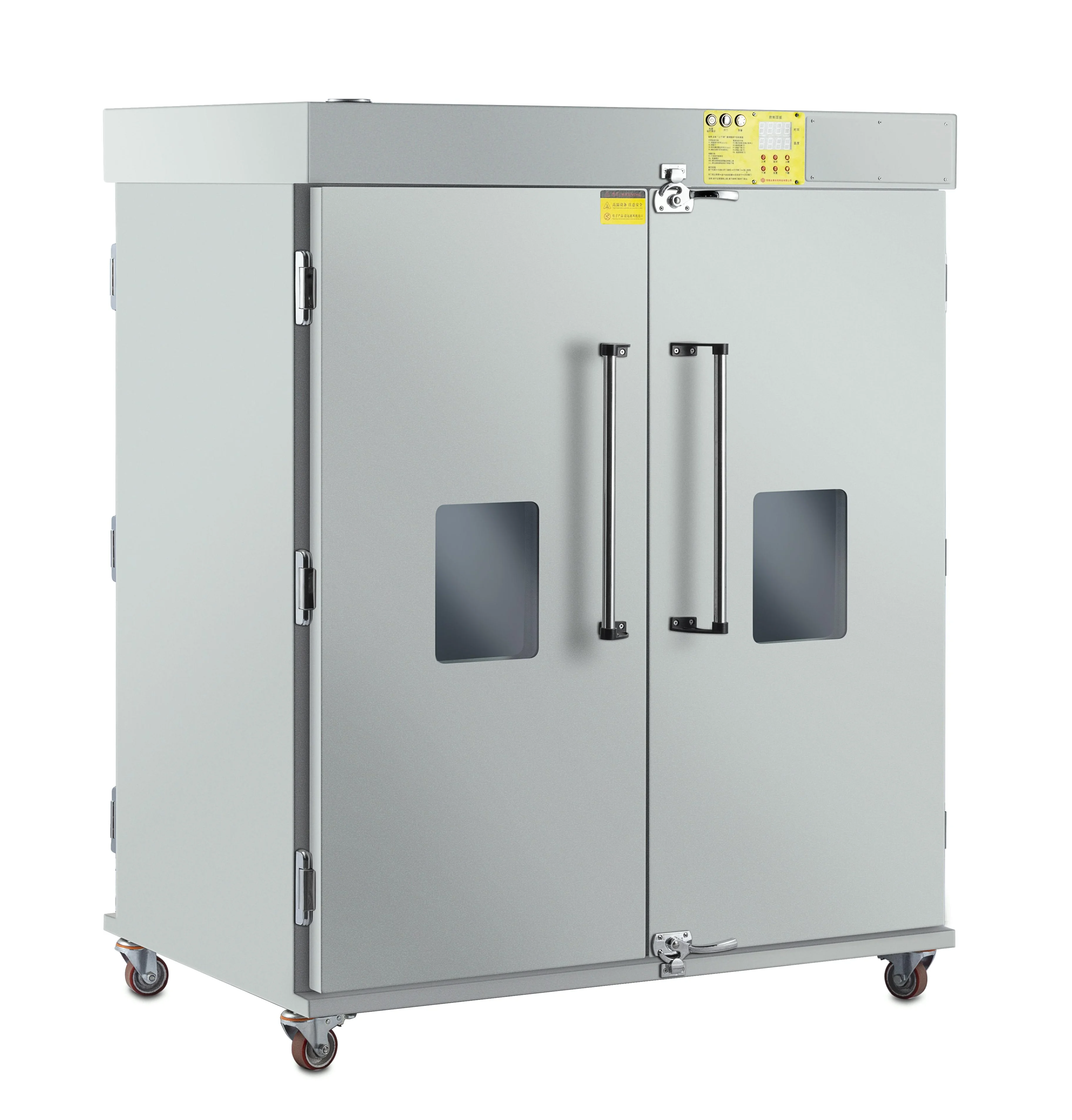

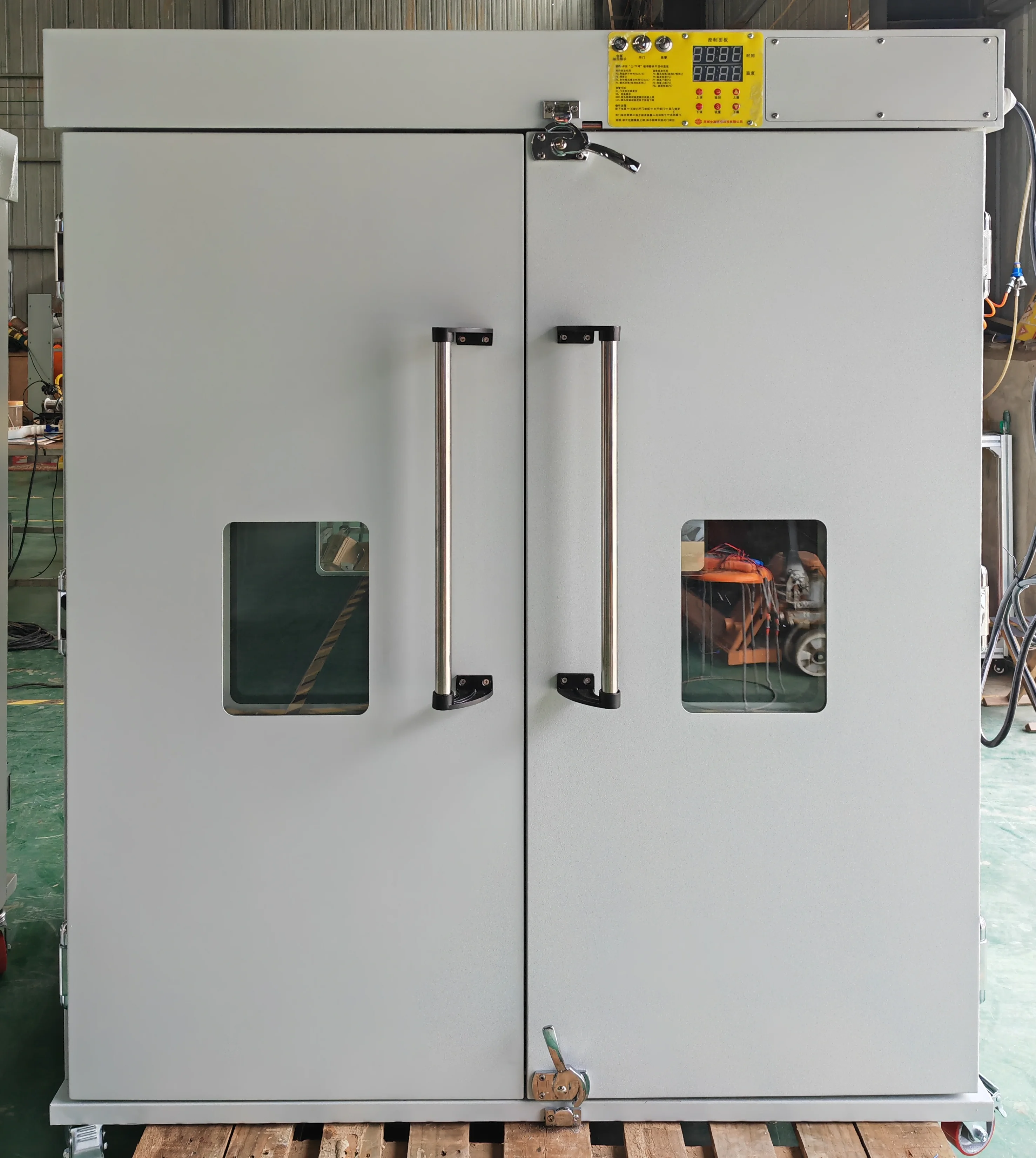

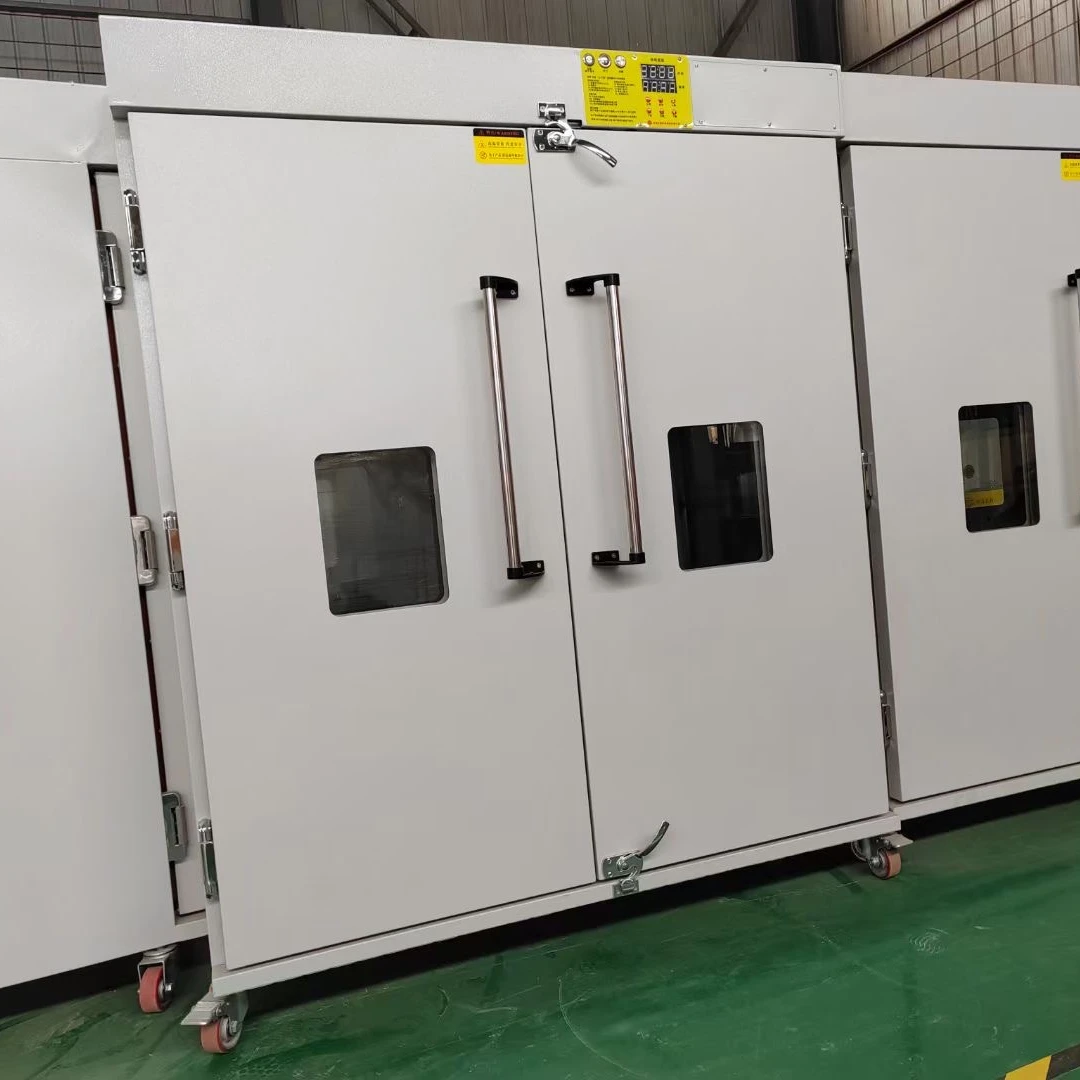

Double Door Heat Disinfection Storage Drying Cabinet for Humidity Control Damp Proof
- Category: >>>
- Supplier: Henan Quangao Agriculture And Animal Husbandry Technology Co. Ltd.
Share on (1600947429004):
Product Overview
Description
Product Description
Specification
Product Type | High-Temperature Material Transfer Box | |||||||
Model Number | CDX01 | CDX02 | CDX03 | CDX04 | ||||
Rated Voltage（V） | 220 | 220 | 220 | 380 | ||||
Rated Power（kW） | 1 | 3 | 4 | 6 | ||||
Time Setting（h） | 0-100 | |||||||
Internal Dimension（mm） | 450*430*440 | 600*680*690 | 700*880*1090 | 1200*1300*740 | ||||
Outside Dimension（mm） | 710*550*550 | 860*800*800 | 1000*1000*1200 | 1300*1520*850 | ||||
Custom-made Model | ||||||||
Model Number | Voltage（V） | Power（kW） | Internal Dimension | Outside Dimension | ||||
CDX01A1 | 220 | 1 | 240*380*390 | 500*500*500 | ||||
CDX02A3 | 220 | 3 | 390*480*690 | 650*600*800 | ||||
CDX02B3 | 220 | 3 | 710*970*490 | 970*1090*600 | ||||
CDX02C3 | 220 | 3 | 310*820*890 | 570*940*1000 | ||||
CDX04A4 | 220 | 4 | 1330*590*620 | 1430*810*730 | ||||
CDX04B6 | 380 | 6 | 1400*1320*1390 | 1500*1500*1500 | ||||
CDX04C6 | 380 | 6 | 1380*1270*1390 | 1480*1450*1500 | ||||
CDX04D4 | 220 | 4 | 900*820*890 | 1000*1000*1000 | ||||
CDX04E4 | 220 | 4 | 850*760*890 | 950*940*1000 | ||||
CDX04F6 | 380 | 6 | 1220*780*890 | 1320*1000*1000 | ||||
Material:
Outer casing spray-coated, interior stainless steel, insulated with rock wool.
Function:
AB door interlocking, dual control of time and temperature, drying completion alert, supports single and bidirectional high-temperature transfer (unidirectional: A→B high-temperature drying and disinfection, B→A direct transfer; bidirectional: high-temperature drying required for both entry and exit).
Certifications
Exhibition

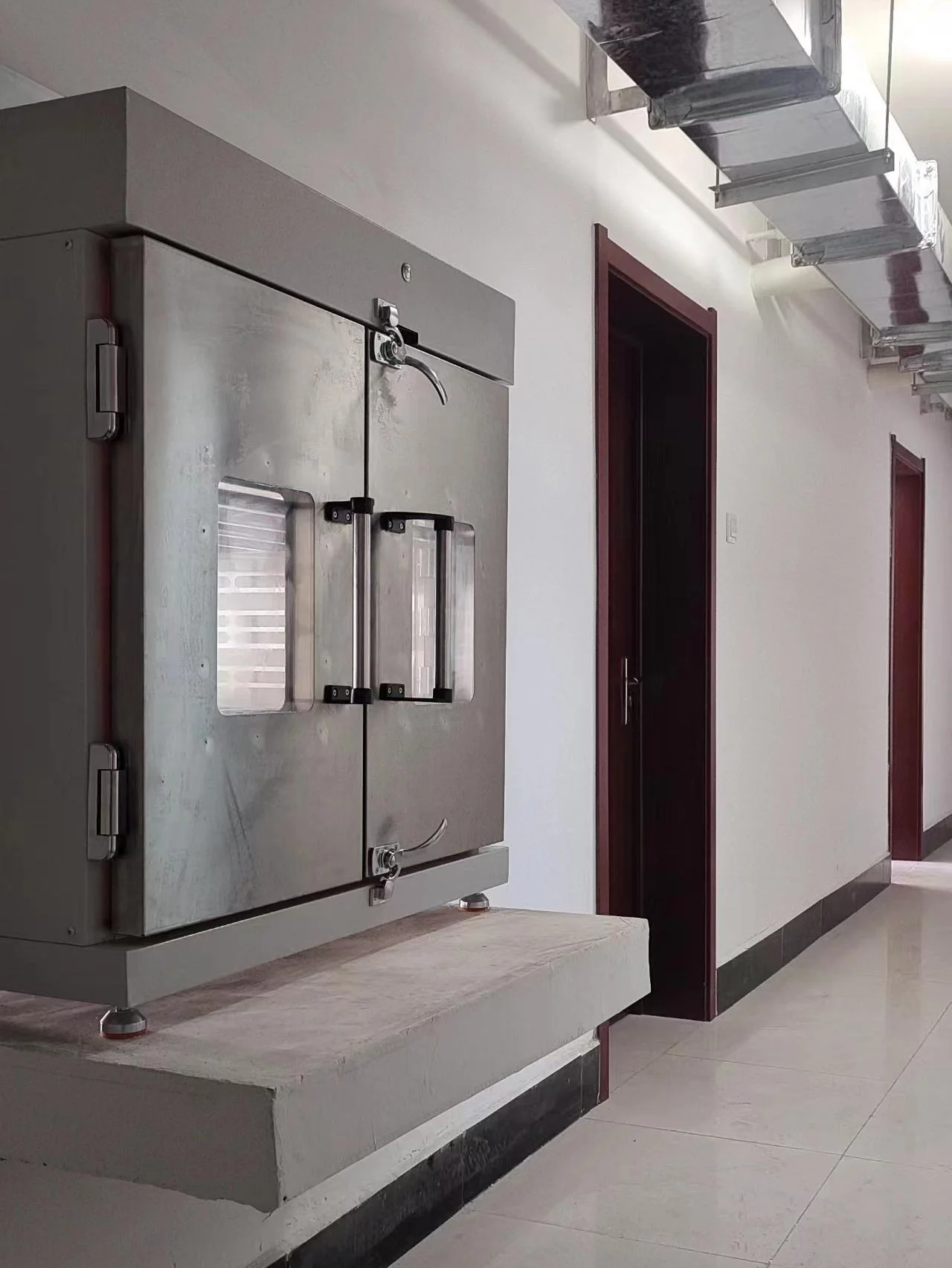

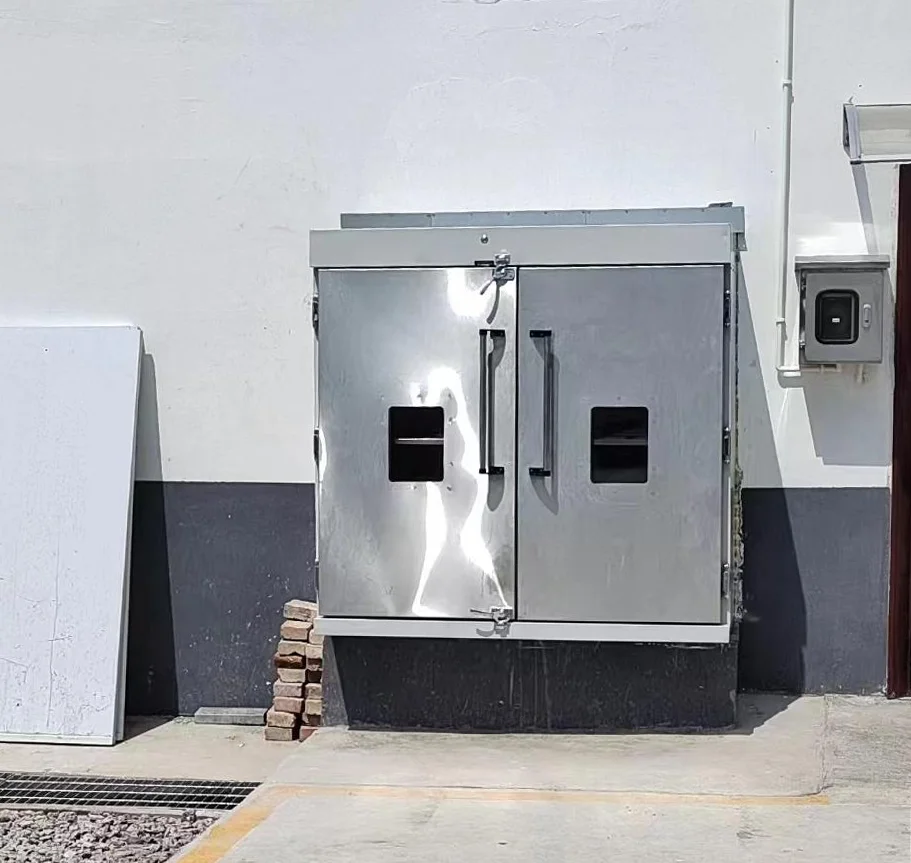

Installation Cases
Packing & Delivery
Packaging Details | Packaging in standard export carton box. Customized packaging is acceptable. | |||
Delivery Details | One week after payment received |
Company Profile
Henan Quangao Agriculture and Animal Husbandry Technology Co., Ltd is a leading high-tech enterprise that integrates research and development, production, sales, construction, technical consultation, and service. Headquartered in Zhengzhou, China's central-east region, we are committed to providing a range of safe, efficient, energy-saving, and healthy climate solutions.
Over the course of more than ten years in the heating industry, QUANGAO has successfully built a highly skilled technical team, held dozens of national patents, secured software copyrights, and obtained ISO9001 international quality system certification and the dual certification of EU CE and US FCC,among others.
Over the course of more than ten years in the heating industry, QUANGAO has successfully built a highly skilled technical team, held dozens of national patents, secured software copyrights, and obtained ISO9001 international quality system certification and the dual certification of EU CE and US FCC,among others.
Our primary focus lies in developing and manufacturing Farm gas heating systems, such as the QGNF series, as well as farm environment control and heat recovery systems like the QGXF and QGXNF series. Furthermore, we offer farm drying systems, cleaning&disinfecting systems, including High-temperature Transfer Boxes, Material Drying Rooms, Intelligent Shower Systems, and other innovative biological safety products.
FAQ
1.How about warranty service?
One year and we provide immediate factory technical support and strong after-sale support.
2.Do you accept the OEM?
2.Do you accept the OEM?
Yes, we should OEM for customer and also welcome to become our distributors.
3.What’s the delivery time of the poultry heater?
3.What’s the delivery time of the poultry heater?
It’s about one week for small quantity.
4. How to guarantee the quality of your products?
4. How to guarantee the quality of your products?
-Strict detection during production.
-Strict sampling inspection on products before shipment and intact product packaging ensured.
