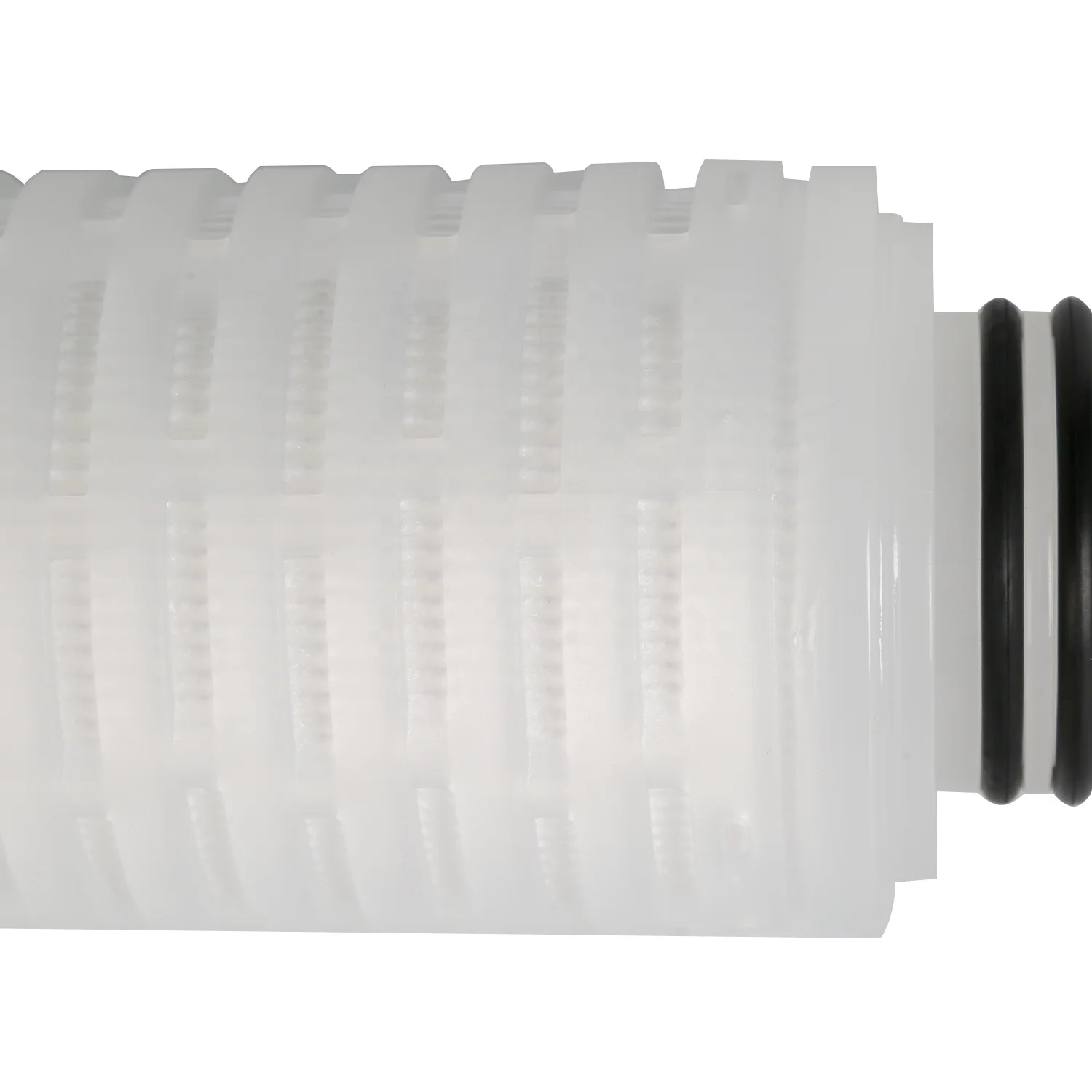

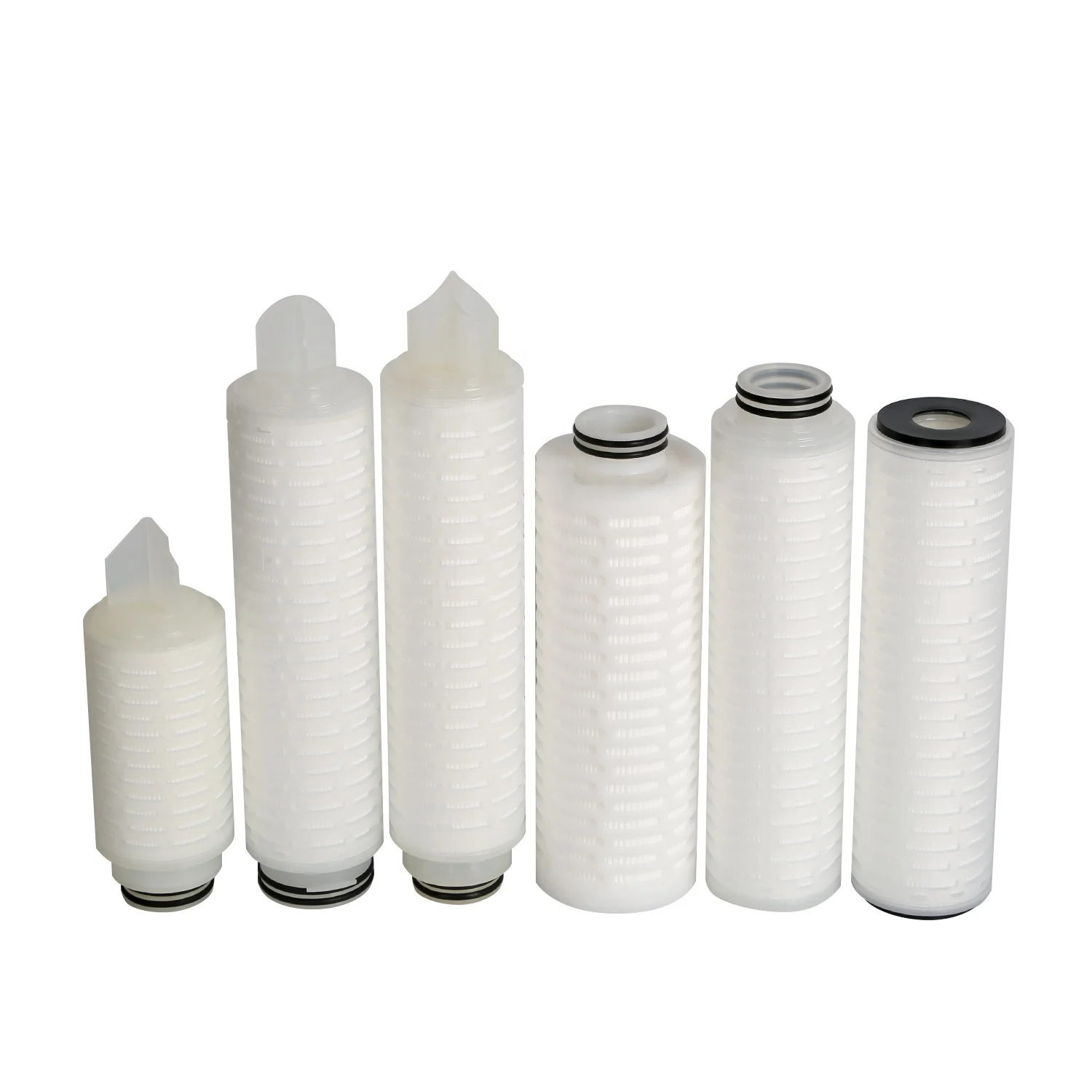

Replacement PP Membrane cheap china wholesale water pp/pes/ptfe/nylon Pleated Filter Cartridge

Share on (1600947442497):


Price:$2.00

Quantity:


Product Overview

Description







FILTEREK® CPPL series all polypropylene filter cartridges, made of pleated FDA compliant pure polypropylene microfiber, provide high efficiency and high purity filtration. The high submicron efficiency of the Advantage line makes it an ideal membrane pre-filter or cost-effective alternative to membrane cartridges in a wide range of applications.


Features

All-polypropylene media and construction meet a broad range of performance requirements.
One-piece fused construction is 100% bonded for maximum cartridge integrity.
High surface area design provides superior flow rates and extended service life.
All materials of construction are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21.
Fixed pore construction provides ultimate particle retention efficiency.

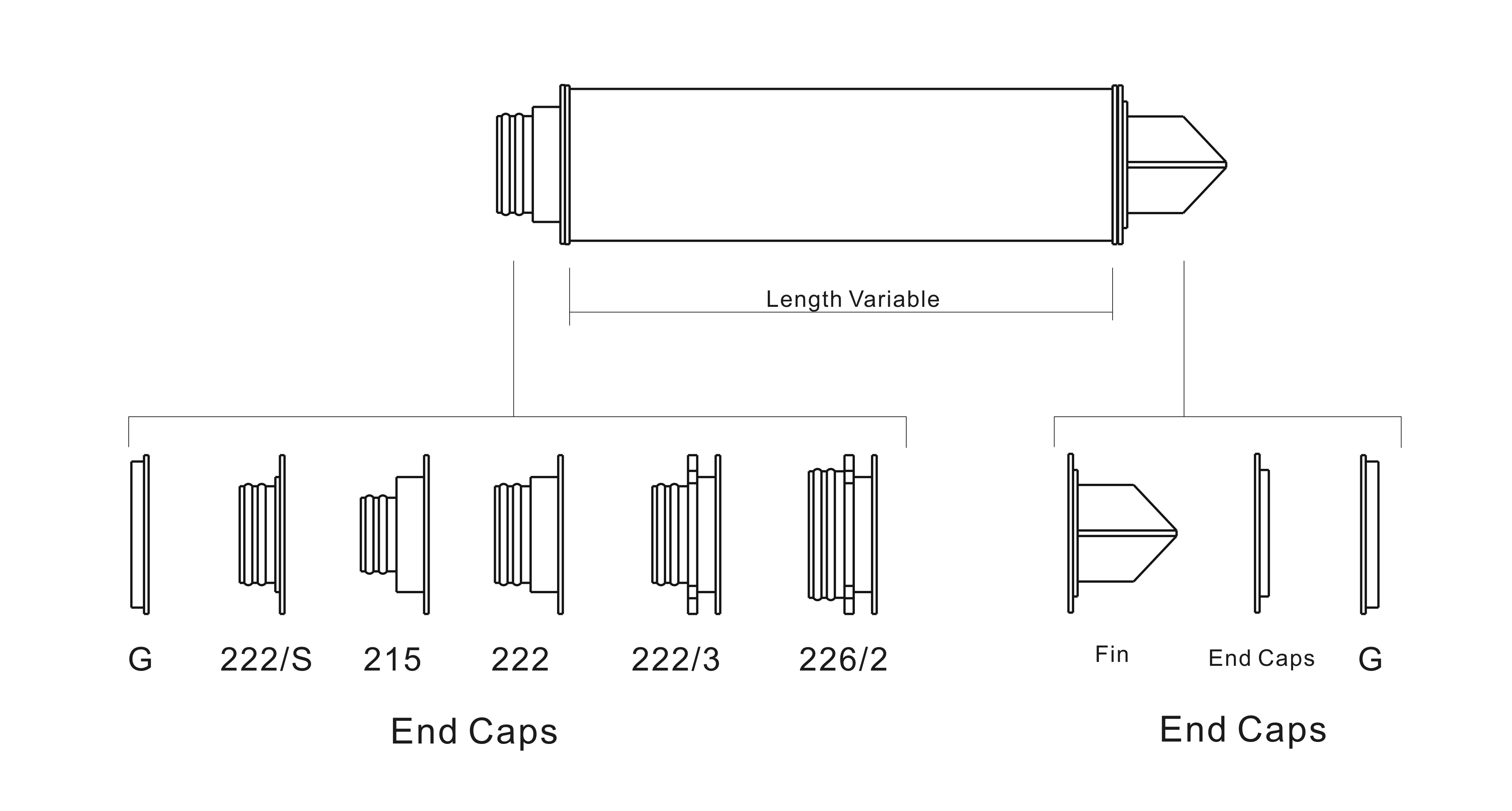

Major end seal options are available to fit most vessel requirements.
Advantage cartridges are non-fiber releasing.

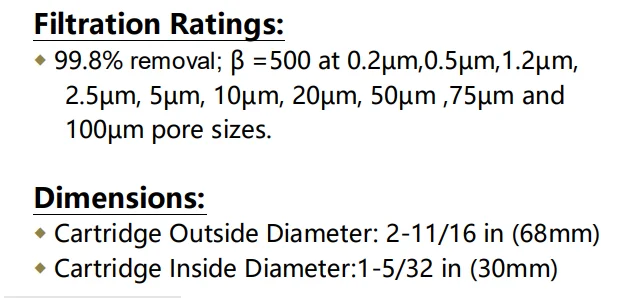

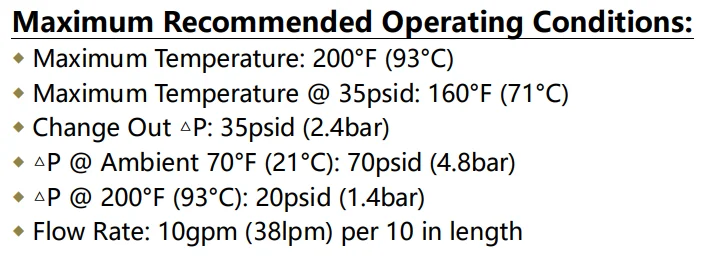

Specification







Materials of Construction:

◆ Type of Construction: integrally sealed, all polypropylene pleated media supported by all polypropylene construction
◆ Filter Media: composite, spun bonded /melt blown continuous polypropylene microfiber matrix
◆ Pleat Support Layer (Upstream): polypropylene
◆ Pleat Drainage Layer (Downstream): polypropylene
◆ Media Support Core: high-strength polypropylene
◆ Media Protective Cage: molded polypropylene
◆ Pleat Pack Side Seal: fused polypropylene
◆ DOE Caps: polypropylene
◆ SOE Caps/O-Ring Adaptors: polypropylene



Application

Chemicals
Electronic
Food & Beverage
Magnetic Media

Cosmetics
Medica
Photographic

Water treatment
Restaurant water
Trap filter for DI

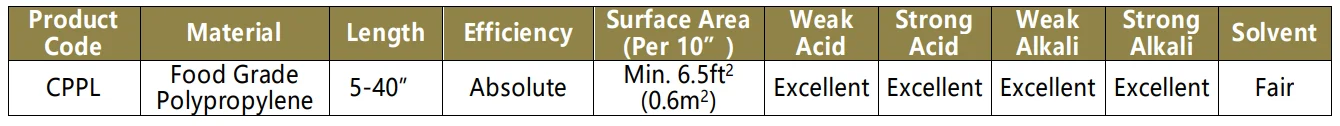

Selection of Material, Size and Accuracy of Filter Cartridge


Filter Cartridge Type
Filtering Accuracy
Filter Cartridge Length
Series Name
PP Melt Blown Filter Cartridge
1-100 µm
≥2''、Customizable
CPPM&CPML, CPPH&CPHL, CPPA, CPPX, CPPS, CPPV, CPPN
String Wound Filter Cartridge
0.5-100μm
5''、10''、20''、30''、40''、50''、Customizable
CPPW, CBCW, CFGW, CWM
Pleated Filter Cartridge
0.2-100μm
5"、10''、20''、30''、40''、Customizable
CPPL, DPPL&EPPL, SPPL, CPES, HPES, PTGA, DPTA,GHTA, GHUE



Connection

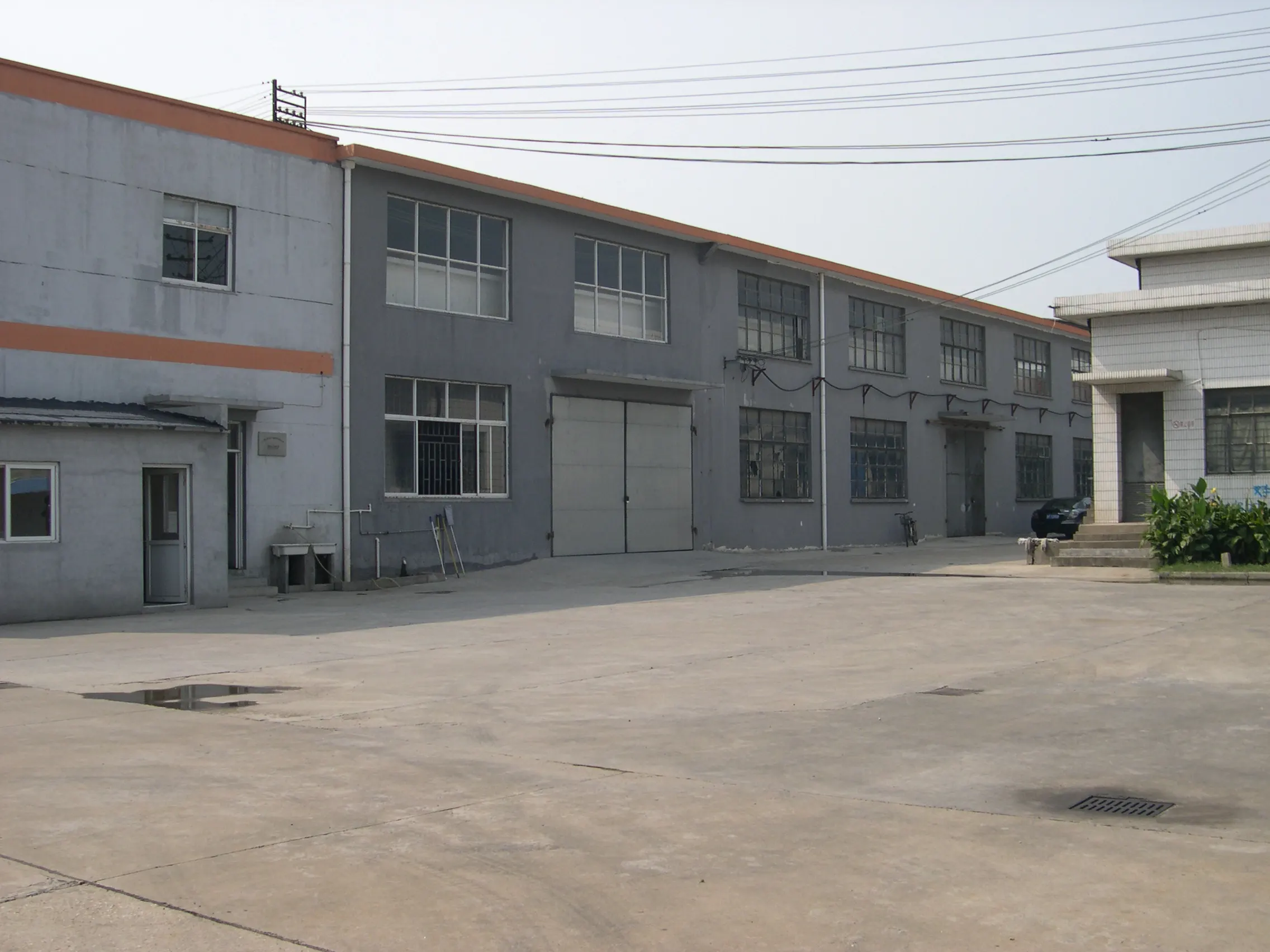

FILTEREK PRODUCTS TECH CO., LTD. has been doing the filter products manufacturing, sales and technology supporting works for customers. We are the leading company in these fields owing to our many succeeded breakthroughs in the material development. We also built and run some integrated platforms such as melt blown fiber, polypropylene and polyester felts special for filtration. It makes us become to the main vendors for industrial customers includes electronics, chemical, automobile, metallic and water treatment.
The company abides by following principles in business operation: lay solid foundation for good faith, concern with customer demands, ensure yield of hi-quality products and unceasingly seek for new product innovation. The company will spare no efforts to satisfy customer demands.










1. who are we?
We are based in Shanghai, China, start from 2008,sell to Western Europe(30.00%),Domestic Market(20.00%),North
America(15.00%),Africa(15.00%),South America(10.00%),Southeast Asia(5.00%),South Asia(5.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Filter Housing,Filter Bag,Melt Blown Cartridge,String Wound Cartridge,Pleated Cartridge

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
