3X18Watt Housewares Oil station Good Electricity Proof With Heat Dissipation LED Industrial Usage Explosion Proof LED Lam

Product Overview

Description

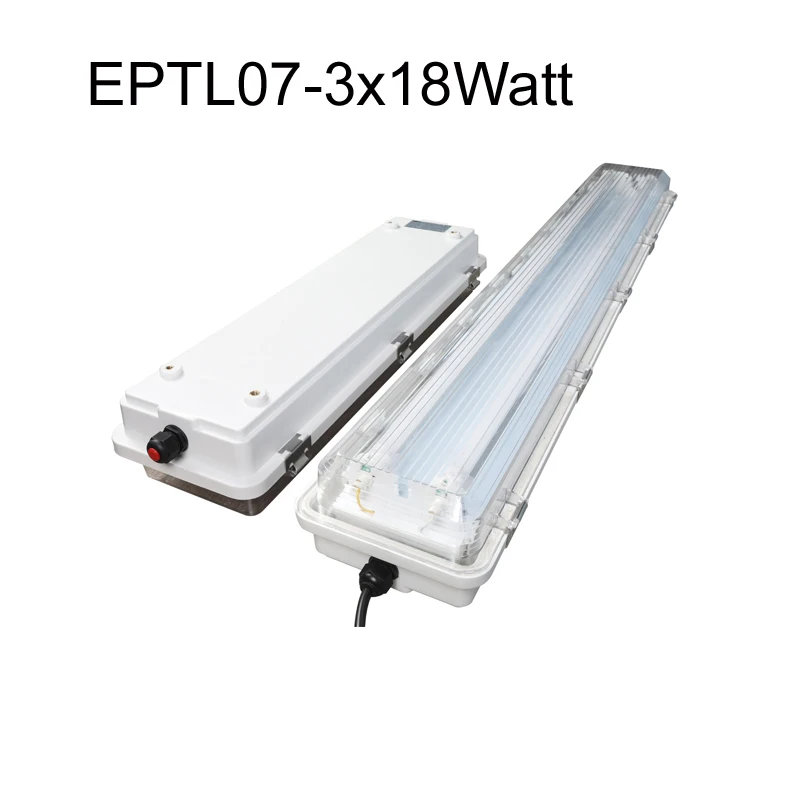

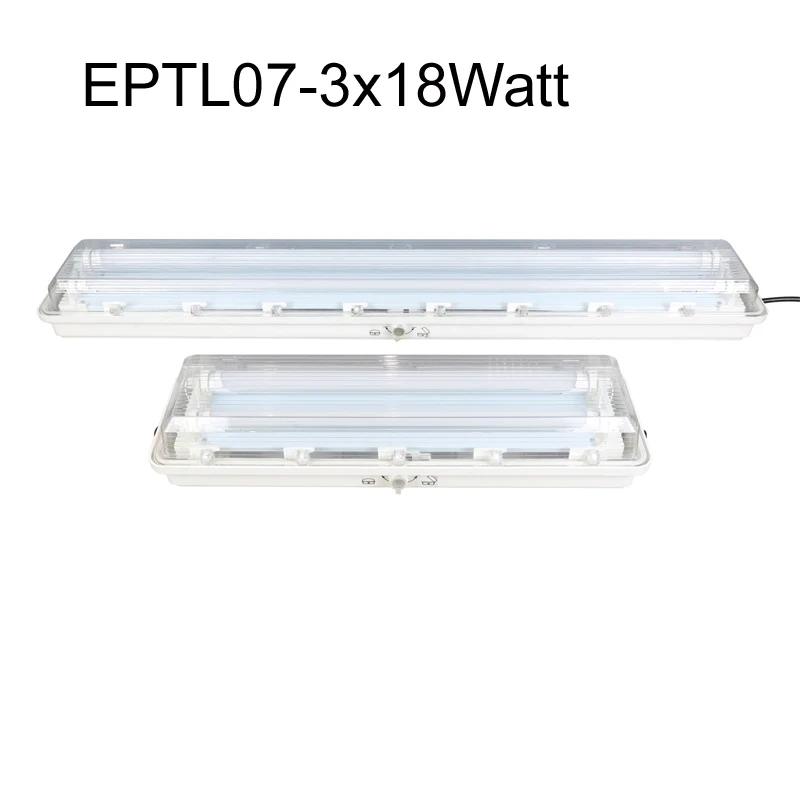

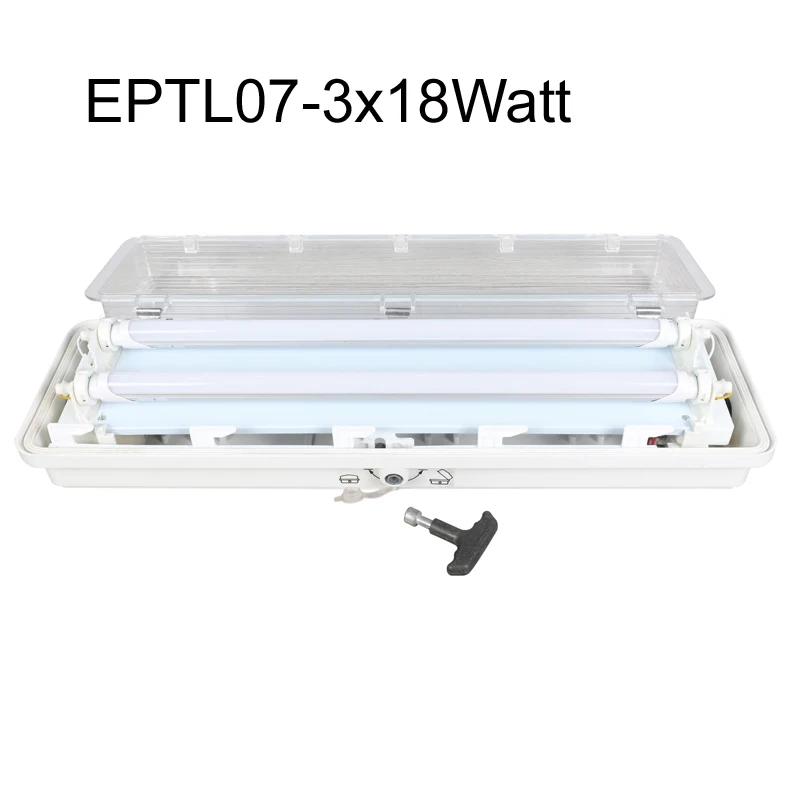

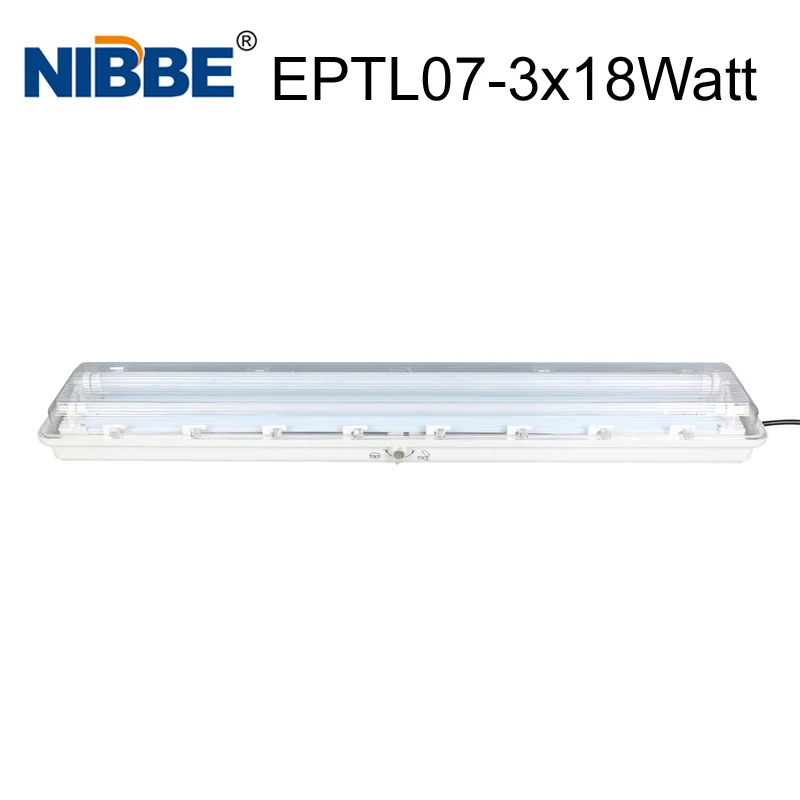

EPTL07-3x18Watt  Factory Housewares Oil station Good Electricity Proof With Heat Dissipation LED Industrial Usage Explosion Proof LED Lamp Waterproof



MODEL                                              EPTL07

RATED POWER(W)                            1×9W/2×9W/3×9W;      1×18W/2×18W/3×18W;

CERTIFICATION & EX-MARK              ATEX- II 2G Ex db eb mb  II  C T6 Gb,  II 2 D Ex tb IIIC T80°C Db IP65 CNEX  CE, RoHs

INPUT VOLTAGE(V)                            AC100-277V/DC24-48V,50/60Hz

LUMEN EFFICACY(Lm/W)                  >100Lm/W







LED LIGHT SOURCE                             LED T8 TUBE LIGHT- NIBBE/PHILIPS-SMD2835

POWER DRIVER                                  NIBBE

PRODUCT MATERIAL                          DMC, SINGLE MOLD DIE-CAST ALUMINIUM & HQ PC COVER

CORROSION PROOF GRADE               WF2



INGRESS PROTECTION (IP)                 IP65

BEAM ANGLE(°)                                   120°

CCT(K)                                                3000K/4000K/5000K/5700K/6500K±200K

CRI(Ra)                                               Ra≥70/80 (OPTIONAL)

OPERATING TEMPERATURE(℃ )         -40℃ ~ +60℃

EMERGENCY POWER(W)                    20W (≥90min) (OPTIONAL)

PRODUCT DIMENSION(mm)               735×210×145MM;   1342×210×145MM;

NETT WEIGHT(Kg):                              4.9kg;  5.1kg;  5.1kg;  7.2kg;  7.5kg;  7.8kg;





PACKING DIMENSION(mm)                  800×260×200MM;  1410×260×200MM;

GROSS WEIGHT(Kg):                            5.5;  5.6; 5.7; 8.6; 9; 9.4kg;









1. NIBBE featuring a broad range of LED luminaires for harsh and hazardous environment, NIBBE EXPLOSION PROOF LED FLOOD LIGHT-EPL66 SERIES delivers lighting Solutions that perform reliaby extraordinary even in the worst operating conditions. This reduces your energy, maintenance and manpower costs.


2. For better heat transmitting effect and exceptional performance EPL66 designed with SINGLE MOLD DIE-CAST ALUMINIUM HOUSING & HQ ARMOURED GLASS COVER and comes with power range from 50W-250W with CREE LED CHIPS and MEANWELL POWER DRIVER.


3. EPL66 SERIES armored with WF2 Corrosion Grade, IP66 Ingress Protection with a Highly Efficient lumen efficacy of >145Lm/W and comes with wide &  multiple voltage range,  beam angle's, CCT's, cable entry's, housing color's, mounting options, high homogeneity, high lux with least glare  lighting properties.


4. Its also equipped with an optional emergency customized power back up and comply international ATEX and other such standards.


5. NIBBE is an ideal platform for one-stop sourcing & the partner you can count on when thinking about hazardous, Industrial & Outdoor Areas lighting.

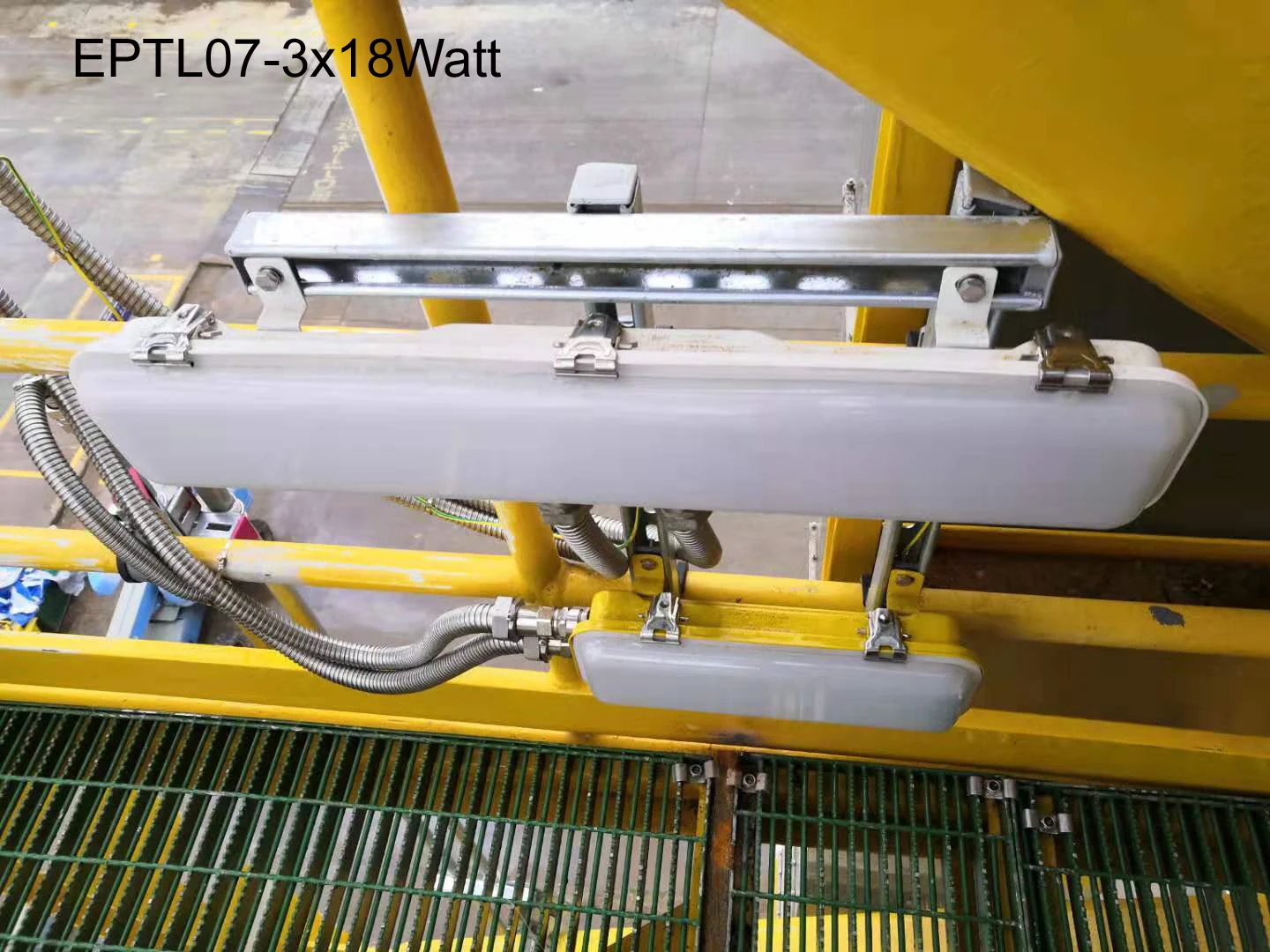

6. Production Images


7.
