China can customize 4*2 Heavy Duty Truck Haworth 16 cu.m. Sweeper Road Cleaning Vehicle City Sanitation Vehicle

Hubei Kaili Special Purpose Vehicle Co., Ltd. is a wholly-owned subsidiary of Kaili Automobile Group, with advanced production equipment such as CNC machining centers, welding robots, fiber laser cutting machines, CNC plasma cutting machines, etc. It is a manufacturing enterprise that integrates the research and development, production, system integration, and operation services of high-end intelligent sanitation and emergency equipment special vehicles.

 Product Features

Sweeping with Kaili wind-environmental cleaning more easily
Kaili wind series road sweeper is a new generation of multi-functional sweeping equipment researched and developed by Kaili Specialized Automobile. Sweeping equipment, with road cleaning, road sweeping, curb cleaning, curb and curbstone facade scrubbing, low-pressure washing, spray dust reduction and other functions, is a multi-functional special-purpose vehicle. washing, spraying dust reduction and other functions, is a multi-functional special vehicle, can effectively improve the utilization rate of the vehicle, reduce the cost of vehicle purchase. It is a multi-functional special vehicle, which can effectively improve the utilization rate of vehicles and reduce the cost of vehicle purchase. Applicable to city roads, highways, squares, airports, docks, tunnels, bridges, isolation wall, curb mechanized cleaning, sweeping, spraying dust and other cleaning operations.

Materials: Rigorous selection of materials, reliable quality
The garbage bin adopts rectangular corrugated structure, reliable top-loading structure, beautiful modeling, and long service life of the whole machine.
Sub-engine, high-pressure water pump, electrical components and hydraulic components are made of famous brand products with reliable quality.
The dumpster is made of stainless steel and equipped with special high-efficiency fan, which improves the comprehensive performance by 35% and reduces the energy consumption by up to 28%.
The blades of the fan are not easy to be worn out, and the suction power is strong and the sweeping efficiency is high.
One vehicle, multi-purpose, efficient operation
It has various functions such as watering, washing, sweeping, cleaning and dust reduction on the road surface. At the same time with high-pressure water gun can
The high pressure water gun can be used to clean the corners of the road, psoriasis and the vehicle itself.
Adopting the arrangement of "two sweeping disks in the center + wide suction nozzle in the center + built-in high-pressure main spray bar + left and right high-pressure side spray bar", small flow high-pressure water pump, left and right spray bar.
The arrangement of "center-mounted two sweeping discs + center-mounted wide suction nozzle + built-in high-pressure main spray bar + left and right high-pressure side spray bars", small flow high-pressure water pump, V-shape arrangement of left and right spray bars and nozzle built-in high-pressure main spray bar without clearance high-pressure nozzles spraying, high
High cleaning rate and fast operation speed.
Safe, Intelligent and Convenient Operation
Adopting advanced "intelligent screen + CAN bus" electronic control system, on-site monitoring, fault alarm, diagnostic display in one, synchronized with the physical operation animation.
Adopts advanced "intelligent screen + CAN bus" electronic control system, with on-site monitoring, fault alarm and diagnostic display, synchronized with the physical work animation display, and one-button operation of main functions.
Equipped with intelligent voice alarm system, it can provide alarms for abnormal situations and irregular operation such as lack of water in the fresh water tank, full water in the garbage tank, leakage of hydraulic oil, and abnormal retrieval of the garbage tank.
The intelligent voice alarm system monitors and alarms abnormal conditions and irregular operations such as water shortage in the fresh water tank, full water tank, hydraulic oil leakage, abnormal retraction of the dustbin, etc., to ensure the normal operation of the machine and prevent
The rear view monitoring system assists the driver to work safely.
The left and right high-pressure side spray bars have two-way automatic obstacle avoidance protection and reset function. It can greatly reduce the damage of the left and right high-pressure side
The safety of the whole vehicle during operation is greatly improved.
With reversing protection device, in case of emergency reversing during operation, the intelligent control system will automatically stop the operation and take back the sweeper and suction cup.
The intelligent control system will automatically stop the operation and retrieve the sweeper, suction cup and side spraying rod in case of emergency reversing during the operation.
Professional design and reasonable structure
The V-shaped arrangement of the left and right side spray bars and the gapless high-pressure nozzle spraying arrangement of the main spray bar built in the suction nozzle can effectively return all the sewage and garbage after cleaning to the cleaner.
The sewage and garbage after cleaning are all gathered and driven to the suction nozzle and absorbed in the sewage and garbage tank, leaving no dust and water on the road surface.
The road surface will not be left with dust and water, and the road surface will be cleaned, brushed and sewage recycled with good effect.
The water tank and garbage tank are arranged separately, maximizing the use of effective space and long continuous operation time. At the same time
In the process of operation, the sewage can be discharged through the sewage discharge device, and it can also be filled with fresh water at any time to continue the operation.
The dumpster adopts double cylinders for self-unloading and discharging, and there is a high-flow high-pressure nozzle inside the dumpster, which can quickly flush the dumpster.
The dumpster is self-unloading with double cylinders and is equipped with high-flow high-pressure nozzles for quick rinsing."

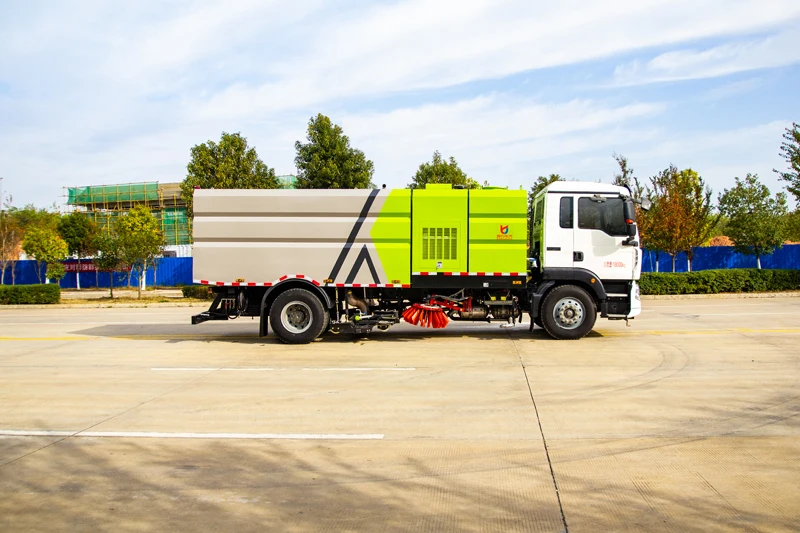

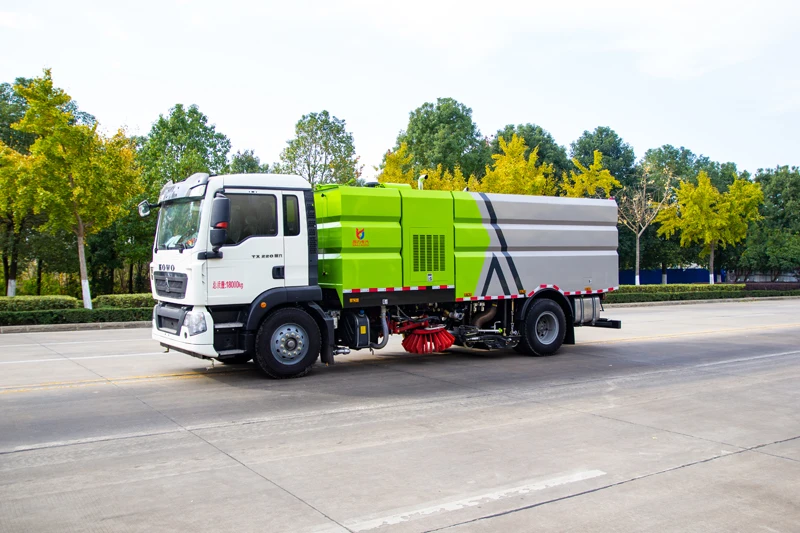

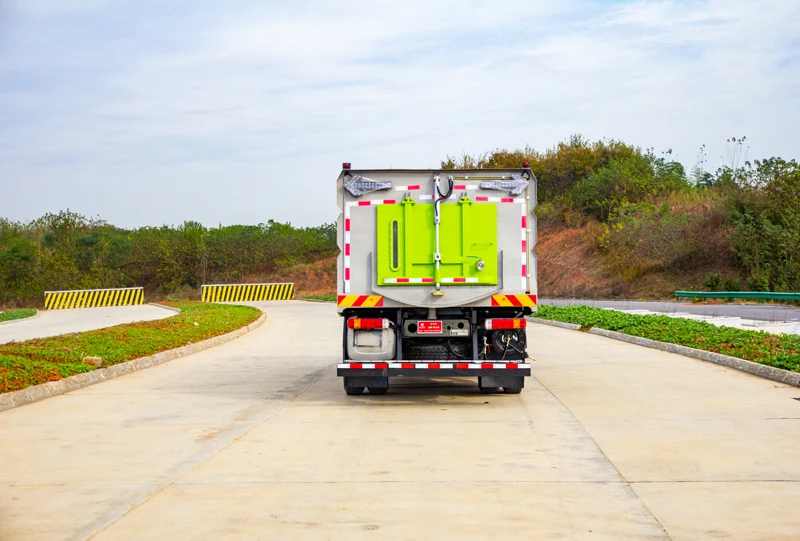

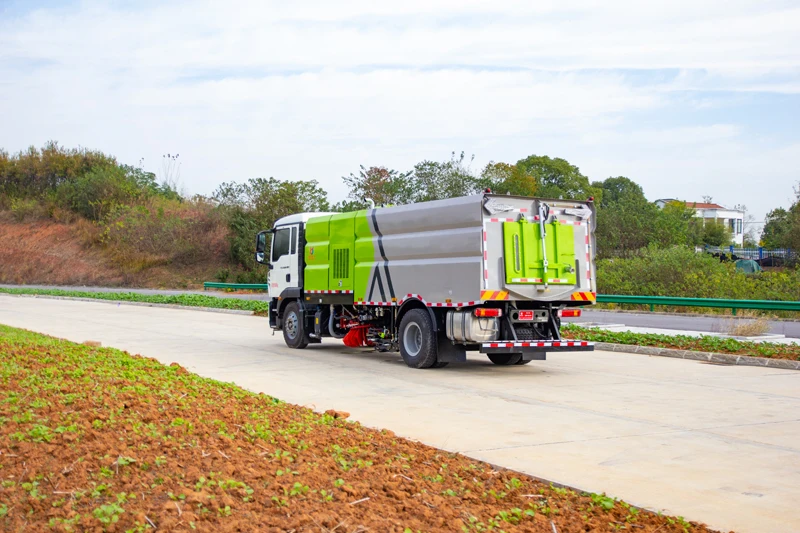

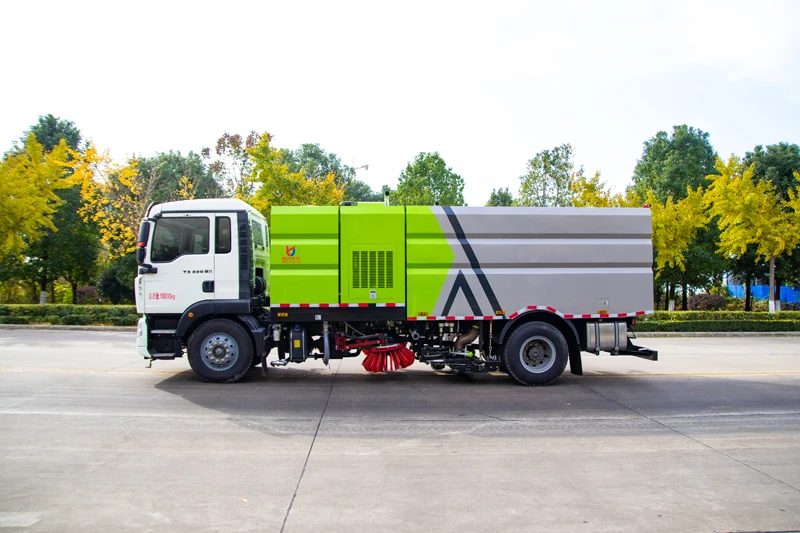

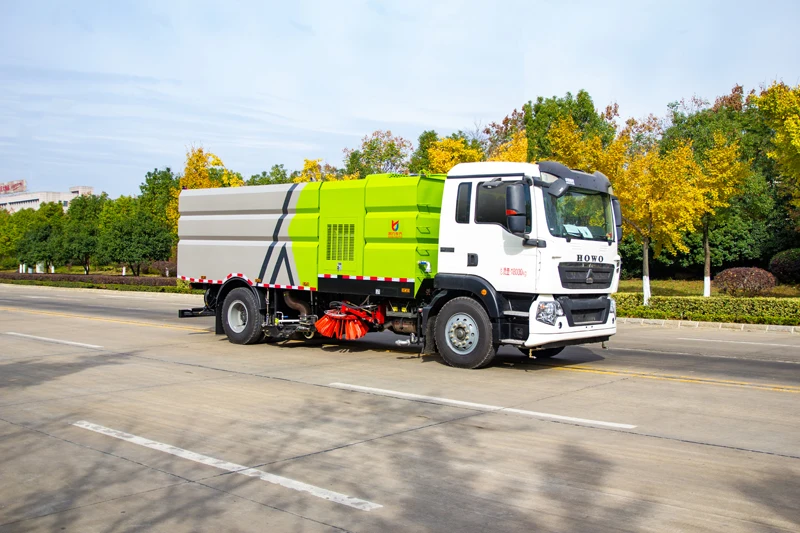

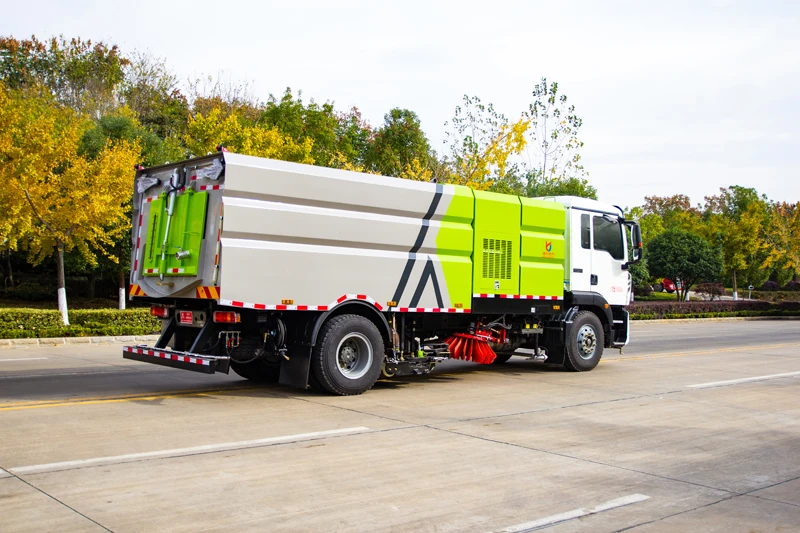

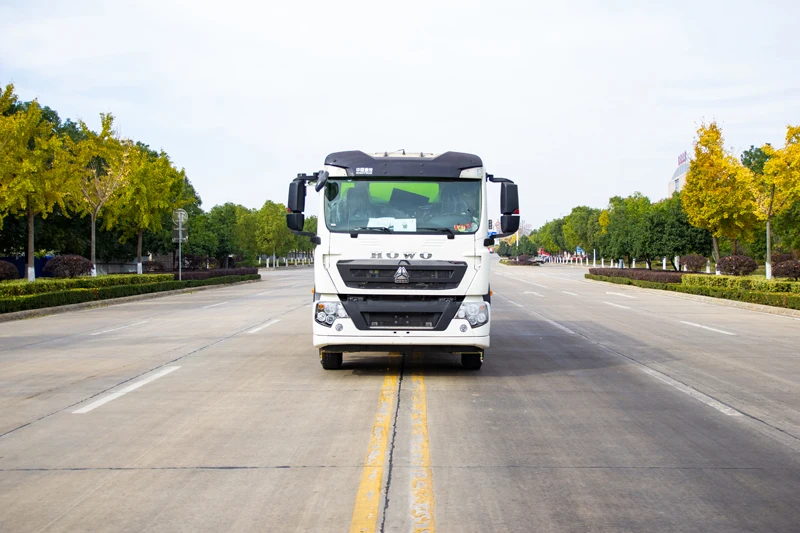

Product Pictures

 caveat

Please refer to the instruction manual of the automobile chassis for the break-in mileage of the automobile chassis. break-in, and carry out maintenance after break-in, such as cleaning the air filter element and changing the engine oil. Break-in During the break-in period, pay attention to check whether there is any abnormal vibration, noise and water leakage phenomenon in each part, whether the fan drive belt and hydraulic pump transmission belt of the fan and hydraulic pump, whether the transmission belt is slipping or not, and whether the electric control switches and instrumentation are normal or not.
Before using the vehicle, you must check the whole vehicle for oil, water and gas leaks, and remove them if necessary. Check the oil level of the main and auxiliary engines, the water level of the cooling water tank, refill the oil and water if necessary, and check the water circuit system, Check whether the water circuit system, sweeper, suction cup and other structural parts are normal.
In winter, before stopping the vehicle, do the waterproof and anti-freezing operation according to the product manual, and drain the water circuit, water pump, water valve, nozzle and so on. pumps, water valves, nozzles and other components.
When the engine is running, do not maintain or repair the chassis sub engine, water pump, or hydraulic system.
 When washing the vehicle, do not use high-pressure water to directly flush the top of the hydraulic tank, the subengine, the radiator, solenoid valves, coils and terminal parts.
 To ensure the safety of the operator and the equipment, during debugging, installation, testing and maintenance operations, you must open the safety braces under the dumpster The safety bar must be secured with a safety pin to ensure the safety of personnel and equipment. Safety of personnel and equipment can only be ensured by fixing the safety bar with safety pins. The safety bar should be lowered before resetting the dumpster after operation.
