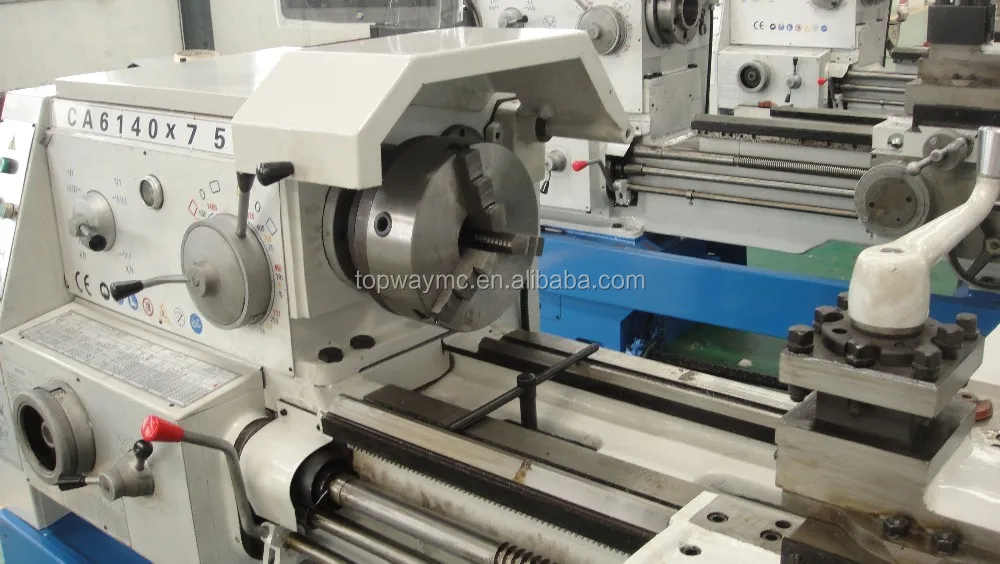

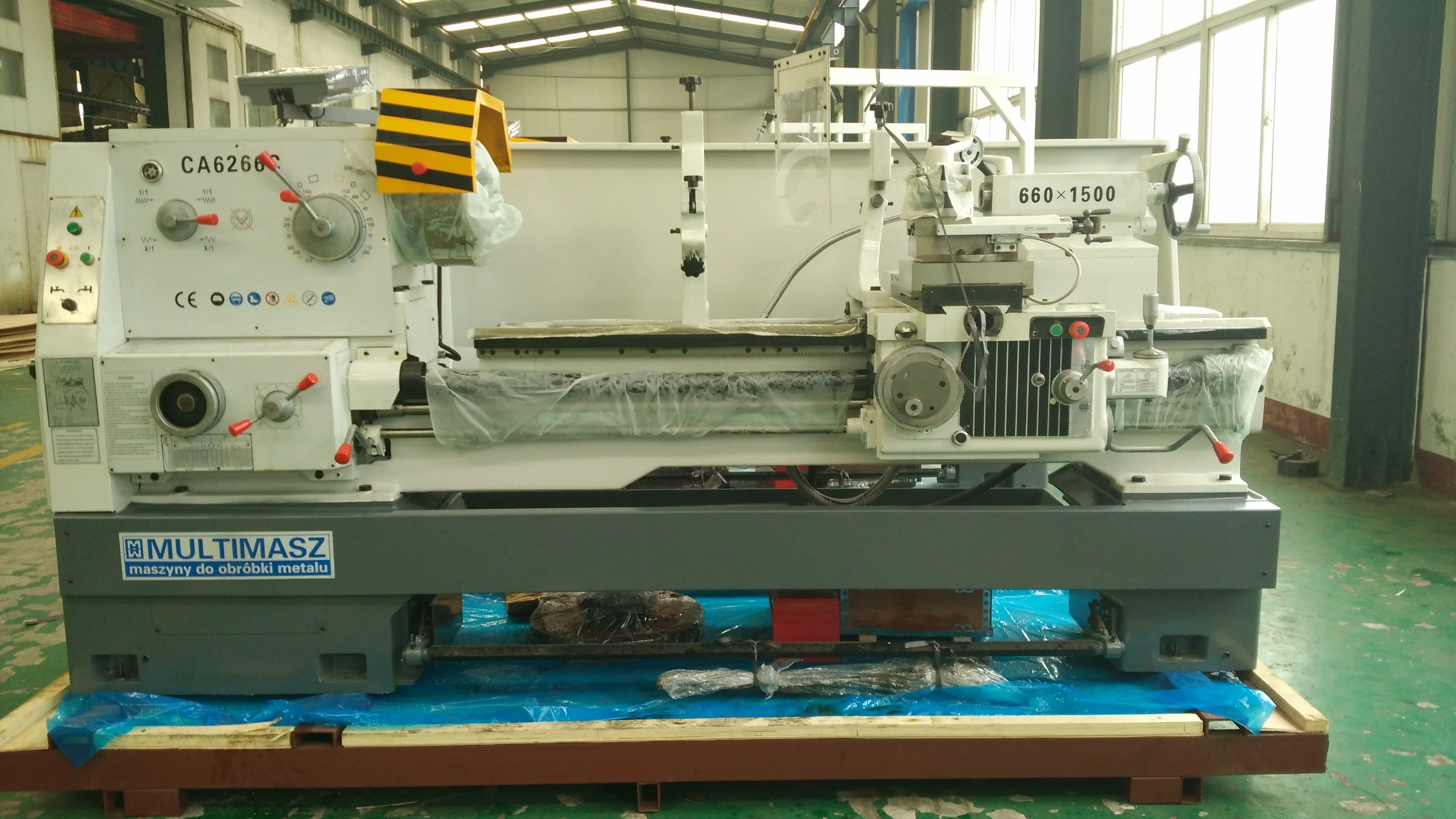

Features:
■This series lathe machine is suitable for internal and external turning , tapering , and other rotating faces, metric , module and inch threads , as well as drilling and pull oil slot .
■Width of bed is wider than normal lathe machine , with high hardness on guideway , the guideway is through high-frequency quenching , wearresisting .
■This machine is easy to operate , with rapid device for carriage , design with single hand wheel to operate .
■Width of bed is wider than normal lathe machine , with high hardness on guideway , the guideway is through high-frequency quenching , wearresisting .
■This machine is easy to operate , with rapid device for carriage , design with single hand wheel to operate .
■The strength and rigidity of machine is higher than normal lathe machine , high efficiency , suit for heavy duty machining
Standard:
●3-jaw chuck;
●Cooling system;
●Work Lamp.
●Steady Rest5. Tool box
●Manual book
●Cooling system;
●Work Lamp.
●Steady Rest5. Tool box
●Manual book
Optional :
●Digital readout display
●Grinding equipment
●Face plate
●Quick Change Toolpost
●Thread chasing dial
●Loading screw guard* 4-jaw chuck
●Grinding equipment
●Face plate
●Quick Change Toolpost
●Thread chasing dial
●Loading screw guard* 4-jaw chuck
Specifications | CA6150 CA6150B CA6150C | CA6250 CA6250B CA6250C | ||||||
Max. Swing over bed | 500mm | 500mm | ||||||
Max. Swing over carriage | 300mm | 300mm | ||||||
Max. swing in gap | 720mm | |||||||
Effective gap length | 210mm | |||||||
Max. length of work piece | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm | ||||||
Width of bed | 400mm | 400mm | ||||||
Section of turning tool | 25x25mm | 25x25mm | ||||||
Spindle | Spindle speeds | 10-1400rpm/16-1400rpm(24steps) | 10-1400rpm/16-1400rpm(24steps) | |||||
Hole through spindle | 52mm. (80mm). [105mm] | 52mm. (80mm). [105mm] | ||||||
Spindle taper | NO.6(MT6)(Φ90 1:20)[Φ113 1:20] | NO.6(MT6)(Φ90 1:20)[Φ113 1:20] | ||||||
Feed | Number of feeds | 64(kinds)(for each) | 64(kinds)(for each) | |||||
Range of metric threads（kinds） | (1-192mm)44kinds | (1-192mm)44kinds | ||||||
Range of inch threads（kinds） | (2-24tpi)21kinds | (2-24tpi)21kinds | ||||||
Range of module threads（kinds） | 0.25-48(Moduie39kinds) | 0.25-48(Moduie39kinds) | ||||||
Range of pitch threads（kinds） | 1-96DP(37kinds) | 1-96DP(37kinds) | ||||||
Cross slide travel | 320mm | 320mm | ||||||
Top slide travel | 140mm | 140mm | ||||||
Tailstock | Max. tail stock spindle travel | 150mm | 150mm | |||||
Tail stock spindle diameter | 75mm | 75mm | ||||||
Taper of tail stock spindle center hole | NO.5(MT5) | NO.5(MT5) | ||||||
Main motor | 7.5KW(10HP) | 7.5KW(10HP) | ||||||
Packing dimensions (L*W*Hmm) | Overall dimensions for750mm | 2550x1140x1750 | 2550x1140x1750 | |||||
Overall dimensions for1000mm | 2700x1140x1750 | 2700x1140x1750 | ||||||
Overall dimensions for1500mm | 3200x1140x1750 | 3200x1140x1750 | ||||||
Overall dimensions for2000mm | 3700x1140x1750 | 3700x1140x1750 | ||||||
Overall dimensions for2200mm | 4030x1140x1750 | 4030x1140x1750 | ||||||
Overall dimensions for3000mm | 4850x1140x1750 | 4850x1140x1750 | ||||||
Overall dimensions for4000mm | 5800x1140x1750 | 5800x1140x1750 | ||||||
Weight (kg) | Length | G.W N.W. | G.W N.W. | |||||
Weight for 750mm | 2100 1990 | 2100 1990 | ||||||
Weight for 1000mm | 2190 2070 | 2190 2070 | ||||||
Weight for 1500mm | 2350 2220 | 2350 2220 | ||||||
Weight for 2000mm | 2720 2570 | 2720 2570 | ||||||
Weight for 2200mm | 2800 2600 | 2800 2600 | ||||||
Weight for 3000mm | 3300 3200 | 3300 3200 | ||||||
Weight for 4000mm | 3500 3400 | 3500 3400 | ||||||
Products Details
1. What is the Packing Size of Conventional Lathe Machine?
CA6150/750 2550x1140x1750
CA6150/1000 2700x1140x1750
CA6150/1500 3200x1140x1750
CA6150/2000 3700x1140x1750
CA6150/2200 4030x1140x1750
CA6150/3000 4850x1140x1750
CA6150/4000 5800x1140x1750
2. How Much is the Processing Length of the Conventional Lathe Machine? Conventional lathe machine have different processing lengths. CAseries have 750mm, 1000mm, 1500mm, 2200mm, 3000mm, and 4000mm long. You can choose the suitable processing length according to the length of the workpiece.
3. How Much is the Lathe Machine Spindle Hole?
CA lathe machine have three types of spindle holes, 80mm,105mm and 130mm.
4. How Much is the Bed Width of the Conventional Lathe Machine？
The width of the bed is 360mm bed width, 400mm bed width, 550mm bed width, 600mm bed width, 755mm bed width, 1100mm bed width, etc. The wider the bed width, the greater the load-bearing, the greater the stability. high. The bed width of the CA series is 400mm.

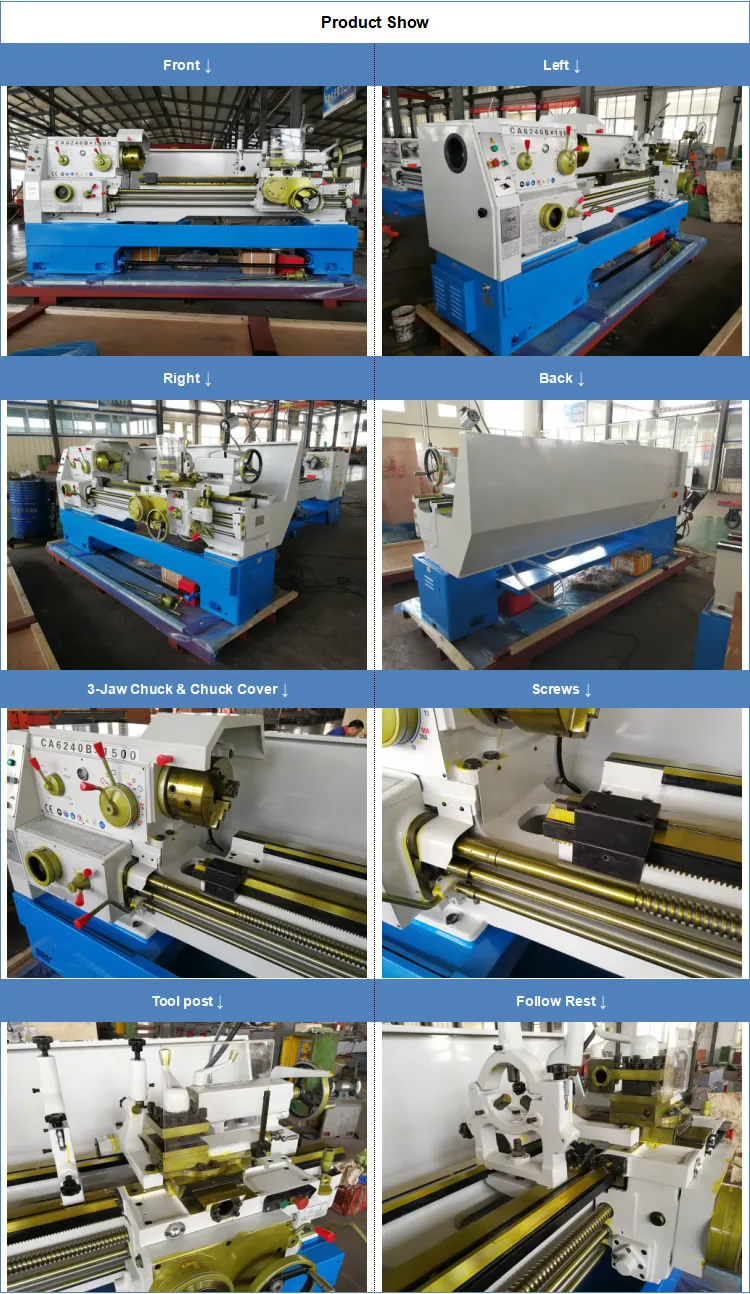

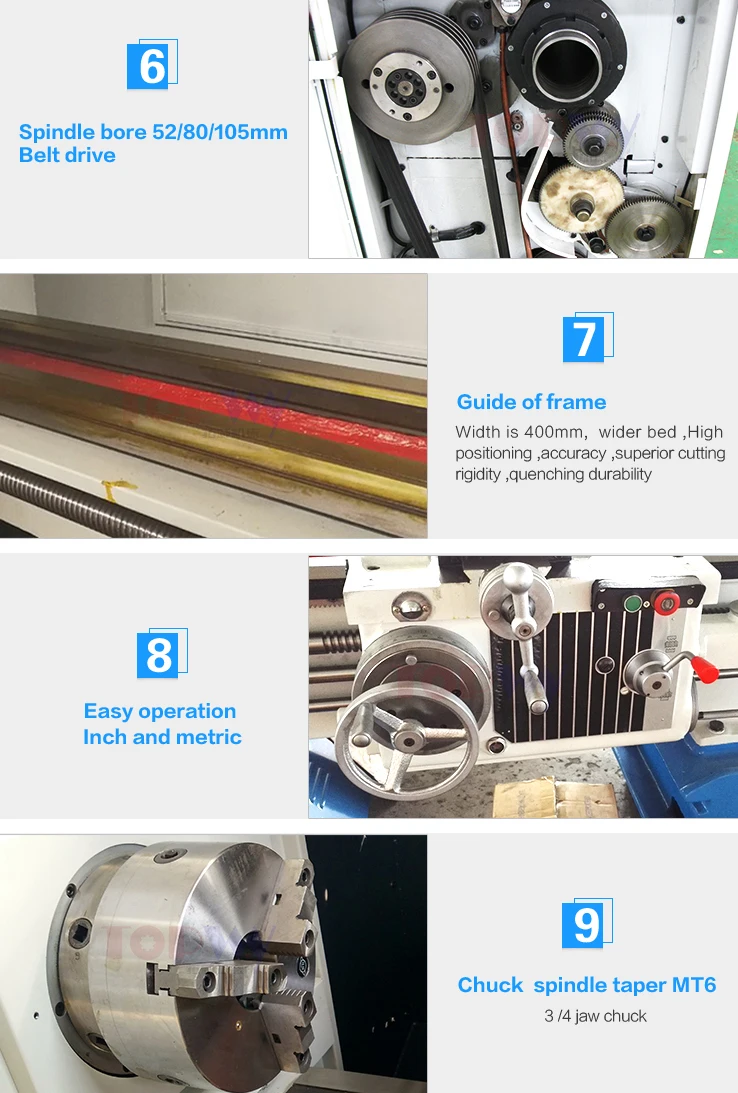

2. Main parts of CA6150/CA6250 horizontal lathe
(1) The bed. It plays the role of supporting other components and ensures the correct relative position and relative movement between the components.

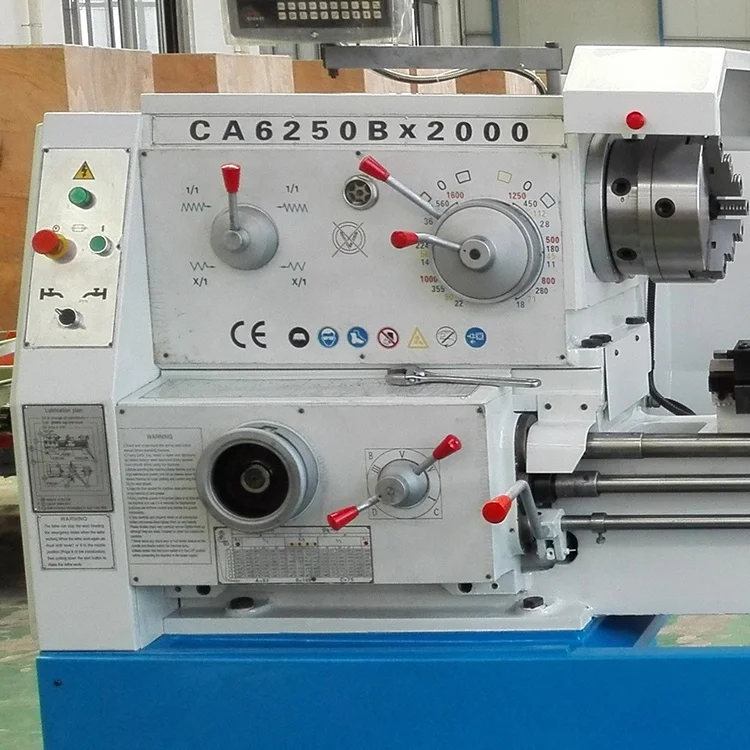

(2) Spindle box. The function is to support the main shaft and transmit the power to the main shaft through the variable speed transmission mechanism, so that the main shaft drives the workpiece to rotate through the chuck and other fixtures to realize the main movement.
(3) Feed box. It is used to change the size of the motorized feed and the size of the thread lead.

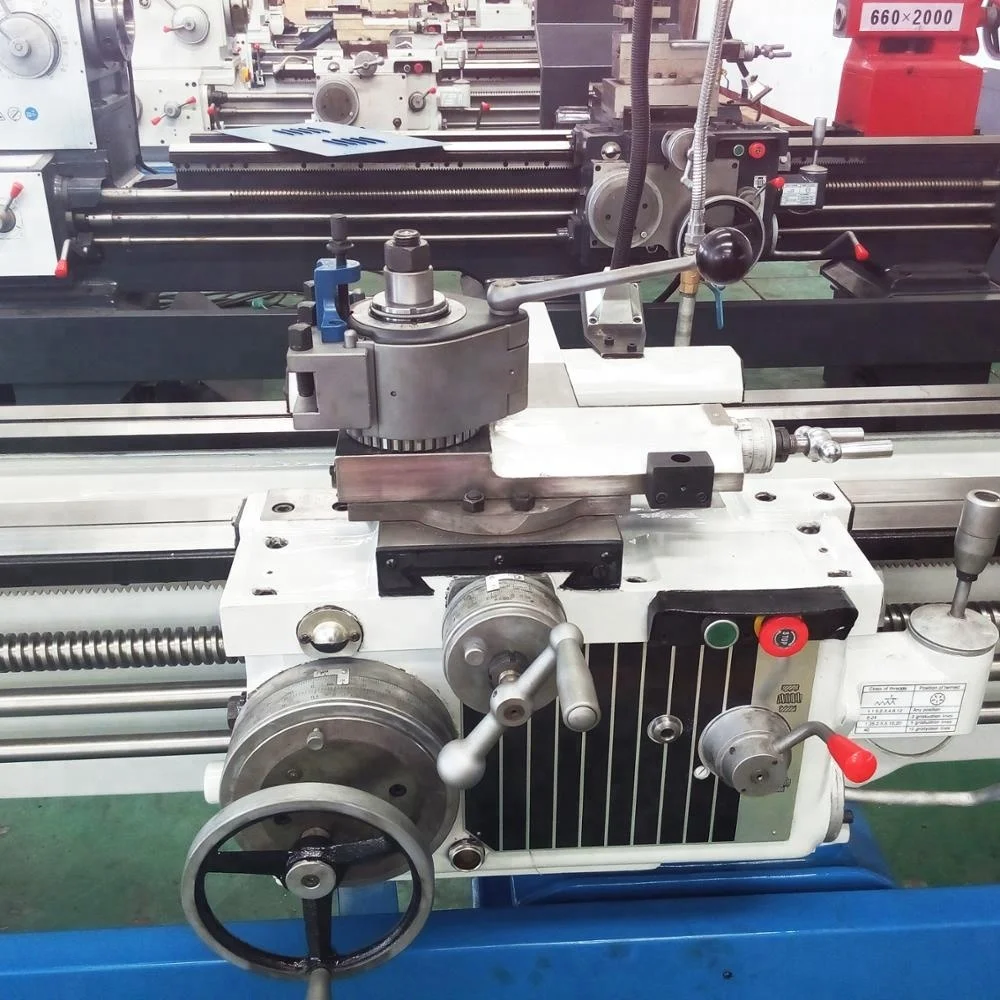

(4) Skateboard box. The function is to transmit the motion of the feed box to the tool holder to realize
(1) The bed. It plays the role of supporting other components and ensures the correct relative position and relative movement between the components.
(2) Spindle box. The function is to support the main shaft and transmit the power to the main shaft through the variable speed transmission mechanism, so that the main shaft drives the workpiece to rotate through the chuck and other fixtures to realize the main movement.
(3) Feed box. It is used to change the size of the motorized feed and the size of the thread lead.
(4) Skateboard box. The function is to transmit the motion of the feed box to the tool holder to realize

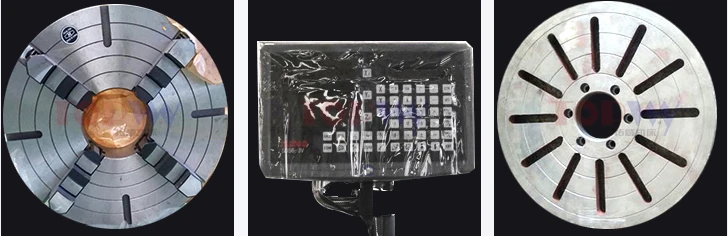

4-jaw chuck Digital Readout Face plate

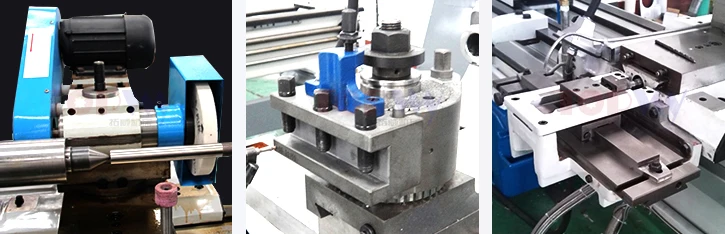

Grinding Head attachment Quick Change Toolpost Tapering attachment
