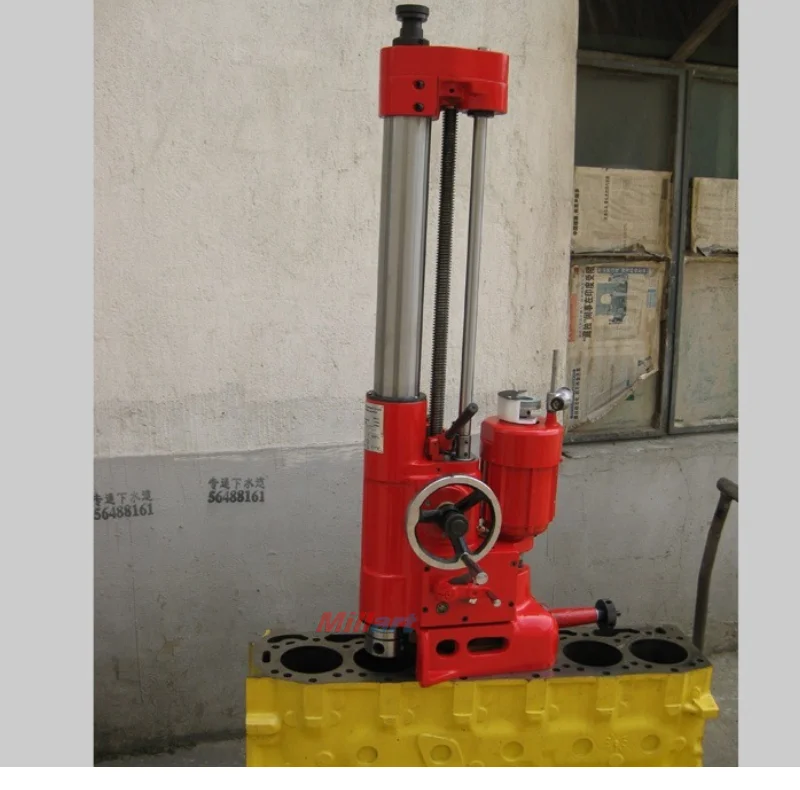

Cylinder boring machine T8014A T8016A for reboring engine cylinders
- Category: >>>
- Supplier: Tengzhou Millart Machine Tool Co. Ltd.
Share on (1600947690501):
Product Overview
Description
Product Description
Features：
1. The boring machine is mainly used for re-boring engine cylinders of automobiles motor cycles and tractors.
2. Reliable performance, widely use, processing accuracy high productivity.
3. Easy and flexible operation.
4. Good rigidity, amount of cutting.
2. Reliable performance, widely use, processing accuracy high productivity.
3. Easy and flexible operation.
4. Good rigidity, amount of cutting.
Specifications
Model | T8014A | T8016A | ||
Boring diameter | Φ65-Φ140 mm | Φ80-Φ165 mm | ||
Max. boring depth | 300 mm | 400 mm | ||
Spindle speed | 250;380 r/min | 200;300 r/min | ||
Spindle feed | 0.11 mm / r | 0.12 mm / r | ||
Spindle rapid reset | 636 mm / min | 780 mm / min | ||
Motor | Voltage | 220/380 V | 220/380 V | |
Power | 0.25/0.37 Kw | 0.25/0.37 Kw | ||
Speed | 1440 r/min | 1440 r/min | ||
Overall dimensions | 320×330×850 mm | 360×345×1100 mm | ||
Packing dimensions | 540×470×1030 mm | 62 Kg | ||
Weight | 500×490×1270 mm | 85 Kg | ||
