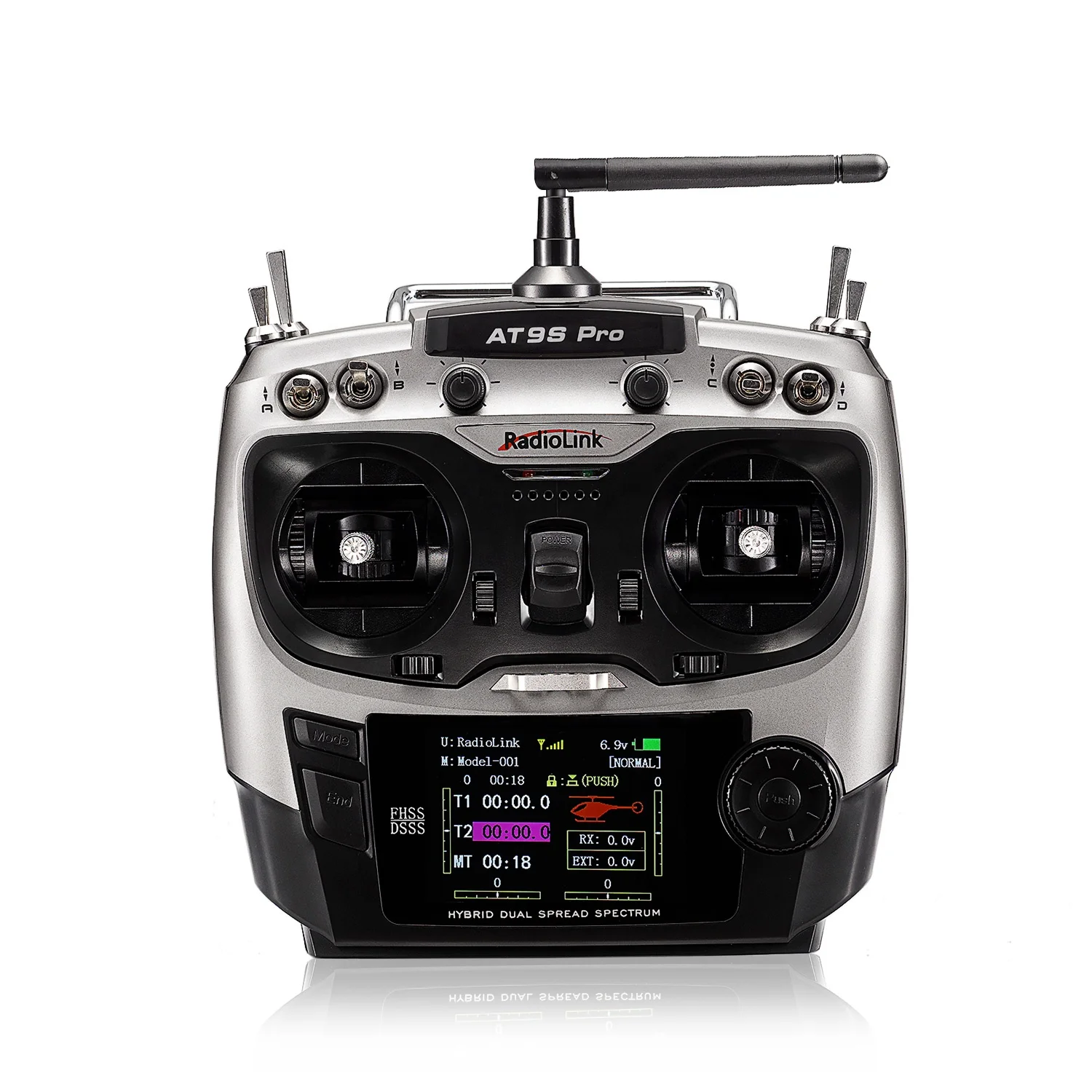

Radiolink AT9S Pro 10/12 Channels 2.4GHz RC Radio Transmitter For Sailboat Fishing Boat Agricultural Boat RC Toy
Radiolink AT9S Pro 10/12 Channels 2.4GHz RC Radio Transmitter For Sailboat Fishing Boat Agricultural Boat RC Toy
Radiolink AT9S Pro 10/12 Channels 2.4GHz RC Radio Transmitter For Sailboat Fishing Boat Agricultural Boat RC Toy
Radiolink AT9S Pro 10/12 Channels 2.4GHz RC Radio Transmitter For Sailboat Fishing Boat Agricultural Boat RC Toy
Radiolink AT9S Pro 10/12 Channels 2.4GHz RC Radio Transmitter For Sailboat Fishing Boat Agricultural Boat RC Toy
Radiolink AT9S Pro 10/12 Channels 2.4GHz RC Radio Transmitter For Sailboat Fishing Boat Agricultural Boat RC Toy

Radiolink AT9S Pro 10/12 Channels 2.4GHz RC Radio Transmitter For Sailboat Fishing Boat Agricultural Boat RC Toy

Share on (1600947707267):


Price:$69.90 - $74.90

Quantity:


Product Overview

Description





























AT9S Pro Transmitters Specifications

AT9S Pro Transmitters Specifications

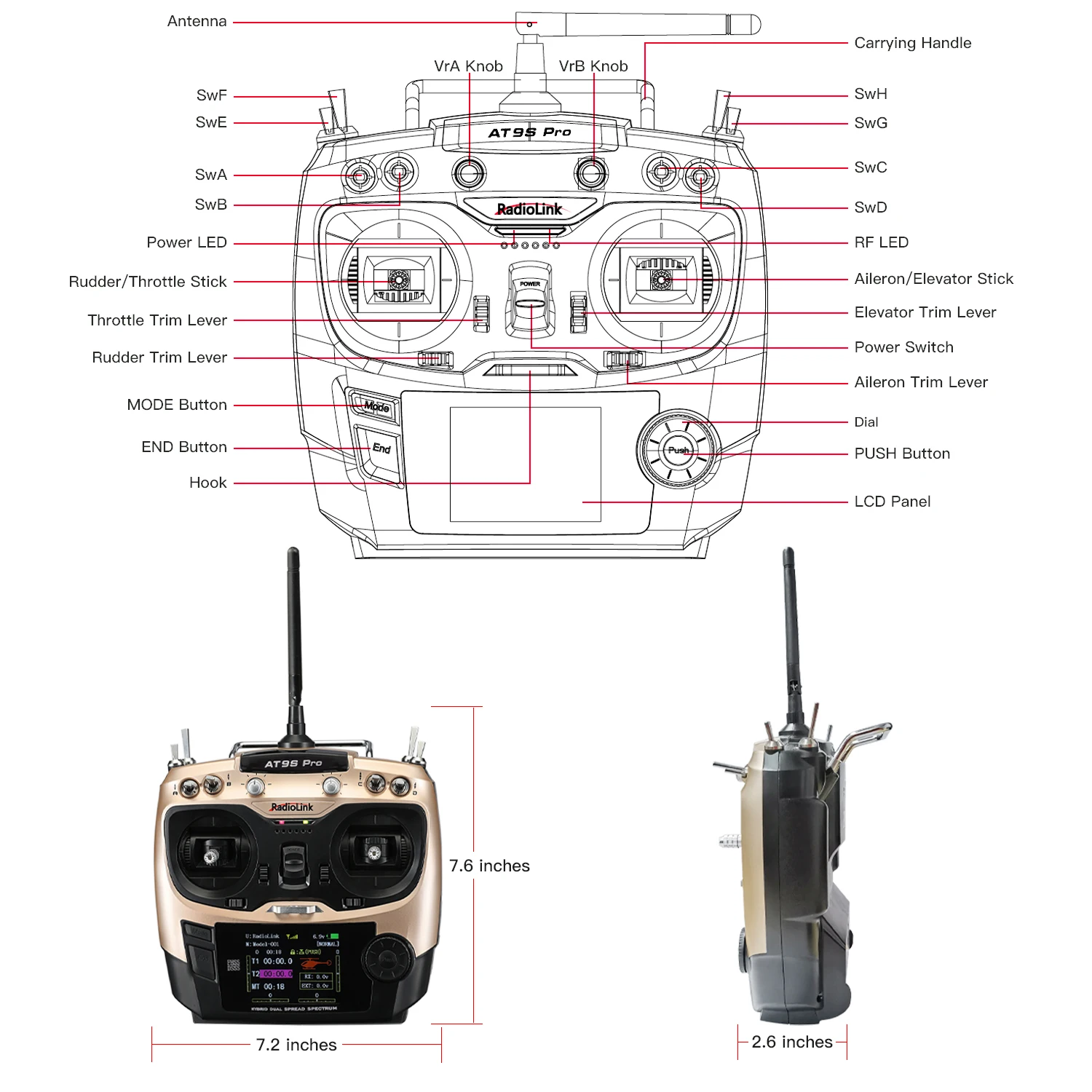

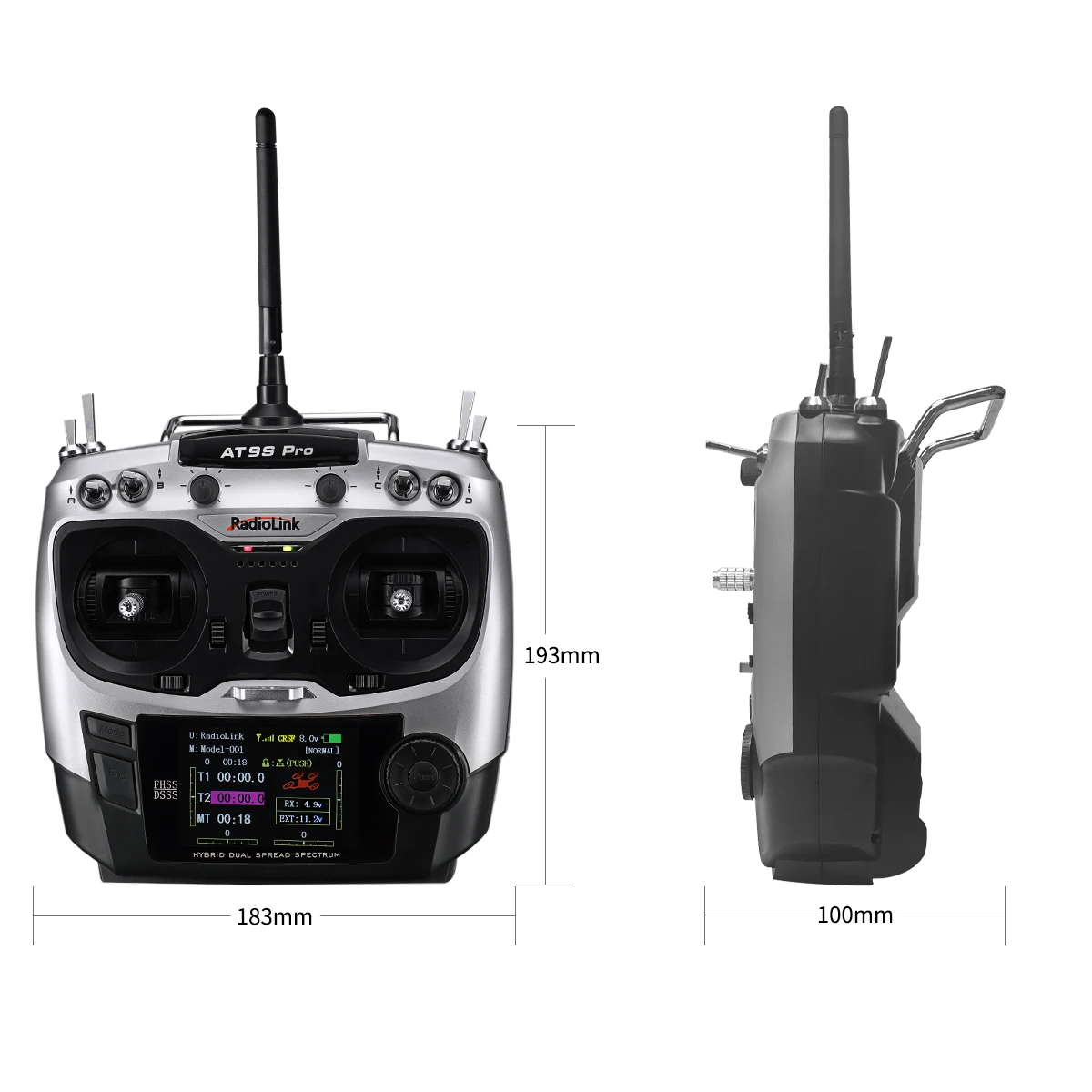

Dimension


183x100x193mm(7.2x3.9x7.6)


Battery Case Dimension


116x36x32mm(LxWxH=4.57x1.42x1.26)


Weight


0.88kg


Frequencies Band


2.4GHz ISM(2400MHz~2483.5MHz)


Modulation Mode


QPSK


Bandwidth


5.0MHz


Spread Spectrum Mode


DSSS&FHSS/CRSF


ACPR


>38dbm


Transmission Power


1.DSSS.FHSS: <100mW(20dbm)
2. CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)


Operating Current


1. DSSS&FHSS: < 90mA@12V
2. CRSF: Depends on the transmission power selected


Operating Voltage


7.4~18.0V(8pcs AA battery, a 2S-4S LiPo or 18650 Lithiumbattery)


Channel Quantity


10/12 (all twelve channels can be programmed)


Signal Output


PWM/SBUS/PPM/CRSF


Compatible receivers


12CH - R12DSM, R12DS; 10CH- R9DS(Std), R6DS, R6DSM; CRSF: RX from BLACKSHEEP

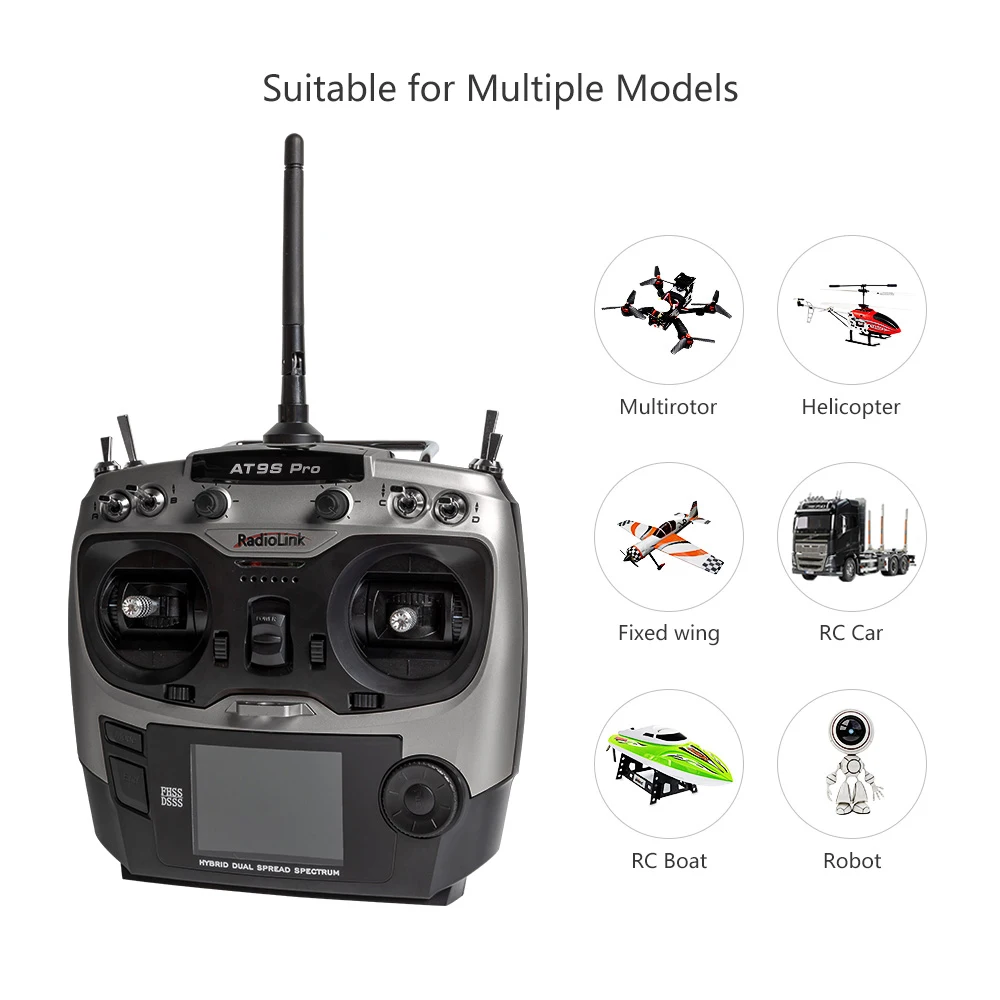

Adaptable Models


Rotary Wing/Fixed wing/Glider/Multicopter/Car/Boat/Robot


Simulator Mode


Yes, with radio frequency off to save battery power


Storage Model Quantity


15

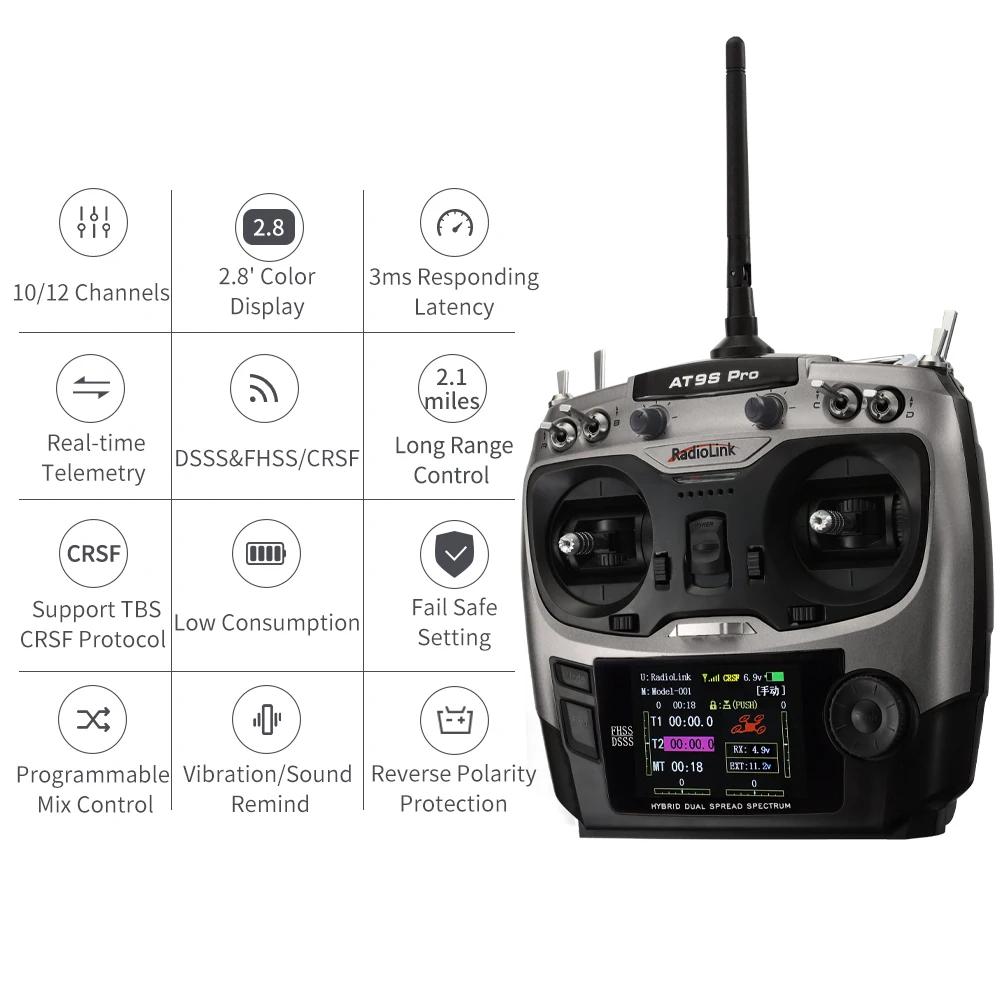

* Excellent Anti-interference--DSSS-FHSS communication technology makes AT9S Pro transmitter with stable transmission signal and long range control up to 2.1 miles(3.4km) in air.
* Powerful Features--10/12 channels, telemetry(work with PRM-03), throttle cut, dual-rate, switch assignments, programmable mix control, fail safe, reverse polarity protection, multiple model options, etc.
* Safety Remind- RSSI alert, radio/receiver/model low voltage alarm. With DD sounds, vibration, and words alarming display on the LCD screen to remind when you are in noisy surroundings.

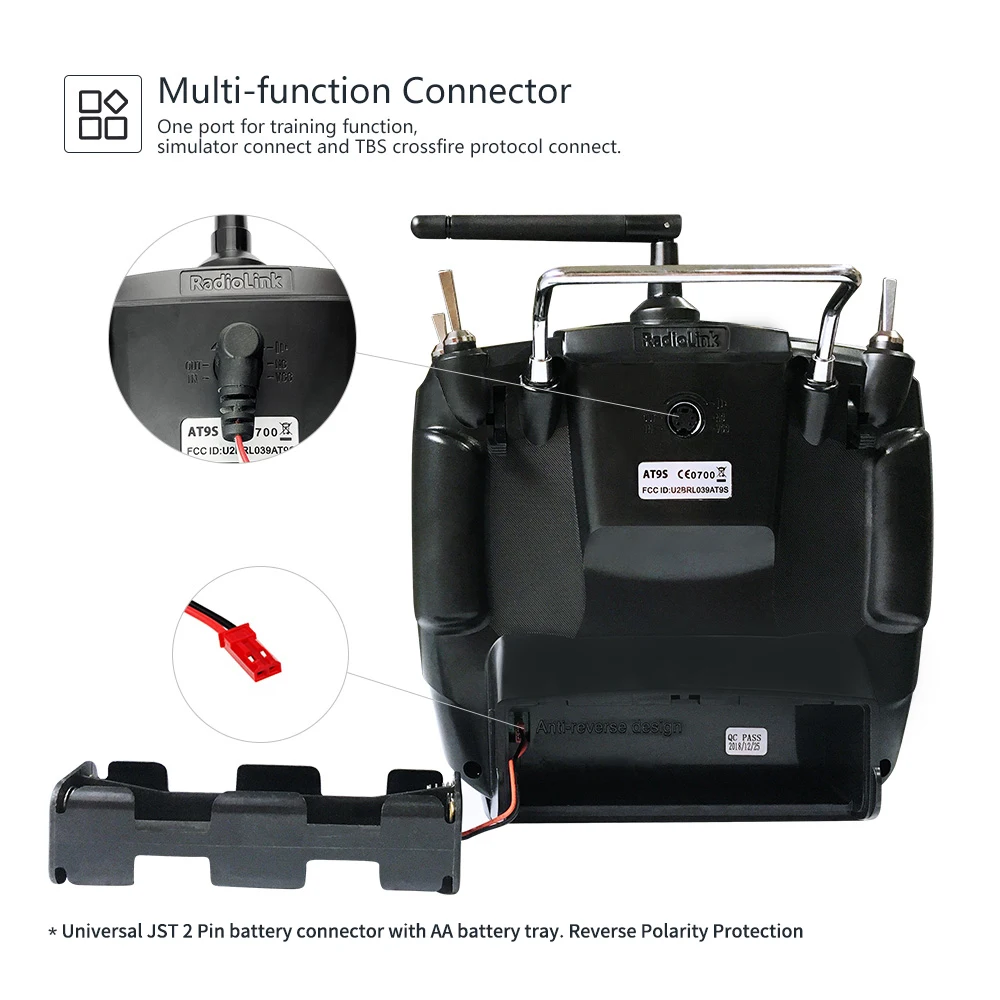

* Additional Function--3 in 1 multi-function port, support most of simulator, TBS Crossfire Protocol (915 Module), Wireless Trainer mode support. (all sold separately)

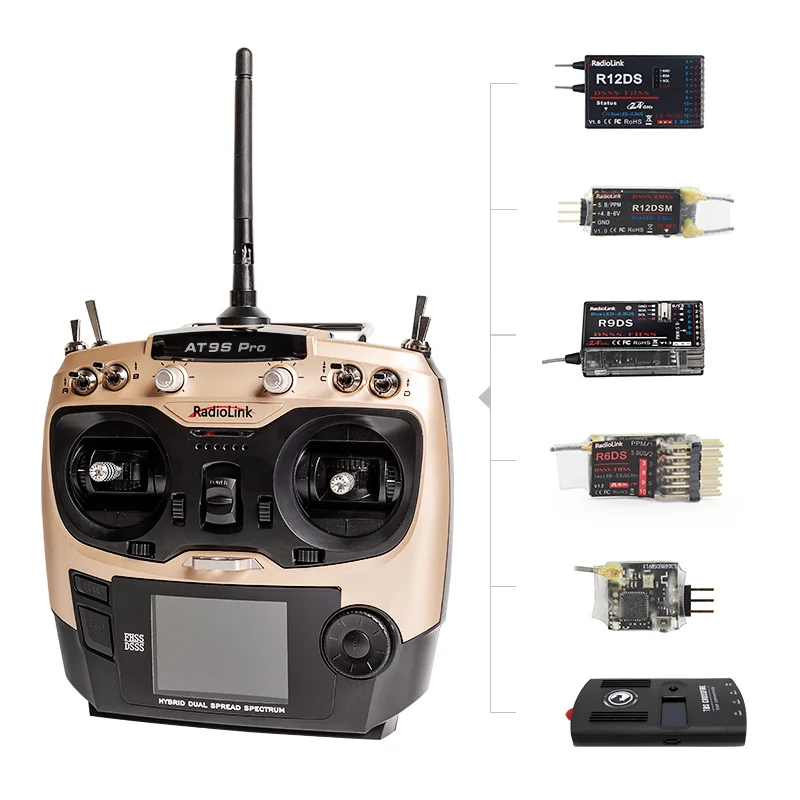

* Equipped with RC airplane, helicopter, glider, multirotor, car and boat programming and 15-model memory capacity. Compatible with R12DS, R12DSM, R9DS, R6DS, R6DSM receivers.

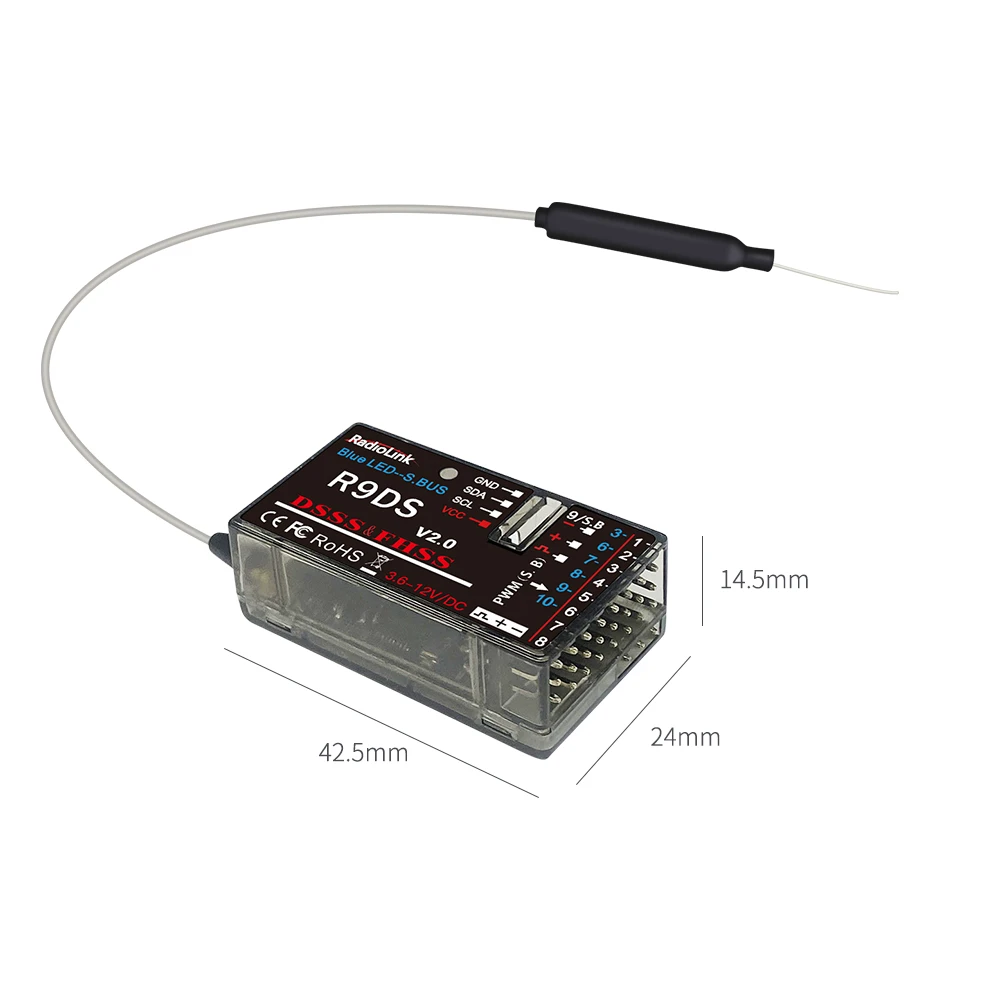

R9DS 9/10 Channels Receiver Specifications

R9DS 9/10 Channels Receiver Specifications















































Dimension


43x24x15mm (1.69x0.94x0.59)


Weight


10.5g (0.37oz)


Channels Quatity


9 channels for PWM signal output; 10 channels for SBUS&PWM signal output


Signals


SBUS.PWM


Operating Voltage


3~10V


Operating Current


38-45mA@5V


Section Precision


4096, 0.25us per section


Control distance


4000 meters(2.48Miles) in the air, 2000 meters(1.24Miles) on the ground (Maximum range tested in unobstructed areas free of
interference and may vary depending on local regulations)


Compatible with extended telemetry module


PRM-01 and PRM-03


Compatible transmitter:


AT10II/AT10/AT9S Pro/AT9S/AT9
















* Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give R9DS with excellent anti-interference ability.
* 9/10 Channels: Support PWM/SBUS signal output, works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II. Please make sure SYSTEM channel selection is 10ch mode when it works with AT10II 12 channels transmitter, or it won't workwell.
* Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the driver.
* Long Range Control: outstanding control range up to 2.1 miles on air. (Depends on the actual using environment)
* Quick to Bind and Anti-polarity Protection: no need any setting on transmitter when R9DS bind with radio. With reverse polarity protection circuit, not damage the receiver even you plug wrong polarity.

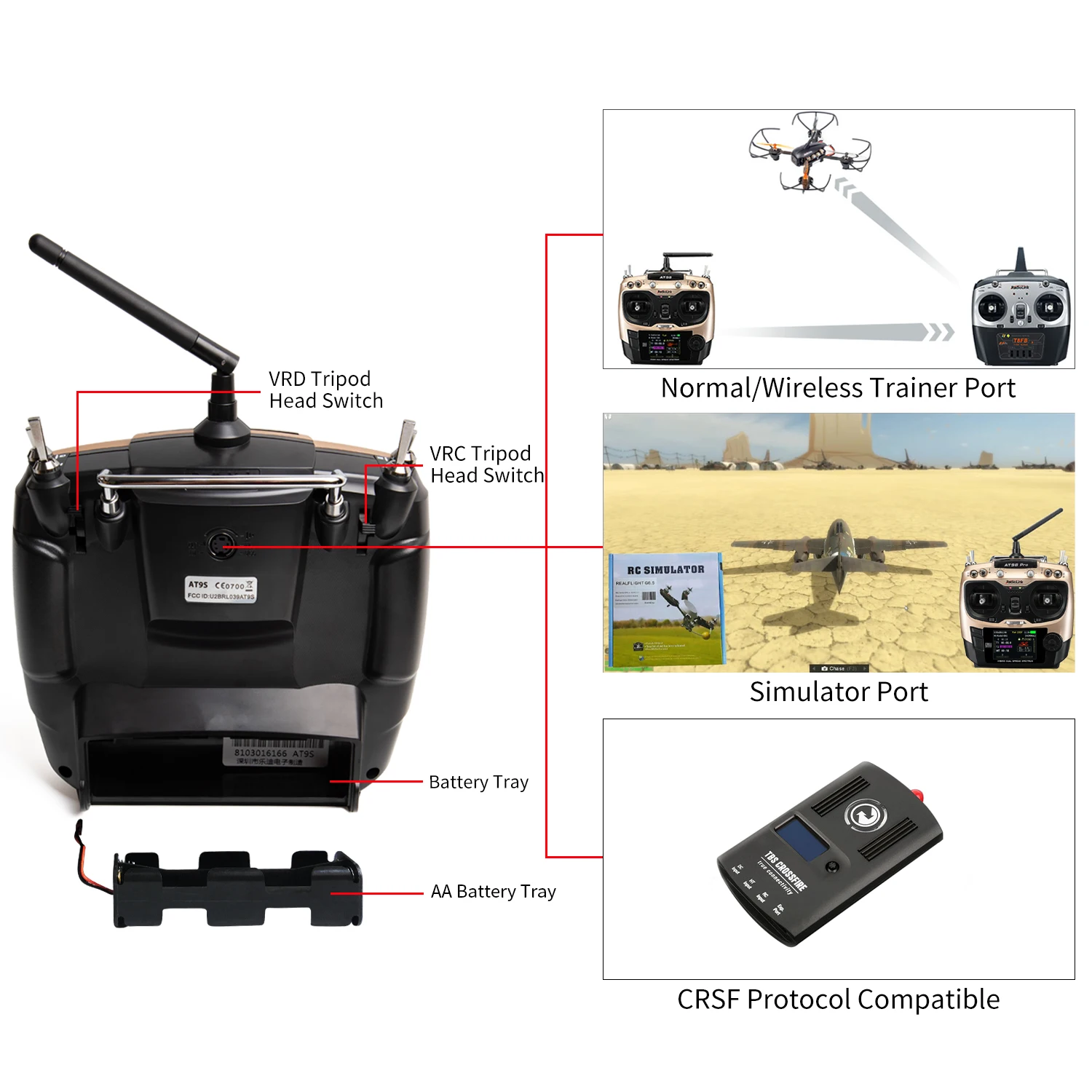

AT9S Pro Simulator Interface Purpose






















Switch Indication






















































































AT10II


AT9S Pro


T8FB BT


T8S BT


Channels


12 Channels


10/12 Channels


8 Channels


8 Channels


Signal Output


PWM/PPM/SBUS


PWM/PPM/SBUS


 PWM/PPM/SBUS


PWM/PPM/SBUS


Control Range


2.5 Miles


2.1 Miles


1.2 Miles


1.2 Miles


Dimensions(L*W*H)


7.1*3.7*8.7 in


7.2*3.9*7.6 in


6.8*4*8.1 in


6.4*3.7*2.2 in


Weight


33.5 oz


31 oz


16.6 oz


5.0 oz


Package


AT10II/R12DS/PRM-01

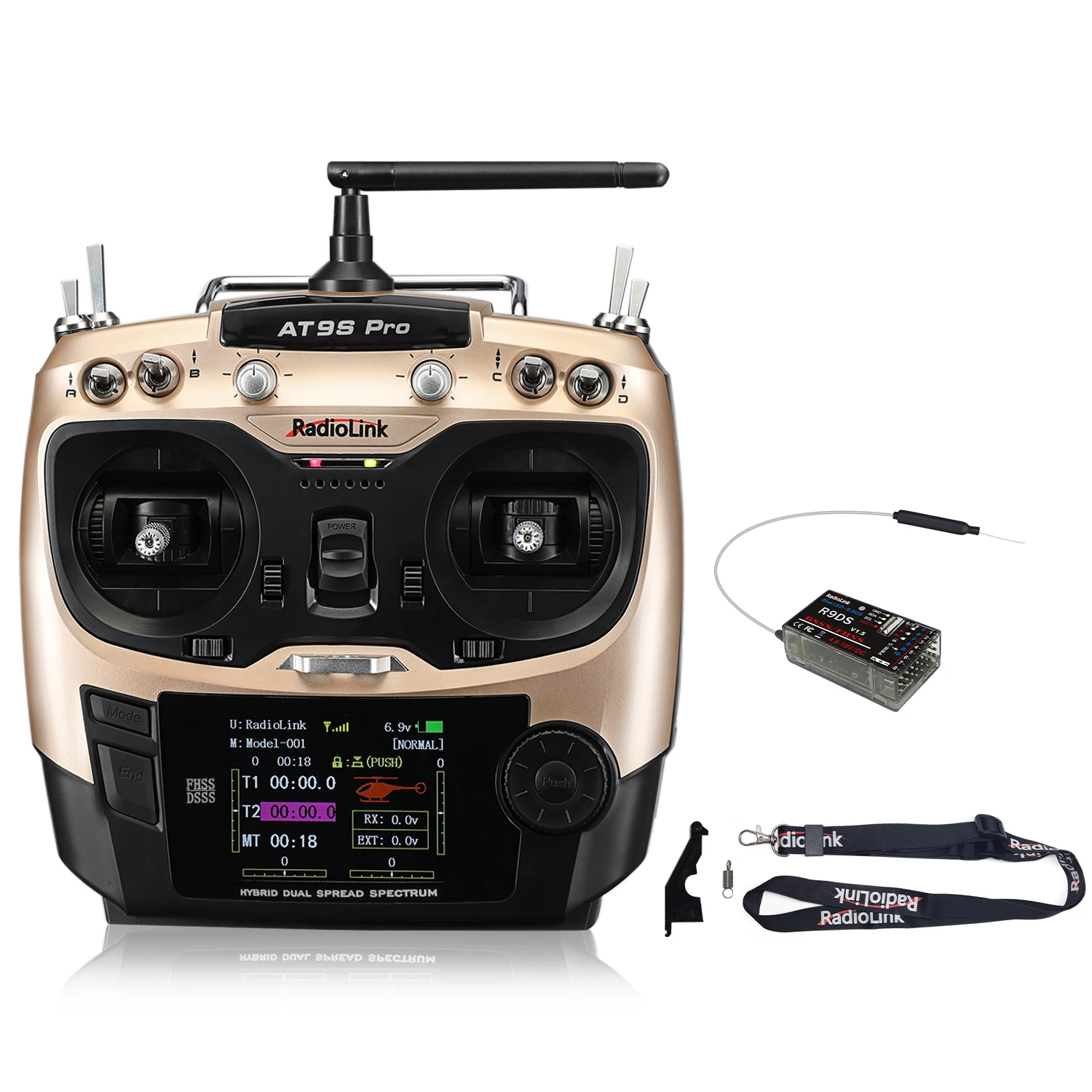

AT9S Pro/R9DS/Strap


T8FB/R8EF


T8S/R8EF


Model Support


Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc


Glider, Airplane, Multirotor, Helicopoter, Car, Boat, Robot etc


Glider, Airplane, Multirotor, Car, Boat, Robot etc


Glider, Airplane, Multirotor, Car, Boat, Robot etc

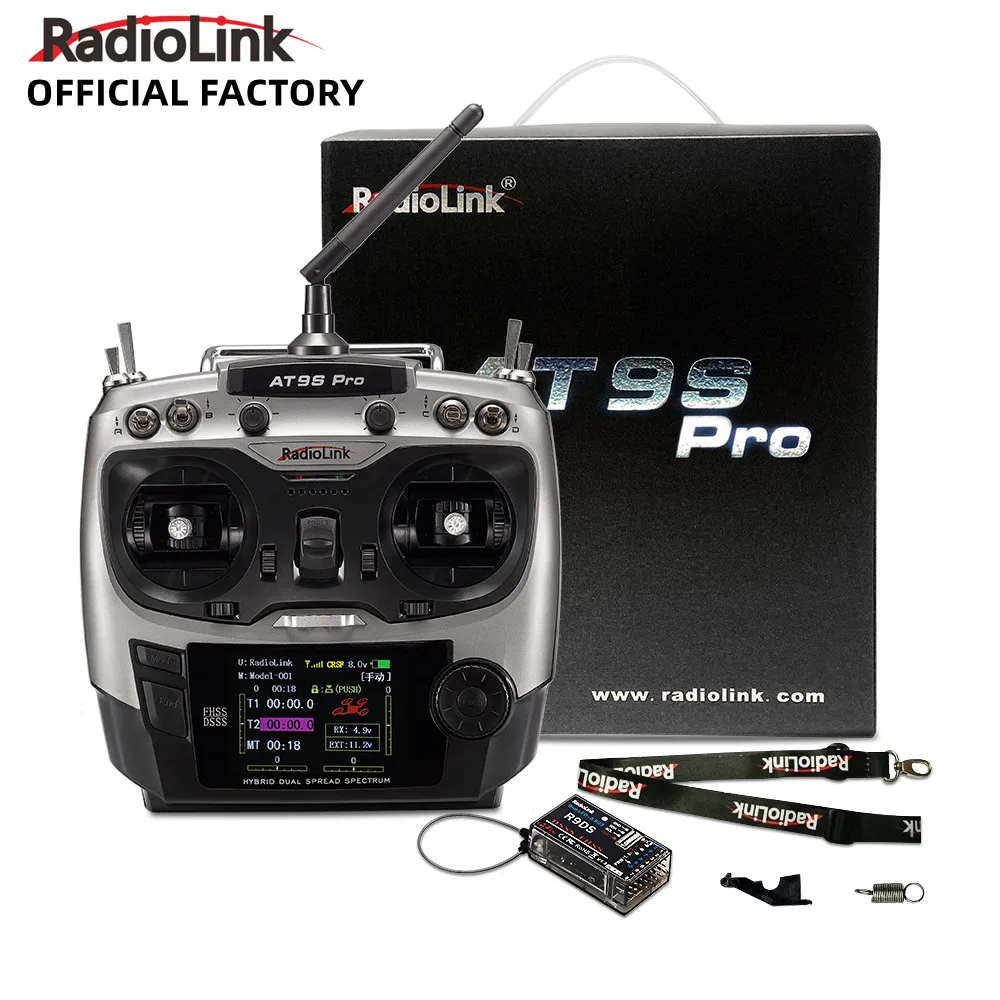

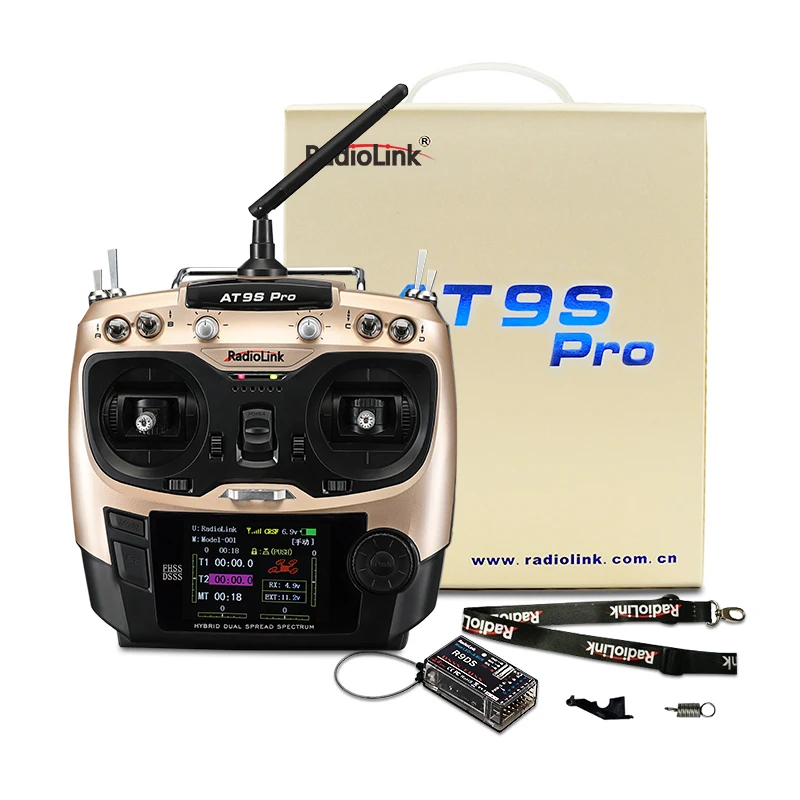

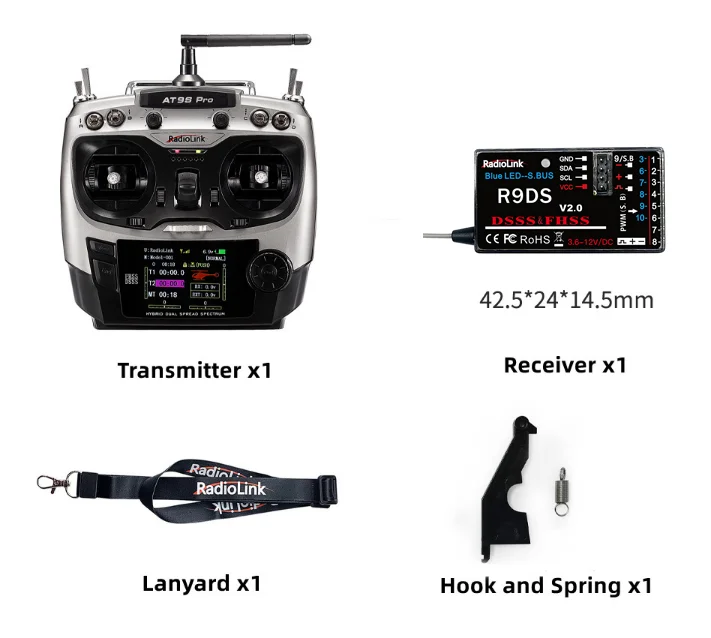

What Can You Get Out Of Each AT9S Pro Set?





















































Subsidiary DUMBORC

Subsidiary DUMBORC















ABOUT DUMBORC



DUMBORC, as the subsidiary of RadioLink, is responsible for the processing and assembly of all RadioLink products. RadioLink products for the retail market, products more tend to premium products. More and more car manufacturers suggest us to design a transmitter without a screen, this transmitter designed for car/boat manufactures that with high-end performance while low price to make sure the customers enjoy the most cost-effective RTR car/boat. So, we let our subsidiary DUMBORC launched a new period transmitters X4, X5, X6 since July 2019. Within the second half of 2019, this period transmitters have been quickly adopted (as RTR) by domestic RC car brands like River Hobby and HNR HOBBY and produced as ODM transmitter by more and more international brands such as TRAXXAS, TAMIYA, CARSON, ABSIMA, LRP, CML, etc.









Trademark registration

Trademark registration

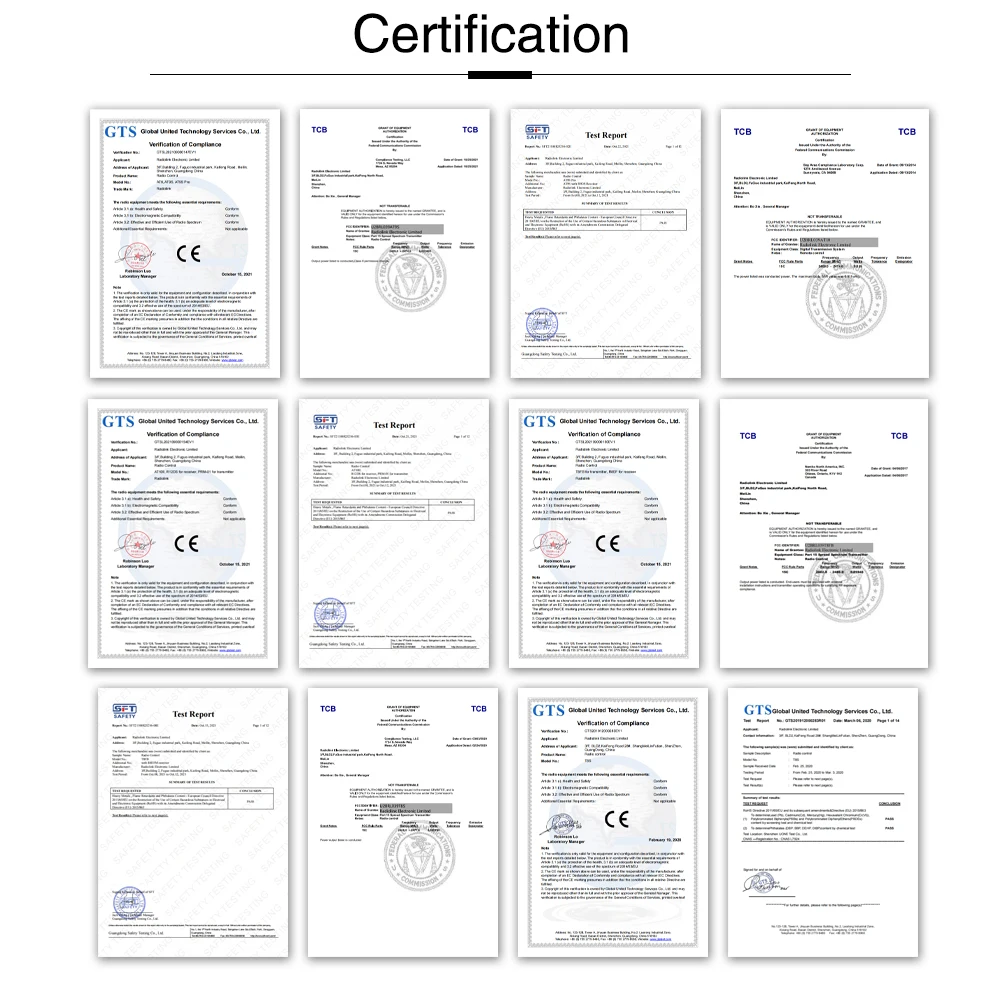

Certifications

Certifications















Honor&Awards

Honor&Awards

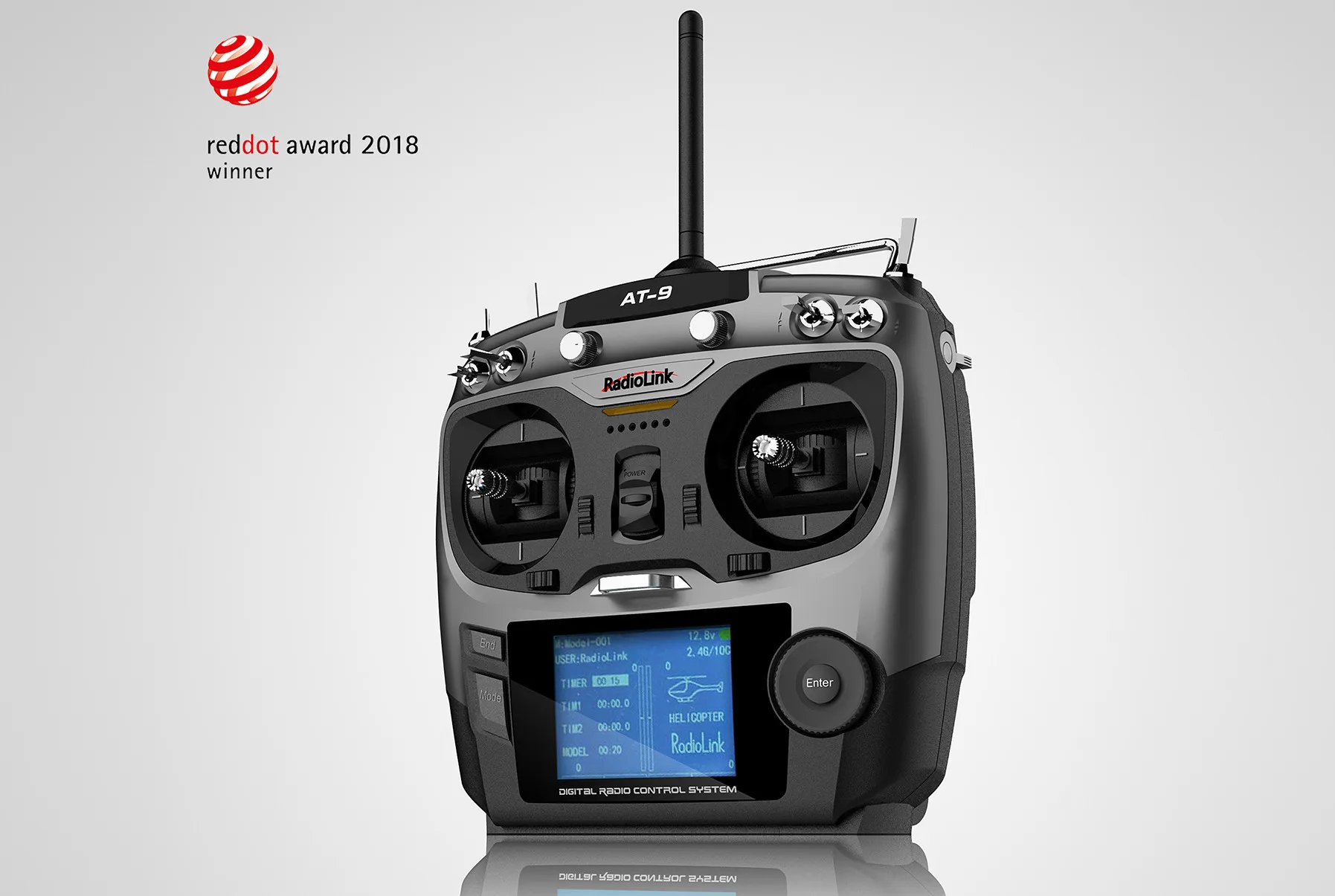

AT9 (same appearance as AT9S/AT9S Pro) won the German RedDot Design Award.

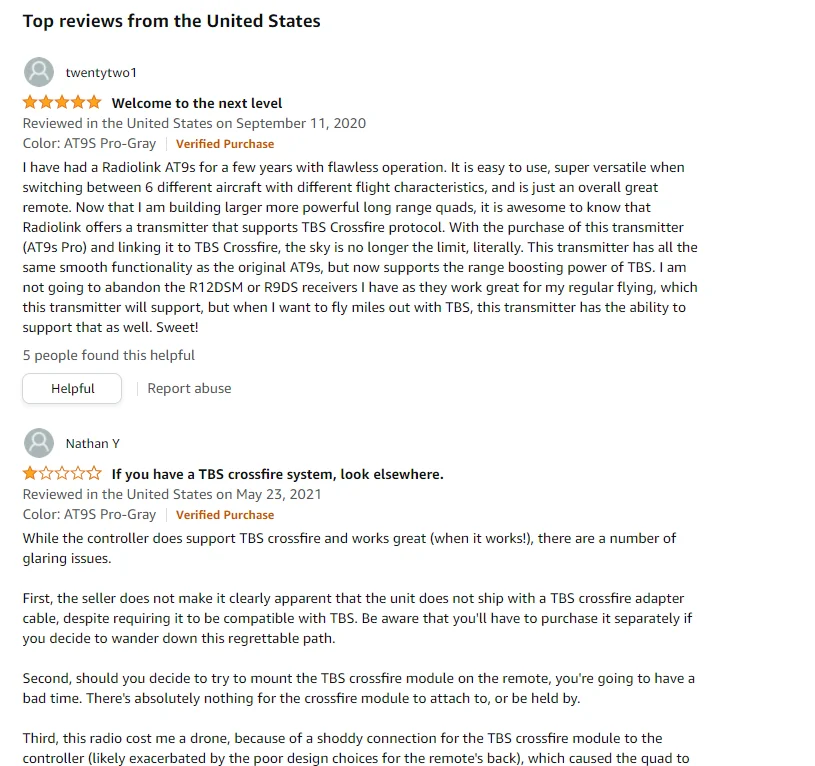

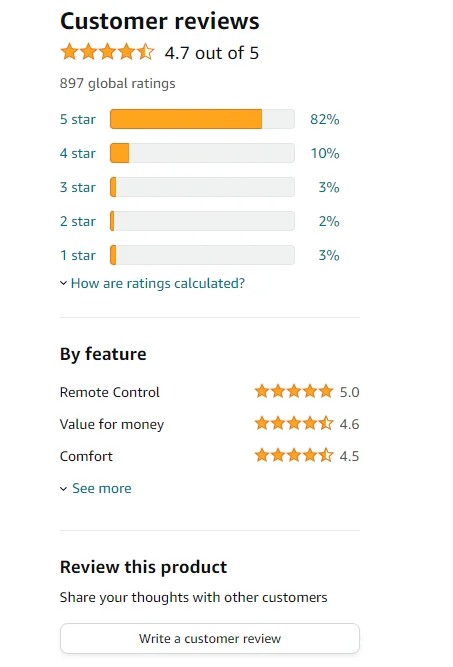

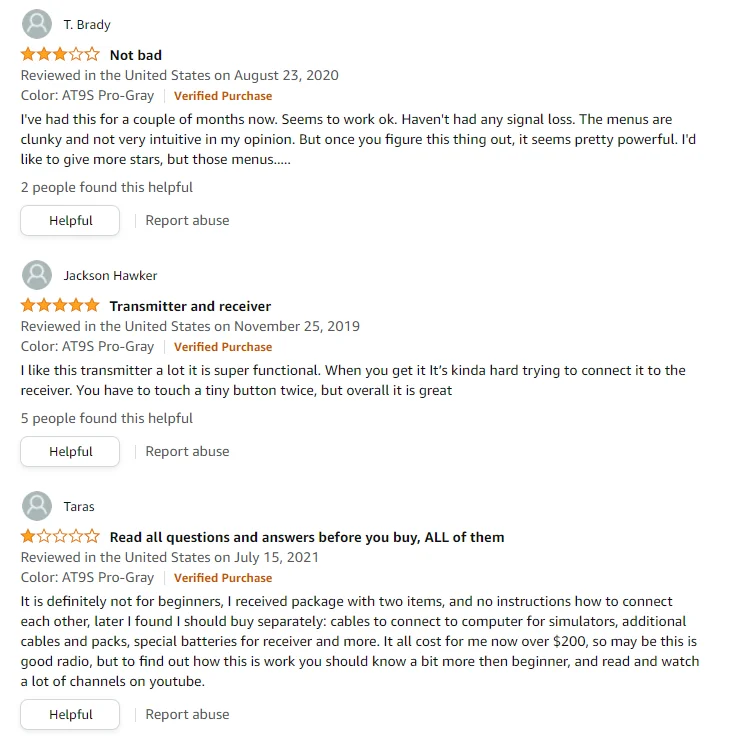

Good Reviews From Amazon

Good Reviews From Amazon

















FAQ

FAQ






Q1.Why can you choose us?
We are professional RC brand manufacturer and we have been in this field for more than 20 years. There are good engineers ,skilled pilots, technicians and after sale support.

Q2. Do you accept the Paypal?
For payment, We accept payment by T/T, Paypal.
If you want any payment terms please let us know before when you order.

Q3. What’s your MOQ and delivery time?
A. The MOQ of the standard product is 10 sets, and the MOQ of the customized product is 300-1000 sets. The specific quantity depends on which product model and customization requirements.
B. Samples usually take 1-2 working days. We have stocks of all products on sale. OEM orders need to be confirmed by both parties.

Q4. What’s your warranty details?
All goods are inspected before shipment. AT9S Pro, AT10II, RC4GS V3, RC6GS V3 are guaranteed for two years, and others are guaranteed for one year. Shipping and handling fees are not refundable, and the customer shall be responsible for all costs of return and re-shipment. All returned goods must remain in their original condition, including the box and accessories. Men's clothing defects are not guaranteed, such as damage, scratches, etc.

Q5. About our feedback?
A:Buyer's early confirmation will be highly appreciated after receiving the items.
B: Since your feedback is very important to our business's development, we sincerely invite you to leave positive feedback for us.
if you are satisfied with our product and service. It'll just take you 1 minute,but this 1 minute has the extremely vital
significance to us.
C:Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems. Thank you for your understanding!

Q6. Which shipping ways is better?
For shipping ways, there is many shipping ways that you can choose. For example, sea shipping, China post, China airmail, EMS.DHL,FedEx, Ups, and TNT etc .Different shipping ways have different delivery time.
It is that according to what shipping ways you want. Any question please contact us!
