Product Overview
Description
Product Description
BW250 mud pump is a horizontal triplex single-acting reciprocating piston pump. This pump is one of the principal equipment for drilling. BW250 Mud Pump is provided with two kinds of liner, 80mm is for core drilling of ordinary bore, and 65 mm is for core drilling of the small bore with a diamond bit. The pump can be driven by an electric motor, diesel engine, or hydraulic motor according to the requirement of the customer in the order. If needed, we can also equip wheels for you.

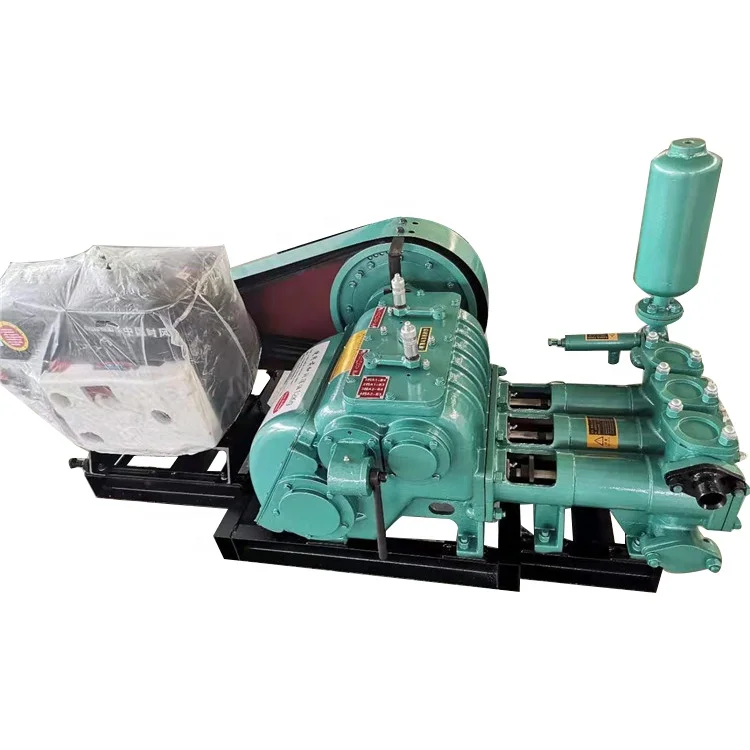

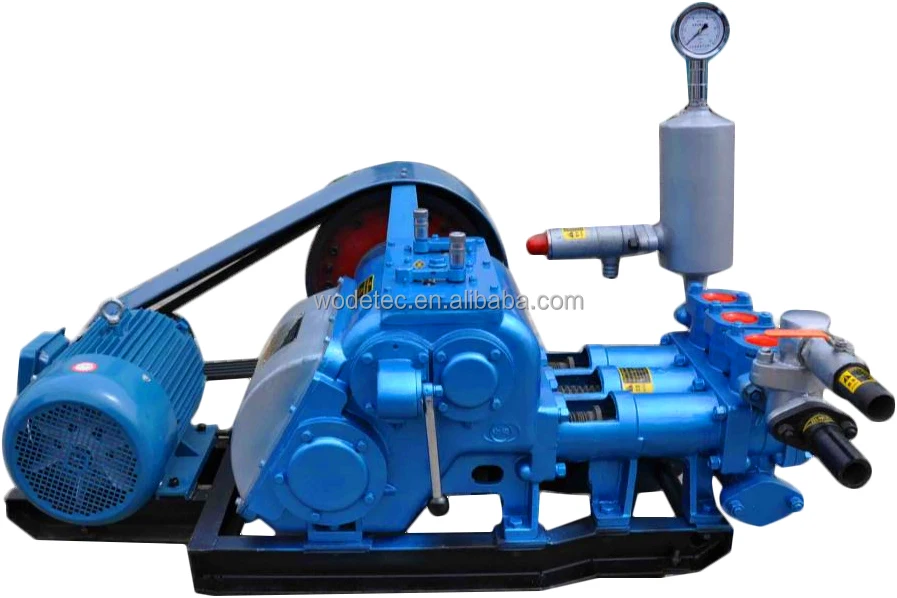

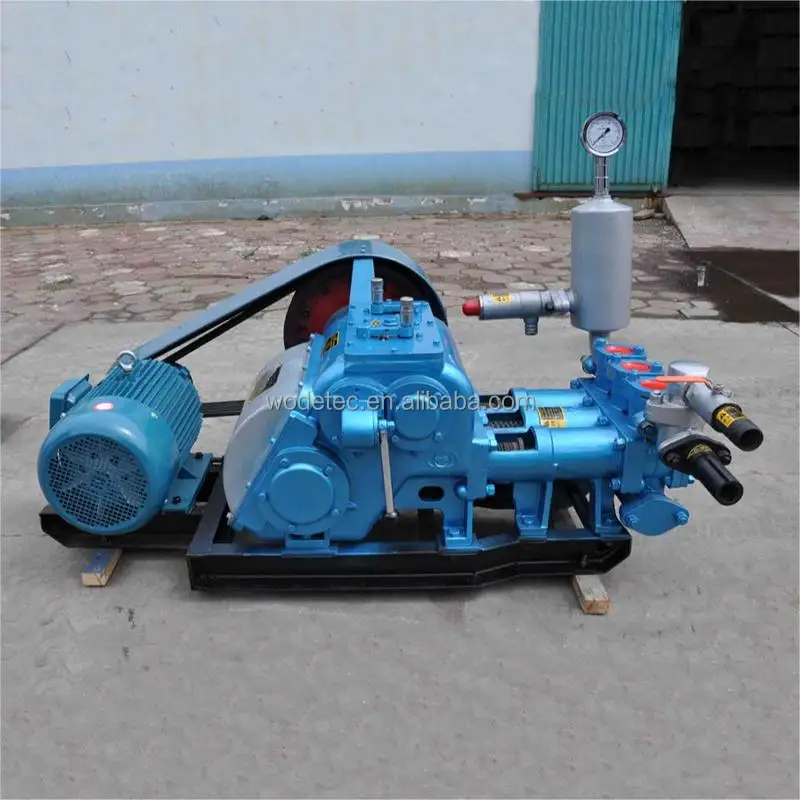

electric motor mud pump

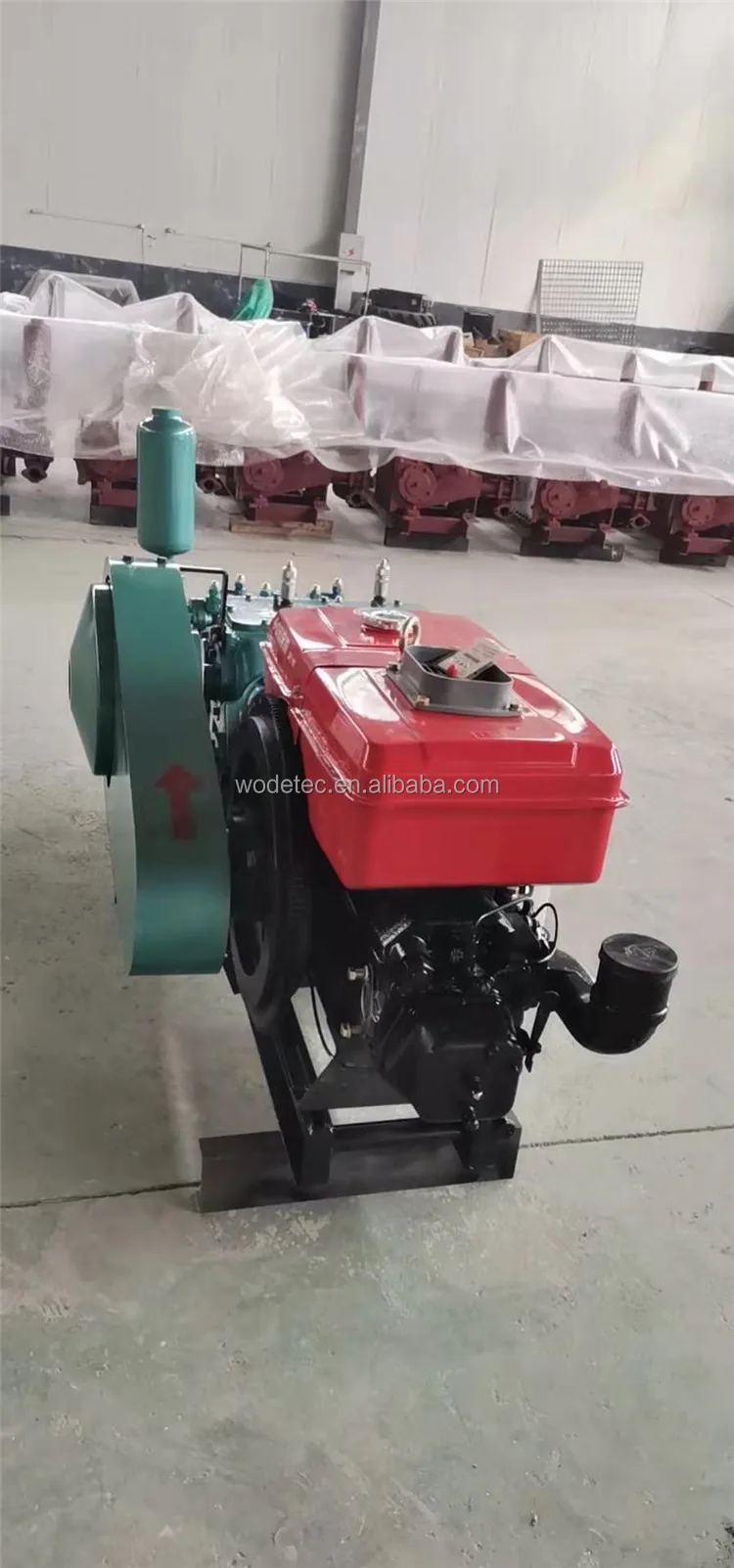

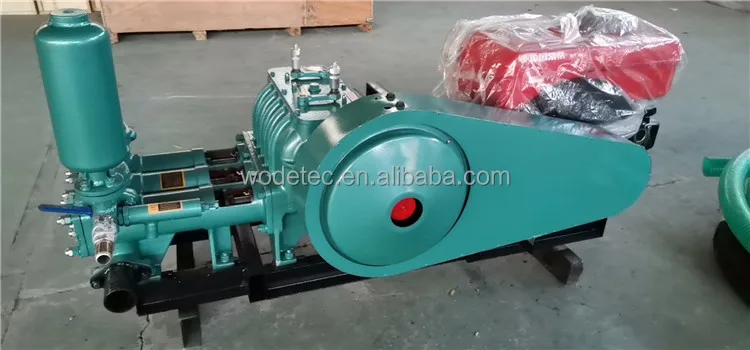

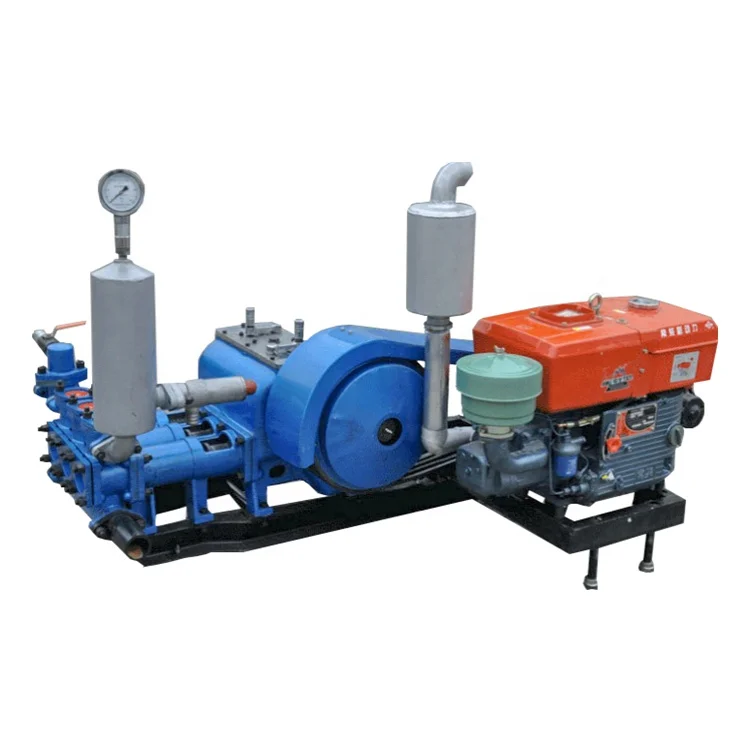

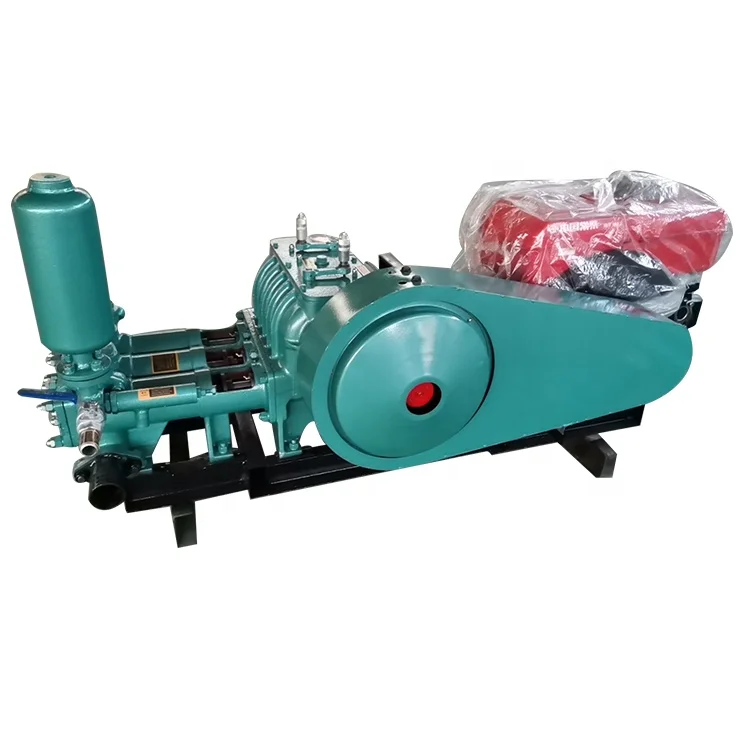

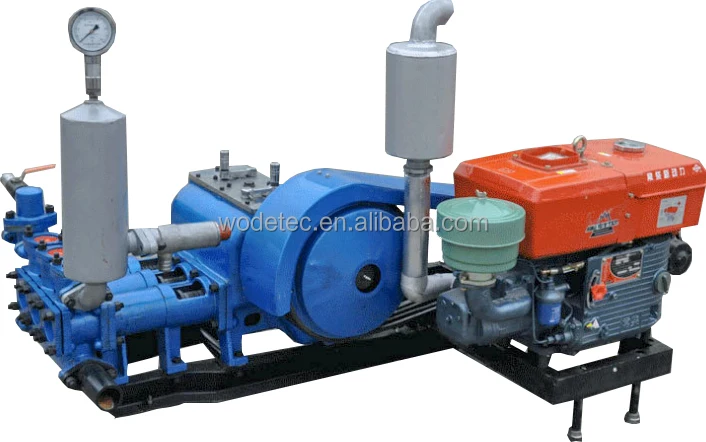

diesel engine mud pump
Technical Data
Type | BW250 Horizontal Triplex Reciprocating Acting piston pump（electric motor） | |||||||||||||||
Stroke(mm) | 100 | |||||||||||||||
Cylinder diameter(mm) | 80 | 65 | ||||||||||||||
Pump Speed(times/min) | 200 | 116 | 72 | 42 | 200 | 116 | 72 | 42 | ||||||||
Flow(L/min) | 250 | 145 | 90 | 52 | 166 | 96 | 60 | 35 | ||||||||
Pressure(Mpa) | 2.5 | 4.5 | 6 | 6 | 4 | 6 | 7 | 7 | ||||||||
Outlet pipe diameter(mm) | 51 | |||||||||||||||
Inlet pipe diameter(mm) | 76 | |||||||||||||||
Power(Kw) | 15 | |||||||||||||||
Weight(kg) | 650 | |||||||||||||||
Overall dimensions(mm) | 1560*995*650 | |||||||||||||||
Pumps equipped with electric, diesel, or hydraulic motors according to customers' requirements | ||||||||||||||||
Product Application
BW250 mud pump is widely used to transfer water, mud, and other flushing fluids when drilling in water well, and oil and gas well areas, such as mining, drilling, coal, railway, highway, water conservancy, hydropower, and bridges. It can be also used for high-rise buildings, and foundation reinforcement works.
Detail Image

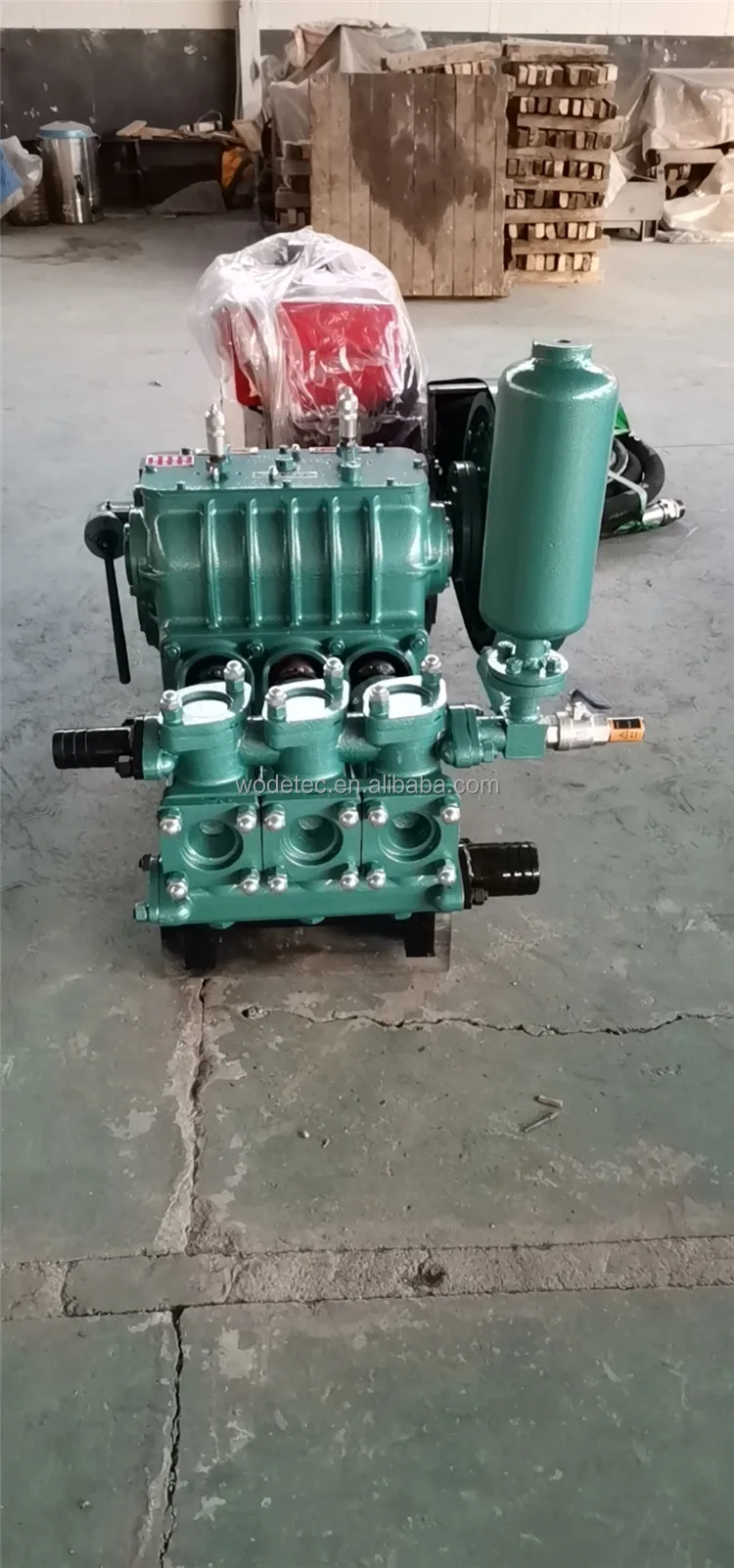

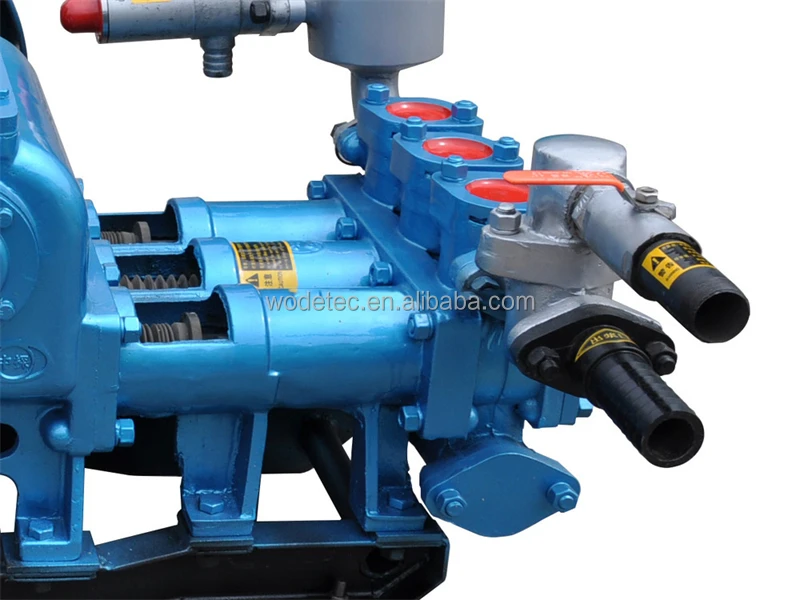

Pump Head Cylinders and Valves

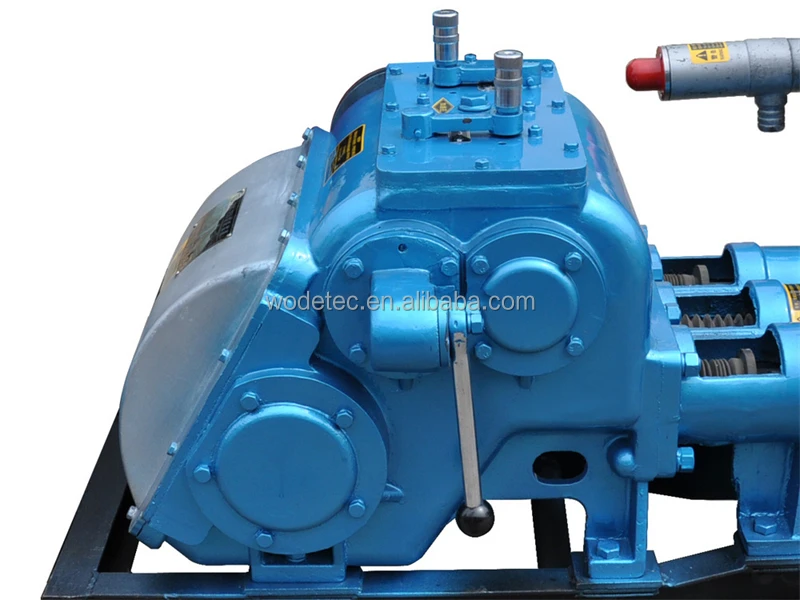

Pump Housing

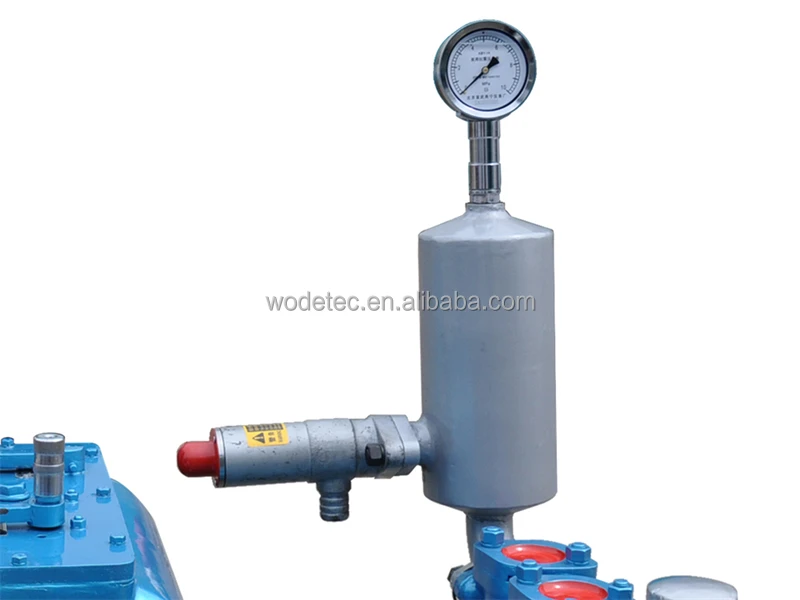

Air Chamber Pressure Gauge
BW250 Triplex Mud Pump Advantage
1. Multi-speed shift gears for variable displacement.
2. Lightweight structure, easy to move.
3. Easy to operate.
2. Lightweight structure, easy to move.
3. Easy to operate.

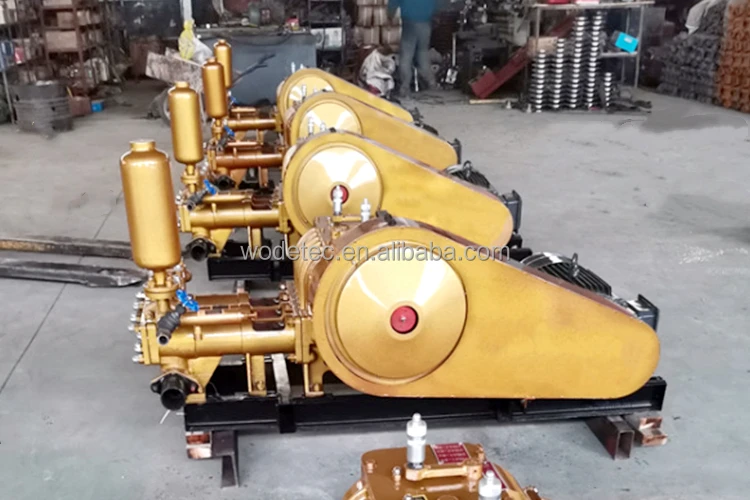

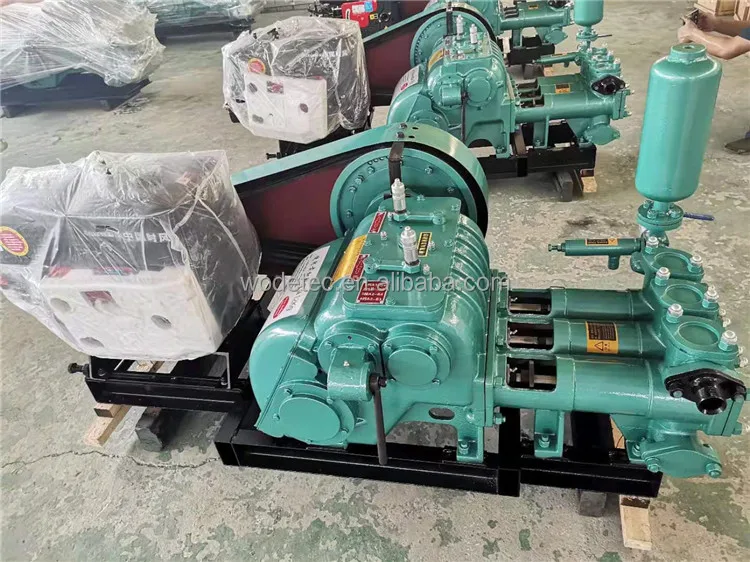

Product Display
Packaging&Shipping
Contact Us
We have many different models for your option, if you are interested in our mud pump or other related pump, welcome to send inquiry to us.
Before we send quotation, please let me know the following questions:
1. What is the pressure and flow you need? (Or what's your hole diameter and hole depth?)
2. Do you need electric motor driven or diesel engine driven or hydraulic motor driven?
3. If you need electric motor driven, the voltage in China is 3 phase 380V 50Hz, is it ok for you?
