LONGi Hi MO X6 Scientist LR5 54HTH 445 455M HPBC Technology Black Frame LONGi solar panel module 445W 450W 455W
- Category: >>>
- Supplier: Jiangsu Solarman Technology Co. Ltd.
Share on (1600947802400):
Product Overview
Description
About LONGi
Picture of Longi Xi'an Headquarters
Founded in 2000, LONGi Green Energy Technology Co., Ltd. (LONGi) is committed to being the most valuable solar technology company in the world.
Longi's shipment volume is far ahead of its peers, ranking first in 2020, 2021, and 2022, among the few in the world.
LONGi Authorizes SOLARMAN's Certificate
LONGi × SOLARMAN
Product Description
Electrical Performance Parameters (STC Test)
LONGi Hi-MO 6 Scientist LR5-54HTH 445-455M | ||||||
Module model | LR5-72HTH-445M | LR5-72HTH-450M | LR5-72HTH-455M | |||
Maximum power (Pmax/W) | 445 | 450 | 455 | |||
Open circuit voltage (Voc/V) | 39.73 | 39.93 | 40.13 | |||
Short circuit current (Isc/A) | 14.37 | 14.45 | 14.52 | |||
Peak power voltage (Vmp/V) | 33.44 | 33.64 | 33.84 | |||
Peak power current (Imp/A) | 13.31 | 13.38 | 13.45 | |||
Module efficiency(%) | 22.8 | 23.0 | 23.3 | |||
Standard test conditions | STC：AM1.5 1000W/m² 25℃ | |||||
Packing | 36pcs per pallet / 216pcs per 20'GP / 936pcs per 40'HC | |||||

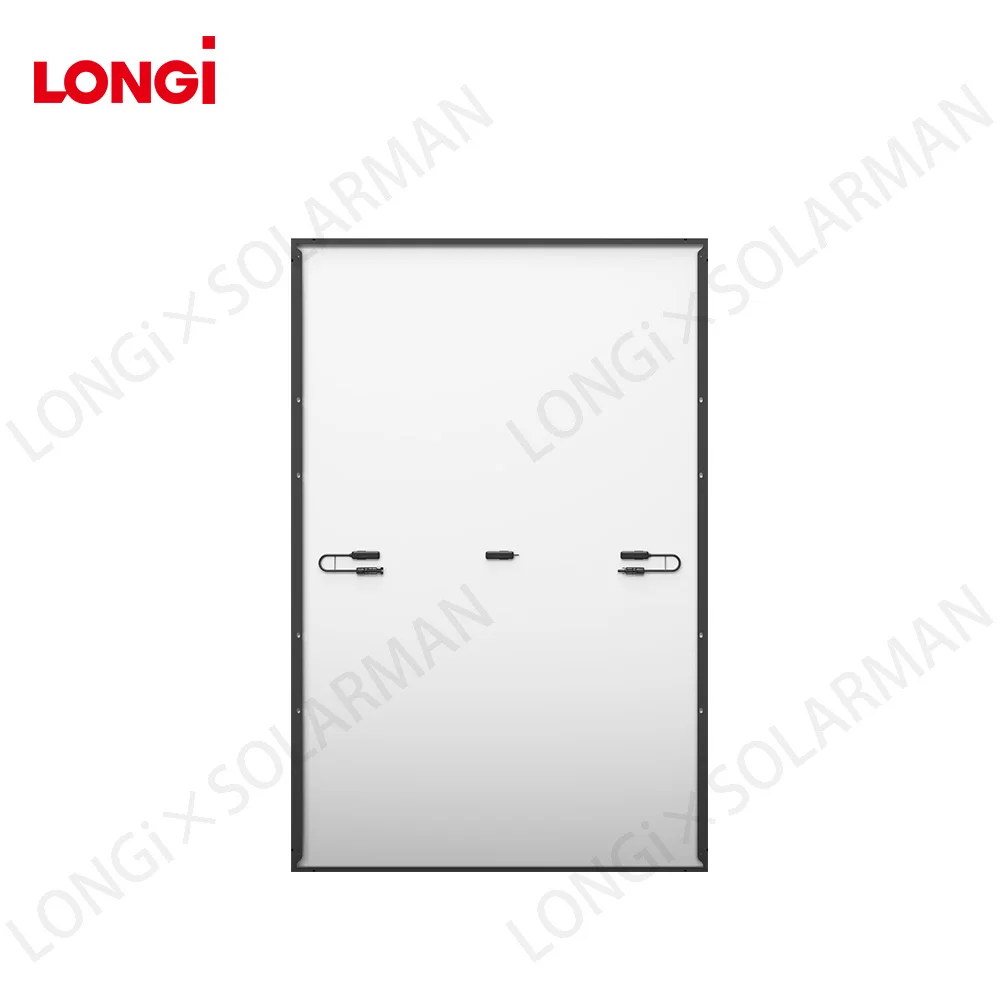

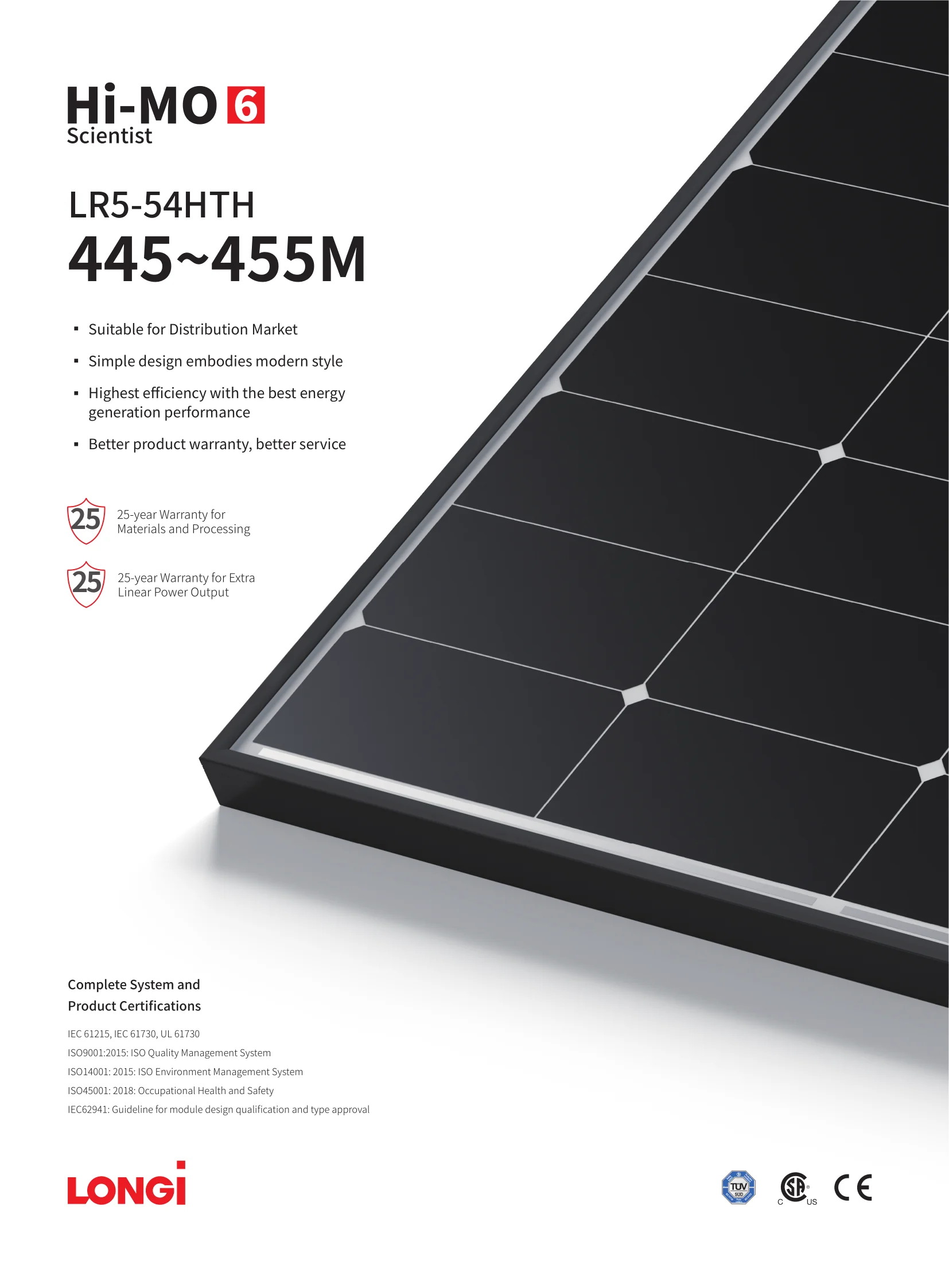

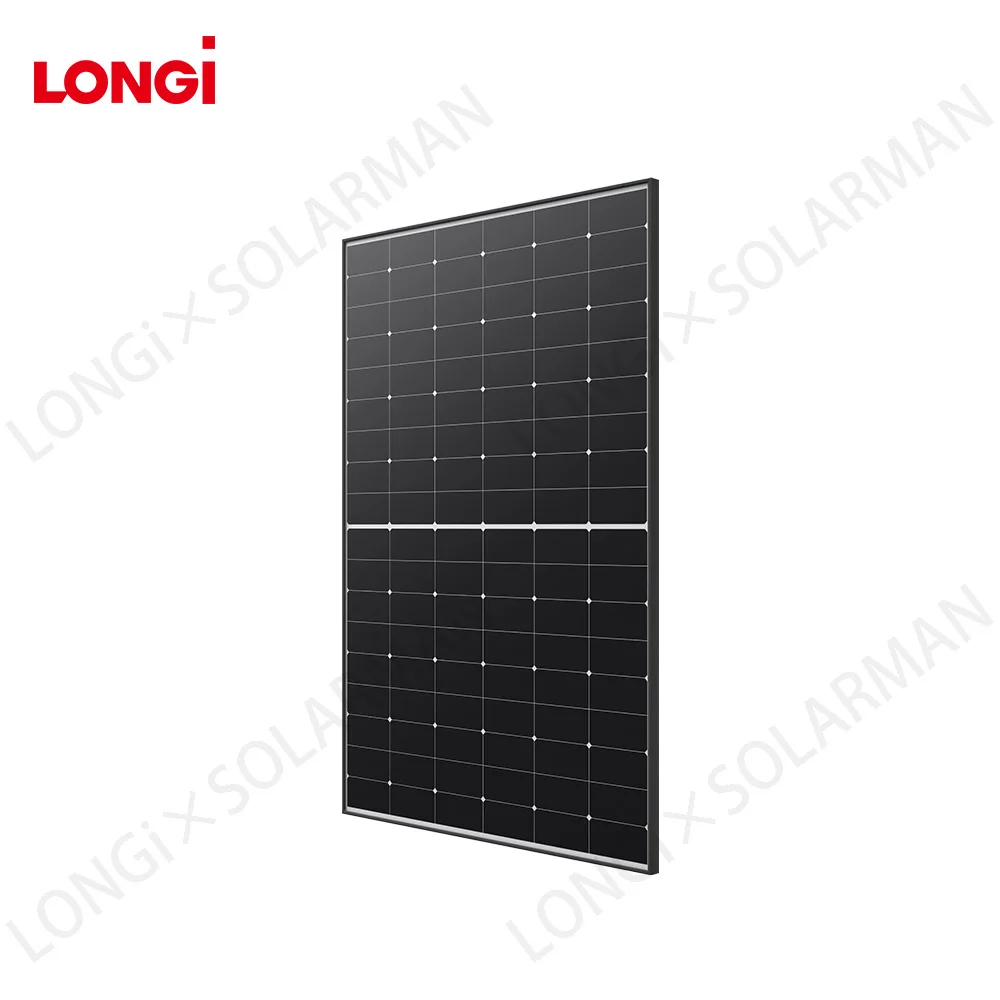

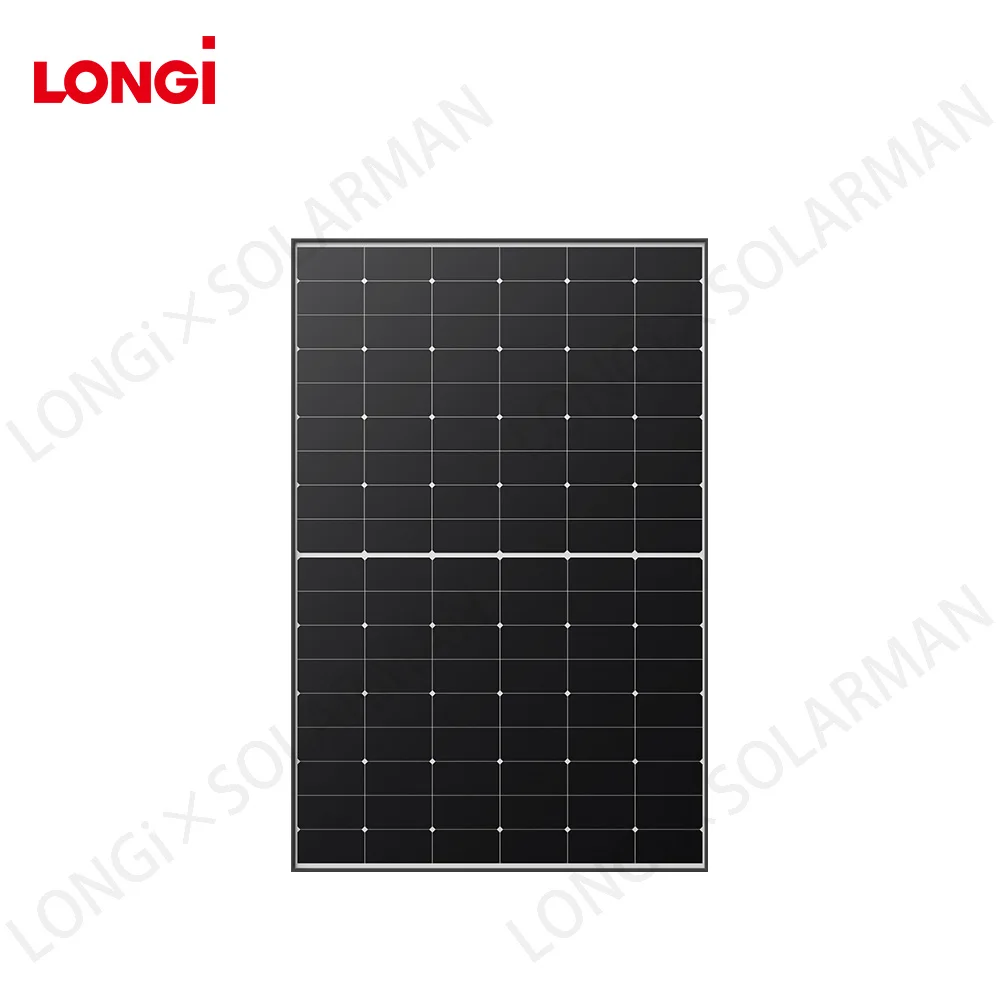

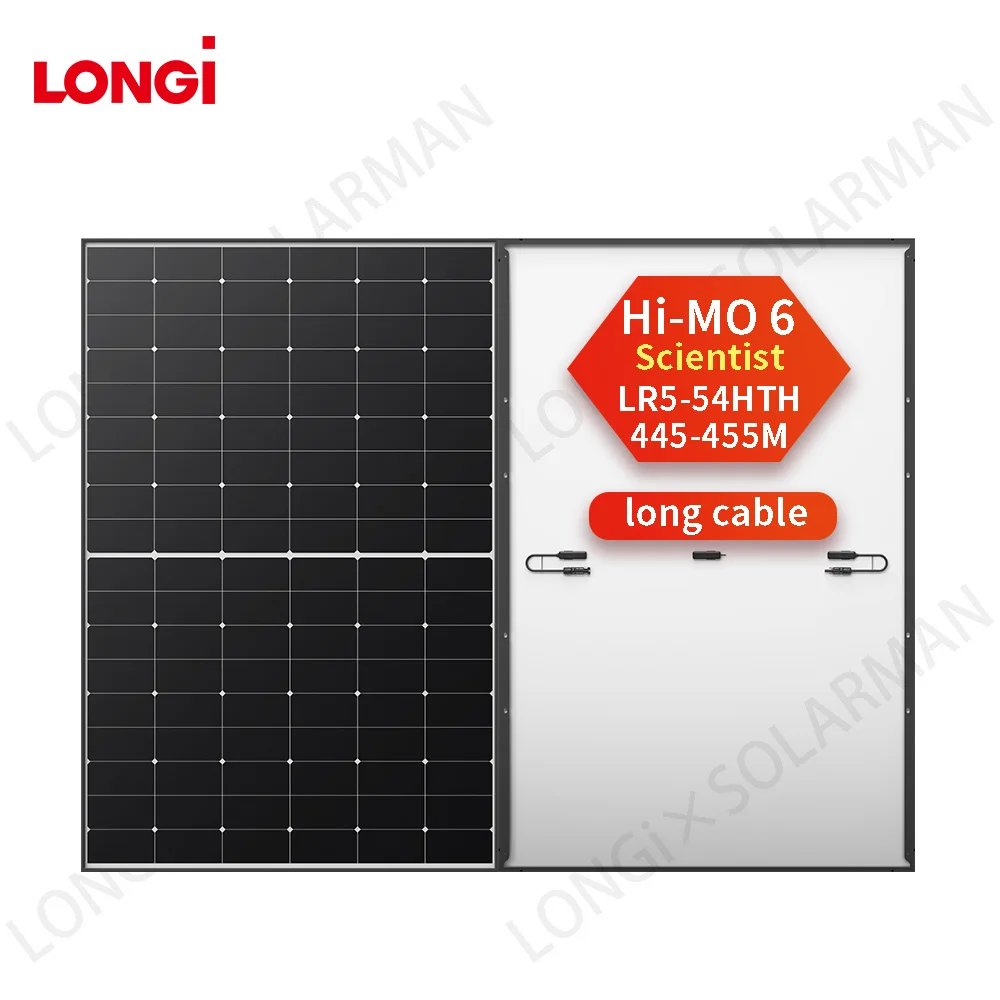

Product image

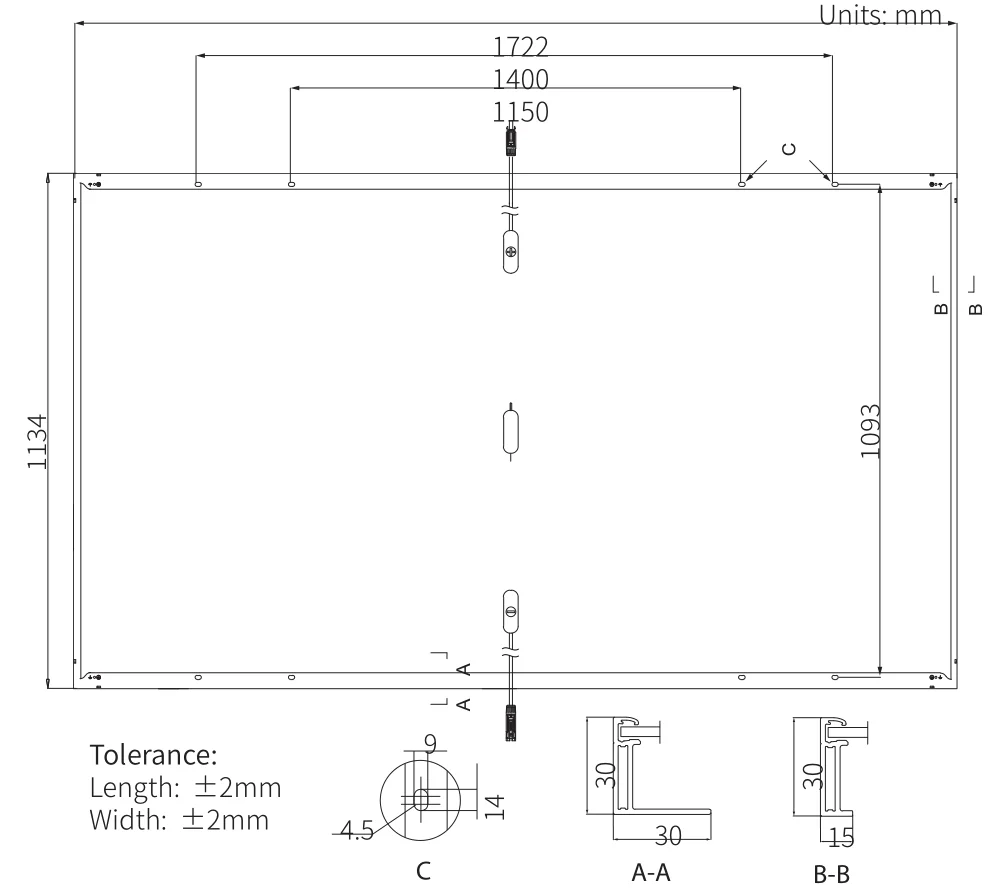

Mechanical Parameters
LONGi Hi-MO 6 Scientist LR5-54HTH 445-455M | ||||||||
Number of solar cells | 108（6×18） | |||||||
Junction box | Split junction box，IP68，3 diodes | |||||||
Output cable | 4mm²，long cable，±1000mm/±1400mm | |||||||
Single Glass | 3.2mm coated tempered glass | |||||||
Weight | 20.8kg | |||||||
Size | 1722*1134*30mm | |||||||
Packaging | 36pcs per pallet / 216pcs per 20‘GP / 936pcs per 40‘HC | |||||||

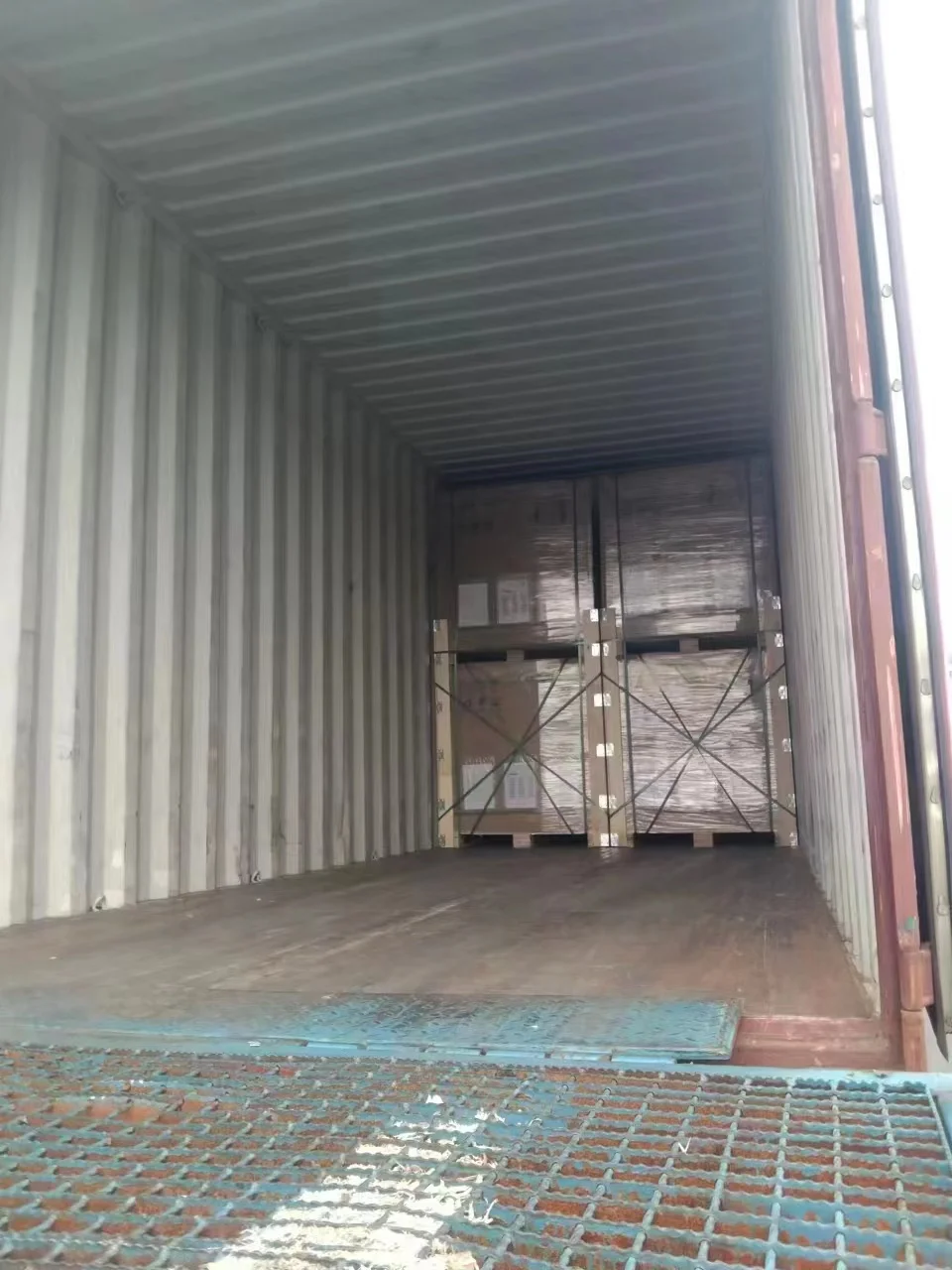

Packaging and container loading
Projects cases

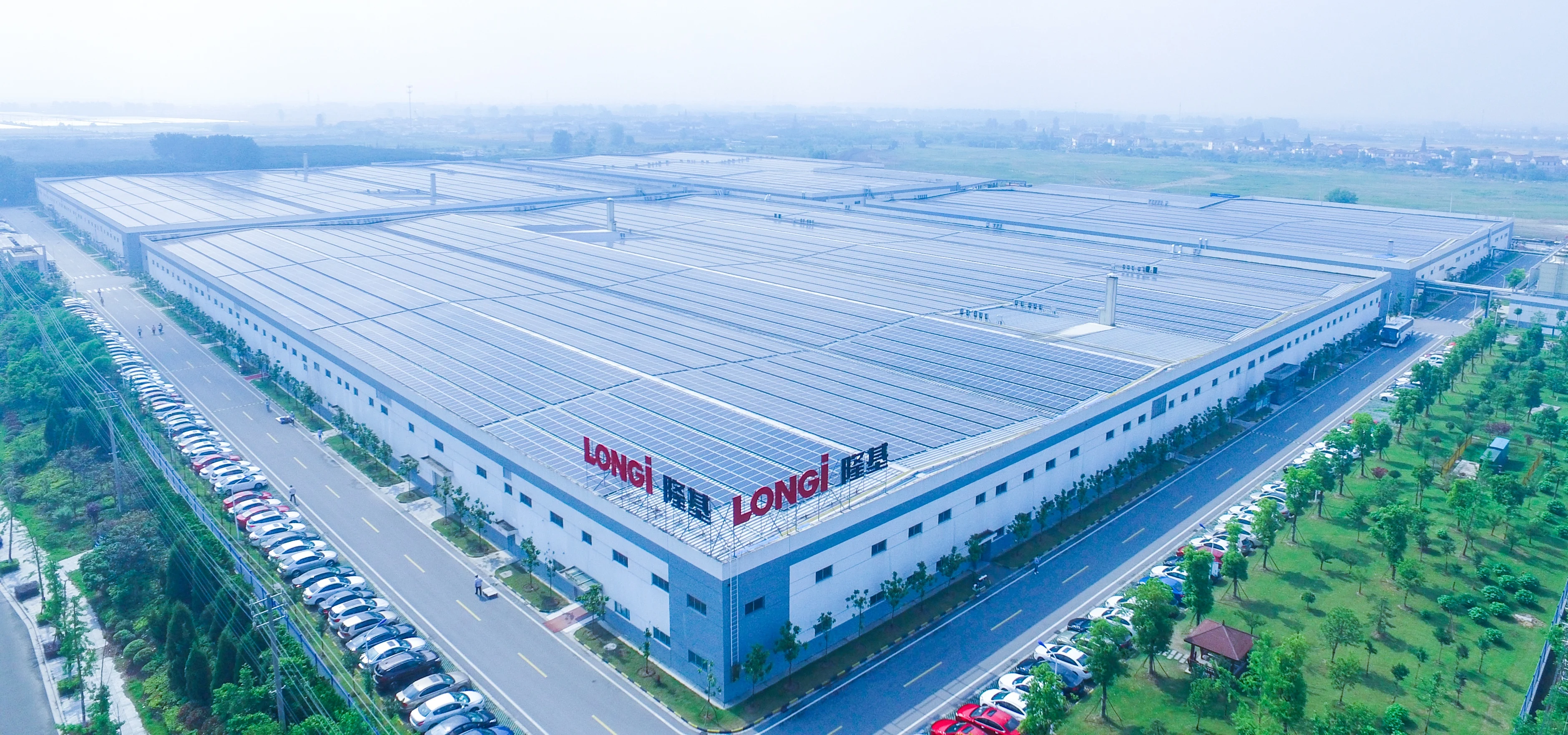

Longi Factory Roof Solar Power Station（see above）
Longi Ground Solar Power Station（See below）
