Introduction

The Centrifugal Spray Dryer is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is the most suitable for producing solid powder or particle products from liquid materials, such as: solvent, emulsion, suspension and pumpable paste states, fro this reason, when the particle size and distribution of the final products, residual water contents. Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.

Application

Food industry
Fat-rich milk powder, sorghum, cocoa milk powder, milk replacer powder, egg white (yellow), food and plant juice, Oatmeal, chicken juice, coffee, instant tea, flavorings, meat, protein, soy, peanut protein, hydrolysate, licorice/herb extract etc.
Carbohydrate
Corn syrup, corn starch, glucose, pectin, maltose, etc.
Plastic resin
AB, ABS emulsion, urea resin, phenolic resin, dense (urea) formaldehyde resin, polyethylene, polyvinyl chloride and the like.
Chemical industry
Sodium fluoride (potassium), basic dye pigments, dye intermediates, compound fertilizers, formaldehyde silicic acid, catalysts, sulfuric acid agents, amino acids, white carbon black, and the like.
Ceramics
Alumina, ceramic tile material, magnesium oxide, talcum powder.

Advantages

1-Particle size control
The dry particle size can be easily controlled by atomization of the liquid feed and the design of the hot gas inlet. This spray dryer can typically produce between 30 to 500 micron average particle size, in a bell shaped distribution.
2- The evaporative cooling of product
The heat and mass transfer during drying occurs in the air and vapor films surrounding the droplet. This protective envelope of vapor keeps the particle at the saturation temperature. As long as the particle does not become "bone-dry", evaporation is still taking place and the temperature of the solids will not approach the dryer outlet temperature.
3- Short residence time
The surface area produced by atomization of the liquid feed enables a short gas residence time, ranging from 3-10 seconds depending upon the application, which permits spray drying without thermal degradation.
4- Flow properties of dry product
The shape of most spray dried particles is spherical, which provides for fluid-like flow properties. This makes many downstream operations, such as packaging, pressing, filtering, and handling easier and less costly.
5- Size design of drying chamber
The size of drying chamber is specially designed to prevent droplets sticking to the inner wall, dried powder accumulating on the cone part and guarantee enough residence time.

Details Show

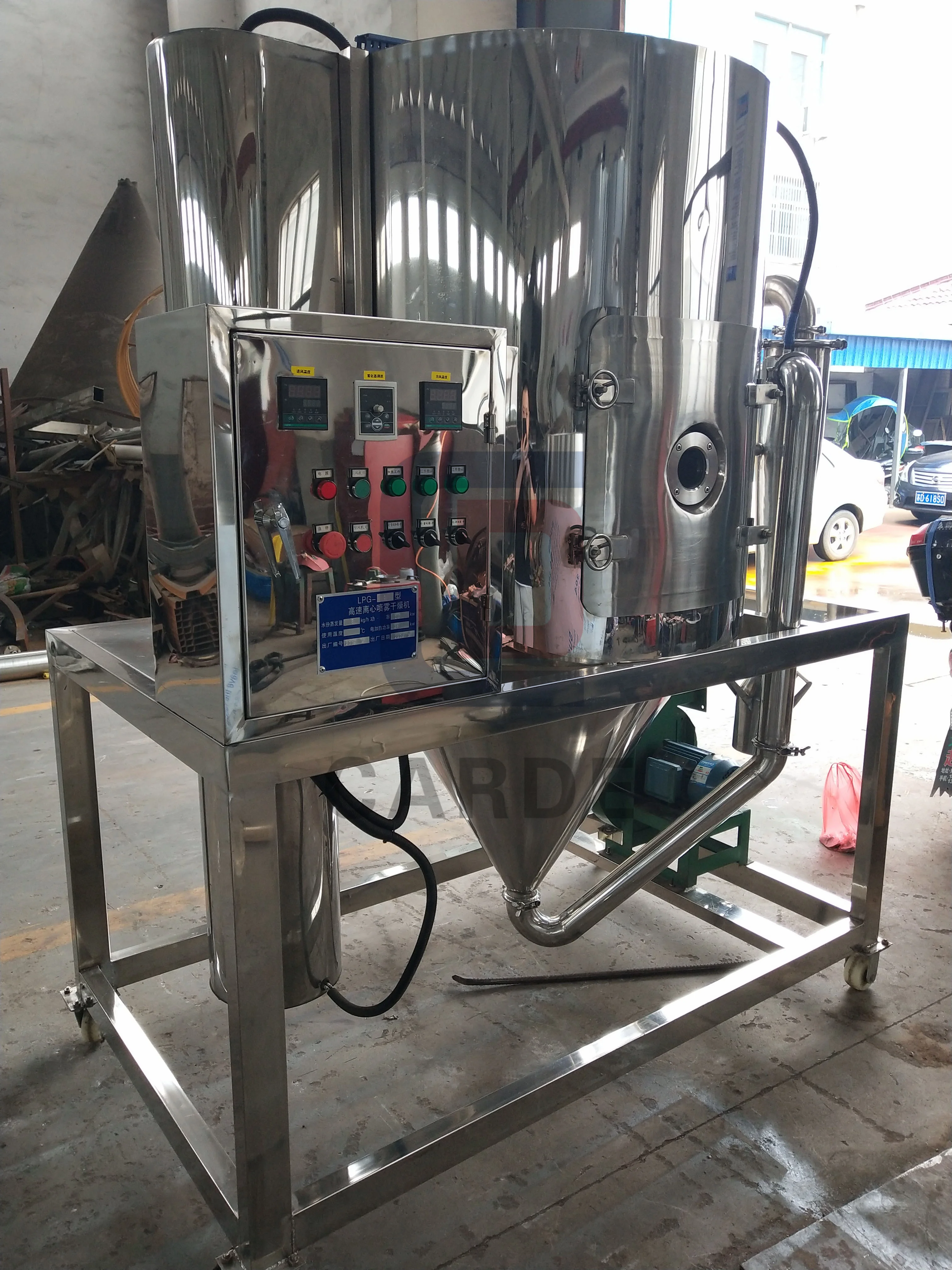

Control method--- Button control/PLC control

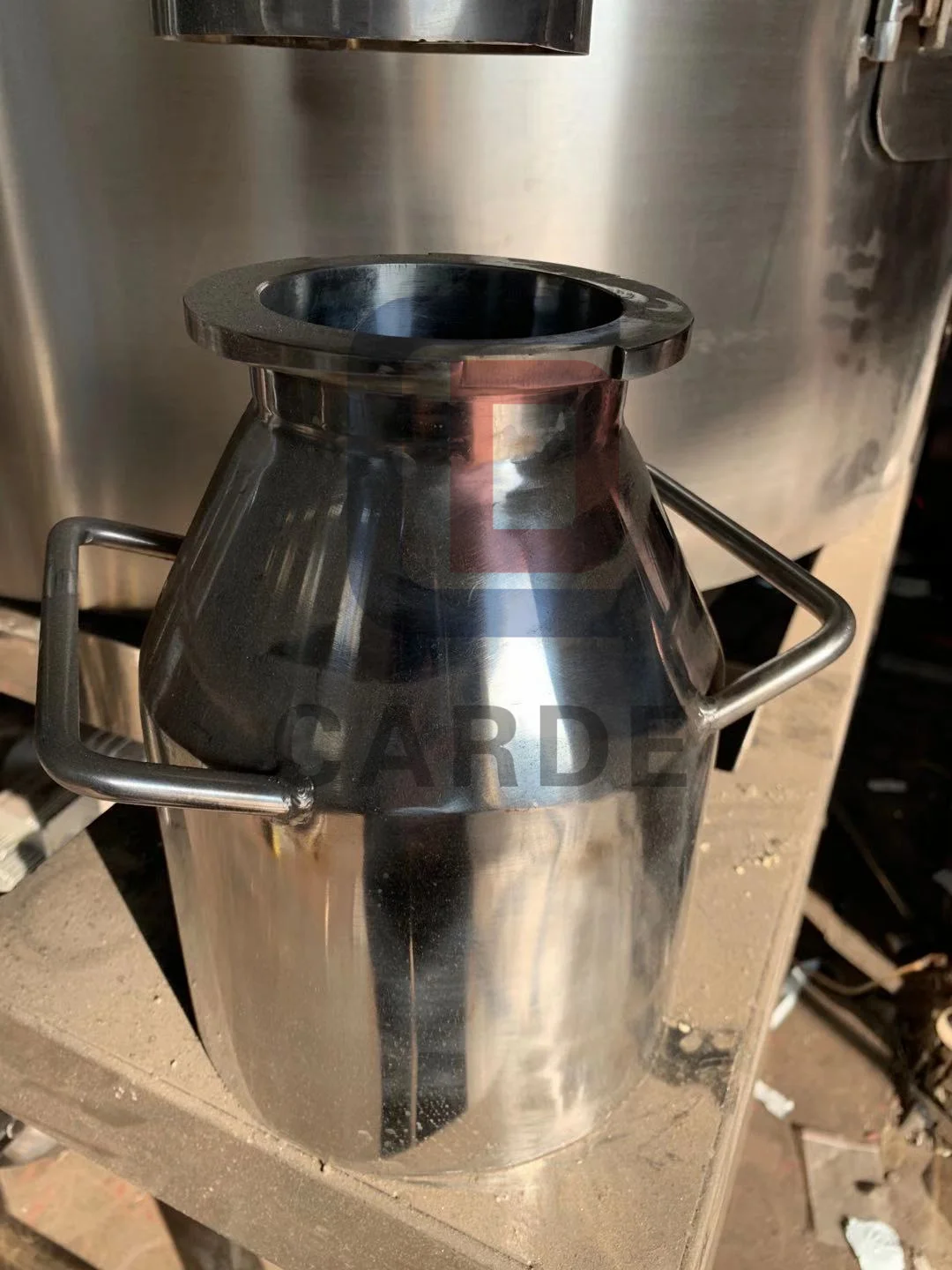

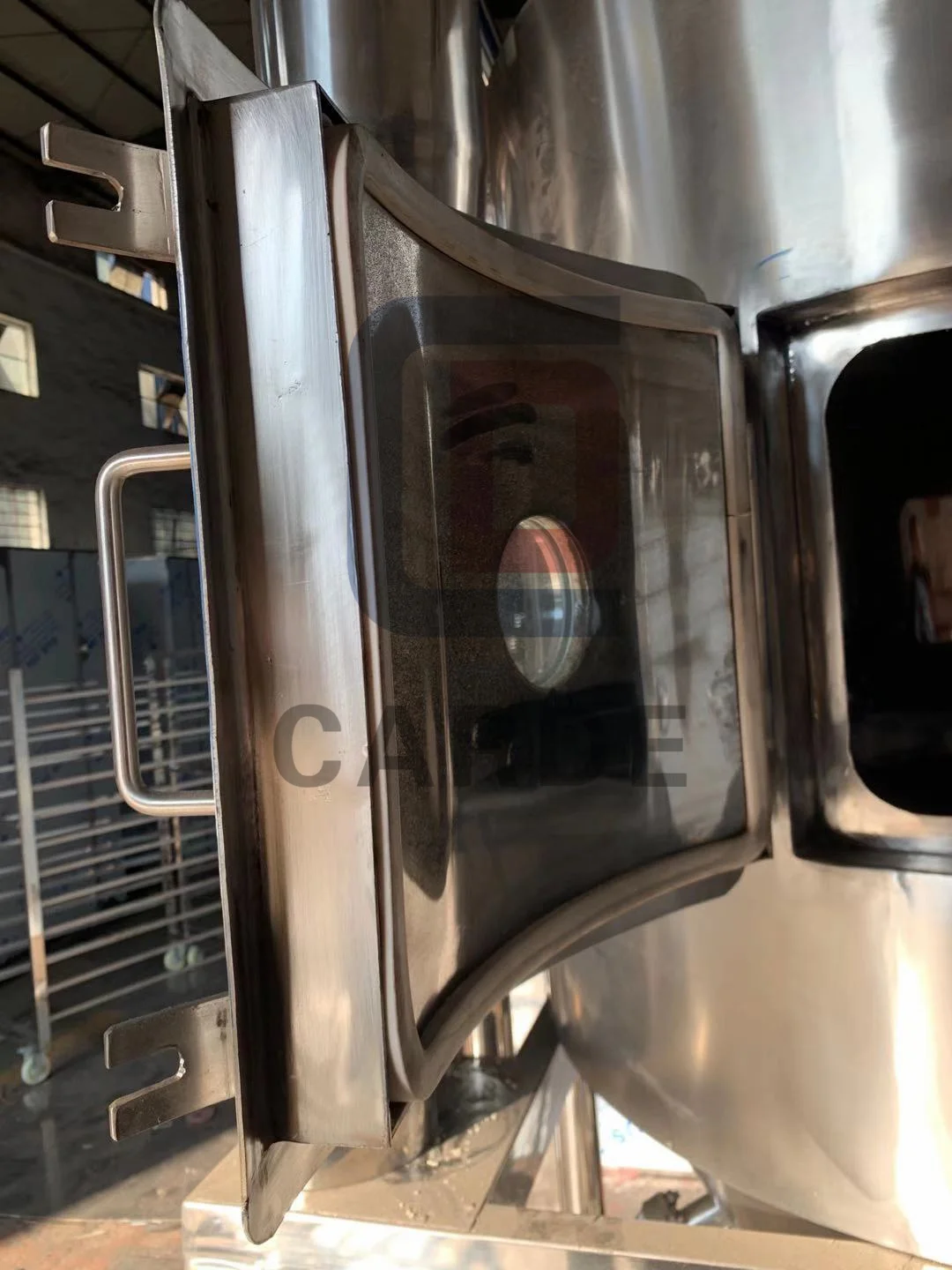

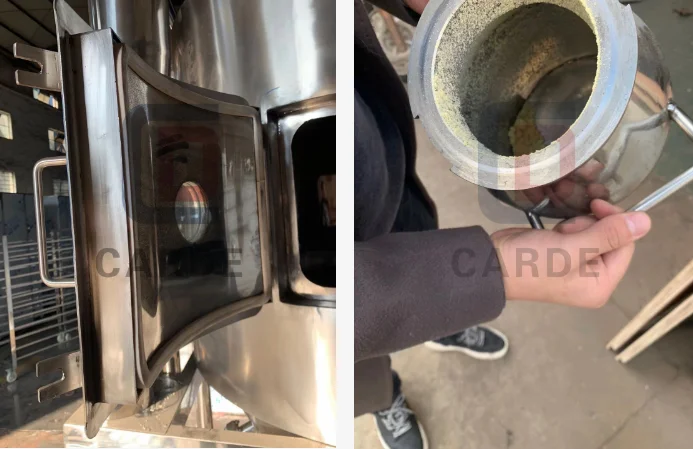

Spray dryer view window & Powder collect tank

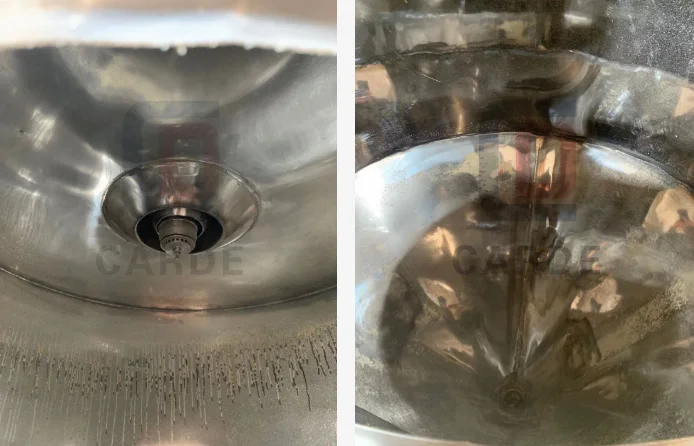

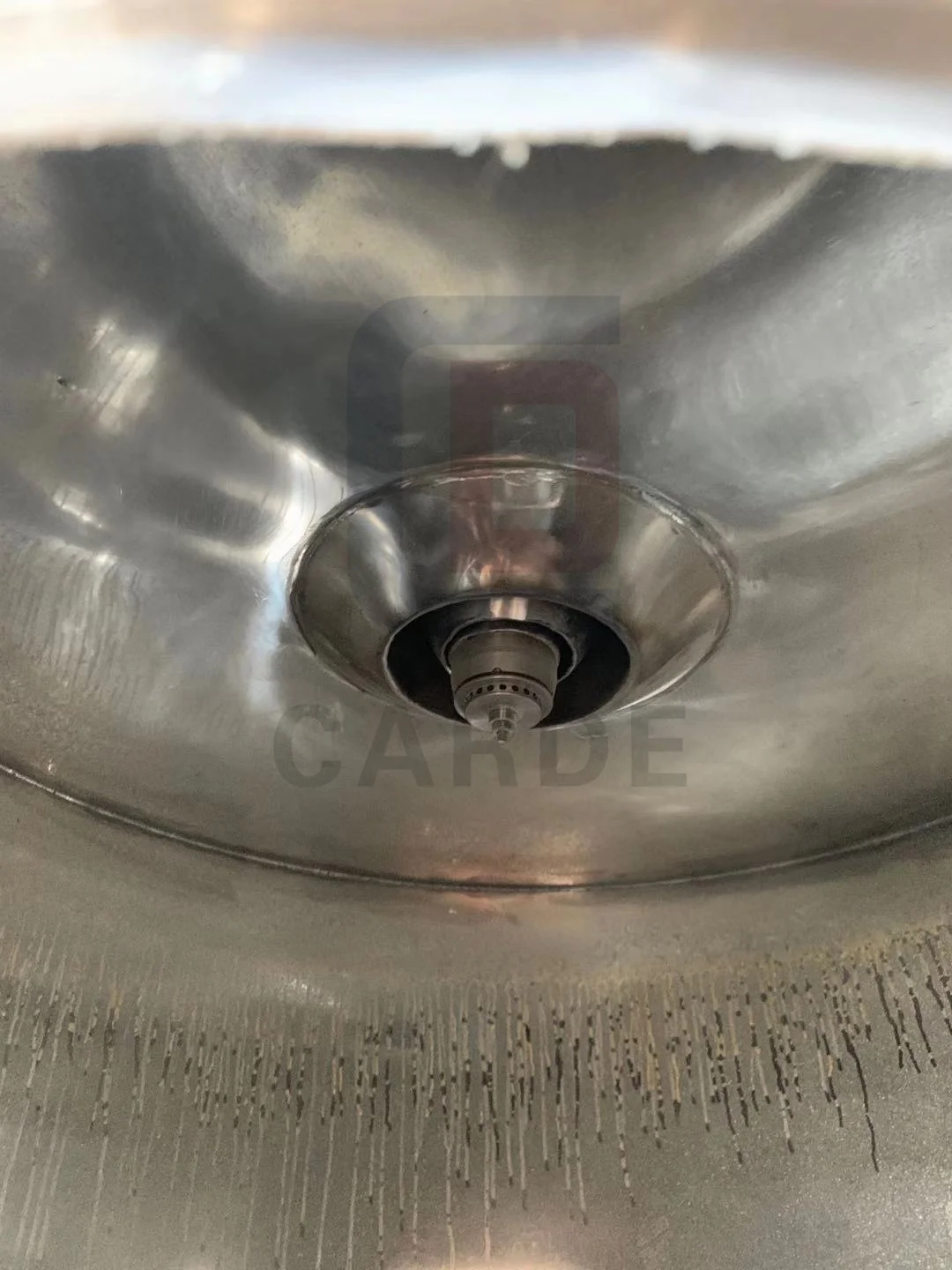

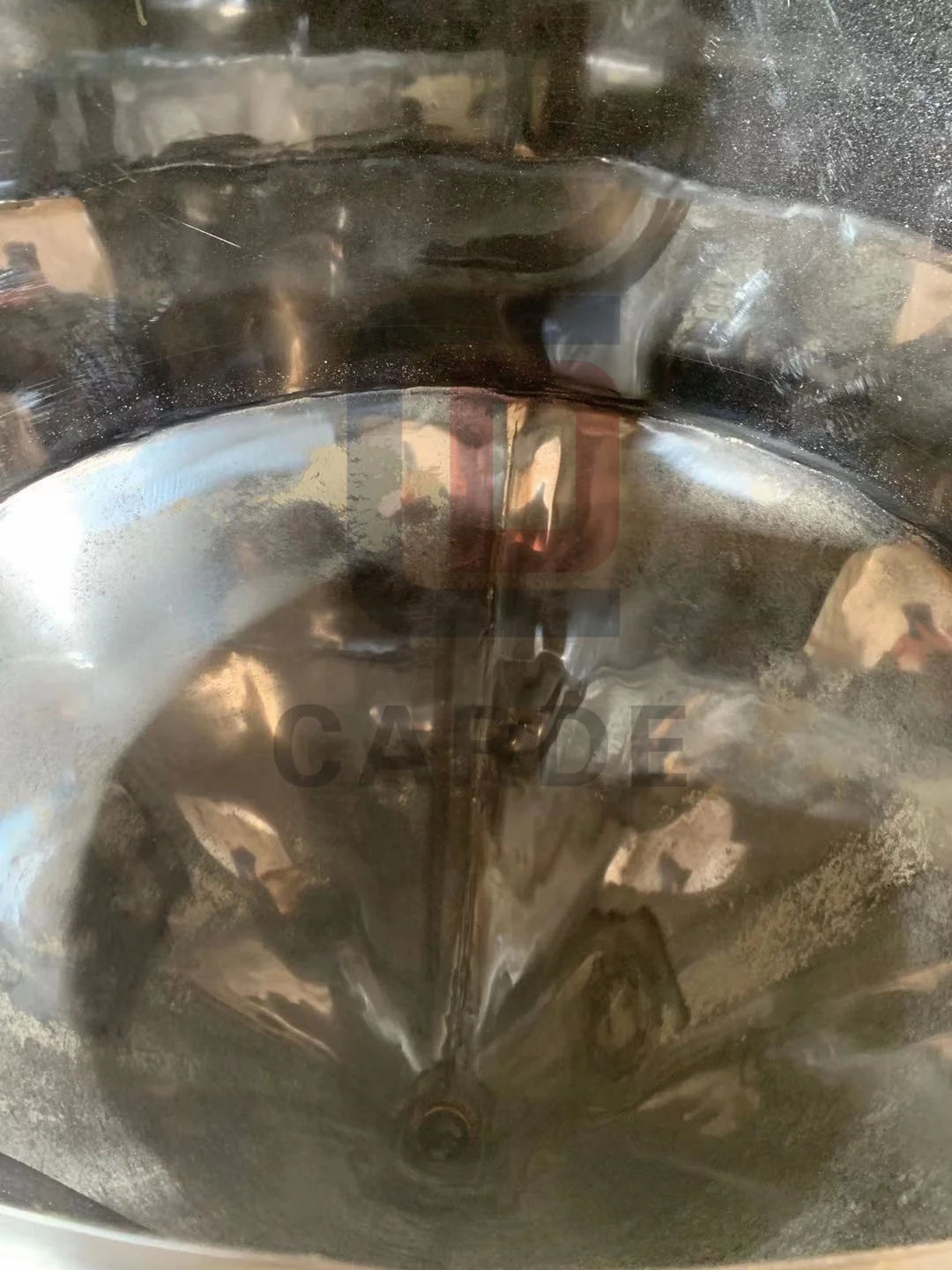

Atomizer & Tower bottom

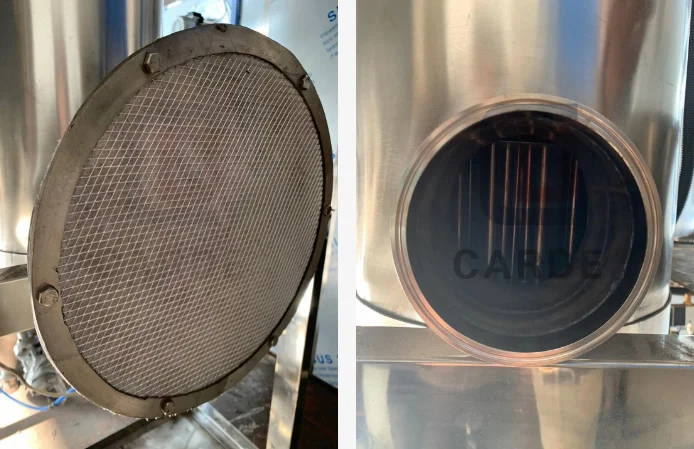

Air filter & Heat source part(Electricity)

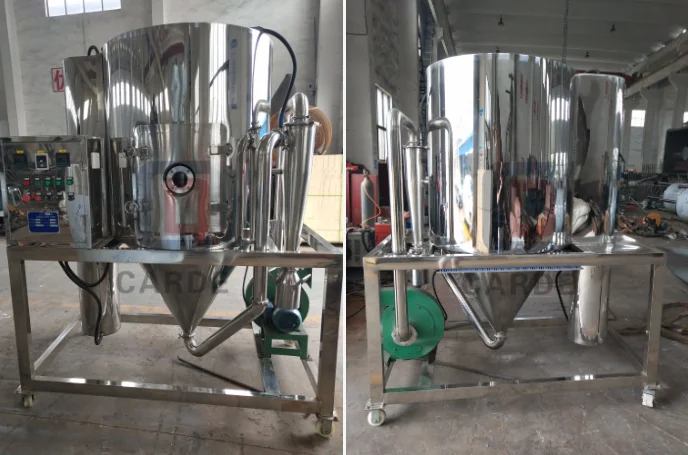

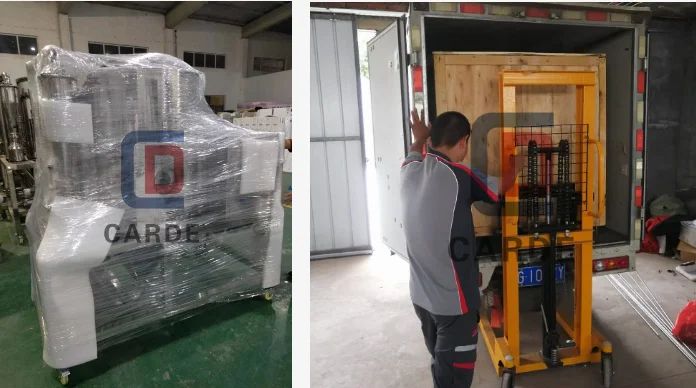

Delivery 5L Spray Dryer

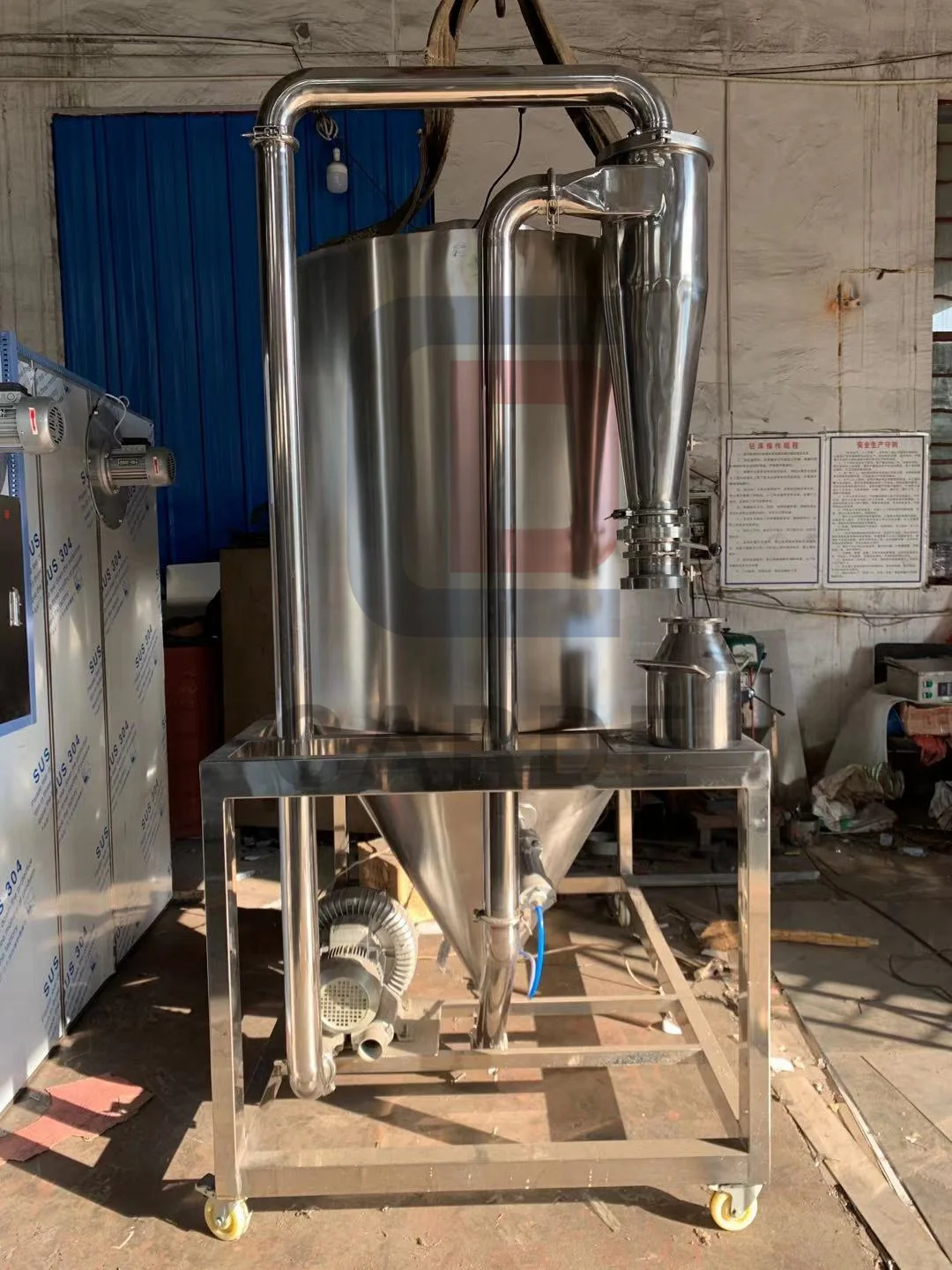

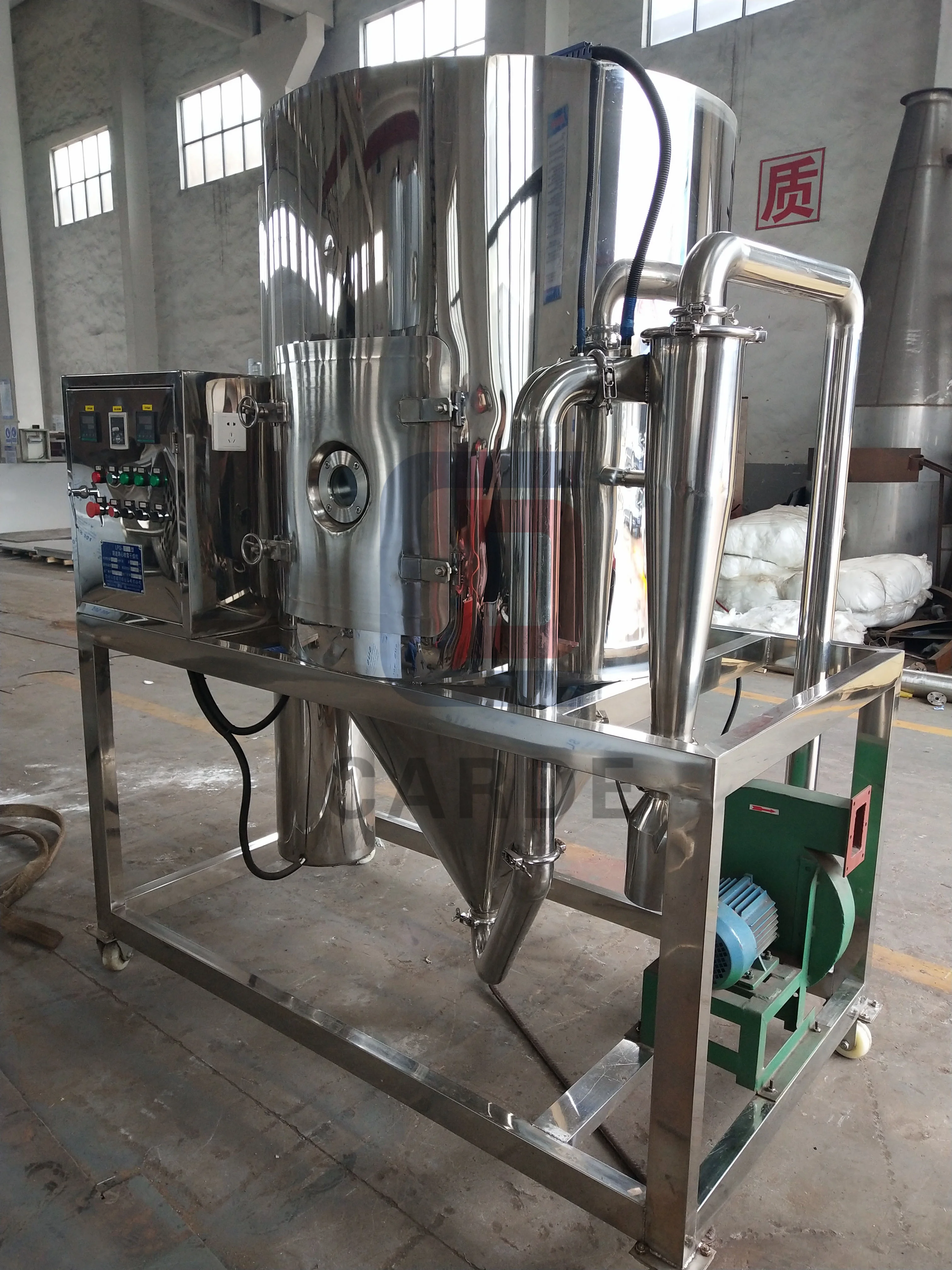

Same system spray dryer

more models with different capacity

(Click the picture,see more details)

Model: CD-LPG-2 Capacity:Max 2L/H Heating method: electricity Power: 4Kw Machine size: 650*500*1200mm
Model: CD-LPG-10 Capacity:Max 10L/H Heating method: electricity Power: 22Kw Machine size: 2500*1600*2800mm (Heat method option: electricity steam,gas,diesel,biomass,coal etc)
Model: CD-LPG-25 Capacity:Max 25L/H Heating method: electricity Power: 36Kw Machine size: 3000*2700*4260mm (Heat method option: electricity steam,gas,diesel,biomass,coal etc)
Model: CD-LPG-50 Capacity:Max 50L/H Heating method: electricity Power: 63Kw Machine size: 3700*3200*5100mm (Heat method option: electricity steam,gas,diesel,biomass,coal etc)
Customized model     Capacity: 100L/H,150L/H,300L/H,500L/H...etc...   Heating method (electricity,steam,gas,diesel,biomass,coal etc) etc...... . . .
