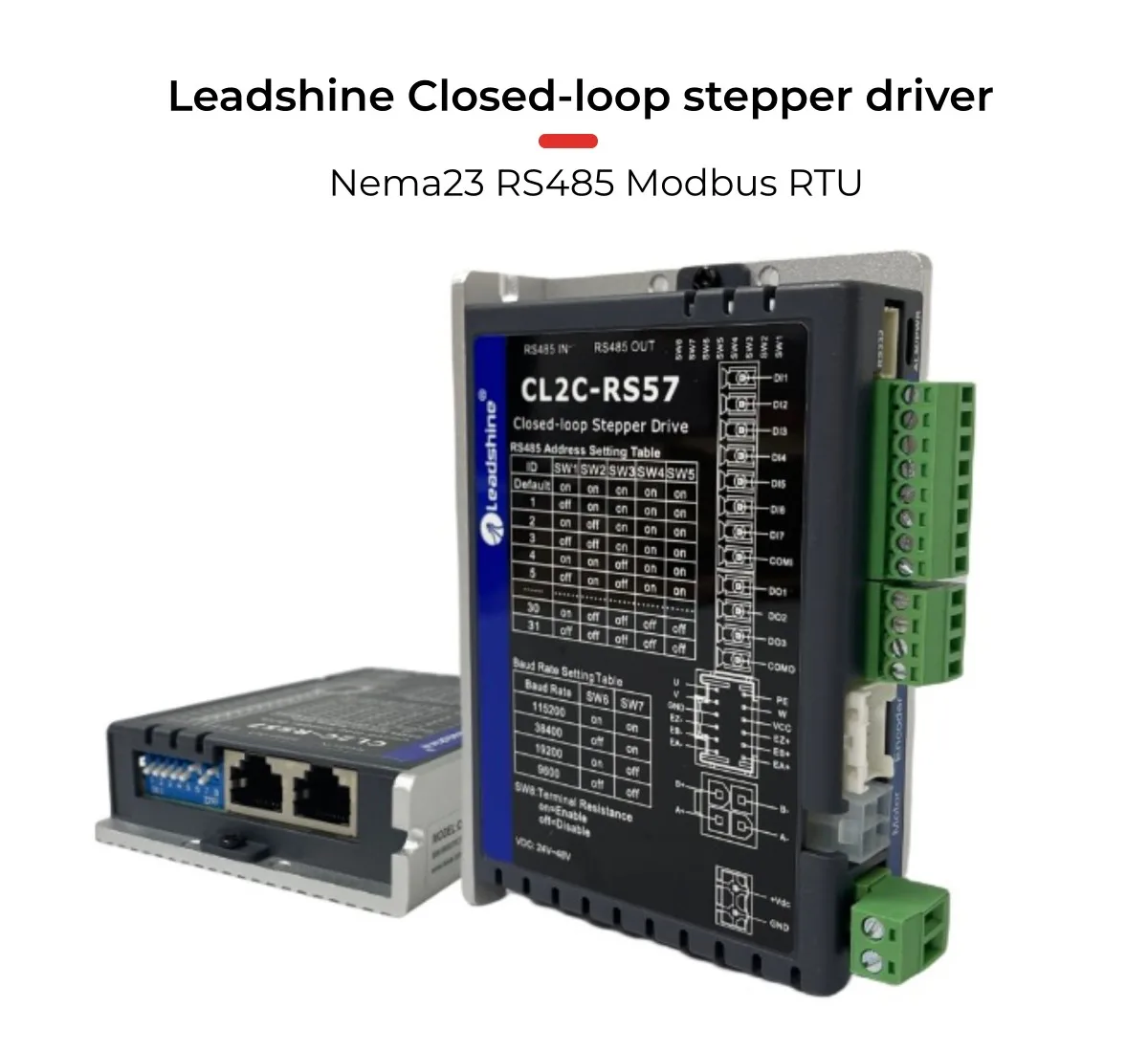

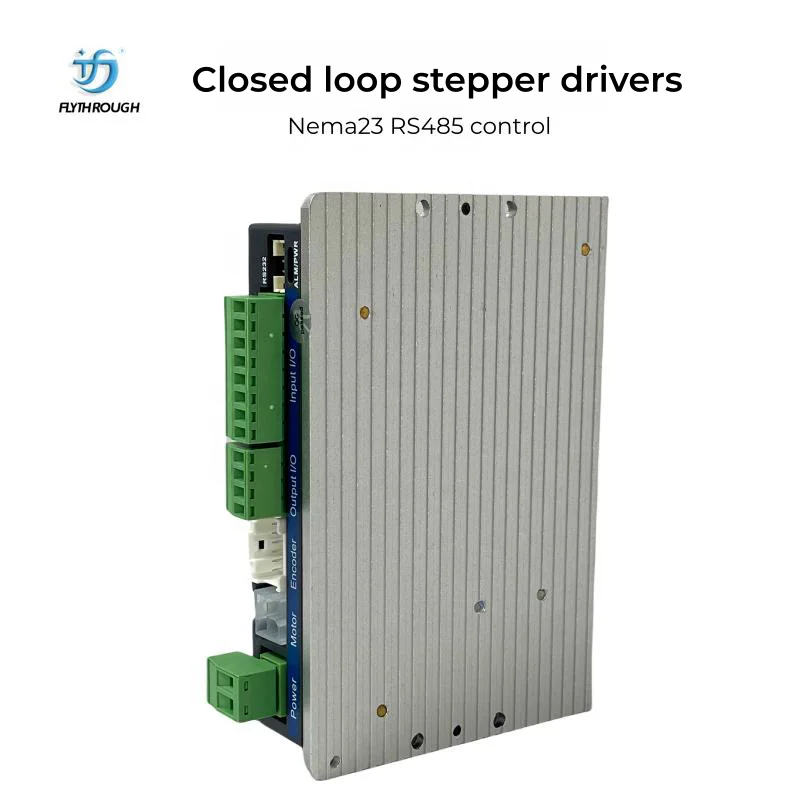

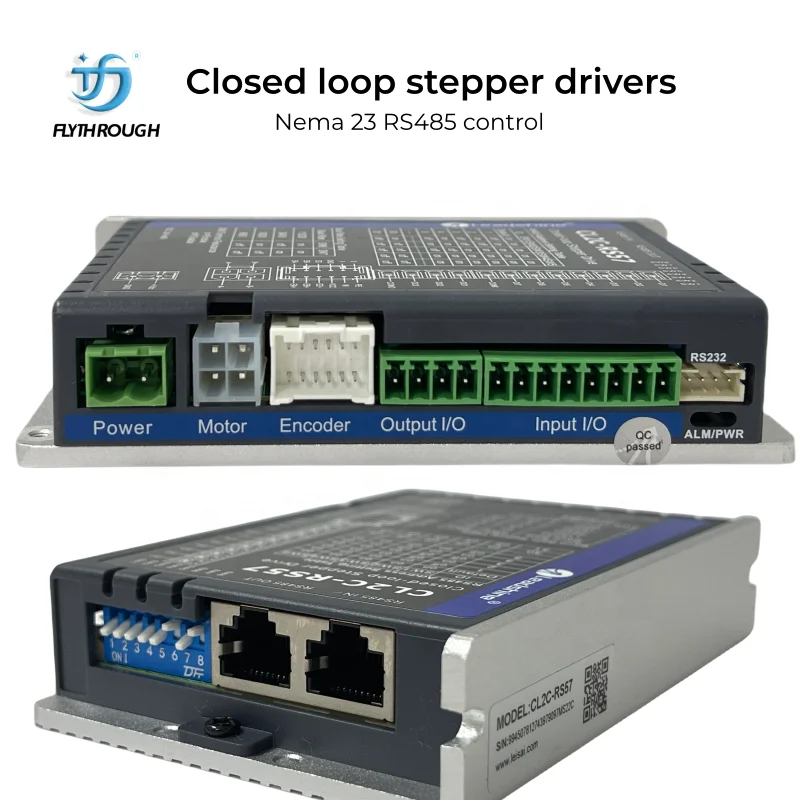

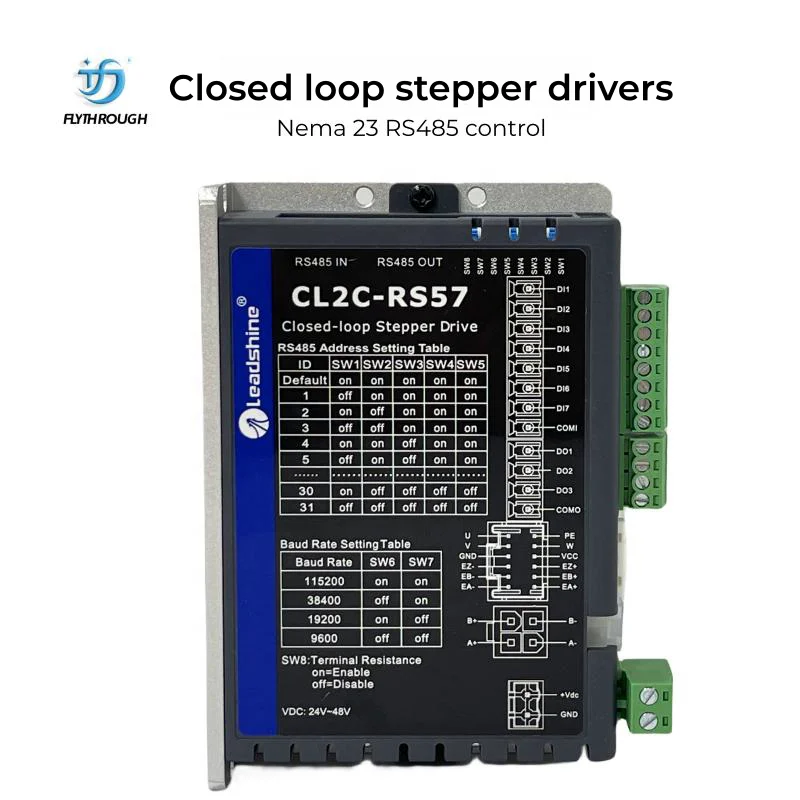

Hot sale original Nema23 closed loop driver with encoders CS2RS D507 or Leadshine CL2C RS57 RS485 modbus rtu controllers
- Category: >>>
- Supplier: Dongguan Feitong Intelligent Technology Co. Ltd.
Share on (1600947966571):
Product Overview
Description
Related Products
Products Description
Electrical parameter： | ||||||||
Parameter | CL2C-RS57 | |||||||
Min value | Typical value | Max value | Unit | |||||
Output current | 0 | - | 7 | A | ||||
Supply voltage | 20 | 24/36 | 50 | Vdc | ||||
Logic input current | 5 | 10 | 15 | mA | ||||
Single-ended input signal voltage | 12 | 24 | 24 | Vdc | ||||
Single-ended input frequency | - | - | 10 | KHz | ||||
Overvoltage protection | - | - | 90 | Vdc | ||||
Output signal logic current | - | - | 100 | mA | ||||
Output signal pull-up voltage | - | - | 30 | V | ||||
Communication baud rate | - | 9600 | 115200 | bit/s | ||||
Insulation resistance | 50 | - | - | MΩ | ||||
FAQ
Q : What about the price of the product? | A : Our products are original products, with factory prices, support inspection. | ||||||
Q : Do you have the products in stock ? | A : We have almost all product in stock ,except for non-standard orders. | ||||||
Q : whats the delivery time ? | A : Spot delivery time is about 3 working days , but the exact delivery time might be different for different order or at different time . | ||||||
Q : How does your factory do regarding quality control ? | A : Quality is the first ,our product quality assurance is 2 years,so you can rest assured to buy. | ||||||
Closed loop motor Paramenters
Model | Phase | Frame Size (NEMA) | Length (mm) | Holding Torque (N.m) | Phase Current (A) | Shaft Diameter (mm) | Type | IP Rate |
42CME04 | 2 | 23 | 62 | 0.21 | 1.5 | 5 | Standard | IP40 |
42CME06 | 2 | 23 | 70 | 0.6 | 2.5 | 5 | Standard | IP40 |
42CME08 | 2 | 23 | 83 | 0.8 | 2.5 | 5 | Standard | IP40 |
57CME06 | 2 | 23 | 60 | 0.6 | 3 | 8 | Standard | IP40 |
57CME13 | 2 | 23 | 74 | 1.3 | 4 | 8 | Standard | IP40 |
57CME23 | 2 | 23 | 95 | 2.3 | 5 | 8 | Standard | IP40 |
57CME21X-BZ | 2 | 23 | 137 | 2.3 | 5 | 8 | Brake | IP40 |
57CME26 | 2 | 23 | 102 | 2.6 | 5 | 8 | Standard | IP40 |
60CME22X | 2 | 24 | 89 | 2.2 | 5 | 8 | Standard | IP40 |
60CME30X | 2 | 24 | 107 | 3.0 | 5 | 8 | Standard | IP40 |
60CME30X-I14 | 2 | 24 | 107 | 3.0 | 5 | 14 | Standard | IP40 |
86CME35 | 2 | 34 | 95 | 3.5 | 4 | 14 | Standard | IP40 |
86CME45 | 2 | 34 | 109 | 4.5 | 6 | 14 | Standard | IP40 |
86CME45-BZ | 2 | 34 | 144 | 4.5 | 6 | 14 | Brake | IP40 |
86CME85 | 2 | 34 | 147 | 8.5 | 6 | 14 | Standard | IP40 |
86CME85-BZ | 2 | 34 | 172.5 | 8.5 | 6 | 14 | Brake | IP40 |
86CME120 | 2 | 34 | 158 | 12 | 6 | 14 | Standard | IP40 |
86CME120-BZ | 2 | 34 | 193 | 12 | 6 | 14 | Brake | IP40 |
Certifications
Product application
Company Introduction
Dongguan Feitong Intelligent Technology Co., Ltd is a professional enterprise in the field of intelligent equipment motion control. We are located in Dongguan, China, with convenient transportation,covering an area of more than 30,000 square meters.
Our products are CE and ROHS certified, and we offer a two year warranty on all products. The
company has a standard production workshop,professional and technical personnel,rich experience in operation ,so we not only support you with competitive prices,but also let you satisfied with our service.
After more than 20 years of product innovation,market development and application services,our products have the dual advantages of stability,reliability and superior performance.
In the electronic,robot ,laser,new energy,logistics,medical ,woodworking and other industries have
been by thousands of excellent equipement manufacturers for a long time , and exported to more
than countries such as the United States,Germany,India.
