Customizable Flexible Extraction Exhaust Pipe Hose Soldering Fume extractor arm
- Category: >>>
- Supplier: Qingdao Lumeike Environmental Protection Technology Co. Ltd.
Share on (1600948298863):
Product Overview
Description
The LMK-NZ series

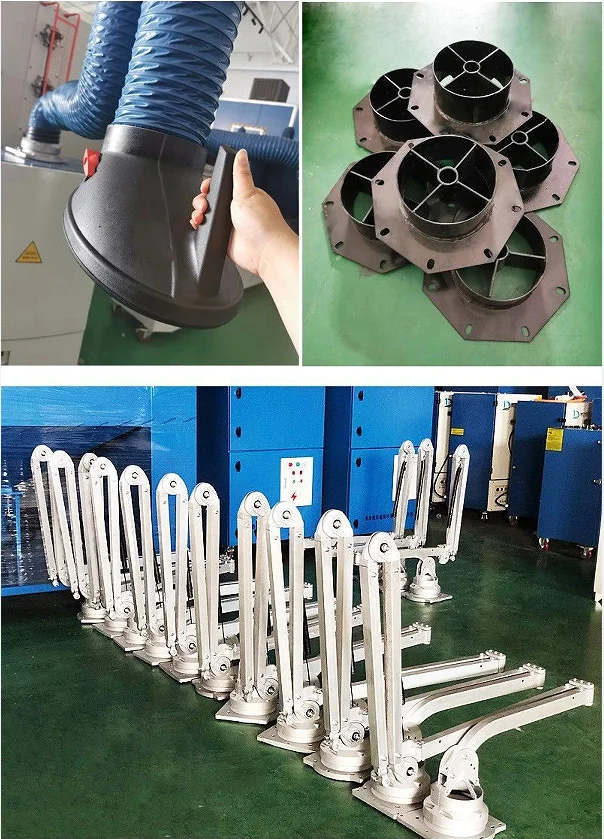

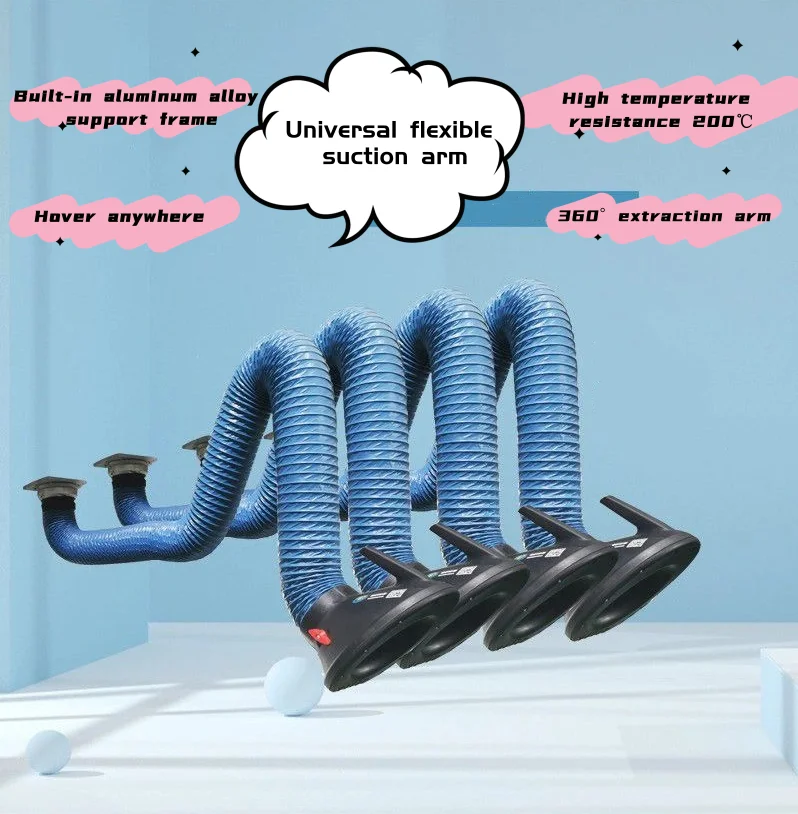

Universal flexible suction arm (cast aluminum frame)

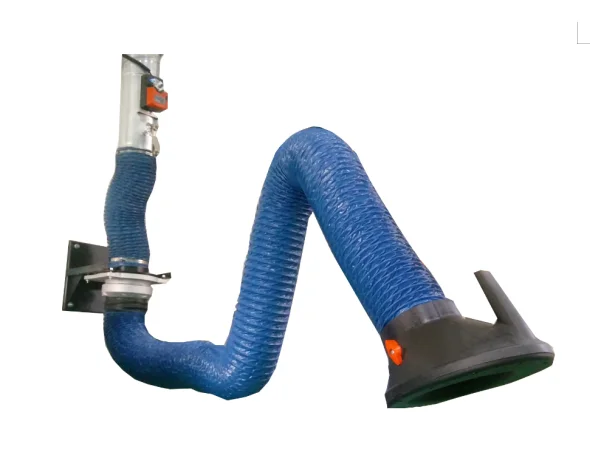

Equipment name: LMK-NZ wall-mounted flexible suction arm
The Connection method: fixed bracket connection (sealed by elastic rubber ring)
The Mouth form: conical suction (A), horseshoe suction (L), plate suction (T), hat-shaped suction (H)

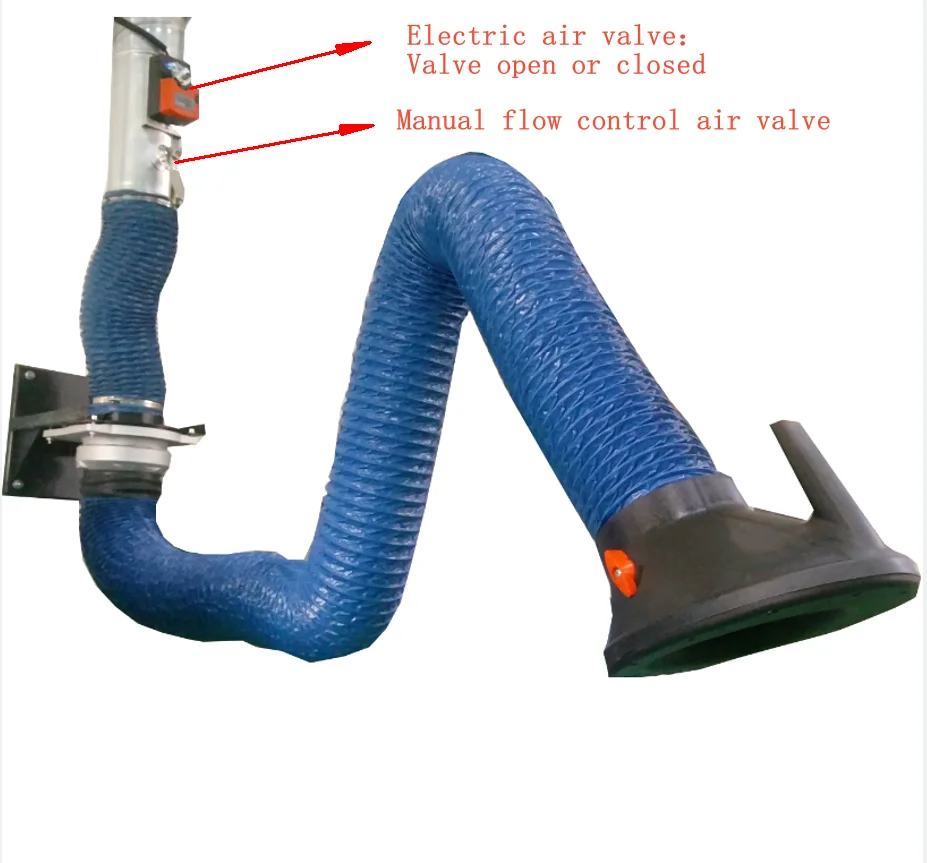

The Other forms of mouth can be customized. The hood is equipped with an air volume regulating valve.
The Equipment length: 2m, 3m, 4m (more than 4m need to be equipped with extended support arm, the length can reach 10m).
The Equipment pipe diameter: φ150mm, φ175mm, φ200mm (other specifications need to be customized).
The Outer pipe material: Imported PVC steel wire air pipe, anti-corrosion, temperature-resistant 140°C.
Appearance color: standard dark blue, gray, black, etc. are optional.
The Skeleton material: except the spring is galvanized spring steel, other metal components and fasteners are 304 stainless steel.
Lumeike LMK-NZ wall-mounted flexible suction arm is made of imported PVC hose with acid and alkali resistance and high temperature resistance of 140 degrees Celsius. The internal components and cover bracket are made of stainless steel. It can hover at 360 degrees and has air volume adjustment at the suction port. valve.

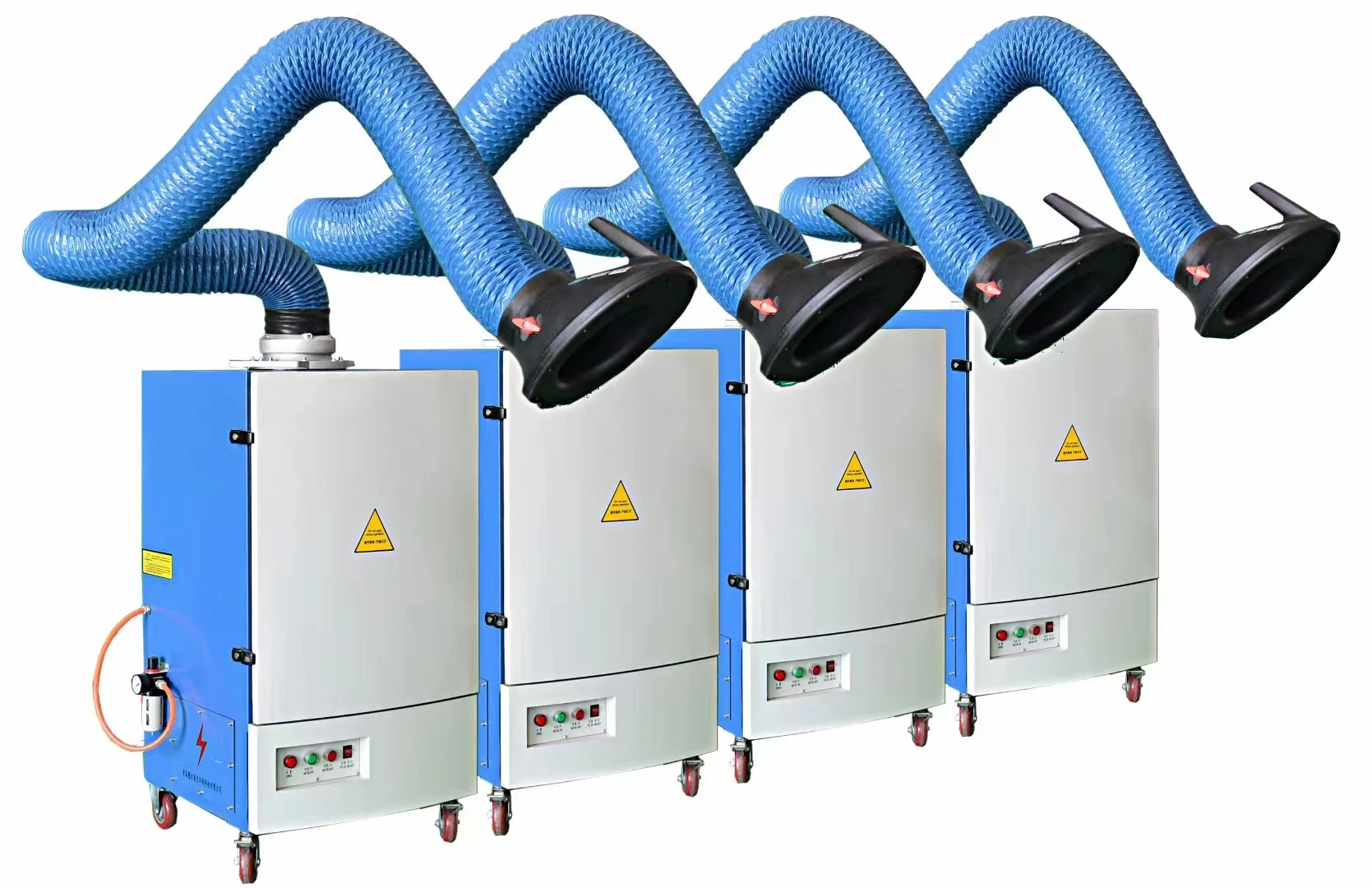

Its good stretching and hovering characteristics can not only be used with various types of welding fume purifiers and dust collectors, but also can be directly installed on the wall or system to cooperate with pipelines for the discharge of fume gas.
The inner wall and bracket of the all-stainless steel cover will never rust. It is anti-corrosion, acid, alkali and salt resistant, high temperature resistant, light in weight, high in strength, with a booster device, labor-saving operation, and free hovering. The suction arm is widely used in metal processing, welding fume, workpiece grinding, thermal processing oil mist treatment, odor removal, dust removal and other industries.
The Optional accessories: hood fireproof net; working spotlight; light, smoke and temperature sensor.
Lumeike can customize various suction arm series products that meet your working conditions according to different needs of users.
Equipment name: LMK-NZ wall-mounted flexible suction arm
The Connection method: fixed bracket connection (sealed by elastic rubber ring)
The Mouth form: conical suction (A), horseshoe suction (L), plate suction (T), hat-shaped suction (H)
The Other forms of mouth can be customized. The hood is equipped with an air volume regulating valve.
The Equipment length: 2m, 3m, 4m (more than 4m need to be equipped with extended support arm, the length can reach 10m).
The Equipment pipe diameter: φ150mm, φ175mm, φ200mm (other specifications need to be customized).
The Outer pipe material: Imported PVC steel wire air pipe, anti-corrosion, temperature-resistant 140°C.
Appearance color: standard dark blue, gray, black, etc. are optional.
The Skeleton material: except the spring is galvanized spring steel, other metal components and fasteners are 304 stainless steel.
Lumeike LMK-NZ wall-mounted flexible suction arm is made of imported PVC hose with acid and alkali resistance and high temperature resistance of 140 degrees Celsius. The internal components and cover bracket are made of stainless steel. It can hover at 360 degrees and has air volume adjustment at the suction port. valve.
Its good stretching and hovering characteristics can not only be used with various types of welding fume purifiers and dust collectors, but also can be directly installed on the wall or system to cooperate with pipelines for the discharge of fume gas.
The inner wall and bracket of the all-stainless steel cover will never rust. It is anti-corrosion, acid, alkali and salt resistant, high temperature resistant, light in weight, high in strength, with a booster device, labor-saving operation, and free hovering. The suction arm is widely used in metal processing, welding fume, workpiece grinding, thermal processing oil mist treatment, odor removal, dust removal and other industries.
The Optional accessories: hood fireproof net; working spotlight; light, smoke and temperature sensor.
Lumeike can customize various suction arm series products that meet your working conditions according to different needs of users.
Name | Type | Diameter | Lenth (m) |
Built-in suction arm for aluminum alloy equipment (blue/grey) | LMK-NZ-2 | 160mm | 2 |
Filter area | LMK-NZ-2.5 | 160mm | 2.5 |
Voltage | LMK-NZ-3 | 160mm | 3 |
KWvoltage | LMK-NZ-3.5 | 160mm | 3.5 |
Noise | LMK-NZ-4 | 160mm | 4 |
Aluminum alloy wall-mounted frame with built-in suction arm (blue/grey) | LMK-ND-2 | 160mm | 2 |
Wide | LMK-ND-2.5 | 160mm | 2.5 |
Height | LMK-ND-3 | 160mm | 3 |
Suction arm | LMK-ND-3.5 | 160mm | 3.5 |
Efficiency | LMK-ND-4 | 160mm | 4 |
plastic hood | 160mm |
1. What’s the shipping cost from China to your country?
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
2. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 12 months.
FOB: Qingdao or others port in CHINA.
3. What’s the package?
Re:Wrapping with plastic film and packed by wooden pallet or wooden case or without package.
4. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
5. What’s policy for guarantee and broken parts?
Re:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free
Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.
2. Payment terms, MOQ, warranty, FOB.
Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.
Minimum order quantity: 1 set.
Warranty: 12 months.
FOB: Qingdao or others port in CHINA.
3. What’s the package?
Re:Wrapping with plastic film and packed by wooden pallet or wooden case or without package.
4. What about commissioning service?
Re:We can offer commissioning service, the buyer need to afford air tickets.
5. What’s policy for guarantee and broken parts?
Re:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free
Accept customization
