handle repair process

First, the customers need to send us the old diode as below pictures shows, if can’t send old diode laser, need send to us structure design of the diode and dimensiondetails stack. We will repair the old diode or design a new stack to replace the old one.

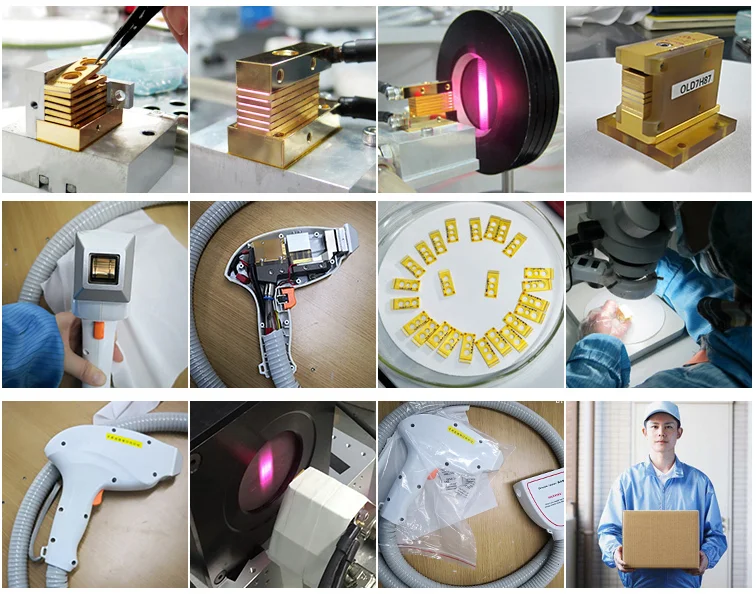

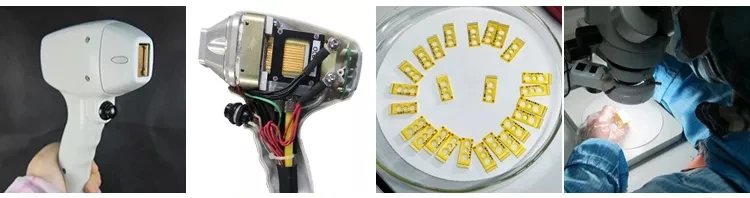

Second, we disassemble the handle piece, and test the old laser stack. For the micro channel laser stack, we will test each laser plate one by one to confirm whether there are any one bars still can work. If there have some good bars, the repairing charge will lower. For macro laser stack like most product made in China, we will test whole laser stack together.

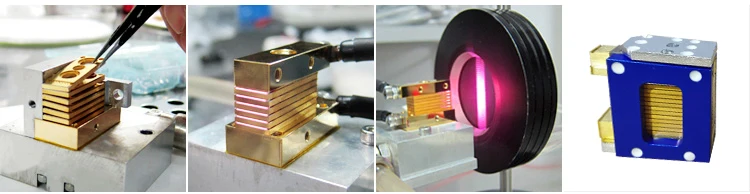

Third, we choose best quality laser stack to replace the old broken one. Our bars are imported from Germany. We mounted bars and assemble them to laser stack in our lab.Every stack will be fully tested and had 8 hours buring test.

Finally, our experienced technician will reassemble the handle piece. Which include:

a: Install the new laser stack into the handle piece

b: Clean lens and check the TEC and other parts inside the handle piece

c: Test the power output of whole handle piece

d: Clean the cover shell of handle piece and package it.

our advantages

1.Oriental-laser with more than 16 years diode laser bar mounting experience
2.Unique gold coating technology with high reliability and stability

3.Customized mechanical part size, dimensions,optional output power and wavelength
4.Refurbishment and repair service for any other diode laser brand Syneron,Dilas etc.

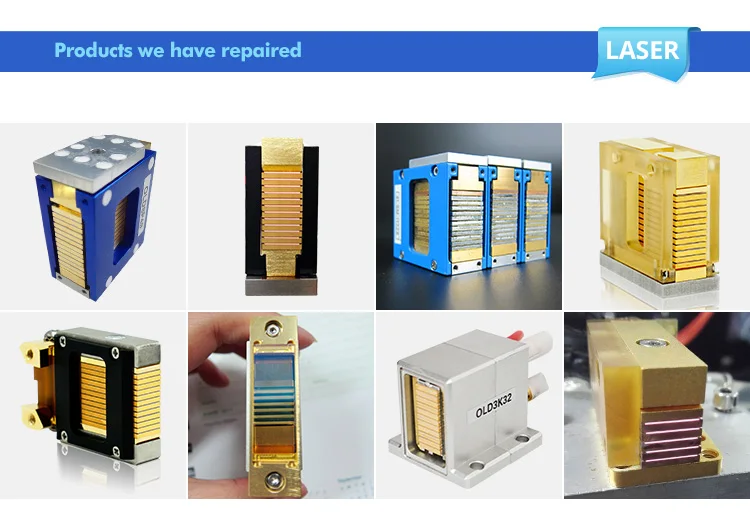

We can repair variety brand diode laser stack and lase handle.

This diode stack is IVYlaser 12 bar black side plate & right-angled electrode diode stack.It is used for IVYlaser handle piece repairing and replacement.Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various IVYlaser diode laser stacks.Also we can use the same Jenoptik bar like IVYlaser used to recondition the power the laser power.
