Nema 24 Integrated Closed Loop Stepper Motor With Encoder For 3d Printer Lazer Milling Machine Ihss60 36 30
- Category: >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (1600948322696):

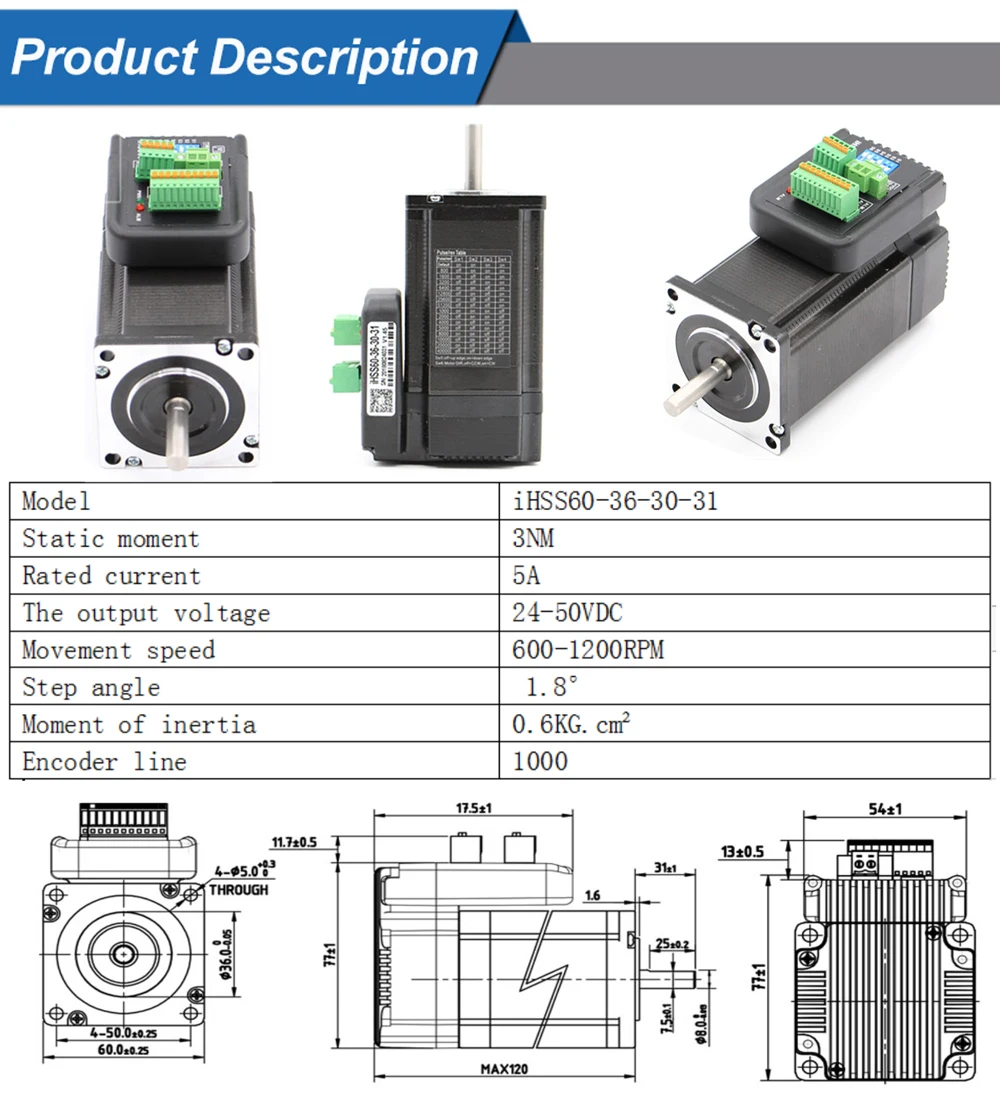

Product Overview
Description
Specification
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | jkongmotor |
Model Number | iHSS60-36-30-31 |
Phase | 2 |
Type | Hybrid |
Current / Phase | 5.0A |
Certification | ce, ISO, RoHS |
Product name | Integrated Close Loop Stepper Motor |
Model name | iHSS60-36-30-31 |
Voltage | 36V |
Holding Torque | 3.0N.m |
Step Angle | 1.8degree |
Shaft size | 8*31mm |
D-cut size | 25mm |
Body length | 117mm |
Keywords | 60 Integrated Closed Loop Stepper Motor |
Product Keywords | nema 24 Integrated Dc Servo Motor |
Brand: JkongmotorName: Integrated Close Loop Stepper Motor
Model Name: iHSS60-36-30-31
* Step Angle: 1.8°
* Postion accuracy: 1.8°±0.09
* Number of phase: 2
* Temp rise( Max): 80°C
* Dielectric Strength: 500VDC
* Insulation Class: B
* Current /phase: 5.0A
* DC Resistance: 0.43Ω
* Inductance /phase: 2.0mH
* Holding torque: 3.0Nm
* Inertria: 690g.cm²

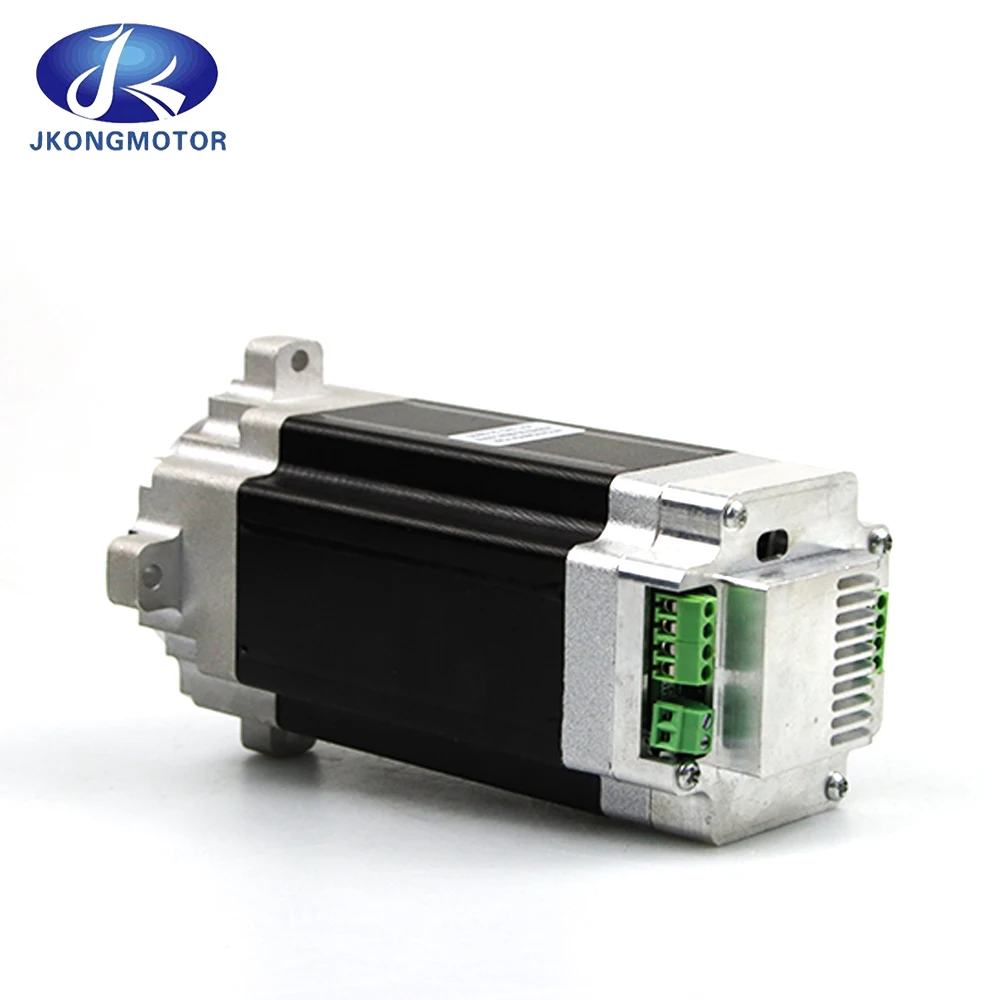

The Integrate Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical encoder with high speed position sampling feedback of 50 μ s, once the position deviation appears, it will be fixed immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.
* Step Angle: 1.8°
* Postion accuracy: 1.8°±0.09
* Number of phase: 2
* Temp rise( Max): 80°C
* Dielectric Strength: 500VDC
* Insulation Class: B
* Current /phase: 5.0A
* DC Resistance: 0.43Ω
* Inductance /phase: 2.0mH
* Holding torque: 3.0Nm
* Inertria: 690g.cm²
The Integrate Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical encoder with high speed position sampling feedback of 50 μ s, once the position deviation appears, it will be fixed immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.
Model Name: | Holding Torque: | Voltage: | Current: | Shaft Size: | D-cut Size: | Body Length: |
iHSS42-24-05 | 0.48N.m | 24V | 1.2A | 5*24mm | 15mm | 76mm |
iHSS42-24-07 | 0.7N.m | 24V | 1.2A | 5*24mm | 15mm | 88mm |
iHSS57-36-10 | 1.2N.m | 36V | 4.0A | 8*21mm | 15mm | 108mm |
iHSS57-36-20 | 2N.m | 36V | 5.0A | 8*21mm | 15mm | 127mm |
iHSS60-36-30 | 3N.m | 60V | 5.0A | 8*31mm | 25mm | 117mm |
iHSS86-60-45 | 4.5N.m | 60V | 6.0A | 14*38mm | 73mm | 121mm |
iHSS86-80-85 | 8.5N.m | 80V | 6.0A | 8*21mm | 73mm | 141mm |
* Integrated compact size for saving mounting space
* Without losing step, High accuracy in positioning
* 100% rated output torque
* Variable current control technology, High current efficiency
* Small vibration, Smooth and reliable moving at low speed
* Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
* User-defined micro steps
* No adjustment in general applications
* Over current, over voltage and over position error protection
* Green light means running while red light means protection or off line
* Without losing step, High accuracy in positioning
* 100% rated output torque
* Variable current control technology, High current efficiency
* Small vibration, Smooth and reliable moving at low speed
* Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
* User-defined micro steps
* No adjustment in general applications
* Over current, over voltage and over position error protection
* Green light means running while red light means protection or off line
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign
development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign
development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
