Long Range Drone Wireless RC Radio Data Link Transmitter and Receiver UAV Video Data Real time Transmission Data Link Telemetry
- Category: >>>
- Supplier: Shenzhen Xingkai Technology Co. Ltd.
Share on (1600948349633):
Product Overview
Description
Product Description
Product Name | XK-F403E-150 |
Function | Drone HD Wireless Digital Video and Data Transmission Module |
Package | Packed in a professional shipping box |
1. Product performance description
The air unit can be configured as point-to-point and also point to multi-points relay mode, Users only need to add air units to expand the application scenarios. At the same time, it has encryption function, and users can set the channel encryption key independently.
XK-F403E-150 supports transparent transmission protocol, which can transmit flight control data and other data information at the same time. The ground unit can interact data with ground station through serial port or network port (UDP / TCP). Support serial port and SBUs transparent transmission function.
2. Features
Rich: control interfaces.
High: carrier noise ratio.
Wide: input voltage range, supporting DC12 ~ 25V voltage input.
Low: power consumption.
All: central nodes and slave nodes communicate with a shared operating bandwidth in
one direction (20MHz, not less than 100Mbps).
Support: OTA upgrade, local and remote upgrade.
Adaptive frequency hopping, strong anti-interference ability.
3. Functions
The bandwidth is adjustable, including 3MHz, 5MHz, 10MHz and 20MHz.
The mapping mode is adjustable, including QPSK, 16QAM and 64aqm.
Support Ethernet, serial port and SBUs.
Support AES128 and AES256 encryption.
4. Technical Parameters
Item | Spec/Parameters | ||
Air Unit | Ground Unit | ||
Operation Voltage | DC 12V~DC25V,Standard input DC22V | ||
Power Consumption | ≤20W @ 33dBm | ||
Modulation | OFDM | ||
Data interface | UART(TTL/RS232/RS485)/SBUS | ||
Frequency | 600MHz/1.4GHz,the frequency bands can be customised. | ||
Channel rate | bandwidth: 20MHz,Transmission not less than 100Mbps | ||
Bandwidth | 3/5/10/20MHz | ||
Latency | ≤15ms | ||
Tx Power | 2*33dBm(Adjustable) | ||
Working temperature | -30℃~60℃ | ||
Storage temperature | -40℃~75℃ | ||
Antenna | 2.5dBi | 7-16dBi | |
Communication Protocol | IEEE802.3,Transparent serial data | ||
Communication | Point to Point;Point to Multi-Points relay mode; | ||
Working mode | NORMAL,CA,MIMO | ||

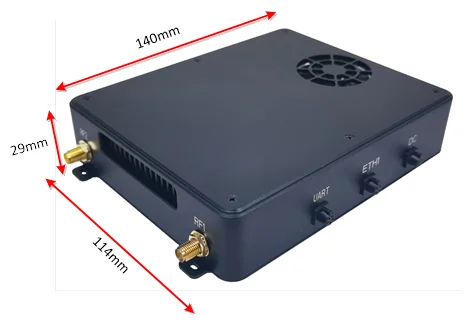

Dimensions | 140*114*29mm | ||
Weight | ≤470g | ||
