Best Selling Alnico V Staggered Strat Single Coil guitar Pickup from china factory
- Category: >>>
- Supplier: Jinhua Mairuibao Musical Instruments Co. Ltd.Jinhua Ltd.
Share on (1600948393301):
Product Overview
Description
Category

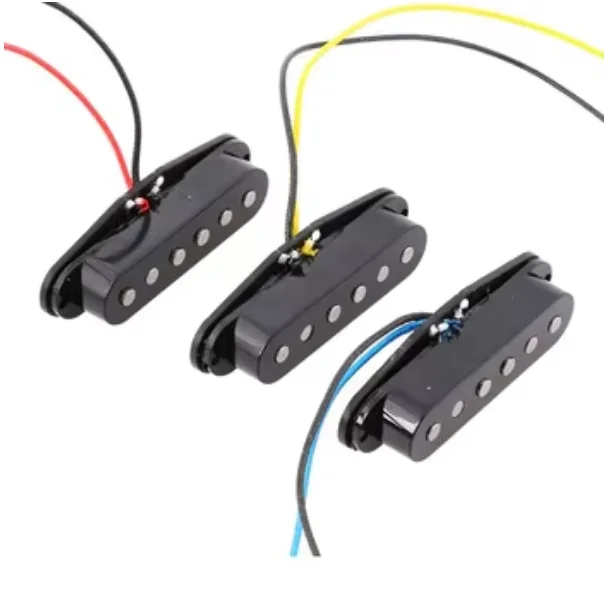

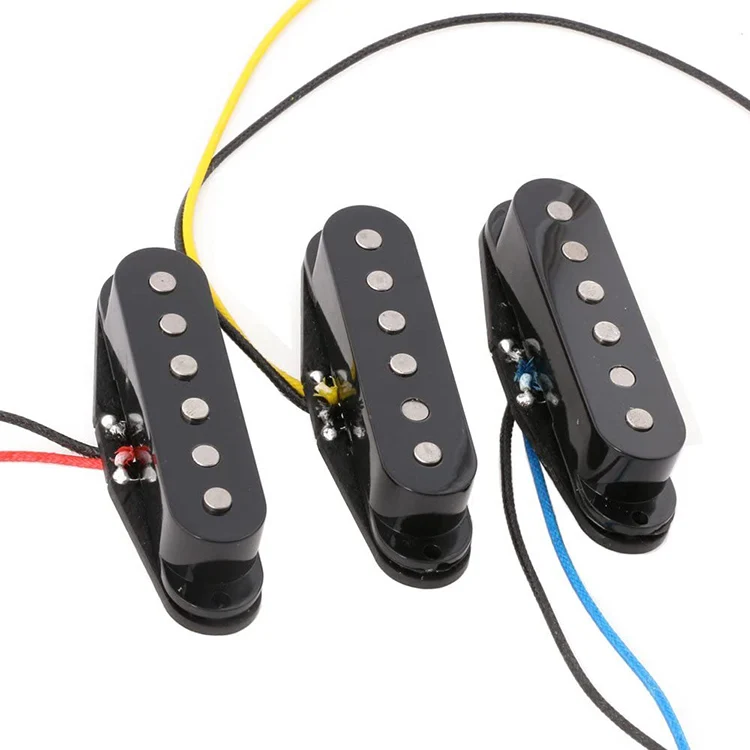

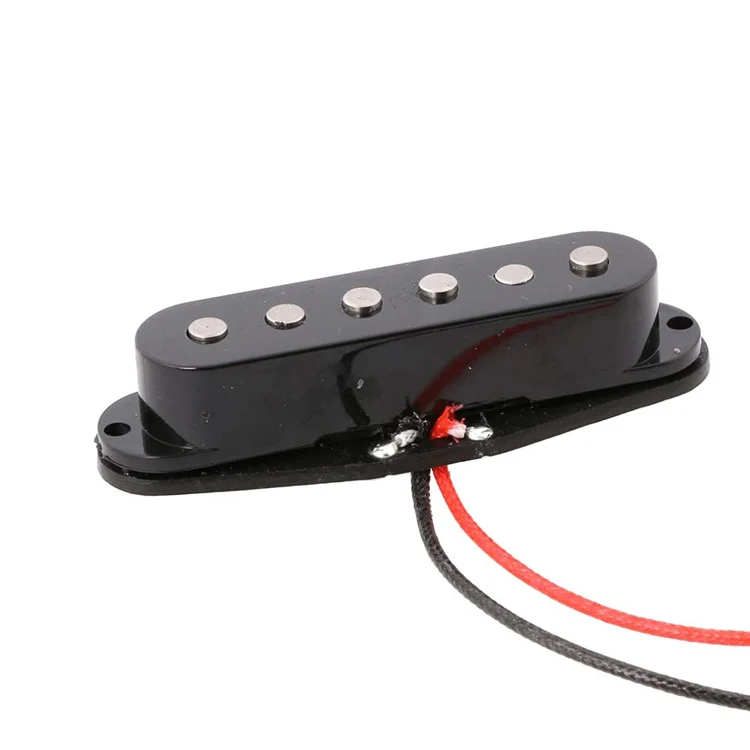

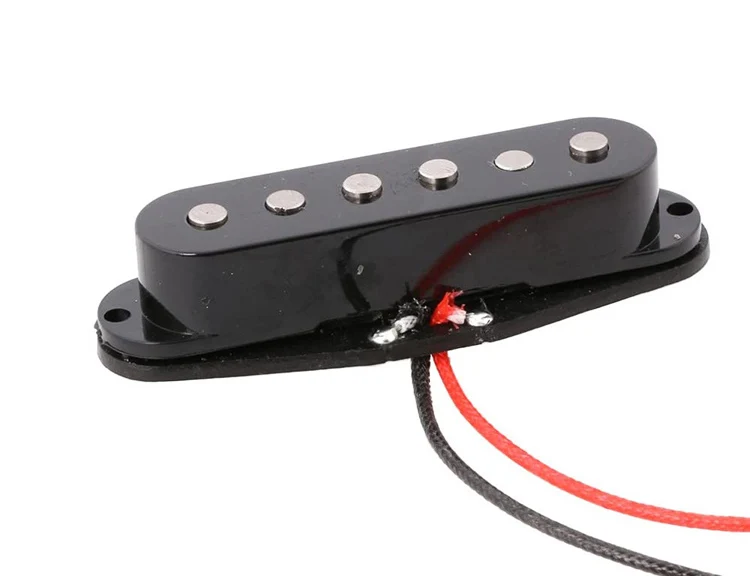

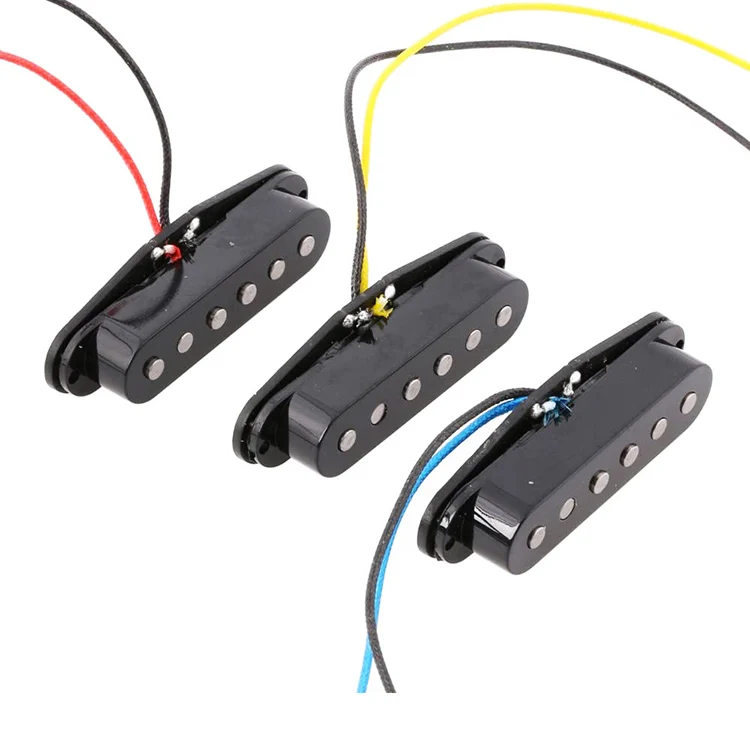

Staggered Alnico V Single Coil Pickup for Electric Strat Style Guitar
Alnico V magnet single coil pickup which has a more loud & bright output.
Specification
Specification

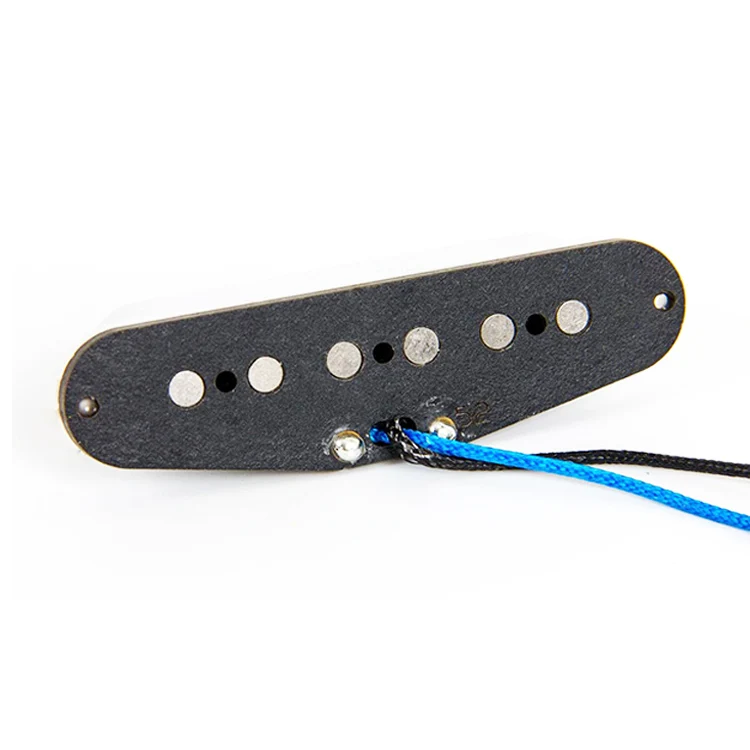

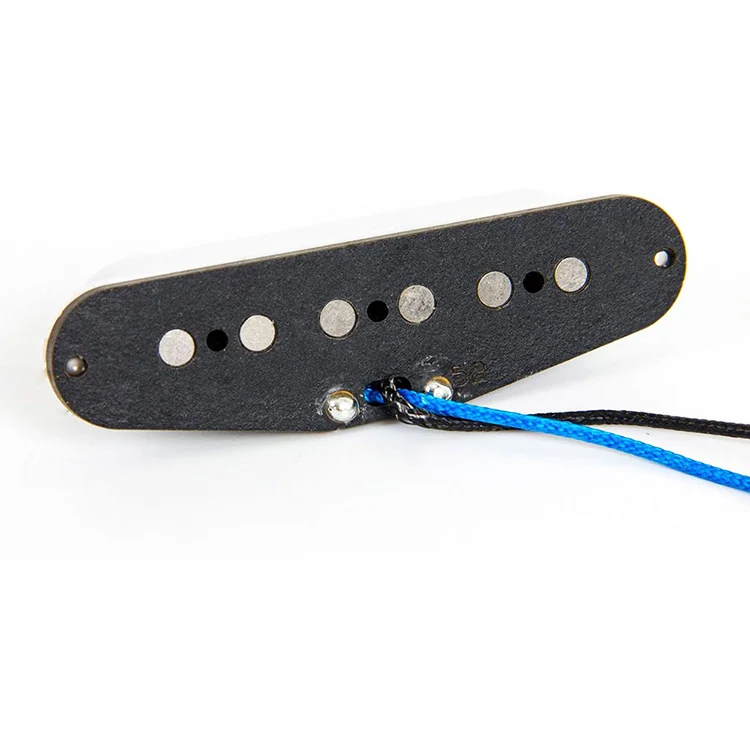

Pole-pieces: | Staggered Top |
Chord Distance: | N/M/B: 50mm/50mm/52mm |
Bobbin: | Plastic |
Magnet: | Alnico 5 |
Polarity: | N/M/B: South/ North/South |
Cable: | Braid Wire |
Line length: | N/M/B: 300mm |
Resistance: | N/M/B: 6.5K/6.5K/7.2K |
Color Options: | BK, WH, IV, RD, GN |
Inductance: | 1.7H/1.7H/1.8H |
Product Description
Product Description
Middle pickup is reverse wound/reverse polarity
Bridge pickup is slightly over wound for better balance.
Supplied with a set of 3 piece ( Neck, Middle, Bridge)

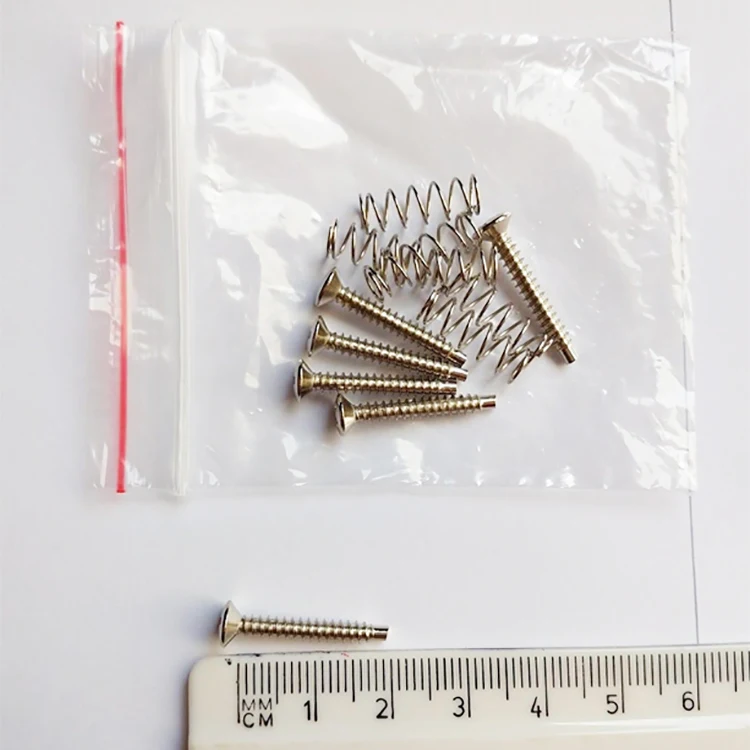

Supplied with 6 mounting screws and 6 springs per pickup.
Custom order is acceptable.
We can make pickups according to drawings and samples, Laser or stamp your logo, custom brand or serial number in the guitar parts. Minimum order quantity is 100pcs/Model. For custom electric guitar parts, plain drawing, PDF, or CAD file is needed. For more details, please inquire our sales staff.
Custom Reminder
| Brand: | OEM / Customized / Photos logo printed |
| Supplier Name: | Jinhua Malubly Musical Instruments Co., Ltd |
| Package: | Unit Paper box + Carton |
| Sample Charge: | Can Be returned after official order comes |
| Shipment: | Less than 0.5CBM / 10kgs by air / Own forwarder |
| Cusomize: | Need design files such as dwg. / CAD + Real Photos, 90-95% Precision Rate |
