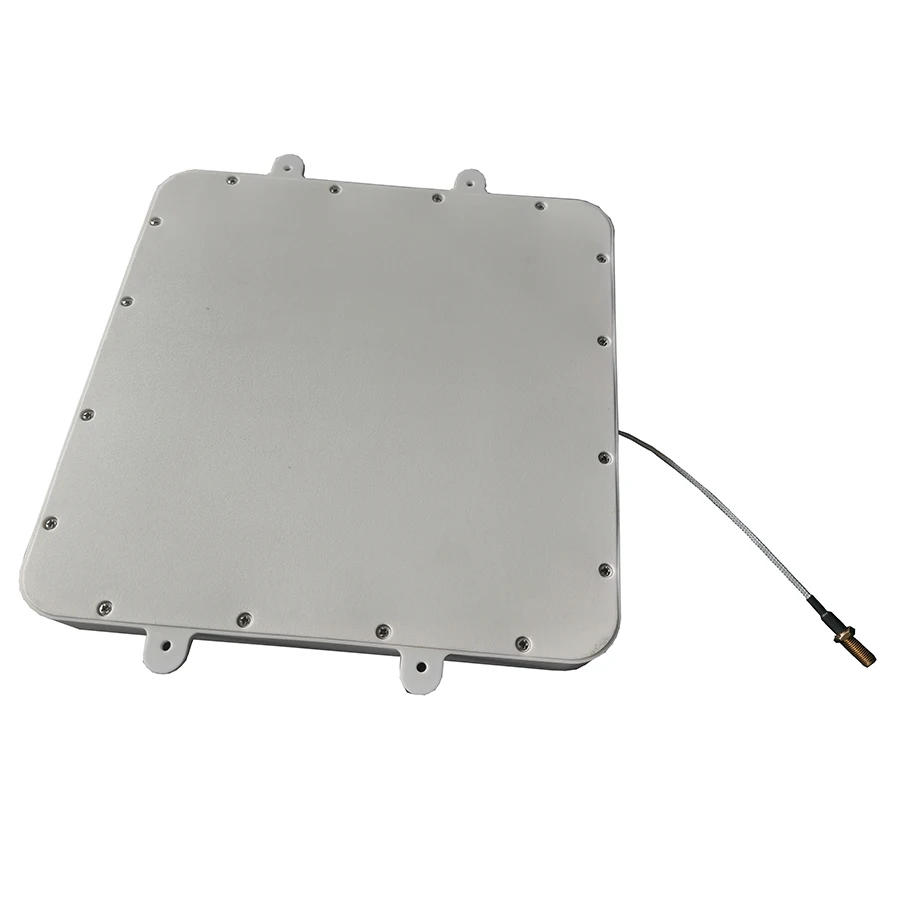

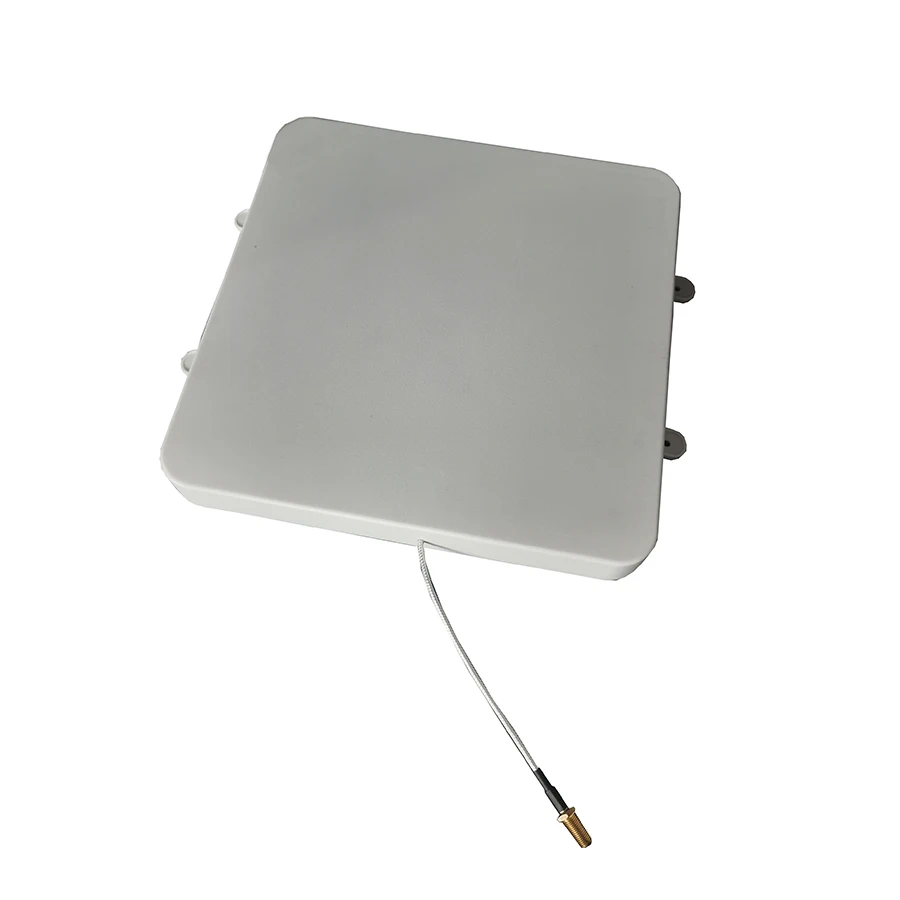

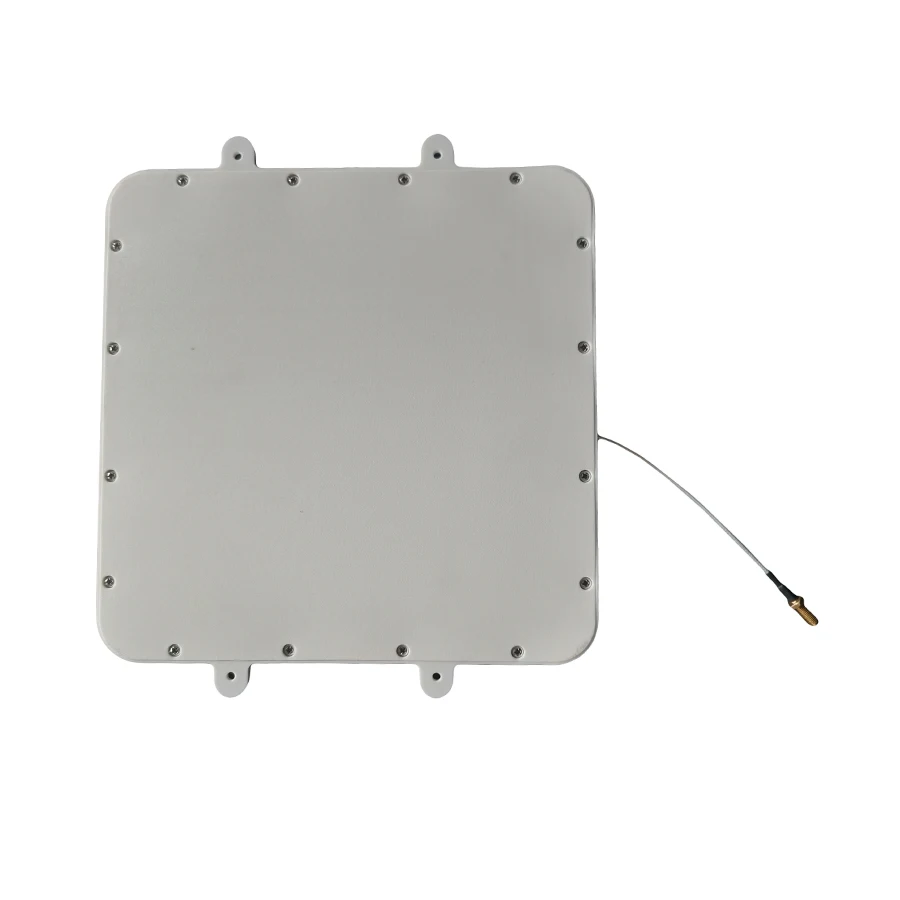

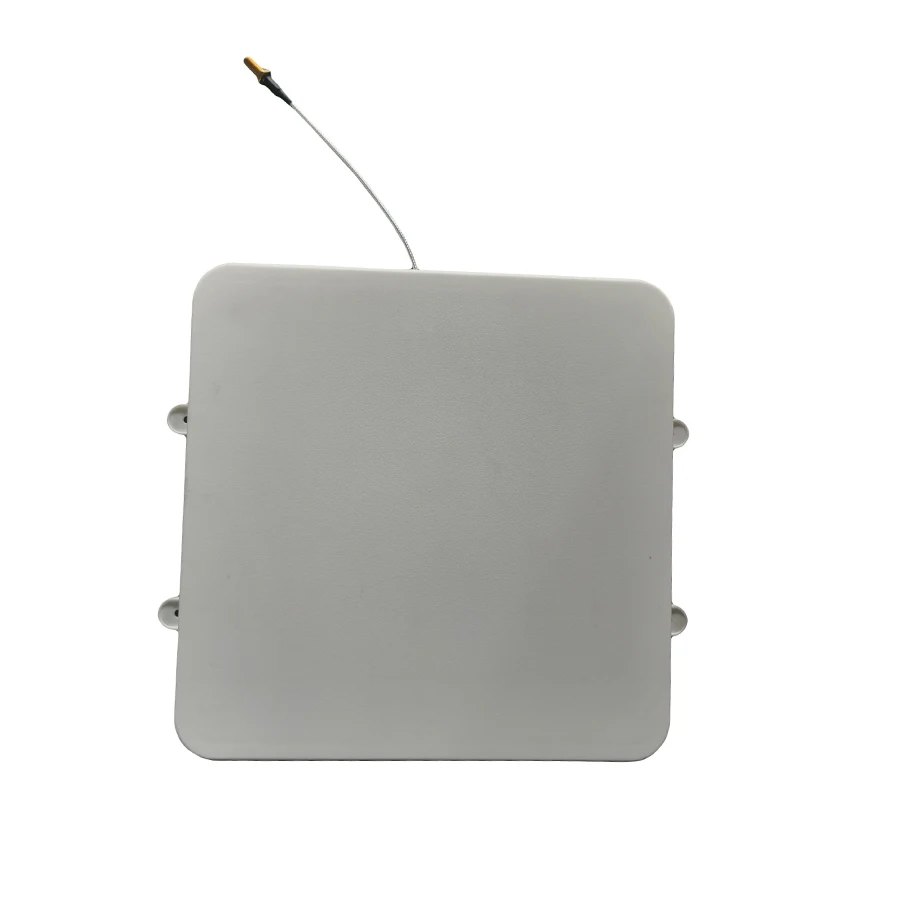

Silion SLP1027 RFID UHF Reader Antenna 8M 8dbi 900MHz RS232 Car Parking Access Control System UHF RFID Antenna
- Category: >>>
- Supplier: Shenzhen Silion Technology Co. Ltd.
Share on (1600948506747):
Product Overview
Description
Product Description
Product Paramenters
8dbi RFID UHF Antenna SLP1027 key features:
Frequency (MHz) 902MHz～928MHz Polarization circular polarization Gain (dBi) ＞8dBi Axial ratio (dB) ＜3dB H-side HPBW 68° E-side
HPBW 68° Impedance (Ω) 50Ω voltage standing wave ratio (VSWR) ≤1.3:1 Connector External thread female Connector position Side
cable Dimension(mm) 220mm×220mm×24mm Weight 450g
Frequency (MHz) 902MHz～928MHz Polarization circular polarization Gain (dBi) ＞8dBi Axial ratio (dB) ＜3dB H-side HPBW 68° E-side
HPBW 68° Impedance (Ω) 50Ω voltage standing wave ratio (VSWR) ≤1.3:1 Connector External thread female Connector position Side
cable Dimension(mm) 220mm×220mm×24mm Weight 450g
Frequency (MHz) | 902MHz～928MHz | |
Polarization | circular polarization | |
Gain (dBi) | ＞8dBi | |
axial ratio (dB) | ＜3dB | |
H-side HPBW | 68° | |
E-side HPBW | 68° | |
Impedance (Ω) | 50Ω | |
voltage standing wave ratio (VSWR) | ≤1.3:1 | |
Connector | External thread female | |
Connector position | Side cable | |
Dimension(mm) | 220mm×220mm×24mm | |
Weight | 450g | |
Material | ABS | |
Color | white | |
IP class | IP67 | |
Assembly way | There are two mounting holes on each side of the antenna (self-tapping screw mounting) | |
Working temperature (°C) | -40°C ～＋85°C | |
RFID Performance | ||
Max Read Rate | ≥100 tags/s | |
Tag Read Distance | 0-10m | |
Application Interface | ||
Host API | C, C#/.NET, Java | |
Communication Interface | ||
Communications | 10/100 Base-T Ethernet port | |
Power Supply | ||
Input Voltage | DC 12V 3A, power adapter | |
Working Environment | ||
Operating Temp. | -20°C to +55°C | |
Storage Temp. | -40 °C to +85°C | |
Humidity | 5-90% non-condensing (+25°C) | |
Recommend Products
Company Introduction
Application Fields
Certifications
FAQ
1. Are you manufacturer?
Yes, Silionis one of the pioneering manufacturer focusing on UHF RFID hardware design and manufacture since from 2005.
2. What are your mainly products?
Our products mainly include UHF RFID reader, UHF RFID tag, UHF RFID module R2000 series, UHF RFID module E710 series and RFID
antennas.
3. What is your advantage?
We have served many customers in many application fields, with a wide and rich experience.
we have strong technical team for technical support.
We often provide customized service for special needs.
We have hundreds of UHF RFID modules, the most complete.
4. How to place order to Silion?
You can place order to us through Alibaba trade assurance order online or you can contact our sales for other ways.
We also can accept payment by TT, West Union, credit card or PayPal and other payment methods.
5. How to be your partner or distributor?
Pls contact our oversea sales team for details: sales@silion.com.cn
6. What is the MOQ?
We don’t have MOQ limit, you can buy one sample for testing.
7. Do you have test evaluation board?
Yes, our test evaluation board, also named as DEVKIT, develop kit, which supports all Silion’s UHF RFID module’s testing.
8. Do you have certifications?
Yes, Silion products have applied FCC, CE, SRRC, RoHS and other related certifications.
9. What’s your lead time?
For small orders, we normally have goods in stock, delivery time is very fast, around 2-3 working days after order confirmed; If need to produce, it depends on quantity, pls feel free to contact us to know more.
10. Are you Impinj Gold Partner?
Yes, as our main products are based on Impinj R2000, new E710, E510 and E310, we are authorized by Impinj as Gold partner long time ago.
11. Do you provide after sale service?
Yes, Silion has a professional technical support team, with rich experience in developing and application, we provide full services as customers need. For detailed technical documents, you can directly download from our website, and if any problems, you can feel free to contact us, we can support you by email, voice talk, or fly to your country to support (to be discussed).
Yes, Silionis one of the pioneering manufacturer focusing on UHF RFID hardware design and manufacture since from 2005.
2. What are your mainly products?
Our products mainly include UHF RFID reader, UHF RFID tag, UHF RFID module R2000 series, UHF RFID module E710 series and RFID
antennas.
3. What is your advantage?
We have served many customers in many application fields, with a wide and rich experience.
we have strong technical team for technical support.
We often provide customized service for special needs.
We have hundreds of UHF RFID modules, the most complete.
4. How to place order to Silion?
You can place order to us through Alibaba trade assurance order online or you can contact our sales for other ways.
We also can accept payment by TT, West Union, credit card or PayPal and other payment methods.
5. How to be your partner or distributor?
Pls contact our oversea sales team for details: sales@silion.com.cn
6. What is the MOQ?
We don’t have MOQ limit, you can buy one sample for testing.
7. Do you have test evaluation board?
Yes, our test evaluation board, also named as DEVKIT, develop kit, which supports all Silion’s UHF RFID module’s testing.
8. Do you have certifications?
Yes, Silion products have applied FCC, CE, SRRC, RoHS and other related certifications.
9. What’s your lead time?
For small orders, we normally have goods in stock, delivery time is very fast, around 2-3 working days after order confirmed; If need to produce, it depends on quantity, pls feel free to contact us to know more.
10. Are you Impinj Gold Partner?
Yes, as our main products are based on Impinj R2000, new E710, E510 and E310, we are authorized by Impinj as Gold partner long time ago.
11. Do you provide after sale service?
Yes, Silion has a professional technical support team, with rich experience in developing and application, we provide full services as customers need. For detailed technical documents, you can directly download from our website, and if any problems, you can feel free to contact us, we can support you by email, voice talk, or fly to your country to support (to be discussed).
