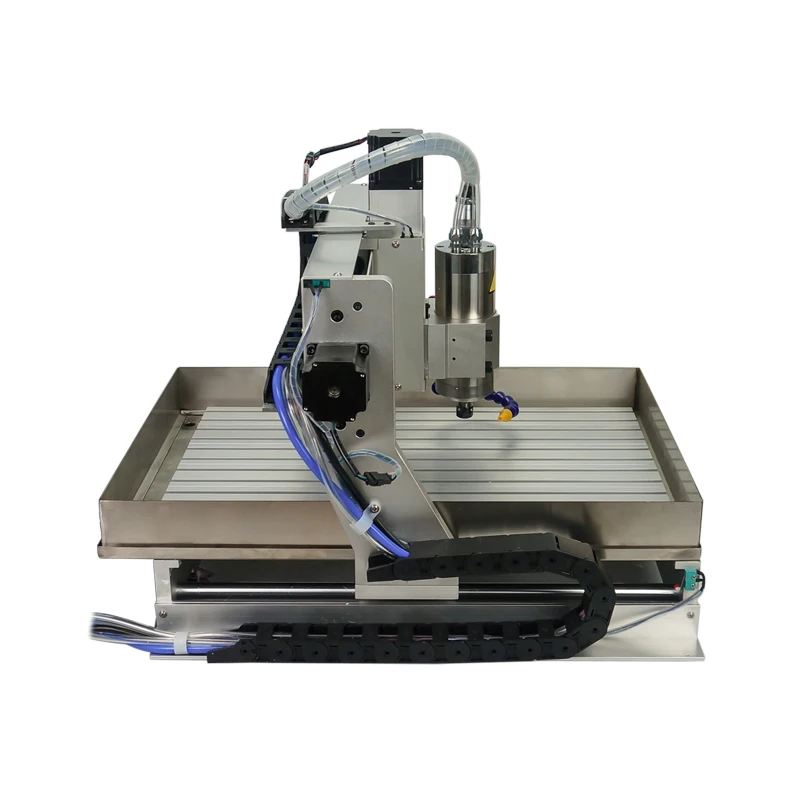

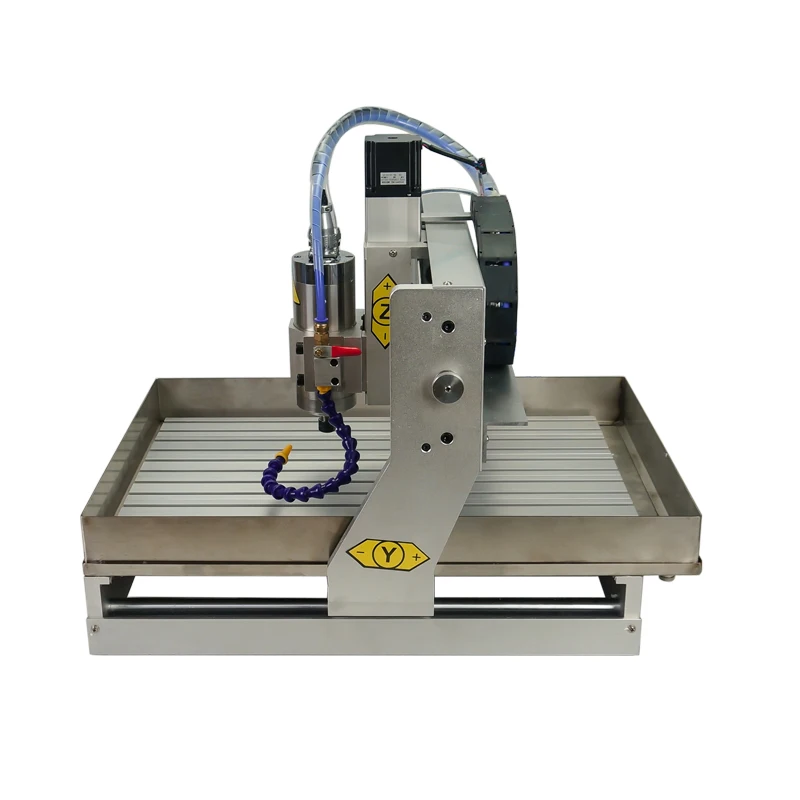

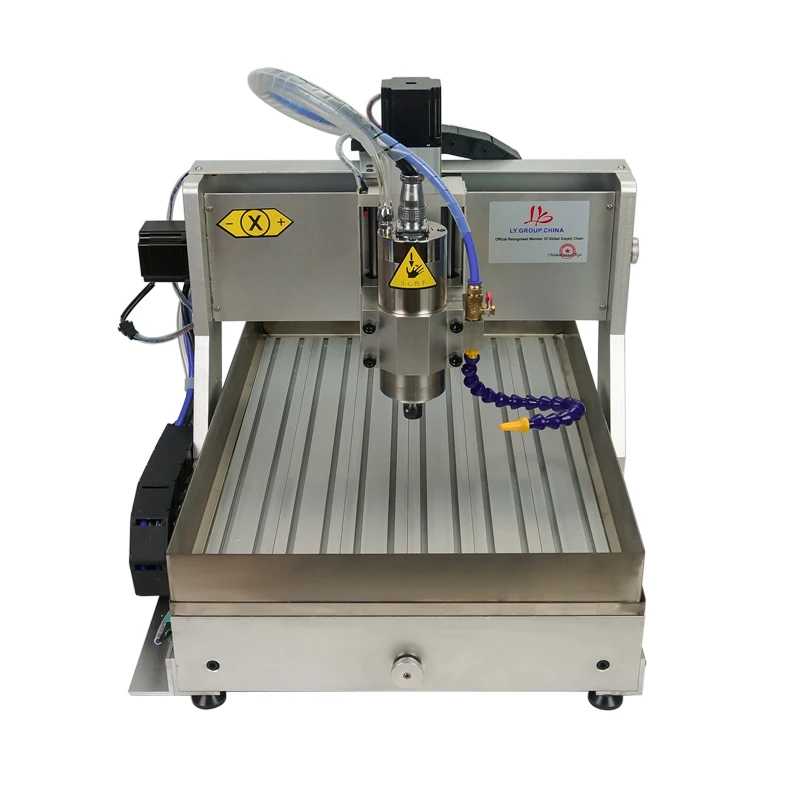

Mini CNC Router 3040Z With Water Tank Engraving Milling Machine 3 Axis 4 Axis 1500W VFD Water Cooling Spindle For Wood Working
- Category: >>>
- Supplier: Shenzhen Liyang Welding Equipment Co. Ltd.
Share on (1600948603768):
Product Overview
Description
Mini CNC Router 3040Z With Water Tank Engraving Milling Machine 3 Axis 4 Axis 1500W VFD Water Cooling Spindle For Wood Working
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
MODEL | 3040Z with water tank | |||||
Attribute1 |
| 1.5KW |
| |||
Attribute2 | 3axis-LPT | 3axis-USB | 4axis-LPT | 4axis-USB | ||
Axis | 3axis | 3axis | 4axis | 4axis | ||

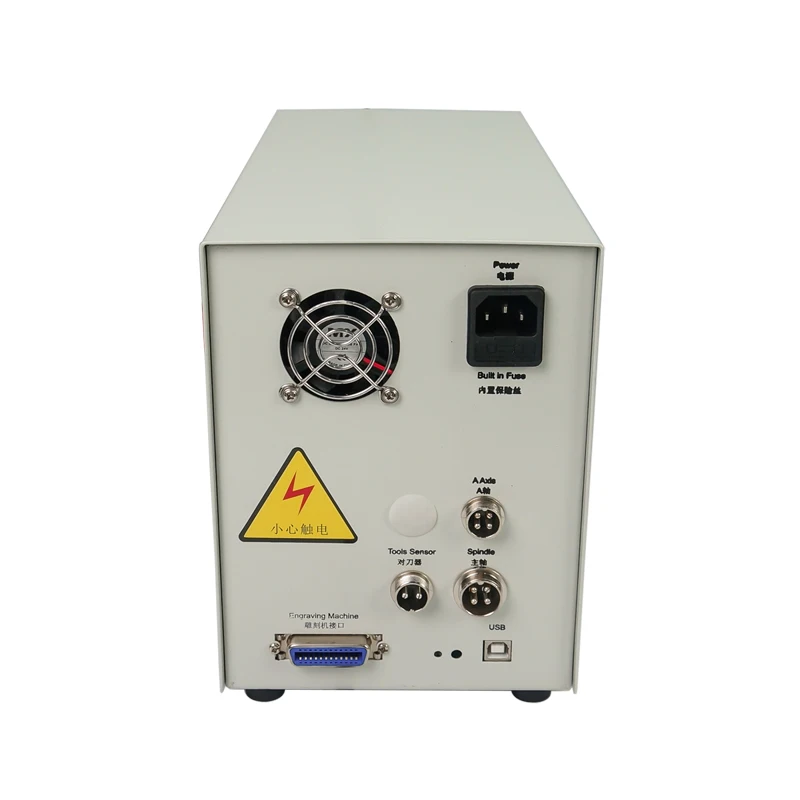

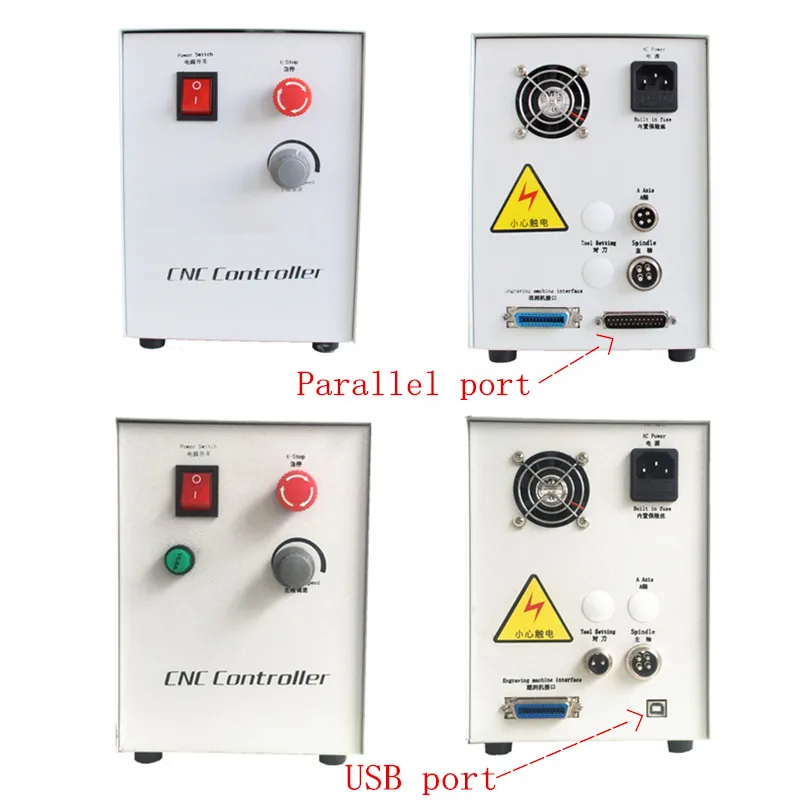

Interface | LPT port | USB port | LPT port | USB port | ||

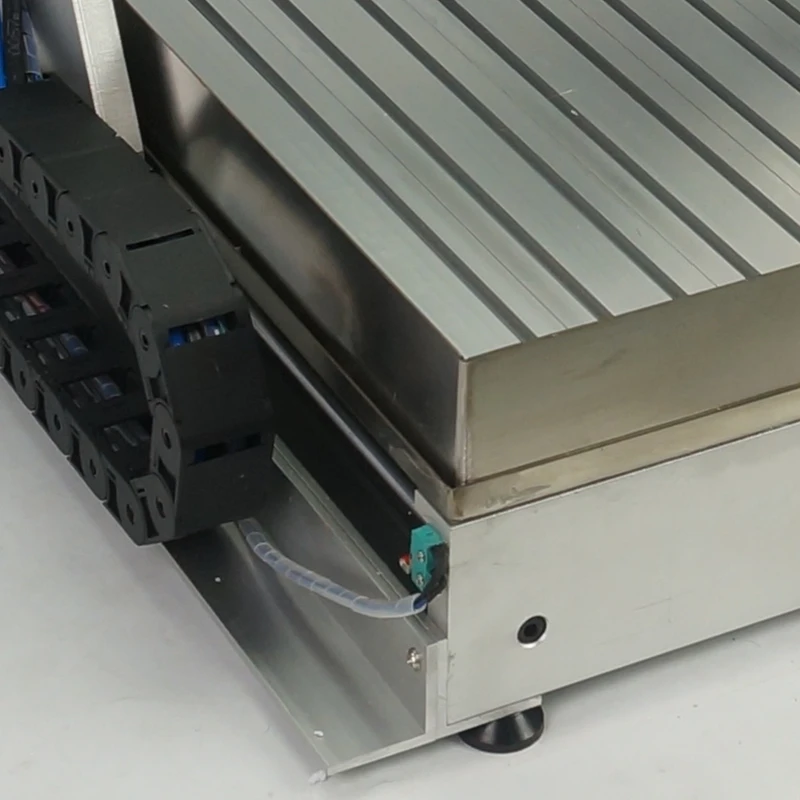

Limit switch | Yes | yes | Yes | Yes | ||
Tool auto-checking | Yes | yes | Yes | Yes | ||
Type of screw | Ball screw | Ball screw | Ball screw | Ball screw | ||
Weigh | 52 | 52 | 58 | 58 | ||
Machine Dimensions: | 600X510X480mm | |||||
Rack material: | 6061 and 6063 Hard aluminum alloy | |||||
Engraving area: | 400X300mm | |||||
Z-Axis Stroke: | 80mm, Engraving depth depends on the length of the tool edge | |||||
Acceptable material thickness: | ≤100mm | |||||
Rail type: | Chromeplate shaft + Linear Bearings, Surface hardening 61HRC | |||||
Type of screw: | Ball screw 1605, Pitch 5mm | |||||

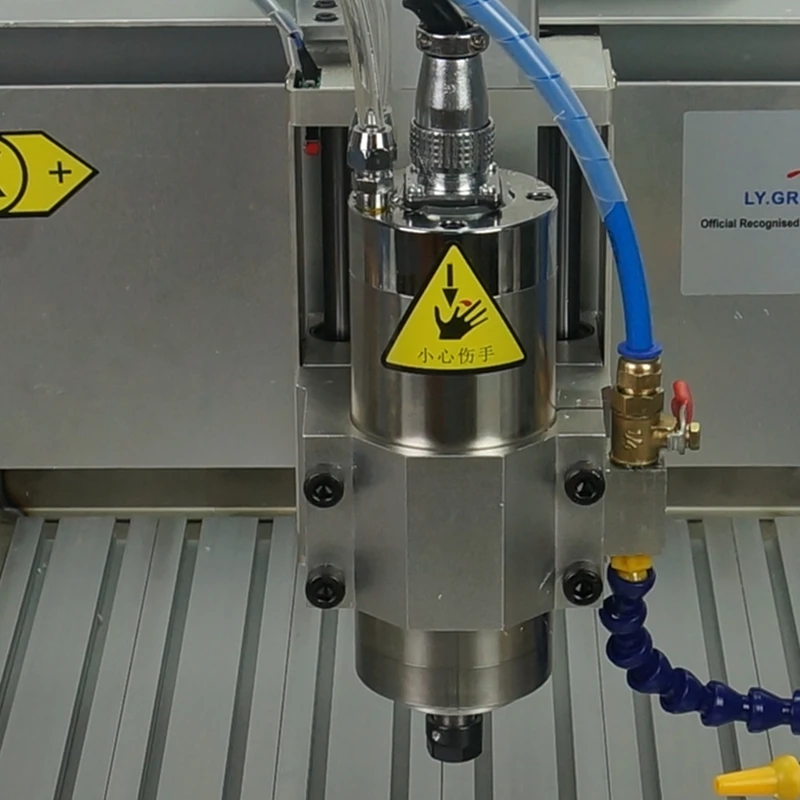

Spindle motor: | VFD water cooling spindle , 0-24000r/min | |||||
Collet type: | ER11(0.8KW 1.5KW) 3.175mm Collet & ER20(2.2KW), 6mm Collet | |||||
Stepper motor and drive: | two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. | |||||
Maximum operating speed: | 4000mm/min (Engraving speed : 300-3000mm/min) | |||||
Repeat positioning Accuracy: | 0.03mm | |||||
Software Compatability: | Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) | |||||
Command code: | G code/.nc/.ncc/.tab/.txt | |||||

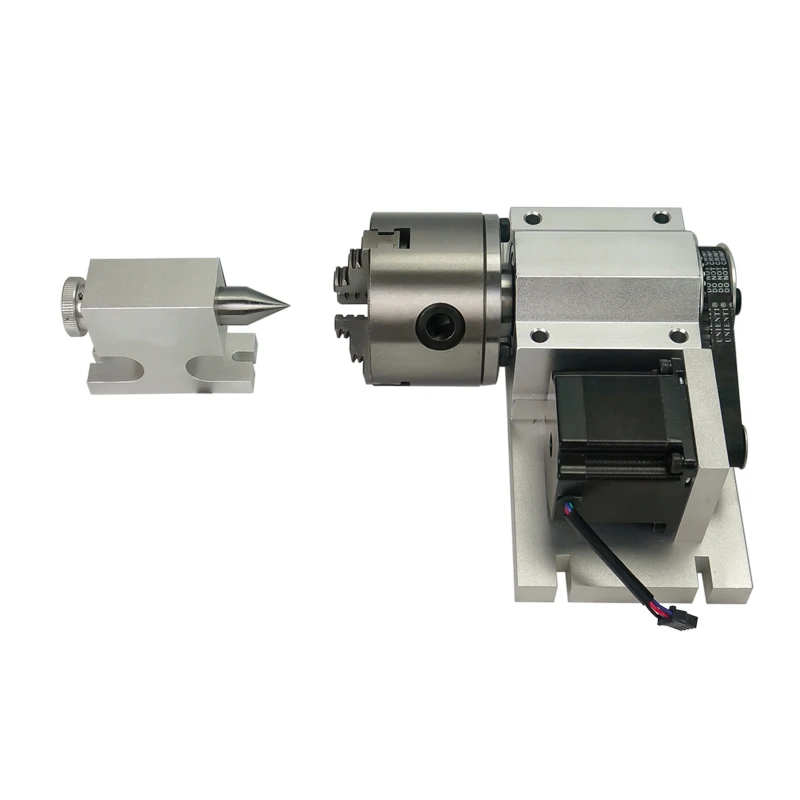

Rotation Axis (4th Axis) Description: | Chuck Size: 80mm self-centering chuck Center height: H = 49mm Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 ° | |||||

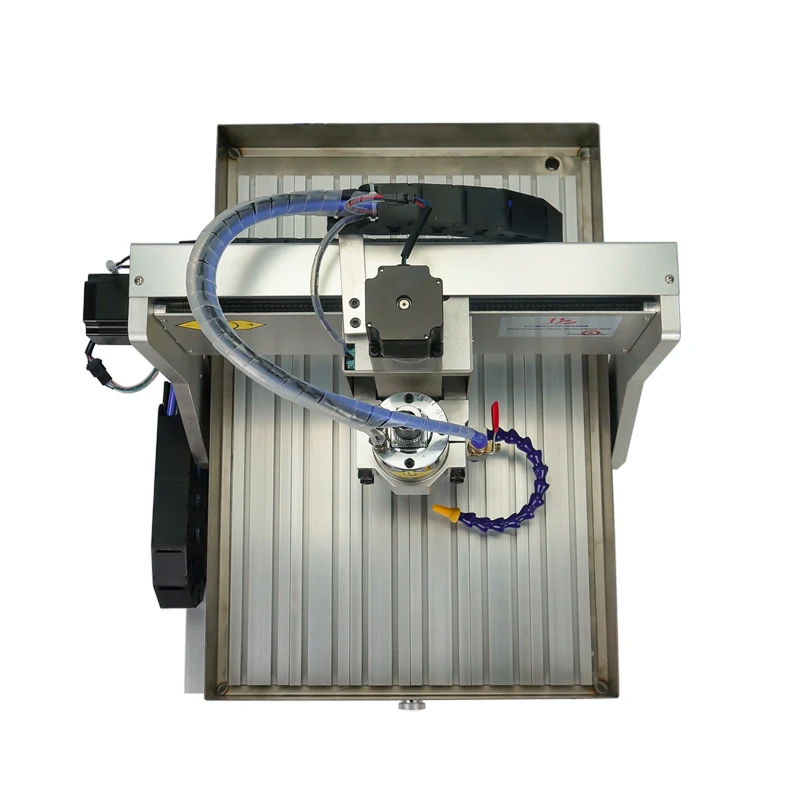

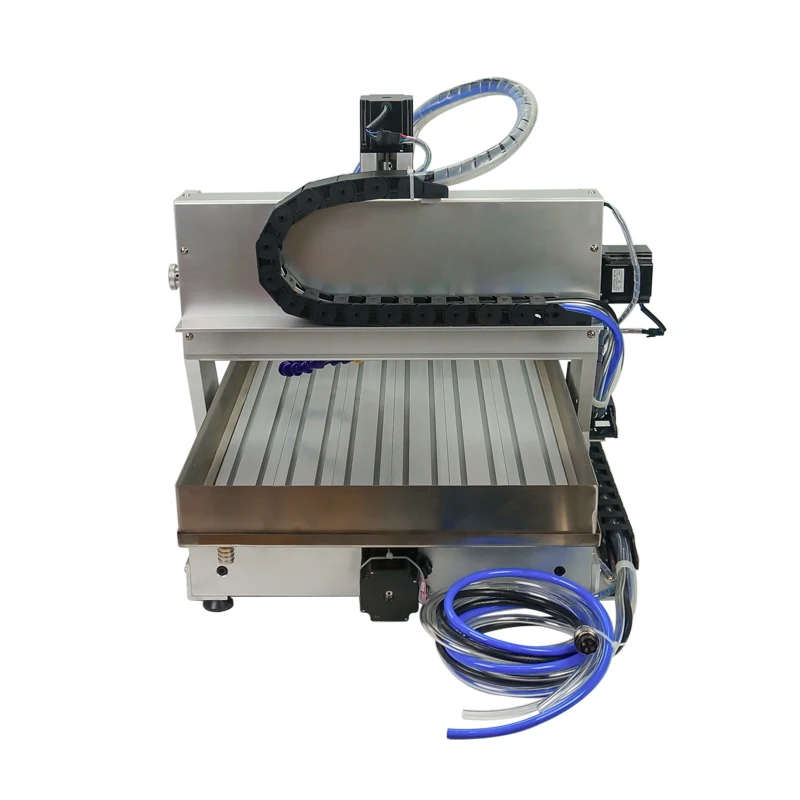

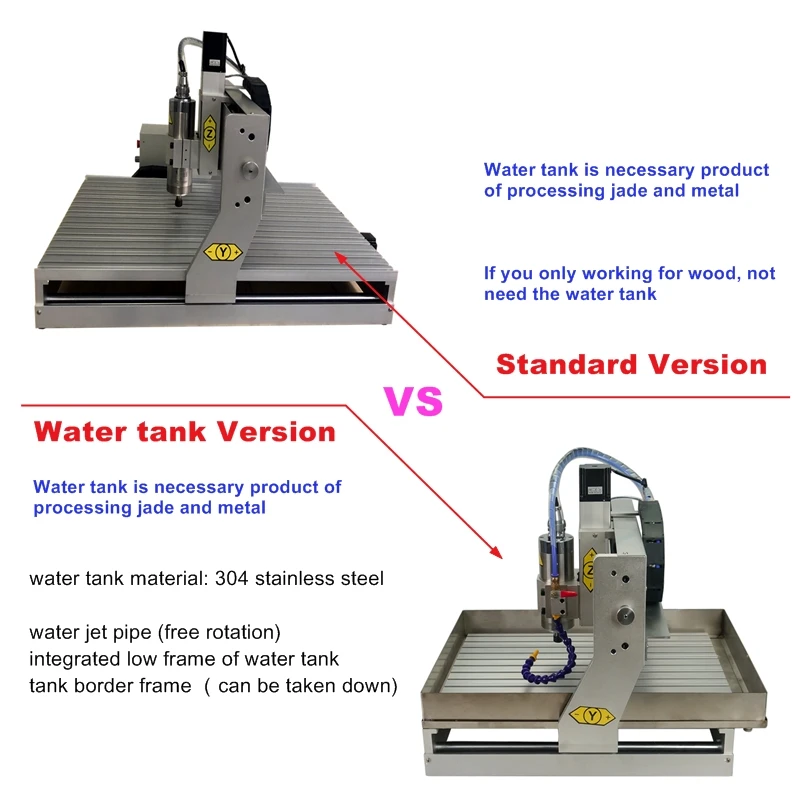

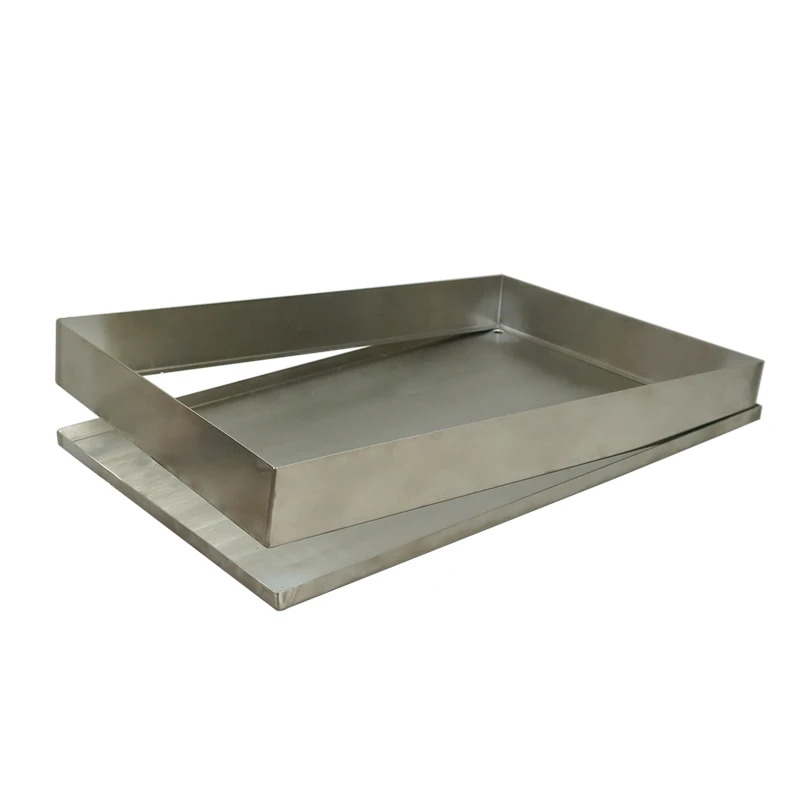

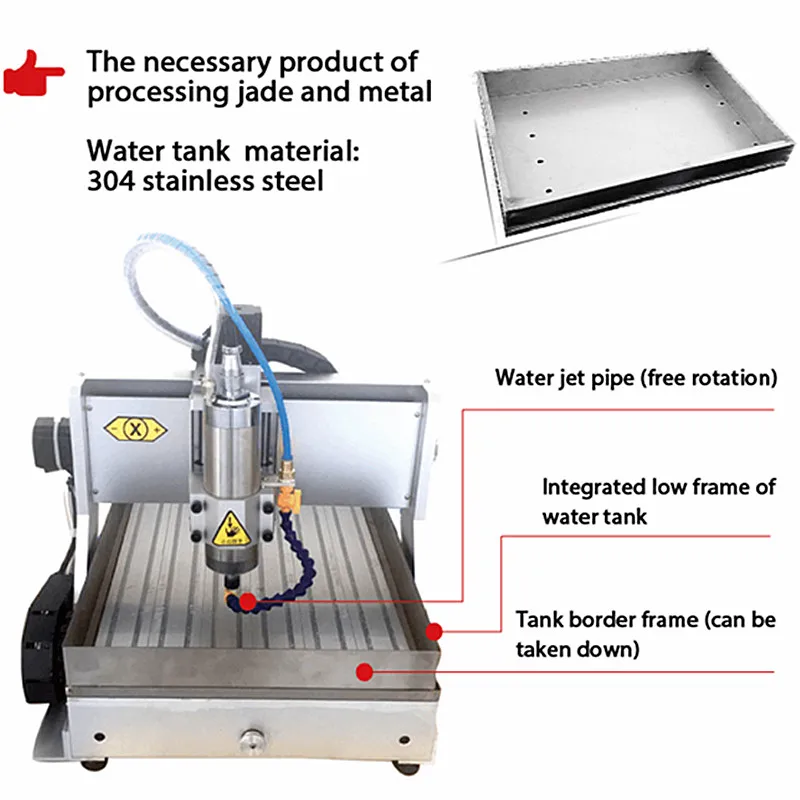

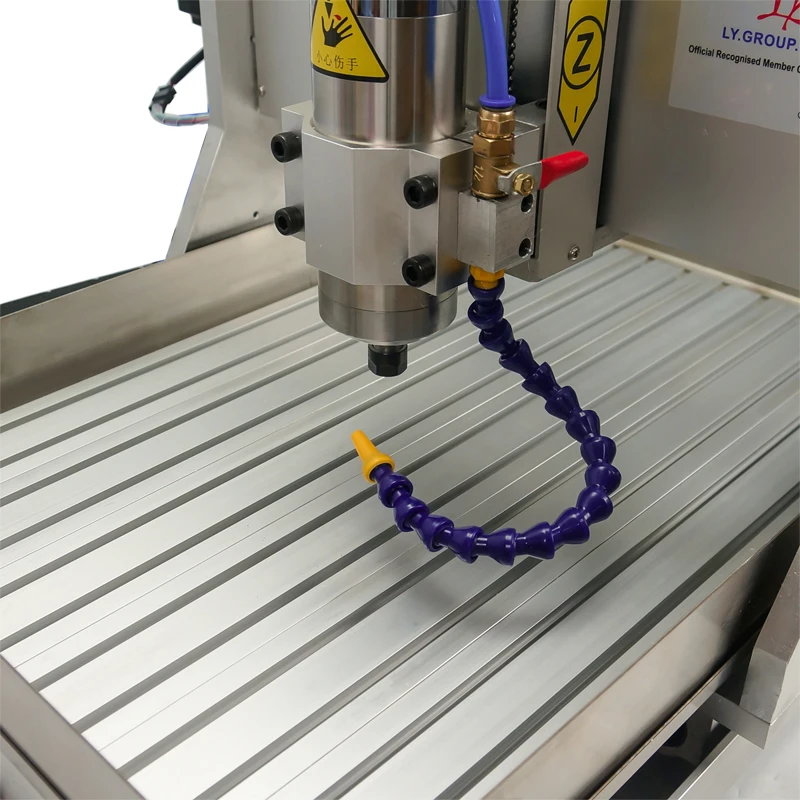

Water tank is the requisite for engraving jade and metal on engraver;
The tank is made of 304 stainless steel, stable and beautiful;
Features:
a. The water tank has integrated low frame which can be removed
b. The size and weight of the tank are as follows. The hole is mainly applicable to the LY brand engraving machine,if you want to use other brands of engraving machines, you need to deal with it yourself;
c. The machine with installation of water tank , before shipment, has done a good deal of water leak-proof treatment. If you just buy a water tank, you need install it yourself and do the water leak-proof treatment;
Technical Parameters

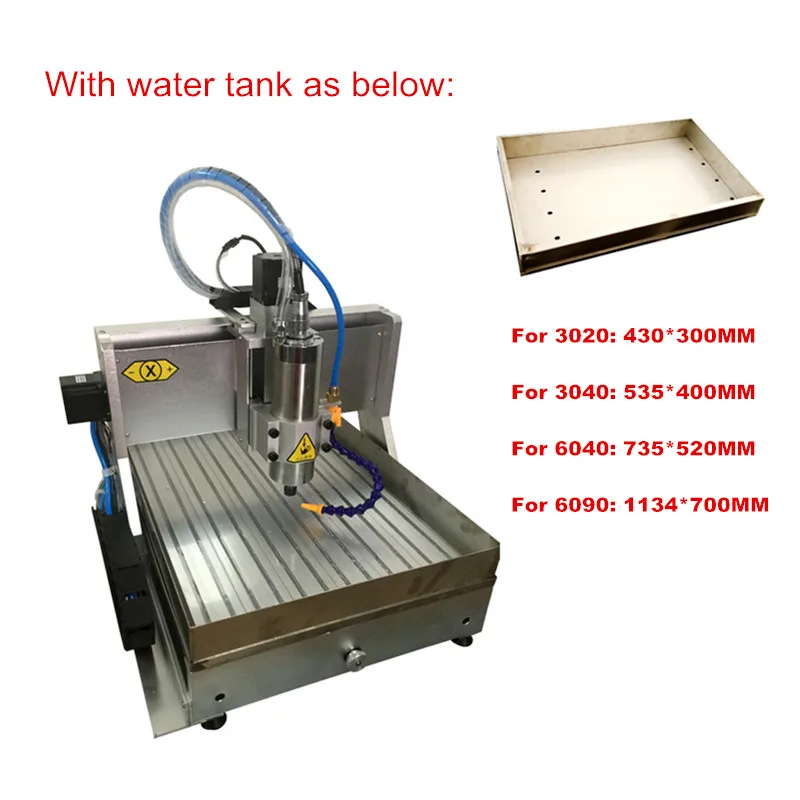

name | water tank | |||
Attribute | For 3020 | For 3040 | For 6040 | For 6090 |
Size | 430*300mm | 535*400mm | 735*520mm | 1134*700mm |
Weigh | 2.5 | 3.5 | 4.3 | 8.6 |

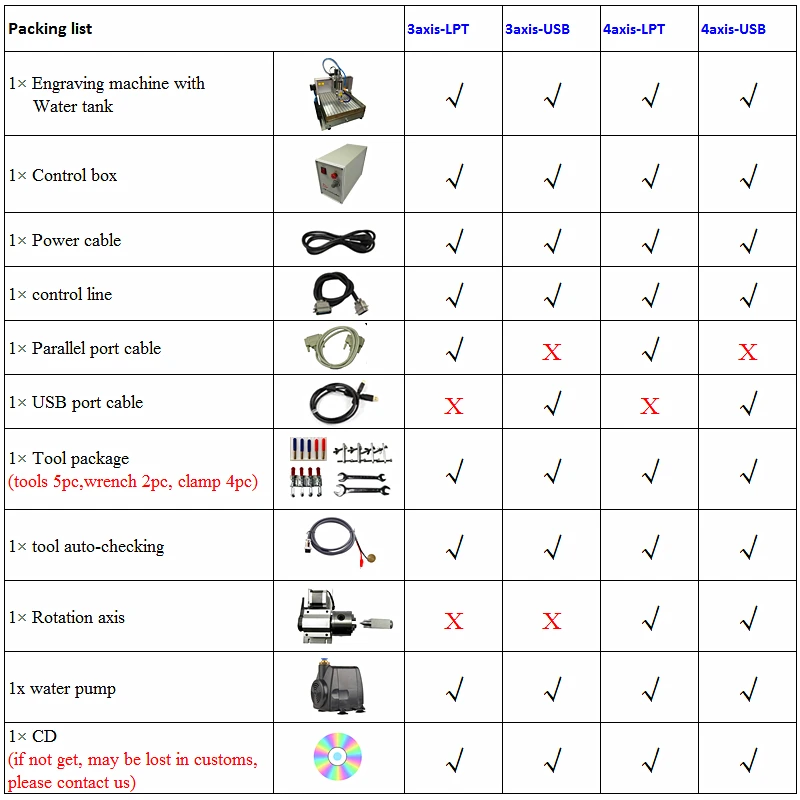

Packaging & Shipping
Packing
Original pack
Warranty
1 year full warranty directly from factory .
Shipping
By DHL & UPS & FEDEX with tracking number, need 4~7 days;
By SEA , need 30~40 days;
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Company Information
LY-CNC factory is located in Shenzhen, China.We has 10 years experiences in manufacturing and exporting CNC machines, such cnc 3020/4030/6040/9060...are hot sale in the world, especially in these countries from North and South American,European and Asian.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
