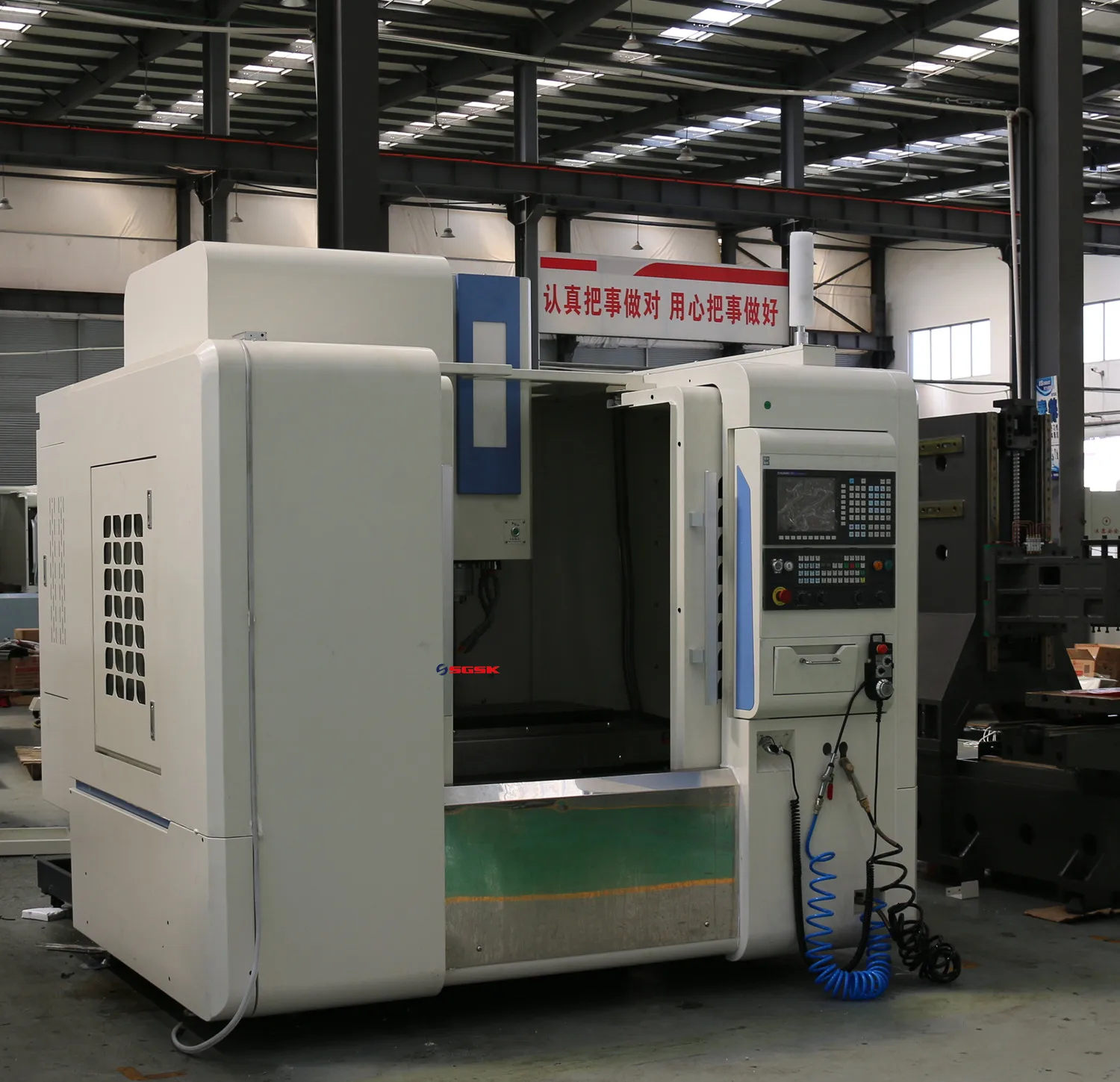

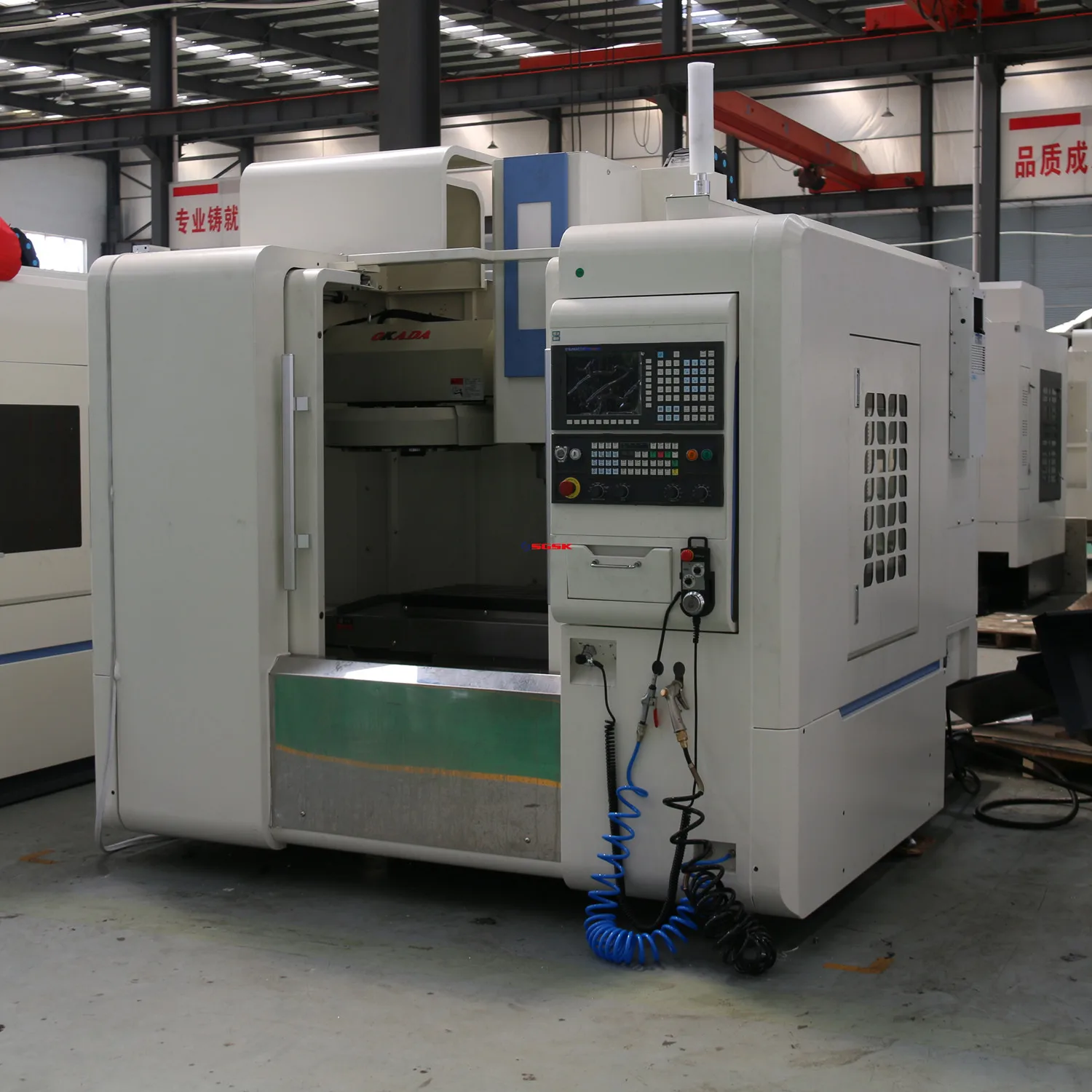

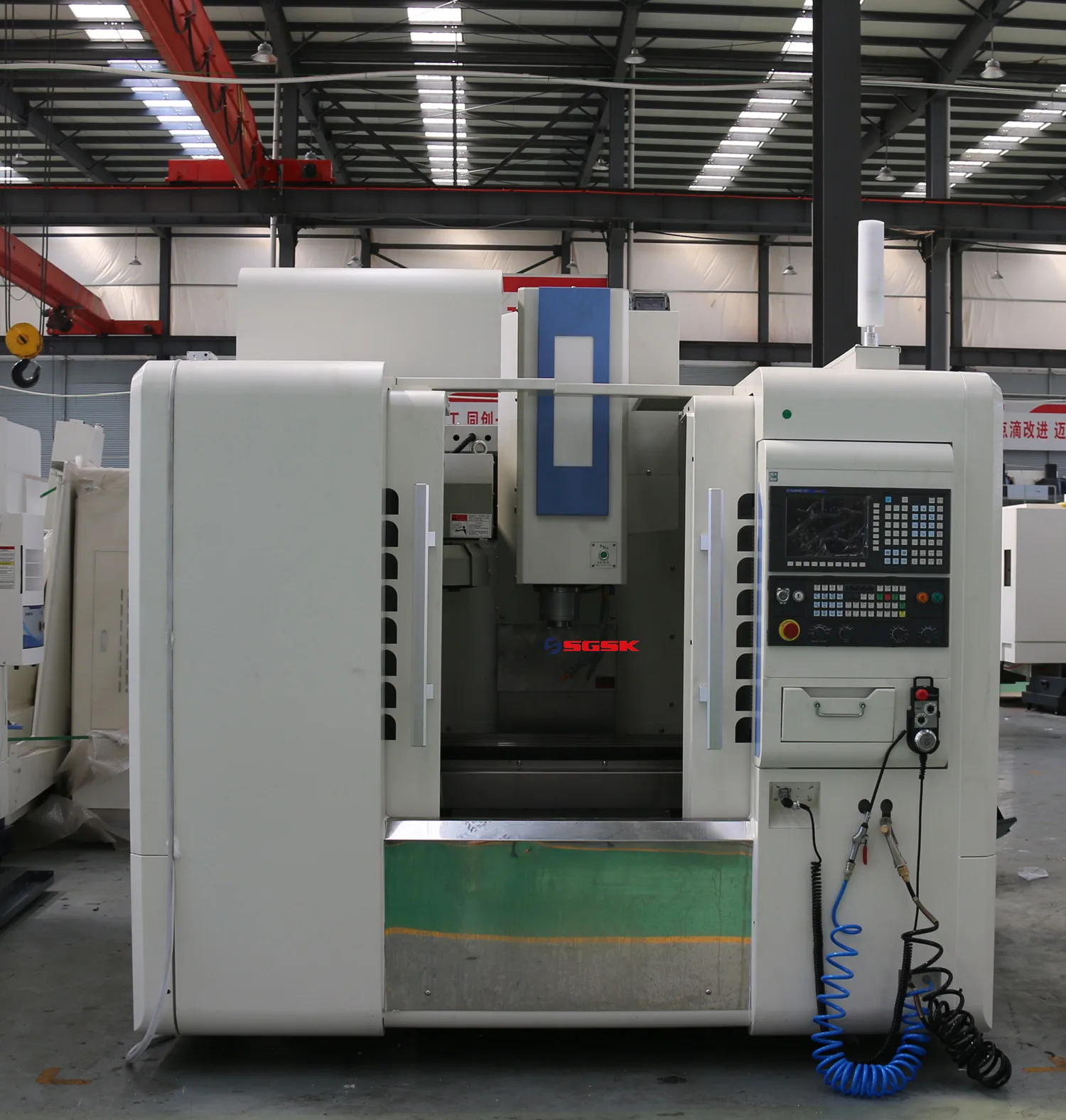

spindle cnc milling VMC650 cnc machining milling cnc center machine
Products Description
SPECIFICATIONS | Units | VMC640 | VMC650 | VMC840 |

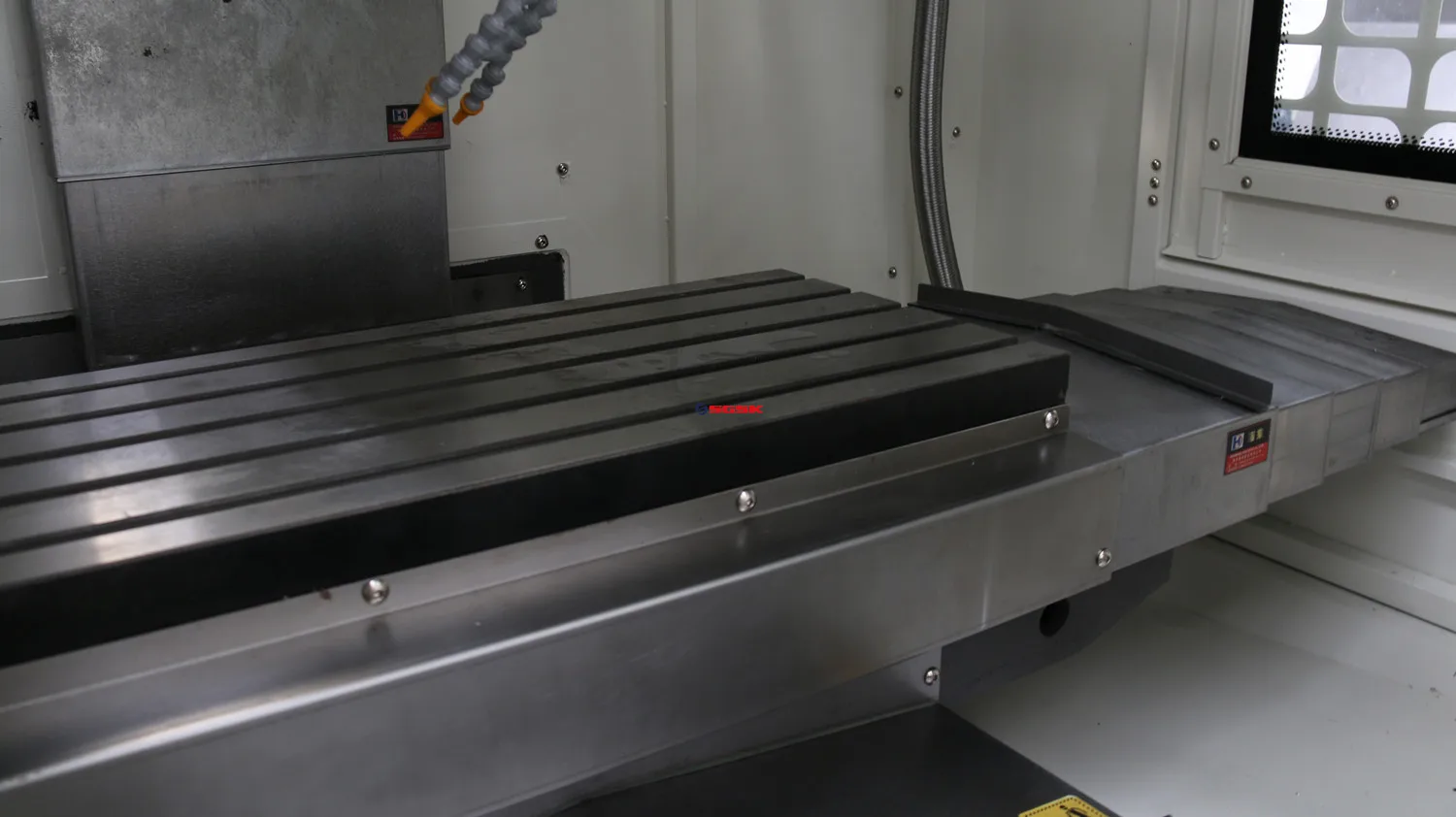

Table size | mm | 800*300 | 800*400 | 900*450 |
X axis travel | mm | 600 | 650 | 800 |
Y axis travel | mm | 360 | 400 | 400 |
Z axis travel | mm | 450 | 500 | 500 |
Max. worktable load | kg | 300 | 400 | 450 |
T slot(number-width*pitch) | - | 3-16*90 | 3-18*120 | 3-18*120 |
Max. spindle speed | rpm | 8000 | 8000 | 8000 |
Spindle taper | mm | BT40 | BT40 | BT40 |
Main motor power | kw | 5.5 | 5.5 | 5.5 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 | 24/24/20 | 24/24/20 |
Cutting feed speed | mm/min | 1-10000 | 1-10000 | 1-10000 |
Guide rail type | - | 线轨Linear rail | 线轨Linear rail | 线轨Linear rail |
Distance from spindle axis to column surface | mm | 410 | 469 | 520 |
Distance between spindle nose and table surface | mm | 100-550 | 100-600 | 130-630 |
Positioning accuracy | mm | ±0.0075 | ±0.0075 | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 |
Tool magazine | - | 斗笠Armless 16 | 斗笠Armless 16 | 斗笠Armless 16 |
Max. tool diameter | mm | φ90 | φ90 | φ90 |
Max. tool weight | kg | 8 | 8 | 8 |
Machine weight | kg | 3000 | 3800 | 4000 |
Overall dimension(L*W*H) | mm | 1900*1700*2100 | 2400*2000*2550 | 2500*2050*2550 |
TAIWAN PRECISION SPINDLE
1. Spindle taper is BT40;
2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
2. Spindle speed 8000rpm , can enlarge to 10000rpm or 12000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard:Taiwan armless16tool magazine .
2. Optional: Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
3. Brand: OKADA
2. Optional: Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
3. Brand: OKADA
TOOL UNCLAMP CYLINDER
Taiwanspindle Tool unclamp cylinder
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail,
positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
positioning accuracy can reach μm class
2. Brand: HIWIN or PMI

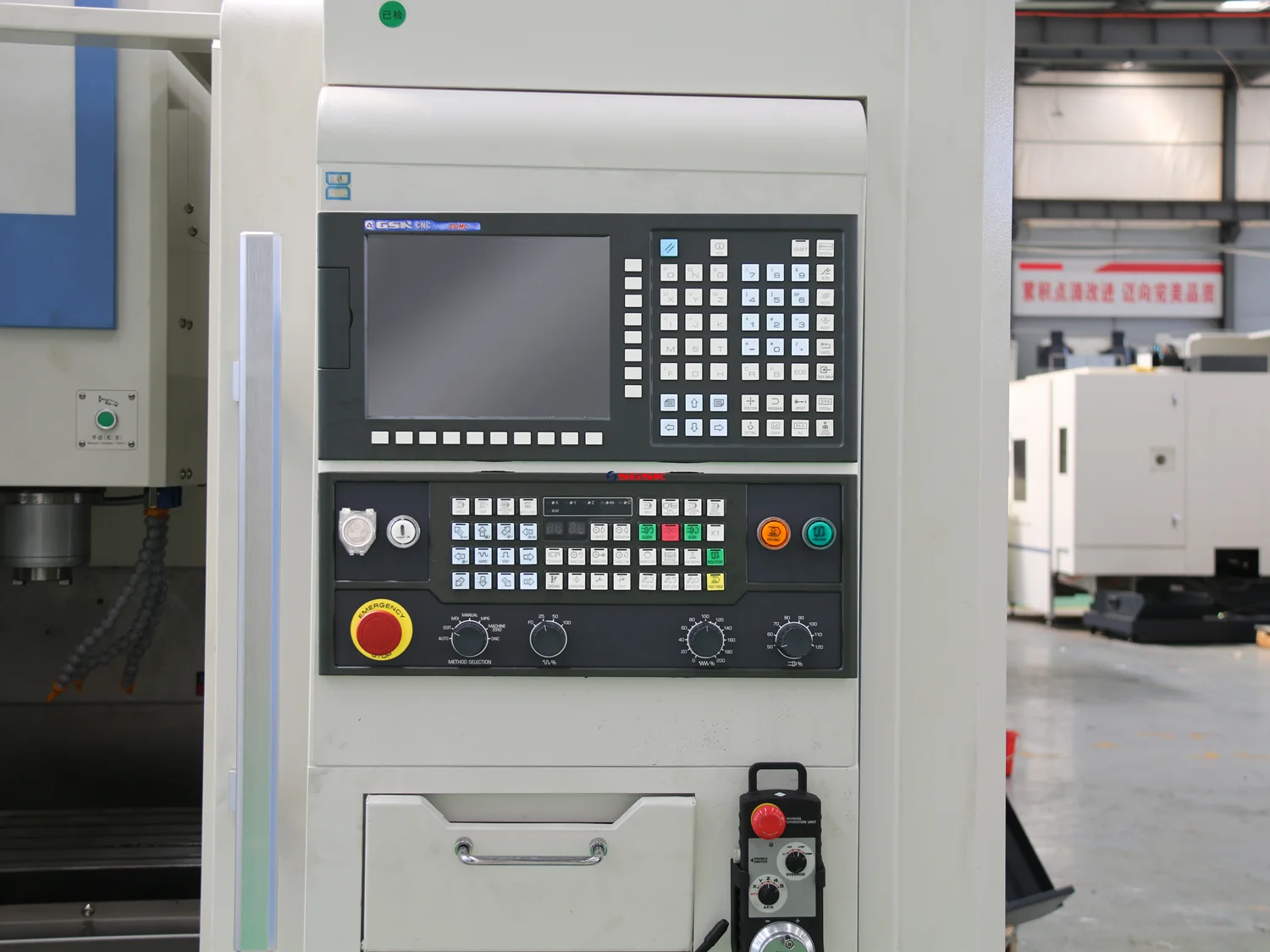

CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
Optional : Siemens , FANUC, Syntec ect.
AIR STORAGE TANK
Airstorage tank to ensure the stability of spindle tool change
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
LUBRICATION SYSTEM
Automatic centralized lubrication device .
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
2. quick plug as standard
AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner.
Cooling the electric box better
Cooling the electric box better
AIR GUN AND WATER GUN
High-pressure air guns and high-pressure water guns
MACHINE CONSTRUCT
1. High strength high quality cast iron, 2. long span bed base and vertical column structure
BT40 MILLING CHUCK
Standard with BT40 milling chuck .
TESTING
Eachmachine passed Renishaw laser interferometer testing and ballbar testing.
