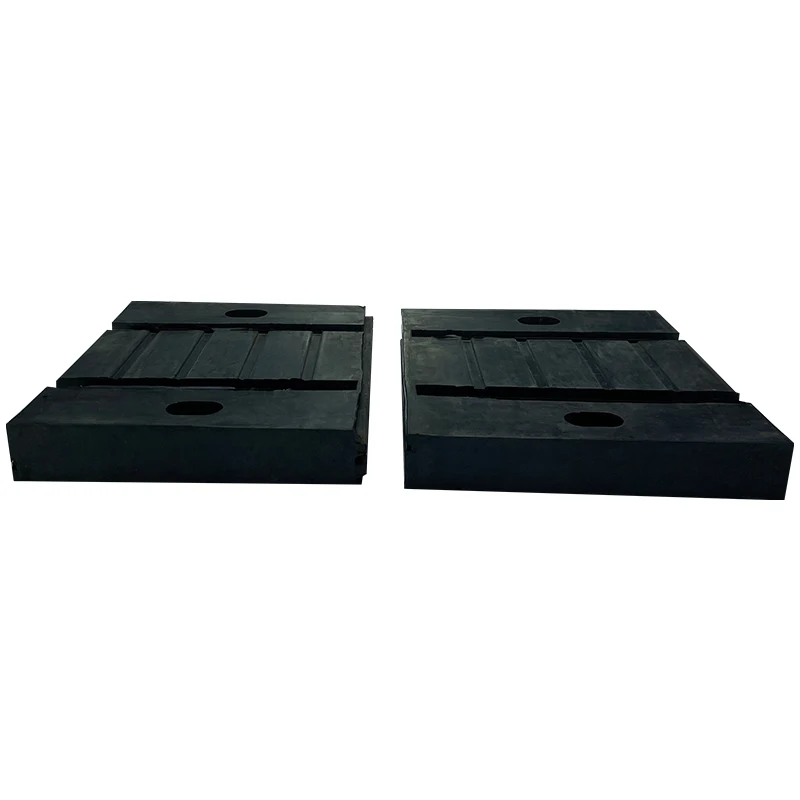

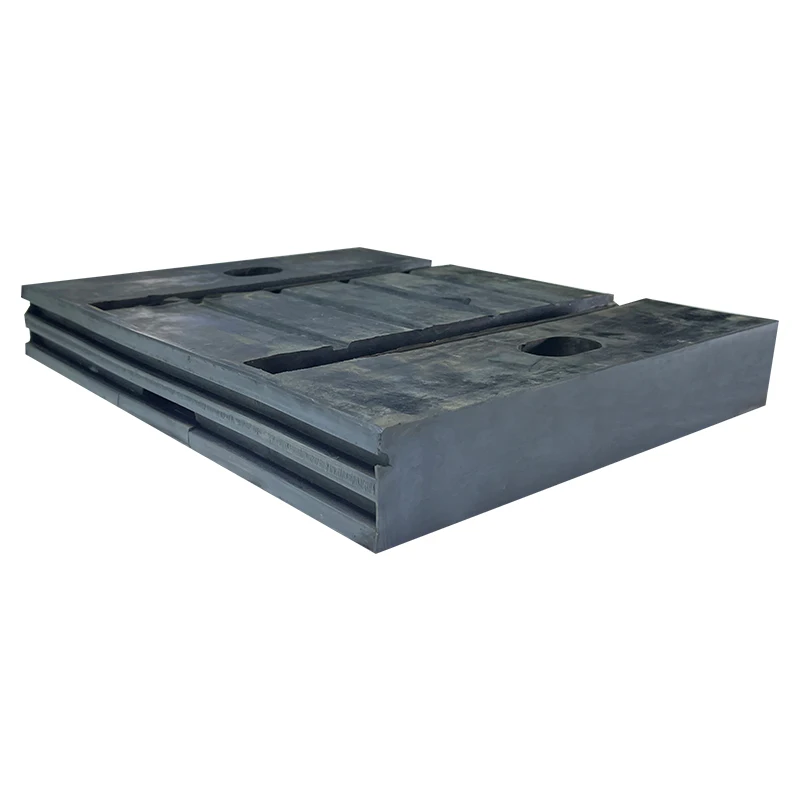

Heavy Traffic Loading Elastomeric Rubber Bridge Joint for Bridge Expansion
AVIDA bridge expansion joints, guaranteed against corrosion for long-lasting solution. Rubber is strong against to surface oil, grease, oil, chemicals, resistant to UV rays, snow and salt. All expansion joints are designed to absorb movements and expansions of the structure by changing their shape. Expansion joints of different sizes are fixed to the reinforced concrete from both sides by using of suitable corrosion-resistant galvanized anchor bolts and chemical anchors to absorb elastic reactions, mechanical vibrations and other movements of the structure.
AVIDA rubber bridge expansion joints used for up to 300mm movements, consisting of a waterproof rubber and steel plates, absorbs movements of the bridge. This system produces in factory under high temperature and pressure with rubber plates and steel plates. This is a result of the production system.
AVIDA bridge expansion joints, guaranteed against corrosion for long-lasting solution. Rubber is strong against to surface oil, grease, oil, chemicals, resistant to UV rays, snow and salt. All expansion joints are designed to absorb movements and expansions of the structure by changing their shape. Expansion joints of different sizes are fixed to the reinforced concrete from both sides by using of suitable corrosion-resistant galvanized anchor bolts and chemical anchors to absorb elastic reactions, mechanical vibrations and other movements of the structure.
Physical Properties of Rubber
Physical Properties | CR | NR | EPDM | ||
Hardness | 50±5 | 50±5 | 50±5 | ||
Tensile Strength/Mpa ≥ | 15 | 16 | 14 | ||
Elongation at Break/% ≥ | 400 | 400 | 350 | ||
brittleness temperature(℃) ≤ | -40 | -50 | -60 | ||
EN Compression Set(70℃*24h)/% ≤ | 15 | 30 | 25 | ||
Ozon Resistance(20% elongation, 40℃*96h) | No Crack | No Crack | No Crack | ||
Air Oven Aging(Max change, comparing with datas without aging) | Test Conditions(℃*h) | 70*96 | 70*96 | 70*96 | |
Tensile Strength(%) | ±15 | ±15 | ±15 | ||
Elongation at Break/% | ±25 | ±25 | ±20 | ||
Hardness Change | 0~+10 | -5~+10 | 0~+10 | ||
Peel Strength between Rubber and Steel(kN/m)﹥ | 7 | 7 | 7 | ||
Resistance to Salt Solution(23℃*14d, concentraction 4%) | Volume Change(％)≤ | 10 | 10 | 10 | |
Hardness Change ≤ | 10 | 10 | 10 | ||
Oil Resistance(ASTM1，23℃*168h) | Volume Change | -5~+10 | ＜+45 | ＜+45 | |
Hardness Change | -10~+5 | ＜-25 | ＜-25 | ||
We provide 5 years warranty on materials.

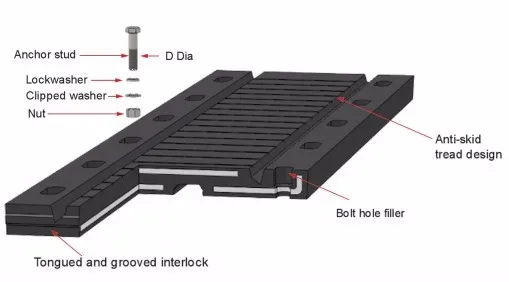

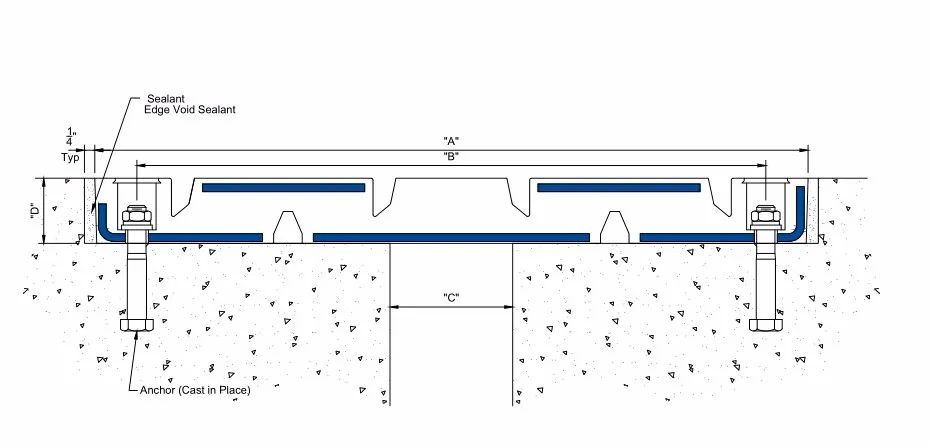

Drawing and Size
Model | Movement(mm) | Module length(mm) | Module depth(mm) | Module depth(mm) | Stud Diameter(mm) | Weight(kg/m) |
30 | ±15 | 2000 | 33 | 33 | 12 | 18 |
50 | ±25 | 2000 | 43 | 43 | 12 | 25 |
80 | ±40 | 2000 | 46 | 46 | 20 | 34 |
100 | ±50 | 2000 | 54 | 54 | 20 | 45 |
160 | ±80 | 2000 | 84 | 84 | 24 | 88 |
200 | ±100 | 2000 | 71 | 71 | 24 | 135 |
330 | ±165 | 1000 | 100 | 100 | 30 | 280 |
Design Features
• simple installation
• simple and cost-effective inspections and maintenance
• minimal noise and vibration
• ultimate comfort for passengers in transit
• smooth running surface
• optimum functioning and durability of all components
• minimal interference with the structure
• format easily adjusted to many shapes to accommodate layout of structure and design engineers’ preference
• several different types of anchorage to suit customer requirement

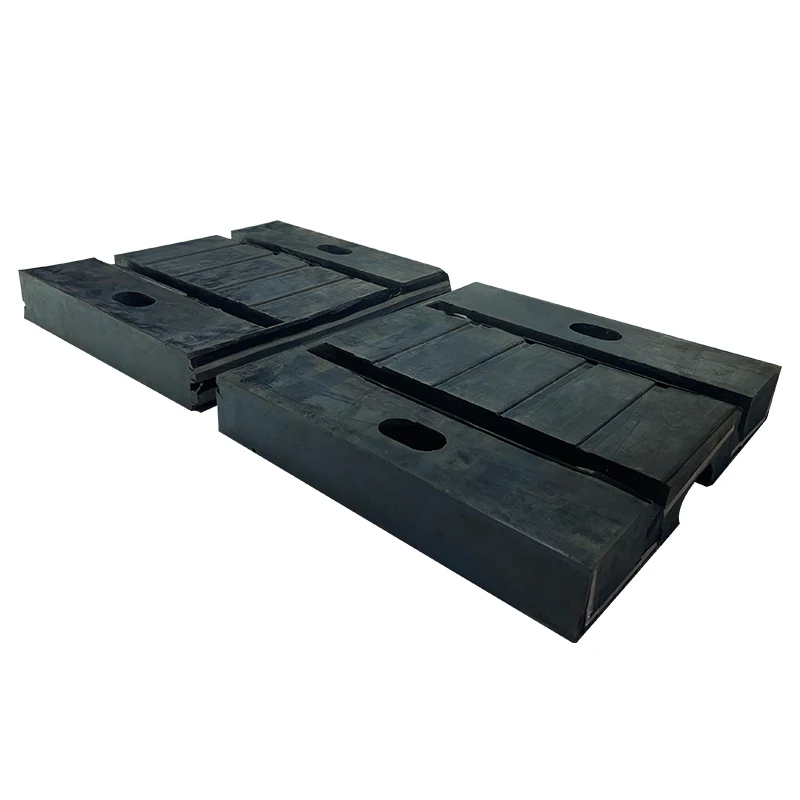

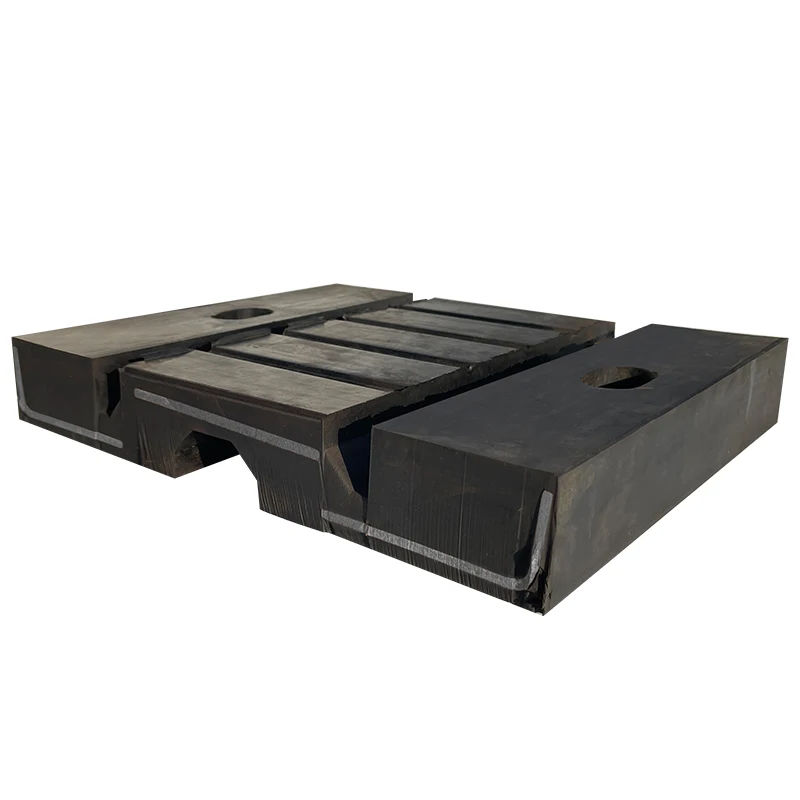

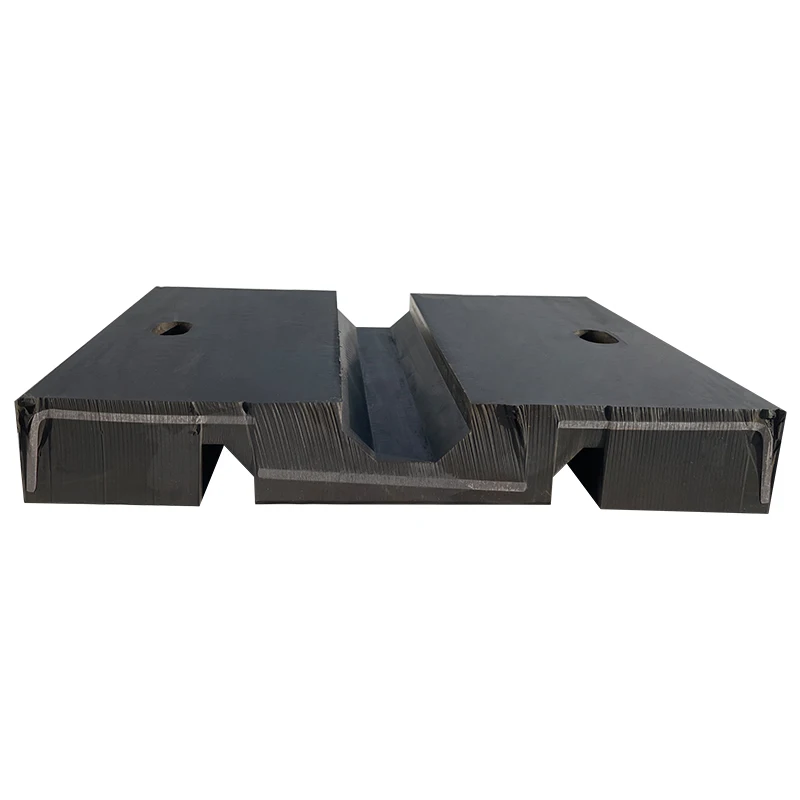

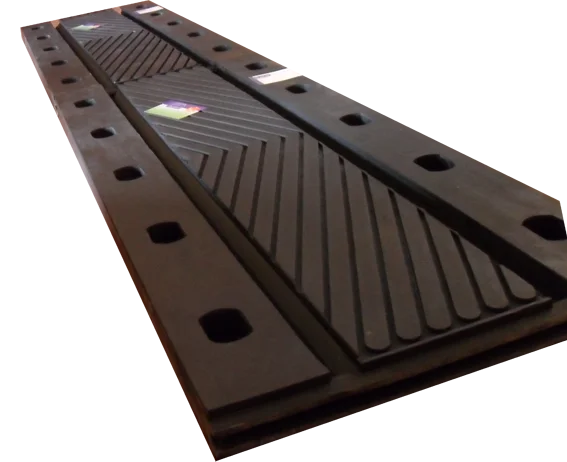

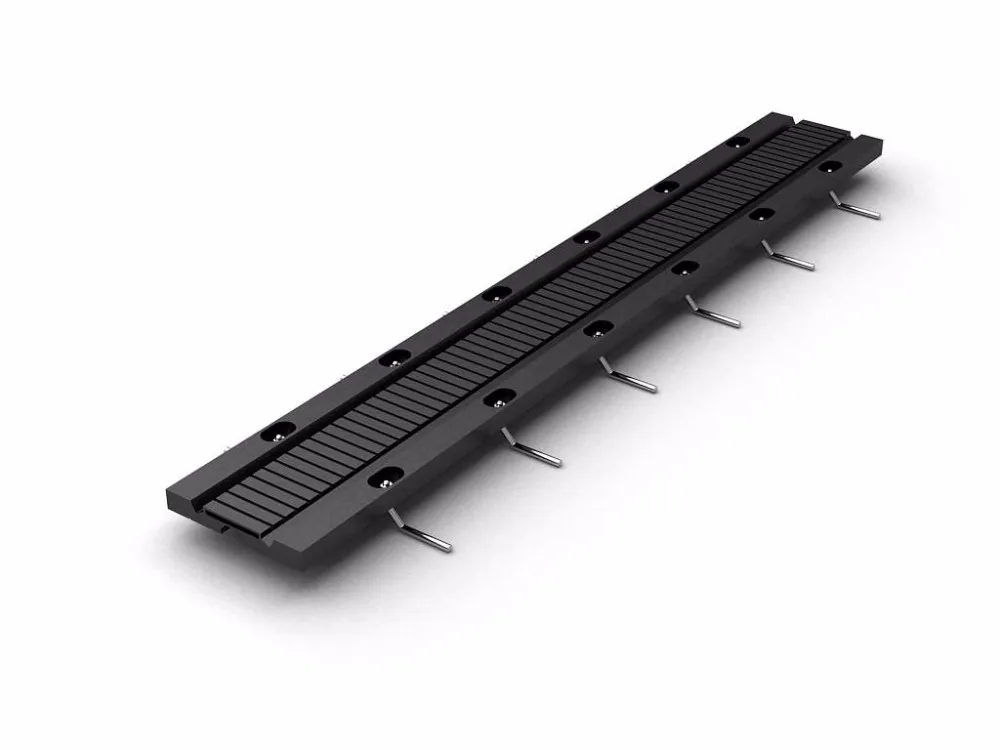

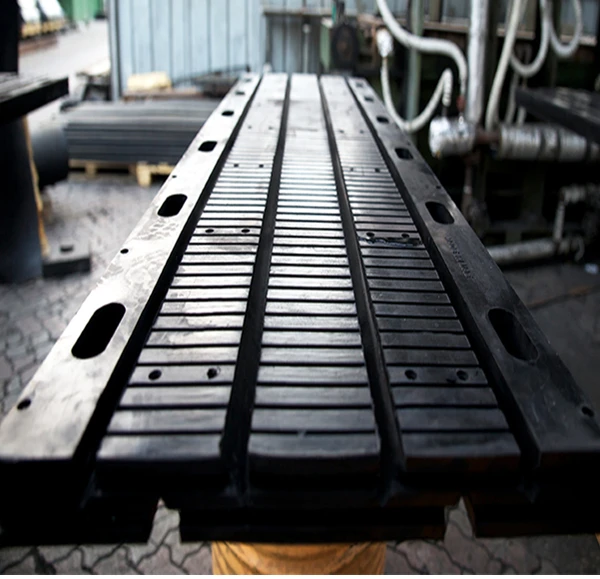

Product Show

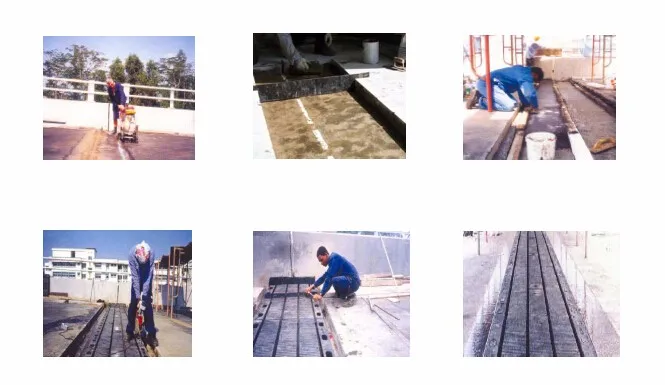

Installation
1. Premix Marking and Saw Cut to the required joint dimension
2. Hacking and Cleaning by Air Blower and Hot Air Burner
3. Removing all Laitance and Sub-Standard Material
4. Applying Leveling Screed to achieve an uniform lever between a joint system and premix
5. Drilling Bolt Holes for Stud Installation
6. Fixed the Panel and Tighten the Bolts
7. Applying Nosing into the prepared trench
8. Sealing the Bolt Holes with Sealant
9. Open to Traffic within 1 – 2 Hours.
Our Company
Since the early 2005, Nanjing AVIDA Engineering Materials Co.,Ltd has provided expansion joint systems for bridge around the world. With over ten years steady development, We have over 100 staff and 3500 square meters workshop today.
Until now, AVIDA has supplied various of building expansion joints, bridge expansion joints, waterstops and other assemblies for bridge and road in different construction projects. With the ISO and SGS standard, AVIDA is devoting himself to become one of the asia’s outstanding building and bridge components suppliers. Embracing with a clear company vision, we're now ready to progressively march towards excellence and take on a much bigger role in the international arena.
Office
Our sales team is willing to solve every question from our clients..
Workshop
We have professional engineers to design unique product to meet your any requirements.
Factory
We have advanced equipments and complete inspection and testing system to guarantee our product quality.
Packing & Delivery
Packing Details : 1.pearl cotton as separation 2.carton for inner package 3.Container
Delivery Details : 1.Safety package
2.100% test before delivering (ensure the quality)3.Item is shipped in about 15-30 working days against payment depends on the quantity
4.Tracking number will be sent to you as soon as we ship the product
Our Certifications
Avida elastomeric bearings are designed and manufactured in accordance with the requirements of the new European standard EN 1337-3 and have the qualification of the CE mark. Avida can also supply elastomeric bearings complying with other standards. The elastomer used in the moulding process can be polychloroprene (neoprene), natural rubber or SBR depending on the specifications requested. Every single steel component is mechanically worked and assembled by fully qualified and trained workers at the factory with regular external inspections according to EN 1337 and under strict ISO 9001:2008 quality control standards.
