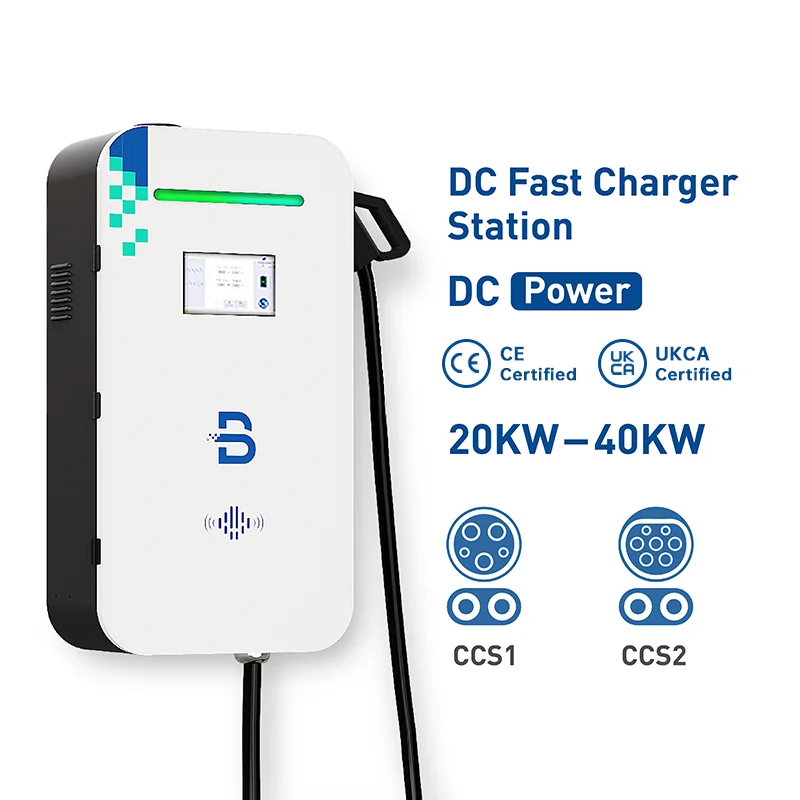

Level 3 CCS1 CCS2 DC Fast EV Wall Mounted Charger 30kw DC EV Charger DC Charger Station
- Category: >>>
- Supplier: ZHEJIANG BENYI NEW ENERGY CO. LTD.
Share on (1600948616073):
Product Overview
Description
Why Choose Us
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
QUALITY PV PROTECTION PRODUCTS AND EV CHARGERS MANUFACTURER
We are a leading brand in annually producing hundreds of thousands of quality DC protection products and EV charging stations for complete and reliable solar photovoltaic, battery energy storage, and EV charging system. Certified by UL, SAA, CB, CE, TUV, UKCA, ISO, and RoHS,we have the first listed patented DC switch and produce creative solutions like the AFCI solution for rooftop fire protection, dynamic load balancing, and PEN fault detection EV charger.
Product Paramenters
Highlights
* 20kW - 40kW
* Single Charging Outlet CCS1 CCS2 GB/T
* 9.1inch LCD Screen
* OCPP 1.6
* IP55
* 24 Months Warranty
* Single Charging Outlet CCS1 CCS2 GB/T
* 9.1inch LCD Screen
* OCPP 1.6
* IP55
* 24 Months Warranty
* Time-saving - Fast charging
* Power saving - High conversion efficiency and low standby power consumption
* High Safety - Dual protection to both manual operation and vehicles
* Power saving - High conversion efficiency and low standby power consumption
* High Safety - Dual protection to both manual operation and vehicles
FAST, EFFICIENT AND SAFE EV CHARGING STATION
BENY DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface.
The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.
The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging to ensure the safety of users and vehicles.
High Safety
Dual protection.Active protective function.No fire or electric shock risk.Safety of network and supply.
High Reliability
High reliability and low failure rate withlow operation and maintenance costs.Always available easy to use andprofitable
Environment friendly
Low noise and easy to use Environment friendly.

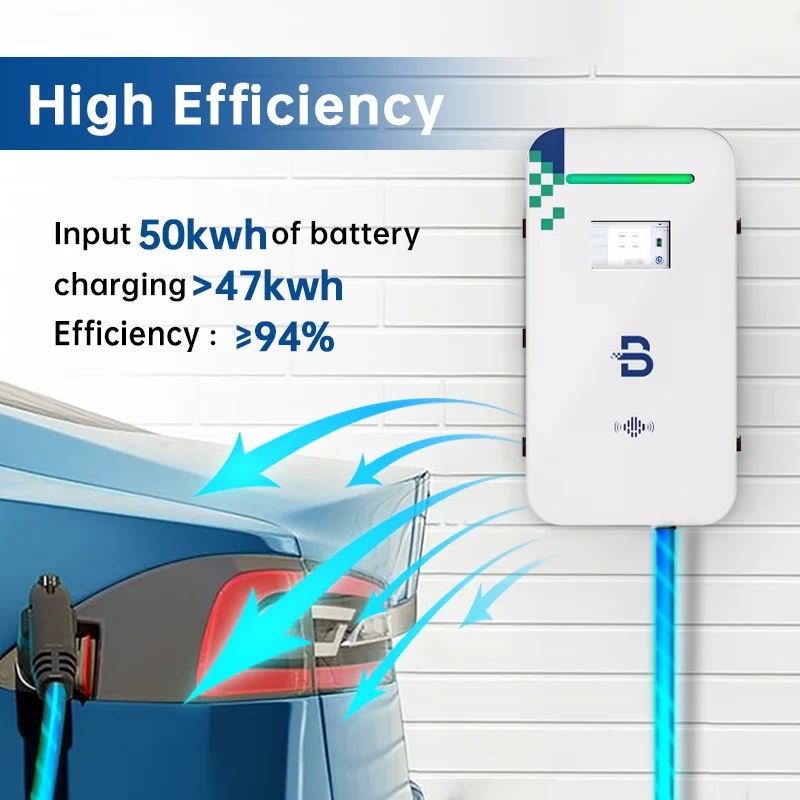

High Efficiency
Efficient and power saving. Low heat loss and heat dissipation.Low overall power consumption and operating costs
Intelligent
Intelligently connect multiple operating devices with information-based remote operation management.
Fast charging
Constant power output at different voltage and temperatures Fast charging capability in all scenarios,
Dispatching power according todifferent demand
BUILT TO LAST
Reliable in every situation
Reliable in every situation
From its durable and weatherproof design to its integrated electrical protections, the new generation of EVB DC EV charging stations takes reliability up a notch. With built-in Wi-Fi and 4G LTE, it’s always connected so you can track and manage your charging stations, receive remote firmware updates, and earn revenue.
From its durable and weatherproof design to its integrated electrical protections, the new generation of EVB DC EV charging stations takes reliability up a notch. With built-in Wi-Fi and 4G LTE, it’s always connected so you can track and manage your charging stations, receive remote firmware updates, and earn revenue.

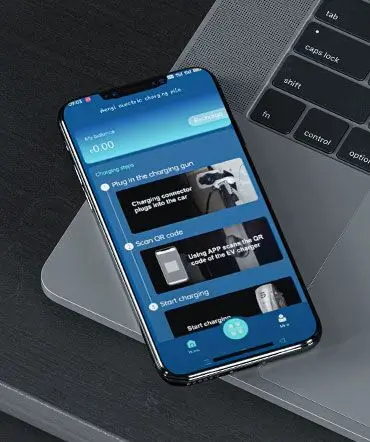

Smart Device APP/Charging Administrator Program
Our intelligent software manager handles charging and data collection that monitors operations and frequency of activities 24/7.
The data is accessible through an app overseeing the station’s overall performance to inform the following.
The data is accessible through an app overseeing the station’s overall performance to inform the following.
* Automated Load Balancing efficiently distributes energy to units.
* Provide reports of any issues like power surges during charges
* Remotely control operations, whether on-site or off-site
* Remotely control operations, whether on-site or off-site
SMART AND SCALABLE
Expand your charging network, easily
Expand your charging network, easily
Built with scalability in mind, EVB DC EV charging station meets your needs today and in the future. Hub-Satellite lets you connect up to 20 charging points per network and manage an unlimited number of networks via the software of your choice. Plus.thanks to load balancing, you can reduce your infrastructure and energy costs.
Support Every Step of the Way
EVB provides training and marketing materials, fully assisting you in introducing EV charging options to your customers and providing the following perks.
*All-inclusive dealer sales training for you to be competent in product knowledge essential for a successful sale.
* Brochures for added marketing materials to attract potential clients
* Updated with our special promos that give your sales a boost
* Brochures for added marketing materials to attract potential clients
* Updated with our special promos that give your sales a boost

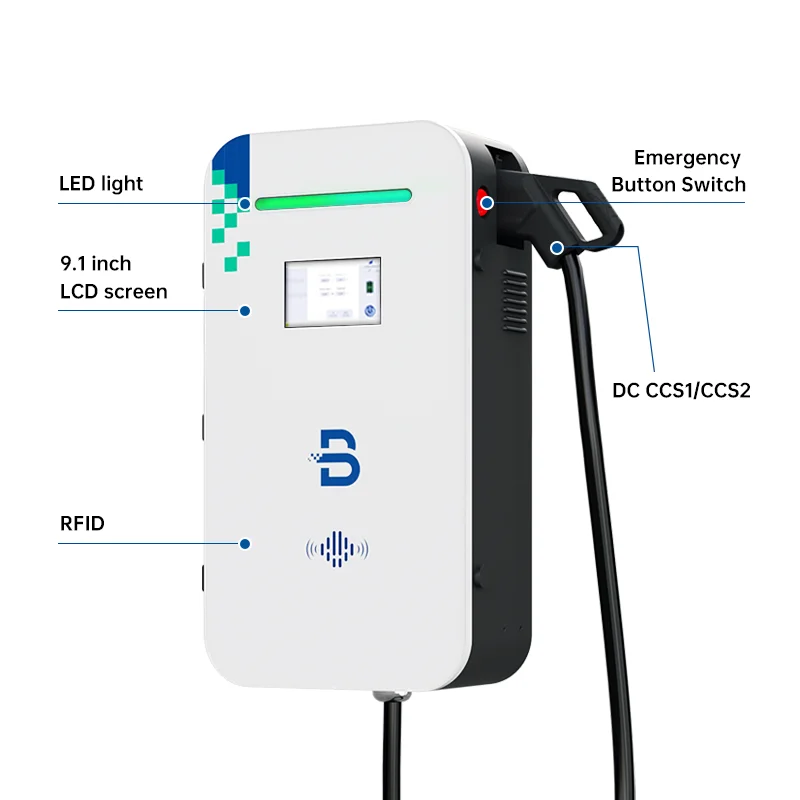

Details Images
Product Paramenters
Models | BDC-M20 | BDC-M30 | BDC-M40 | ||
Connectors | CCS2 | CCS2 | CCS2 | ||
Number of plugs | 1 | 1 | 1 | ||
DC output power | 20KW | 30KW | 40KW | ||
AC input voltage | AC380V±15% | AC380V±15% | AC380V±15% | ||
AC input frequency | 45-65Hz | 45-65Hz | 45-65Hz | ||
DC output voltage range | DC50-750V | DC50-1000V | DC50-1000V | ||
DC output current | single connector 50A | single connector 100A | single connector 120A | ||
Cable length | Standard 5m(customizable) | ||||
Efficiency | ≥95% | ||||
Noise emission | ≤65dB | ||||
IP Rating | IP54 | ||||
Warranty | 12 Months | ||||
Enclosure Protection | IK10 | ||||
Standard | IEC/EN 61851, IEC/EN 62196、ISO-15118、DIN 70121 | ||||
Communication Protocol | OCPP 1.6J | ||||
Status indication | 9.1 inch LCD screen/LED light | ||||

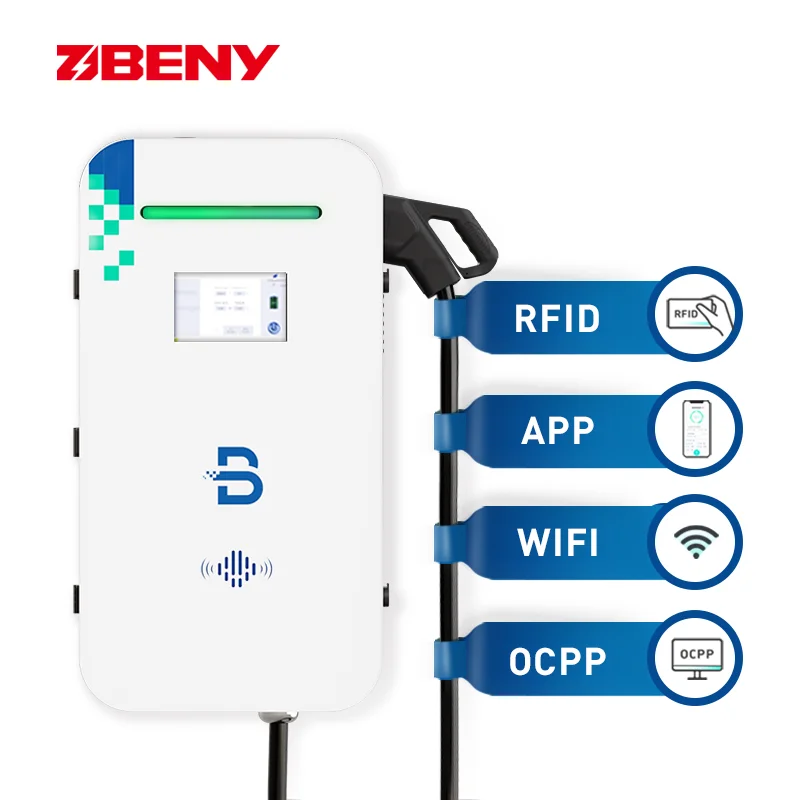

Connectivity Authorization | RFID/NFC, App, VIN | ||||
Network connection | 4G/Ethernet | ||||
Electrical protections | Under voltage、Over voltage、Short circuit、Over current、Leakage Protection、Over temperature、Emergency stop 、Surge protection、Insulation detection | ||||
Cooling method | Air cooling | ||||
Operating temperature | -25℃〜+55℃ | ||||
Storage temperature | -40℃〜+80℃ | ||||
Operating humidity | 5%-90% non-condensing | ||||
Maximum installation height | 2000m | ||||

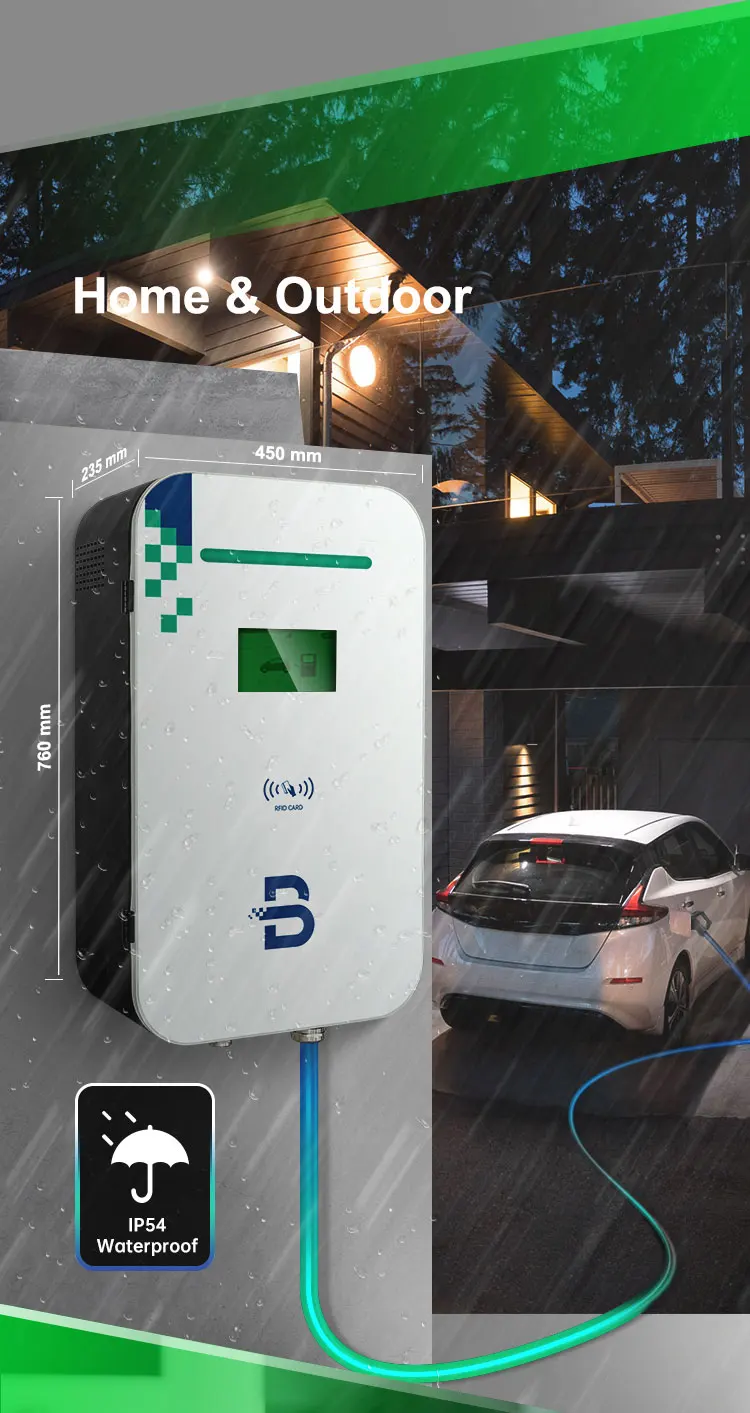

Dimension (W x H x D) | 450 x 760 x 235mm | ||||
Company Profile
BENY Electric is a specialist in EV charging station installations around China in multiple different scenarios.
Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification.
We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways.
Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use.
BENY Electric incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.
Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification.
We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways.
Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use.
BENY Electric incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.

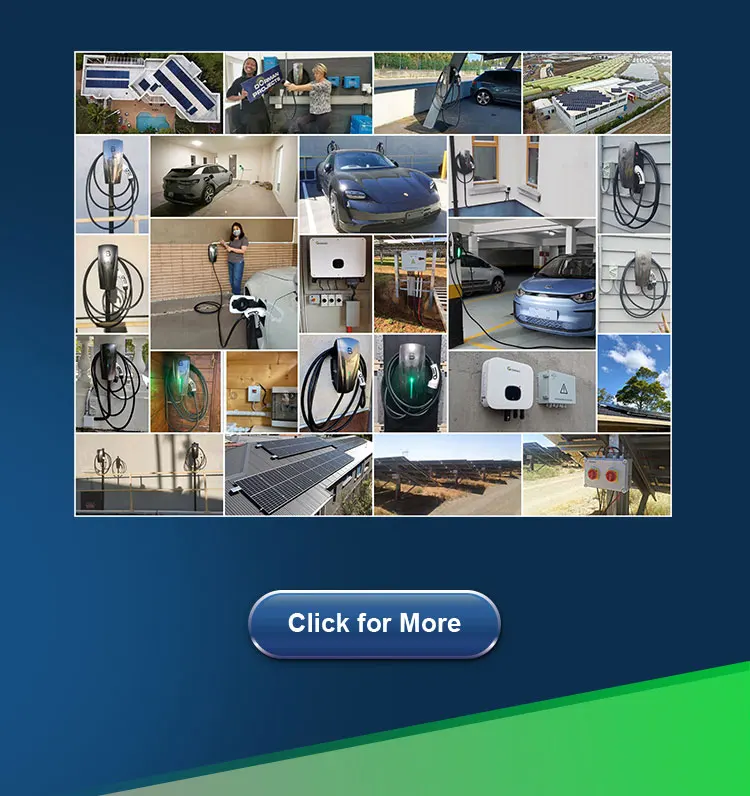

Product Application Case
BENY With 30+ years experience in professional manufacture,
our products have been attracting customers from 100+ countries
that spread all over the world from Europe, Asia, Australia, theMiddle East and the South America.
Exhibition
BENY Electric attends all types of exhibitions every year,thus closely keeping contact with partnerships from different countries, learning the newest trend and the newest market demand,then improving our cutting-edge technology.
Partners
With the sincere service and profesional manufacture towards our customers over 30+ years,our producrs have been attractingnumerous customers from Europe, Austrilia, the Middle East and tothe South Asia.
BENY EV Charger has been enjoying a good reputation across the world from the coldest area lreland to the hottest area South Africa.
Therefore, BENY EV charger has been catering to the different customers'needs and updating our products in terms of functions, materials etc
