Continuous waste engine oil purifier oil disc centrifuge separator machine
- Category: >>>
- Supplier: Chongqing Lushun Scientific & Technological Development Co. Ltd.Chongqing Ltd.
Share on (1600948623132):
Product Overview
Description

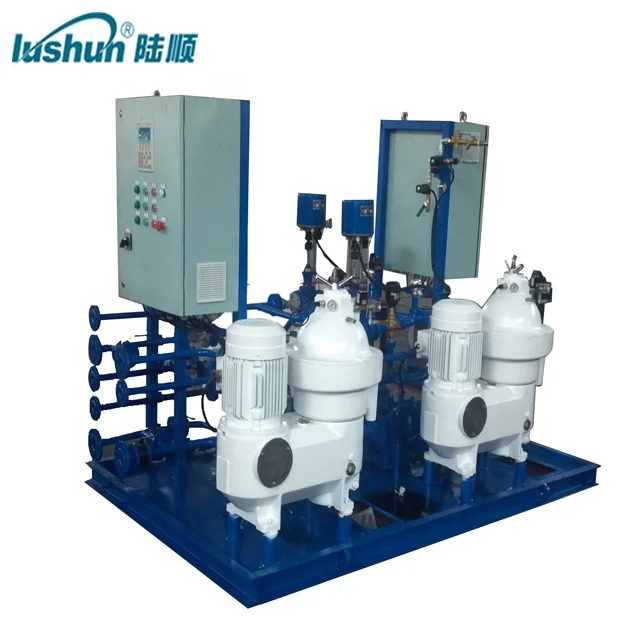

Continuous waste engine oil purifier oil disc centrifuge separator machine
LXF series Mineral Oil Centrifugal Separators are mainly applied to marine mineral oil and land mineral oil purification. At present, the main application of that includes the treatment of marine diesel oil, marine heavy fuel oil, marine lubricating oil, land power plant lubricating oil, engine testing oil, gas turbine oil and crude oil etc. LXF machine can separate water and solid particles from oil. The purified oil and separated oil will be continuously pumped oil while the sludge separated will be drained out regularly. The machine is composed of inlet and outlet device, frame of machine, rotary drum,vertical shaft,shaft coupling and water distribution device.
Model | Overall Dimension (L×W×H) | Diesel Treatment Capacity (L/h) | Turbine Oil Treatment Capacity ( 50℃) (L/h) | Inlet/Outlet Diameter | Operation Mode | Sludge Removal Mode | Standard Control Mode |
LSLXF1218Z | 1450×1200×1600 | 3500 | 2000 | DN25 | Automatic | Automatic Sludge Removal | PLC control, touch screen operation. Temperature and pressure automatic control and alarm. |
LSLXF1217Z | 1450×1200×1600 | 5000 | 3000 | DN25 | |||
LSLXF1317Z | 1650×1500×1800 | 8000 | 4500 | DN25 | |||
LSLXF1417Z | 1650×1500×1800 | 14000 | 8000 | DN25 |
Remarks:
1.If there are any special requirements such as heating or special components, we can customizedesign the machine to meet the requirements.
2.The inlet and outlet are all flange type connections.
Welcome to visit our website, welcome your inquiry.
Contact Person: Mr. Daniel Yang
Email: sale @lushuntec.com
Tell: +86-23-65226016 / 65226026 / 65227191 / +86-13650521202
Fax: +86-23-65226013
Address: No. 1,Sendi Road, Xipeng Town, Jiulongpo District, Chongqing
Web:https: //www.cnlushuntec.com
