Plastic Pellet Storage Silo Aluminum Silo Aor Silos for Grains
- Category: >>>
- Supplier: Henan Haokebang Machinery Equipment Co. Ltd.
Share on (1600948627771):
Product Overview
Description
Products Description
Haokebang grain silo is made of 275g/㎡ hot-dip galvanized sheet and all screws are made of 8.8-level high-strength hot-dip galvanized bolts, which are corrosion-resistant, anti-oxidation, high-temperature resistance, high strength, long service life,and can withstand a strong storm.
The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.
The feed silo is mainly composed of silo body, silo cover, mounting ladder, and silo legs etc. All parts are produced in strict accordance with drawing design by using advanced laser equipment and precision molds, and then undergo strict quality inspections to make each component more standard, more precise in size, and more convenient to install to ensure easy assembly and use.
Specification
Scientifically speaking, the silo capacity should be measured with volume (m3). Even in the same silo, the storage tons will be different for different grains with different densities. The following table is calculated based on a grain density of 750kg/m3, and surely HKB customizes silo systems unique for you.
Most Popular Hopper Bottom Steel Silo Technical Specifications | ||||||||||||||||
Capacity | 50Ton | 100Ton | 150Ton | 200Ton | 300Ton | 500Ton | 1000Ton | 1500Ton | ||||||||
Model | TCZK 03605 | TCZK 04507 | TCZK 05507 | TCZK 06406 | TCZK 07307 | TCZK 07313 | TCZK 11010 | TCZK 12811 | ||||||||
Diameter(m) | 3.667 | 4.584 | 5.500 | 6.417 | 7.334 | 7.334 | 11.000 | 12.834 | ||||||||
Total Height(m) | 9.56 | 12.53 | 13.25 | 12.85 | 14.70 | 21.42 | 20.95 | 23.51 | ||||||||
Volume(m³) Density:750kg/m³ | 69 | 150 | 222 | 273 | 415 | 699 | 1346 | 2039 | ||||||||
Most Popular Flat Bottom Steel Silo Technical Specifications | ||||||||||||||||
Capacity | 1000Ton | 1500Ton | 2000Ton | 2500Ton | 3000Ton | 5000Ton | 8000Ton | 10000Ton | ||||||||
Model | TCK 10014 | TCK 11915 | TCK 13715 | TCK 15514 | TCK 15518 | TCK 18321 | TCK 24718 | TCK 25621 | ||||||||
Diameter(m) | 10.084 | 11.918 | 13.750 | 15.584 | 15.584 | 18.334 | 24.751 | 25.668 | ||||||||
Total Height(m) | 18.69 | 20.34 | 20.87 | 20.30 | 24.78 | 28.60 | 26.99 | 30.60 | ||||||||
Volume(m³) Density: 750kg/m³ | 1335 | 2009 | 2701 | 2467 | 4145 | 6693 | 10879 | 13484 | ||||||||
Case
Rice Silo Project

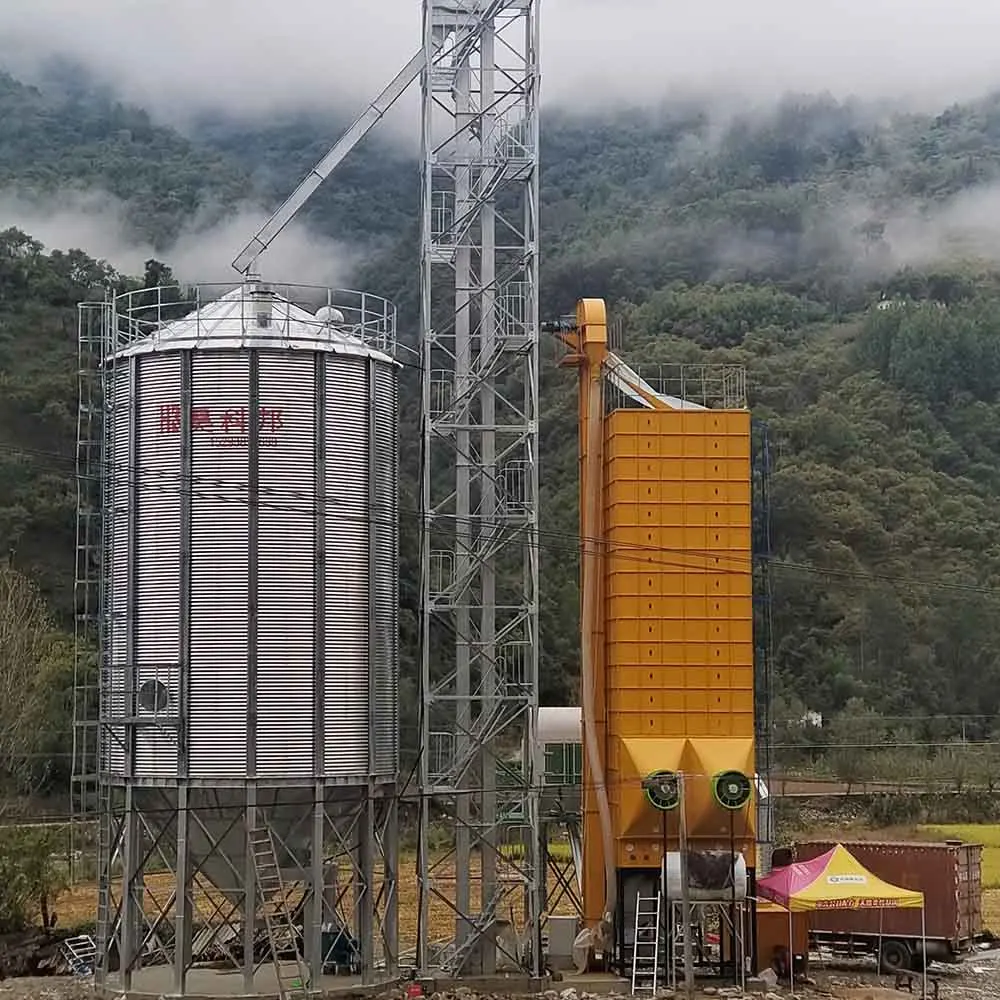

Silo with Tower Grain Dryer Project
5000Ton Grain Silo
Government Silo Project
Angola 4,000-ton Silo Project
18-3000ton Silo Project
Related Products
Company Profile
Henan Haokebang Machinery Equipment Co., Ltd.
Henan Haokebang Machinery Equipment Co., Ltd. was founded in 2008, covers an area of 32,000 square meters, has 8,000 square meters of standardized heavy industrial production room, specializing in the production of various grain processing equipment, such as grain silos and grain dryers. From grain cleaning, drying to storage, haokebang creates one-stop service for you! The company has a variety of large and medium-sized sophisticated equipment, senior management and engineering and technical personnel, and a professional foreign trade team to answer your questions online.
Looking forward to cooperating with you!
Looking forward to cooperating with you!
Why Choose Us
Advanced Production Equipment
Haokebang advanced laser cutting machines, intelligent CNC robots, and silo hoarding forming machines ensures that the steel plate is cut accurately and efficiently, the incisions are flat and beautiful, and the silo has high strength, good seismic performance, and long service life.
Rest Assured Packaging & Transportation
Haokebang has a strictly controlled quality management system, ensures that equipment arrives at its destinations safely and efficiently, and provides important support for customers' work.
One-stop Sevice
As a professional manufacturer of grain processing machines. From grain cleaning, and drying to storage, HKB creates a one-stop service for you!
Rich export experience
The company has independent export rights, and its products are sold to South Korea, Belgium, Indonesia, the Philippines, Thailand, Tanzania, Kenya, Nigeria, Cyprus, Peru and many other countries and regions.
A number of strength certification
Over the years, it has been awarded honorary titles such as "Advanced Quality Management Enterprise" and "Contract-honoring and Credible Enterprise". At the same time hold ISO, CE and other certificates.
