4MP 8CH Full HD Solar Power Battery Wifi Bullet Camera NVR Kit Wireless Outdoor Home Security CCTV Camera System
- Category: >>>
- Supplier: Chongqing Cardweb Electronics Co. Ltd.
Share on (1600948643189):
Product Overview
Description
Hot Products
Product Description
Specification
Category | 10.1-inch 8CH NVR with screen | Spefication |
Picture | * 8CH 10inch LCD integrated video recorder * 3MP/5MP video recording and playback, enjoy high-definition picture quality * H.265+ high compression ratio, Reduce storage space and transmission bandwidth * Built-in wireless Internet module, get rid of network cable bondage * Built-in security dedicated WIFI module, signal stability and anti-interference ability * on-board audio output, sound and picture synchronization * Regional motion detection and humanoid detection, real-time push alarm information * AI intelligent playback, simple and efficient * Support mobile phone, PC client multi-channel remote monitoring, View anytime, anywhere * Supports 3MP/5MP wireless cameras * Support eseecloud P2P server * Wifi up to 300 meters away * Supports 2.5-inch hard disks with a maximum of 6TB * Two-color appearance is optional (black or black and white) * Support eseecloud P2P server * Wifi distance up to 300m | |
Model | CR-KF4-4MP CR-KF8-4MP | |
Video imput | Network imput 8CH | |
Video output | 1 ch，resolution：1024x768，1280x1024,1440x900,1920x1080,support audio output | |
Video compression | H.264，H.265 | |
Audio compression | G711A | |
Decoding parameter | Video resolution 5MP/3MP/1080P/720P | |
Synchronous playback 4 channels @3MP 2 channels @5MP | ||
Video format | SD card , hard disk , cloud storage | |
Alarm video, motion video, timing video, human form detection video | ||
U-disk backup, APP playback point video backup | ||

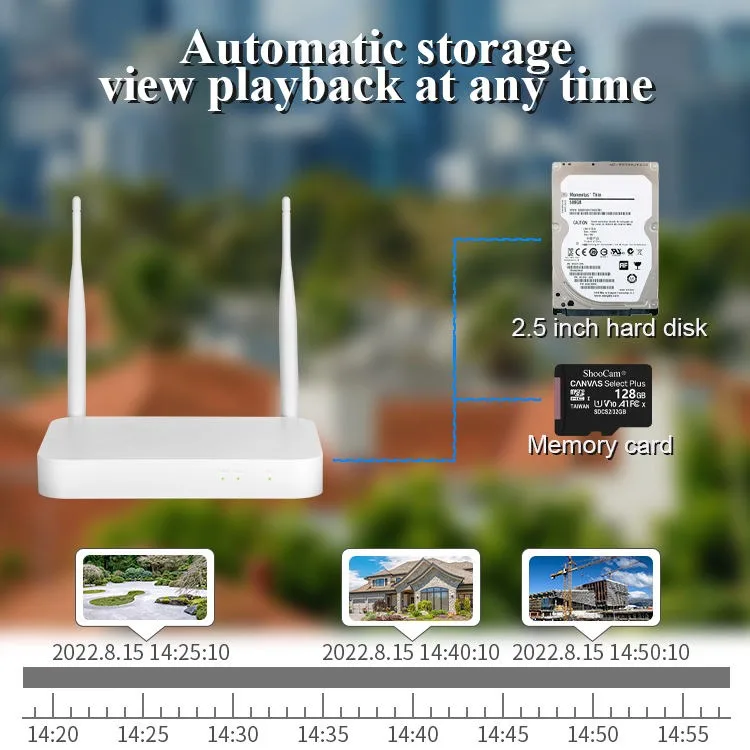

Storage | 1 MicroSD port supports a maximum of 256 ports | |
1 SATA port, supports a maximum capacity of 6TB hard disks | ||
Interface | 1 reset button, hold down for 3 seconds to simply restore factory Settings (clear password), hold down for 10 seconds to fully restore factory Settings Delete all camera channels | |
Press SYNC for 3 seconds to trigger the alignment, and then press to stop or timeout for 60 seconds | ||
USB port: one USB 2.0 | ||
Power | Power imput:12V2A | |
Power consumption (excluding hard disk)≤5W |
Bullet camera | ||||
Parameters | Specification | |||
CPU | Master | AK3919EV3XX | ||
Image Sensor | CMOS sensor | 1/2.8” CMOS Sensor | ||
Effective pixels | 3MP | |||
Video compression | Compression format | H.264/H.265 | ||
Bitstream | HD and SD | |||
Audio compression | AAC/G711A | |||
Lens | Model | JX6401 | ||
Focus | 4mm | |||
Relative Aperture | F2.0 | |||
Interface type | M12*0.5 | |||
FOV | 108 | |||
Resolution | 4MP | |||
Material | 2G2P | |||
Night vision | Distance | 8-10 m | ||
Photosensitive mode | App control | |||
Night vision mode | Full color / infrared modes | |||
IR-CUT | support | |||
Wi-Fi | Mode | RTL8188FTV | ||
Band | IEEE 802.11b/g/n | |||
Distance | 10~20M（No barriers） | |||
Audio | Input/Output | Built-in MIC and Speakers, support two way audio | ||
Microphone | Sensitivity | -35dB± 2dB | ||
Signal-to-noise ratio | ≥58dB | |||
Interface | Reset Button | Support | ||
Power interface | TPY E-C/USB-5V | |||
Wired network interface | NO | |||
PIR | Angle | 100° | ||
Sensor distance | 3-10m | |||

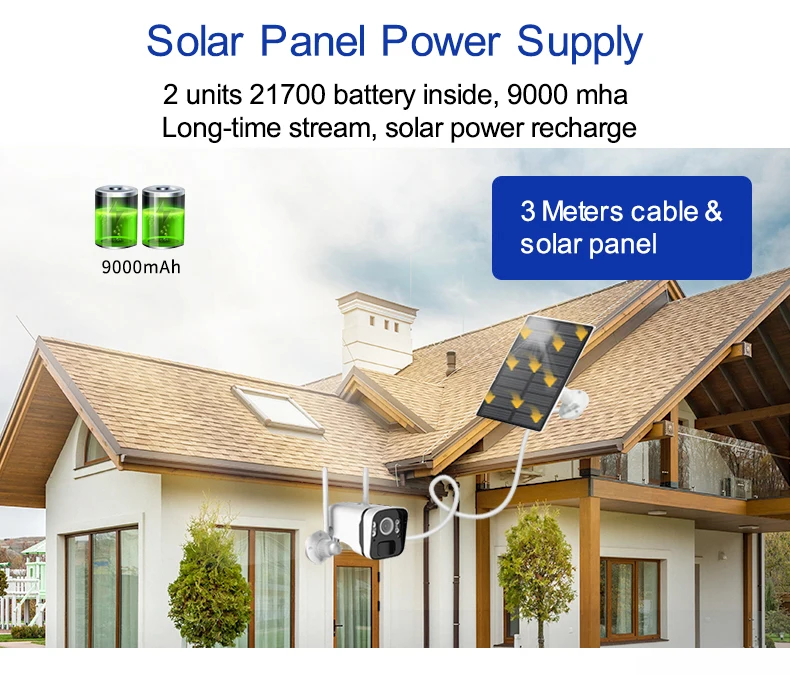

Solar panel | Output | 5V 1.3W | ||
Battery | Model | 21700 | ||
Capacity | 9600 mAh | |||
Environment | Operating temperature | -20℃ - 55℃ | ||
Storage temperature | -20℃ -60℃ | |||
Humidity | Below 95%（No condensation） | |||
Optional power mode | Power saving | Record xx seconds (default: 10 seconds）of video when movement is detected | ||
Motion Detection | Continue recording during the detection of moving objects | |||
Continuous recording | The device keeps recording, automatically switches to the Motion Detection Mode when the power level drops below min , and resumes Continuous Recording Mode when the power level rises above max | |||
Certifications
Why Choose Us
Professional
Established in 2008, Cardweb is a high-tech enterprise with more than 15 years of development and production experience. Cardweb can provide you with professional security protection.
Established in 2008, Cardweb is a high-tech enterprise with more than 15 years of development and production experience. Cardweb can provide you with professional security protection.
One-stop service
Harnessing the power of the sun has never been easier and more professional with our one-stop solution. We support OEM/ODM, a variety of customized styles to meet your needs.
Harnessing the power of the sun has never been easier and more professional with our one-stop solution. We support OEM/ODM, a variety of customized styles to meet your needs.
Convenient
Economic, Ecological, Energy-efficient
Economic, Ecological, Energy-efficient
Easy installation. Easy to use. Easy Maintenance. 24/7 customer service help you to a hassle-free use.
FAQ
Q, How long can your solar cameras last at a full charge？
A: When you install the solar camera outside, even if it is cloudy, it can be charged by ultraviolet light. usually placed outside is completely free of worry about charging. Usually you are completely free of worry about charging when put it outside.
Q, Do you offer free samples ?
A: Yes. You need paying for samples and freight at first. But we promise the fee will be returned to you while you place a bulk order.
For example, sample cost $350 , freight cost $200 . You would get $550 discount while you place an order in 10FT or 20GP container.
Q, Do you accept customers' own design?
A: Certainly you can. Welcome to do OEM and ODM.
If any further problem, welcome to contact us.
Q, Why choose you？
A: Chongqing Cardweb Electronics Co. Ltd. was founded in 2008 , who is professionally engaged in the research, development, sale and service of security products .With more than 15 years experience ,we know what it takes to build stable-quality, long-lasting products. Our team of experts is available 24/7 to ensure that you receive the best service possible.
A: When you install the solar camera outside, even if it is cloudy, it can be charged by ultraviolet light. usually placed outside is completely free of worry about charging. Usually you are completely free of worry about charging when put it outside.
Q, Do you offer free samples ?
A: Yes. You need paying for samples and freight at first. But we promise the fee will be returned to you while you place a bulk order.
For example, sample cost $350 , freight cost $200 . You would get $550 discount while you place an order in 10FT or 20GP container.
Q, Do you accept customers' own design?
A: Certainly you can. Welcome to do OEM and ODM.
If any further problem, welcome to contact us.
Q, Why choose you？
A: Chongqing Cardweb Electronics Co. Ltd. was founded in 2008 , who is professionally engaged in the research, development, sale and service of security products .With more than 15 years experience ,we know what it takes to build stable-quality, long-lasting products. Our team of experts is available 24/7 to ensure that you receive the best service possible.
Q, How is your guarantee your products warranty？
In order to ensure your use, we usually replace rather than repair.If it is the quality problem of the product, we will compensate you for the loss.
In order to ensure your use, we usually replace rather than repair.If it is the quality problem of the product, we will compensate you for the loss.
