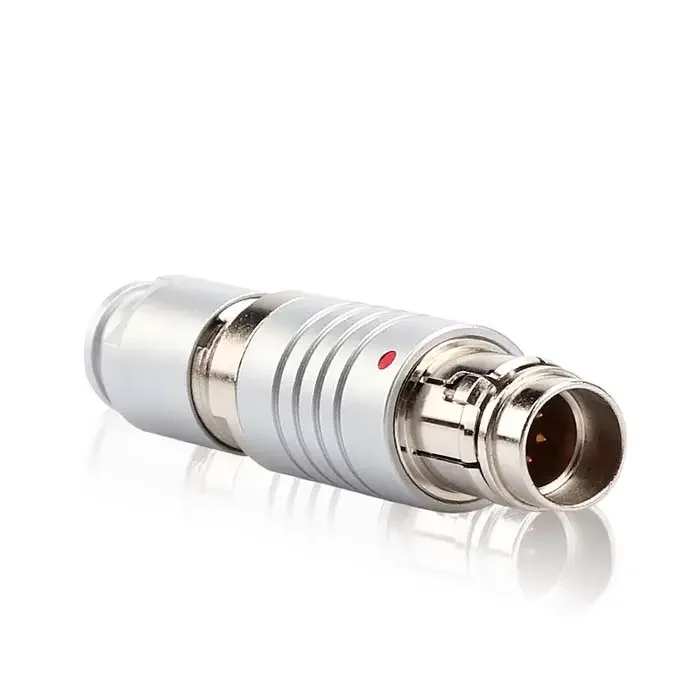

Very good quality MOCO Chinese Manufacturer Designed Precision Circular Push Pull Waterproof M Series Connectors For Outdoor

Product Overview

Description

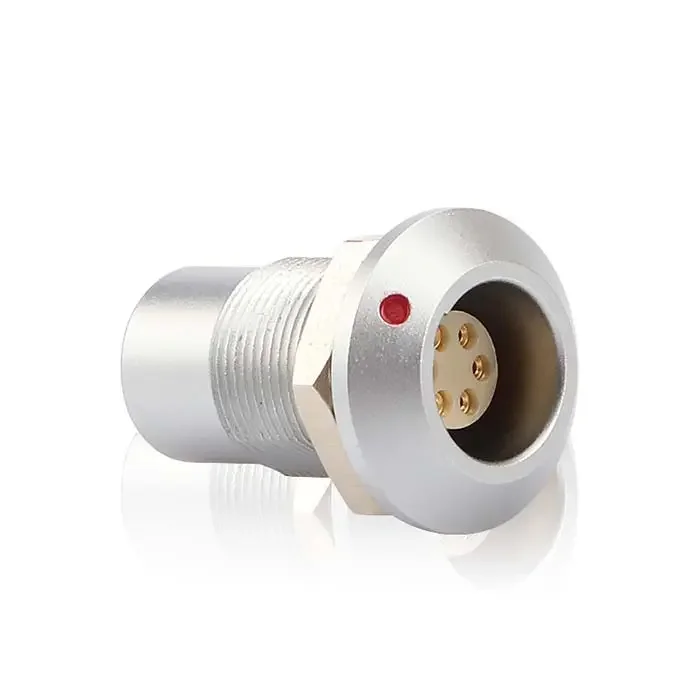

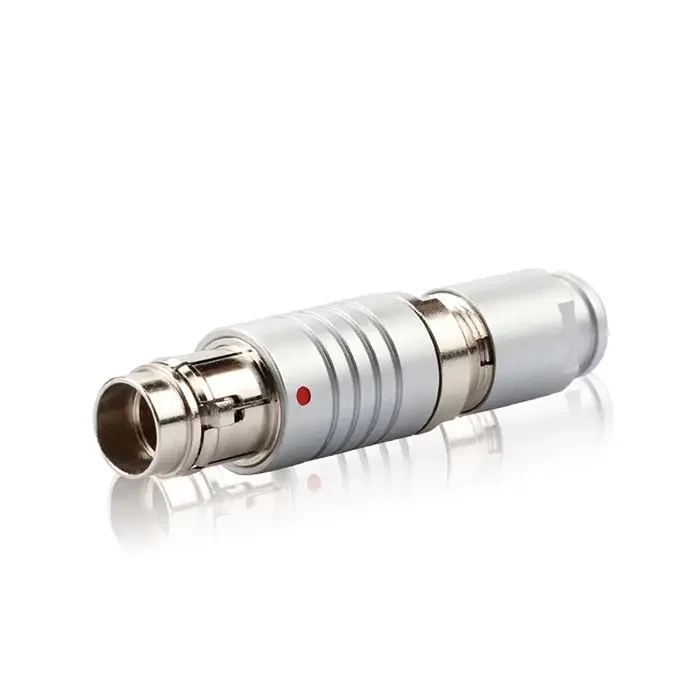

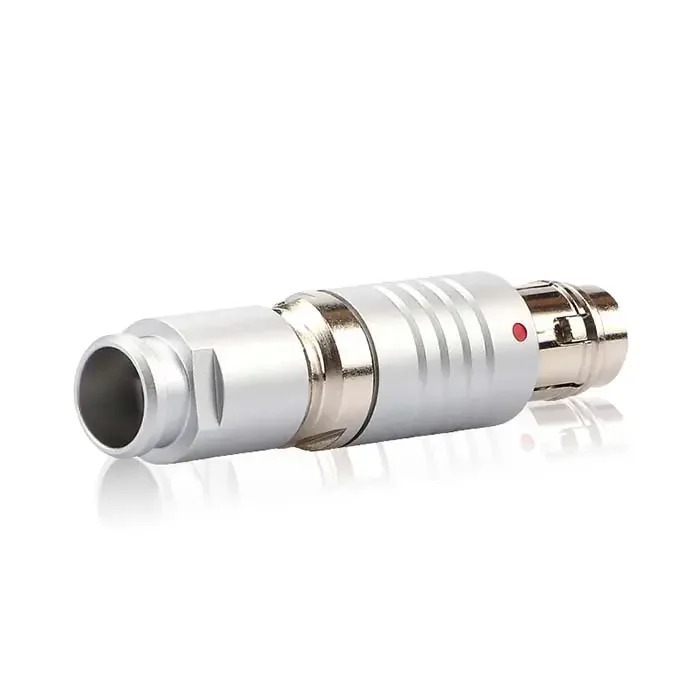

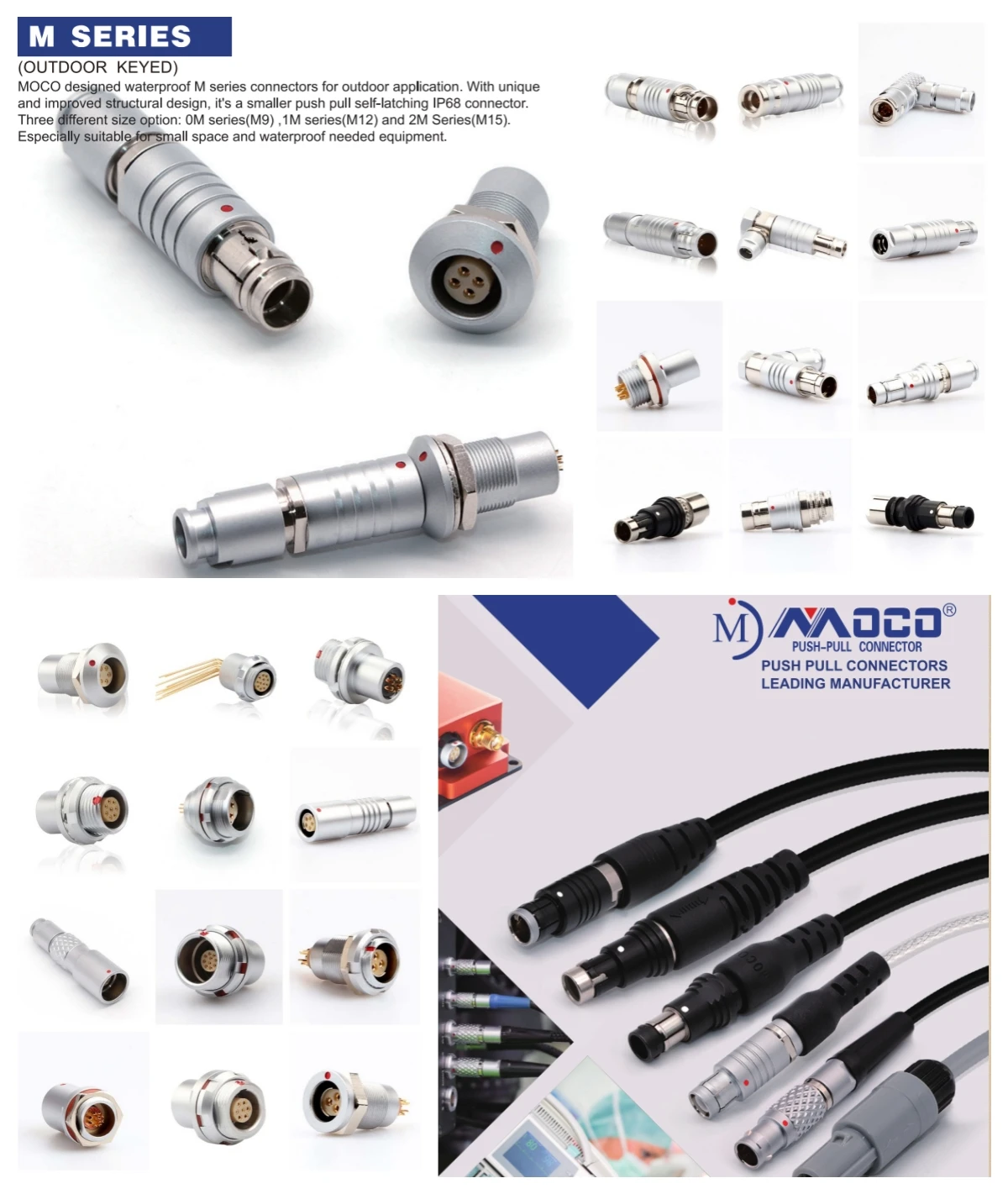

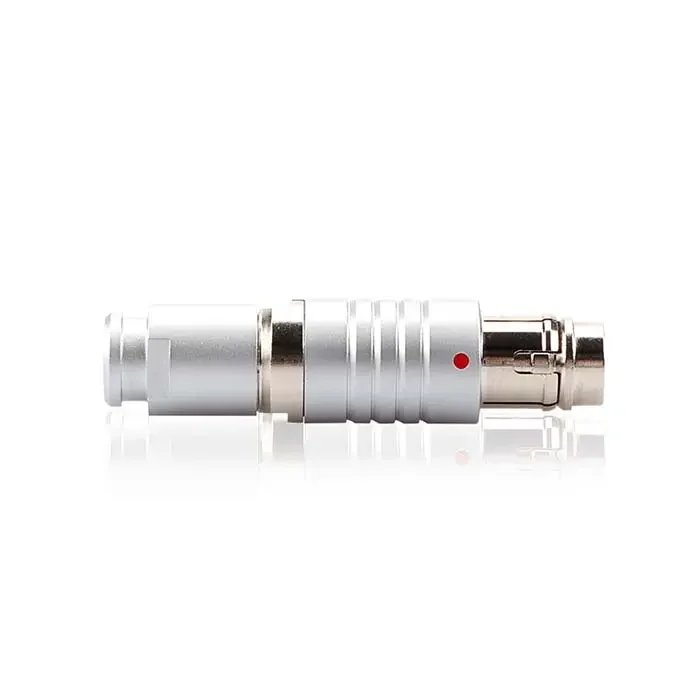

MOCO Chinese Manufacturer Designed Precision Circular Push-Pull Waterproof M Series Connectors For Outdoor Application

Characteristics	Parameter
Locking Type	Push pull self-latching type
Operation Temperature	-55~250°C
Max Humidity	up to 95% @ 60°C / 140°F
Shielding Efficiency	75dB (10MHz)   40dB (1GHz)
Resistance To Vibration	15g (10Hz~2000Hz)
Salt Spray Corrosion Test	96 Hr
Shock Resistance	100g,6ms
Endurance	5000 cycles
Protection Index(mated)	IP68
Pin Qty	2-32 contacts
Operation Voltage	110v-550v
Compatibility	Option
Suitable Cable OD	2.6~9.0mm
Insulation Material	PPS
Out Shell Material	Chrome Plated Brass
Contact Type	Solder Male

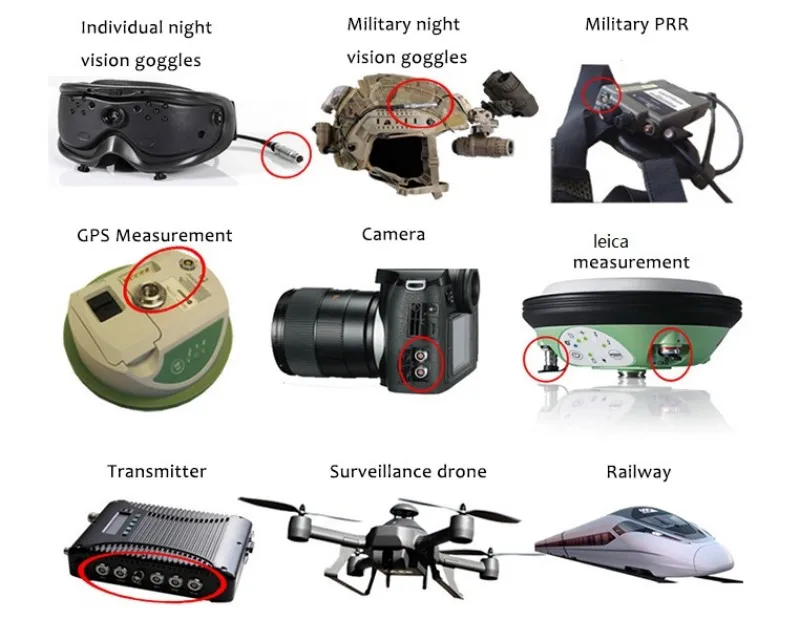

Application



Company Profile

MOCO connectors are of stable performance and attractive appearance which are interchangeable with international brands. Our products are widely used in the fields of military, medical, measurement, audio- video, navigation, security, aviation, industrial control, automotive and power, etc.

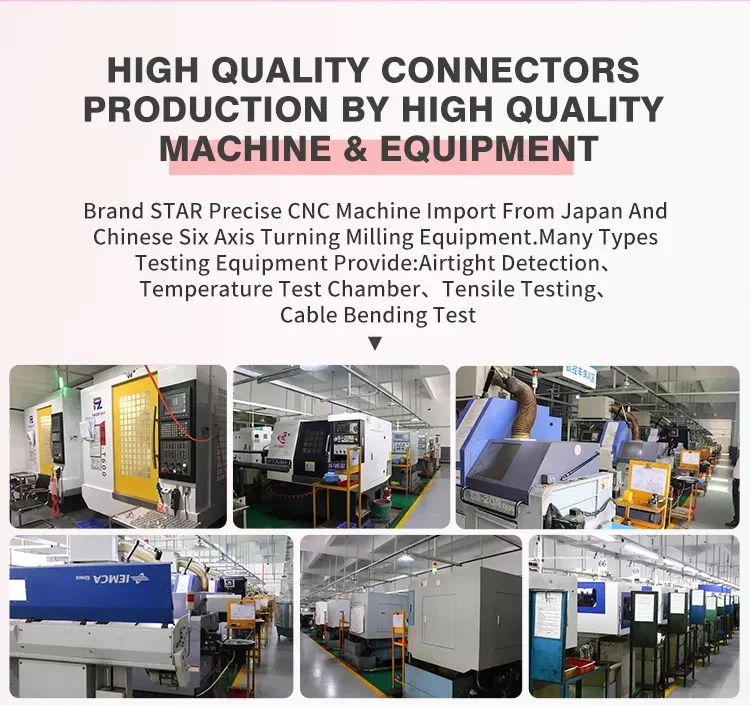

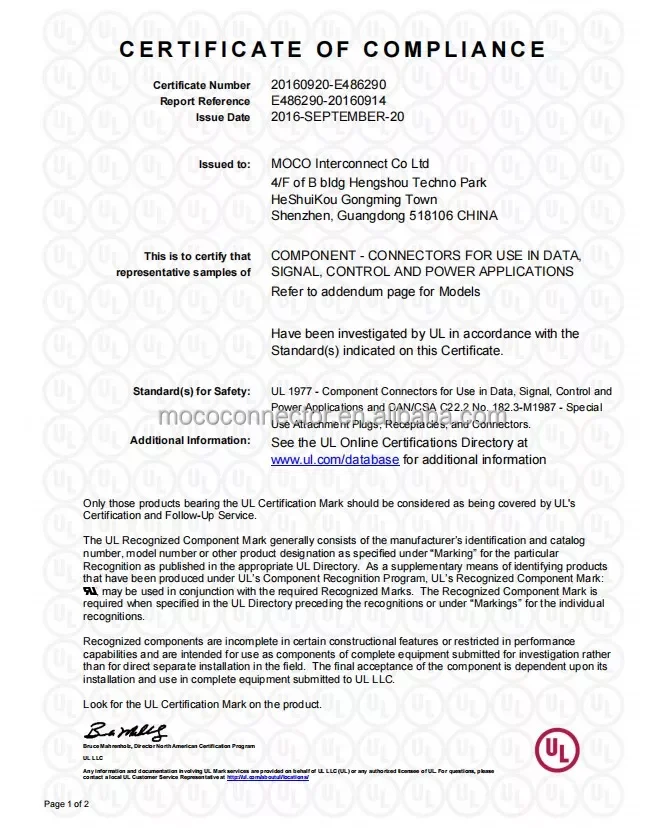

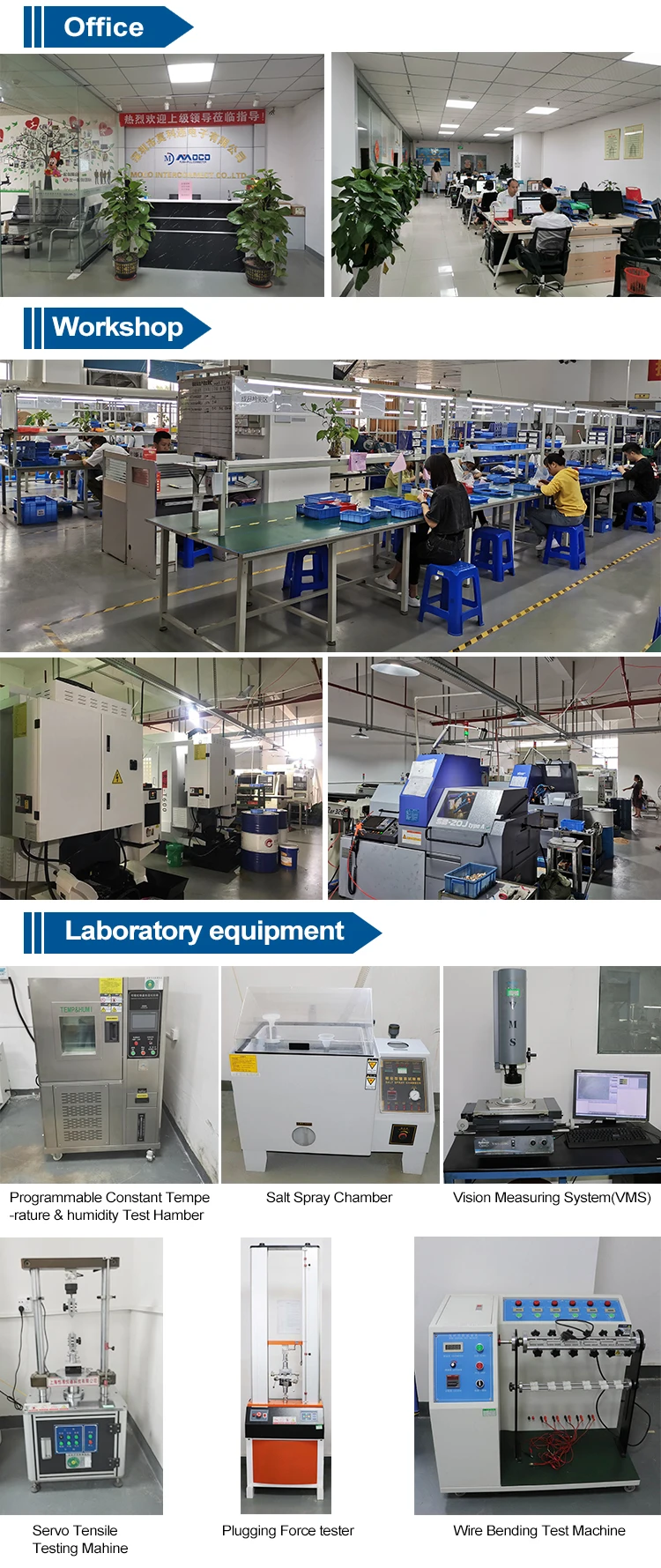

We have obtained UL, CE, RoHS and ISO9001 certificates.We have multifunctional laboratory with testing equipment like cable testers, plugging force tester, salt spray chamber, voltage tester and wire bending test machine.Our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Packaging & Shipping

Our Service:

We will reply your inquiry as soon as possible within 24 hours.

We can do custom designs and molds for customers.

Providing high quality products with resonable price.

We will offer you a good after-sales service.

100% timely delivery rate is our pursuit.

After shipment, we will inform you the tracking number and pay attention to the logistics information untill you receive goods.

After receiving, please check them and give us a feedback. If you encounter any problem, please contact us and help you solve it.



FQA

Q:Are you a fatory or trade company?
A:We are manufaturer of connectors and cables with 10 years experience.



Q:Do you provide samples? Is it free?
A:We can provide a small number of free samples, but you need to pay the freight.



Q:What can you buy from us?
A:Push-pull connectors, cable assembly, bayonet connectors, military connctors, custom connectors.



Q:What about the leading time?
A:If there's stock, we ship the goods within 3-5 working days after the deposit is confirmed. Or else, it depends on the quantity you need.



Q:What payment methods you support?
A:We accept T/T, Papal, Western Union, and Alibaba Trade Assurance.
