384x288 12um 50mm lens 3200m range night vision monocular hunting scope Multi Function Binoculars Thermal Imaging Binoculars
- Category: >>>
- Supplier: Shenzhen Coolsport Equipment Co. Ltd.
Share on (1600948673132):
Product Overview
Description
Product Description

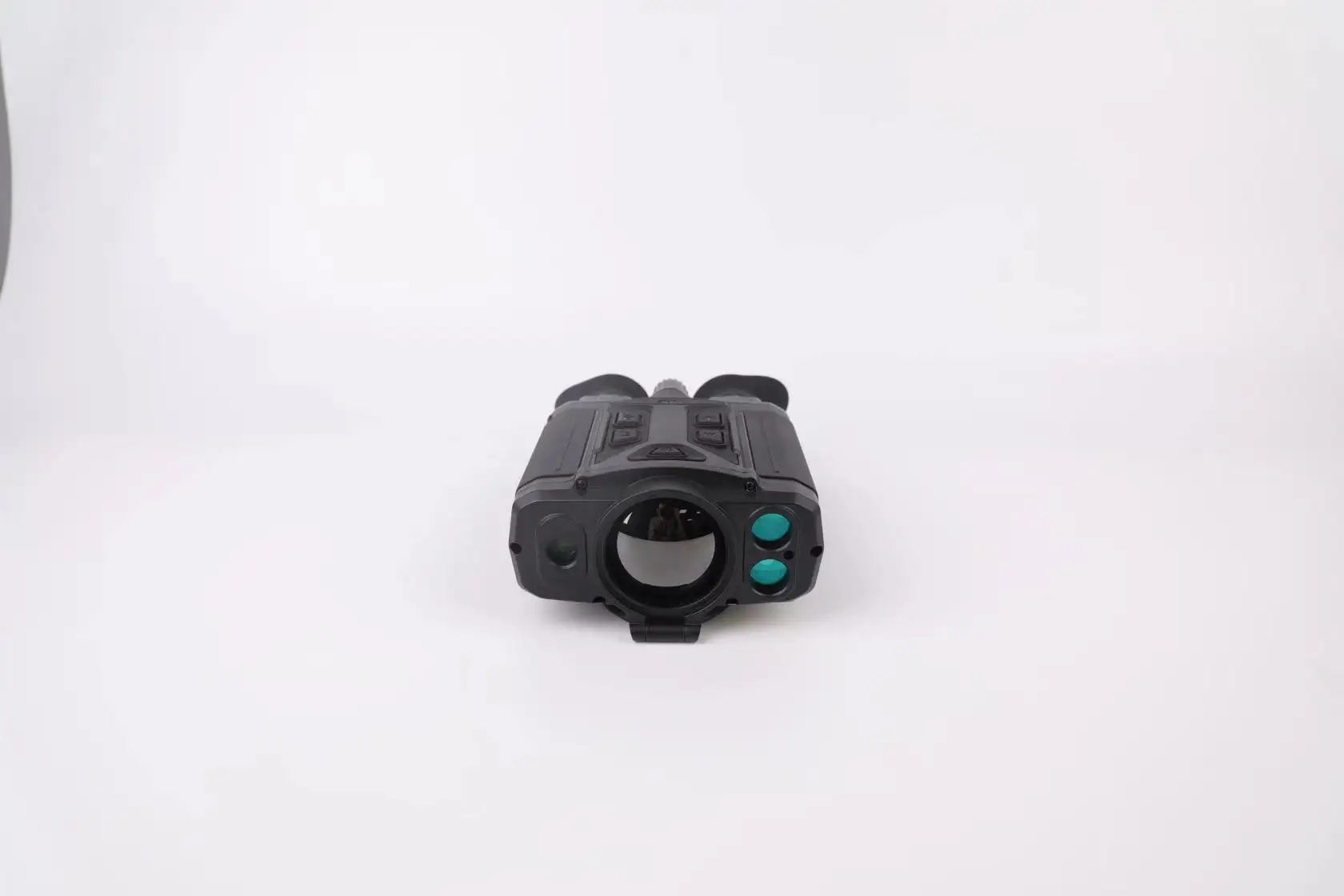

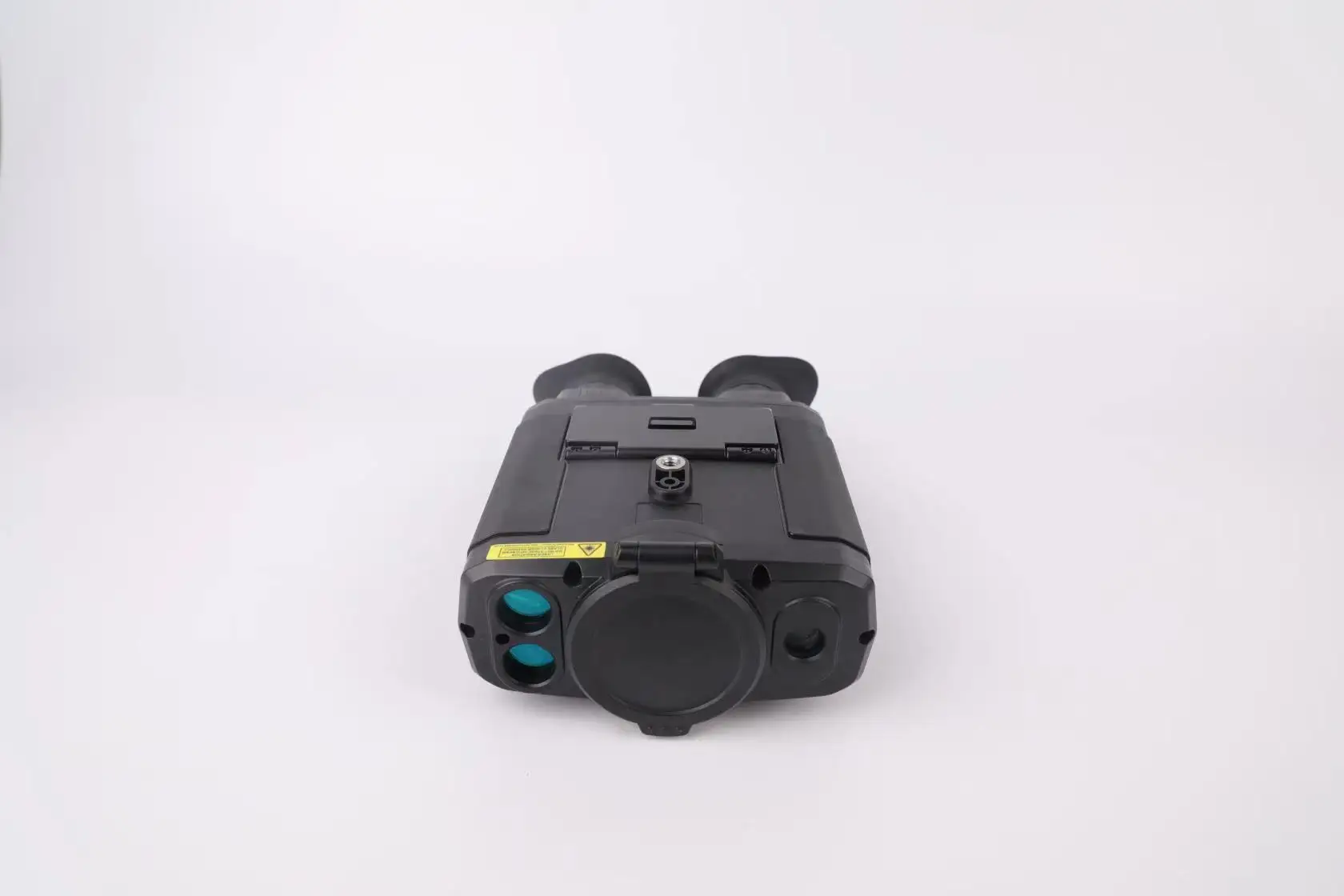

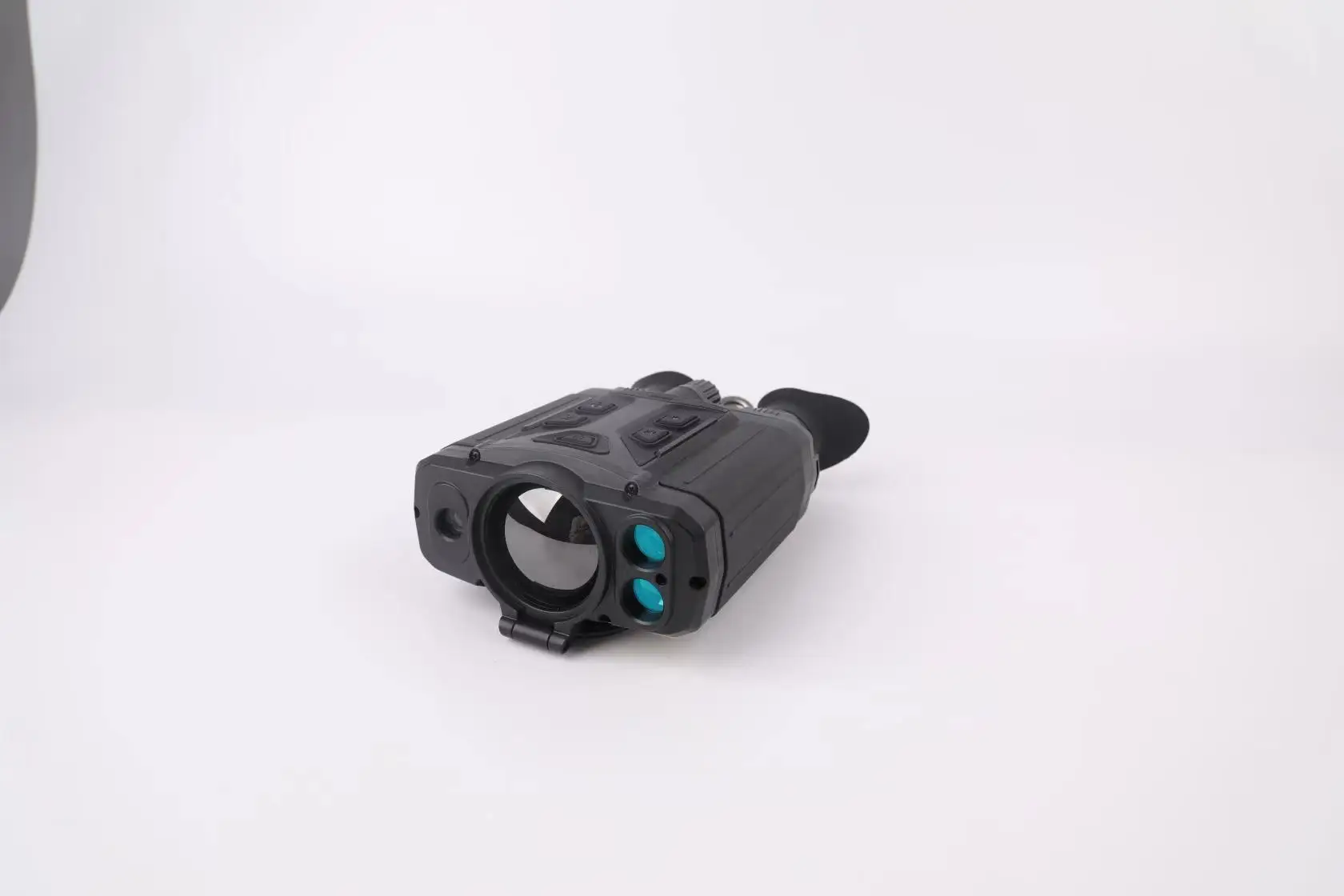

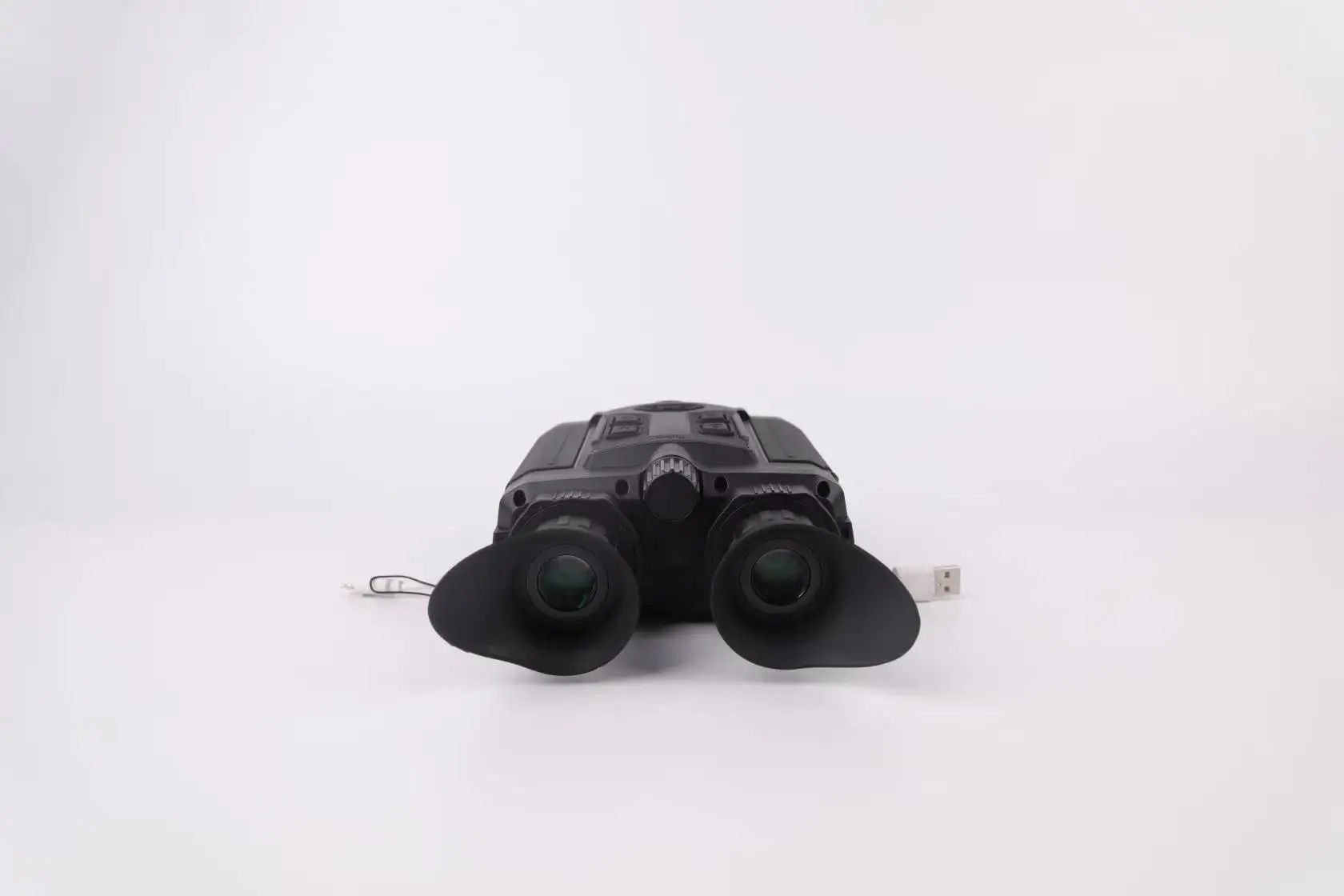

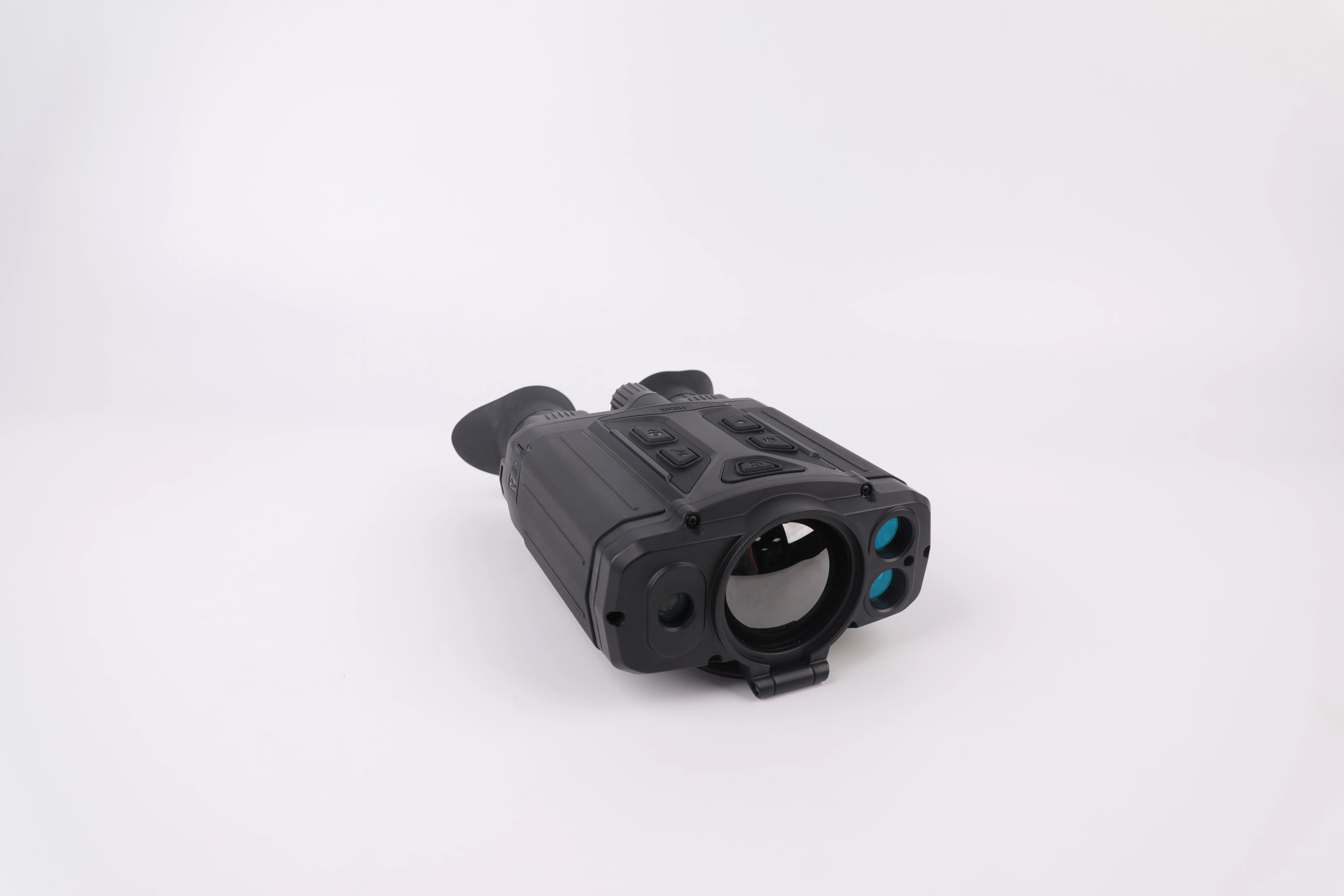

Uncooled Thermal Imaging Fusion Binoculars
Main feature
* Large size high resolution (1440*1080 pixels), high-performanceOLED display.
* Can be customized to adjust the interpupillary distance between 56~71mm, and the observation comfort is better.
* Support low-light mode, infrared thermal imaging mode,and dual-light fusion mode to meet the needs of day and night observation and law enforcement.
* Built-in high-resolution (1920*1080 pixel) low-light camera, WIFI camera,and video function, more convenient on-site forensics and video recording.
* Built-in GPS positioning, precise positioning of longitude, latitude,and altitude.
* Built-in three-dimensional electronic compass, which can display the azimuth angle, horizontal roll,and pitch angle parameters in real-time.
* 1000m accurate laser ranging with independent switch laser indicator, which is more convenient for target positioning.
* IP66 encapsulation is suitable for various environments.
* Large size high resolution (1440*1080 pixels), high-performanceOLED display.
* Can be customized to adjust the interpupillary distance between 56~71mm, and the observation comfort is better.
* Support low-light mode, infrared thermal imaging mode,and dual-light fusion mode to meet the needs of day and night observation and law enforcement.
* Built-in high-resolution (1920*1080 pixel) low-light camera, WIFI camera,and video function, more convenient on-site forensics and video recording.
* Built-in GPS positioning, precise positioning of longitude, latitude,and altitude.
* Built-in three-dimensional electronic compass, which can display the azimuth angle, horizontal roll,and pitch angle parameters in real-time.
* 1000m accurate laser ranging with independent switch laser indicator, which is more convenient for target positioning.
* IP66 encapsulation is suitable for various environments.
Items | MS715E | MS715 | MS715P | |||
Detector | VOx uncooled focal plane type | |||||
Spectral range | 8 - 14 µm | |||||
Resolution | 384×288 | 640×512 | ||||
Pixel spacing | 12µm | |||||
NETD | ≤35mk@30℃ | |||||
IR lens | ||||||
Focal length | 35mm | 50mm | 50mm | |||
FOV | 7.5°*5.7°（±5%） | 5.3°*4.0°（±5%） | 8.8°*7.0°（±5%） | |||
Focusing method | Manual focus | |||||
Low-light lens | ||||||
Resolution | 1920（H）×1080（V） | |||||
Image display | ||||||
Monitor | Binocular 0.39-inch color OLED, resolution 1440*1080 | |||||
Interpupillary distance | 56~71mm adjustable | |||||
Diopter adjustment | -5D~+5D adjustable | |||||
Image storage | ||||||
Storage card | Built-in memory | |||||
Storage method | Photo/Video | |||||
File format | JPG/MP4 | |||||
Capacity | Standard 32G | |||||
Function | ||||||
Brightness/ Gainess | Auto/manual | |||||
Image correction | Auto/manual | |||||
E-zoom | 1.0~8.0x | |||||
Picture-in-picture | Yes | |||||
Hotspot Tracking | Yes | |||||
Laser Ranging | / | 1000m±1m | ||||
Distance display | / | Real-time display of ranging distance | ||||
Laser pointer | / | Yes | ||||
GPS positioning | / | Yes | ||||
Electronic compass | Yes | |||||
Wifi transmission | Yes | |||||
Scene mode | Natural, enhanced, highlighted | |||||
Image mode | Low light mode, infrared thermal imaging mode, dual light fusion mode | |||||
Image color code | White hot, black hot, iron red, red hot, ocean, desert, forest, etc. | |||||
Power system | ||||||
Battery type | 2 18650 batteries | |||||
Battery continuous working time | >5h | |||||
Charging method | Support online charging and dedicated charger | |||||
External power supply | DC5V/2A（USB Type-C） | |||||
Sleep function | Yes | |||||
Environment | ||||||
Working temperature | -30℃～55℃ | |||||
Storage temperature | -40℃～70℃ | |||||
Humidity | ≦95％（non-condensing） | |||||
Impact resistance | 30g，GB/T2423.5（IEC60068-2-27） | |||||
Anti-vibration | 2g，GB/T2423.10（IEC60068-2-6） | |||||
Encapsulation | IP66 | |||||
Physical | ||||||
Weight | ≤0.6Kg（without battery） | |||||
Color | Black | |||||
Dimension | 211（L）mm×145（W）mm× 74（H）mm | |||||
External interface | ||||||
Data interface | Yes | |||||
External video | HDMI | |||||
USB | Yes | |||||
Installation interface | 1/4"-20-UNC | |||||
Detection distance | ||||||
Human（1.8×0.5）m | Low light：3200m IR：1400m Fusion：1400m | Low light：3200m IR：2000m Fusion：2000m | Low light：3200m IR：2000m Fusion：2000m | |||
Vehicle（2.3×2.3）m | Low light：5100m IR：2300m Fusion：2300m | Low light：5100m IR：3200m Fusion：3200m | Low light：5100m IR：3200m Fusion：3200m | |||
Recognition distance | ||||||
Human（1.8×0.5）m | Low light：1600m IR：700m Fusion：700m | Low light：1600m IR：1000m Fusion：1000m | Low light：1600m IR：1000m Fusion：1000m | |||
Vehicle（2.3×2.3）m | Low light：2500m IR：1100m Fusion：1100m | Low light：2500m IR：1600m Fusion：1600m | Low light：2500m IR：1600m Fusion：1600m | |||
Packing & Delivery
* Battery pack and charging kit
* Carrying case
* Lens cloth
* USB cable
* Hand strap
* Carrying case
* Lens cloth
* USB cable
* Hand strap
* User manual
Shipping to worldwide via DHl express with 3-5 days delivery.
Shipping to worldwide via DHl express with 3-5 days delivery.
our advantage:
* secure transaction guaranteed
* we offer reasonable discount on bulk purchase
* we offer 1 year warranty
* we ship monday through sunday with package tracking & arriving reminding
