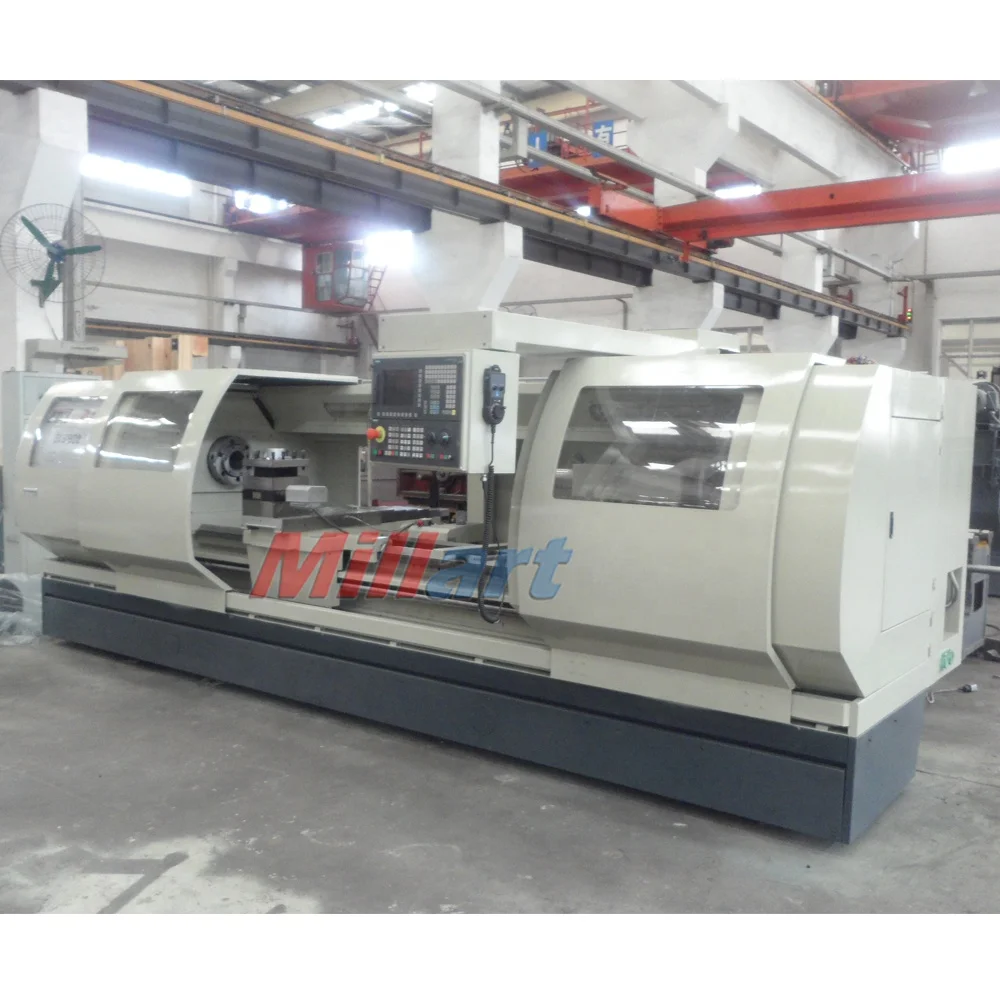

CK61100 Flat Bed CNC Turning Lathe Machine Center/Heavy Duty Machine Price/Horizontal Flat Bed CNC Lathe
- Category: >>>
- Supplier: Tengzhou Millart Machine Tool Co. Ltd.
Share on (1600948677396):
Product Overview
Description
Product Description
Feature
This is CNC horizontal lathe is the widely used standard automated metal processing equipment at present, which is suitable for processing large size metal parts and components with complex shape such as shaft and disc; it will greatly improve the processing efficiency and reduce the labor intensity of the workers when it is used to process great mass of parts. This series of lathe is reliable in accuracy and stability and easy in operating and programming, it can undertake various turning works such as turning inner and outer cylindrical surface, so it is applied widely and is a kind of ideal metal processing equipment.
Product Details
MODEL | CK61100 | |
Max swing over bed | 1000mm | |
Max swing over cross slide | 670mm | |
Center distance | 1500 2000 3000 4000 5000 6000mm | |
Spindle hole | 105mm | |
Bed width | 600mm | |
Max weight of workpiece | 3.5T | |
Max distance of moving tool-post | ||
Longitude | 1500 2000 3000 4000 5000 6000mm | |
Transverse | 520mm | |
Spindle speeds | 6-20,18-70,70-245,225-750rpm 4steps | |
Main motor power | 15KW | |
Speed of high-speed movement | ||
Longitude | 6m/min | |
Transverse | 4m/min | |
Feed resolution | ||
Longitude | 0.01mm | |
Transverse | 0.005mm | |
Tool numbers on tool-post | 4 (6/8 Optional) | |
Positioning accuracy | ||
Longitude | 0.04/1000mm | |
Transverse | 0.03mm | |
Repeatability | ||
Longitude | 0.016/1000mm | |
Transverse | 0.012mm | |
Repeatability accuracy of tool-post | 0.005mm | |
NET WEIGHT | ||
Center distance 1500mm | 4700kg | |
2000mm | 5200kg | |
FLOOR SPACE(L*W*H) | ||
Center distance 1500mm | 3300*1550*1840 | |
2000mm | 3800*1900*1960 | |
Standard accessories:
1.FANUC 0I -MATE
2. Coolant system
3. Standard work light
4. Vertical 4-position electrical turret
5.Three-jaw chuck 325mm
6.Three-jaw chuck seat
7.Tool post spanner
8.Steady rest φ100-φ300
9. Documents
10. Half Chip guard (1M--3M)
11. Automatic lubrication system
12. Heat exchanger
13. center
14.Center sleeve
Special accessories:
1. Hydraulic chuck ,Hydraulic tailstock
2. Six position electric turret
3.Follower test
4.GSK or Siemens control system
