Molten Aluminum Casting Filtration AdTech Refractory Ceramic Fiber Foam Filters Plate Price For Aluminum Foundry
- Category: >>>
- Supplier: Adtech Metallurigical Materials Co. Ltd.
Share on (1600948701237):
Product Overview
Description
Products Description

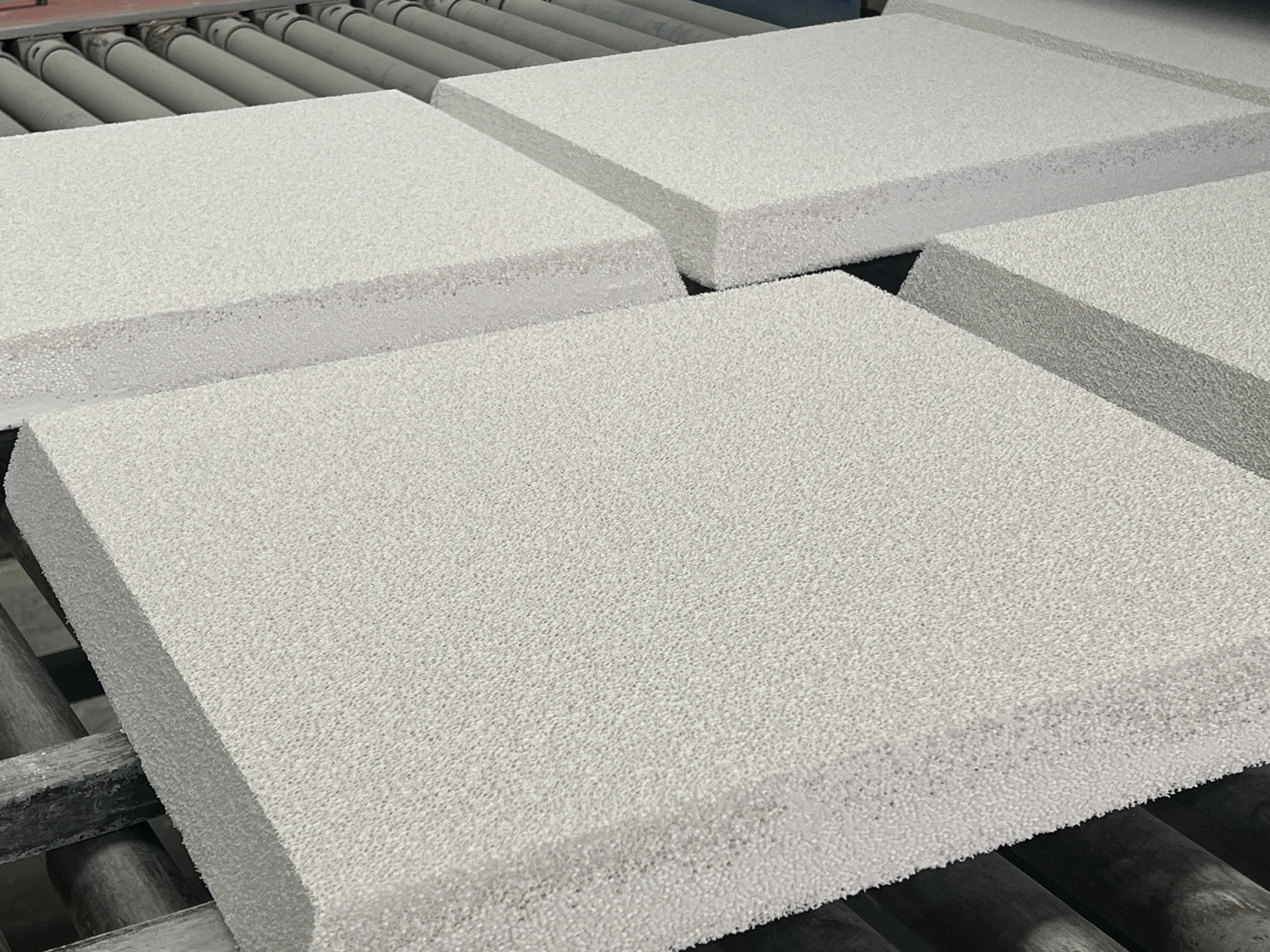

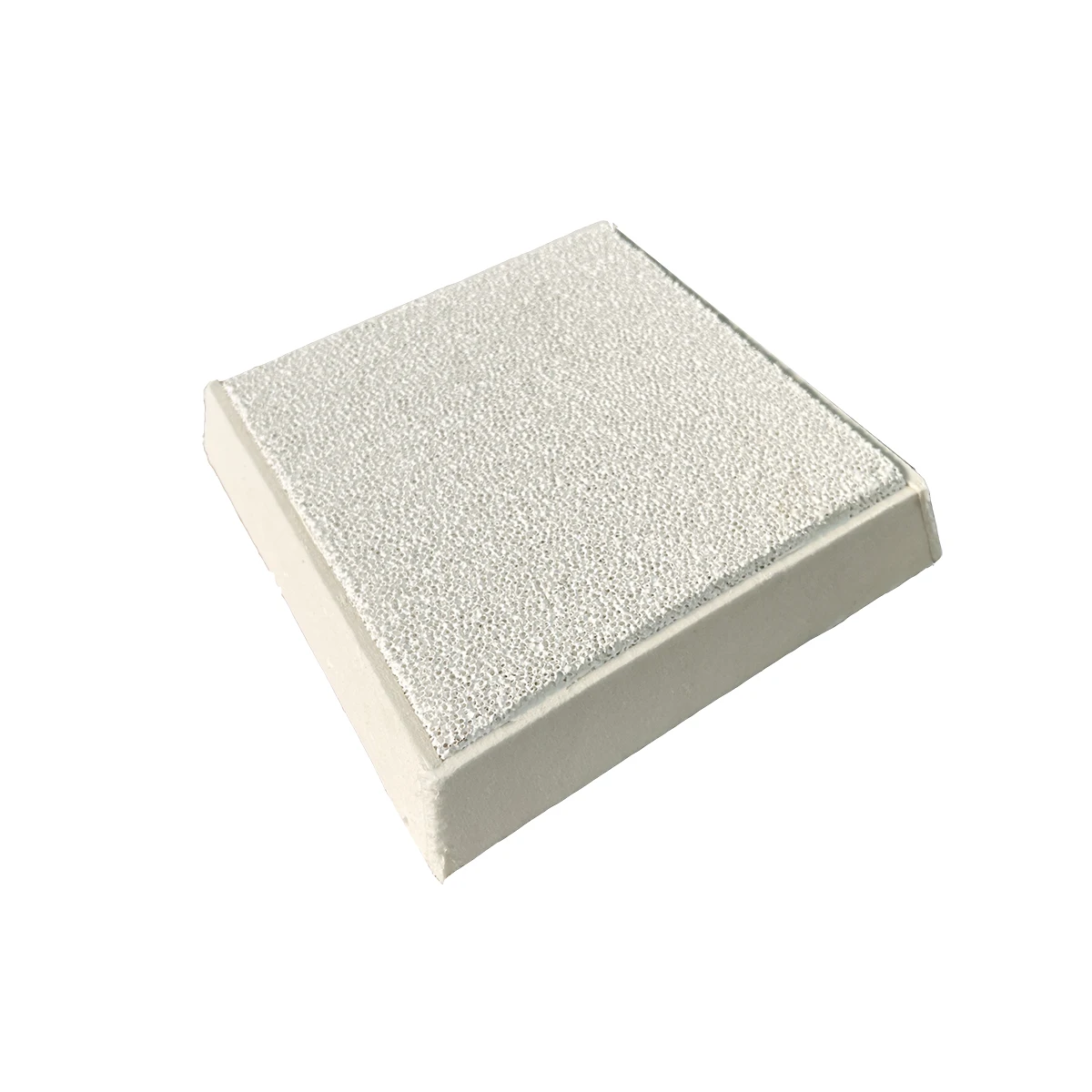

Al2O3 Ceramic Foam Filter for aluminum foundry

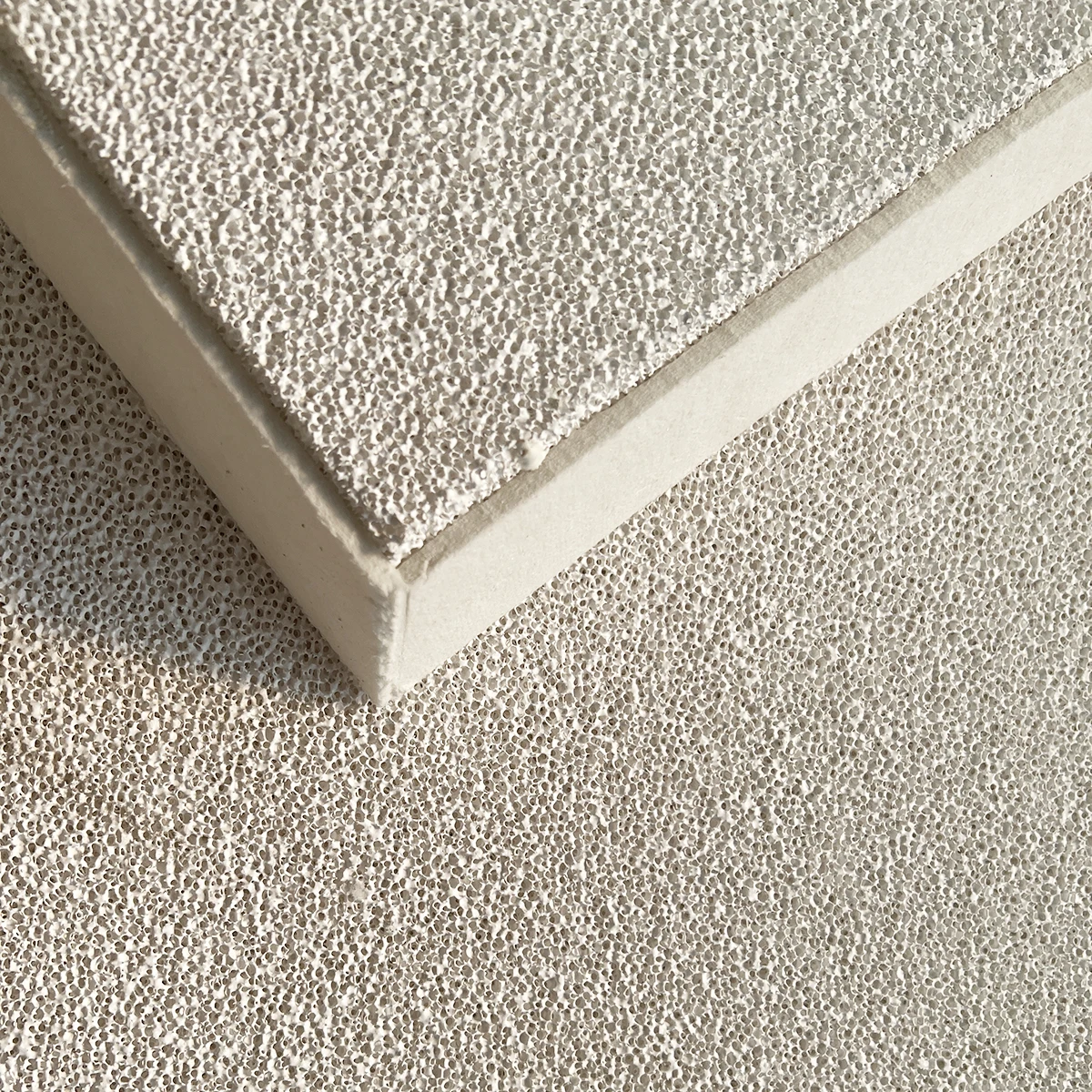

1. Ceramic Foam Filter is a high-temperature sintered three-dimensional network structure,
2. Ceramic Foam Filter has strong adsorption capacity and can remove tiny inclusions in aluminum liquid,
3.Ceramic Foam Filter is widely used in the production of aluminum foil coil billets, aluminum materials and automobile wheel hub billets,
4. Higher applicability and economy.
Classification of ceramic foam filters
Ceramic foam filters are silicon carbide ceramic foam filters, alumina foam ceramic filters, and zirconia foam ceramic filters. Our ceramic foam filter is a three-dimensional network structure sintered at high temperature. The alumina ceramic foam filter can effectively remove non-metallic solid mixtures in aluminum and aluminum alloy melts, reduce trapped gas and provide laminar flow. The filtered aluminum The metal is visibly clean. The metal is cleaner, the casting quality is higher, there is less scrap, and there are fewer inclusion defects, improving the quality of aluminum alloy and other non-ferrous alloy castings, helping to reduce casting costs. Foam ceramic filters have high porosity, high mechanical strength, stable chemical properties, strong corrosion resistance, high adsorption rate, excellent filtration function, and good thermal shock resistance. Moreover, our phosphorus-free ceramic foam filter effectively reduces the corrosion of magnesium metal to aluminum.

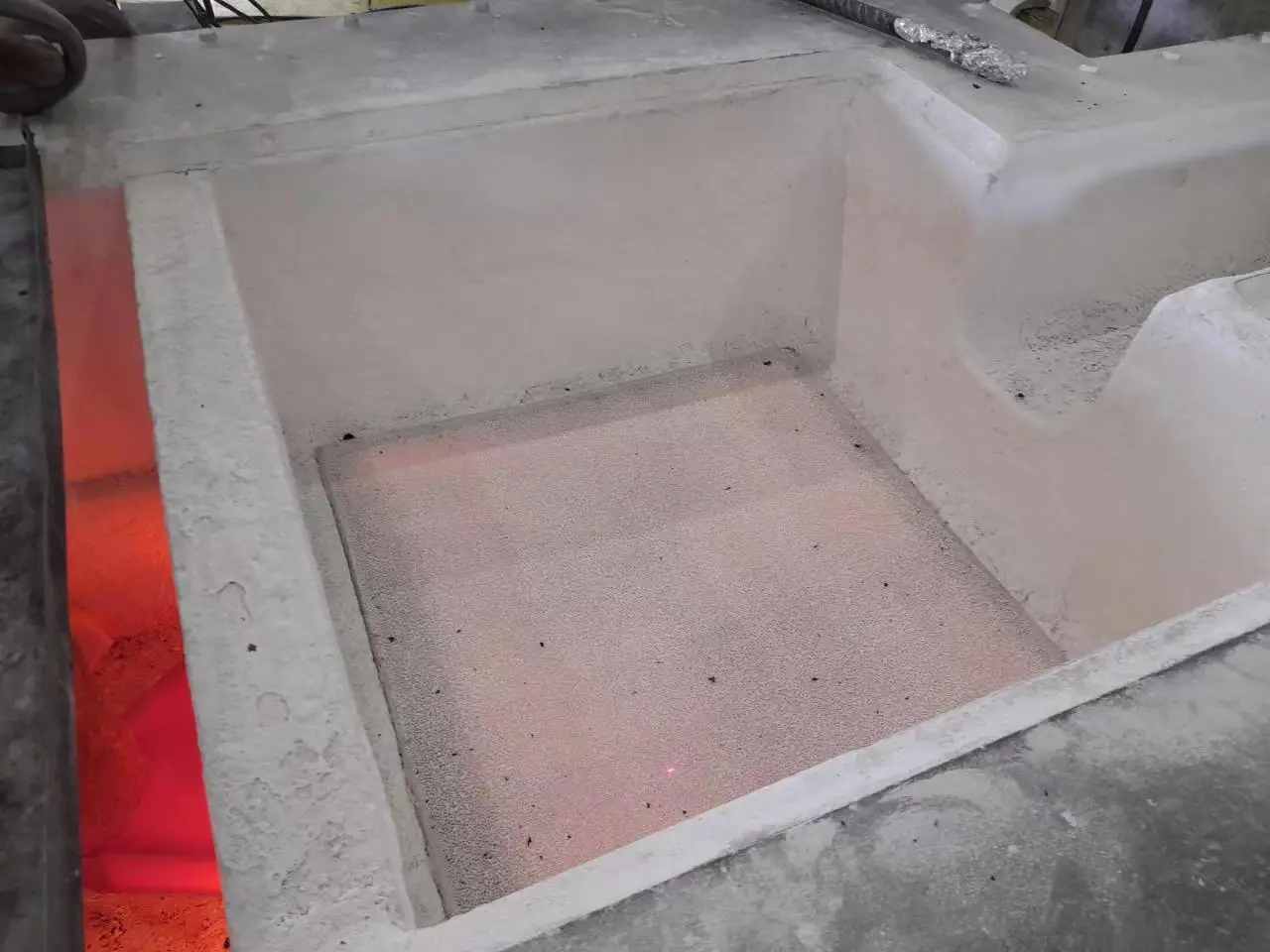

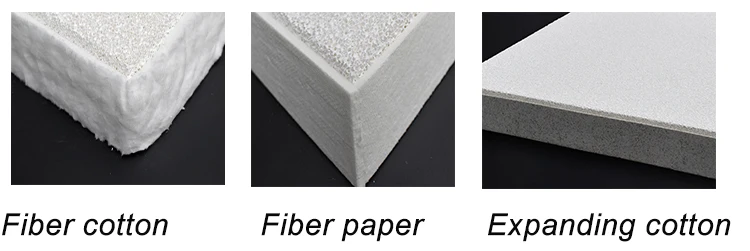

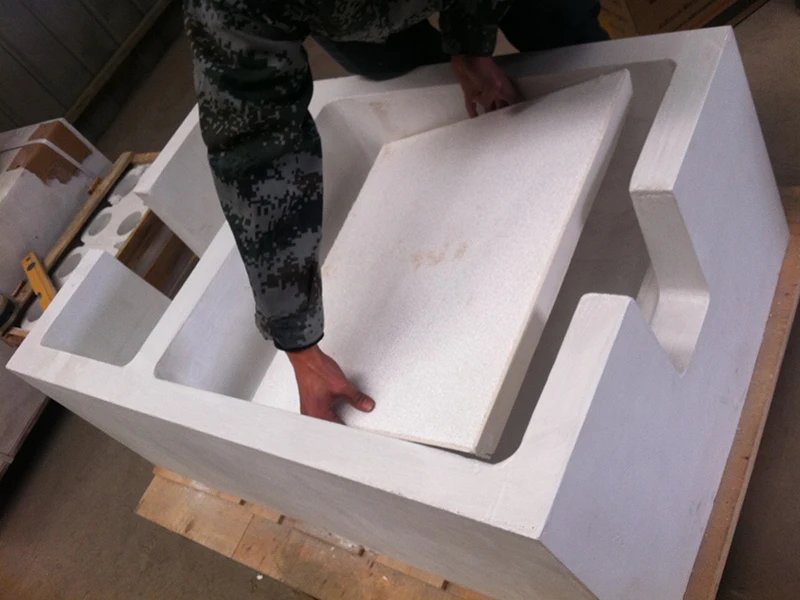

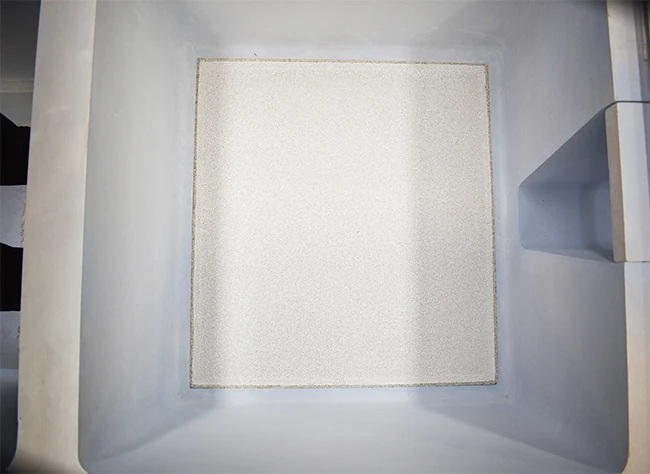

There are three types of gaskets for ceramic foam filters: ceramic fiber cotton, ceramic fiber paper, and expand cotton. The gaskets can effectively prevent aluminum liquid from leaking through the contact surface between the ceramic foam filter and the filter box.
There are three types of gaskets for ceramic foam filters: ceramic fiber cotton, ceramic fiber paper, and expand cotton. The gaskets can effectively prevent aluminum liquid from leaking through the contact surface between the ceramic foam filter and the filter box.
Our Advantage
♦ Applied to improve the quality of aluminum alloy and other non-ferrous alloy casting
♦ Improve metallurgical structure
♦ Enhance mechanical properties
♦ Change turbulence into laminar flow
♦ The surrounding of the filter is sealed with expanded gasket. When the temperature is above 450°C, 200% expansion of the gasket
will happen to prevent floating and leakage of liquid aluminum through interface.
♦ The filter can effectively remove big piece inclusions in molten aluminum, and effectively adsorb tiny inclusions.
♦ Improve metallurgical structure
♦ Enhance mechanical properties
♦ Change turbulence into laminar flow
♦ The surrounding of the filter is sealed with expanded gasket. When the temperature is above 450°C, 200% expansion of the gasket
will happen to prevent floating and leakage of liquid aluminum through interface.
♦ The filter can effectively remove big piece inclusions in molten aluminum, and effectively adsorb tiny inclusions.
Specifications (mm) | Effective filtration area (%) | Filtration flow range (kg/min) |
7in(178*178*50) | 75 | 22-56 |
9in(229*229*50) | 75 | 25-80 |
12in(305*305*50) | 80 | 50-156 |
15in(381*381*50) | 85 | 85-252 |
17in(432*432*50) | 86 | 110-335 |
20in(508*508*50) | 88 | 160-478 |
23in(584*584*50) | 89 | 210-640 |
26in(660*660*50) | 90 | 276-830 |

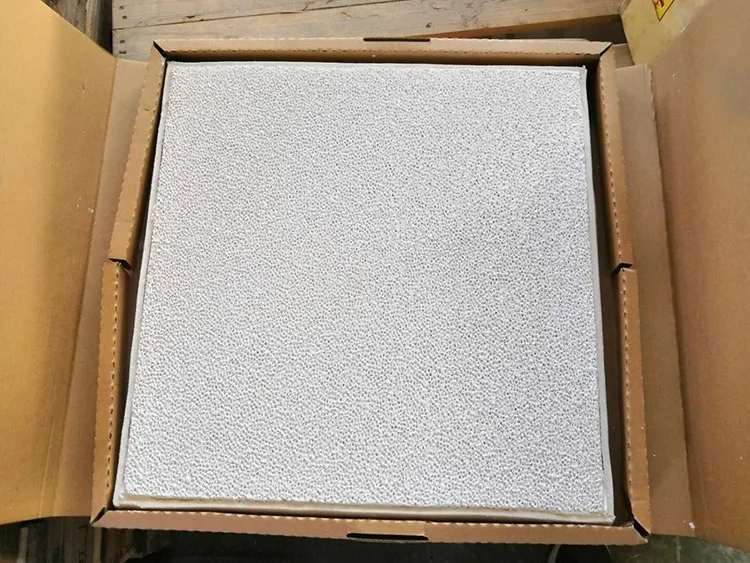

Product packaging

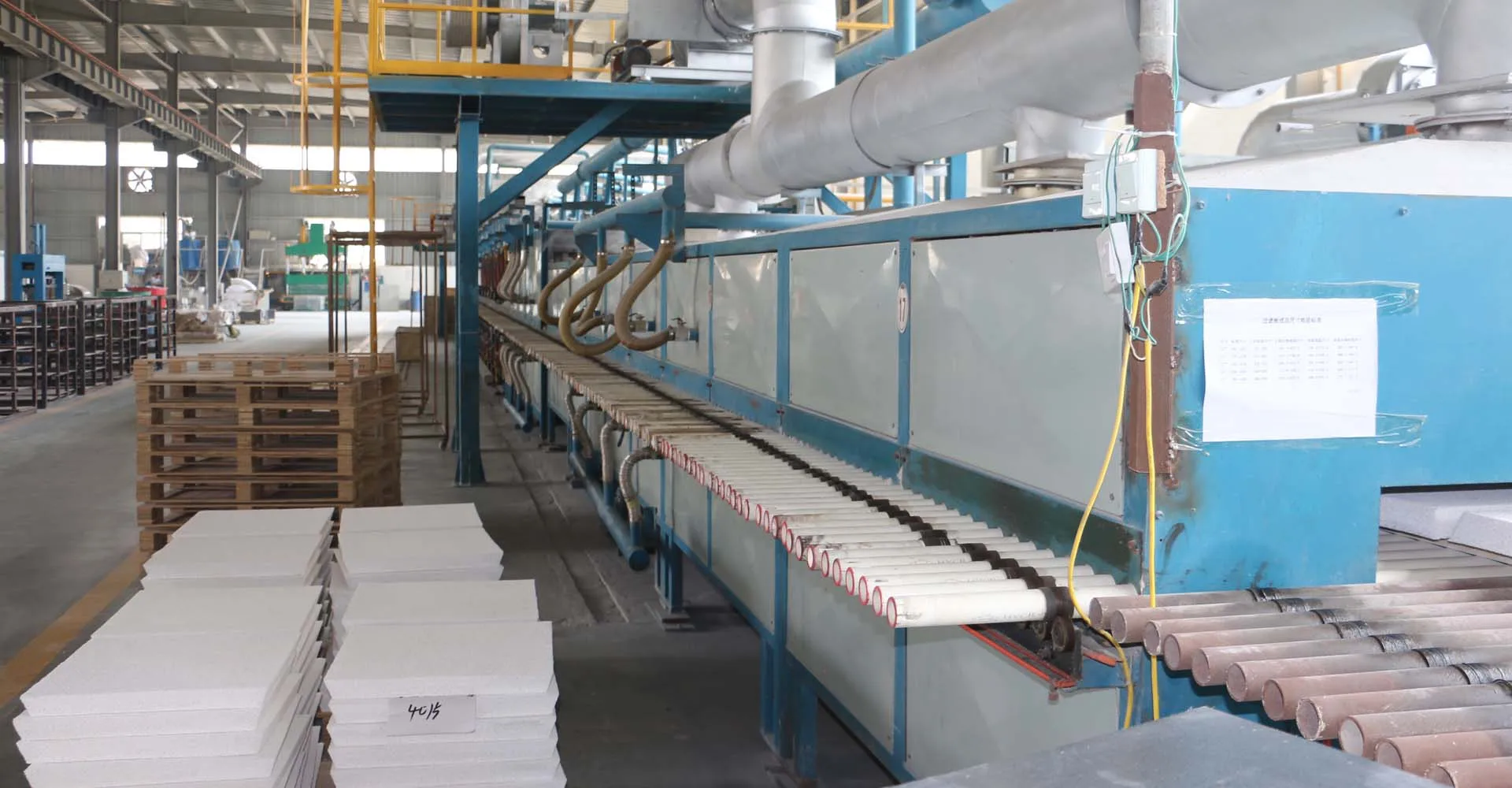

Company Profile
AdTech produces materials and provides services for high-temperature filtration and purification with muscular technical strength and managment system.AdTech was founded in 2012, and the China plant has been put into production by the end of 2013. AdTech is an international enterprise concentrating on R & D and manufacturing online degassing and filtrating equipment, ceramic foam filter, hot-top casting materials, nozzle board, repair coating materials and flux. AdTech products are mainly used in aluminum casting to isolate and adsorb impurities and back-flow protection.AdTech China factory has acquired the ISO 9001,ISO 14001,CEand SGS.
AdTech serves customers from dozens of countries and regions including Europe(Hydro/Rusal),Middle East (Aluminum Bahrain,Dubai Aluminum,Midal Cables, EGA), Southeast Asia(Press Metal,GVA,Jindal),China(Chinese Aluminum Industry,Zhongwang China, Weiqiao,Midas),ect.
AdTech serves customers from dozens of countries and regions including Europe(Hydro/Rusal),Middle East (Aluminum Bahrain,Dubai Aluminum,Midal Cables, EGA), Southeast Asia(Press Metal,GVA,Jindal),China(Chinese Aluminum Industry,Zhongwang China, Weiqiao,Midas),ect.
Customer Photos
FAQ
1.Q:Are u the factory or trading company?
A: We are factory who was founded in 2012 .
2.Q:What's your main products?
A:We are making Online degassing, Filtrating equipment, Ceramic foam filter, Hot-top casting materials, Nozzle board, Repair coating material and Flux to overseas for many years.
3.Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001/ISO14001/SGS.
4.Q:What's the payment term that you can accept?
A: We can accetp T/T , L/C , Western Union ,Cash ect.
5.Q: How can I get samples?
A: We are honor to offer you the samples.
6. Q:Does your company accept customization?
A:We accept OEM service.
7.Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
A: We are factory who was founded in 2012 .
2.Q:What's your main products?
A:We are making Online degassing, Filtrating equipment, Ceramic foam filter, Hot-top casting materials, Nozzle board, Repair coating material and Flux to overseas for many years.
3.Q:How can you control your quality?
A:For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and we have the quality certificates with ISO9001/ISO14001/SGS.
4.Q:What's the payment term that you can accept?
A: We can accetp T/T , L/C , Western Union ,Cash ect.
5.Q: How can I get samples?
A: We are honor to offer you the samples.
6. Q:Does your company accept customization?
A:We accept OEM service.
7.Q:Can we visit your company?
A:Yes, for sure, you are welcome to visit our company.
